Harfington 5 Pairs RS232 Serial DB9 DB-9 9-Pin Male & Female Connector Jack Socket

5 Pairs RS232 Serial DB9 DB-9 9-Pin Male & Female Connector Jack Socket

ID:
$8.43 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

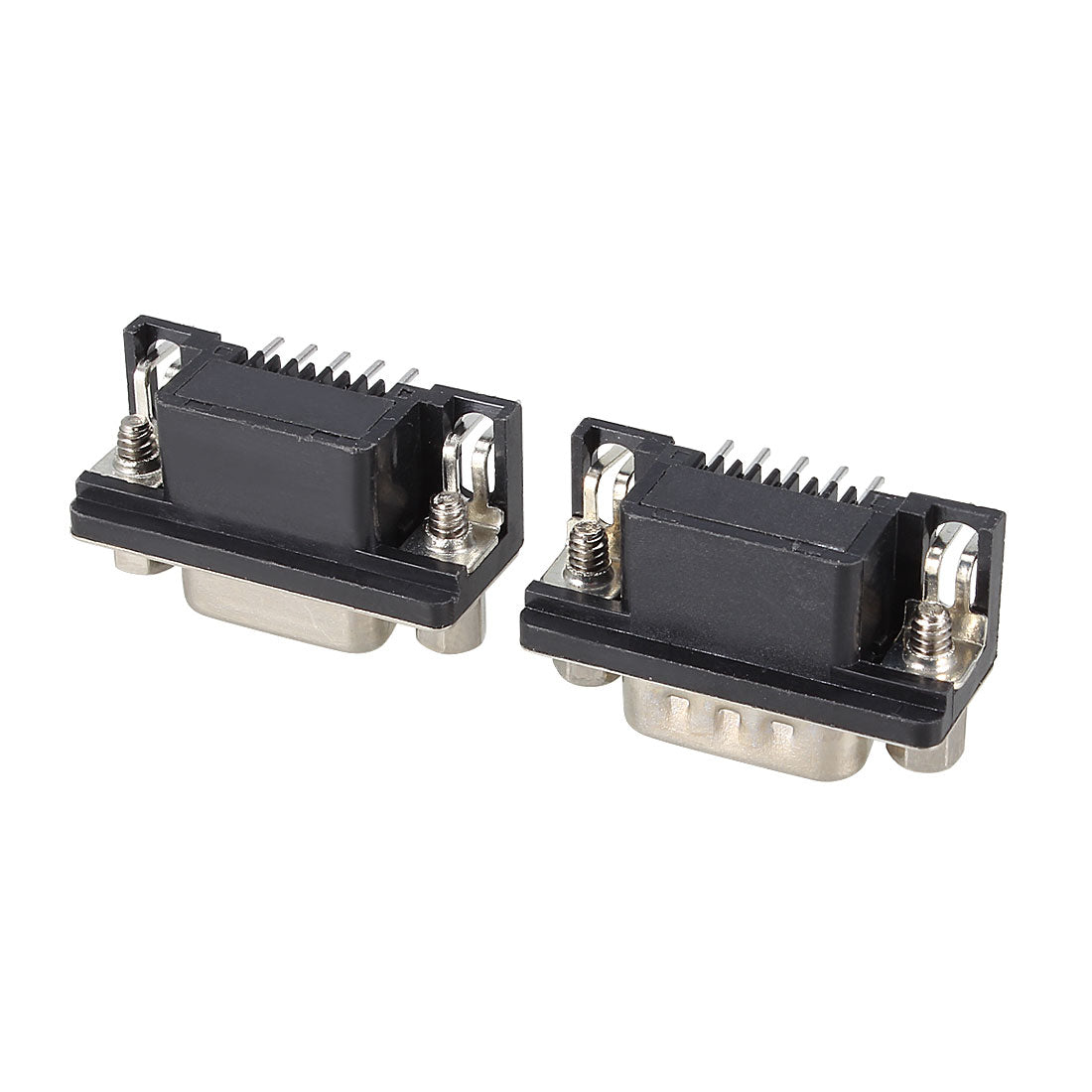

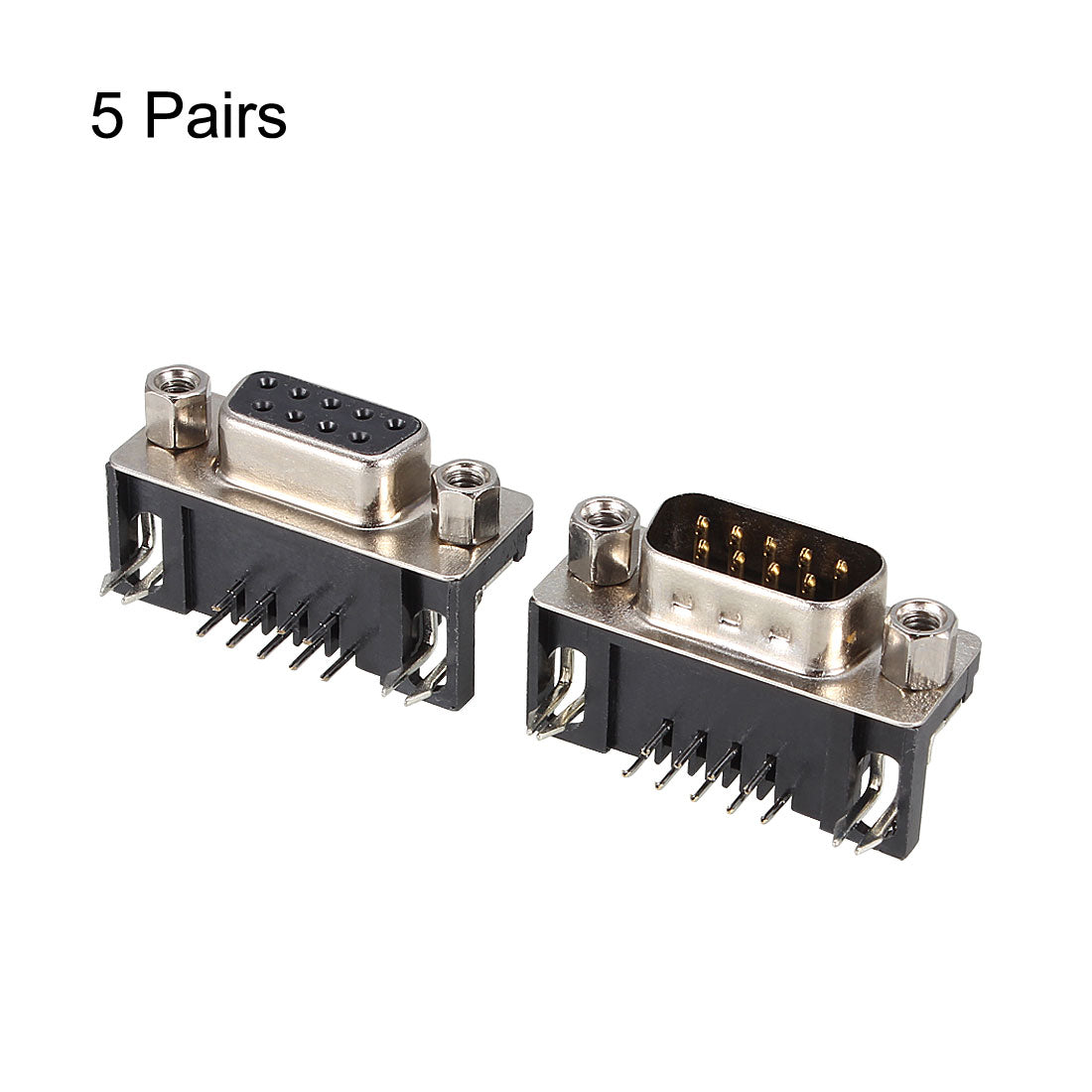

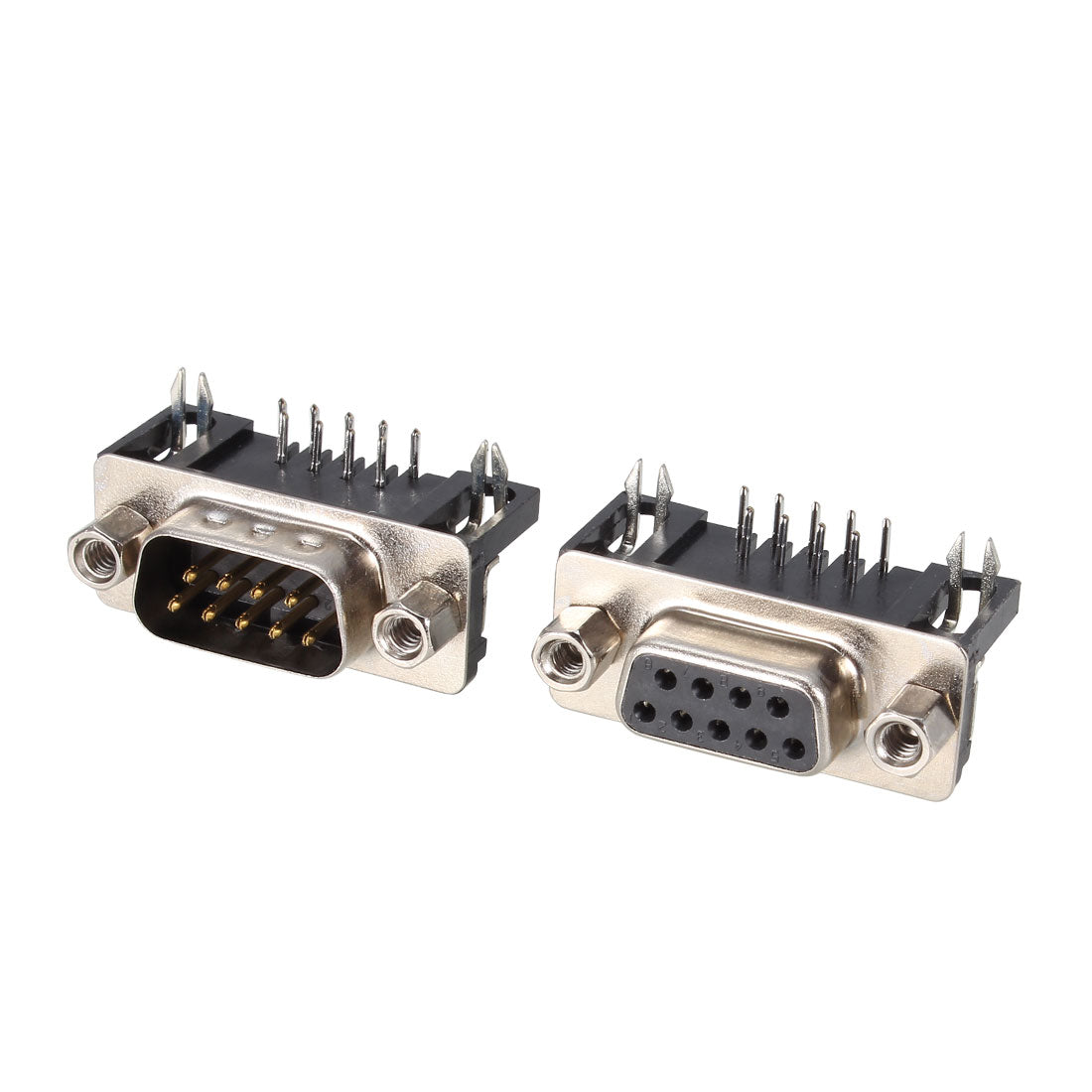

  • Product Name : DB9 Connector Jack;Type : DB9 9-Pin , 2-Row
  • Each Dimension : 31 x 18 x 15mm/ 1.2" x 0.71" x 0.6"(L*W*H);Mount Hole Dia. : 3mm / 0.12"
  • Mount Hole Center Distance : 24.5mm / 0.95";Material : Metal
  • Color : Silver Tone, Black;Weight : 63g
  • Package Content : 5 Pairs x DB9 Connector
  • In stock, ready to ship
Cart
Cart
About this item
  • Product Name : DB9 Connector Jack;Type : DB9 9-Pin , 2-Row
  • Each Dimension : 31 x 18 x 15mm/ 1.2" x 0.71" x 0.6"(L*W*H);Mount Hole Dia. : 3mm / 0.12"
  • Mount Hole Center Distance : 24.5mm / 0.95";Material : Metal
  • Color : Silver Tone, Black;Weight : 63g
  • Package Content : 5 Pairs x DB9 Connector
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Max.operation temperature: -55C to +105C

Notice:  Because of the screw holes, these 5Pcs Male and 5Pcs Female connectors don't fit each other.

This DB9 9Pins dual row connector, pcb surface mount, used as computer communication interface.

Pin 1 CD Received Line Signal Detector (Data Carrier Detect)

Pin 2 RXD Received Data

Pin 3 TXD Transmit Data

Pin 4 DTR Data Terminal Ready

Pin 5 GND Signal Ground

Pin 6 DSR Data Set Ready

Pin 7 RTS Request To Send

Pin 8 CTS Clear To Send

Pin 9 RI Ring Indicator

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$8.43 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Max.operation temperature: -55C to +105C

Notice:  Because of the screw holes, these 5Pcs Male and 5Pcs Female connectors don't fit each other.

This DB9 9Pins dual row connector, pcb surface mount, used as computer communication interface.

Pin 1 CD Received Line Signal Detector (Data Carrier Detect)

Pin 2 RXD Received Data

Pin 3 TXD Transmit Data

Pin 4 DTR Data Terminal Ready

Pin 5 GND Signal Ground

Pin 6 DSR Data Set Ready

Pin 7 RTS Request To Send

Pin 8 CTS Clear To Send

Pin 9 RI Ring Indicator

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
