Harfington Uxcell 12V DC 50N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Uxcell 12V DC 50N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

ID:1068857
ID:1068857
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Input Voltage: 12V DC ;Peak Force :50N; Holding Force :37N; Duty-cycle (ED%) : 50%; Thread size : M4*6Electric time:Less than 7 minutes ;
  • Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T)
  • Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market

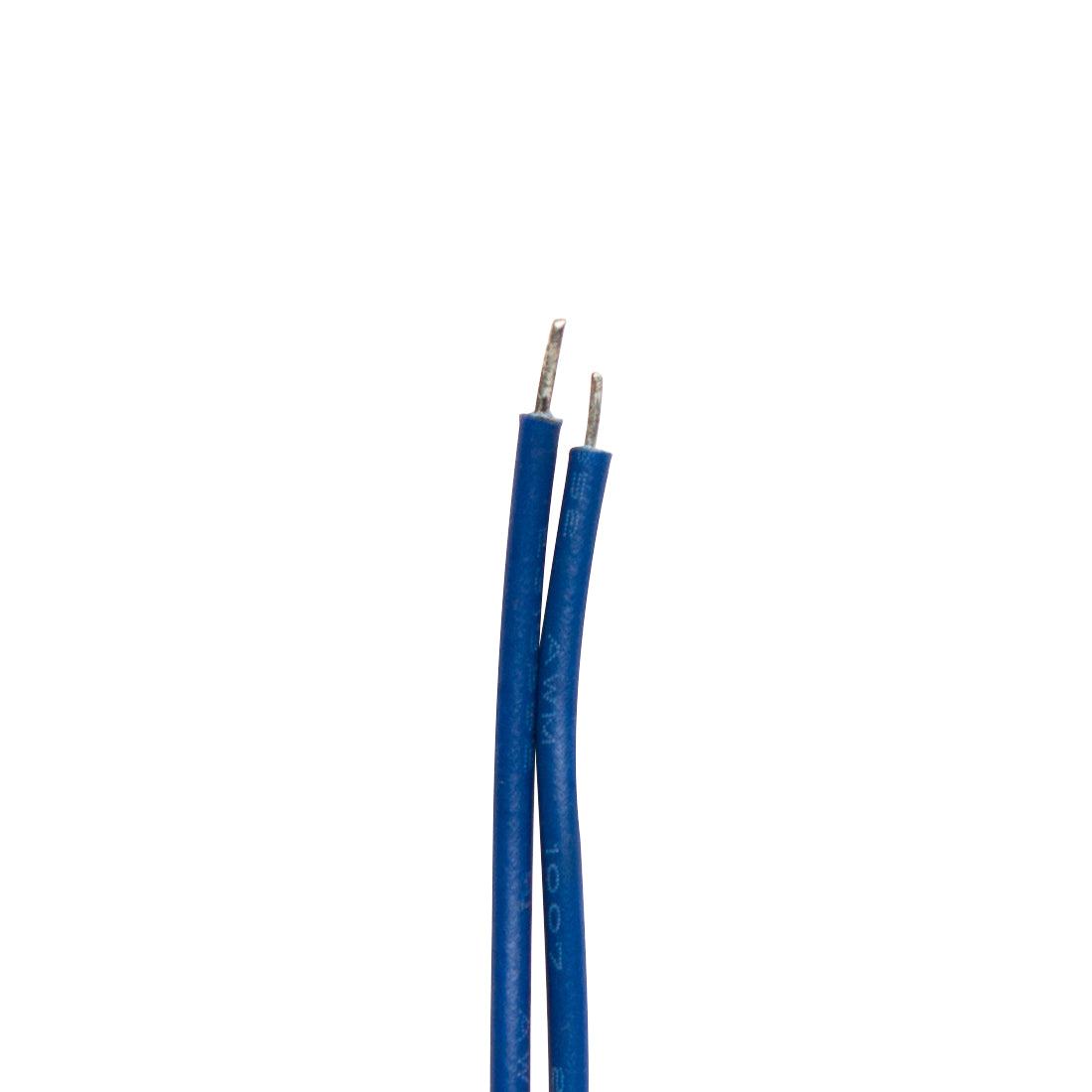

  • Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
  • Use PA66GF30 nylon plastic for framework; high temperature resistance 4. Materail: pure iron
About this item
  • Input Voltage: 12V DC ;Peak Force :50N; Holding Force :37N; Duty-cycle (ED%) : 50%; Thread size : M4*6Electric time:Less than 7 minutes ;
  • Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T)
  • Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
  • Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
  • Use PA66GF30 nylon plastic for framework; high temperature resistance 4. Materail: pure iron
Specification

Specification

SKU
a16101700ux0243
Input voltage
12V DC
Peak force
50N
Holding force
37N
Dutycycle (ed%)
50%
Electric time
Less than 7 minutes
Overall size
25 x 20 mm / 1 x 0.8 inch(Dia. *T)
Thread size
M4*6
Lead length
24cm/9. 5 inch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.

It is recommended that the actual force is less than 80% of the sucked force on the name plate.



Specification:

Material: Metal

Input Voltage: 12V DC

Peak Force :50N;

Holding Force :37N;

Duty-cycle (ED%) : 50%;

Electric time:Less than 7 minutes ;

Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T)

Thread DIA : 4mm

Lead Length : 24cm/9. 5 inch



Package Includes:

1 x Holding Electromagnet

US$7.81 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.

It is recommended that the actual force is less than 80% of the sucked force on the name plate.



Specification:

Material: Metal

Input Voltage: 12V DC

Peak Force :50N;

Holding Force :37N;

Duty-cycle (ED%) : 50%;

Electric time:Less than 7 minutes ;

Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T)

Thread DIA : 4mm

Lead Length : 24cm/9. 5 inch



Package Includes:

1 x Holding Electromagnet
