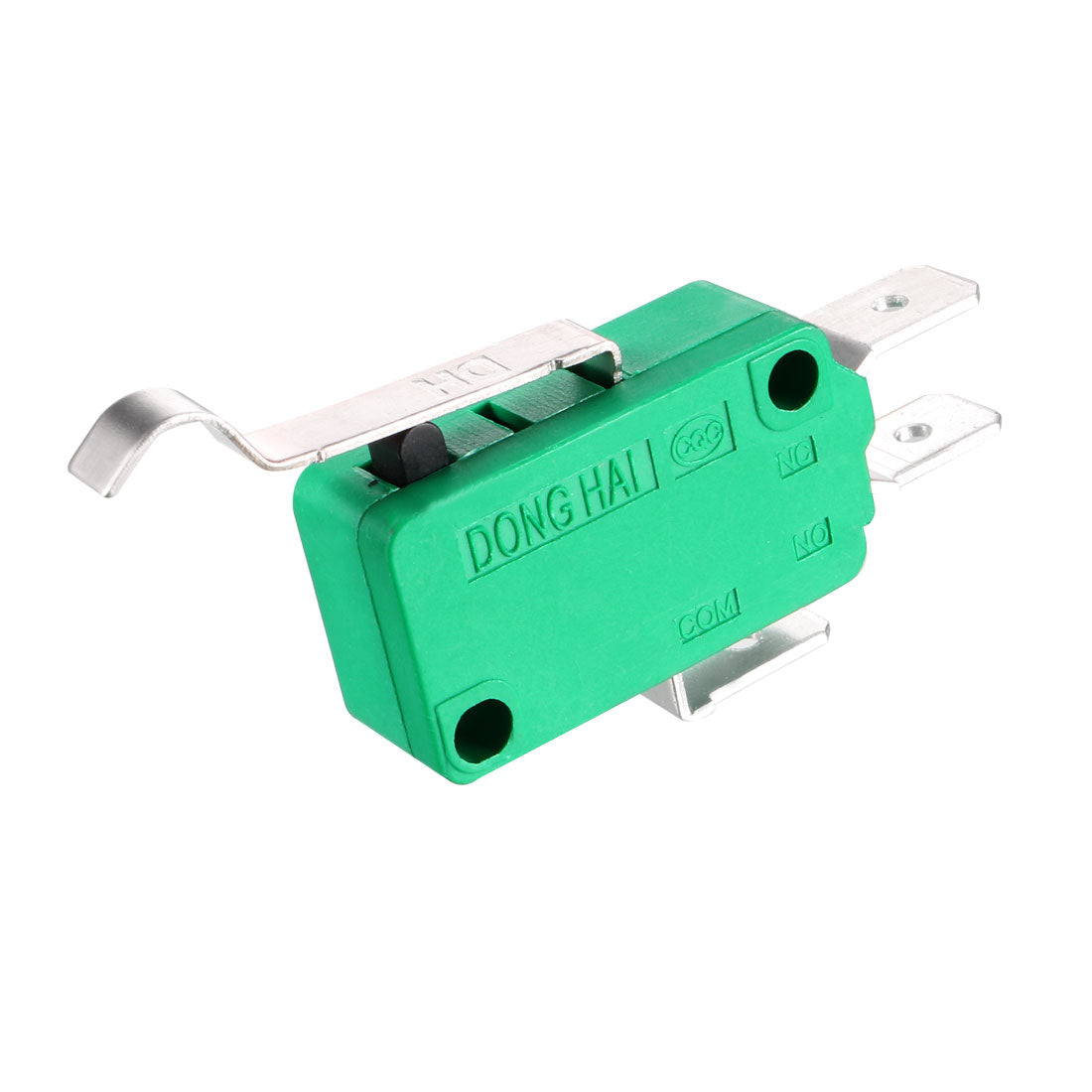

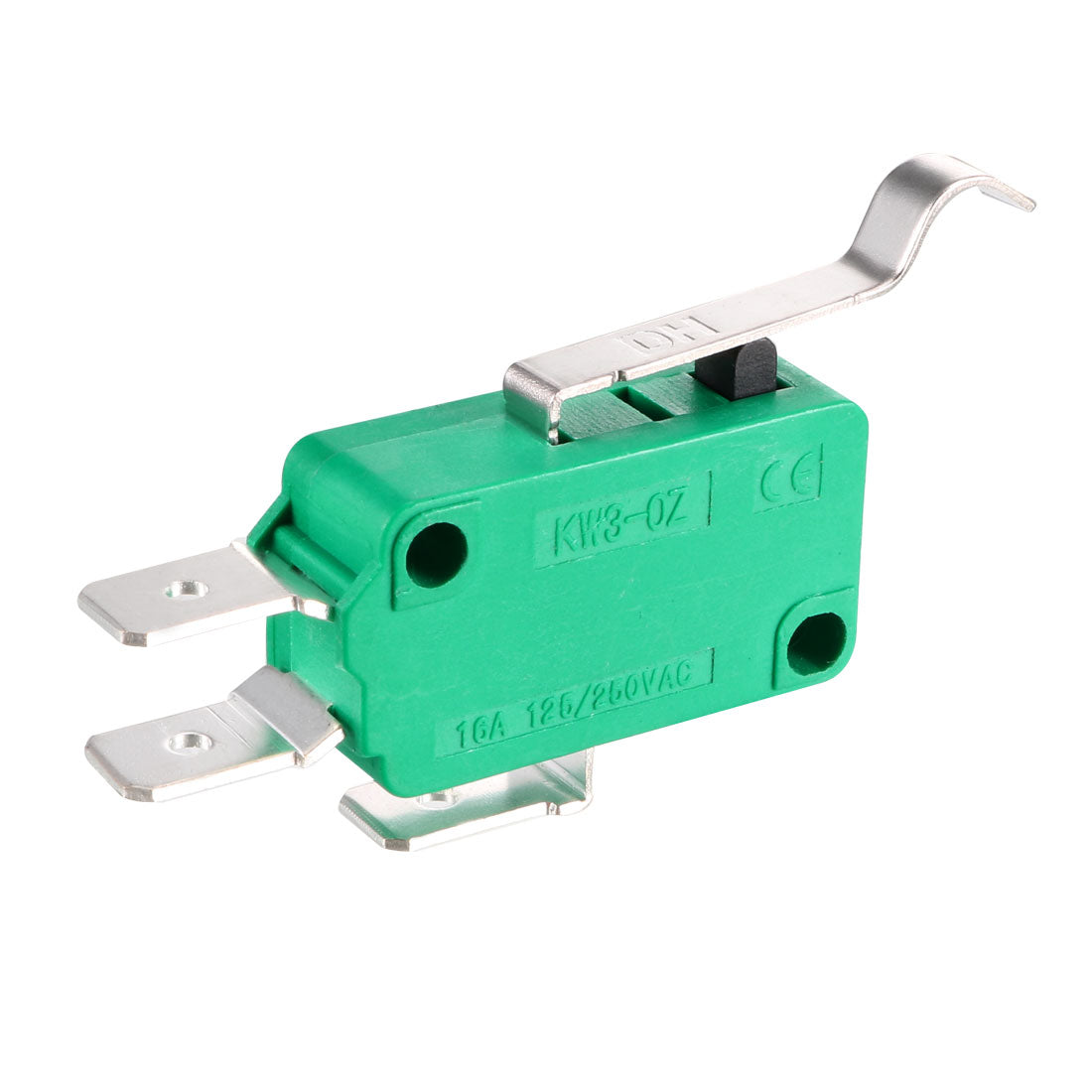

Uxcell 5PCS KW3-OZ-4 16A 125/250VAC Simulated R Lever Type SPDT NO NC Micro Limit Switches

Questions & Answers |
$8.79 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
*Electric Mixed Wholesale Price. Free Shipping on orders over $200(by UPS/DHL Air Express).
About This Item
  • Rating Load: 16A 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
  • In stock, ready to ship
Cart
Cart
About This Item
  • Rating Load: 16A 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(Each)
* Email Address
Customer Name
Expected Arrival Time
Customer Note
0/990
If you want to consult the bulk order, you can submit a inquiry or contact us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Features

Adopt thermosetting plastic or thermoplastic;

Offers long service and operations life.

Small contact gap, snap sction, high sensitivity and small operatng travel

Widly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc...



Specification

Rating Load: 16A 125/250VAC

Operation speed: 0.1mm-1m/s

Contact resistance: 15m Ohm max. (initial)

Insulation resistance: 100m Ohm min. (at DC500V)

Dielectric strength: 1,000 VAC 50/60 Hz for 1minute

Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)

Operating temperature: -25~+80°C

Contact Form: SPDT NO+NC

Pin number: 3

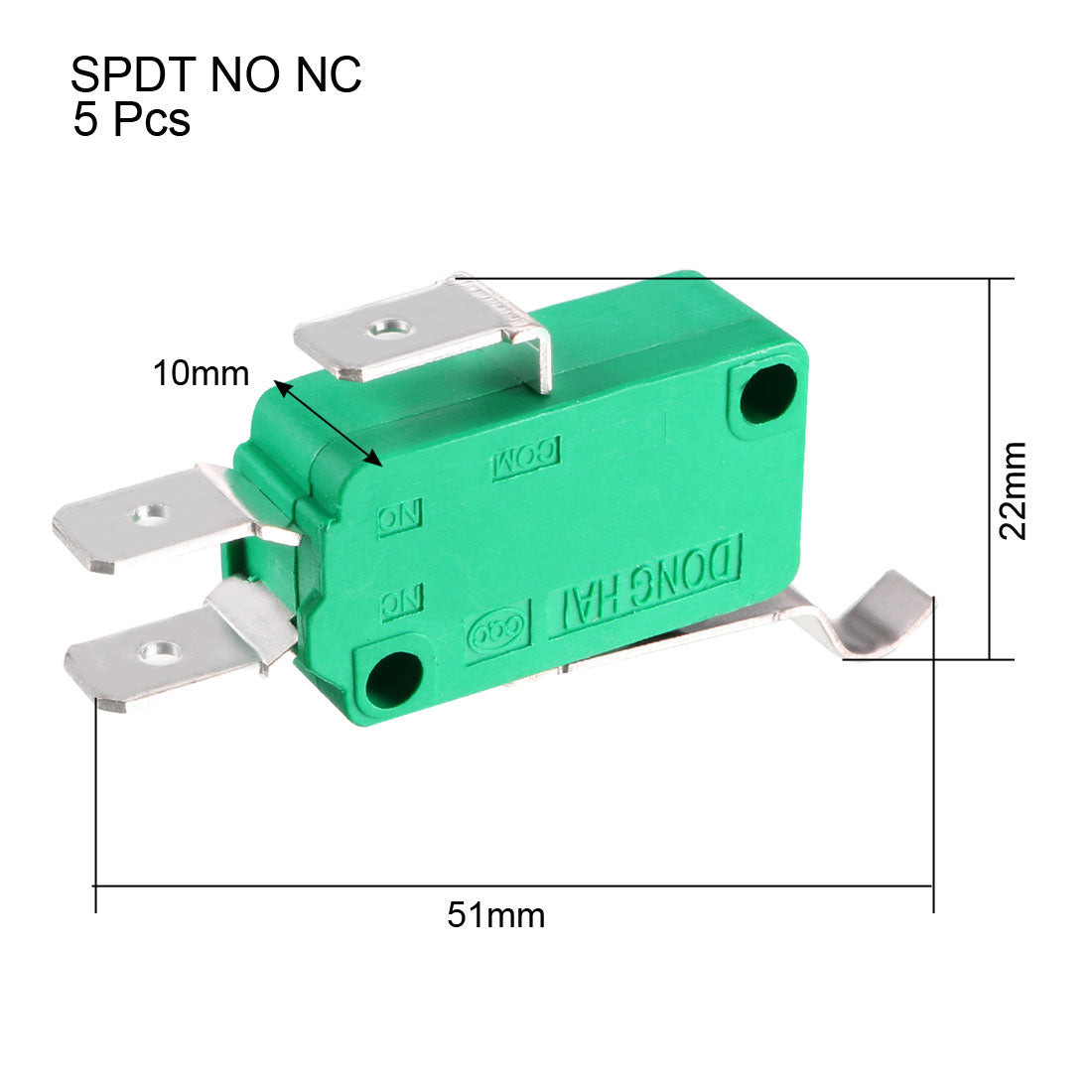

Overall size: 51x22x10mm/2.01x0.87x0.39inch(L*W*H)

Total weight: 40g



Package Content

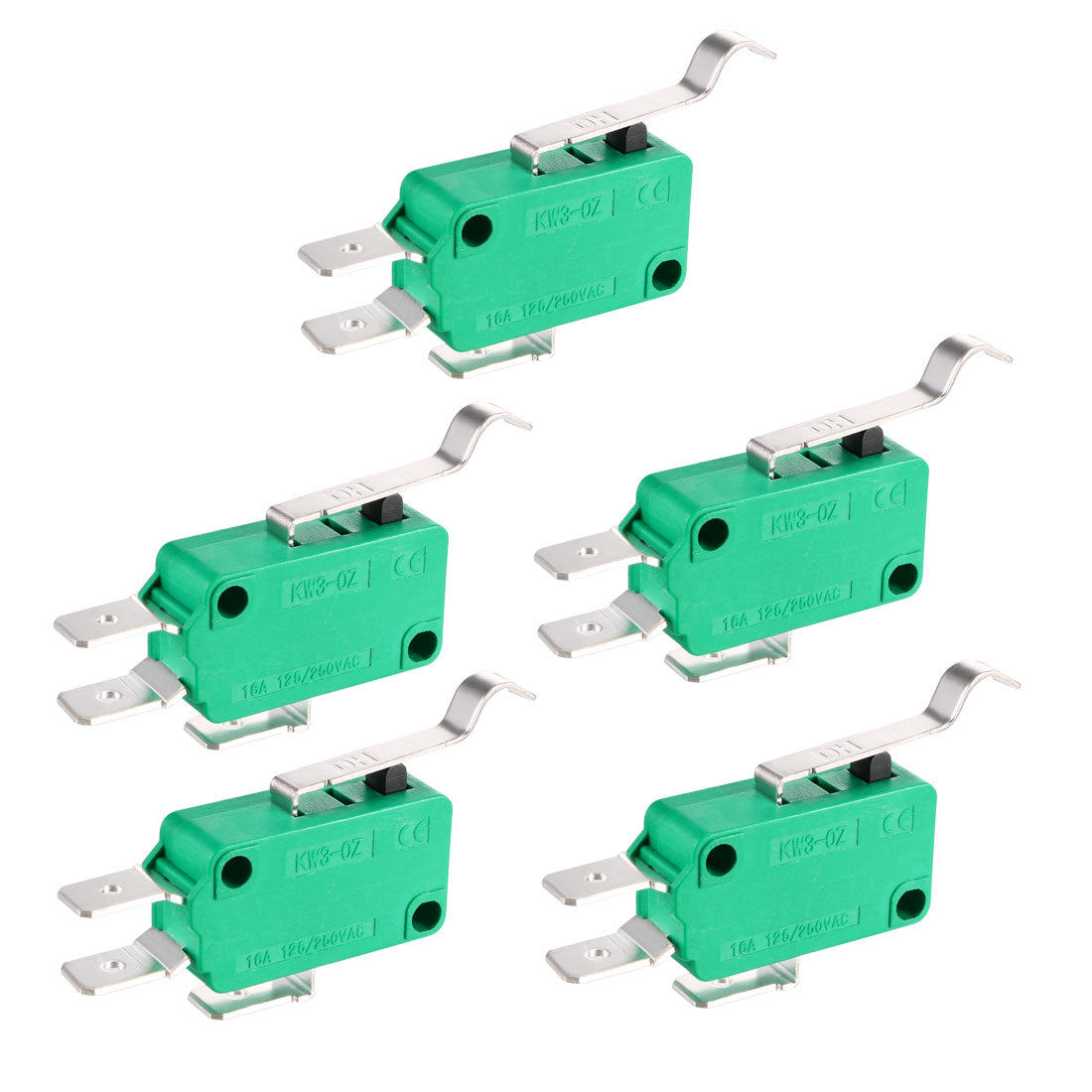

5 x Microswitch

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

Features

Adopt thermosetting plastic or thermoplastic;

Offers long service and operations life.

Small contact gap, snap sction, high sensitivity and small operatng travel

Widly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc...



Specification

Rating Load: 16A 125/250VAC

Operation speed: 0.1mm-1m/s

Contact resistance: 15m Ohm max. (initial)

Insulation resistance: 100m Ohm min. (at DC500V)

Dielectric strength: 1,000 VAC 50/60 Hz for 1minute

Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)

Operating temperature: -25~+80°C

Contact Form: SPDT NO+NC

Pin number: 3

Overall size: 51x22x10mm/2.01x0.87x0.39inch(L*W*H)

Total weight: 40g



Package Content

5 x Microswitch

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
