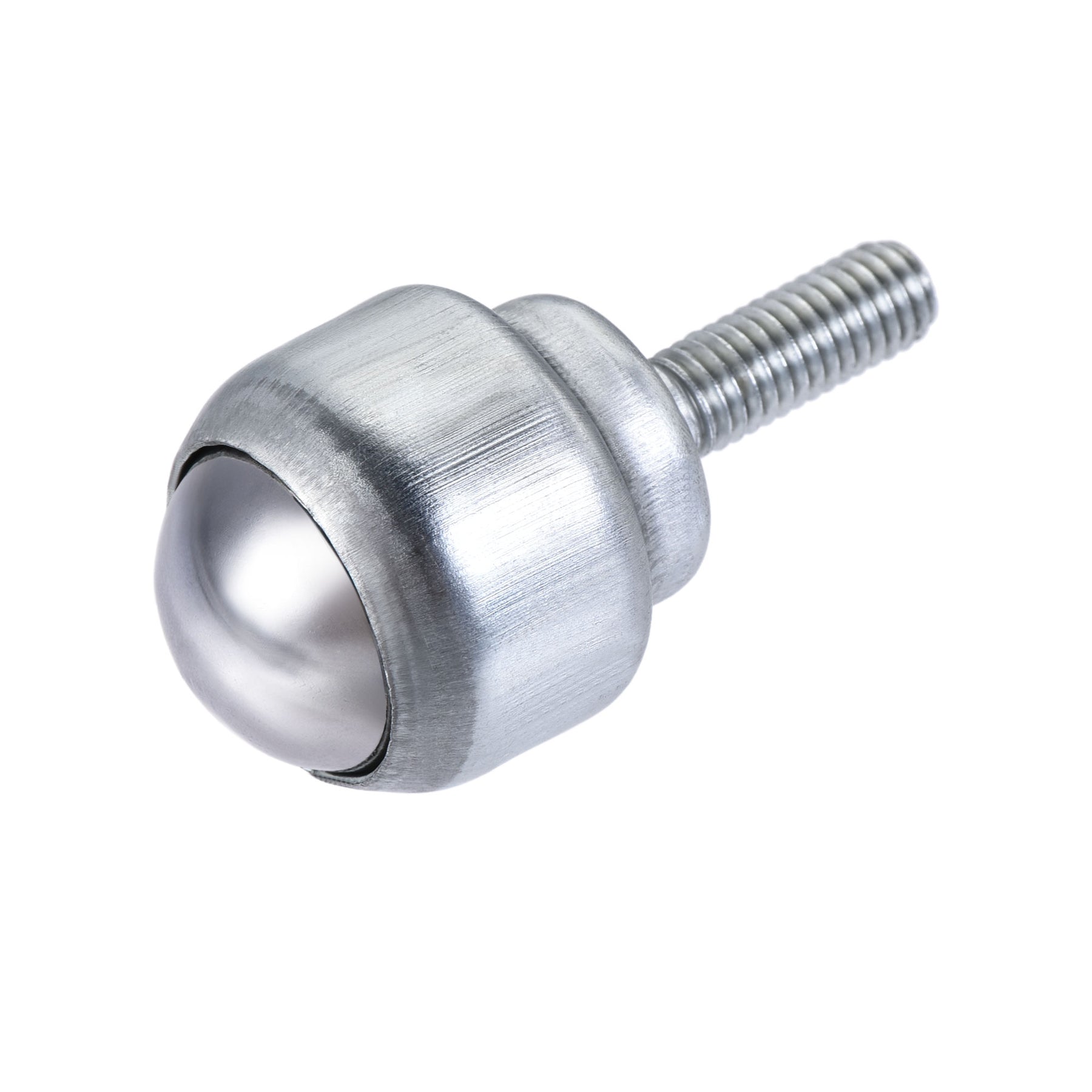

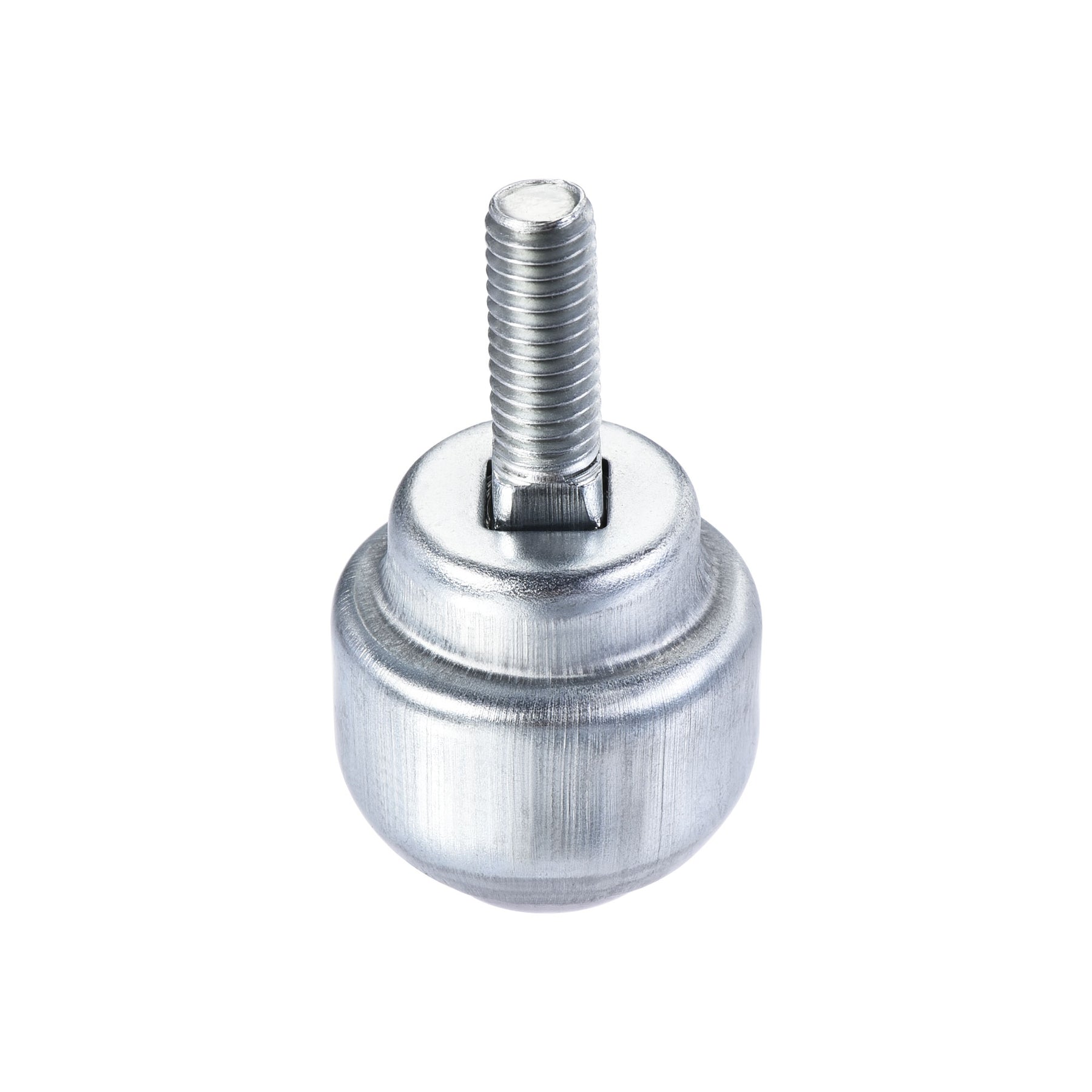

Uxcell Ball Transfer Bearing Unit 17mm 44Lbs Carbon Steel Bolt-fixing Type for Transmission 4pcs

Questions & Answers |
$8.34 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
*Hardware Mixed Wholesale Price. Free Shipping on orders over $200(by UPS/DHL Air Express).
About This Item
  • [Size] - 17mm / 0.67" diameter ball bearing roller, 360 degree rotation
  • [Load Capacity] - The bearing ball is made of carbon steel.Support up to 44Lbs/20kg each

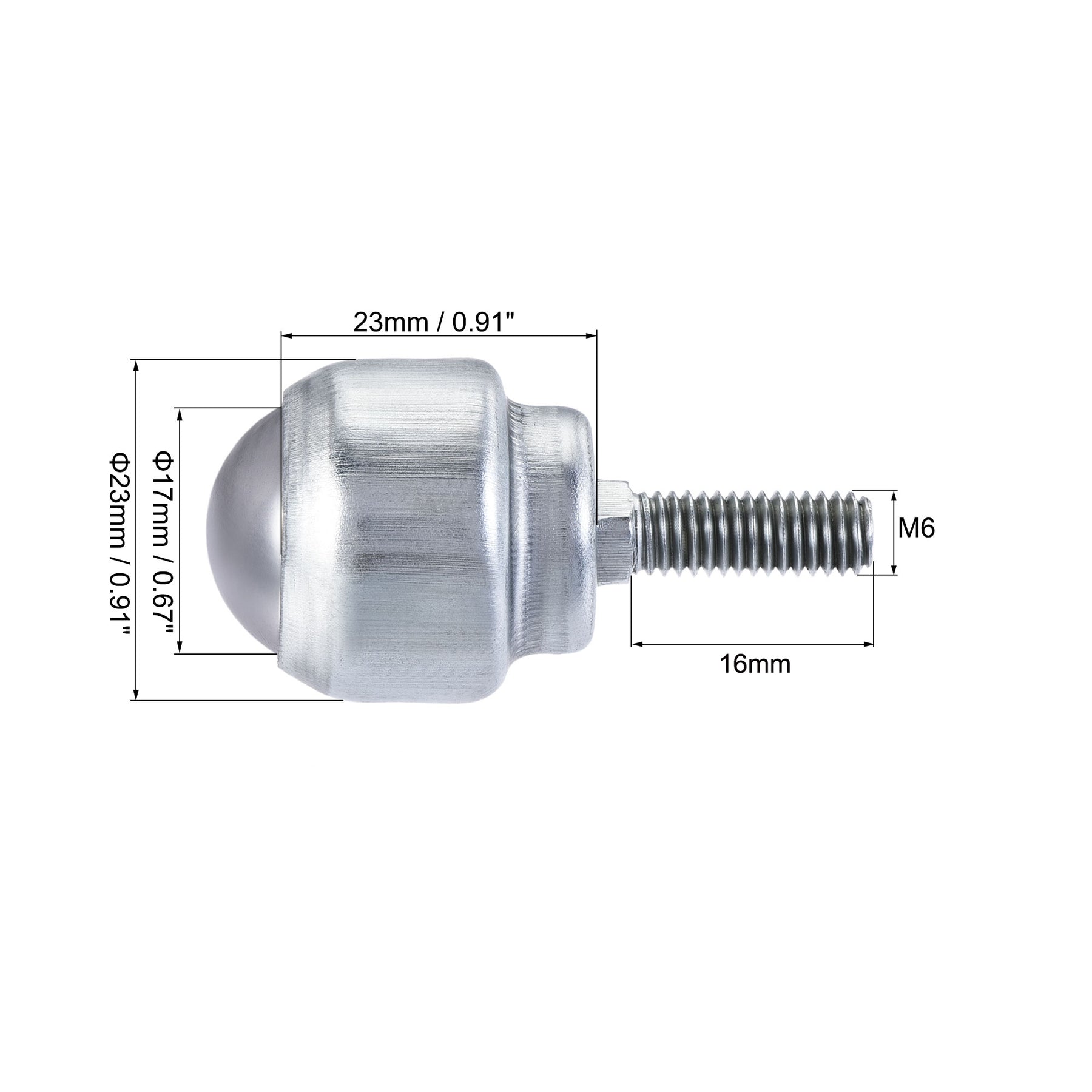

  • [Mounting Size] - Type: Bolt-fixing; Body Size: 23x23mm / 0.91x0.91 Inch(DxH); Thread Size: M6x16mm / M6x0.63 Inch(DxL); When installing the ball transfer unit, the ball should be installed upward

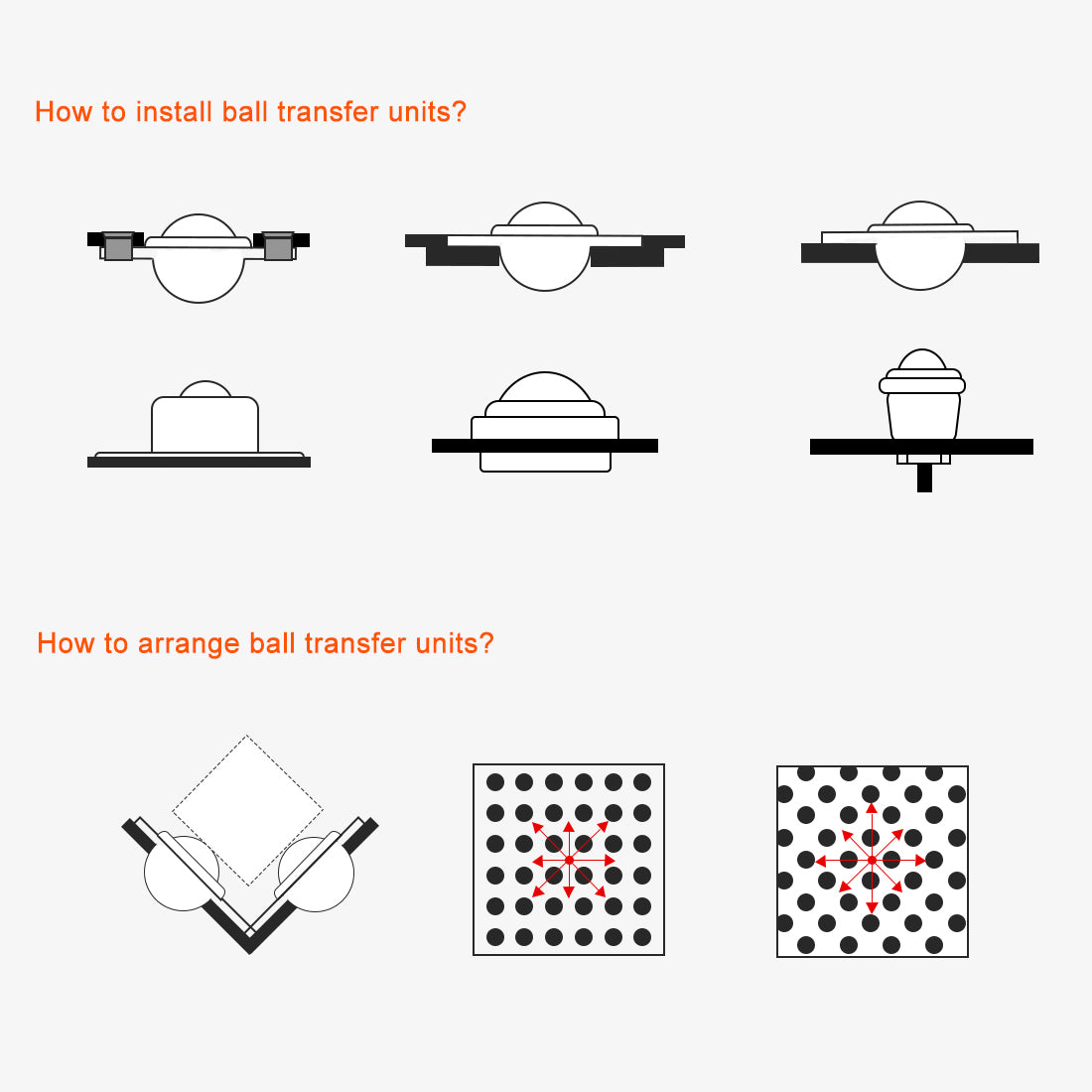

  • [Function] - According to different bearing requirements, the distribution density of the ball transfer units can be set arbitrarily, and its working orientation could be ball up / angle

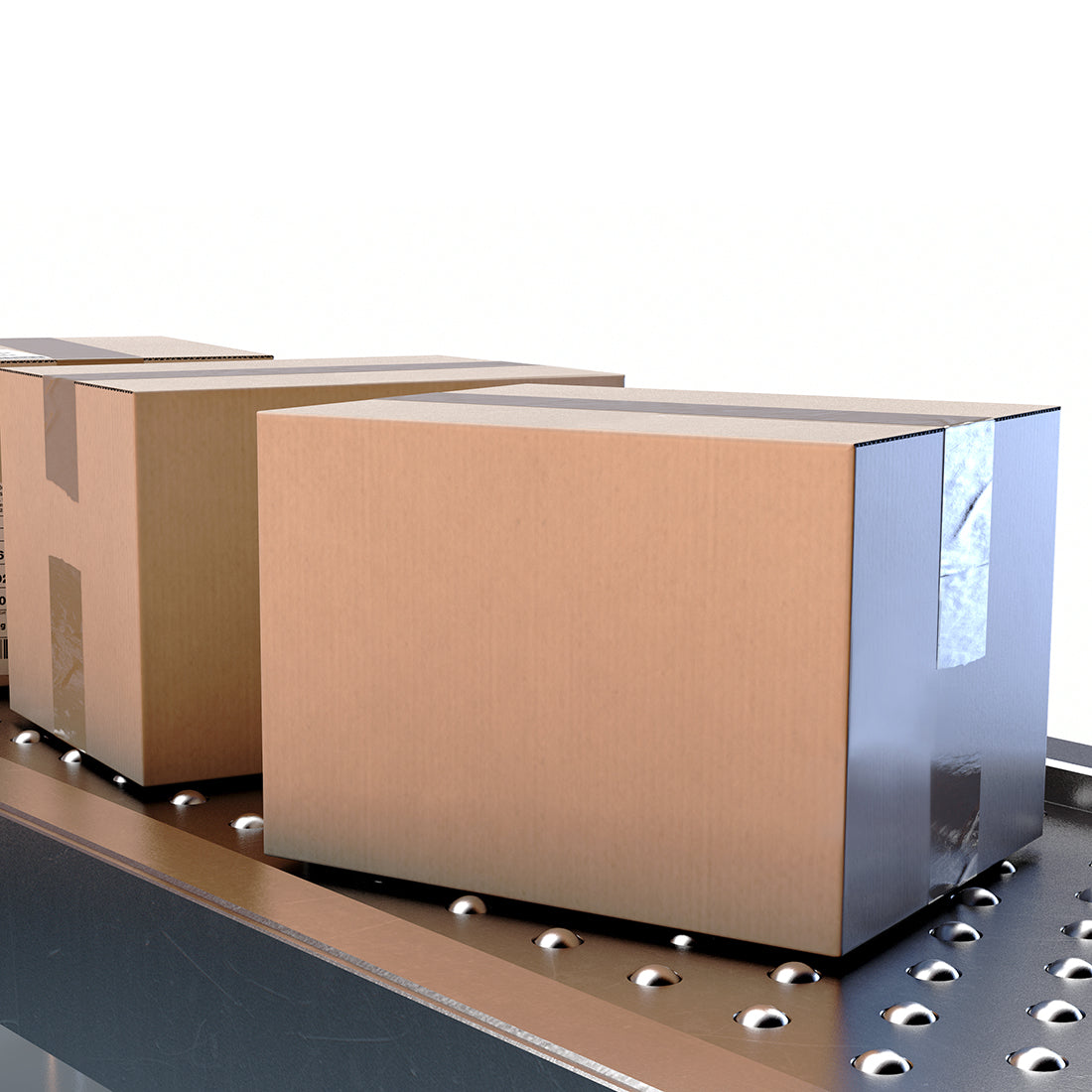

  • [Application] - It is widely used in transportation, transmission systems, feed systems, processing systems,packaging machinery auxiliary equipment, as well as object turning and confluence. Moreover, it works perfectly for drawer, so that you can roll it out with minimal pull.
  • In stock, ready to ship
Cart
Cart
About This Item
  • [Size] - 17mm / 0.67" diameter ball bearing roller, 360 degree rotation
  • [Load Capacity] - The bearing ball is made of carbon steel.Support up to 44Lbs/20kg each
  • [Mounting Size] - Type: Bolt-fixing; Body Size: 23x23mm / 0.91x0.91 Inch(DxH); Thread Size: M6x16mm / M6x0.63 Inch(DxL); When installing the ball transfer unit, the ball should be installed upward
  • [Function] - According to different bearing requirements, the distribution density of the ball transfer units can be set arbitrarily, and its working orientation could be ball up / angle
  • [Application] - It is widely used in transportation, transmission systems, feed systems, processing systems,packaging machinery auxiliary equipment, as well as object turning and confluence. Moreover, it works perfectly for drawer, so that you can roll it out with minimal pull.
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(Each)
* Email Address
Customer Name
Expected Arrival Time
Customer Note
0/990
If you want to consult the bulk order, you can submit a inquiry or contact us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Specifications:
Type: Bolt-fixing
Material(Bearing Ball): Carbon Steel

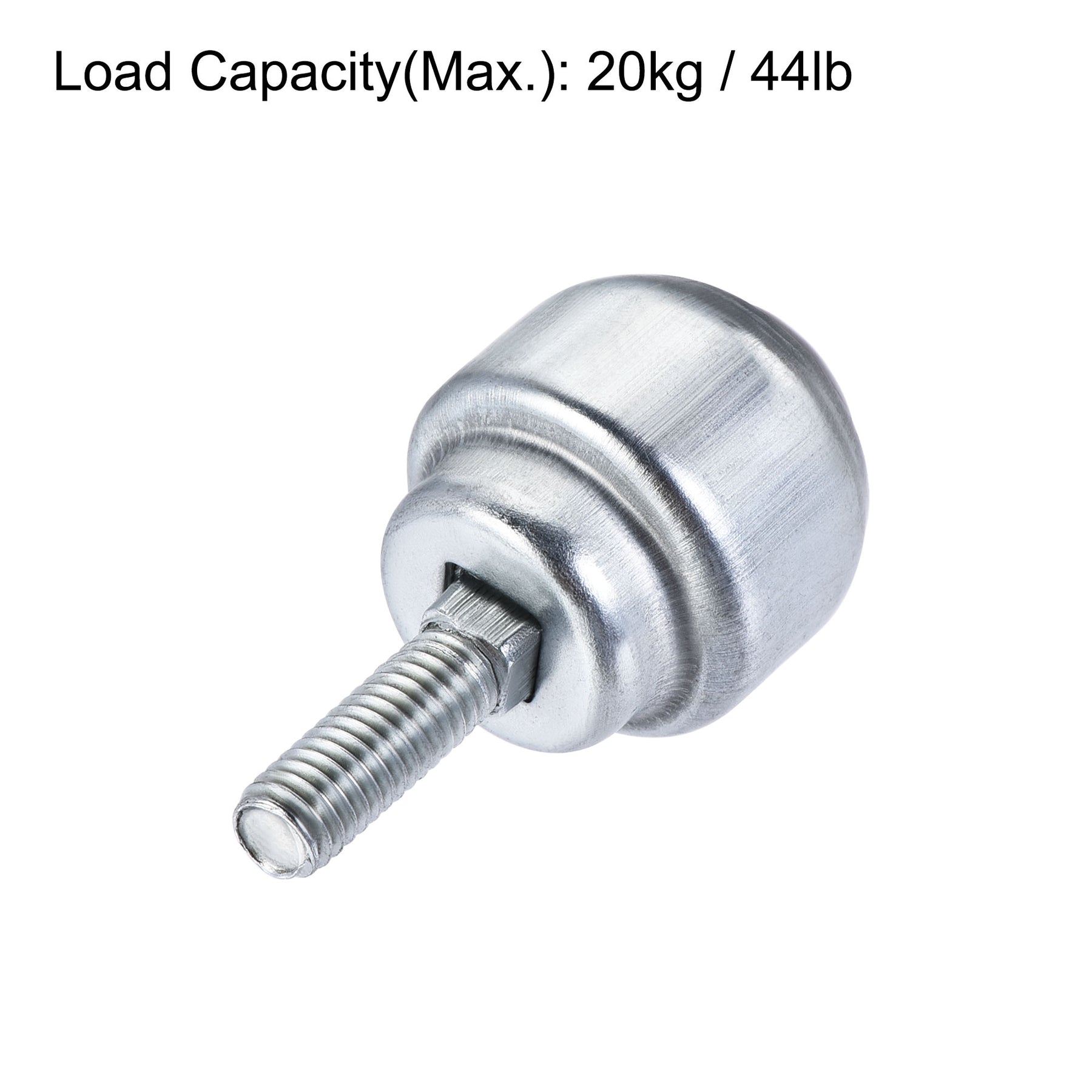

Load Capacity(Max.): 20kg / 44lb
Ball Diameter: 17mm / 0.67 Inch
Thread Size: M6x1.0
Thread Length: 16mm / 0.63 Inch
Body Size: 23x23mm / 0.91x0.91 Inch(DxH)

Features:
1. Ball Transfer Unit is omni-directional load-bearing spherical balls mounted inside a restraining fixture
2. 360 degree universal transfer bearing ball is good for facilitating smooth, multi-directional motion
3. Widely used in various transmission systems, feed systems, processing systems, packaging machinery auxiliary equipment, as well as object turning and confluence.

Note:
1. Use for transporting stuff has a smooth or flat bottom
2. If to transport something that has an uneven or soft bottom surface, the tray could help you
3. This ball transfer unit is not used as a swivel caster to move on the floor

Package Content:

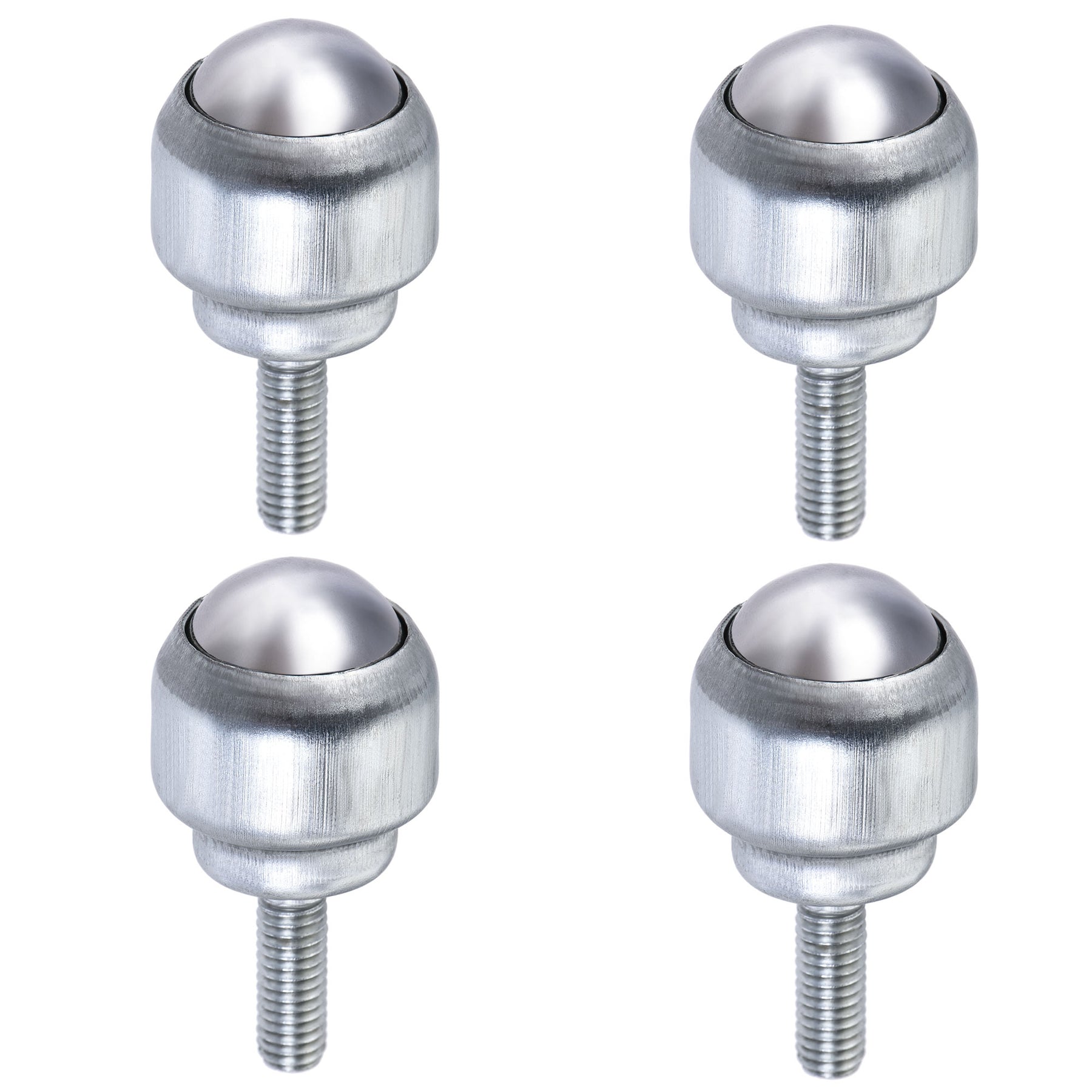

4 x Ball Transfer Unit
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

Specifications:
Type: Bolt-fixing
Material(Bearing Ball): Carbon Steel
Load Capacity(Max.): 20kg / 44lb
Ball Diameter: 17mm / 0.67 Inch
Thread Size: M6x1.0
Thread Length: 16mm / 0.63 Inch
Body Size: 23x23mm / 0.91x0.91 Inch(DxH)

Features:
1. Ball Transfer Unit is omni-directional load-bearing spherical balls mounted inside a restraining fixture
2. 360 degree universal transfer bearing ball is good for facilitating smooth, multi-directional motion
3. Widely used in various transmission systems, feed systems, processing systems, packaging machinery auxiliary equipment, as well as object turning and confluence.

Note:
1. Use for transporting stuff has a smooth or flat bottom
2. If to transport something that has an uneven or soft bottom surface, the tray could help you
3. This ball transfer unit is not used as a swivel caster to move on the floor

Package Content:
4 x Ball Transfer Unit
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
