Harfington Uxcell Metric Thread Tap M3 x 0.5 H2 89mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool

Uxcell Metric Thread Tap M3 x 0.5 H2 89mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool

ID:1060307
ID:1060307
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

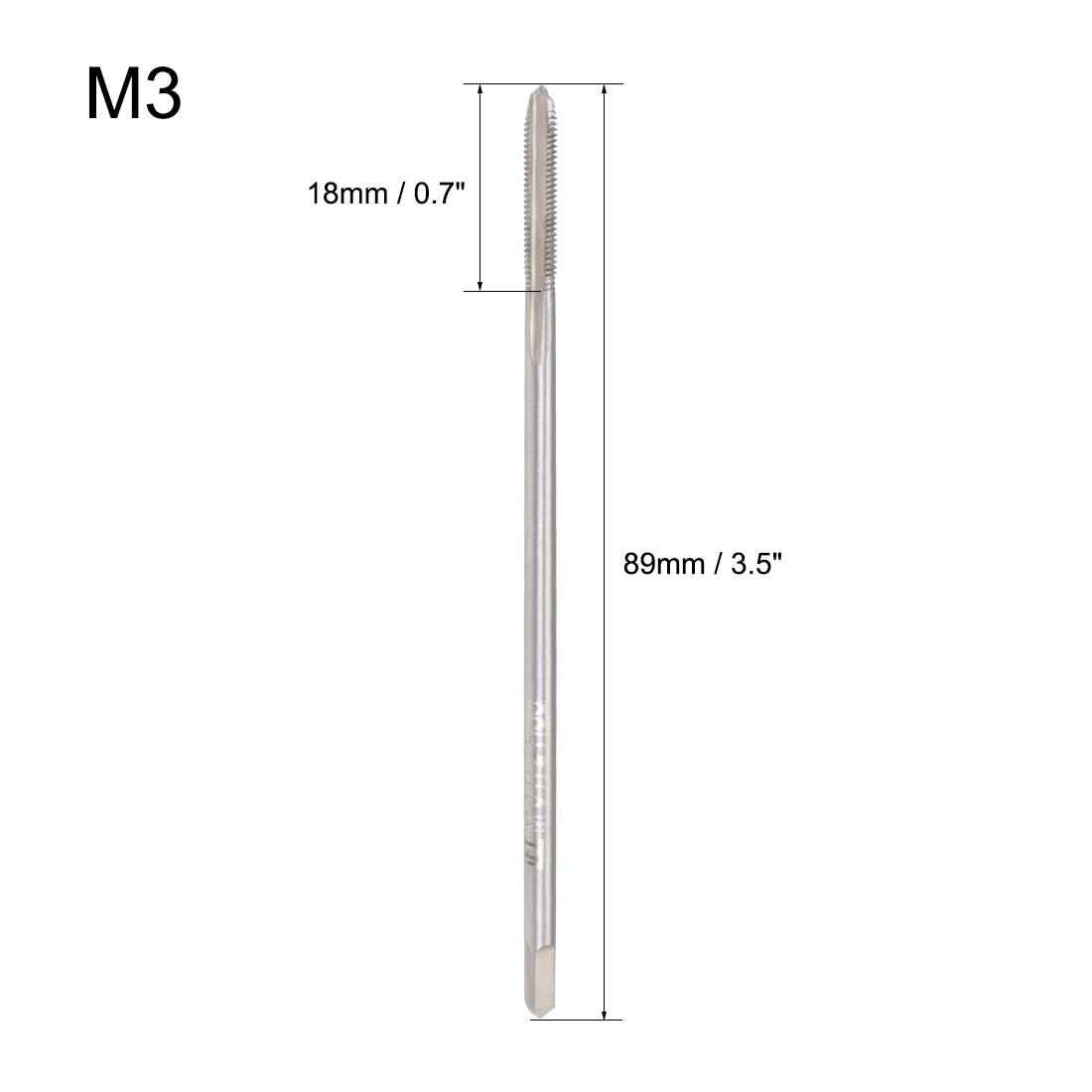

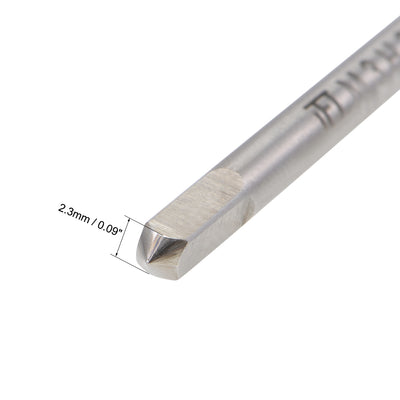

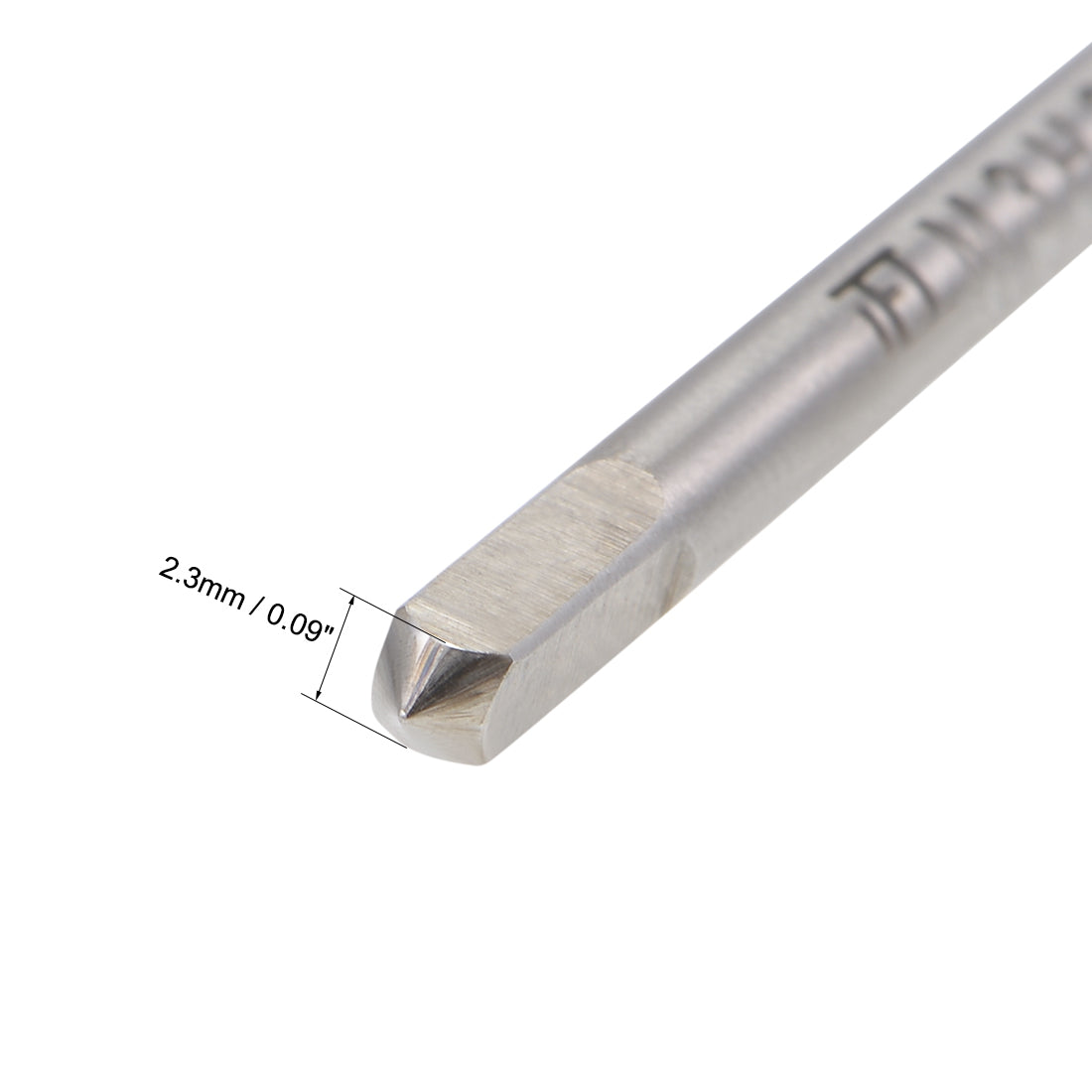

  • Metric Thread Tap: Thread size: M3 x 0.5 (right hand); accuracy: H2; total length: 89mm / 3.5" (extra long); square shank width: 2.3mm / 0.09"; thread length: 18mm / 0.7"; number of chip flutes: 3 flutes. Micro taps are mainly used in clocks and watches for machining holes in wood and soft metals with low hardness.

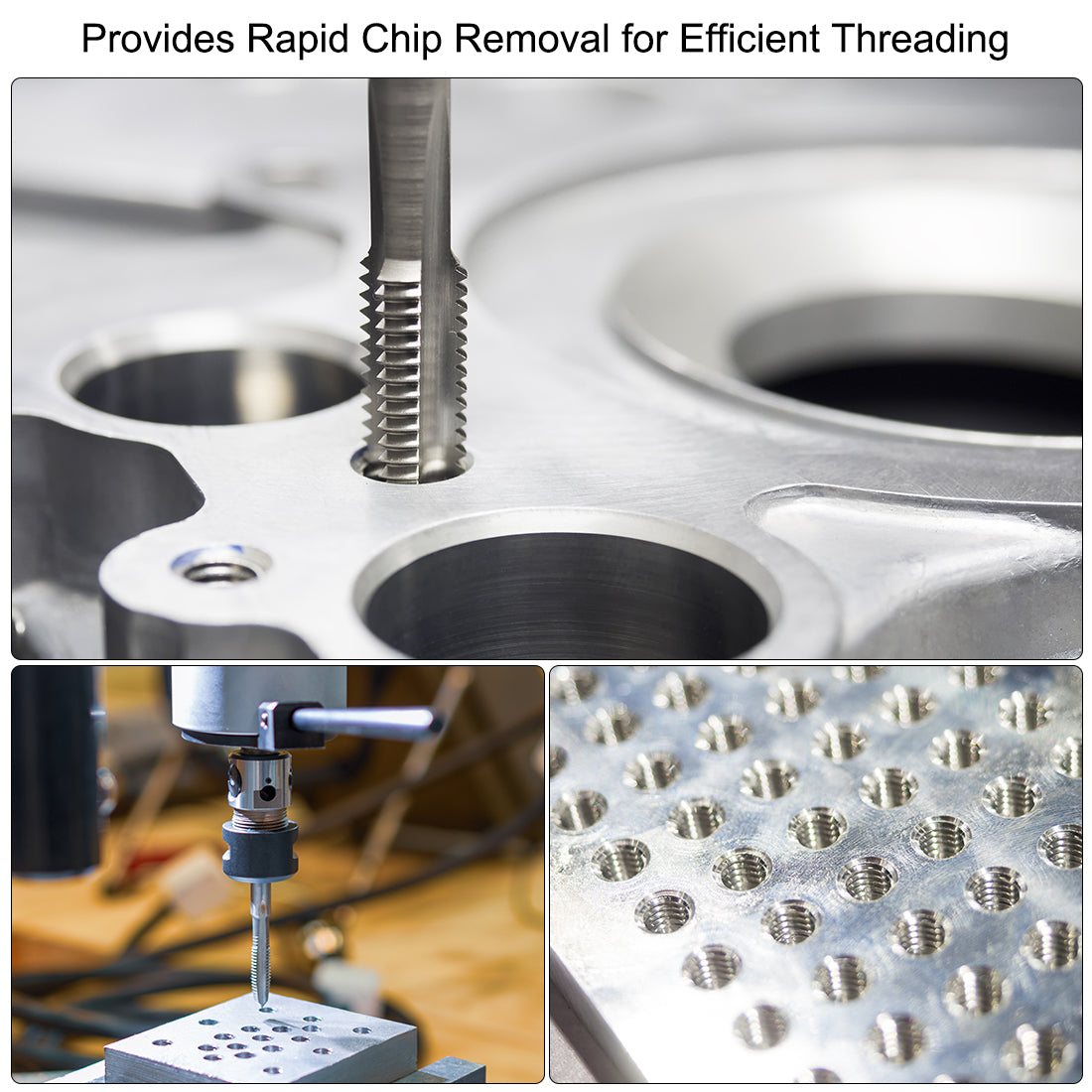

  • Straight Flute Tap: Straight flute design, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
  • Wide Applications: Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel. Add proper tapping oil for higher quality threads and more durable taps.
  • 6542 High Speed Steel Tap: Offer high hardness, good toughness, wear resistance, and excellent cutting performance. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
  • Tips: Machine taps are used with tapping, drilling, automatic or milling machines. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable. NOT recommended for hand and electric drill tapping.
About this item
  • Metric Thread Tap: Thread size: M3 x 0.5 (right hand); accuracy: H2; total length: 89mm / 3.5" (extra long); square shank width: 2.3mm / 0.09"; thread length: 18mm / 0.7"; number of chip flutes: 3 flutes. Micro taps are mainly used in clocks and watches for machining holes in wood and soft metals with low hardness.
  • Straight Flute Tap: Straight flute design, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
  • Wide Applications: Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel. Add proper tapping oil for higher quality threads and more durable taps.
  • 6542 High Speed Steel Tap: Offer high hardness, good toughness, wear resistance, and excellent cutting performance. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
  • Tips: Machine taps are used with tapping, drilling, automatic or milling machines. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable. NOT recommended for hand and electric drill tapping.
Specification

Specification

SKU
a19051000ux0632
Material
HSS(High Speed Steel)
Accuracy
H2
Pitch
0.5
Thread size
M3
Shank side width
2.3mm / 0.09 inch
Thread length
18mm / 0.7 inch
Total length
89mm / 3.5 inch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

1pcs Metric Thread Taps:
Thread Size: M3 x 0.5 (Right Hand)
Accuracy: H2
Total Length: 89mm / 3.5 inch (Extra Long)
Shank Side Width: 2.3mm / 0.09 inch
Thread Length: 18mm / 0.7 inch
Number of Chip Flutes: 3 Flutes
Style: Straight Flute Tap
Material: High-Speed Steel 6542 (HSS 6542)
Finish: Uncoated

Descriptions:
1. Straight flute tap, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
2. Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. 6542 high-speed steel metric taps offer high hardness, good toughness, wear resistance, and excellent cutting performance. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
4. Machine taps are used with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.

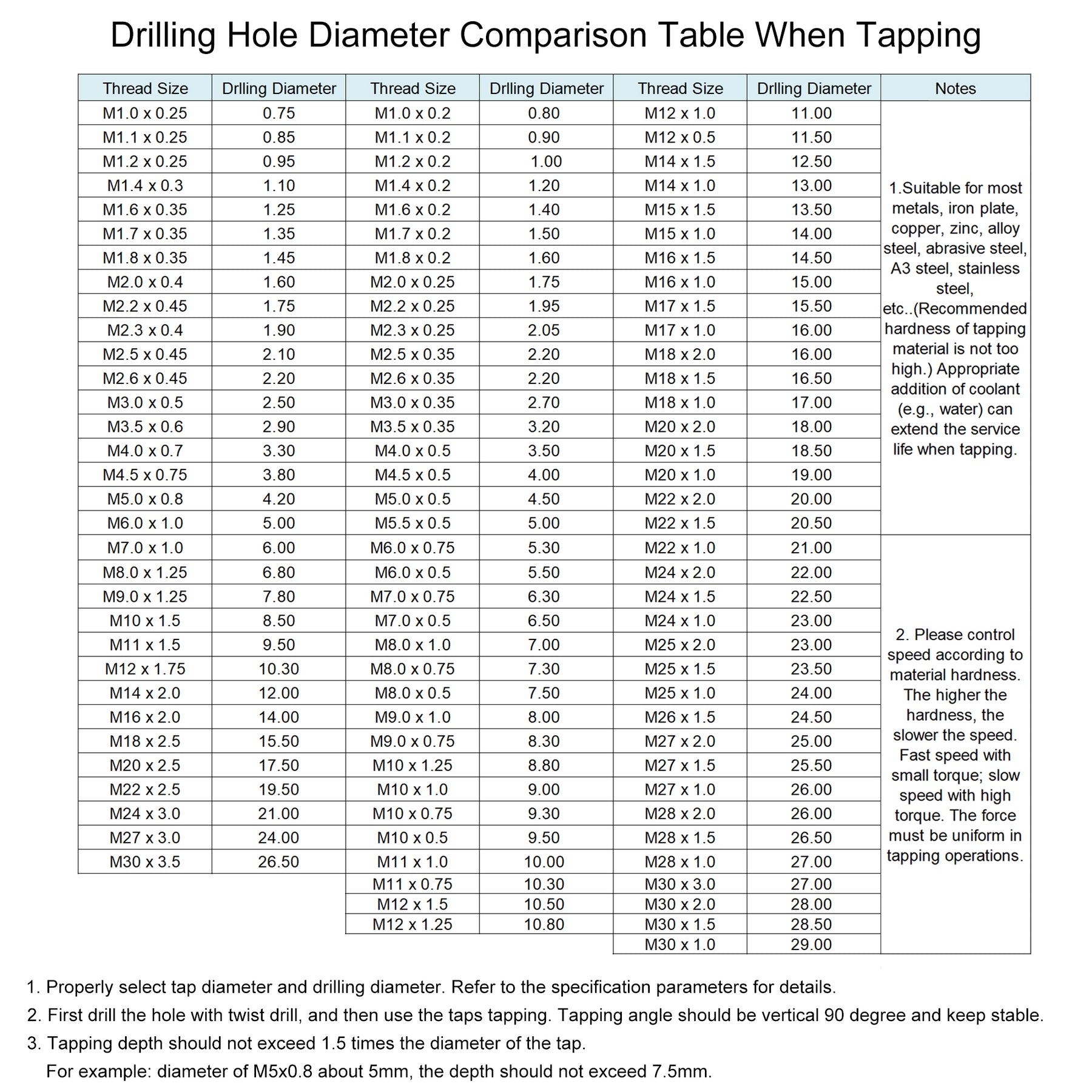

2. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
3. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)

US$7.11 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell Metric Thread Tap M3 x 0.5 H2 89mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1060307 US$7.11
Products Title ID Price Qty
Uxcell Metric Thread Tap M3 x 0.5 H2 89mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1060307 US$7.11
Uxcell Metric Thread Tap M6 x 1 H2 100mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1060312 US$8.16
Uxcell Metric Thread Tap M2.5 x 0.45 H2 89mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1060309 US$6.76
Uxcell Metric Thread Tap M5 x 0.8 H2 100mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1060310 US$7.46
Uxcell Metric Thread Tap M8 x 1.25 H2 100mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1092565 US$8.57
Uxcell Metric Thread Tap M4 x 0.7 H2 100mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1060308 US$7.11
Uxcell Metric Thread Tap M10 x 1.5 H2 100mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1084077 US$9.48
Uxcell Metric Thread Tap M2 x 0.4 H2 90mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1060306 US$7.63
Uxcell Metric Thread Tap M12 x 1.75 H2 120mm Extra Long Straight Flute Screw Thread Milling Machine Taps Threading Tapping Repair Tool 1141320 US$9.82
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

1pcs Metric Thread Taps:
Thread Size: M3 x 0.5 (Right Hand)
Accuracy: H2
Total Length: 89mm / 3.5 inch (Extra Long)
Shank Side Width: 2.3mm / 0.09 inch
Thread Length: 18mm / 0.7 inch
Number of Chip Flutes: 3 Flutes
Style: Straight Flute Tap
Material: High-Speed Steel 6542 (HSS 6542)
Finish: Uncoated

Descriptions:
1. Straight flute tap, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
2. Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. 6542 high-speed steel metric taps offer high hardness, good toughness, wear resistance, and excellent cutting performance. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
4. Machine taps are used with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.
2. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
3. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
