Harfington Uxcell Slot PCB Photo Interrupter Slotted Optical Sensor Switch

Uxcell Slot PCB Photo Interrupter Slotted Optical Sensor Switch

ID:
$11.68 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
5/16"
Size
About this item
  • Output Type:HY860H-A
  • Detection Distance:8mm
  • Package Content:10 x Optical Sensor Switch
  • Total Size:22 x 16 x 6mm/0.9" x 0.63" x 0.2"(L*W*H)
  • Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • Output Type:HY860H-A
  • Detection Distance:8mm
  • Package Content:10 x Optical Sensor Switch
  • Total Size:22 x 16 x 6mm/0.9" x 0.63" x 0.2"(L*W*H)
  • Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

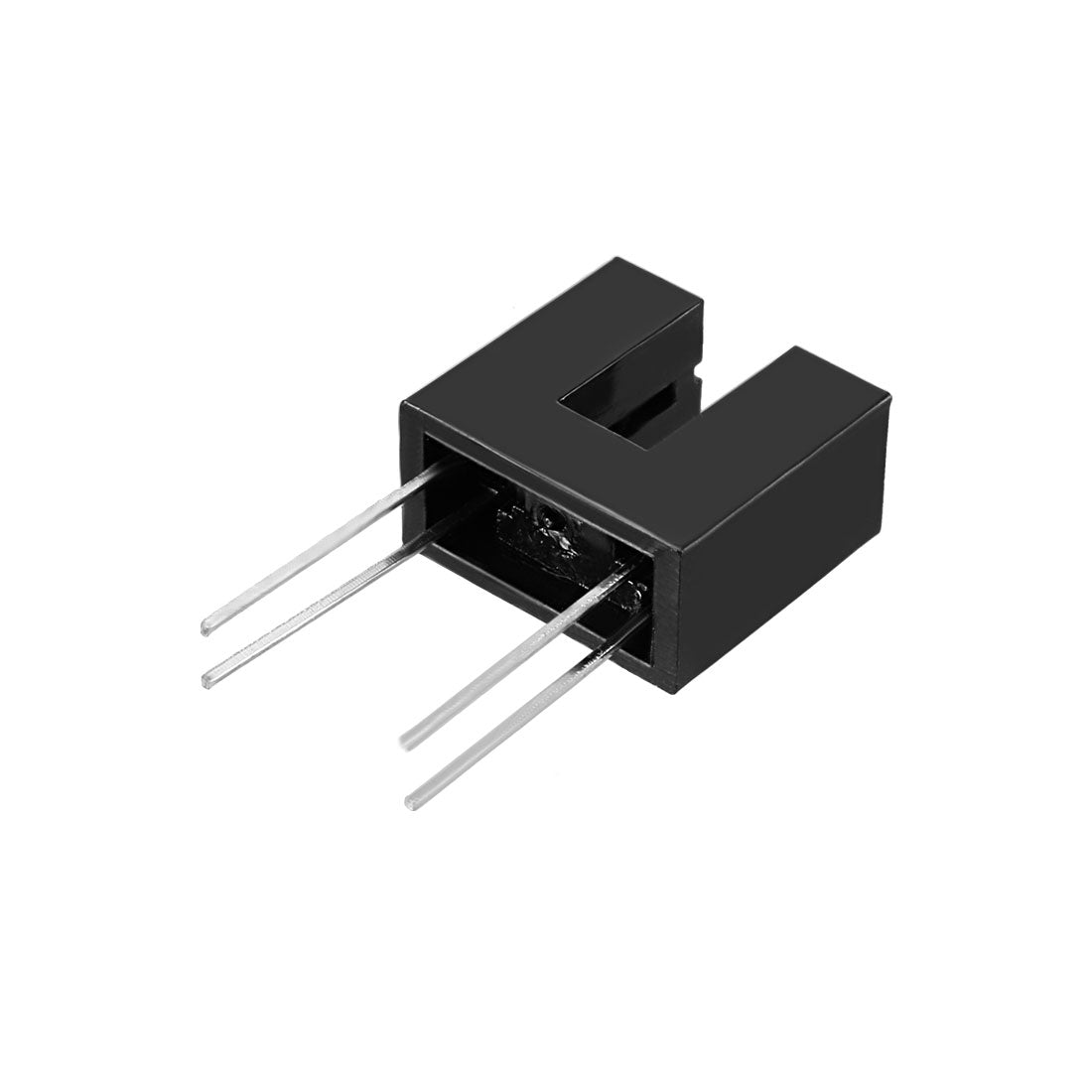

  • Product Name: Optical Sensor Switch
  • Model: HY860H-A
  • Output Type: Photo Transistor
  • Peak Emission Wavelength: 940nm
  • IR Diode Forward Current: 50mA
  • IR Diode Reverse Voltage: 5V
  • Transistor Power Dissipation: 75mW
  • Transistor Collector Current: 20mA
  • Photo Transistor Collector-emitter Voltage: 30V
  • Photo Transistor Emitter-collector Voltage: 5V
  • Diode Power Dissipation: 100mW
  • Operating Temperature Range: -55~100 Celsius Degree
  • Number of Pins: 4
  • Slot Width: 7.85mm/5/16"
  • Slot Depth: 10mm/0.39"
  • Pin Length: 8.81mm/0.35"
  • Total Size: 22 x 16 x 6mm/0.9" x 0.63" x 0.2"(L*W*H)
  • Detection distance is not adjustable
  • Detection object :opaque objects
  • Detection Distance:8mm
  • Material: Plastic, Metal
  • Color: Black
  • Package Content: 10pcs x Optical Sensor Switch



Description:

  • Consisted of an infrared emitter and a photo transistor, is located face-to-face on the optical axes in a leaded package.
  • During operation, output photo transistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.
  • Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$11.68 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specification:

  • Product Name: Optical Sensor Switch
  • Model: HY860H-A
  • Output Type: Photo Transistor
  • Peak Emission Wavelength: 940nm
  • IR Diode Forward Current: 50mA
  • IR Diode Reverse Voltage: 5V
  • Transistor Power Dissipation: 75mW
  • Transistor Collector Current: 20mA
  • Photo Transistor Collector-emitter Voltage: 30V
  • Photo Transistor Emitter-collector Voltage: 5V
  • Diode Power Dissipation: 100mW
  • Operating Temperature Range: -55~100 Celsius Degree
  • Number of Pins: 4
  • Slot Width: 7.85mm/5/16"
  • Slot Depth: 10mm/0.39"
  • Pin Length: 8.81mm/0.35"
  • Total Size: 22 x 16 x 6mm/0.9" x 0.63" x 0.2"(L*W*H)
  • Detection distance is not adjustable
  • Detection object :opaque objects
  • Detection Distance:8mm
  • Material: Plastic, Metal
  • Color: Black
  • Package Content: 10pcs x Optical Sensor Switch



Description:

  • Consisted of an infrared emitter and a photo transistor, is located face-to-face on the optical axes in a leaded package.
  • During operation, output photo transistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.
  • Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
