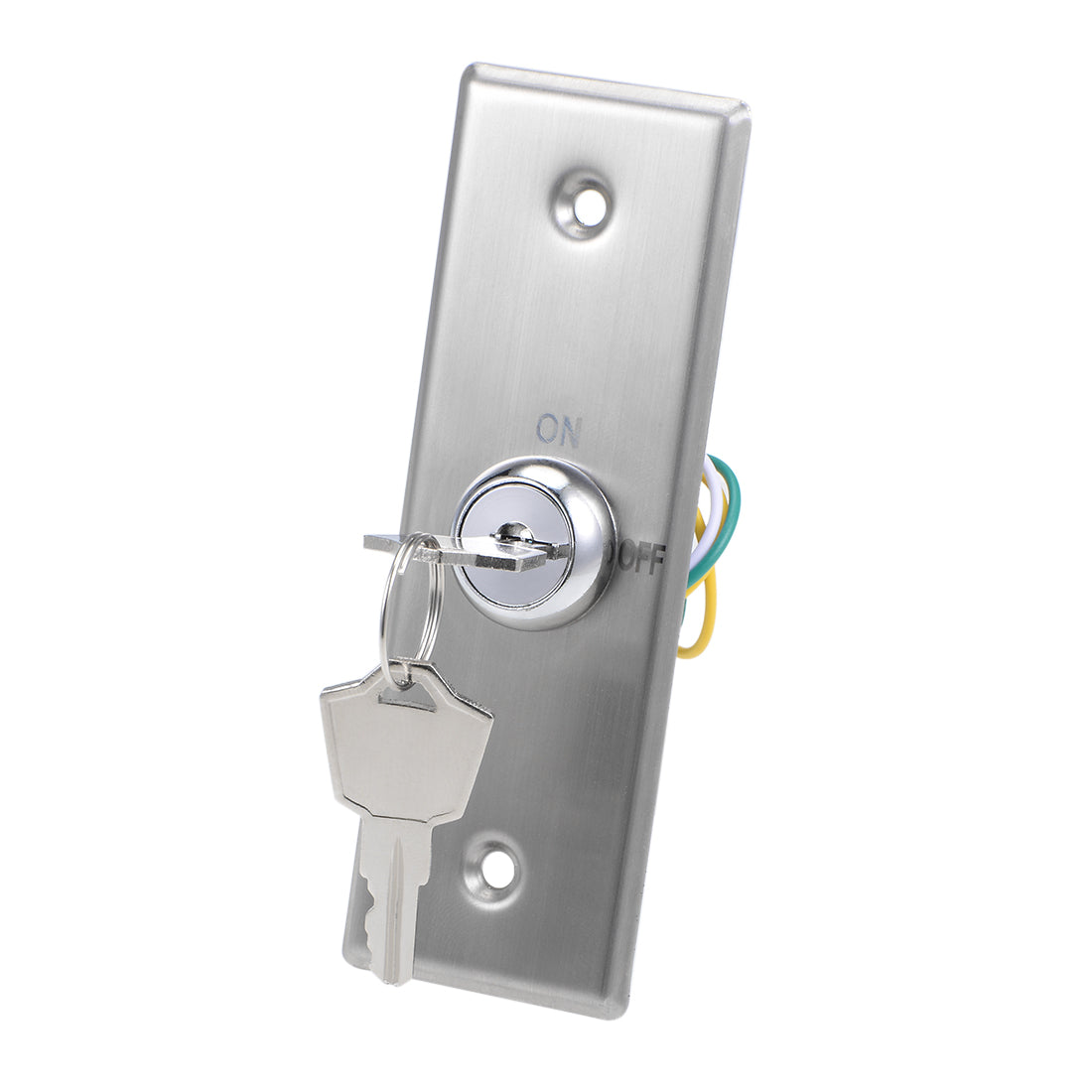

Uxcell Key Switch Lock On/Off Exit Door Lock Emergency Door Release DPST with 2 Keys
-
35%OFFOrder $5000+
-
25%OFFOrder $2000+
-
15%OFFOrder $800+
-
10%OFFOrder $500+
-
5%OFFOrder $200+
- Turn key to ON Position and remains in ON position (key will pull out)
- Universal key switch. Will work with all gate and garage door openers
- Stainless steel plate accepts standard 19mm (3/4") barrel
- Rated Current: 4A 125V AC, 2A 250V AC
- Switch terminals are colored for recognition
- Turn key to ON Position and remains in ON position (key will pull out)
- Universal key switch. Will work with all gate and garage door openers
- Stainless steel plate accepts standard 19mm (3/4") barrel
- Rated Current: 4A 125V AC, 2A 250V AC
- Switch terminals are colored for recognition
Specification
Description:
-This key switch is an emergency switch button with a special mechanical key for emergency situations.
-19mm key switch lock with 2 keys, nice smooth action and easy to mount.
-Key is removable in both ON and OFF positions.
Specification:
Panel Material: 304 Stainless Steel
Rated Power: 4A 125V AC / 2A 250V AC
Type: DPST
Contacts Type: 2 NO, 2 NC, 2 COM
Cable Length: 20cm / 7.87"

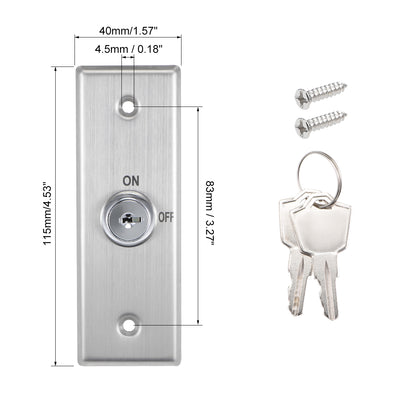

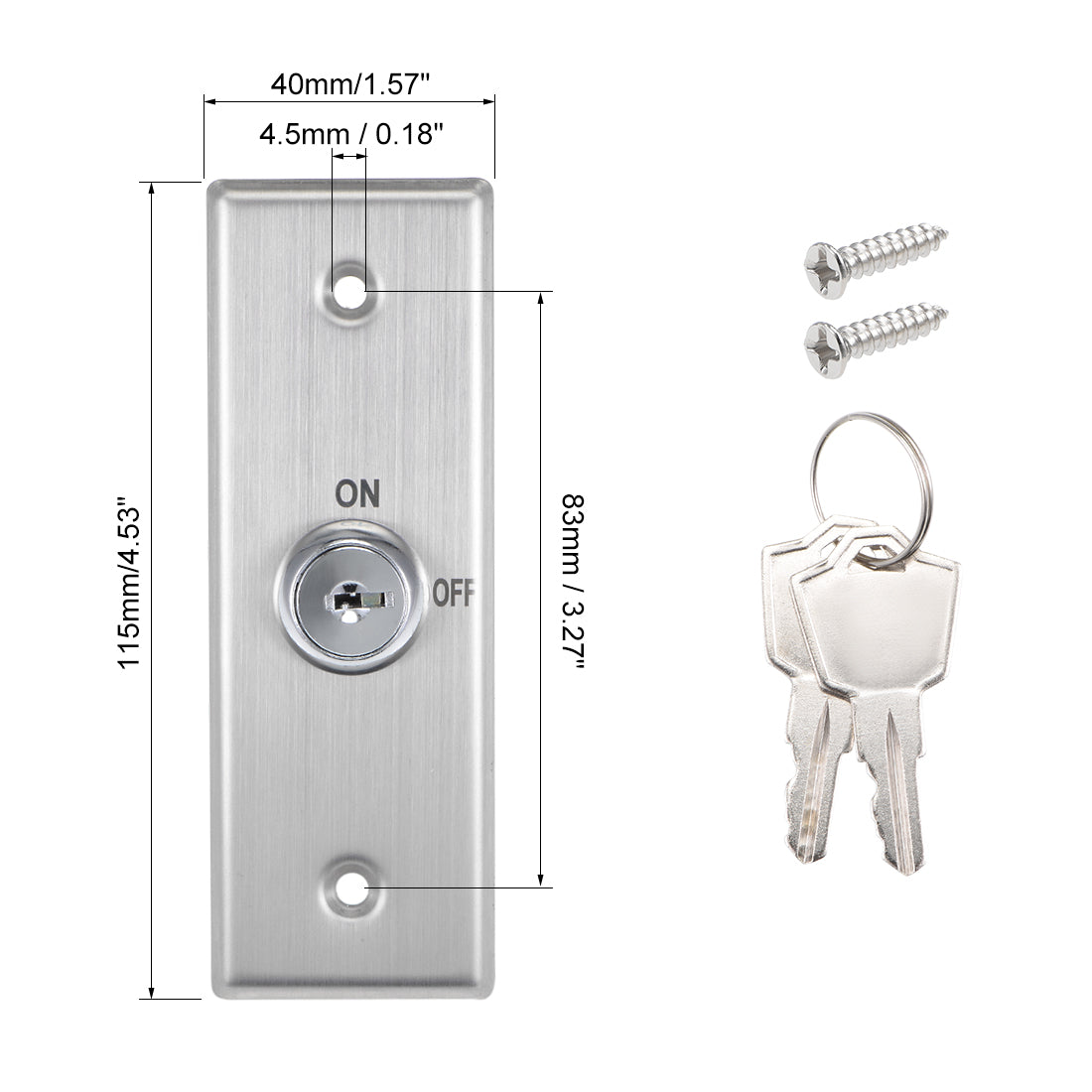

Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)

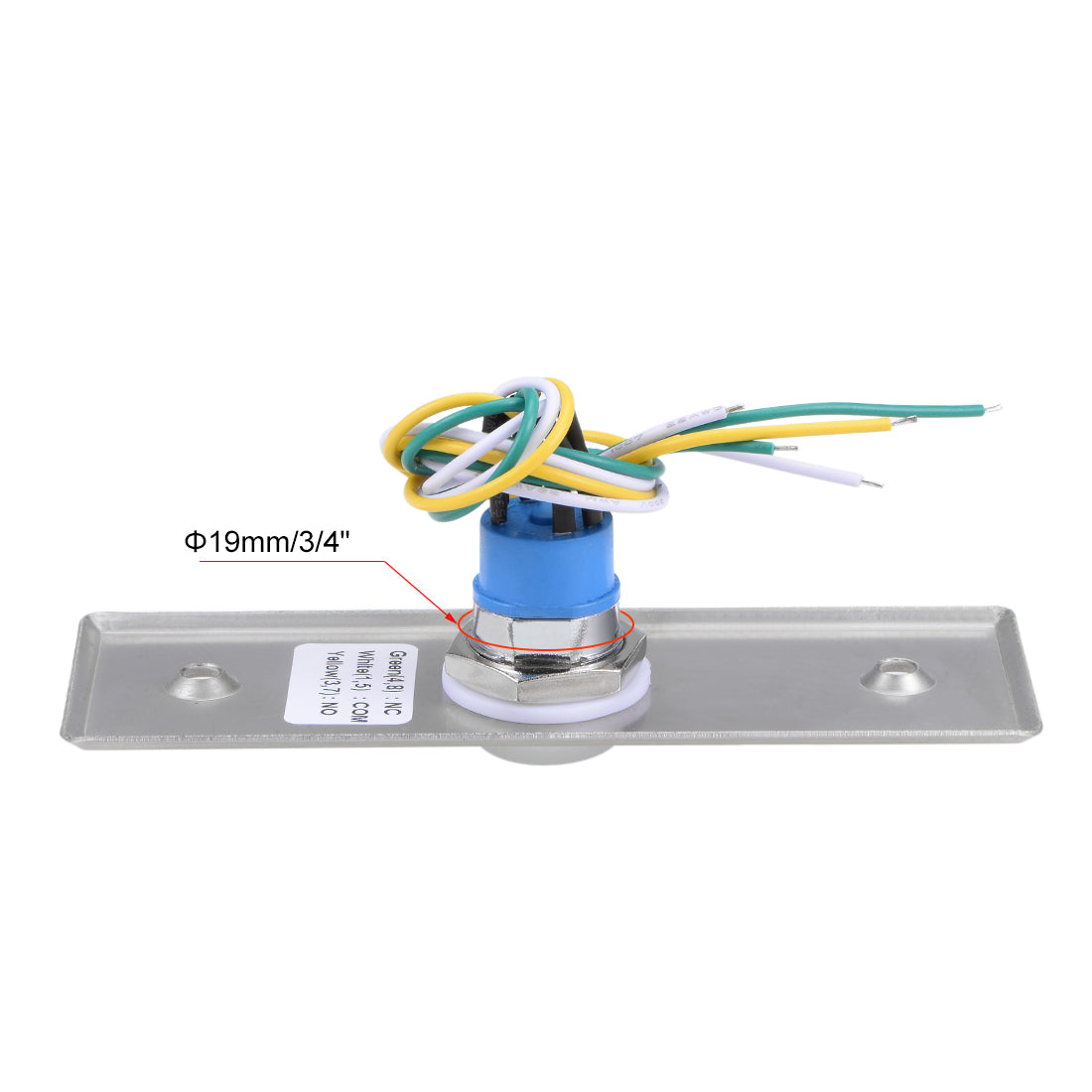

Mounting Cut Hole: 19mm / 3/4"
Panel Mounting Hole Diameter: 4.5mm / 0.18"
Panel Mounting Hole Distance: 83mm / 3.27"
Package Content:
1 x Key Operated Switch
2 x Keys
2 x Mounting Screws
-
35%OFFOrder $5000+
-
25%OFFOrder $2000+
-
15%OFFOrder $800+
-
10%OFFOrder $500+
-
5%OFFOrder $200+
- Ship from the US
- In stock, dispatch in 24 hours.
Product Variants
Products | Title | ID | Price | Qty | |
---|---|---|---|---|---|
![]() | Uxcell Key Switch Lock On/Off Exit Door Lock Emergency Door Release DPST with 2 Keys | 1040230 | US$15.60 |
Products | Title | ID | Price | Qty | |
---|---|---|---|---|---|
![]() | Uxcell Key Switch Lock On/Off Exit Door Lock Emergency Door Release DPST with 2 Keys | 1040230 | US$15.60 | ||
![]() | Uxcell Key Lock Switch On/Off Exit Switches Emergency Door Release SPST for Access Control Panel Mount with 2 Keys | 1067623 | US$12.71 | ||
![]() | Uxcell Key Switch Lock On/Off Exit Switch Emergency Door Release DPST Panel Mount with 2 Keys | 1034946 | US$15.95 | ||
![]() | Uxcell Switch Lock On/Off Key Switch Emergency Door Release DPST Panel Mount with 2 Keys | 1108793 | US$16.50 | ||
![]() | Uxcell Key Switch Lock On Off Exit Door Lock Emergency Door Release SPST with 2 Keys | 1067621 | US$13.42 | ||
![]() | Uxcell Key Switch Lock On/Off Exit Door Lock Emergency Door Release SPST with 2 Keys | 1058800 | US$12.70 | ||
![]() | Uxcell Switch Lock On/Off Key Switch Emergency Door Release SPST Panel Mount with 2 Keys | 1040226 | US$13.15 | ||
![]() | Uxcell Key Switch On/Off Exit Switches Emergency Door Release SPST Panel Mount with 2 Keys | 1169626 | US$13.20 | ||
![]() | Uxcell Key Switch Lock On/Off Exit Switch Emergency Door Release SPST Panel Mount with 2 Keys | 1067622 | US$13.60 | ||
![]() | Uxcell Key Switch On/Off Exit Switches Emergency Door Release DPST Panel Mount with 2 Keys | 1147975 | US$15.61 | ||
![]() | Uxcell On/Off Switch Lock Key Switches Emergency Door Release SPST Panel Mount with 2 Keys | 1147976 | US$13.04 |
Description
Description
Description:
-This key switch is an emergency switch button with a special mechanical key for emergency situations.
-19mm key switch lock with 2 keys, nice smooth action and easy to mount.
-Key is removable in both ON and OFF positions.
Specification:
Panel Material: 304 Stainless Steel
Rated Power: 4A 125V AC / 2A 250V AC
Type: DPST
Contacts Type: 2 NO, 2 NC, 2 COM
Cable Length: 20cm / 7.87"
Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)
Mounting Cut Hole: 19mm / 3/4"
Panel Mounting Hole Diameter: 4.5mm / 0.18"
Panel Mounting Hole Distance: 83mm / 3.27"
Package Content:
1 x Key Operated Switch
2 x Keys
2 x Mounting Screws
Description:
-This key switch is an emergency switch button with a special mechanical key for emergency situations.
-19mm key switch lock with 2 keys, nice smooth action and easy to mount.
-Key is removable in both ON and OFF positions.
Specification:
Panel Material: 304 Stainless Steel
Rated Power: 4A 125V AC / 2A 250V AC
Type: DPST
Contacts Type: 2 NO, 2 NC, 2 COM
Cable Length: 20cm / 7.87"
Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)
Mounting Cut Hole: 19mm / 3/4"
Panel Mounting Hole Diameter: 4.5mm / 0.18"
Panel Mounting Hole Distance: 83mm / 3.27"
Package Content:
1 x Key Operated Switch
2 x Keys
2 x Mounting Screws
