Harfington Uxcell Deep Groove Ball Bearings Double Sealed Stainless Steel Blue Cover

Uxcell Deep Groove Ball Bearings Double Sealed Stainless Steel Blue Cover

ID:1040190
ID:1040190
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
8x24x8mm
Size
About this item

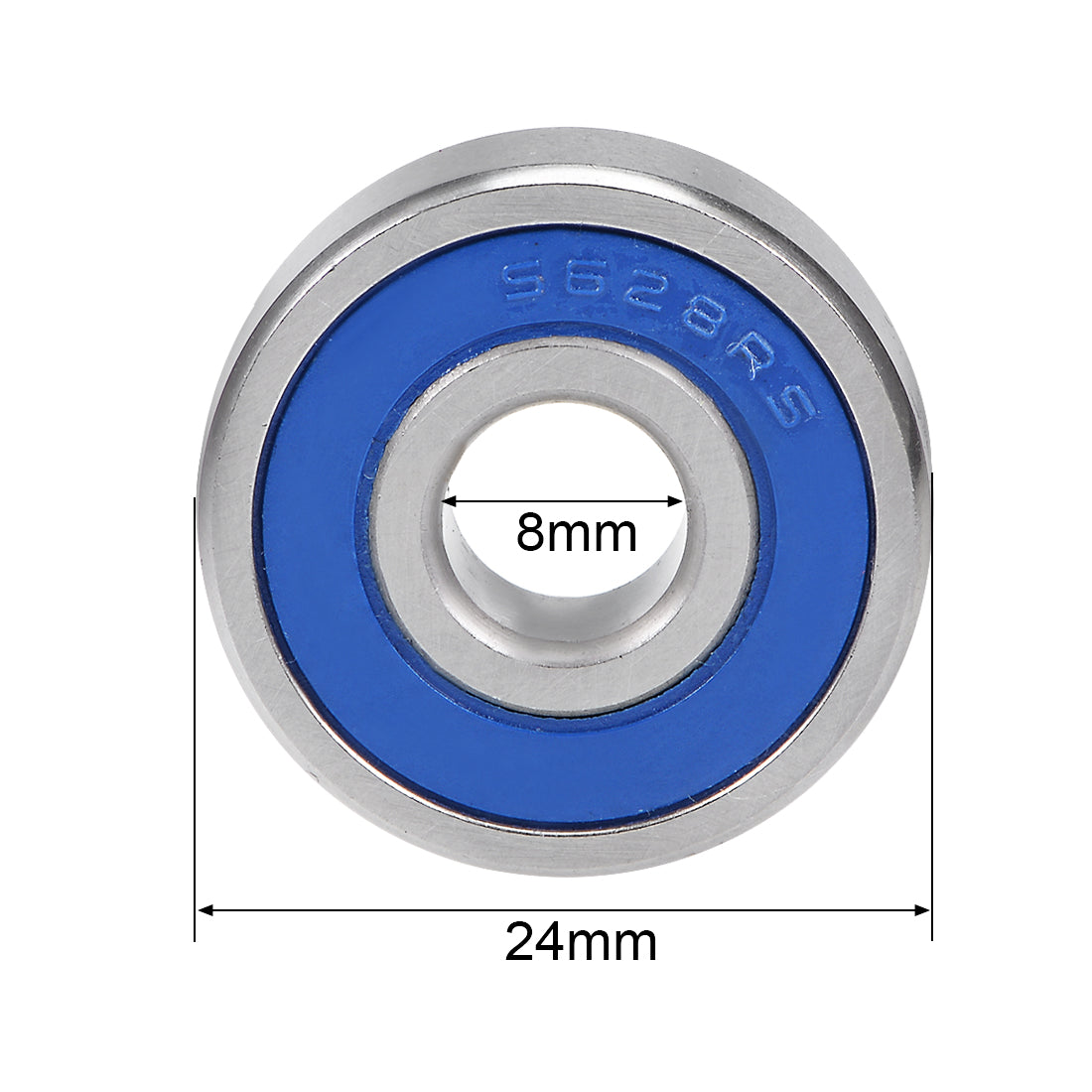

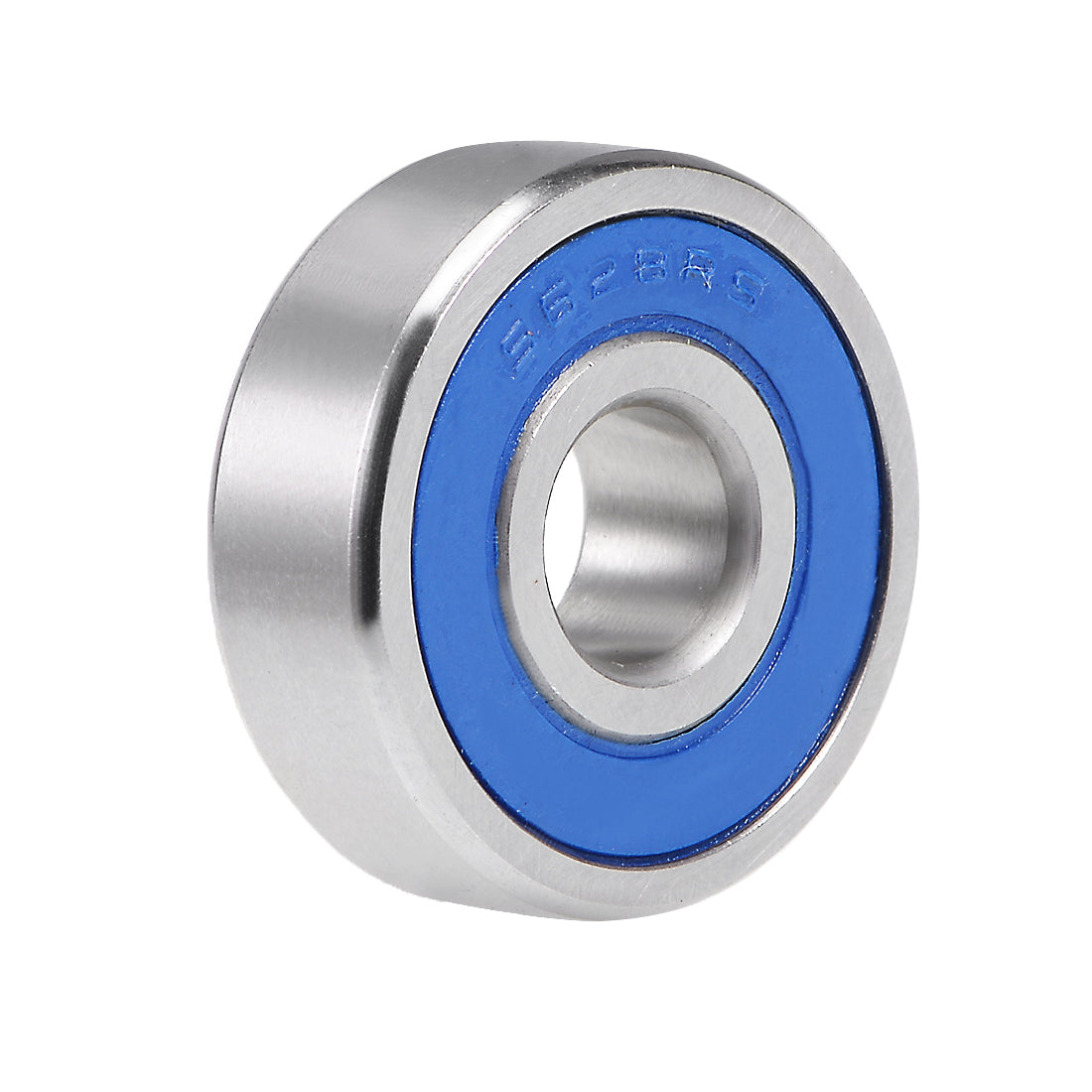

  • S628-2RS (I.D.=8mm, O.D.=24mm, Thickness=8mm)
  • s628-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Stainless steel races for durability and corrosion resistance
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 1400 newtons and dynamic load rating of 3350 newtons
About this item
  • S628-2RS (I.D.=8mm, O.D.=24mm, Thickness=8mm)
  • s628-2rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Stainless steel races for durability and corrosion resistance
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 1400 newtons and dynamic load rating of 3350 newtons
Specification

Specification

SKU
a19010900ux0767
Type
Double Sealed
Model
S628-2RS
Dynamic Load Rating(KN)
3.35
Accuracy Class
ABEC-1
Pkg.Qty.
1
I.D.
8mm
O.D.
24mm
Thickness
8mm
Static Load Rating(KN)
1.4
Noise Level
Z1
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model:S628-2RS

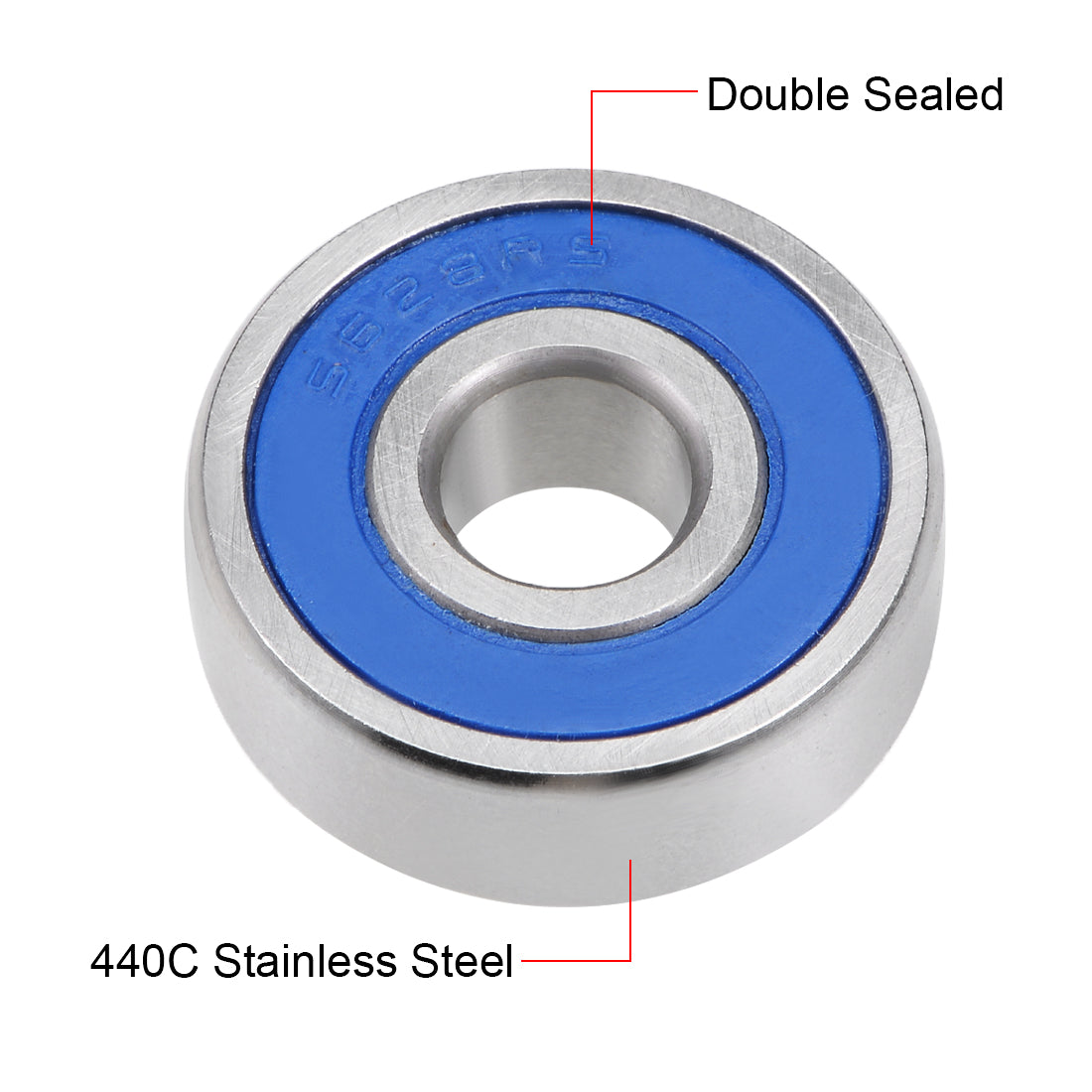

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: 440C Stainless Steel (9Cr18)

Cage Material: 304 Stainless Steel (0Cr18Ni9)

Inner Diameter (d): 8mm

Outer Diameter (D): 24mm

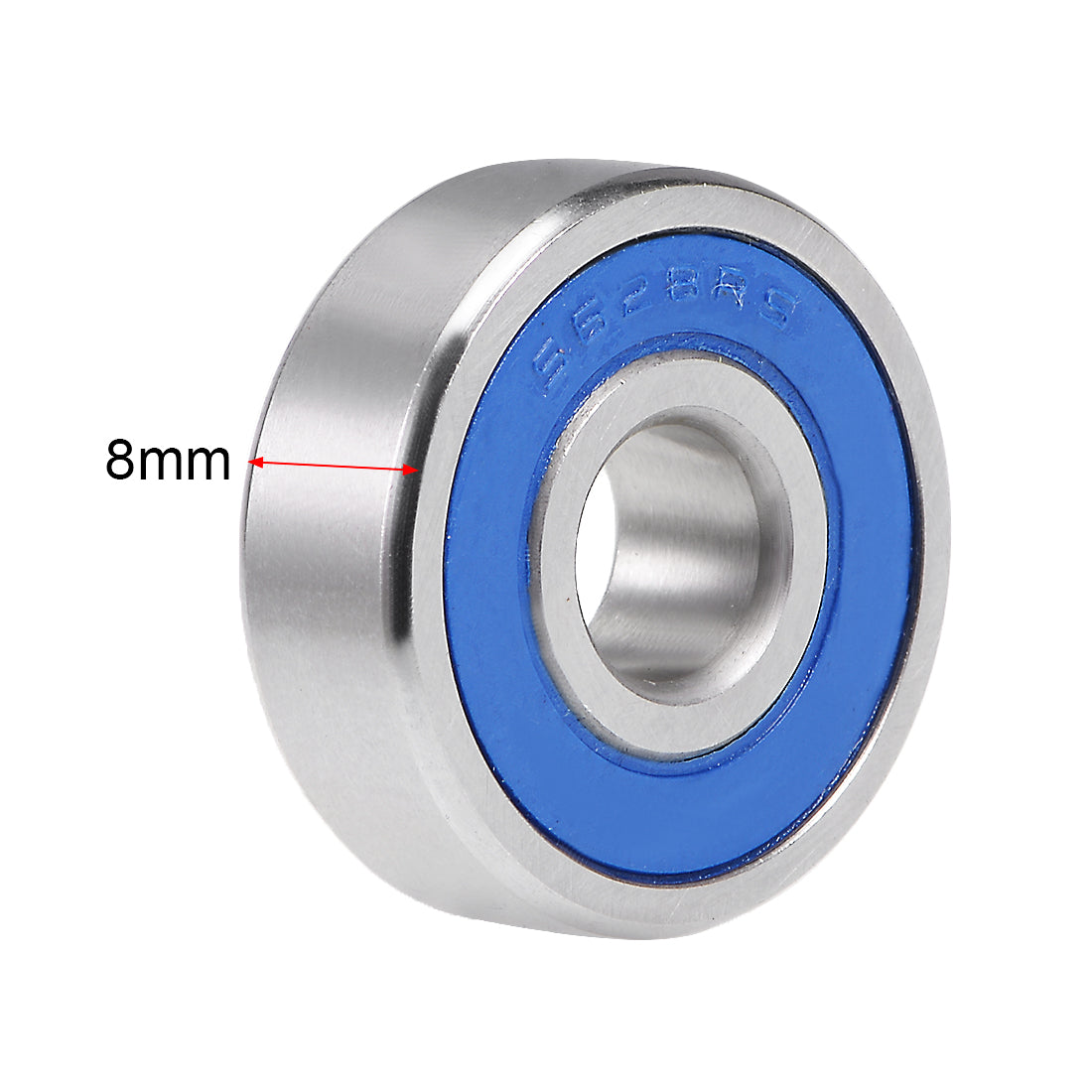

Thickness (B): 8mm

Dynamic Load Rating (Cr): 3.35kN

Static Load Rating (Cor): 1.4kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs

US$5.99 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
S628-2RS ABEC-1 / 8mm Z1 24mm 1 / 1.4 8mm Double Sealed 3.35 1040190 US$5.99
Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
S628-2RS ABEC-1 / 8mm Z1 24mm 1 / 1.4 8mm Double Sealed 3.35 1040190 US$5.99
627-2RS ABEC-1 / 7mm / 22mm 10 / 1.35 7mm Double Sealed 3.3 1237219 US$9.21
698-2RS ABEC-3 / 8mm Z1 19mm 5 / 0.917 6mm Double Sealed 2.237 1015442 US$6.77
698-2RS ABEC-1 / 8mm Z1 19mm 4 / 0.917 6mm Double Sealed 2.237 1058618 US$6.80
S6306-2RS ABEC-1 / 30mm Z1 72mm 1 / 15 19mm Double Sealed 26.7 1029271 US$16.38
R14-2RS ABEC-1 / 22.225mm Z1 47.625mm 2 / 4.95 12.7mm Double Sealed 7.75 1046035 US$10.10
6800-2RS ABEC-1 1.8 10mm Z1 19mm 2 0.93 0.93 5mm Double Sealed / 1055750 US$5.40
6801-2RS ABEC-1 1.9 12mm Z1 21mm 2 1 1 5mm Double Sealed / 1055751 US$5.40
6905-2RS ABEC-1 / 25mm Z1 42mm 2 / 4.55 9mm Double Sealed 7 1059685 US$6.78
6001-2RS ABEC-3 / 12mm Z1 28mm 10 / 2.38 8mm Double Sealed 5.1 1059689 US$11.42
6904-2RS ABEC-3 / 20mm Z1 37mm 1 / 3.7 9mm Double Sealed 6.4 1059700 US$5.82
MR148-2RS ABEC-3 / 8mm Z1 14mm 2 / 0.386 4mm Double Sealed 0.817 1059828 US$6.06
6305-2RS ABEC-3 / 25mm Z1 62mm 1 / 11.3 17mm Double Sealed 20.6 1059835 US$8.24
MR126-2RS ABEC-3 / 6mm Z1 12mm 5 / 0.295 4mm Double Sealed 0.716 1059840 US$7.60
6303-2RS ABEC-3 / 17mm Z1 47mm 1 / 6.58 14mm Double Sealed 13.5 1059858 US$6.62
6206-2RS ABEC-3 / 30mm Z1 62mm 1 / 11.5 16mm Double Sealed 19.5 1059859 US$8.88
683-2RS ABEC-3 / 3mm Z1 7mm 10 / 0.112 3mm Double Sealed 0.311 1059880 US$9.79
R4A-2RS ABEC-1 / 6.35mm Z1 19.05mm 2 / 0.615 7.14mm Double Sealed 1.48 1061819 US$6.14
R24-2RS ABEC-1 / 38.1mm Z1 66.675mm 1 / 2.446 14.288mm Double Sealed 4.426 1058083 US$9.40
MR85-2RS ABEC-3 / 5mm Z1 8mm 2 / 0.09 2.5mm Double Sealed 0.218 1059827 US$6.00
R12-2RS ABEC-1 / 19.05mm Z1 41.275mm 2 / 4.45 11.113mm Double Sealed 7.25 1058267 US$7.82
6900-RS ABEC-3 / 10mm Z1 22mm 5 / 1.3 6mm Double Sealed 2.7 1015444 US$6.63
6900-RS ABEC-3 / 10mm Z1 22mm 2 / 1.3 6mm Double Sealed 2.7 1006738 US$5.72
6701-2RS ABEC-3 / 12mm Z1 18mm 5 / 1.664 4mm Double Sealed 3.96 1047374 US$7.81
MR74-2RS ABEC-3 / 4mm Z1 7mm 5 / 0.106 2.5mm Double Sealed 0.252 1059844 US$7.60
S6206-2RS ABEC-1 / 30mm Z1 62mm 1 / 11.3 16mm Double Sealed 19.5 1029281 US$10.57
629-2RS ABEC-1 / 9mm / 26mm 4 / 2 8mm Double Sealed 4.55 1080663 US$6.88
6903-2RS ABEC-3 / 17mm Z1 30mm 2 / 2.6 7mm Double Sealed 4.6 1035185 US$6.29
626-2RS ABEC-1 / 6mm / 19mm 10 / / 6mm Double Sealed / 1055955 US$6.98
626-2RS ABEC-3 / 6mm Z1 19mm 5 / 1.05 6mm Double Sealed 2.8 1006732 US$6.99
608-2RS ABEC-1 3.3 8mm Z1 22mm 20 1.35 1.35 7mm Double Sealed / 1055732 US$10.06
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model:S628-2RS

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: 440C Stainless Steel (9Cr18)

Cage Material: 304 Stainless Steel (0Cr18Ni9)

Inner Diameter (d): 8mm

Outer Diameter (D): 24mm

Thickness (B): 8mm

Dynamic Load Rating (Cr): 3.35kN

Static Load Rating (Cor): 1.4kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs
