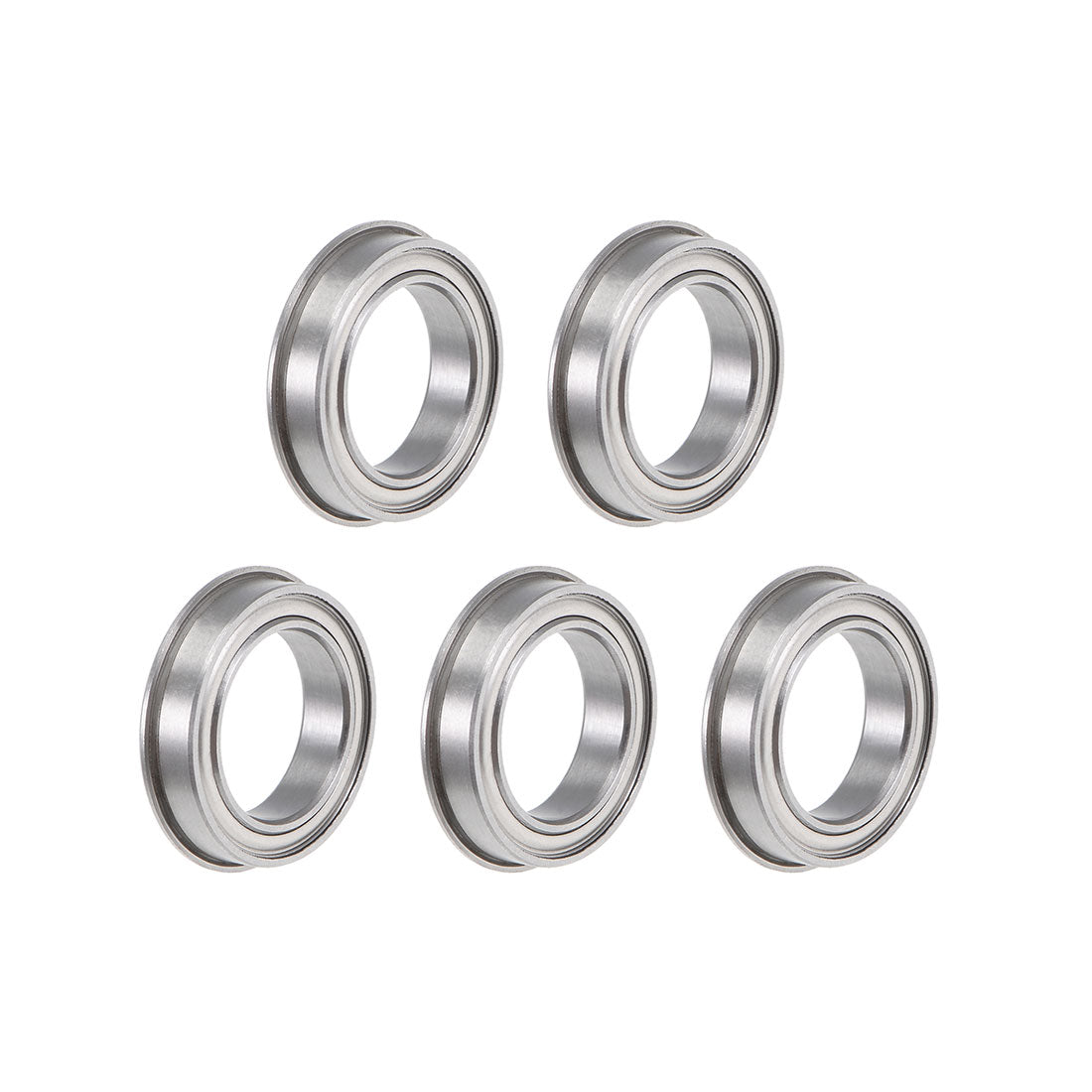

Harfington Uxcell F6701ZZ Flange Ball Bearing 12x18x4mm Shielded Chrome Bearings 5pcs

Uxcell F6701ZZ Flange Ball Bearing 12x18x4mm Shielded Chrome Bearings 5pcs

ID:1035598
ID:1035598
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

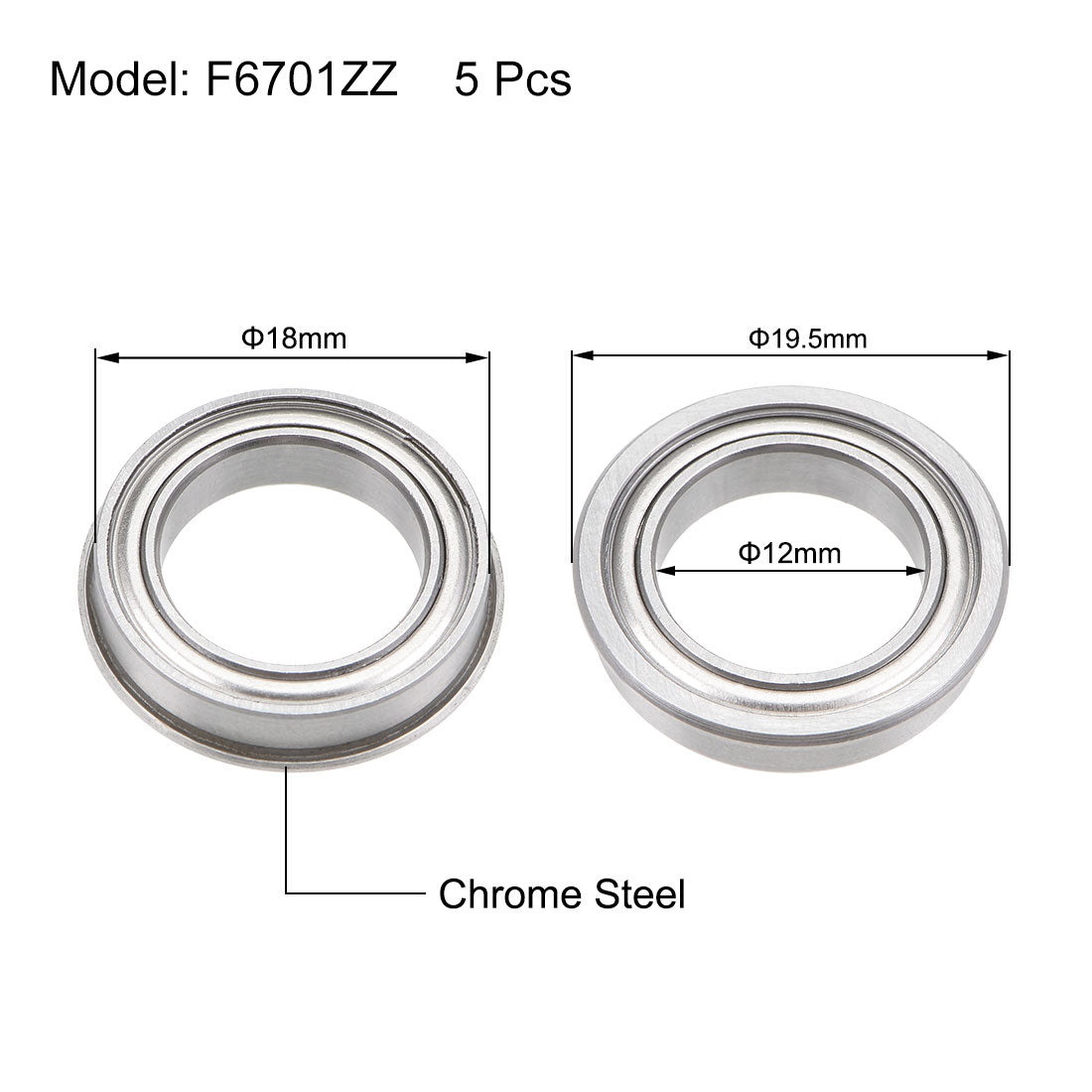

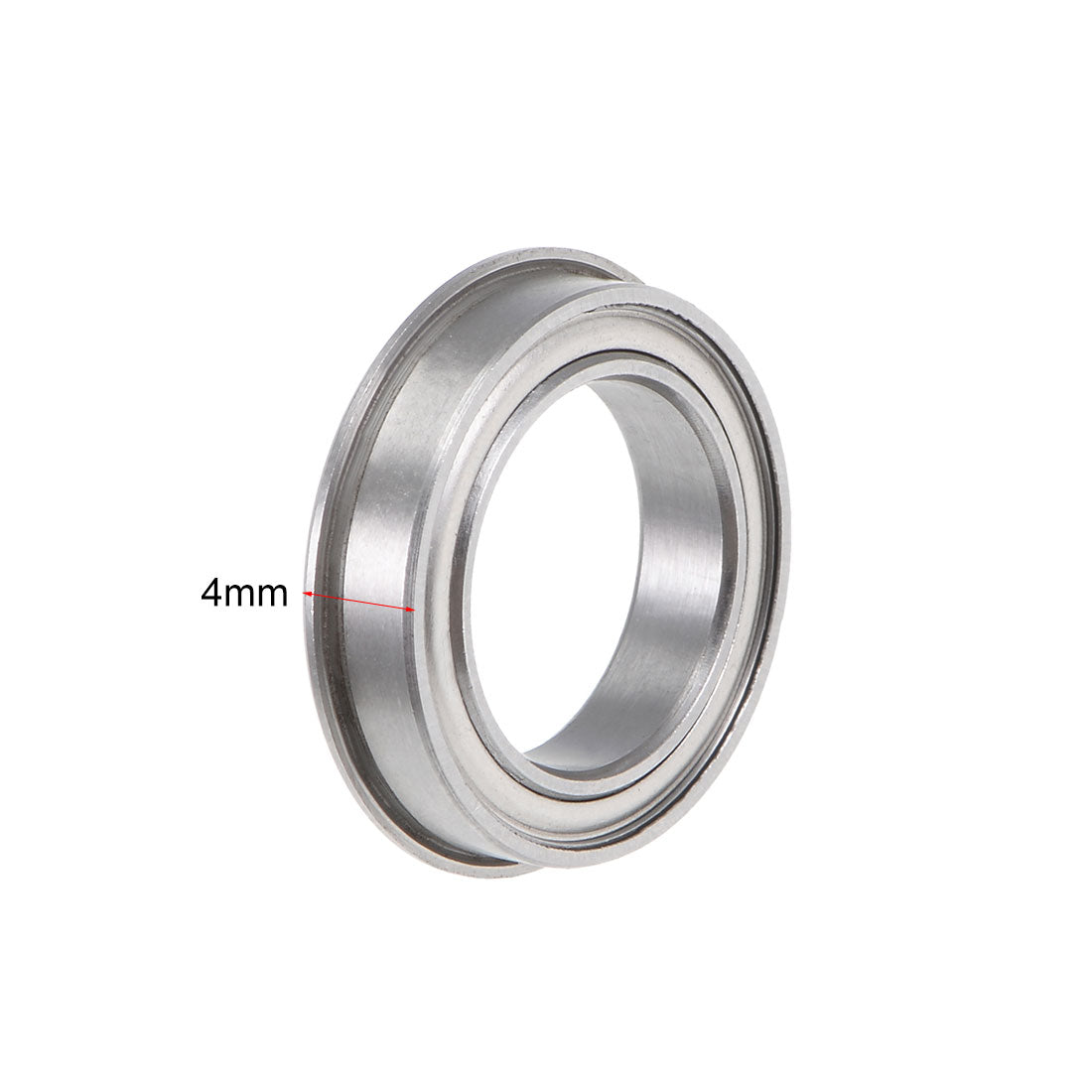

  • [Size] - F6701ZZ ABEC1 bearing (I.D.=12mm, O.D.=18mm, Thickness=4mm, Flange Dia: 19.5mm).
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.
  • [Note] - Keep the bearing working environment clean and bearing lubricated in time.
About this item
  • [Size] - F6701ZZ ABEC1 bearing (I.D.=12mm, O.D.=18mm, Thickness=4mm, Flange Dia: 19.5mm).
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.
  • [Note] - Keep the bearing working environment clean and bearing lubricated in time.
Specification

Specification

SKU
a19091100ux0629
Model
F6701ZZ
Shielded type
Double Shielded
Cage material
Stamping Steel
Inner diameter (d)
12mm
Outer diameter (d)
18mm
Thickness (b)
4mm
Flange dia
19.5mm
Flange thickness
0.8mm
Dynamic load rating (cr)
0.922kN
Static load rating (cor)
0.512kN
Accuracy class
P0 (ABEC1)
Noise level
Z1
Number of pack
5 Pcs
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: F6701ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 12mm

Outer Diameter (D): 18mm

Thickness (B): 4mm

Flange Dia.: 19.5mm

Flange Thickness: 0.8mm

Dynamic Load Rating (Cr): 0.922kN

Static Load Rating (Cor): 0.512kN

Accuracy Class: P0 (ABEC1)

Noise Level: Z1

Number of Pack: 5 Pcs

US$8.10 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: F6701ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 12mm

Outer Diameter (D): 18mm

Thickness (B): 4mm

Flange Dia.: 19.5mm

Flange Thickness: 0.8mm

Dynamic Load Rating (Cr): 0.922kN

Static Load Rating (Cor): 0.512kN

Accuracy Class: P0 (ABEC1)

Noise Level: Z1

Number of Pack: 5 Pcs
