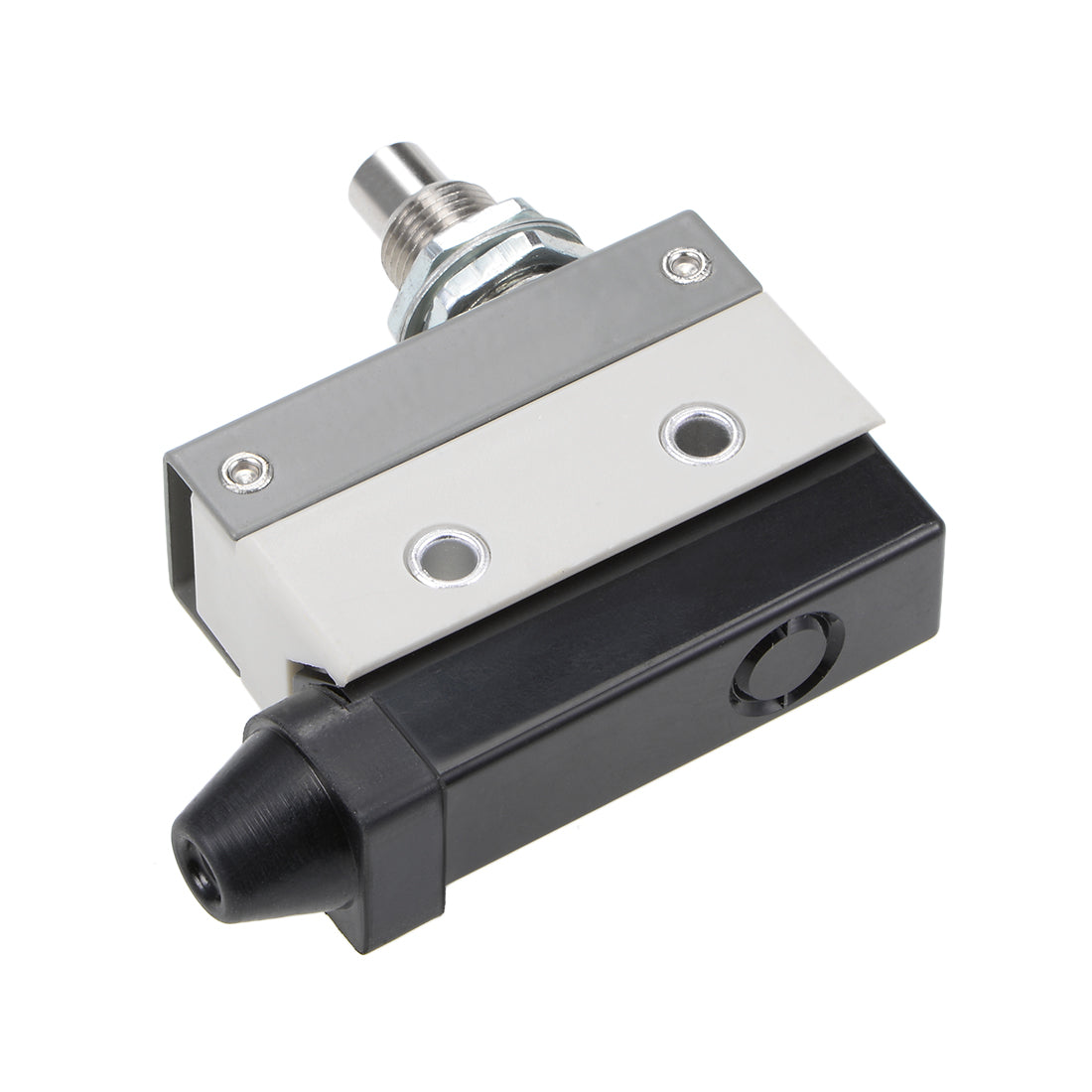

Harfington AZ-7310 Limit Switch, TZ-7310 Push Plunger Micro Momentary Switches Panel Mount 1NC+1NO

AZ-7310 Limit Switch, TZ-7310 Push Plunger Micro Momentary Switches Panel Mount 1NC+1NO

ID:
$9.18 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: AZ-7310 (TZ-7310); Push Plunger Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: AZ-7310 (TZ-7310); Push Plunger Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Product Name: Limit Switch

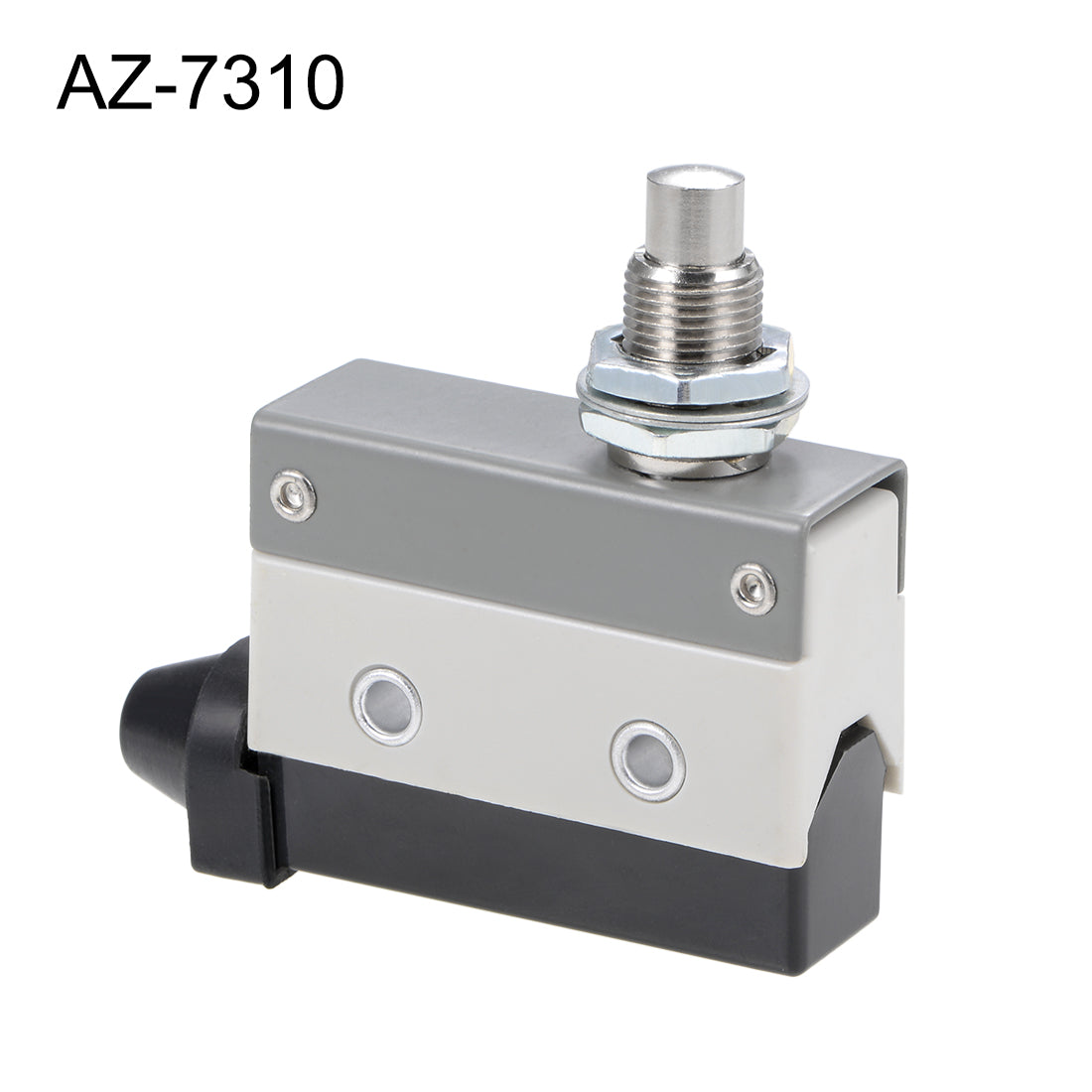

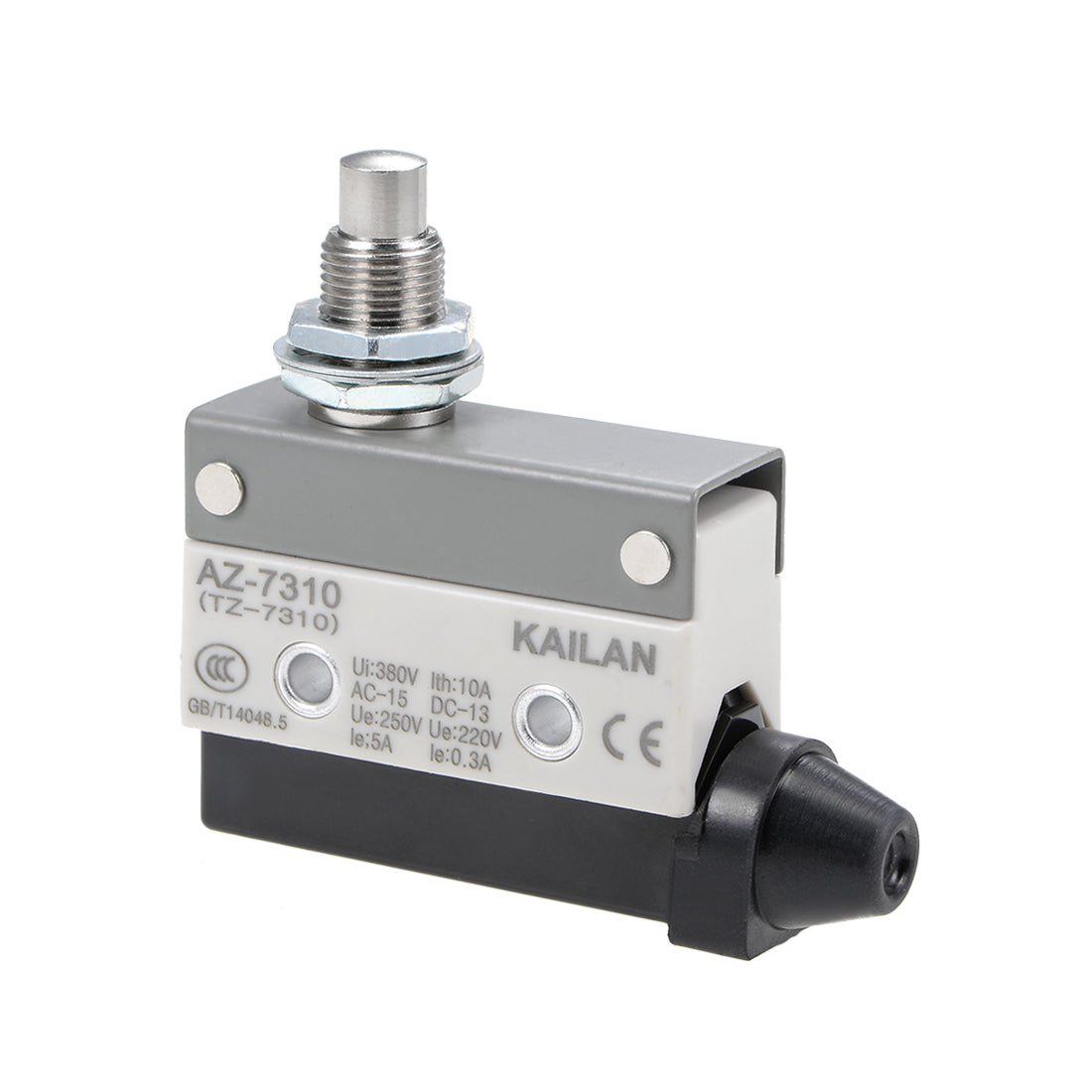

Model: AZ-7310 (TZ-7310)

Actuator Type: Push Plunger Type

Rated Voltage:

AC-15: 250V 5A

DC-13: 220V 0.3A

Contact Configuration: 1NC+1NO

Body Size: 54 x 42 x 21mm (L*W*T)

Mounting Hole Size: 4.2mm (D)

Mounting Hole Distance: 25.4mm



The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.

The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger.





Operating Characteristics:

OF max: 600g

RF min: 100g

PT max: 2.0mm

OT min: 6.0mm

MD max: 0.8mm

OP: 21.8+/-1.2mm



Description:

-High precision and long life, suitable for applications demanding higher mechanical strength, dust proof, and drip-proof properties than those on basic switches.

-Screw silver contact, outer shell covered with plastics.

-Sealed with gasket diaphragm to provide high sealing property without use of any adhesive or pin.

-This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.

-Excessive dog angle, operating speed, or overtravel (OT) may damage the actuator, and check that OT has a sufficient margin.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
