Harfington Uxcell M32 Cable Gland 5 Holes Waterproof IP68 Nylon Joint Adjustable Locknut for 6-8mm Dia Wire

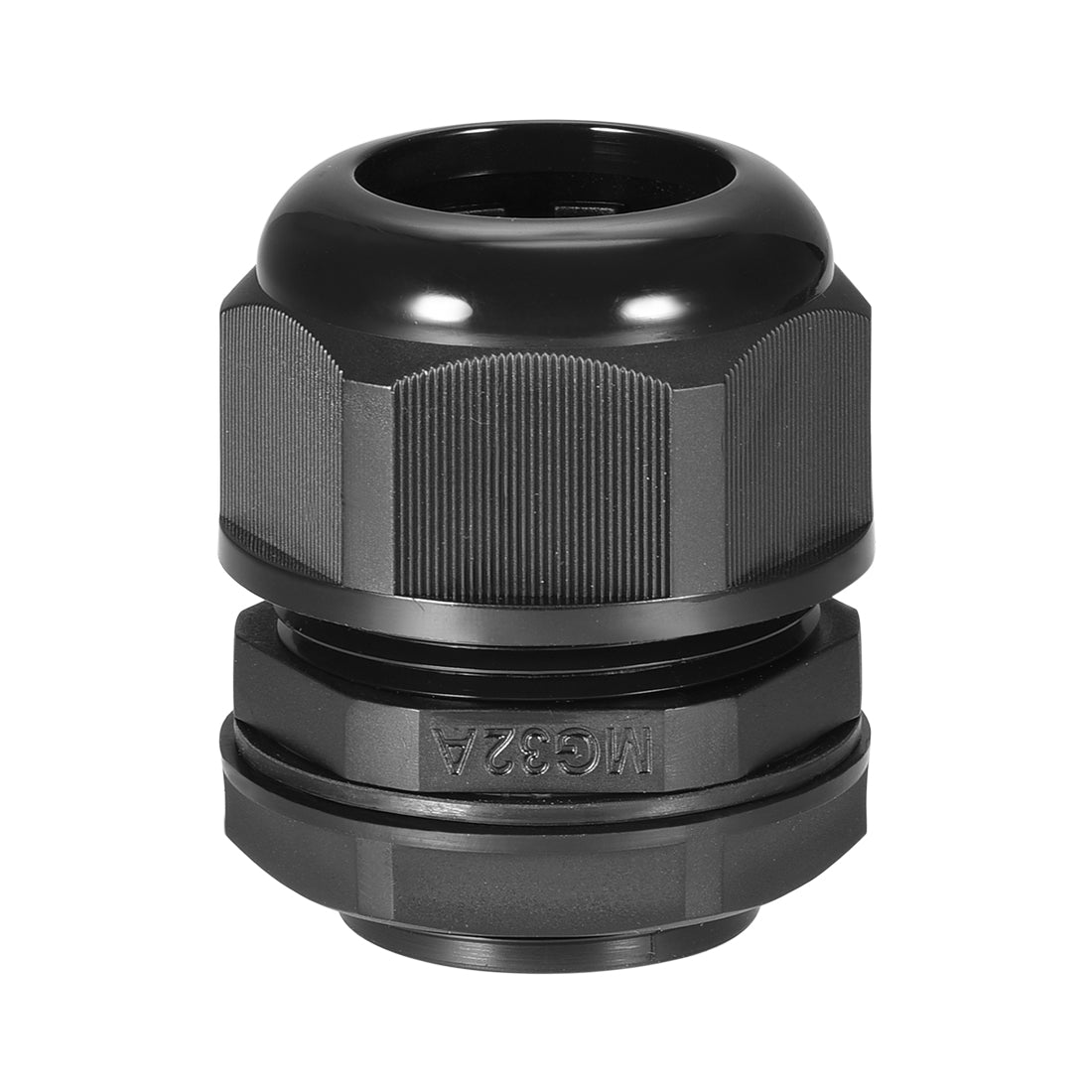

Uxcell M32 Cable Gland 5 Holes Waterproof IP68 Nylon Joint Adjustable Locknut for 6-8mm Dia Wire

ID:1035021
ID:1035021
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

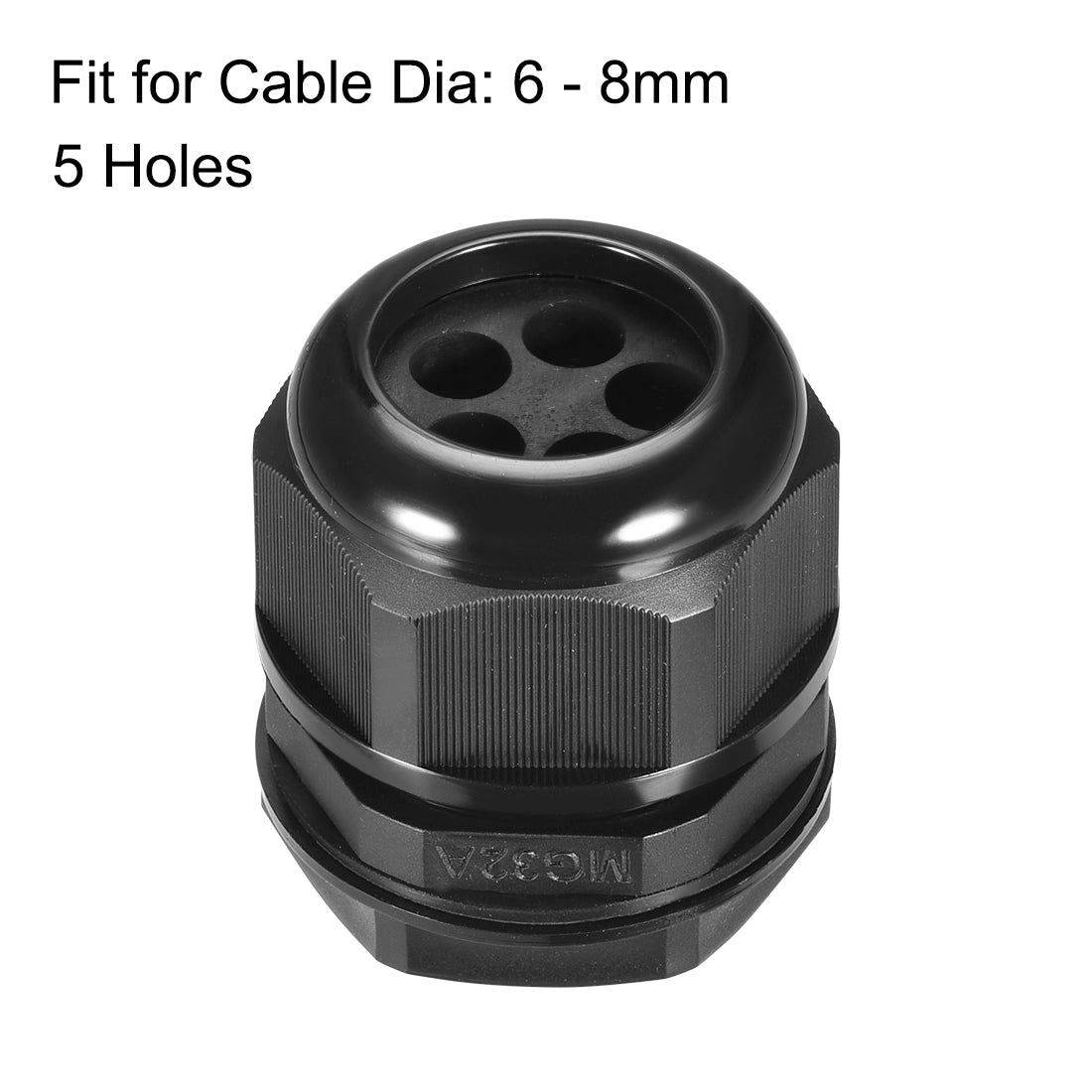

  • Type: M32 Thread, 5 Holes ; Fit for Cable Diameter:6 - 8mm / 0.24 - 0.31inch

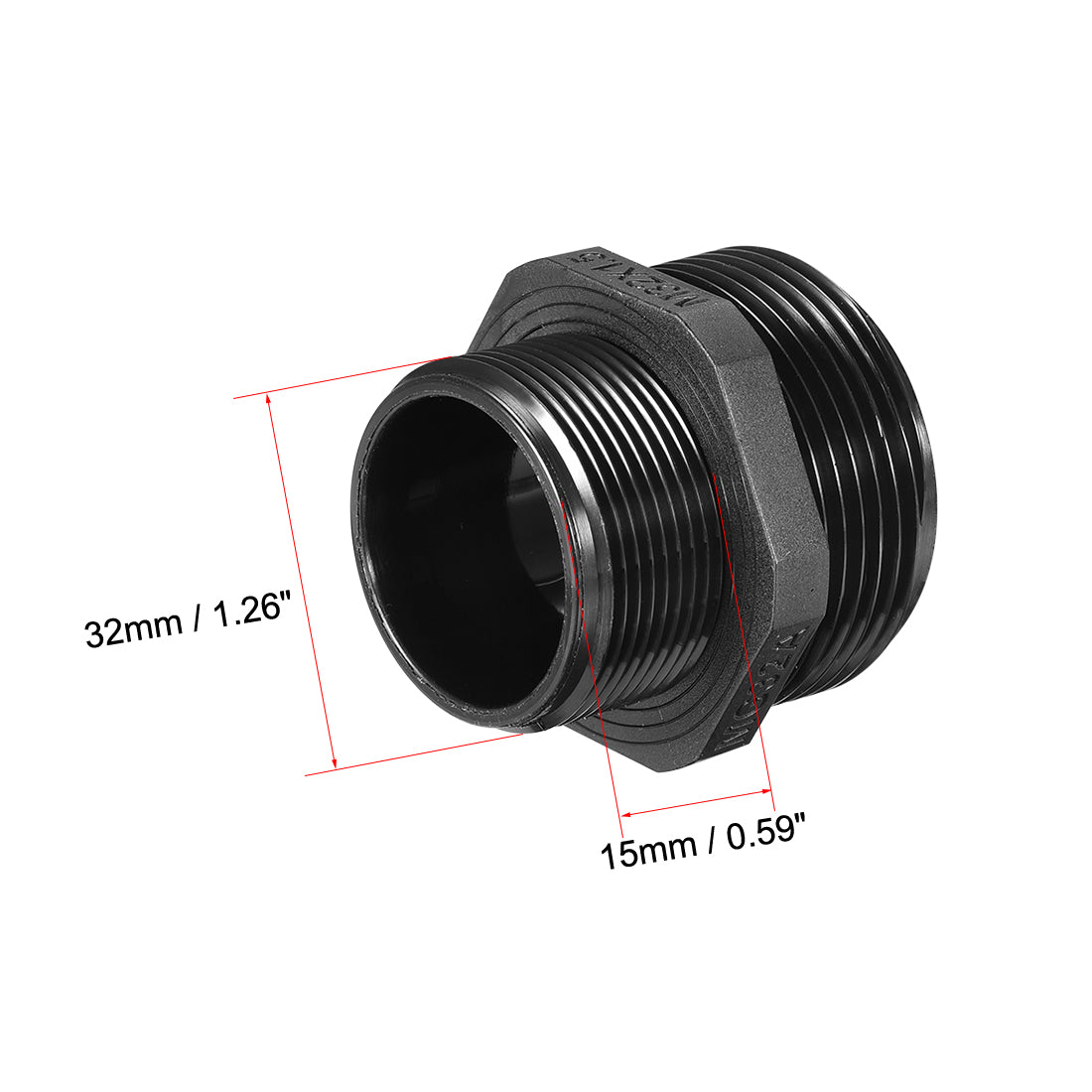

  • Thread Diameter: 32mm / 1.26"; Thread Length: 15mm / 0.59"; Thread Pitch: 1.5.
  • Made from nylon material; Waterproof rated up to IP68.
  • Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.

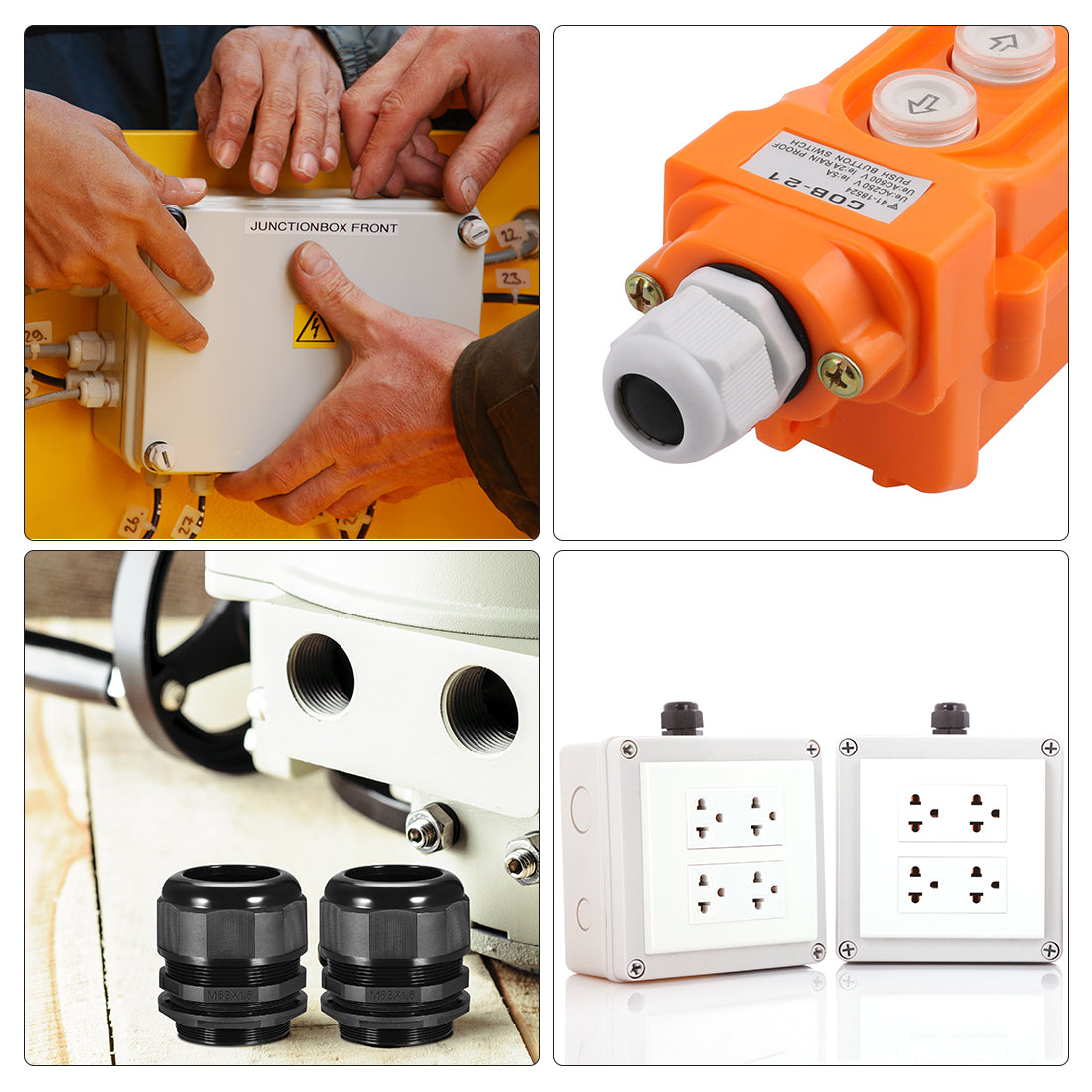

  • Ideal accessory for junction boxes.Easy to install, help you clamping cable.
About this item
  • Type: M32 Thread, 5 Holes ; Fit for Cable Diameter:6 - 8mm / 0.24 - 0.31inch
  • Thread Diameter: 32mm / 1.26"; Thread Length: 15mm / 0.59"; Thread Pitch: 1.5.
  • Made from nylon material; Waterproof rated up to IP68.
  • Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.
  • Ideal accessory for junction boxes.Easy to install, help you clamping cable.
Specification

Specification

SKU
a19030100ux0553
Type
M32x1.5 , 5 Holes
Material
Nylon + Rubber
Fit for cable dia
6 - 8mm / 0.24 - 0.31inch
Total size
55 x 46mm / 2.17 x 1.81inch (L*D)
Thread diameter
32mm / 1.26 inch
Thread length
15mm / 0.59 inch
Thread pitch
1.5
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

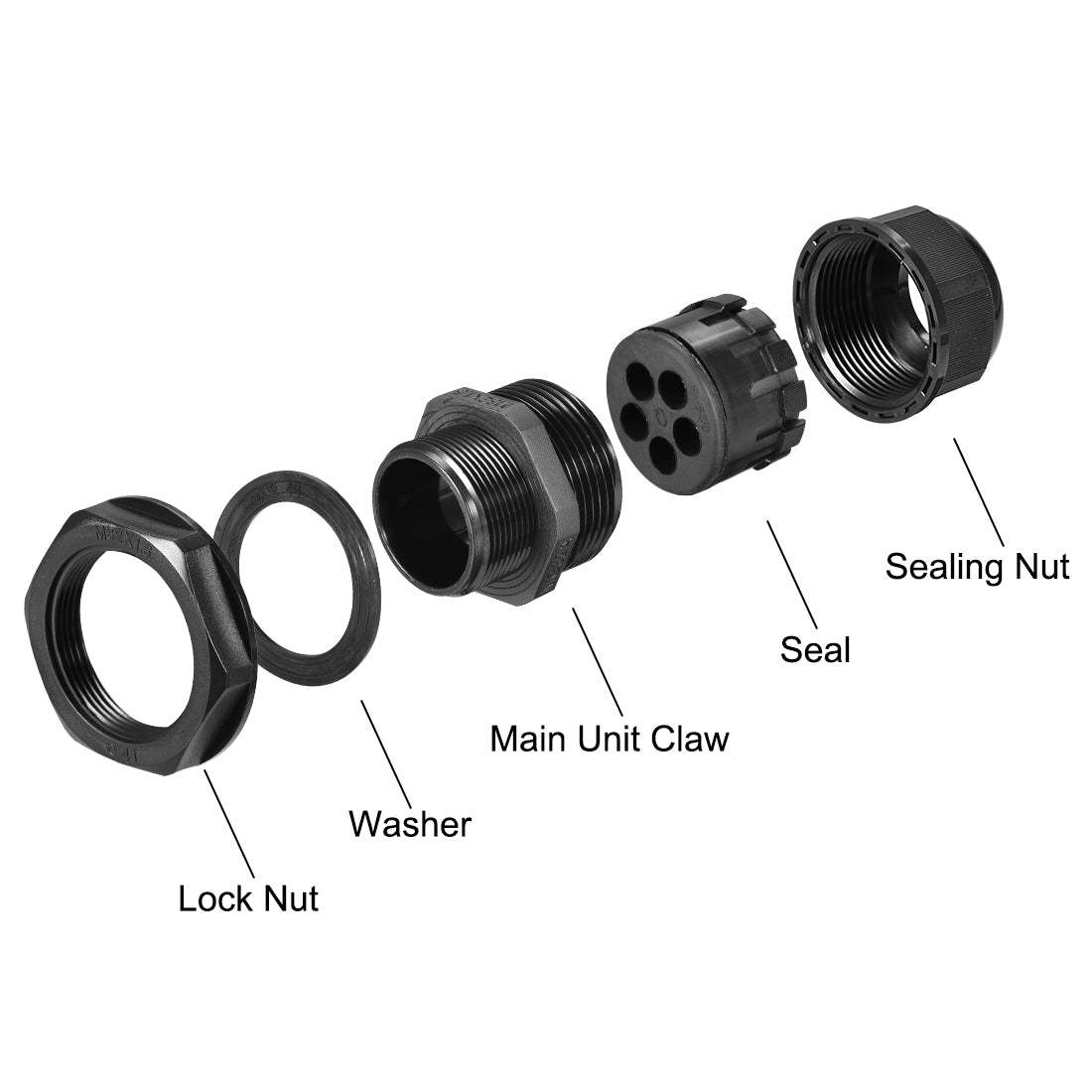

Complete With Locknut and Washer.

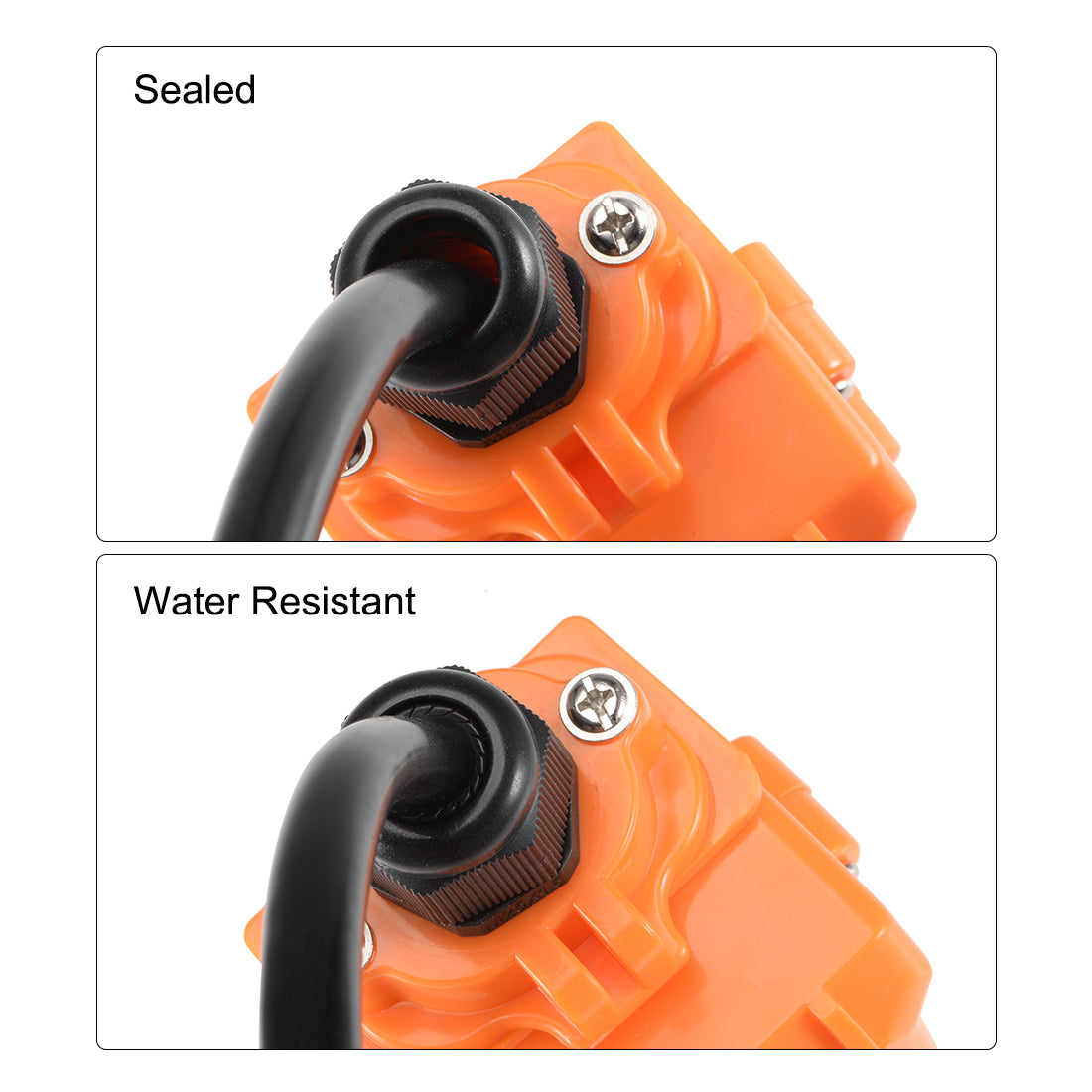

Waterproof rated up to IP68.

Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.

Easy to install, and help you clamping cable.

Ideal accessory for junction boxes. Please check the thread size you need before buying.



Work Environment:

1. Static state: -40C - +100C in static state, instantaneous heat resistance up to 120C.

2. Dynamic: -20C - +80C in static state, instantaneous heat resistance up to 100C.





Specifications:

Type: M32x1.5 , 5 Holes

Material: Nylon + Rubber

Fit for Cable Dia: 6 - 8mm / 0.24 - 0.31inch

Total Size: 55 x 46mm / 2.17 x 1.81inch (L*D)

Thread Diameter: 32mm / 1.26"

Thread Length: 15mm / 0.59"

Thread Pitch: 1.5



Packing Included:

1 x Cable Gland

US$7.66 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell M32 Cable Gland 5 Holes Waterproof IP68 Nylon Joint Adjustable Locknut for 6-8mm Dia Wire 1035021 US$7.66
Products Title ID Price Qty
Uxcell M32 Cable Gland 5 Holes Waterproof IP68 Nylon Joint Adjustable Locknut for 6-8mm Dia Wire 1035021 US$7.66
Uxcell M25 Cable Gland 4 Holes Waterproof IP68 Nylon Joint Adjustable Locknut for 4-6mm Dia Wire 1035016 US$6.61
Uxcell M40 Cable Gland 4 Holes Waterproof IP68 Nylon Joint Adjustable Locknut for 10-12mm Dia Wire 1113876 US$9.27
Uxcell M63 Cable Gland 3 Holes Waterproof IP68 Nylon Joint Adjustable Locknut for 11-13mm Dia Wire 1040525 US$12.38
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Description:

Complete With Locknut and Washer.

Waterproof rated up to IP68.

Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.

Easy to install, and help you clamping cable.

Ideal accessory for junction boxes. Please check the thread size you need before buying.



Work Environment:

1. Static state: -40C - +100C in static state, instantaneous heat resistance up to 120C.

2. Dynamic: -20C - +80C in static state, instantaneous heat resistance up to 100C.





Specifications:

Type: M32x1.5 , 5 Holes

Material: Nylon + Rubber

Fit for Cable Dia: 6 - 8mm / 0.24 - 0.31inch

Total Size: 55 x 46mm / 2.17 x 1.81inch (L*D)

Thread Diameter: 32mm / 1.26"

Thread Length: 15mm / 0.59"

Thread Pitch: 1.5



Packing Included:

1 x Cable Gland
