Harfington Uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO

Uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO

ID:1034562
ID:1034562
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: ME-8104; Plastic Wheel Roller Lever
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
About this item
  • Model: ME-8104; Plastic Wheel Roller Lever
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

SKU
a18091500ux0027
Product name
Limit Switch
Model
ME-8104
Actuator type
Plastic Wheel Roller Lever Type
Rated voltage
5A 250V AC / 0.4A 115V DC
Contact configuration
1NC+1NO
Body size
64 x 28 x 25mm (L*W*T)
Mounting hole size
M5

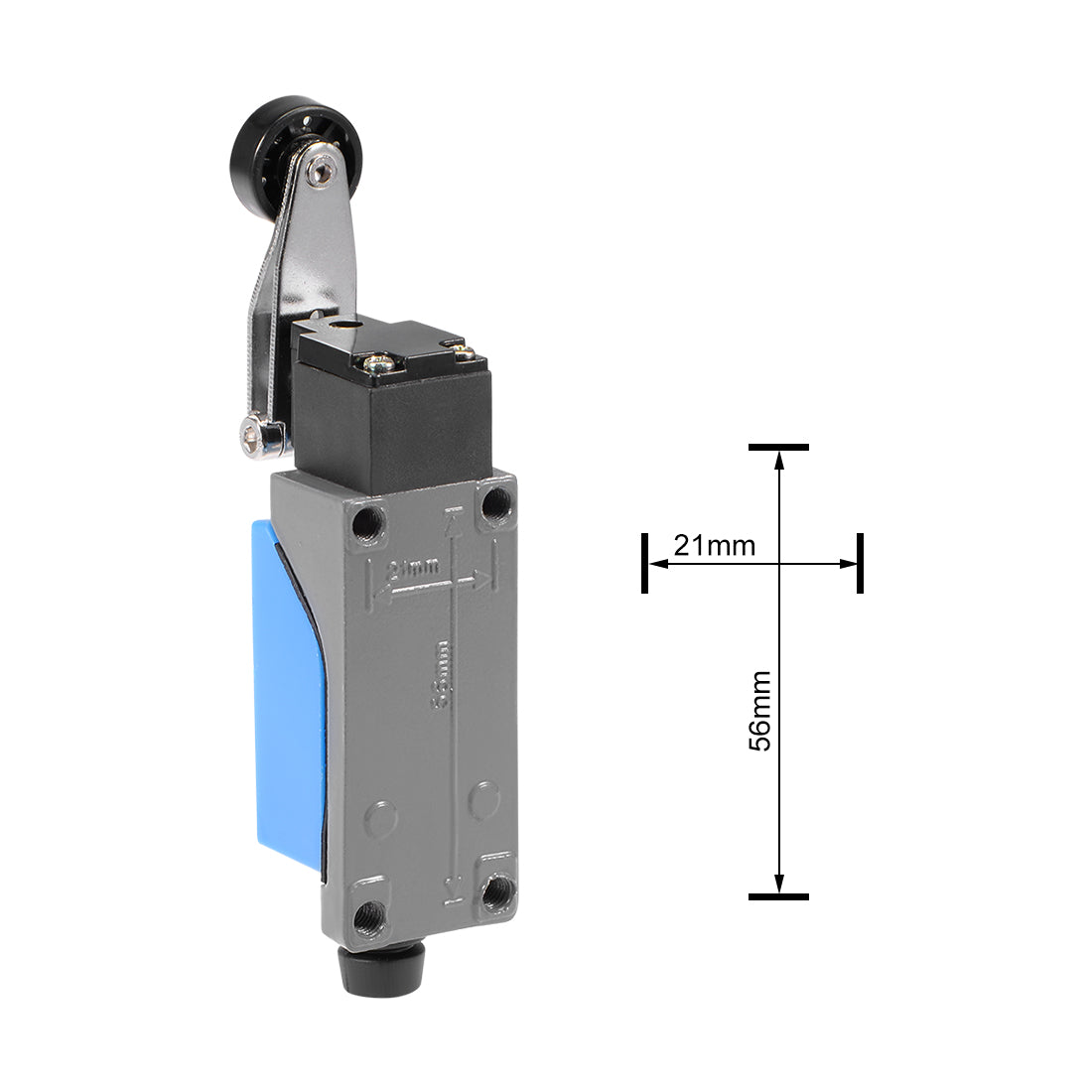

Mounting hole distance
56 x 21mm / 2.2" x 0.83" (L*W)
Of max
700g (6.86N)
Rf min
60g (0.59N)
Pt max
30°
Ot min
60°
Md max
15°
Tt
90°
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Product Name: Limit Switch

Model: ME-8104

Actuator Type: Plastic Wheel Roller Lever Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.

These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

Operating Characteristics:

OF max.: 700g (6.86N)

RF min.: 60g (0.59N)

PT max.: 30°

OT min.: 60°

MD max.: 15°

TT: 90°

Description:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.
  • Brass contacts with 30% silver contained. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
US$7.06 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO 1034562 US$7.06
Products Title ID Price Qty
Uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO 1034562 US$7.06
Uxcell ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO 1154485 US$6.97
Uxcell ME-8107 Adjustable Rod Lever Arm Momentary Limit Switch 1NC+1NO 1154482 US$8.03
Uxcell ME-8107 Adjustable Rod Lever Arm Momentary Limit Switch 1NC+1NO 3Pcs 1068359 US$11.47
Uxcell ME-8111 Plunger Momentary Limit Switch 1NC+1NO 2Pcs 1019849 US$8.89
Uxcell Flexible Coil Spring Rod Momentary Limit Switch ME-8167 1NC+1NO 5Pcs 1072224 US$15.23
Uxcell ME-8112 Roller Plunger Momentary Limit Switch 1NC+1NO 2Pcs 1080343 US$8.71
Uxcell ME-8169 Cat Whisker Flexible Coil Spring Momentary Limit Switch 1NC+1NO 2Pcs 1039608 US$9.35
Uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO 5Pcs 1072218 US$16.51
Uxcell ME-8112 Roller Plunger Momentary Limit Switch 1NC+1NO 1072220 US$7.07
Uxcell Flexible Coil Spring Momentary Limit Switch 1NC+1NO 5Pcs 1072221 US$15.01
Uxcell ME-8166 Flexible Coil Spring Momentary Limit Switch 1NC+1NO 3Pcs 1072222 US$11.25
Uxcell ME-9101 Flexible Coil Spring Rod Momentary Limit Switch ME-8167 1NC+1NO 1072223 US$7.43
Uxcell ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO 5Pcs 1072219 US$17.13
Uxcell ME-9101 Flexible Coil Spring Rod Momentary Limit Switch ME-8167 1NC+1NO 3Pcs 1034561 US$12.88
Uxcell ME-8111 Plunger Momentary Limit Switch 1NC+1NO 4Pcs 1068360 US$12.53
Uxcell ME-8111 Plunger Momentary Limit Switch 1NC+1NO 1068361 US$7.07
Uxcell ME-8166 Flexible Coil Spring Momentary Limit Switch 1NC+1NO 1068362 US$7.61
Uxcell ME-8169 Cat Whisker Flexible Coil Spring Momentary Limit Switch 1NC+1NO 3Pcs 1068363 US$11.35
Uxcell ME-8122 Cross Roller Plunger Momentary Limit Switch 1NC+1NO 5Pcs 1076262 US$15.15
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Specification:

Product Name: Limit Switch

Model: ME-8104

Actuator Type: Plastic Wheel Roller Lever Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.

These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

Operating Characteristics:

OF max.: 700g (6.86N)

RF min.: 60g (0.59N)

PT max.: 30°

OT min.: 60°

MD max.: 15°

TT: 90°

Description:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.
  • Brass contacts with 30% silver contained. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
