Uxcell SI5T/K, Rod End Bearing, 5mm Inside Dia Economy Self Lubricating Female Right Hand 4pcs
-
20%OFFOrder $5000+
-
15%OFFOrder $2000+
-
10%OFFOrder $800+
-
7%OFFOrder $500+
-
5%OFFOrder $200+
- THREAD DIAMETER: M5.
- FEATURES: 5mm Bore Self Lubricating Female Right Hand.
- INSTAL: Large load capability,easy mounting and dismounting and mechanism simplification.
- STEEL BALL: Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
- APPLICATION: Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.
- THREAD DIAMETER: M5.
- FEATURES: 5mm Bore Self Lubricating Female Right Hand.
- INSTAL: Large load capability,easy mounting and dismounting and mechanism simplification.
- STEEL BALL: Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
- APPLICATION: Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.
Specification
2. Spherical rod end bearing for transferring motion between widely separated points.
3. It has characteristics of large load capability,easy mounting and dismounting and mechanism simplification.
4. Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
5. Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.
Specification:
Product Name: Rod End Bearing

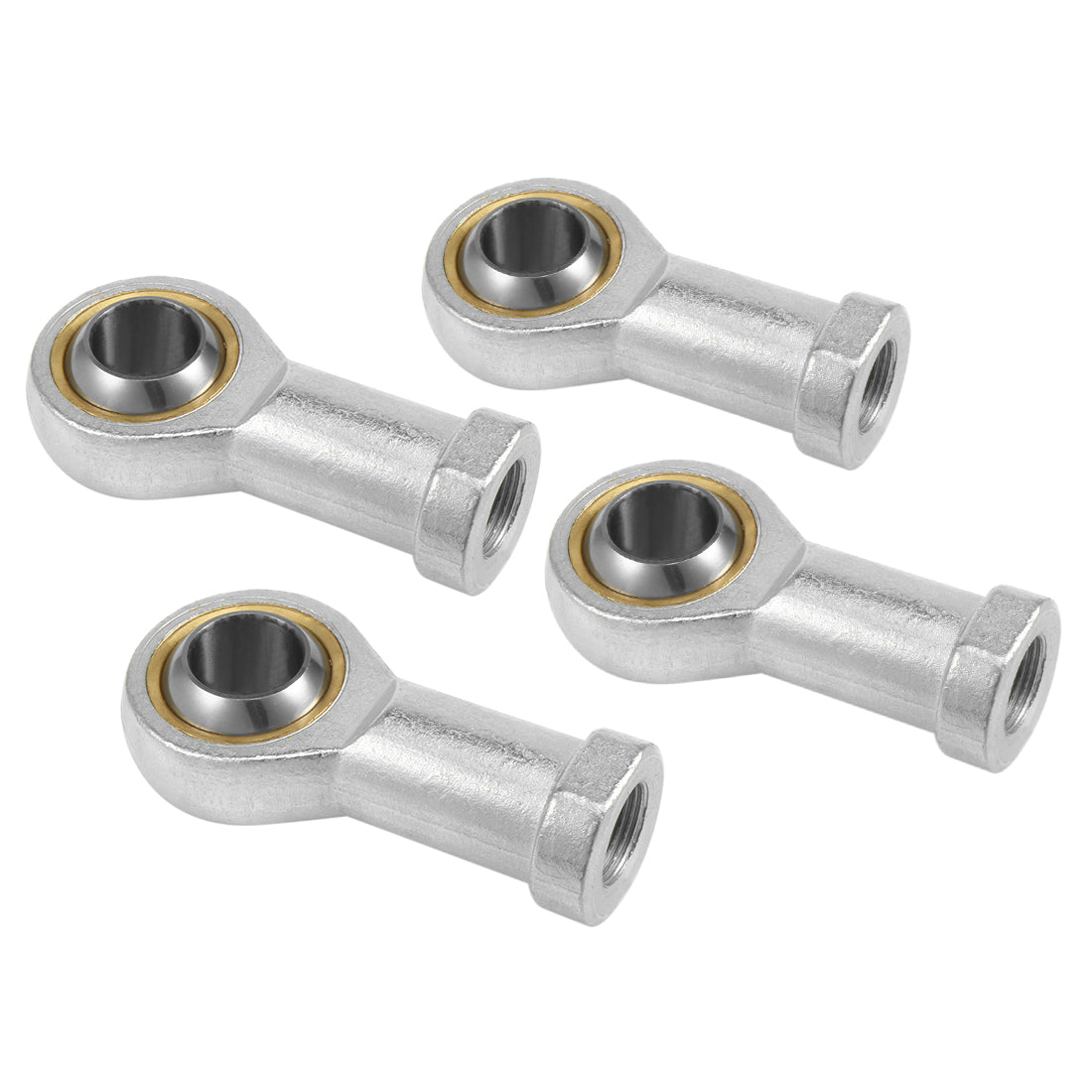

Package Content: 4pcs x Rod End Bearing
Material: Carbon Steel,White Zinc Plated
Color: Silver Tone

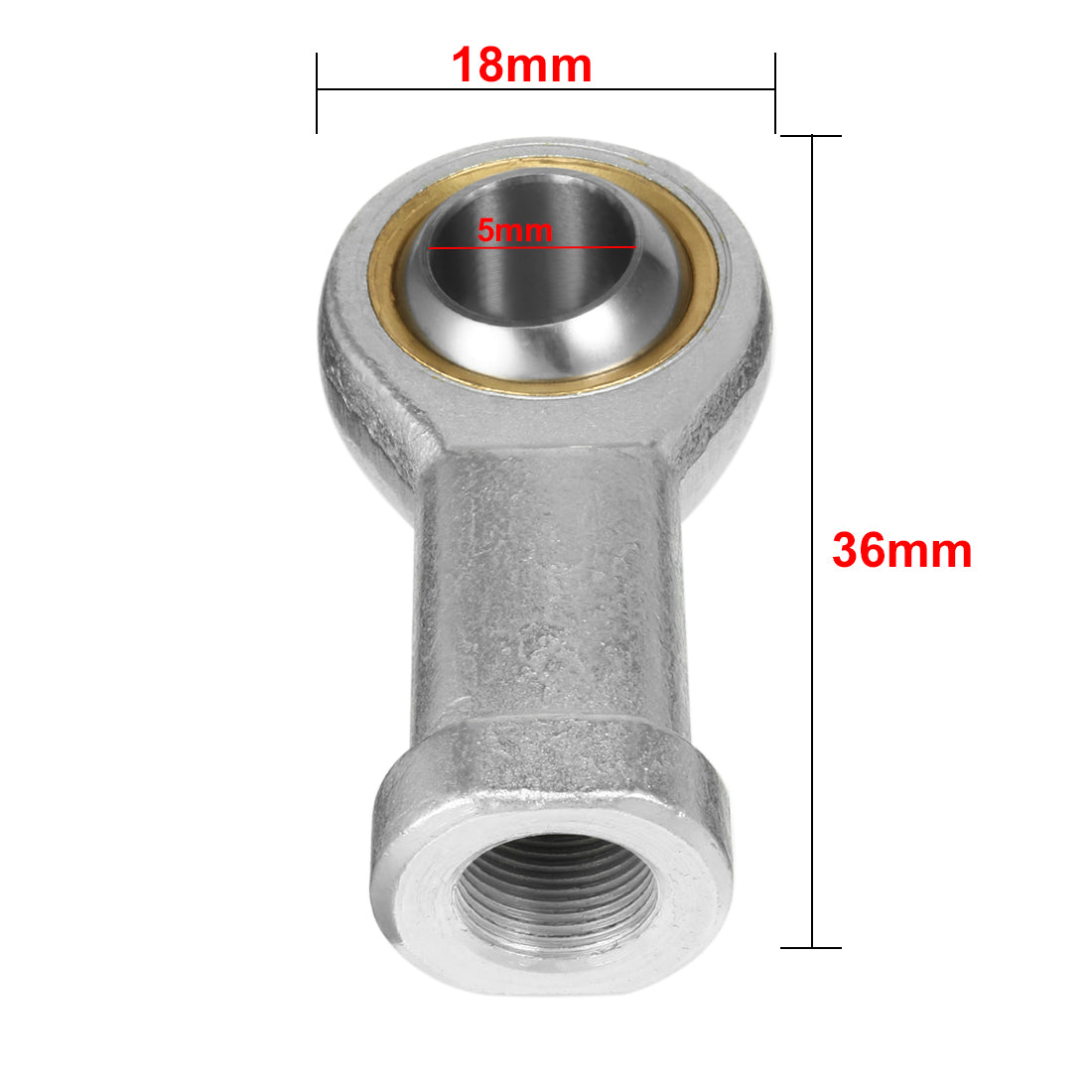

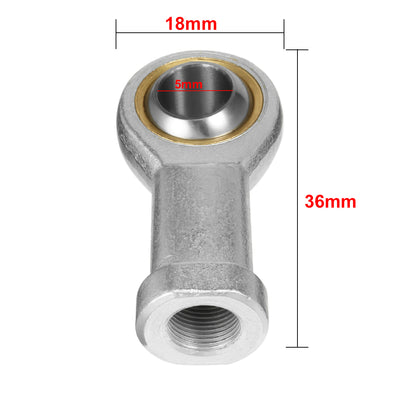

Outside Diameter: (Head)18mm
Inside Diameter: (Bore)5mm
Weight: 71g
Model: SI5T/K
Thread Diameter: 5mm(RH)
Total Length: 36mm
Ult. Static Radial Load: 6KN
Maximum Angular Misalignment: 13 Degree
Center Of Ball To Bottom Of Shank: 27mm
Length Through Bore: 8mm
-
