Harfington Uxcell TC1018+2TRA Needle Roller Thrust Bearings with Washers 5/8"x1-1/8"x5/64"

Uxcell TC1018+2TRA Needle Roller Thrust Bearings with Washers 5/8"x1-1/8"x5/64"

ID:1028785
ID:1028785
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [MODLE] - Bearing Model: TC1018 (I.D.=5/8", O.D.=1-1/8", Thickness=5/64"); Washer Model: TRA1018
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 22.55kN Static Load Capacity, 7.07kN Dynamic Load Capacity, 16000RPM Maximum Rotational Speed
About this item
  • [MODLE] - Bearing Model: TC1018 (I.D.=5/8", O.D.=1-1/8", Thickness=5/64"); Washer Model: TRA1018
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 22.55kN Static Load Capacity, 7.07kN Dynamic Load Capacity, 16000RPM Maximum Rotational Speed
Specification

Specification

SKU
a19043000ux0090
Brand
Uxcell
Static Load Capacity
22.55kN
Dynamic Load Capacity
7.07kN
Maximum Rotational Speed
16000RPM
Washer Quantity
2
Material
GCr15,Thermoplastic Nylon
Bearing Model
TC1018
Outer Dia.
1-1/8"
Inner Dia.
5/8"
Thickness
5/64"
Pkg.Qty
1
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:





  1. This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  2. These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.

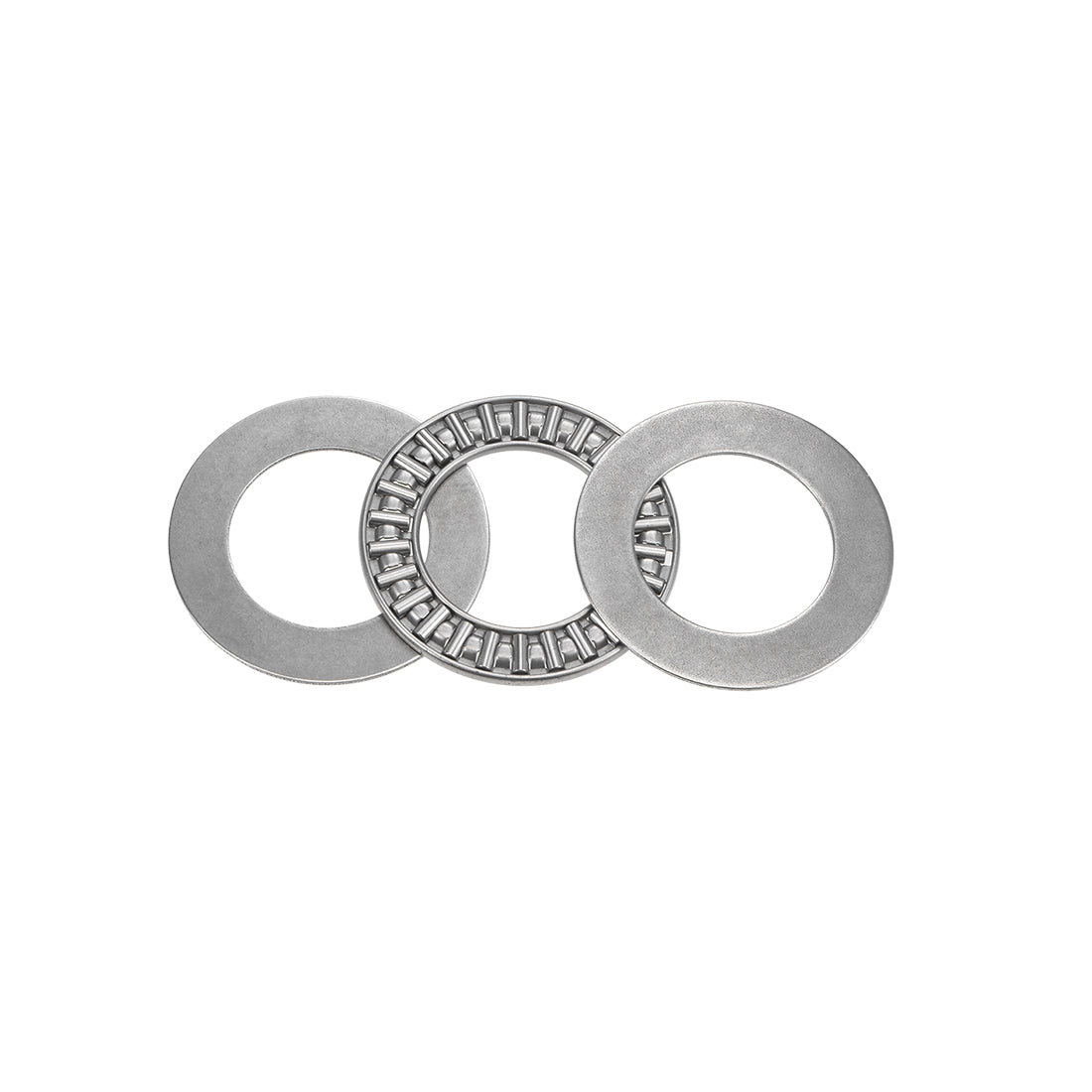

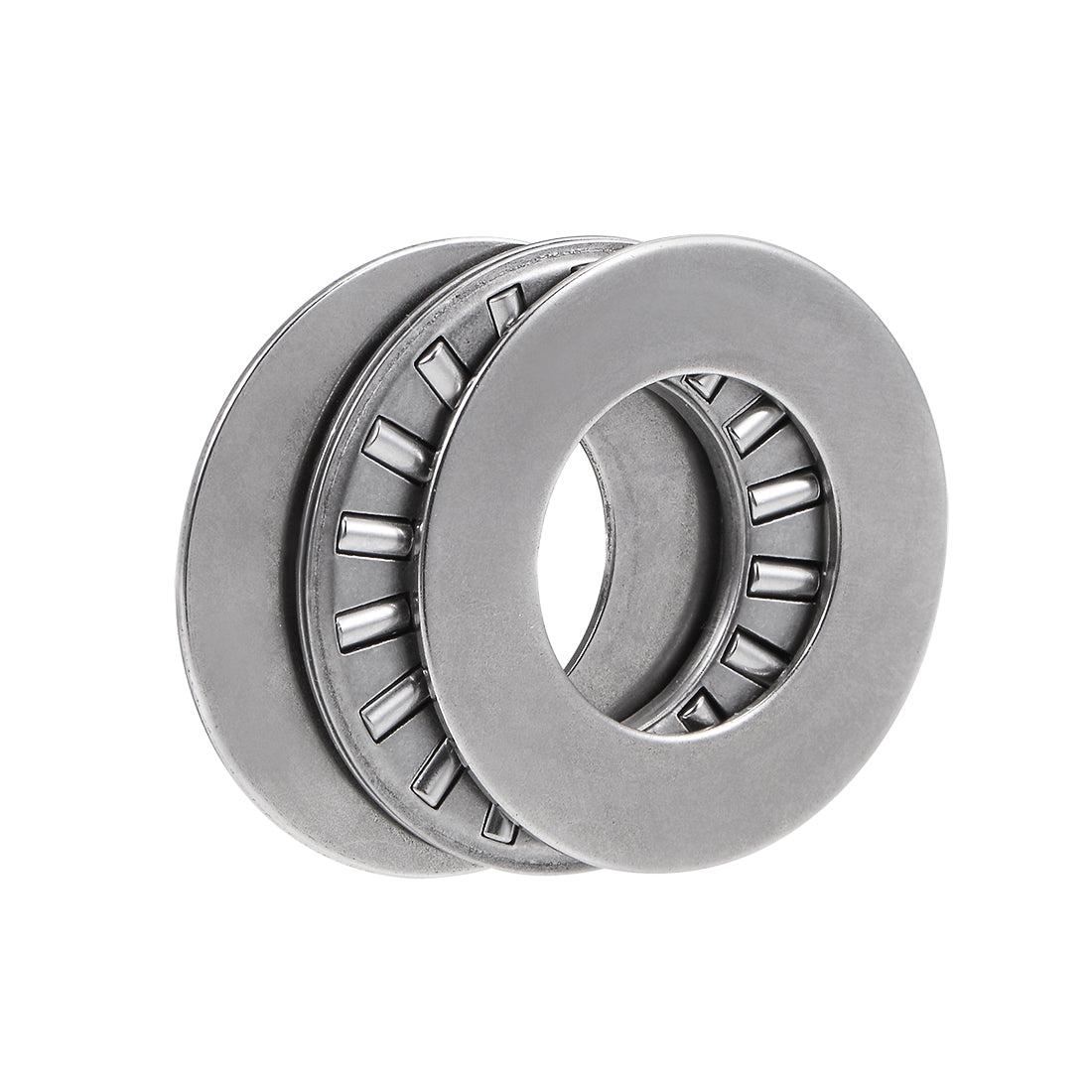

  3. Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
  4. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.



Specification:

Bearing No.: TC1018+2TRA

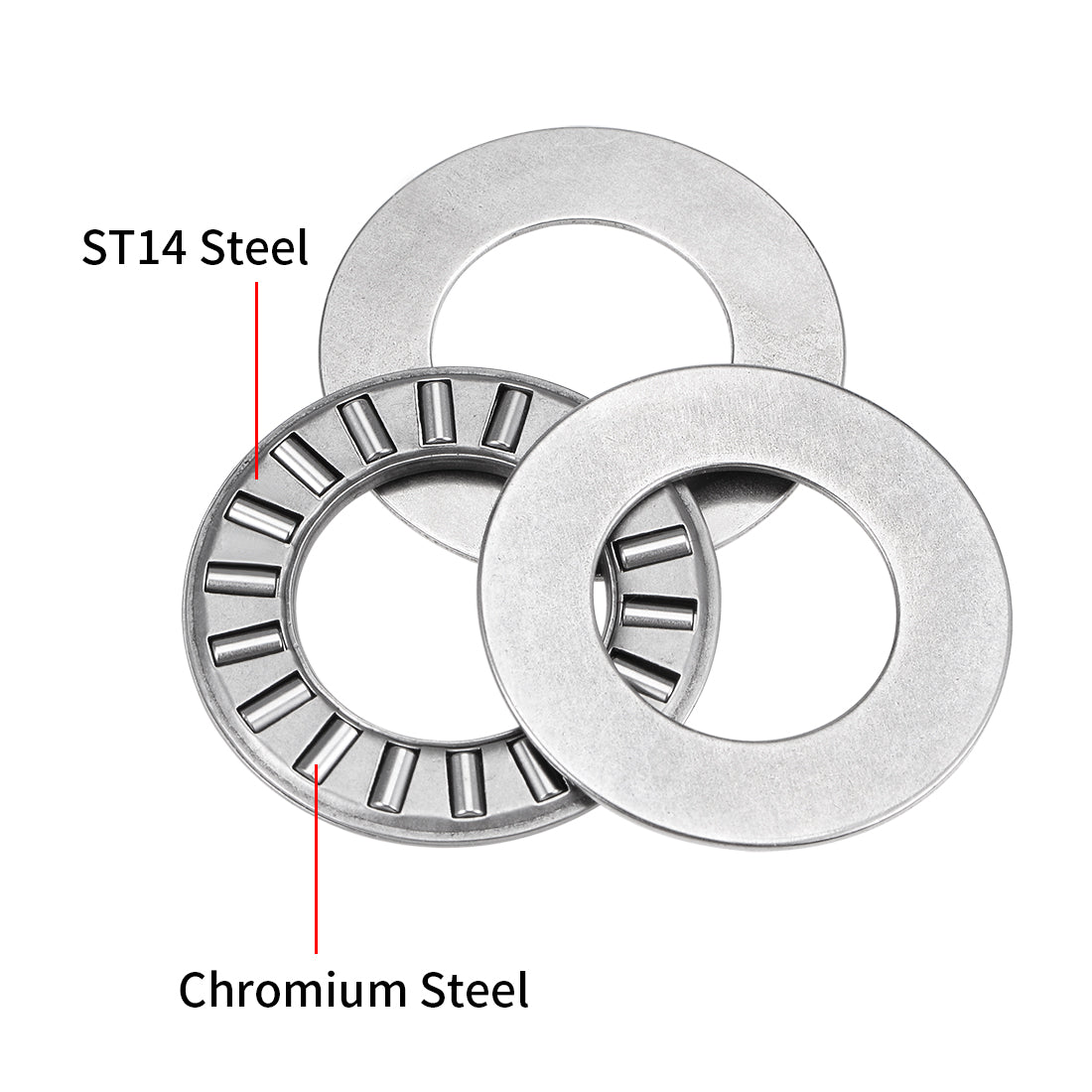

Needle Roller Material: Chromium Steel (GCr15)

Cage Material: ST14 Steel

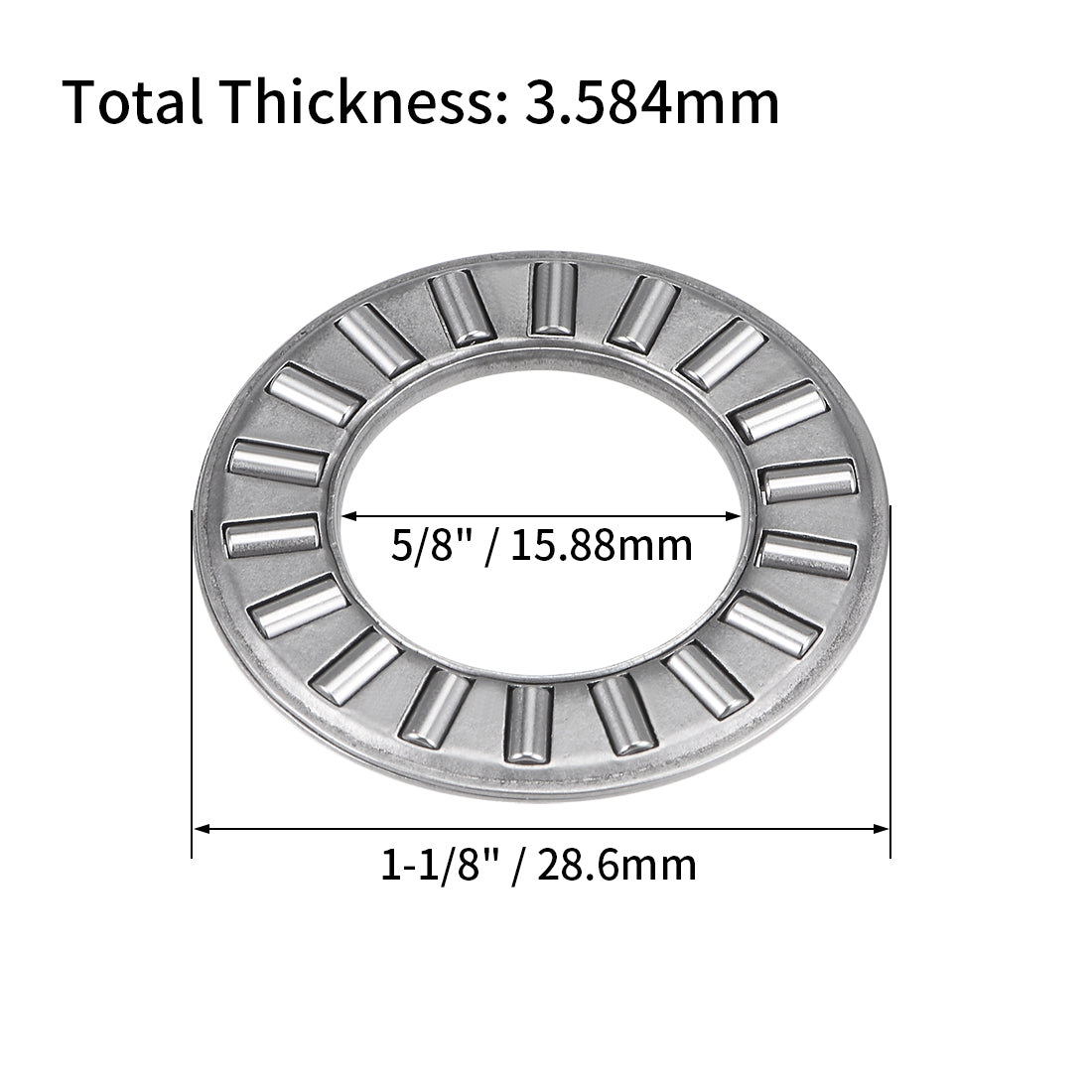

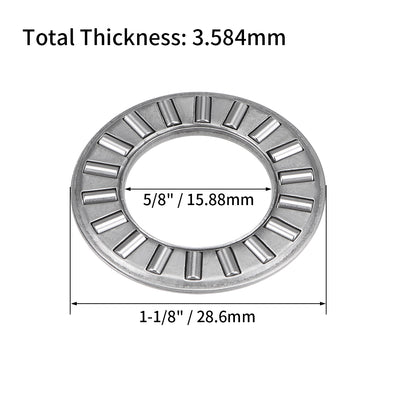

Bore Diameter (d): 5/8" / 15.88mm

Outside Diameter (D): 1-1/8" / 28.6mm

Bearing Thickness (T1): 5/64" / 1.984mm

Washer Thickness (T2): 0.8mm

Total Thickness: 3.584mm

Dynamic Load Capacity (Cr): 7072N

Static Load Capacity (Cor): 22551N

Maximum Rotational Speed (Oil): 16000rpm

Number of Pack: 1 Pcs

US$5.61 US$5.61/eachRegular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Inner Dia. Outer Dia. Thickness Static Load Capacity Dynamic Load Capacity Maximum Rotational Speed Washer Quantity Bearing Model Material Pkg.Qty ID Price Qty
5/8" 1-1/8" 5/64" 22.55kN 7.07kN 16000RPM 2 TC1018 GCr15,Thermoplastic Nylon 1 1028785 US$5.61
Products Inner Dia. Outer Dia. Thickness Static Load Capacity Dynamic Load Capacity Maximum Rotational Speed Washer Quantity Bearing Model Material Pkg.Qty ID Price Qty
5/8" 1-1/8" 5/64" 22.55kN 7.07kN 16000RPM 2 TC1018 GCr15,Thermoplastic Nylon 1 1028785 US$5.61
1" 1-9/16" 5/64" 43.9kN 10.76kN 11000RPM 2 TC1625 GCr15,Thermoplastic Nylon 1 1040752 US$5.79
1" 1-9/16" 5/64" 43.9kN 10.76kN 11000RPM 2 TC1625 GCr15,Thermoplastic Nylon 2 1035267 US$6.59
1" 1-9/16" 5/64" 43.9kN 10.76kN 11000RPM 2 TC1625 GCr15,Thermoplastic Nylon 5 1035268 US$9.46
3/8" 13/16" 5/64" 12.18kN 4.84kN 23000RPM 2 TC613 GCr15,Thermoplastic Nylon 5 1015391 US$7.05
3/8" 13/16" 5/64" 12.18kN 4.84kN 23000RPM 2 TC613 GCr15,Thermoplastic Nylon 2 1047444 US$5.83
3/8" 13/16" 5/64" 12.18kN 4.84kN 23000RPM 2 TC613 GCr15,Thermoplastic Nylon 3 1047447 US$6.33
1/2" 15/16" 5/64" 16.28kN 5.73kN 19000RPM 2 TC815 GCr15,Thermoplastic Nylon 5 1035264 US$7.36
1/2" 15/16" 5/64" 16.28kN 5.73kN 19000RPM 2 TC815 GCr15,Thermoplastic Nylon 2 1035265 US$5.96
1/2" 15/16" 5/64" 16.28kN 5.73kN 19000RPM 2 TC815 GCr15,Thermoplastic Nylon 3 1028779 US$6.51
1/4" 11/16" 5/64" 9.16kN 4.11kN 28000RPM 2 TC411 GCr15,Thermoplastic Nylon 5 1015390 US$6.70
1/4" 11/16" 5/64" 9.16kN 4.11kN 28000RPM 2 TC411 GCr15,Thermoplastic Nylon 2 1047448 US$5.58
1/4" 11/16" 5/64" 9.16kN 4.11kN 28000RPM 2 TC411 GCr15,Thermoplastic Nylon 3 1035263 US$5.96
15mm 28mm 2mm 35.5kN 11.2kN 11000RPM 2 AXK1528 GCr15,Thermoplastic Nylon 5 1008360 US$6.88
15mm 28mm 2mm 35.5kN 11.2kN 11000RPM 2 AXK1528 GCr15,Thermoplastic Nylon 2 1008362 US$5.42
5/16" 3/4" 5/64" 11.16kN 4.67kN 25000RPM 2 TC512 GCr15,Thermoplastic Nylon 2 1047449 US$5.70
5/16" 3/4" 5/64" 11.16kN 4.67kN 25000RPM 2 TC512 GCr15,Thermoplastic Nylon 3 1047451 US$6.14
5/16" 3/4" 5/64" 11.16kN 4.67kN 25000RPM 2 TC512 GCr15,Thermoplastic Nylon 5 1006817 US$7.01
5/8" 1-1/8" 5/64" 22.55kN 7.07kN 16000RPM 2 TC1018 GCr15,Thermoplastic Nylon 5 1035261 US$7.97
5/8" 1-1/8" 5/64" 22.55kN 7.07kN 16000RPM 2 TC1018 GCr15,Thermoplastic Nylon 2 1047446 US$6.39
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Description:





  1. This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  2. These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
  3. Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
  4. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.



Specification:

Bearing No.: TC1018+2TRA

Needle Roller Material: Chromium Steel (GCr15)

Cage Material: ST14 Steel

Bore Diameter (d): 5/8" / 15.88mm

Outside Diameter (D): 1-1/8" / 28.6mm

Bearing Thickness (T1): 5/64" / 1.984mm

Washer Thickness (T2): 0.8mm

Total Thickness: 3.584mm

Dynamic Load Capacity (Cr): 7072N

Static Load Capacity (Cor): 22551N

Maximum Rotational Speed (Oil): 16000rpm

Number of Pack: 1 Pcs
