Harfington Uxcell R188-2RS Ball Bearings 1/4x1/2x3/16" Double Sealed Chrome Steel P0 5pcs

Uxcell R188-2RS Ball Bearings 1/4x1/2x3/16" Double Sealed Chrome Steel P0 5pcs

ID:1027749
ID:1027749
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

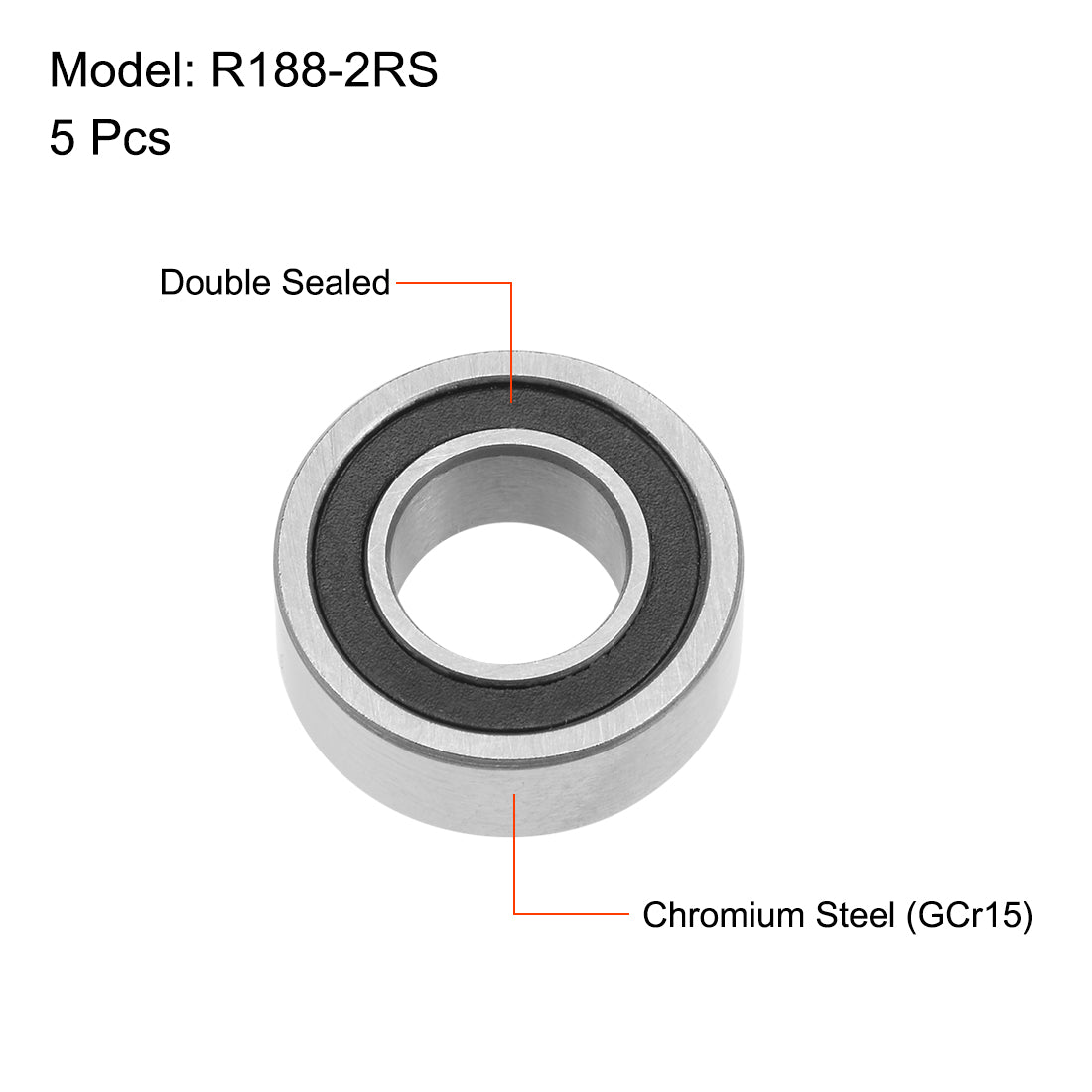

  • R188-2RS (I.D.=1/4-inch, O.D.=1/2-inch, Thickness=3/16-inch)
  • R188-2RS bearings are sealed on DOUBLE SIDES to keep lubricant in
  • Made from Chromium Steel (GCr15), with excellent surface quality, high hardness, high load capacity, and wear resistance.
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 80N and dynamic load rating of 207N
About this item
  • R188-2RS (I.D.=1/4-inch, O.D.=1/2-inch, Thickness=3/16-inch)
  • R188-2RS bearings are sealed on DOUBLE SIDES to keep lubricant in
  • Made from Chromium Steel (GCr15), with excellent surface quality, high hardness, high load capacity, and wear resistance.
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 80N and dynamic load rating of 207N
Specification

Specification

SKU
a19121700ux0112
Model
R188-2RS
Type
Double Sealed
I.D.
1/4"
O.D.
1/2"
Thickness
3/16"
Material
Chrome Steel (GCr15)
Dynamic Load Rating(KN)
0.207
Static Load Rating((KN)
0.08
Accuracy Class
ABEC-1
Pkg.Qty.
5
Static Load Rating(KN)
0.08
Noise Level
Z2
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:
  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:
Model: R188-2RS
Seal Type: Double Sealed
Inner Race/Outer Race Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel

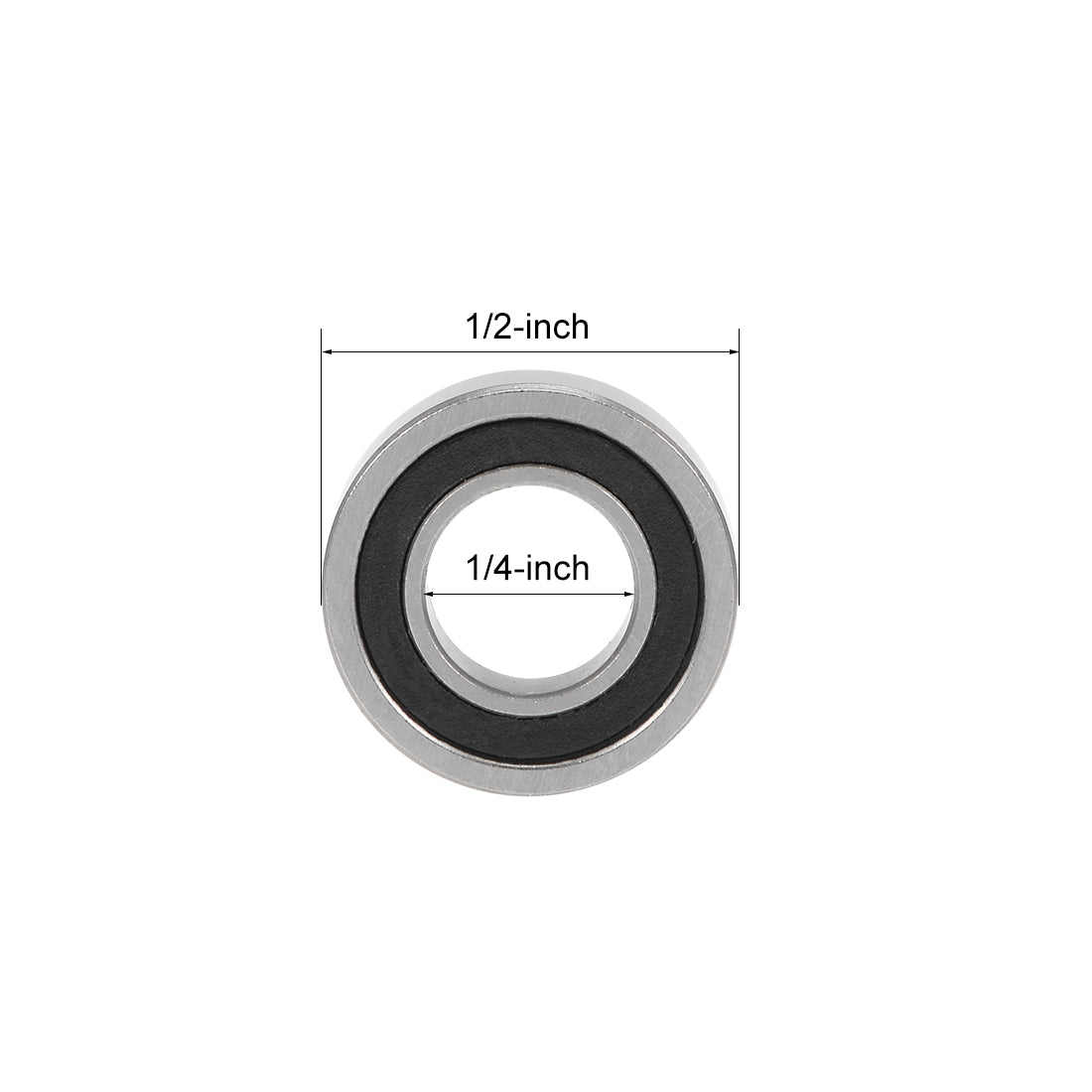

Inner Diameter (d): 1/4-inch
Outer Diameter (D): 1/2-inch

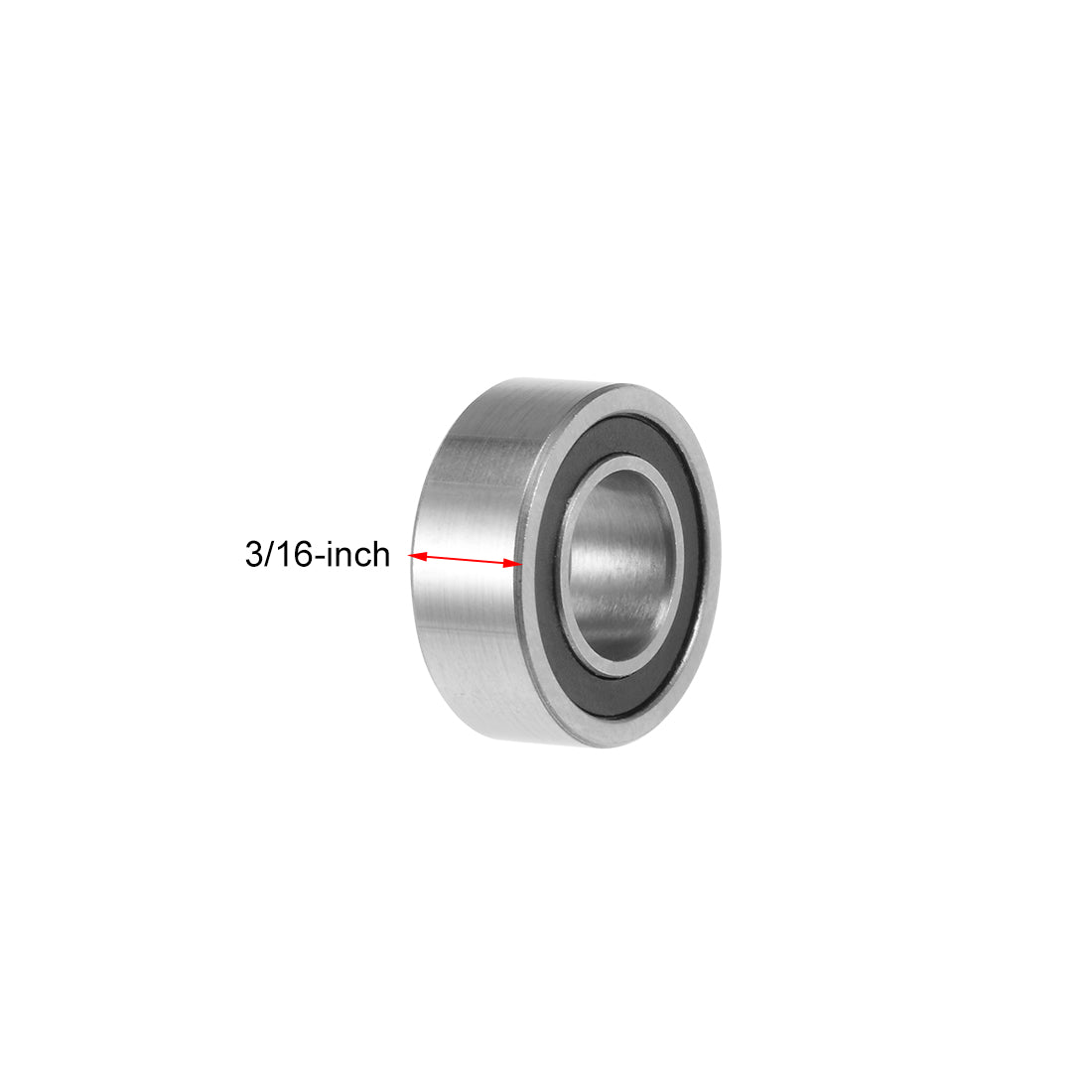

Thickness (B): 3/16-inch
Dynamic Load Rating (Cr): 207N
Static Load Rating (Cor): 80N
Accuracy Class: P0 (ABEC1)
Noise Level: Z2

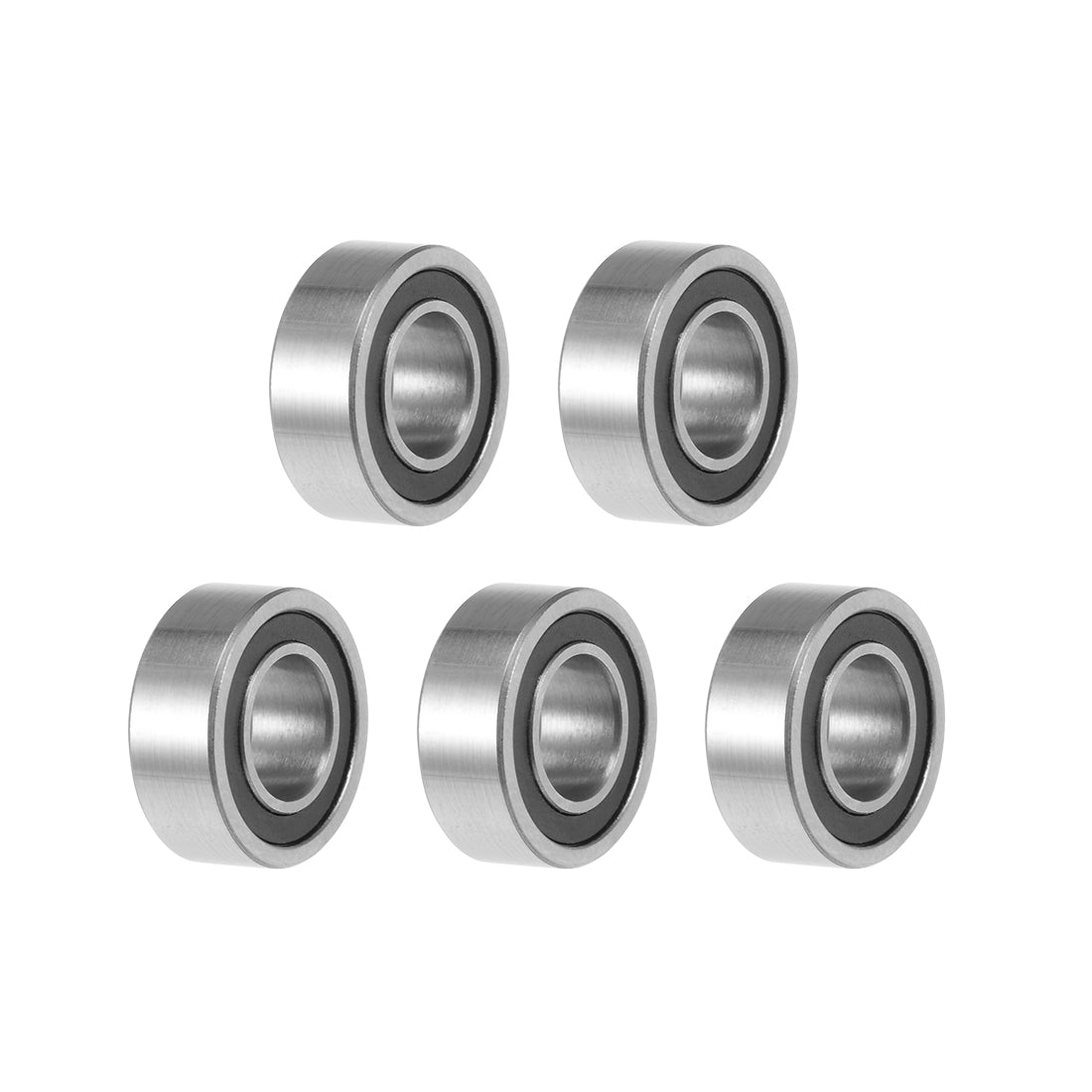

Number of Pack: 5pcs
US$7.25 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Model I.D. O.D. Thickness Material Dynamic Load Rating(KN) Static Load Rating(KN) Accuracy Class Noise Level Pkg.Qty. ID Price Qty
R188-2RS 1/4" 1/2" 3/16" Chrome Steel (GCr15) 0.207 0.08 ABEC-1 Z2 5 1027749 US$7.25
Products Model I.D. O.D. Thickness Material Dynamic Load Rating(KN) Static Load Rating(KN) Accuracy Class Noise Level Pkg.Qty. ID Price Qty
R188-2RS 1/4" 1/2" 3/16" Chrome Steel (GCr15) 0.207 0.08 ABEC-1 Z2 5 1027749 US$7.25
173110-2RS 17mm 31mm 10mm Chrome Steel (GCr15) / / ABEC-1 Z2 1 1014660 US$5.45
6304-2RS 20mm 52mm 15mm Chrome Steel (GCr15) 15.9 7.85 ABEC-1 Z2 2 1049743 US$10.04
6203-16-2RS 16mm 40mm 12mm Chrome Steel (GCr15) 9.55 4.8 ABEC-1 Z2 5 1049157 US$12.93
MR126-2RS 6mm 12mm 4mm Chrome Steel (GCr15) 0.609 0.236 ABEC-1 Z2 10 1049167 US$7.98
MR126-2RS 6mm 12mm 4mm Chrome Steel (GCr15) 0.609 0.236 ABEC-1 Z2 10 1049176 US$7.98
MR85-2RS 5mm 8mm 2.5mm Chrome Steel (GCr15) 0.185 0.072 ABEC-1 Z2 10 1049187 US$7.94
MR115-2RS 5mm 11mm 4mm Chrome Steel (GCr15) 0.609 0.226 ABEC-1 Z2 10 1049188 US$7.98
MR74-2RS 4mm 7mm 2.5mm Chrome Steel (GCr15) 0.264 0.092 ABEC-1 Z2 4 1049210 US$6.39
MR105-2RS 5mm 10mm 4mm Chrome Steel (GCr15) 0.366 0.135 ABEC-1 Z2 4 1049206 US$6.23
333-2RS 17mm 52mm 16mm Chrome Steel (GCr15) / / ABEC-1 Z2 1 1027751 US$8.57
6905-2RS 25mm 42mm 9mm Chrome Steel (GCr15) 7 4.5 ABEC-1 Z2 10 1008095 US$13.75
R4A-2RS 1/4" 3/4" 9/32" Chrome Steel (GCr15) 1.48 0.615 ABEC-1 Z2 5 1062864 US$7.51
R166-2RS 3/16" 3/8" 1/8" Chrome Steel (GCr15) 0.709 0.272 ABEC-1 Z2 10 1062867 US$7.81
R3-2RS 3/16" 1/2" 0.196" Chrome Steel (GCr15) 1.31 0.49 ABEC-1 Z2 10 1062872 US$8.14
R4-2RS 1/4" 5/8" 0.196" Chrome Steel (GCr15) 1.48 0.615 ABEC-1 Z2 10 1062905 US$7.46
1654-2RS 1-1/4" 2-1/2" 5/8" Chrome Steel (GCr15) 3.6 2.3 ABEC-1 Z2 1 1063116 US$9.33
604-2RS 4mm 12mm 4mm Chrome Steel (GCr15) 0.814 0.28 ABEC-1 Z2 2 1063208 US$5.65
605-2RS 5mm 14mm 5mm Chrome Steel (GCr15) 1.13 0.406 ABEC-1 Z2 2 1063210 US$5.68
6000-2RS 10mm 26mm 8mm Chrome Steel (GCr15) 4.55 1.95 ABEC-1 Z2 10 1063224 US$8.82
1606-2RS 3/8'' 29/32" 5/16" Chrome Steel (GCr15) 0.75 0.32 ABEC-1 Z2 2 1063301 US$6.51
1638-2RS 3/4'' 2" 9/16" Chrome Steel (GCr15) 2.27 1.29 ABEC-1 Z2 4 1063314 US$23.08
6703-2RS 17mm 23mm 4mm Chrome Steel (GCr15) 0.999 0.657 ABEC-1 Z2 2 1063480 US$6.54
6705-2RS 25mm 32mm 4mm Chrome Steel (GCr15) 1.1 0.838 ABEC-1 Z2 2 1063485 US$7.28
6705-2RS 25mm 32mm 4mm Chrome Steel (GCr15) 1.1 0.838 ABEC-1 Z2 1 1063486 US$6.19
6904-2RS 20mm 37mm 9mm Chrome Steel (GCr15) 6.4 3.7 ABEC-1 Z2 2 1063529 US$6.24
62203-2RS 17mm 40mm 16mm Chrome Steel (GCr15) 9.6 4.8 ABEC-1 Z2 1 1028222 US$6.36
60/22-2RS 22mm 44mm 12mm Chrome Steel (GCr15) 0.0094 0.00515 ABEC-1 Z2 1 1103085 US$6.47
R12-2RS 3/4" 1-5/8" 7/16" Chrome Steel (GCr15) 7.25 4.45 ABEC-1 Z2 10 1062881 US$24.27
MR104-2RS 4mm 10mm 4mm Chrome Steel (GCr15) 0.604 0.218 ABEC-1 Z2 4 1049181 US$6.39
MR148-2RS 8mm 14mm 4mm Chrome Steel (GCr15) 0.695 0.309 ABEC-1 Z2 10 1049193 US$8.04
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:
  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:
Model: R188-2RS
Seal Type: Double Sealed
Inner Race/Outer Race Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel
Inner Diameter (d): 1/4-inch
Outer Diameter (D): 1/2-inch
Thickness (B): 3/16-inch
Dynamic Load Rating (Cr): 207N
Static Load Rating (Cor): 80N
Accuracy Class: P0 (ABEC1)
Noise Level: Z2
Number of Pack: 5pcs
