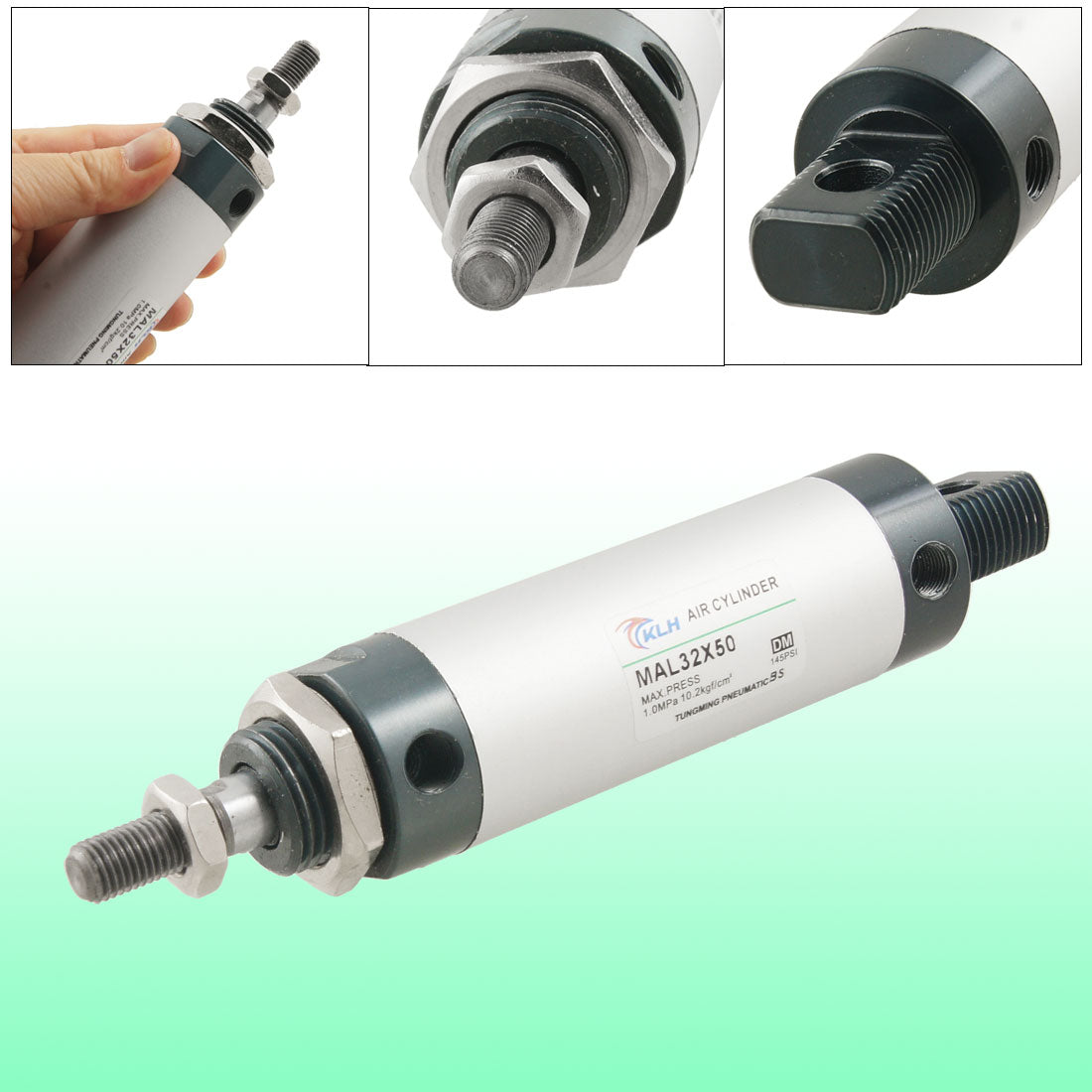

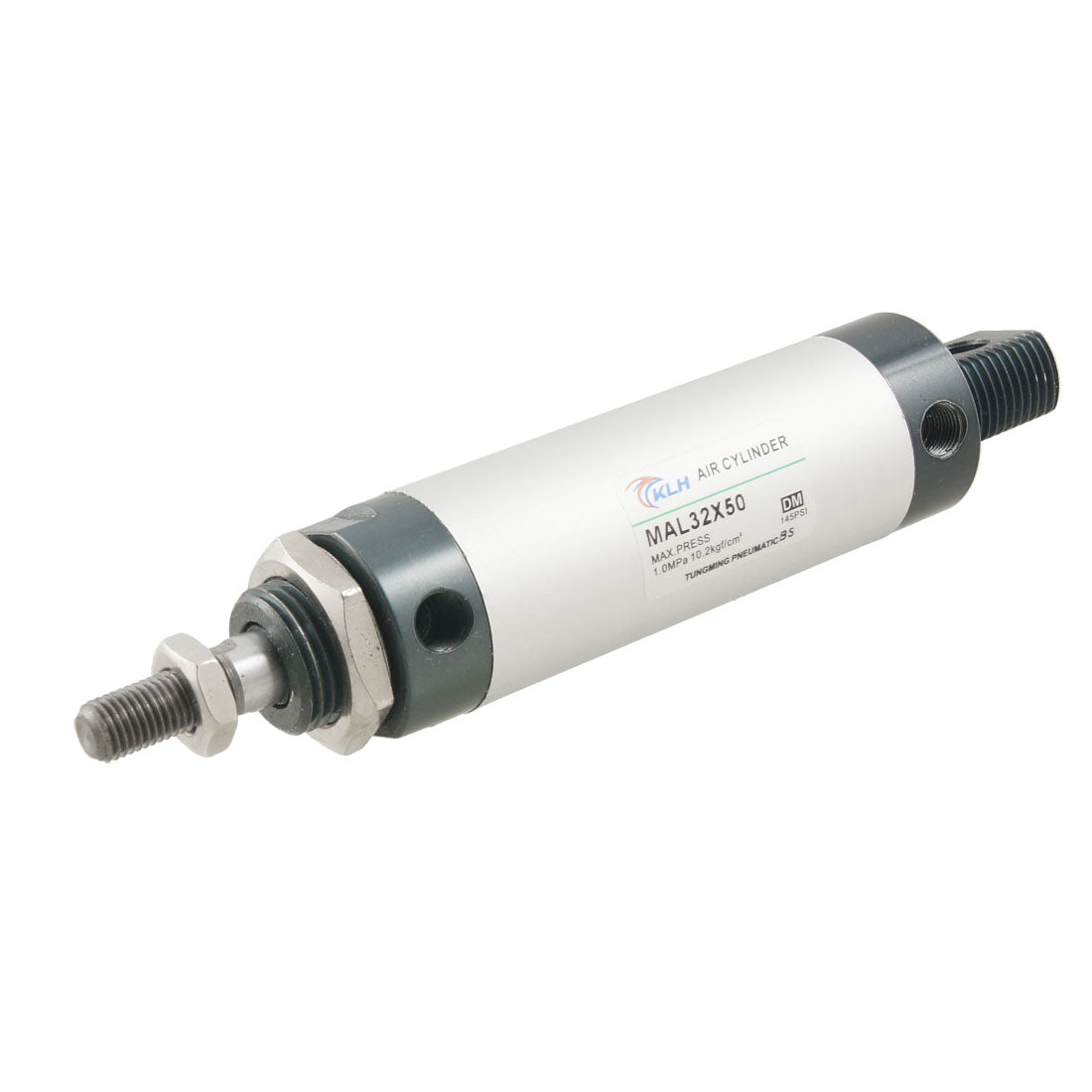

Uxcell MAL32x50 32mm Bore 50mm Stroke Single Rod Double Action Air Cylinder

ID:
$16.17 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Pneumatic Cylinder;Model : MAL32 x 50;Action Type : Double Acting;Rod Type : Single Rod
  • Fluid : Air;Power : Pneumatic;Bore : 32mm / 1.25";Stroke : 50mm / 1.9"
  • Max.Pressure : 1.0MPa / 10.2Kg/cm2/ 145PSI;Rod Diameter : 12mm / 0.47";Rod Thread Diameter : 10mm / 0.39";Air Hole Diameter : 8.8mm / 0.35"
  • Blue End Thread Diameter : 23.8mm / 0.93";Blue End Hole Diameter : 10mm / 0.39";Size : 190 x 37mm/ 7.5" x 1.45" (L*D);Material : Stainless Steel
  • Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • Product Name : Pneumatic Cylinder;Model : MAL32 x 50;Action Type : Double Acting;Rod Type : Single Rod
  • Fluid : Air;Power : Pneumatic;Bore : 32mm / 1.25";Stroke : 50mm / 1.9"
  • Max.Pressure : 1.0MPa / 10.2Kg/cm2/ 145PSI;Rod Diameter : 12mm / 0.47";Rod Thread Diameter : 10mm / 0.39";Air Hole Diameter : 8.8mm / 0.35"
  • Blue End Thread Diameter : 23.8mm / 0.93";Blue End Hole Diameter : 10mm / 0.39";Size : 190 x 37mm/ 7.5" x 1.45" (L*D);Material : Stainless Steel
  • Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
  • This Cylinder features:32m bore and 50mm stroke, 1.0Mpa pressure, double acting, single rod. Two screw hole connections to get the air in and out, and a rod connected to the plunger that goes in and out. Cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
