Harfington Uxcell PP Float Switch 315mm Fish Tank Vertical Liquid Water Level Sensor Plastic

Uxcell PP Float Switch 315mm Fish Tank Vertical Liquid Water Level Sensor Plastic

ID:
$12.10 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Max Contact: Rating 10W; Max Switching Voltage: 110V DC; Max Switching Current: 0.2A

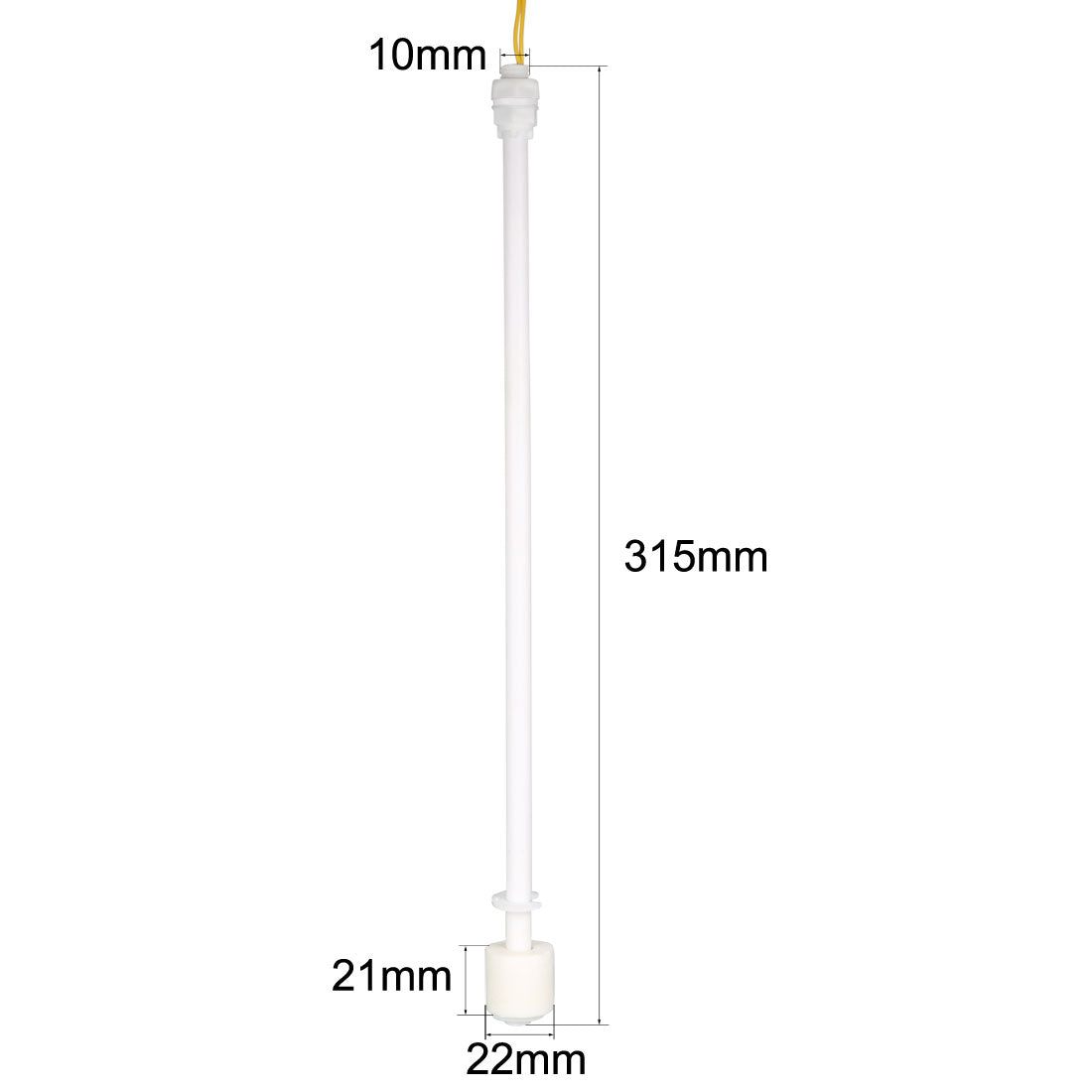

  • Float Ball Size(Approx): 22x21mm/0.87x0.83inch(Dia*H); Thread Diameter: 10mm/0.39inch; Total Length: 315mm/12.4inch
  • Simple structure,easy installation.It doesn't have a complex circuit,won't be disturbed
  • Note: Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
  • Widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
  • In stock, ready to ship
Cart
Cart
About This Item
  • Max Contact: Rating 10W; Max Switching Voltage: 110V DC; Max Switching Current: 0.2A
  • Float Ball Size(Approx): 22x21mm/0.87x0.83inch(Dia*H); Thread Diameter: 10mm/0.39inch; Total Length: 315mm/12.4inch
  • Simple structure,easy installation.It doesn't have a complex circuit,won't be disturbed
  • Note: Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
  • Widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

Product Name: Float Switch

Float Ball Number: 1

Max Contact: Rating 10W

Max Switching Voltage: 110V DC

Max Switching Current: 0.2A

Min Breakdown Voltage: 220V DC

Max Load Current: 0.5A

Max Contact Resistance: 100M ohm

Temperature Rating: -20 ~ +60C

Float Ball Material: PP

Float Ball Size(Approx): 22x21mm/0.87x0.83inch(Dia*H)

Thread Diameter: 10mm/0.39inch

Total Length: 315mm/12.4inch

Cable Length: 360mm/14.17inch

Net Weight: 28g



Package Content

1 x Float Switch





Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Specifications:

Product Name: Float Switch

Float Ball Number: 1

Max Contact: Rating 10W

Max Switching Voltage: 110V DC

Max Switching Current: 0.2A

Min Breakdown Voltage: 220V DC

Max Load Current: 0.5A

Max Contact Resistance: 100M ohm

Temperature Rating: -20 ~ +60C

Float Ball Material: PP

Float Ball Size(Approx): 22x21mm/0.87x0.83inch(Dia*H)

Thread Diameter: 10mm/0.39inch

Total Length: 315mm/12.4inch

Cable Length: 360mm/14.17inch

Net Weight: 28g



Package Content

1 x Float Switch





Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
