Harfington Uxcell UN Radial Shaft Seal 18mm ID x 25mm OD x 5mm Width PU Oil Seal, Blue Pack of 5

Uxcell UN Radial Shaft Seal 18mm ID x 25mm OD x 5mm Width PU Oil Seal, Blue Pack of 5

ID:
$5.65 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About This Item
  • [Size] - 18mx25mmx5mm Y-shape 90A mechanical seal for piston and piston rod
  • [Operation Range] - Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
  • [PU Material] - Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity
  • [Advantage] - Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
  • [Application] - Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure
  • In stock, ready to ship
Cart
Cart
About This Item
  • [Size] - 18mx25mmx5mm Y-shape 90A mechanical seal for piston and piston rod
  • [Operation Range] - Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
  • [PU Material] - Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity
  • [Advantage] - Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
  • [Application] - Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Features:

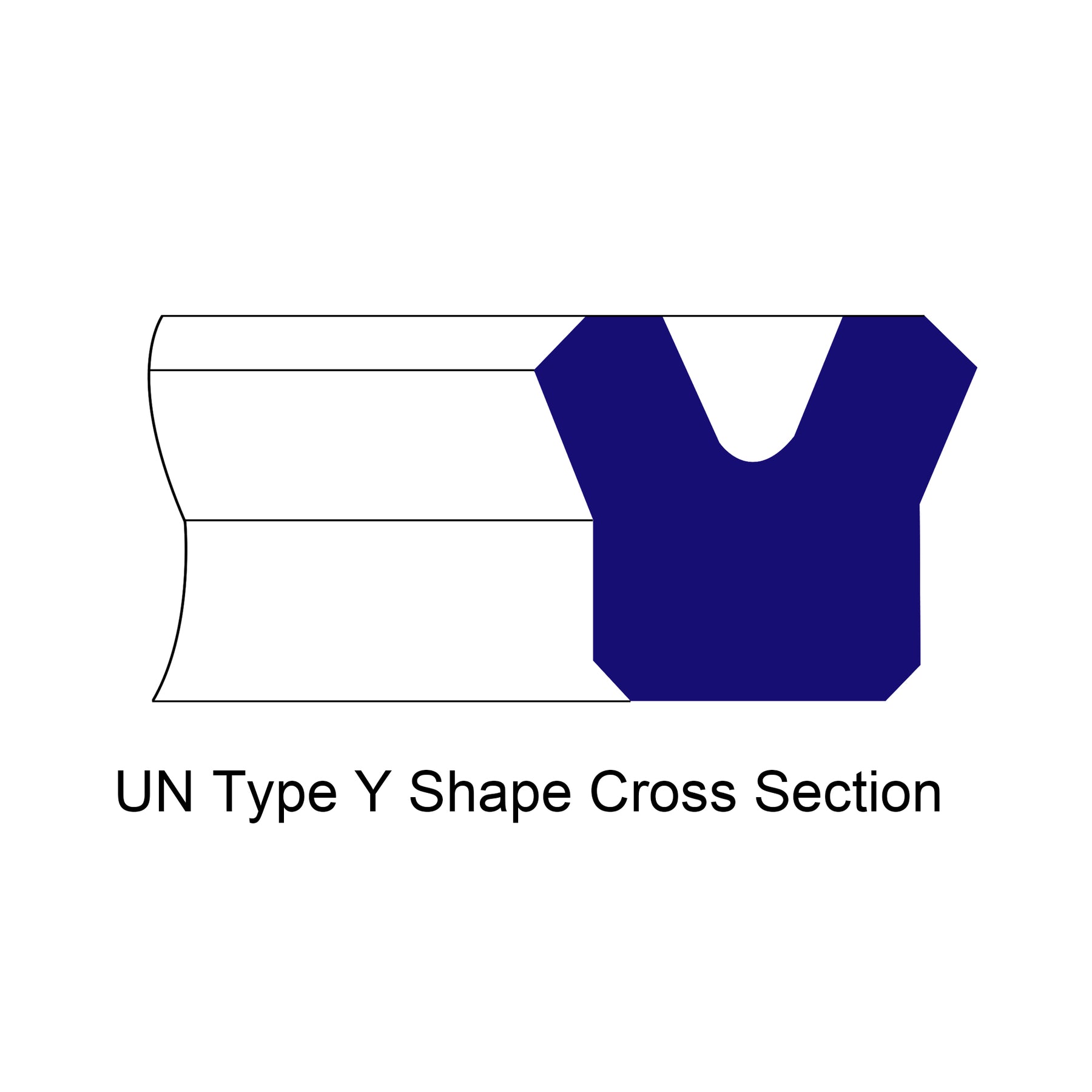

UN oil seal's inner and outer sealing lip are the same height, with a Y-shape cross-section.
PU seal is oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity, and easy to install.
Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering. Both piston and piston rod can obtain a good sealing effect.

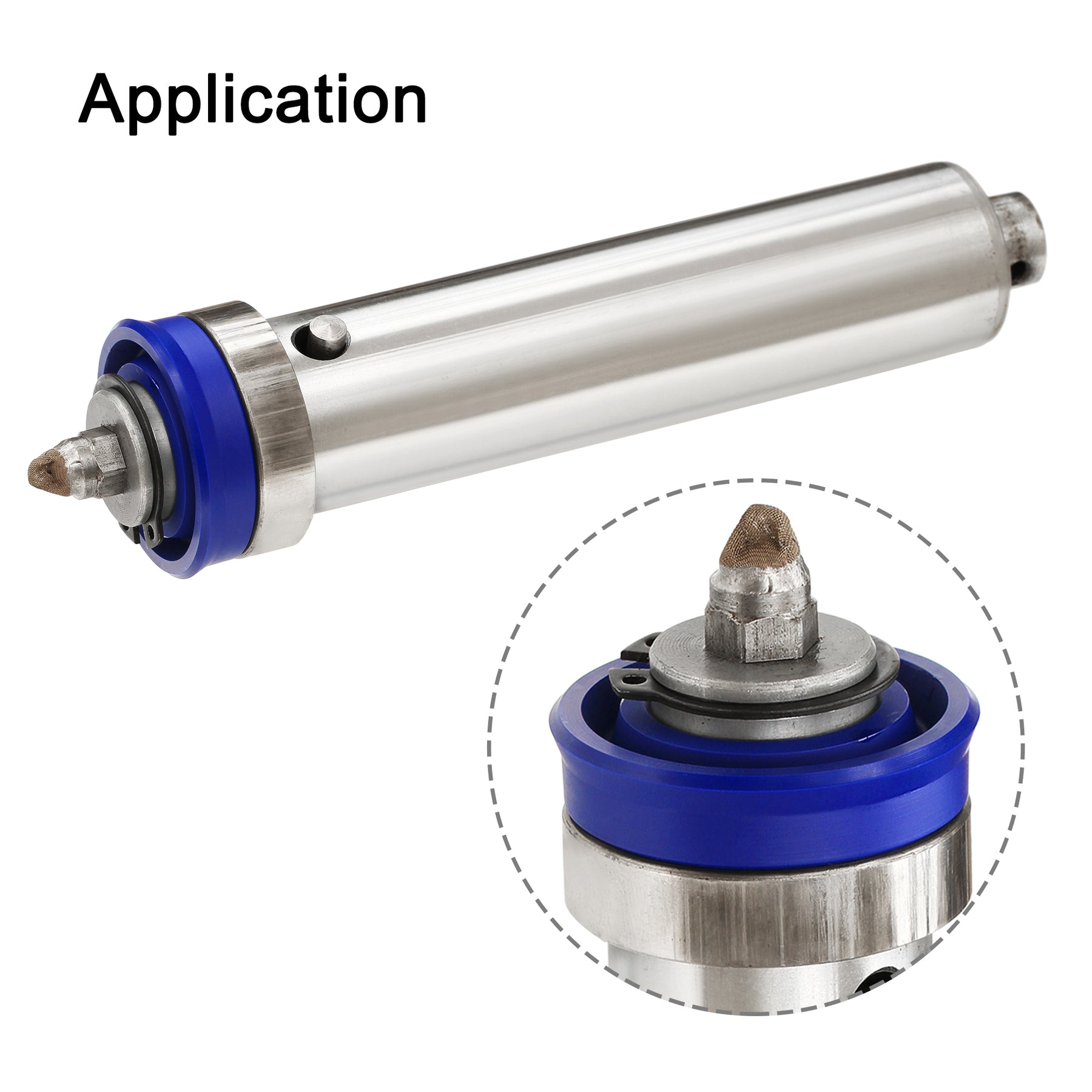

Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure.

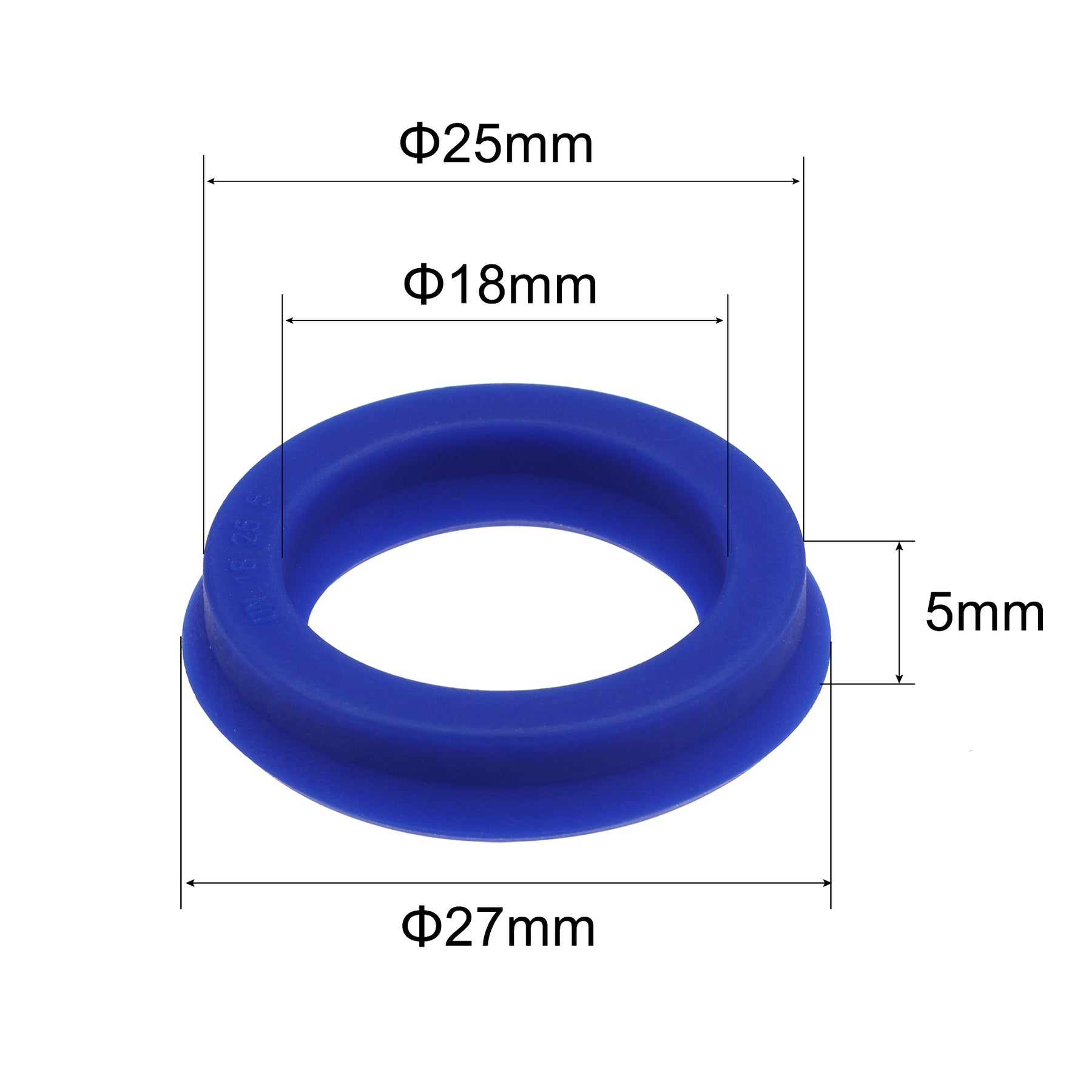

Specifications:
Color: Blue
Material: Polyurethane (PU)
Inner Diameter: 18mm
Outer Diameter: 25mm
Max. Outer Diameter: 27mm
Width: 5mm
Hardness: 90A
Working Speed: Less than 0.5m/s
Working Pressure: Less than 35Mpa
Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
Cross Section Type: Y Shape

Package Contents:

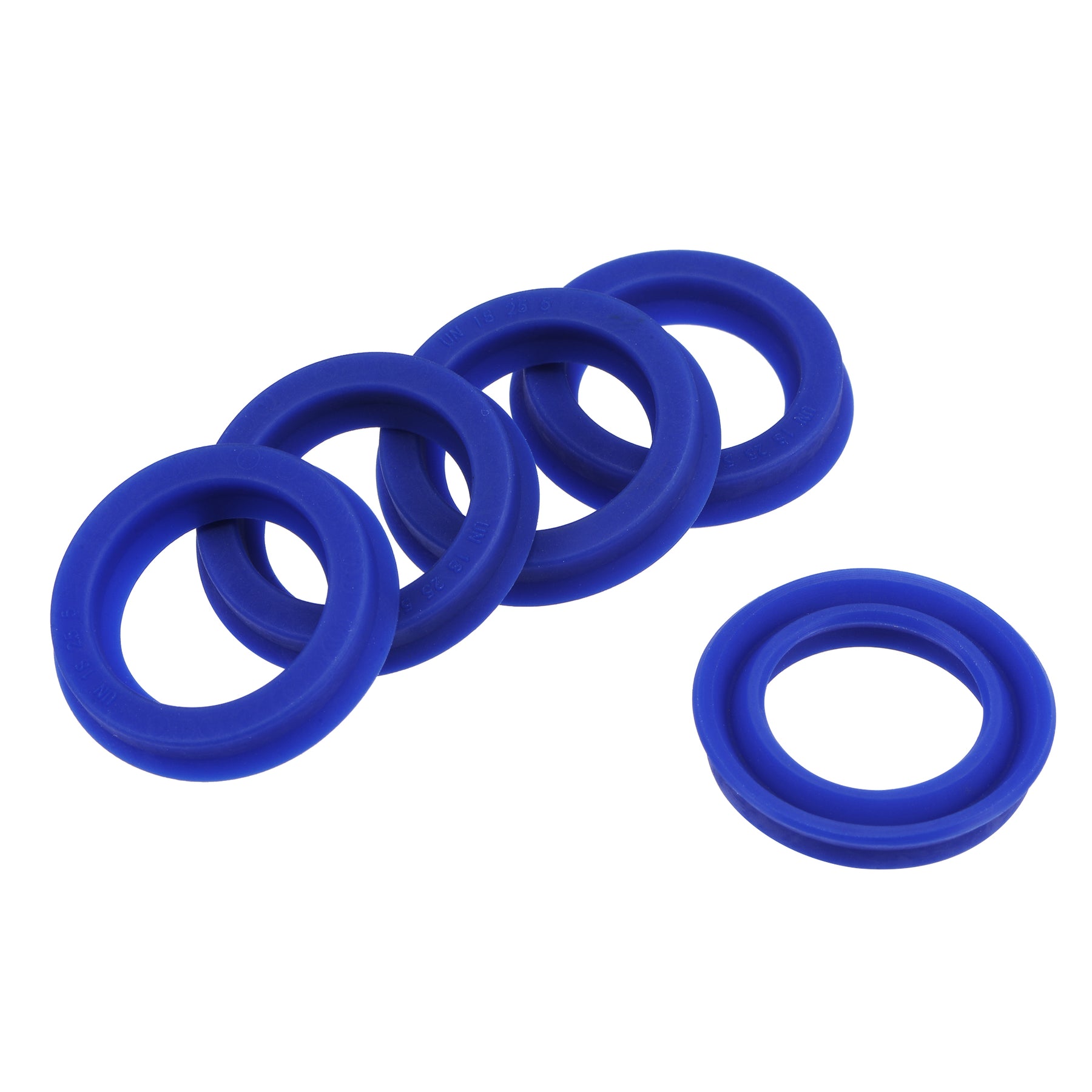

5 x Lip Seals
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Features:
UN oil seal's inner and outer sealing lip are the same height, with a Y-shape cross-section.
PU seal is oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity, and easy to install.
Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering. Both piston and piston rod can obtain a good sealing effect.
Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure.

Specifications:
Color: Blue
Material: Polyurethane (PU)
Inner Diameter: 18mm
Outer Diameter: 25mm
Max. Outer Diameter: 27mm
Width: 5mm
Hardness: 90A
Working Speed: Less than 0.5m/s
Working Pressure: Less than 35Mpa
Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
Cross Section Type: Y Shape

Package Contents:
5 x Lip Seals
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
