Harfington Uxcell DB9 D-SUB Female Adapter Plate RS232 to 9P Terminal Breakout Board with Positioning Nuts Signal Module

Uxcell DB9 D-SUB Female Adapter Plate RS232 to 9P Terminal Breakout Board with Positioning Nuts Signal Module

ID:
$6.07 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Product Name : DB9 Adapter;Terminal Wire Range : 22-14AWG
  • Total Size : 40 x 36 x 14.5mm/1.6" x 1.4" x 0.57"(L*W*H);Fixing Hole Diameter : 3mm
  • Fixing Hole Center Distance : 29mm/1.2";Material : Metal, Electric Part
  • Color : Green;Weight : 14g
  • Package Content : 1 x DB9 Adapter
  • In stock, ready to ship
Cart
Cart
About This Item
  • Product Name : DB9 Adapter;Terminal Wire Range : 22-14AWG
  • Total Size : 40 x 36 x 14.5mm/1.6" x 1.4" x 0.57"(L*W*H);Fixing Hole Diameter : 3mm
  • Fixing Hole Center Distance : 29mm/1.2";Material : Metal, Electric Part
  • Color : Green;Weight : 14g
  • Package Content : 1 x DB9 Adapter
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Specifications:
Product Name :DB9 Adapter
Terminal Wire Range: 22-14AWG
Total Size :40 x 36 x 14.5mm/1.6" x 1.4" x 0.57"(L*W*H)
Fixing Hole Diameter:3mm
Fixing Hole Center Distance:29mm/1.2"
Material :Metal, Electric Part
Color :Green
Weight :14g
Package Content:1 x DB9 Adapter

Features:
Mounting Type: Positioning Nuts

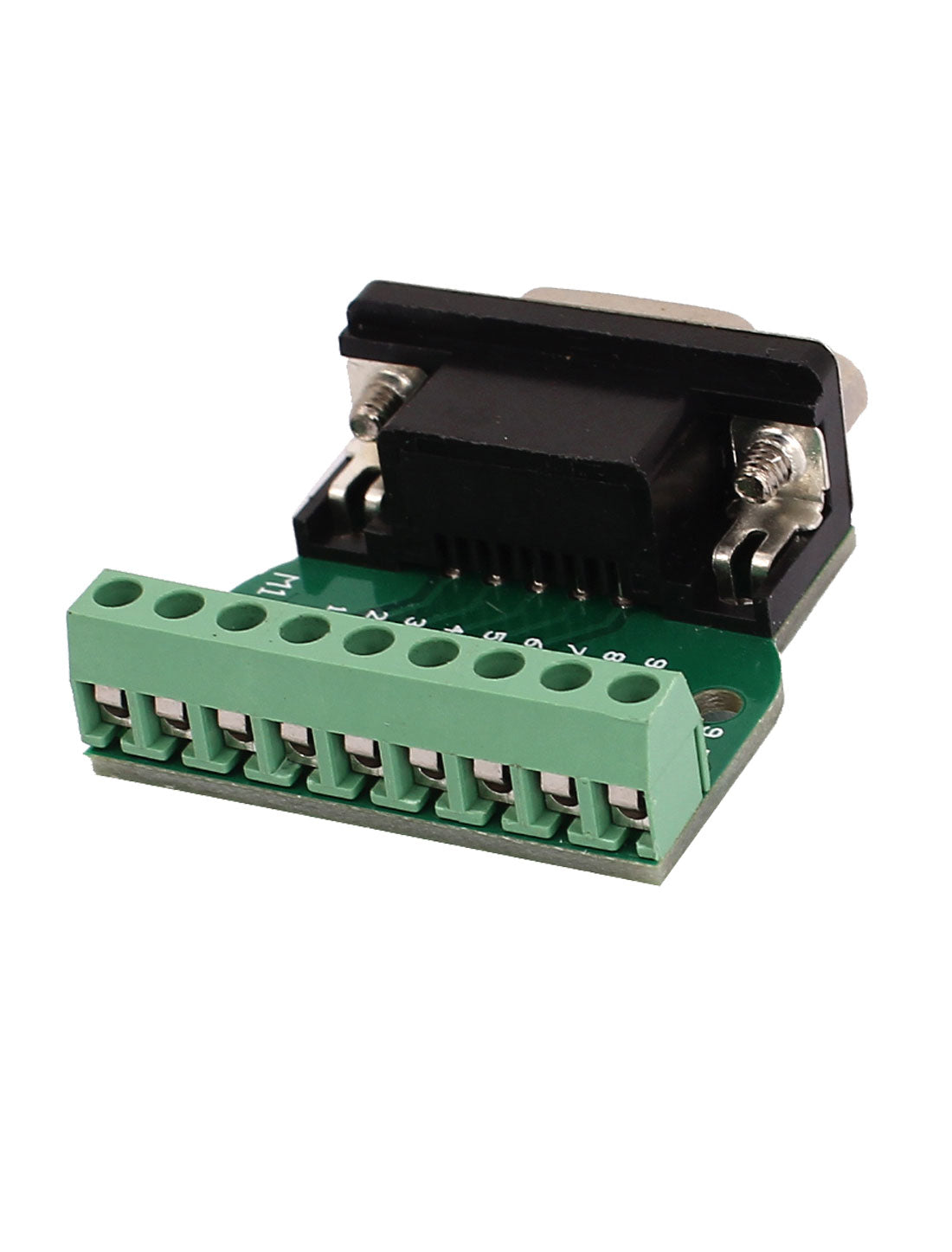

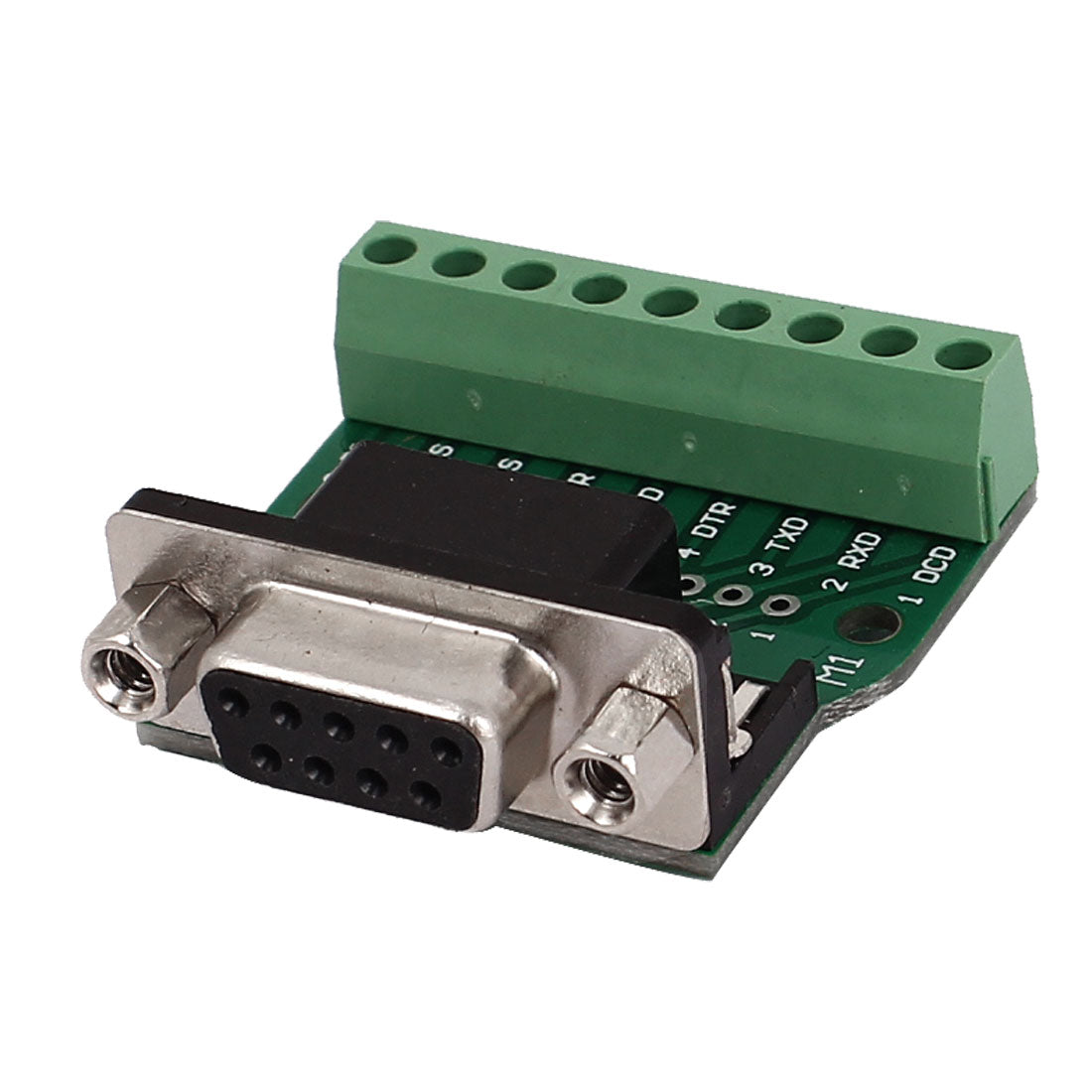

DB9 female adapter, RS232 Serial DB9 9pin to 9 Position Screw Terminal Block Connector.

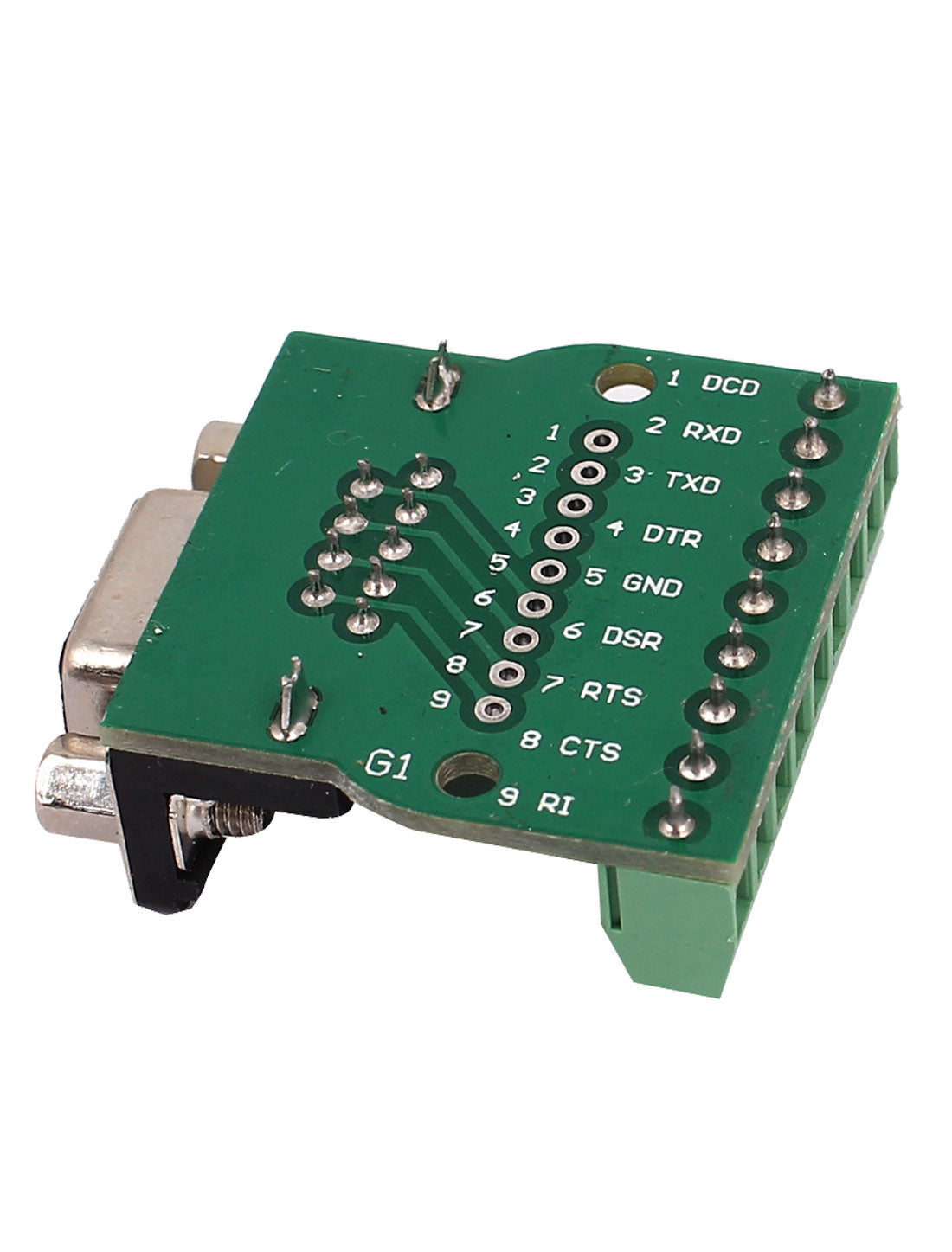

The signal line was all lead out, name and number clearly labeled.
Using industrial grade DB9 , it is stable and reliable.
With or without base socket is choosable, and it fit for C45, 35mm DIN rail mounting.22-14AWG wire range, 3.96mm pitch, 2mm screw diameter, you need use the 2mm width slot screwdriver.
All-copper DB9 Socket, anti-oxidation, contact better.
The adapter used for communication debug.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Specifications:
Product Name :DB9 Adapter
Terminal Wire Range: 22-14AWG
Total Size :40 x 36 x 14.5mm/1.6" x 1.4" x 0.57"(L*W*H)
Fixing Hole Diameter:3mm
Fixing Hole Center Distance:29mm/1.2"
Material :Metal, Electric Part
Color :Green
Weight :14g
Package Content:1 x DB9 Adapter

Features:
Mounting Type: Positioning Nuts
DB9 female adapter, RS232 Serial DB9 9pin to 9 Position Screw Terminal Block Connector.
The signal line was all lead out, name and number clearly labeled.
Using industrial grade DB9 , it is stable and reliable.
With or without base socket is choosable, and it fit for C45, 35mm DIN rail mounting.22-14AWG wire range, 3.96mm pitch, 2mm screw diameter, you need use the 2mm width slot screwdriver.
All-copper DB9 Socket, anti-oxidation, contact better.
The adapter used for communication debug.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
