Harfington Uxcell Deep Groove Ball Bearing Double Sealed P6 Z1 Level Bearings

Uxcell Deep Groove Ball Bearing Double Sealed P6 Z1 Level Bearings

ID:1006729
ID:1006729
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
5pcs
Package Content
10mmx26mmx8mm
Size
About this item

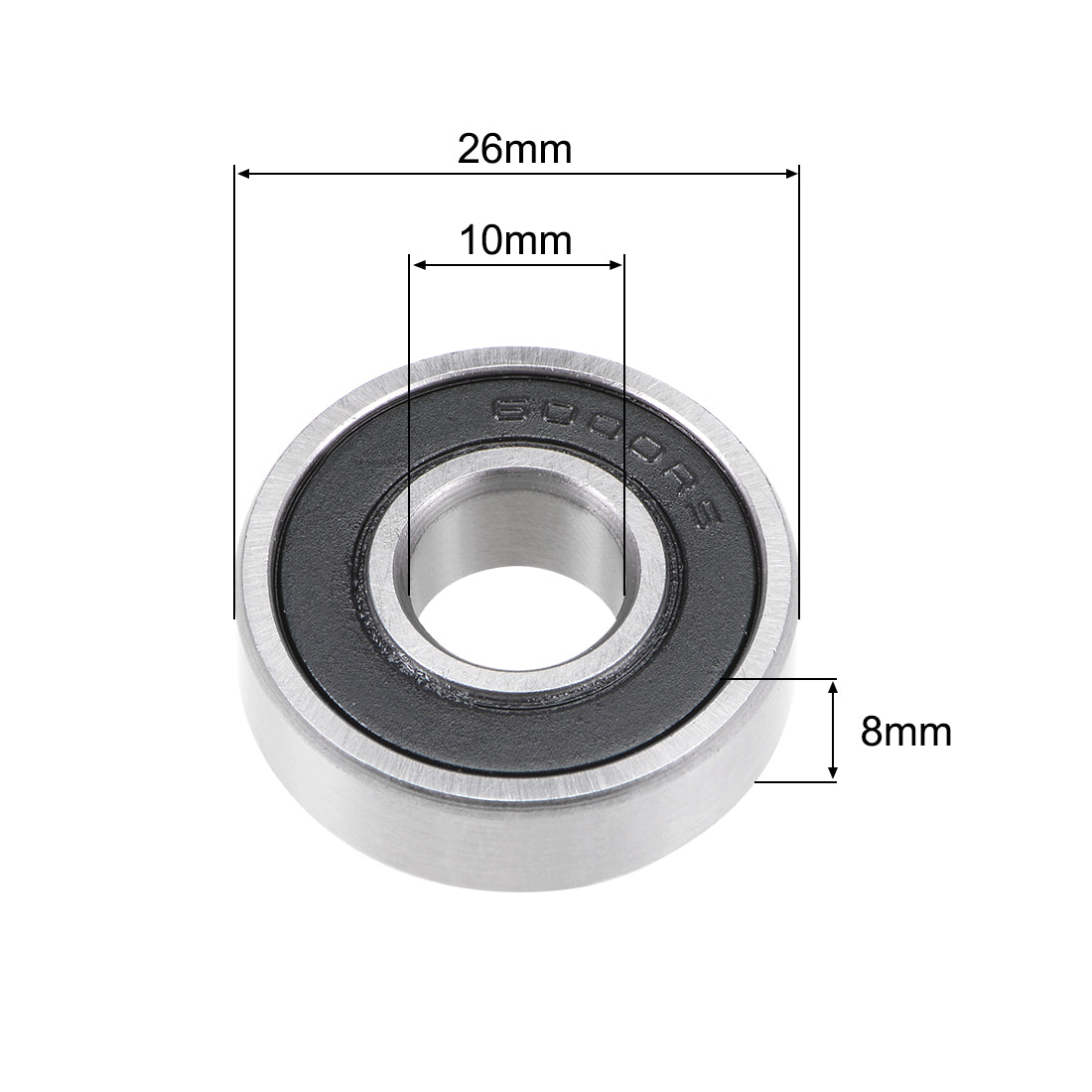

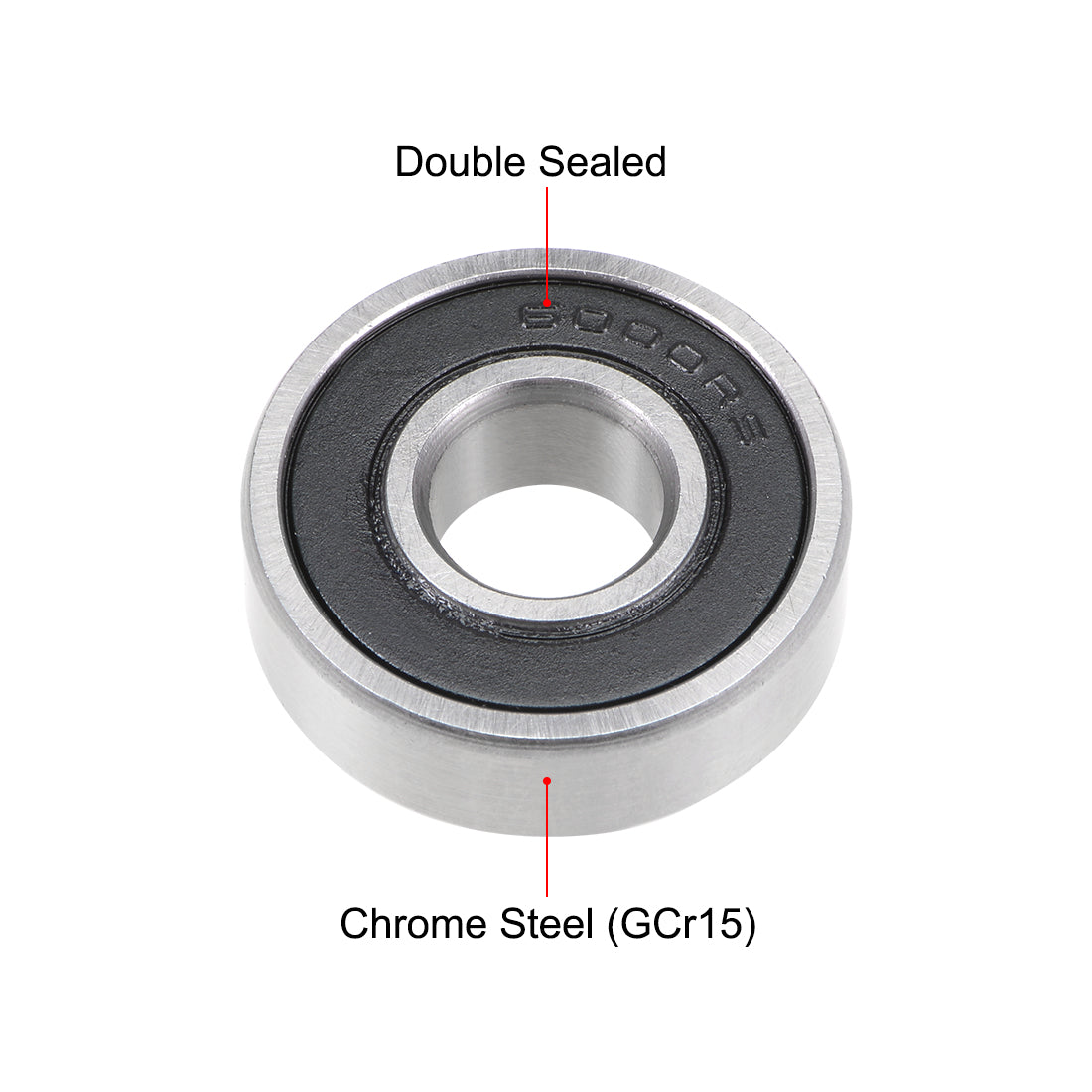

  • 6000-2RS (I.D.=10mm, O.D.=26mm, Thickness=8mm)
  • 6000rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 3 (P6), Z1 Noise Level for most general use
  • Static load rating of 1980 newtons and dynamic load rating of 4580 newtons
About this item
  • 6000-2RS (I.D.=10mm, O.D.=26mm, Thickness=8mm)
  • 6000rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 3 (P6), Z1 Noise Level for most general use
  • Static load rating of 1980 newtons and dynamic load rating of 4580 newtons
Specification

Specification

SKU
a19041900ux0164
Type
Double Sealed
Model
6000-2RS
Dynamic Load Rating(KN)
4.58
Accuracy Class
ABEC-3
Pkg.Qty.
5
I.D.
10mm
O.D.
26mm
Thickness
8mm
Static Load Rating(KN)
1.98
Noise Level
Z1
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6000-2RS

Sealed Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 10mm

Outer Diameter (D): 26mm

Thickness (B): 8mm

Dynamic Load Rating (Cr): 4.58kN

Static Load Rating (Cor): 1.98kN

Accuracy Class: P6 (ABEC-3)

Noise Level: Z1

Number of Pack: 5 Pcs

US$7.65 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
6000-2RS ABEC-3 / 10mm Z1 26mm 5 / 1.98 8mm Double Sealed 4.58 1006729 US$7.65
Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
6000-2RS ABEC-3 / 10mm Z1 26mm 5 / 1.98 8mm Double Sealed 4.58 1006729 US$7.65
205PP ABEC-1 / 25mm Z1 52mm 1 / 7.88 15mm Double Sealed 14.0 1041134 US$7.57
S628-2RS ABEC-1 / 8mm Z1 24mm 1 / 1.4 8mm Double Sealed 3.35 1040190 US$5.99

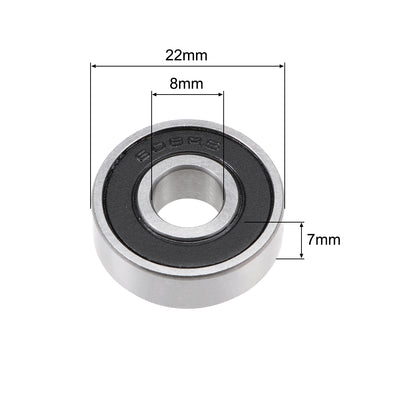

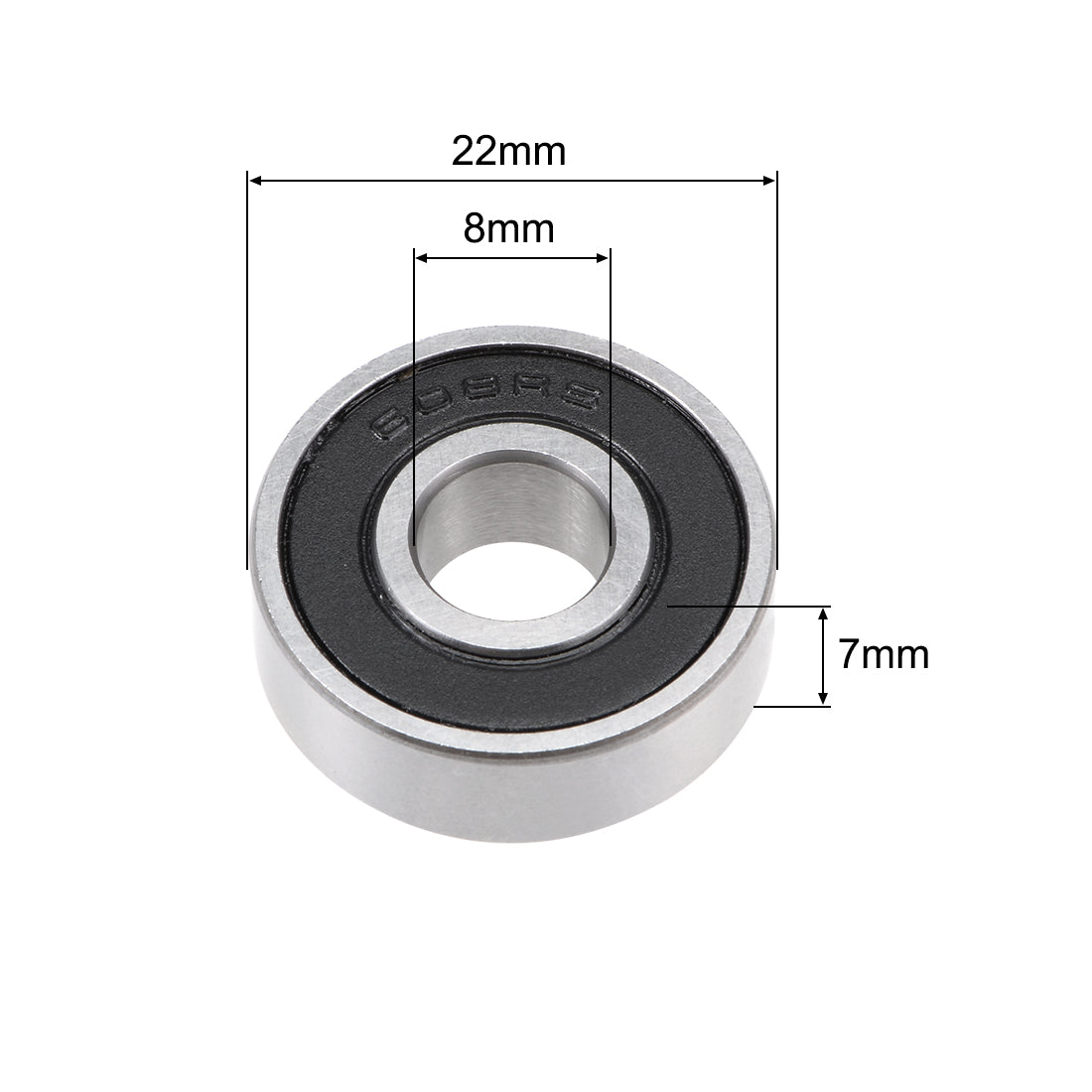

S608-2RS ABEC-1 / 8mm Z1 22mm 1 / 1.379 7mm Double Sealed 3.293 1028585 US$5.53
S6204-2RS ABEC-1 / 20mm Z1 47mm 1 / 6.65 14mm Double Sealed 12.8 1029277 US$8.19
S606-2RS ABEC-1 / 6mm Z1 17mm 1 / 0.72 6mm Double Sealed 1.95 1029285 US$5.42
6700-2RS ABEC-3 / 10mm Z1 15mm 5 / 4.31 4mm Double Sealed 8.53 1047375 US$7.71
6000-2RS ABEC-3 / 10mm Z1 26mm 10 / 1.98 8mm Double Sealed 4.58 1059695 US$10.98
6000-2RS ABEC-1 4.58 10mm Z1 26mm 10 1.98 1.98 8mm Double Sealed / 1055705 US$8.82
R166-2RS ABEC-3 / 4.763mm Z1 9.525mm 5 / 0.272 3.175mm Double Sealed 0.709 1059832 US$7.60
R3-2RS ABEC-3 / 4.763mm Z1 12.7mm 5 / 0.488 4.978mm Double Sealed 1.301 1059839 US$7.63
688-2RS ABEC-3 / 8mm Z1 16mm 10 / 0.592 5mm Double Sealed 1.252 1059850 US$9.79
MR125-2RS ABEC-3 / 5mm Z1 12mm 2 / 0.54 4mm Double Sealed 1.47 1059863 US$6.06

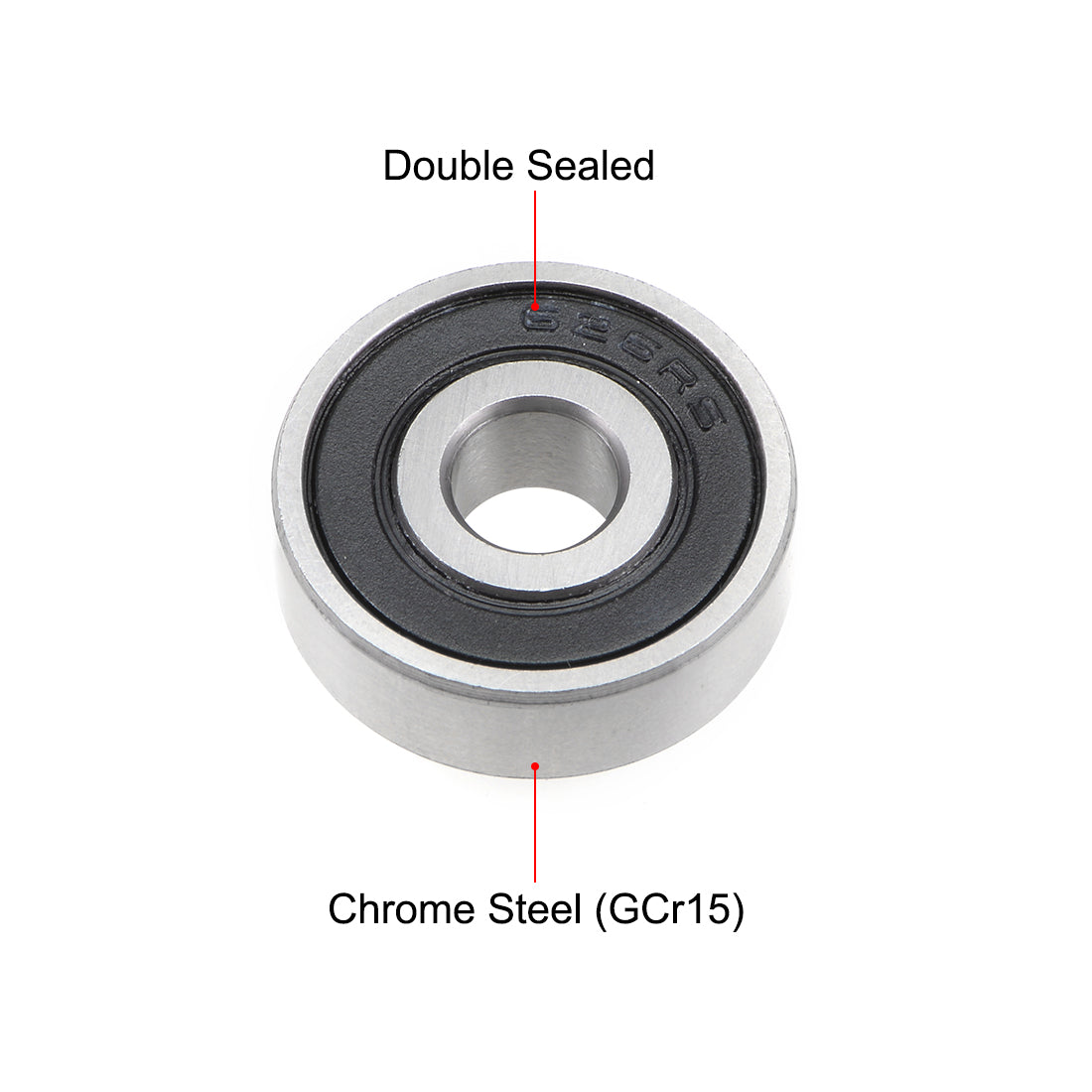

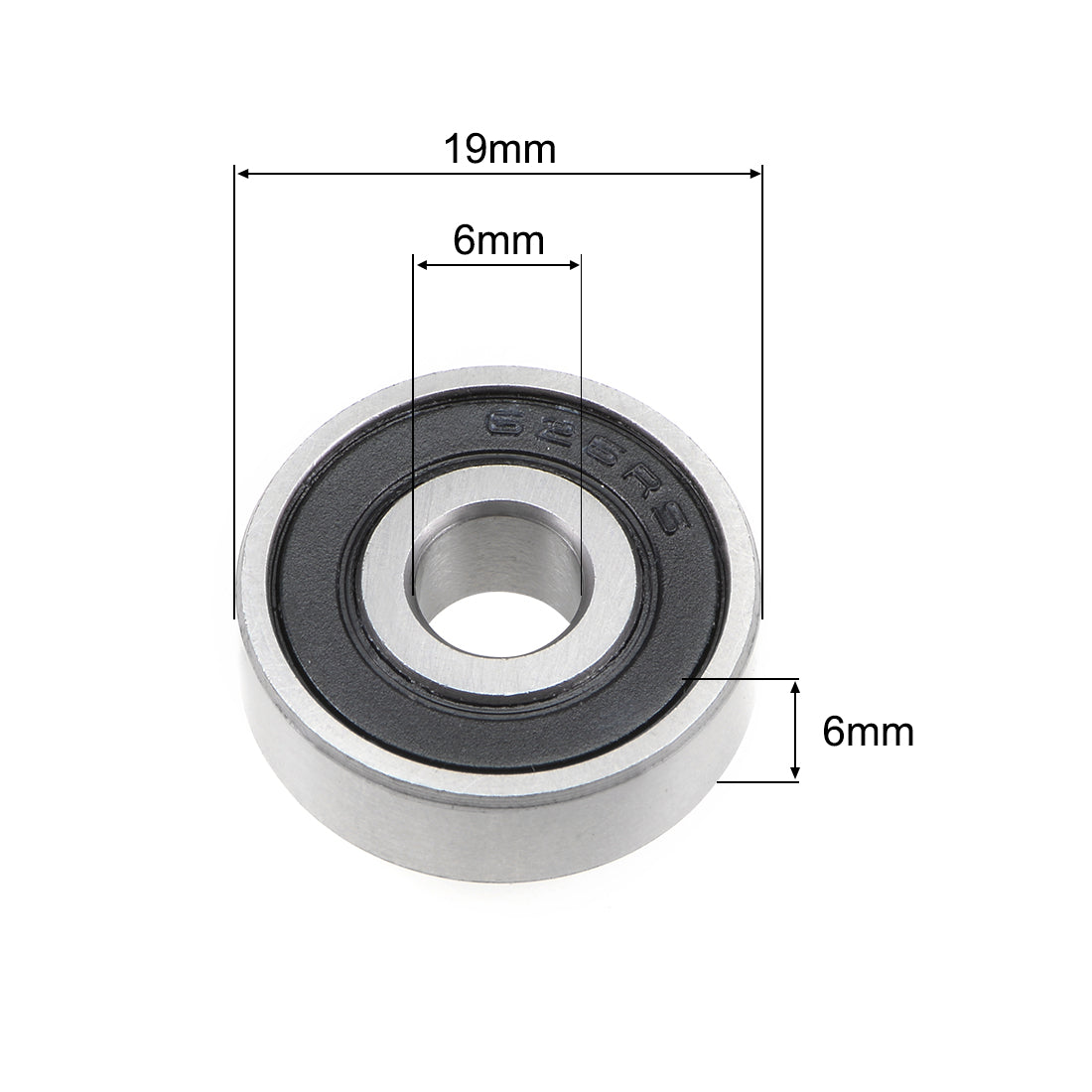

626-2RS ABEC-1 / 6mm Z1 19mm 1 / 1.05 6mm Double Sealed 2.8 1060654 US$5.42
626-2RS ABEC-1 / 6mm Z1 19mm 1 / 1.05 6mm Double Sealed 2.8 1148736 US$5.40
626-2RS ABEC-1 / 6mm / 19mm 20 / 1.05 6mm Double Sealed 2.6 1055957 US$10.24
626-2RS ABEC-3 / 6mm Z1 19mm 2 / 1.05 6mm Double Sealed 2.8 1006730 US$5.64
204PP ABEC-1 / 20mm Z1 47mm 2 / 6.65 14mm Double Sealed 12.8 1061882 US$9.58
MR128-2RS ABEC-3 / 8mm Z1 12mm 4 / 0.274 3.5mm Double Sealed 0.543 1079797 US$6.76
MR105-2RS ABEC-3 / 5mm Z1 10mm 5 / 0.169 4mm Double Sealed 0.431 1142196 US$7.61
MR106-2RS ABEC-3 / 6mm Z1 10mm 2 / 0.218 3mm Double Sealed 0.496 1142198 US$6.06
6010-2RS ABEC-1 / 50mm Z1 80mm 1 / 16.2 16mm Double Sealed 22 1144843 US$9.90
6800-2RS ABEC-1 1.8 10mm Z1 19mm 10 0.93 0.93 5mm Double Sealed / 1034248 US$7.09
6800-2RS ABEC-1 1.8 10mm Z1 19mm 8 0.93 0.93 5mm Double Sealed / 1034246 US$6.70

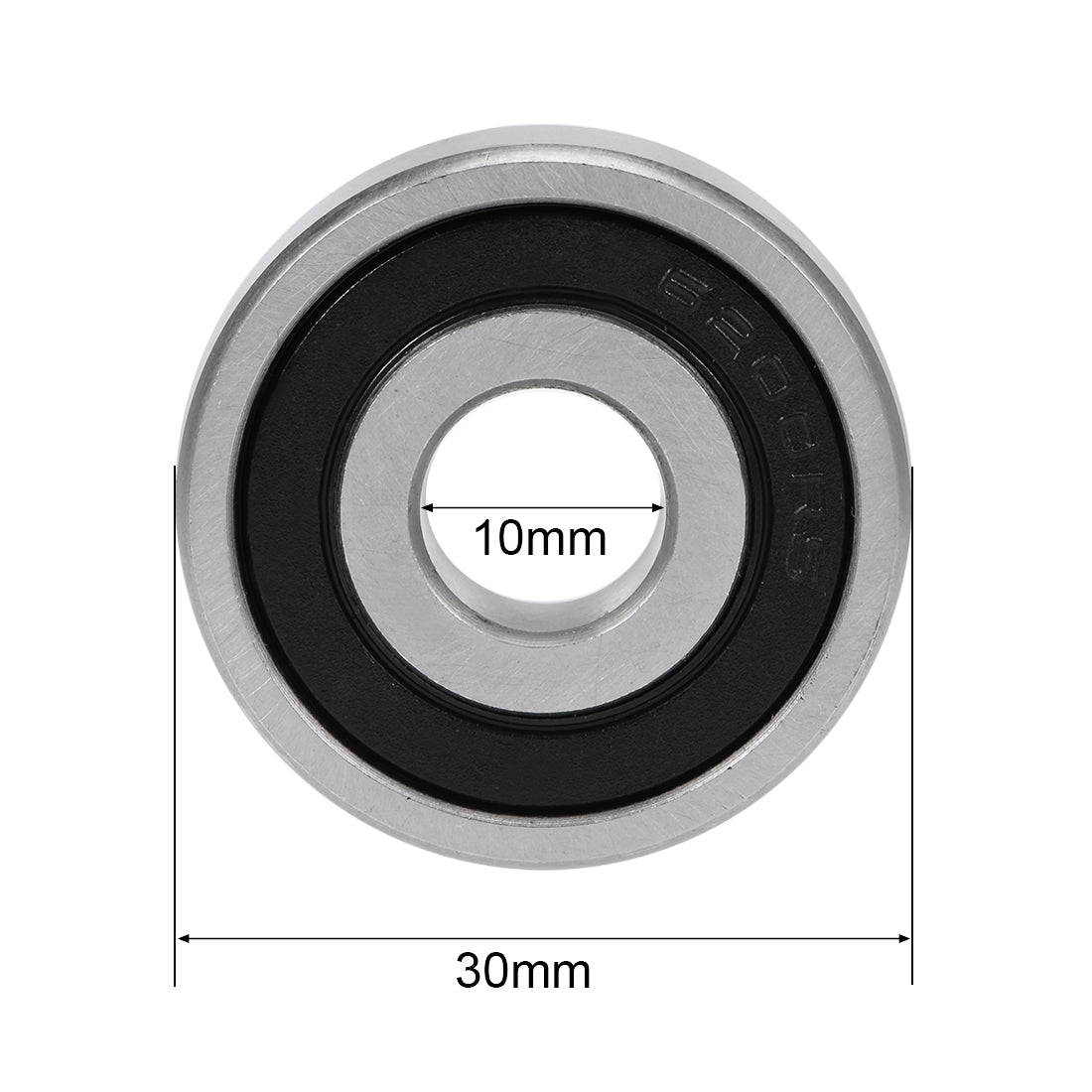

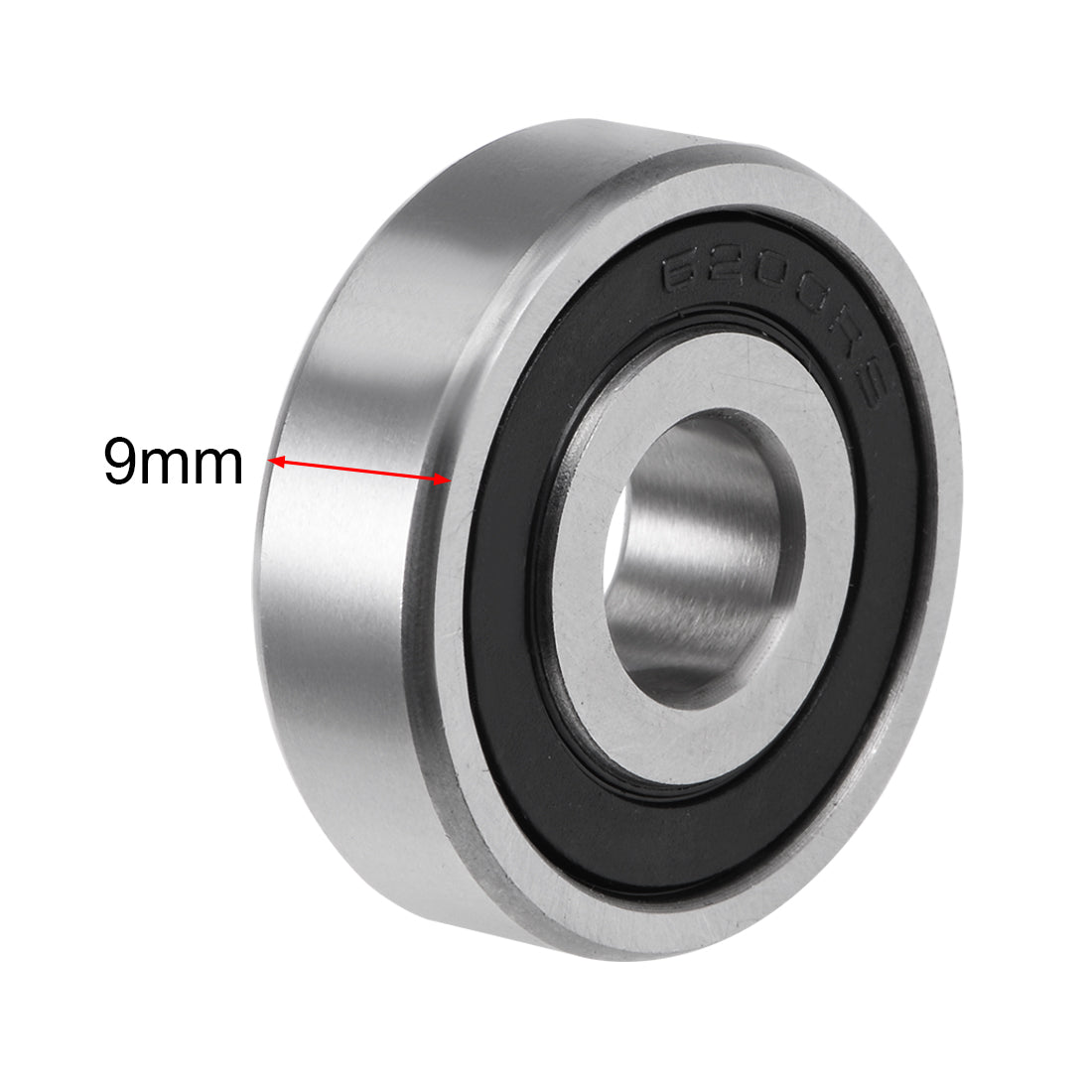

6200-2RS ABEC-1 5.1 10mm Z1 30mm 10 2.38 2.38 9mm Double Sealed / 1055745 US$10.75
625-2RS ABEC-3 / 5mm Z1 16mm 5 / 0.67 5mm Double Sealed 1.75 1006726 US$6.70
6903-2RS ABEC-1 / 17mm / 30mm 2 / 2.6 7mm Double Sealed 4.6 1080662 US$5.77
MR15267-2RS ABEC-1 / 15mm Z1 26mm 1 / 2.3 7mm Double Sealed 4.3 1075775 US$5.79
16005-2RS ABEC-1 / 25mm Z1 47mm 1 / 5.6 8mm Double Sealed 8.85 1040188 US$6.23
R8-2RS ABEC-3 / 12.7mm Z1 28.575mm 2 / 2.415 7.938mm Double Sealed 2.108 1059867 US$5.93
6701-2RS ABEC-3 / 12mm Z1 18mm 2 / 1.664 4mm Double Sealed 3.96 1028800 US$6.02
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6000-2RS

Sealed Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 10mm

Outer Diameter (D): 26mm

Thickness (B): 8mm

Dynamic Load Rating (Cr): 4.58kN

Static Load Rating (Cor): 1.98kN

Accuracy Class: P6 (ABEC-3)

Noise Level: Z1

Number of Pack: 5 Pcs
