U624ZZ Deep Groove Guide Pulley Rail Ball Bearings 4mmx13mmx7mm Double Metal Shielded (GCr15) Chrome Steel Bearings 5pcs

Questions & Answers |
$8.05 Regular price
/
$2 OFFOrder Over $2.9For New Users
Code: NEW02
5% OFFOrders $200+
7% OFFOrders $500+
10% OFFOrders $800+
15% OFFOrders $2000+
About This Item
  • U624ZZ (I.D.=4mm, O.D.=13mm, Thickness=7mm)
  • U624ZZ bearings are shielded on both sides to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Dynamic load rating of 1106 newtons and Static load rating of 390 newtons
  • In stock, ready to ship
Cart
Order now and get $2 off
About This Item
  • U624ZZ (I.D.=4mm, O.D.=13mm, Thickness=7mm)
  • U624ZZ bearings are shielded on both sides to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Dynamic load rating of 1106 newtons and Static load rating of 390 newtons
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(SKU)
Expected Arrival Time
Customer Note
0/990
* Customer Name
* Email Address
If you want to consult the bulk order, you can submit a inquiry or messenger us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Wholesale Inquiry
* Product Name
* Quantity(SKU)
Expected Arrival Time
Customer Note
0/990
* Customer Name
* Email Address
If you want to consult the bulk order, you can submit a inquiry or messenger us .
Product Description:

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

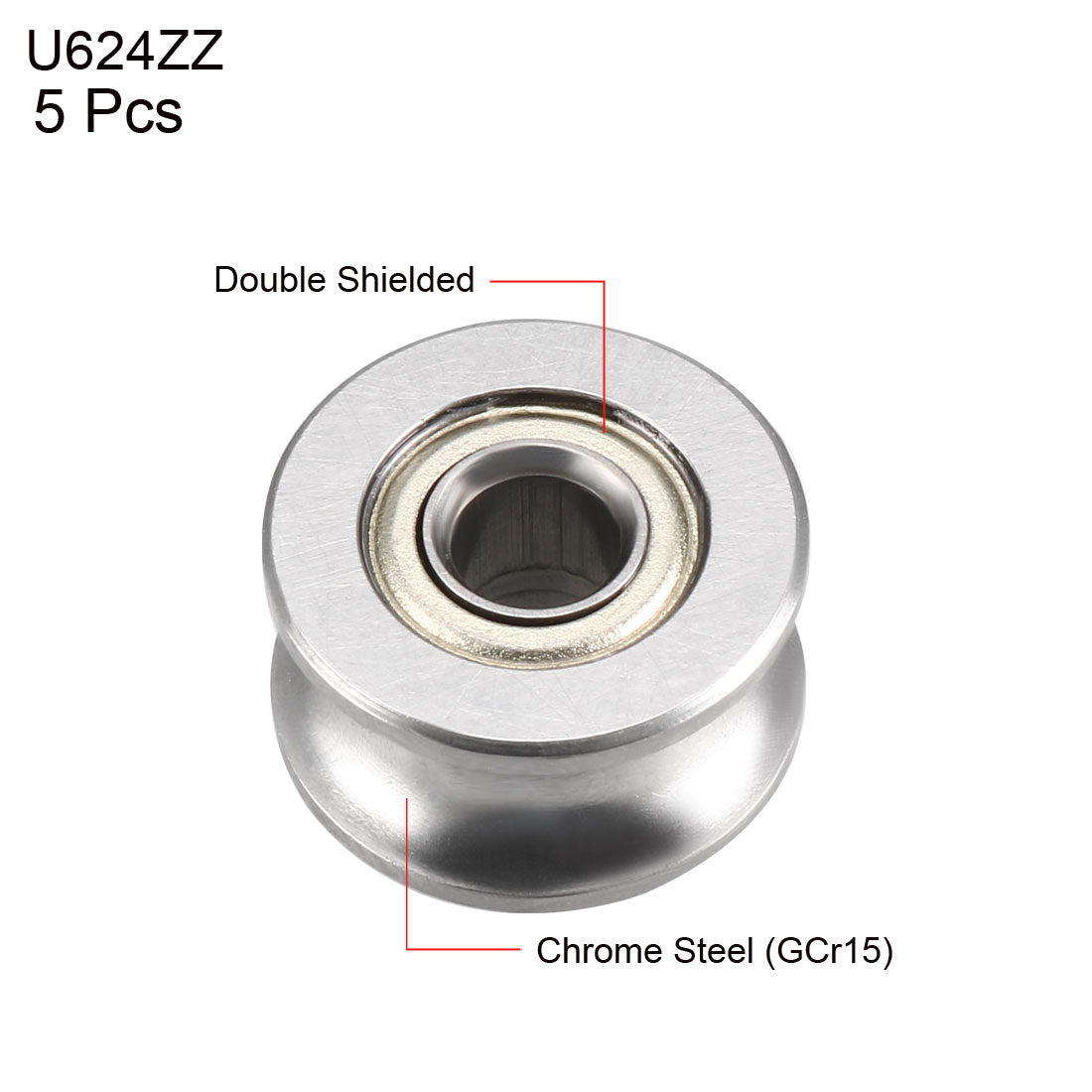

Model: U624ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

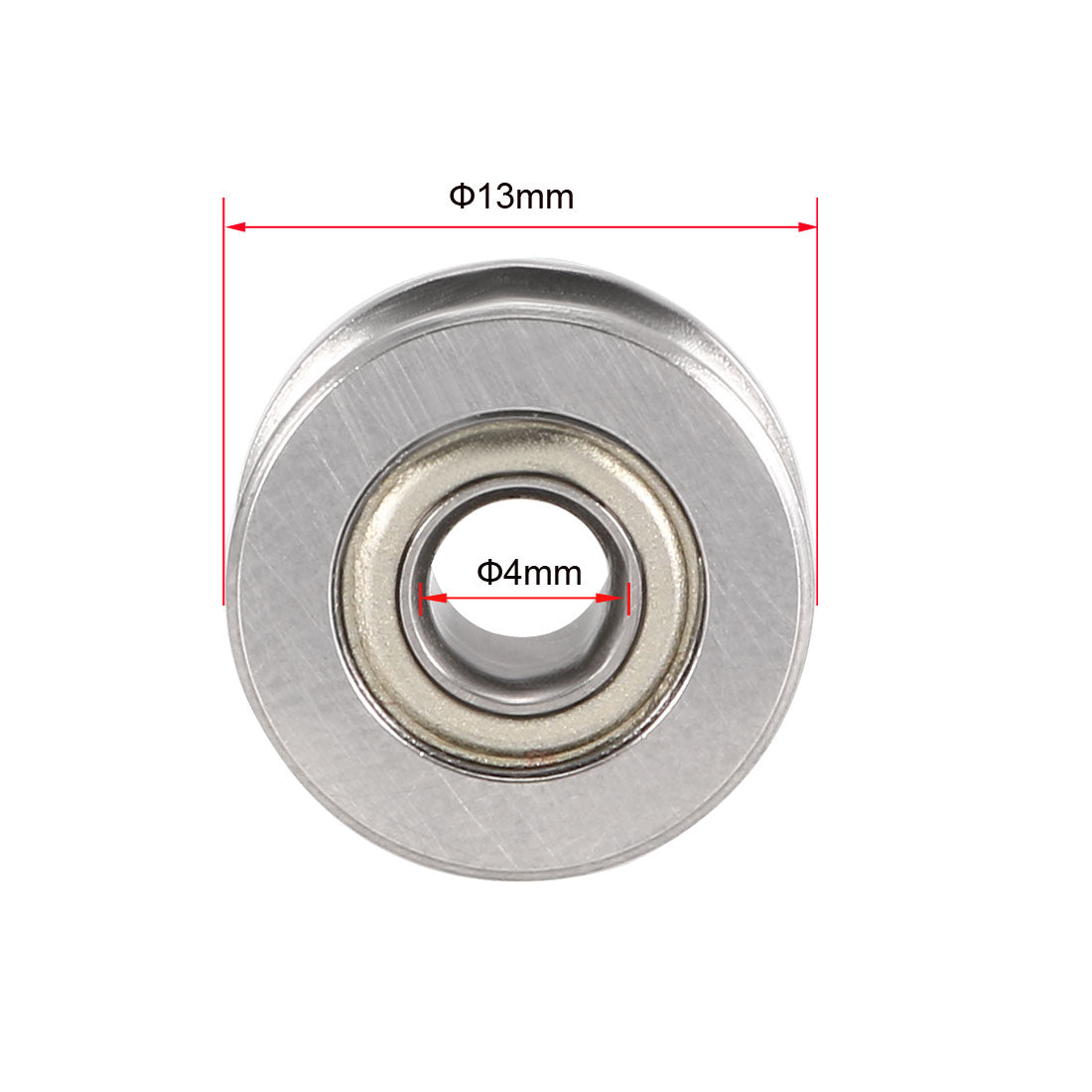

Inner Diameter (d): 4mm

Outer Diameter (D): 13mm

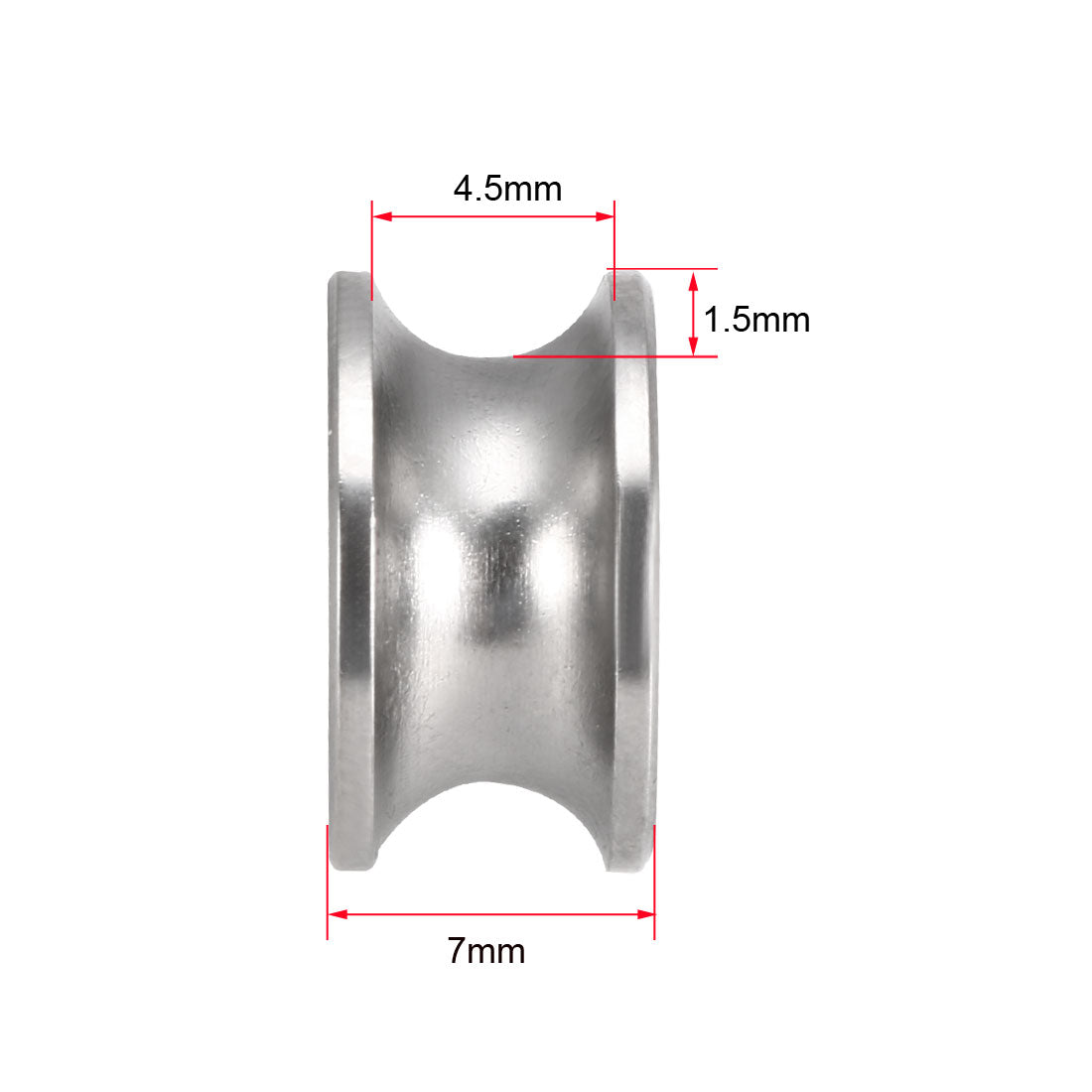

Thickness (B): 7mm

Groove width: 4.5mm

Groove depth: 1.5mm

Dynamic Load Rating (Cr): 1106 N

Static Load Rating (Cor): 390 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

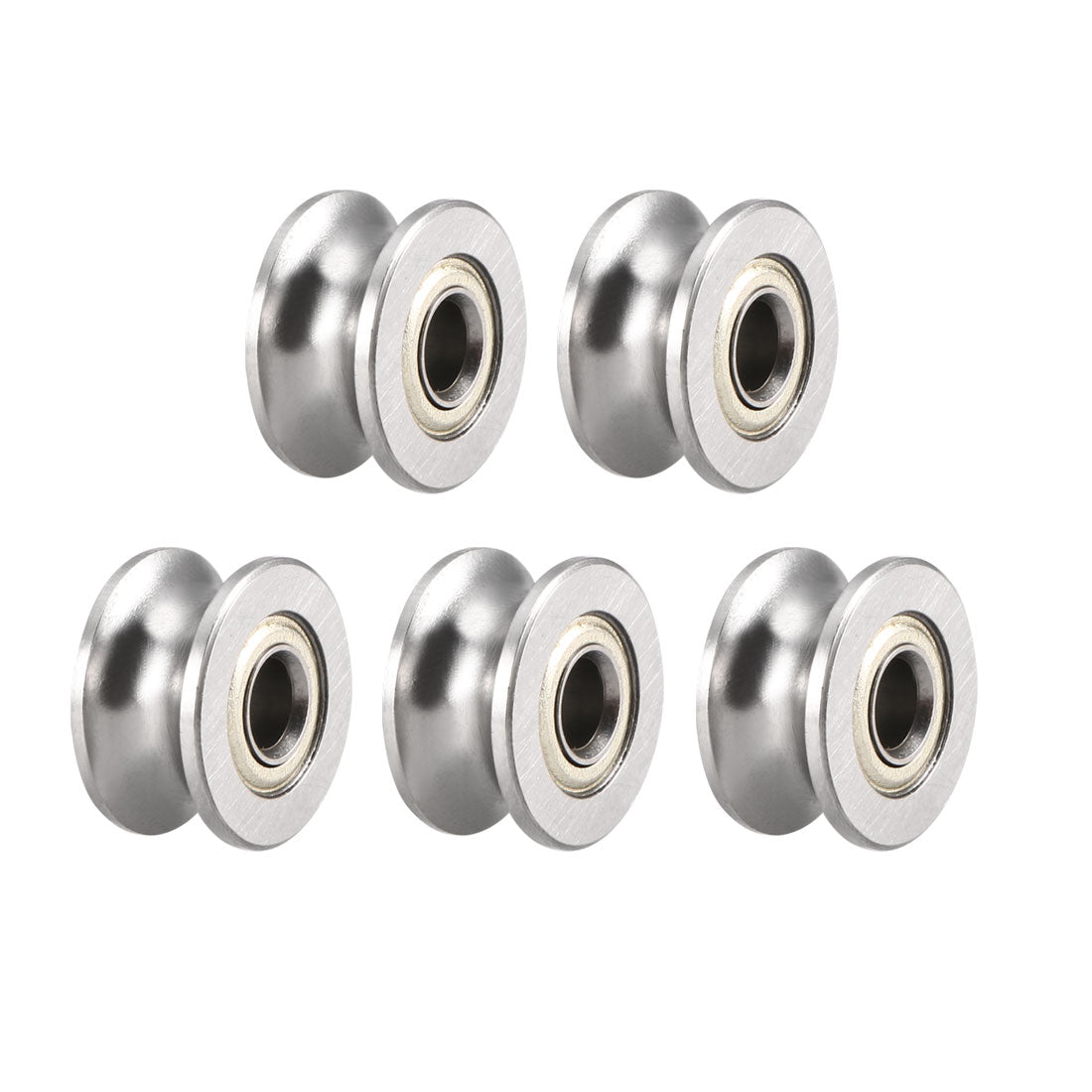

Number of Pack: 5Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: U624ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 4mm

Outer Diameter (D): 13mm

Thickness (B): 7mm

Groove width: 4.5mm

Groove depth: 1.5mm

Dynamic Load Rating (Cr): 1106 N

Static Load Rating (Cor): 390 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 5Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
