Home Power TransmissionBearingsBall BearingsDeep-Groove Ball Bearings

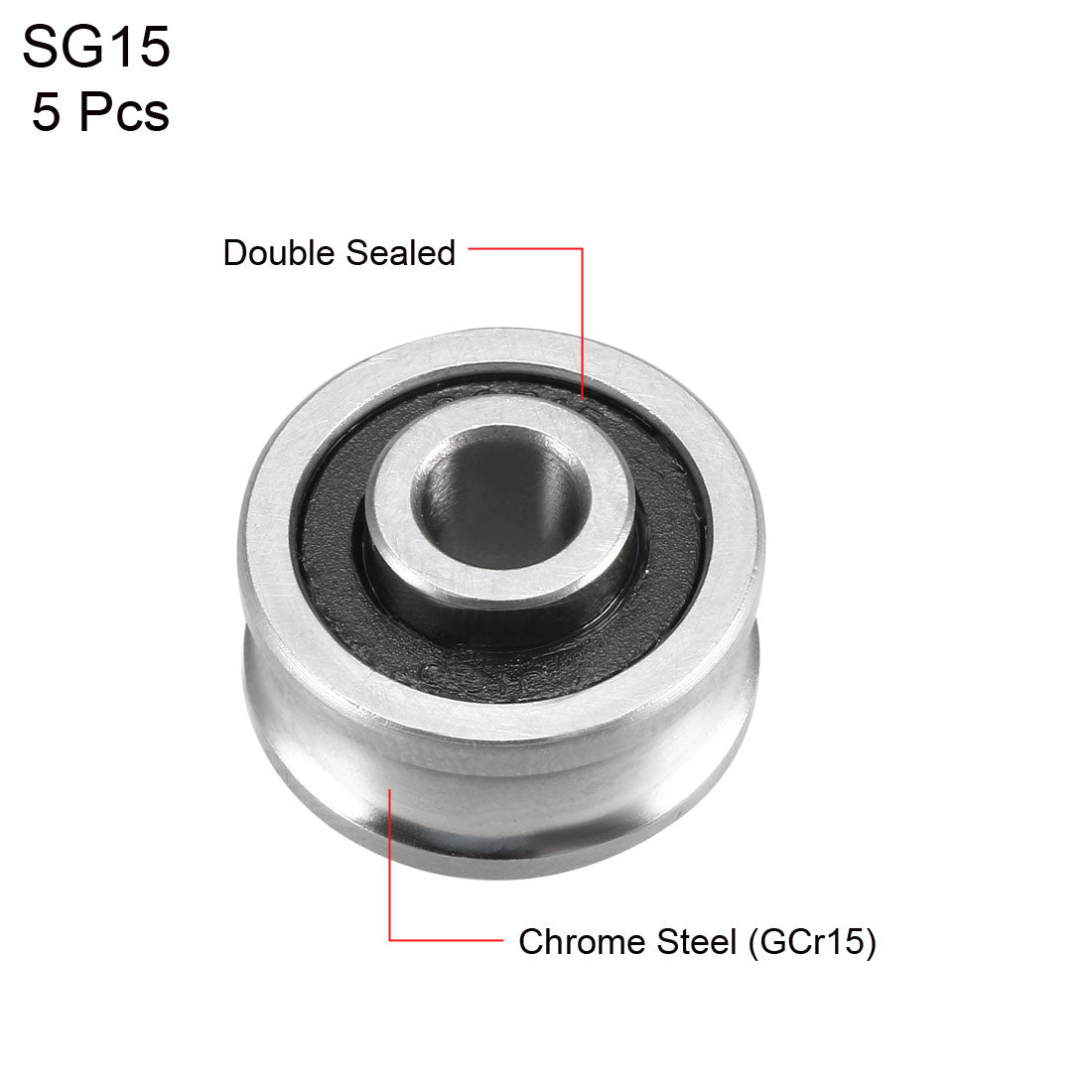

SG15 Deep U Groove Ball Track Guide Bearing 5mmx17mmx8mm Double Sealed (GCr15) Chrome Steel Bearings 5pcs

Questions & Answers |
$9.08
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
*Hardware Mixed Wholesale Price. Free Shipping on orders over $200(by UPS Air Express).
About This Item
  • SG15 (I.D.=5mm, O.D.=17mm, Thickness=8mm)
  • SG15 bearings are Sealed on both sides to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use

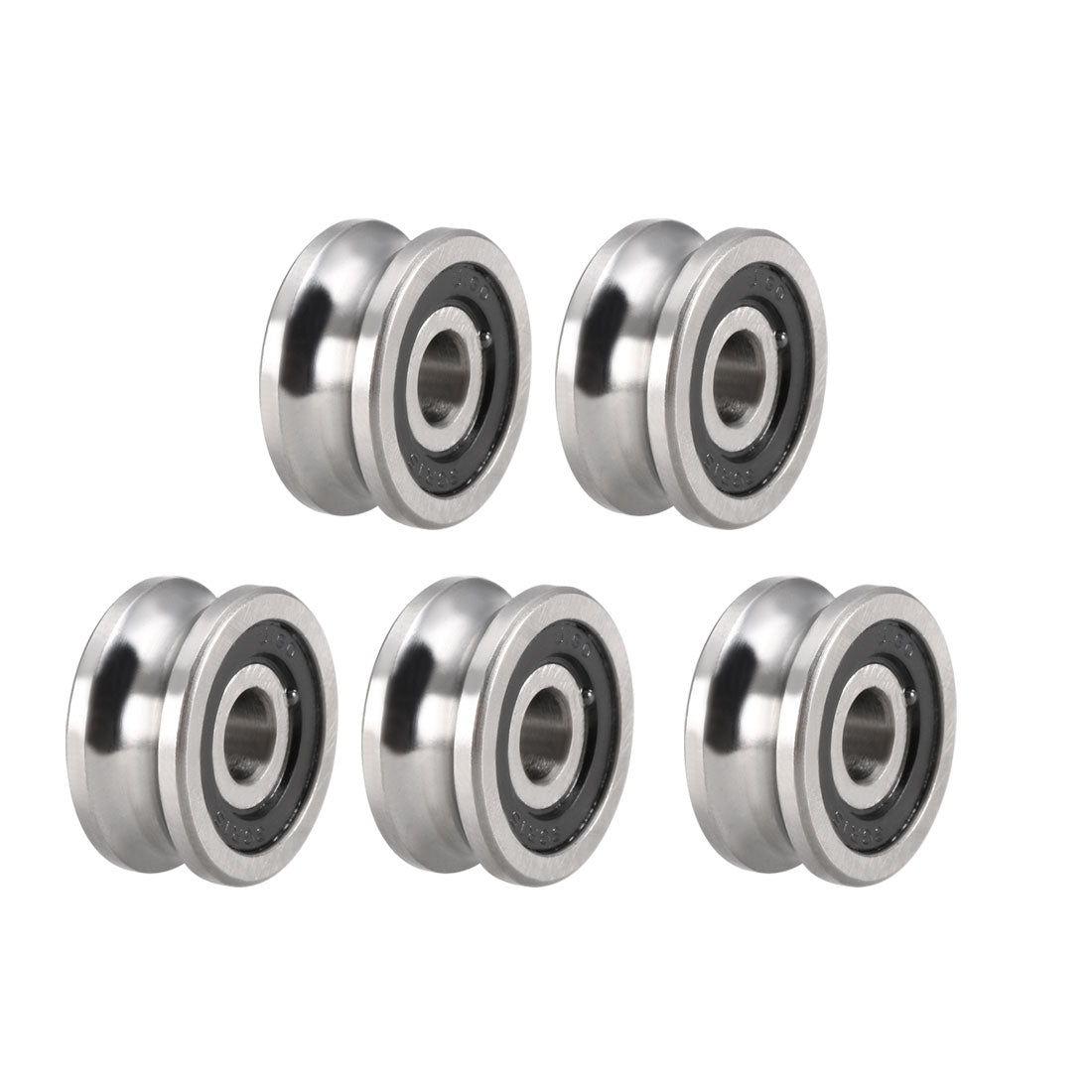

  • Number of Pack: 5Pcs
  • In stock, ready to ship
Cart
0
0
Cart
Order now and get $3 off
About This Item
  • SG15 (I.D.=5mm, O.D.=17mm, Thickness=8mm)
  • SG15 bearings are Sealed on both sides to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Number of Pack: 5Pcs
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Free Return

Thank you for choosing Harfington!

We make things easy for you, you will enjoy a 30-day unconditional return after receiving your items!

If you are not completely satisfied with your product for any reason, we will gladly sort out a solution for you. Once you want to return or refund the order, please Contact Us and our agents will contact you in 1-2 business days.

The return process

1. Contact us

Contact our Customer Service via email or website,Prepare the proof of purchase and the reason of return)

2. Return & Refund

    If you decide to return an item that is not defective, you’re eligible for a 30-day unconditional return since you’ve received it. Our Customer Service team will send you an address for receiving your return items, it takes 3-5 business days to process your return and issue the refund after our warehouse received the items.

    Matters needing attention

    All returned items should include the following:

    •  Original packaging (including original box, plastics foam, bubble wrap, bags, etc.)

    •  Original intact UPC barcode. Removal of the UPC code voids any possibility of the return request being honored.

    •  All accessories, including cords, cases, transformers, parts, batteries, assembly tools, etc.

    •  All manufacturer instruction manuals, warranty cards, and other documents.



    *Return Policy Exceptions

    1.Original shipping fee and handling fees are non-refundable.

    2.Return shipping fee is not responsible by the Harfington, you can use your shipping method and at your own cost.

    3.If our warehouse detect worn, damaged, or missing on the return items, Harfington reserve the rights to cancel the refund.

    4.Defective Items or Wrong Items.If you receive an item that is wrong, defective, or broken, within 30 days of the date since you’ve received it, Harfington will exchange a new item to you or 100% refund it

    5.Non-returnable Items. Some of our products are not under the service of 30-day unconditional returns. We will tag these products on the detail page and your orders.

    6.Larger Items.Some items require special shipping and handling. Some larger items may require a freight carrier or may exceed the weight limits allowed, if you want to return a larger item, please contact our Customer Service.

      If you have any issues with your return or refund, please contact the Customer Service team, we are happy to help!

      Email: info@harfington.com

      Wholesale Inquiry
      * Product Name
      * Quantity(Each)
      Expected Arrival Time
      Customer Note
      0/990
      Customer Name
      * Email Address
      If you want to consult the bulk order, you can submit a inquiry or messenger us .
      Inquiry submitted successfully
      We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
      Secure Payment
      Product Description:

      Note:

      Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



      Description:

      • Double-row, pre-lubricated, normal accuracy.
      • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
      • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
      • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
      • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



      Selection Guide:

      Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

      Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



      Specification:

      Model: SG15

      Shielded Type: Double Sealed

      Inner Race/Outer Race Material: Chrome Steel (GCr15)

      Cage Material: Stamping Steel

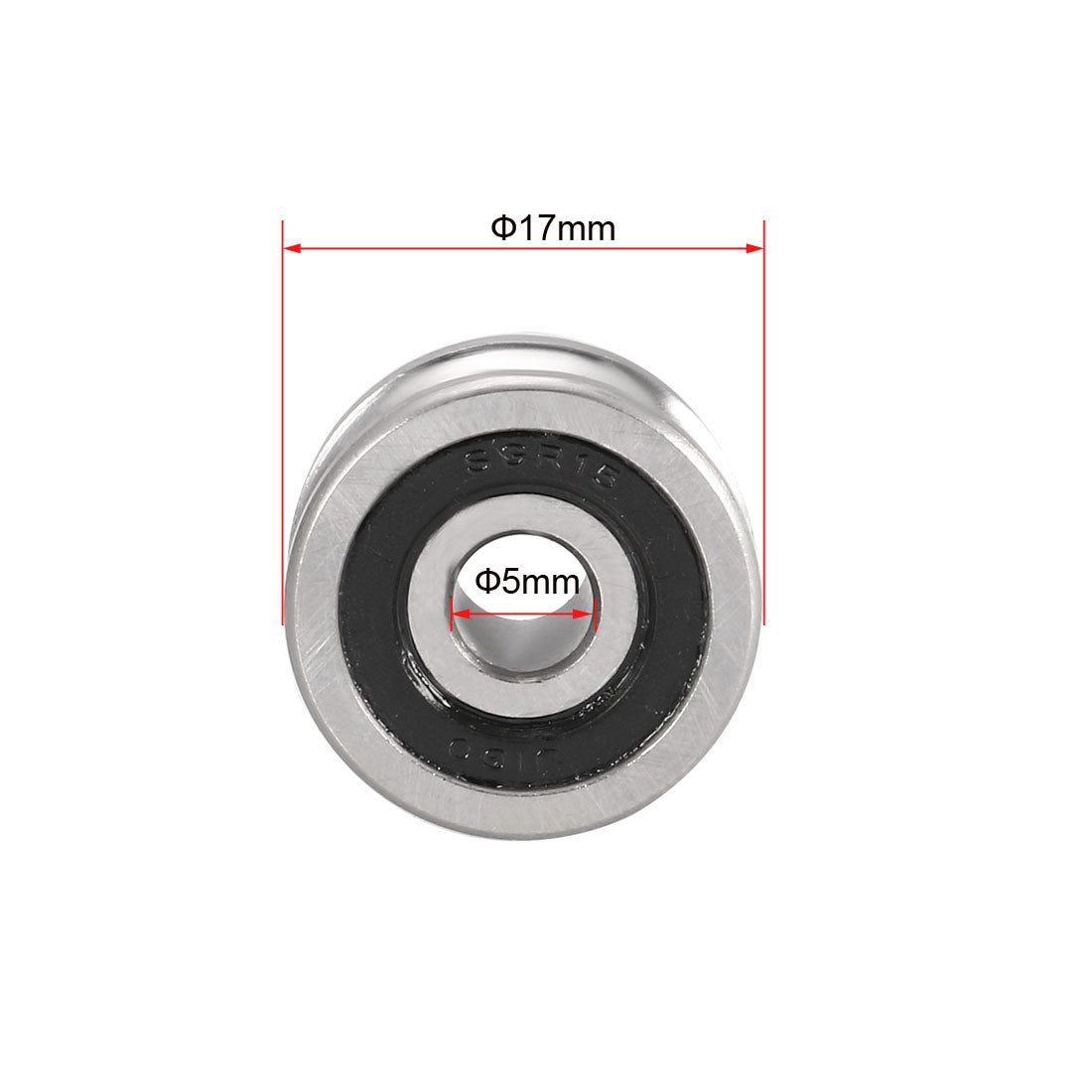

      Inner Diameter (d): 5mm

      Outer Diameter (D): 17mm

      Thickness (B): 8mm

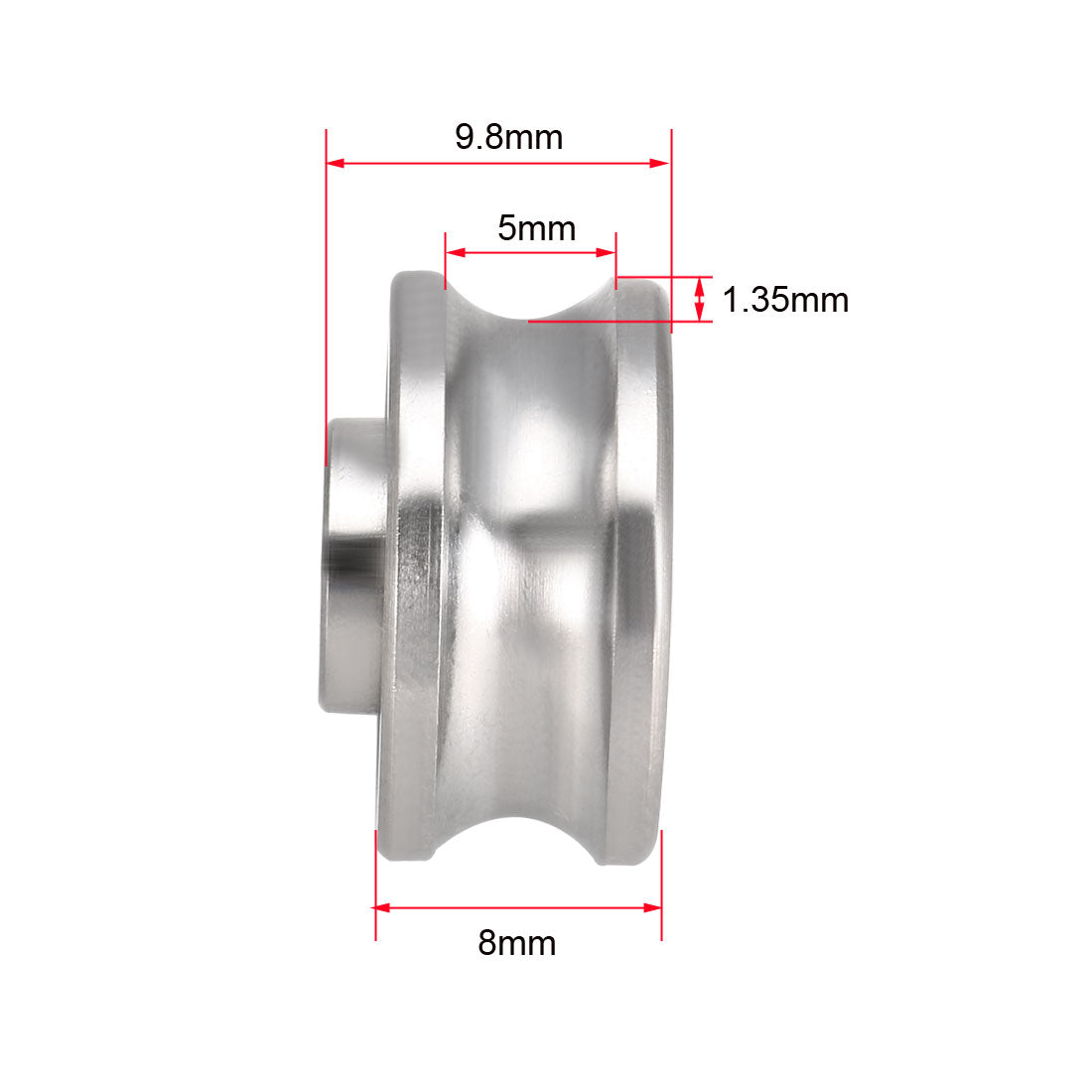

      Groove width: 5mm

      Groove depth: 1.35mm

      Accuracy Class: P0 (ABEC1)

      Noise Level: Z2

      Number of Pack: 5Pcs

      Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
      view full details

      Customers Also Bought

      Specification

      Specification

      Description

      Description

      Description

      Note:

      Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



      Description:

      • Double-row, pre-lubricated, normal accuracy.
      • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
      • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
      • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
      • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



      Selection Guide:

      Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

      Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



      Specification:

      Model: SG15

      Shielded Type: Double Sealed

      Inner Race/Outer Race Material: Chrome Steel (GCr15)

      Cage Material: Stamping Steel

      Inner Diameter (d): 5mm

      Outer Diameter (D): 17mm

      Thickness (B): 8mm

      Groove width: 5mm

      Groove depth: 1.35mm

      Accuracy Class: P0 (ABEC1)

      Noise Level: Z2

      Number of Pack: 5Pcs

      Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
