Double Shaft Worm Gear Motor DC 24V 20RPM High Torque Speed Reduction Motor with Metal Gearbox

Questions & Answers |
$32.63 Regular price
/
$2 OFFOrder Over $2.9For New Users
Code: NEW02
5% OFFOrders $200+
7% OFFOrders $500+
10% OFFOrders $800+
15% OFFOrders $2000+
About This Item
  • 1.Rated voltage: DC12V 24V
  • 2.DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L); Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H); Output Shaft: 8mm; Main Material: Metal, Electronic component.
  • 3.Applications: Boat, Electric Bicycle, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
  • 4.Feature: -Motor rotation can be changed by changing the wiring-connection. -Motor will be self-locking when the power goes out. -The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
  • 5.Package: 1 x DC Geared Motor; if you need other voltage and rpm, pls contact us, more models of this motor in store.
  • In stock, ready to ship
Cart
Order now and get $2 off
About This Item
  • 1.Rated voltage: DC12V 24V
  • 2.DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L); Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H); Output Shaft: 8mm; Main Material: Metal, Electronic component.
  • 3.Applications: Boat, Electric Bicycle, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
  • 4.Feature: -Motor rotation can be changed by changing the wiring-connection. -Motor will be self-locking when the power goes out. -The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
  • 5.Package: 1 x DC Geared Motor; if you need other voltage and rpm, pls contact us, more models of this motor in store.
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(SKU)
Expected Arrival Time
Customer Note
0/990
* Customer Name
* Email Address
If you want to consult the bulk order, you can submit a inquiry or messenger us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Wholesale Inquiry
* Product Name
* Quantity(SKU)
Expected Arrival Time
Customer Note
0/990
* Customer Name
* Email Address
If you want to consult the bulk order, you can submit a inquiry or messenger us .
Product Description:

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed. It is also have addition two characteristics:

1 With self-locking, the output shaft can not rotation when switch off, that is self-locking.

2 Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special installation size.



Specification:

Rated Voltage: 24V DC;

No-Load Speed: 20 RPM;

Output Shaft: 8mm x 15mm/1.22inch x 2.24inch(D*L);

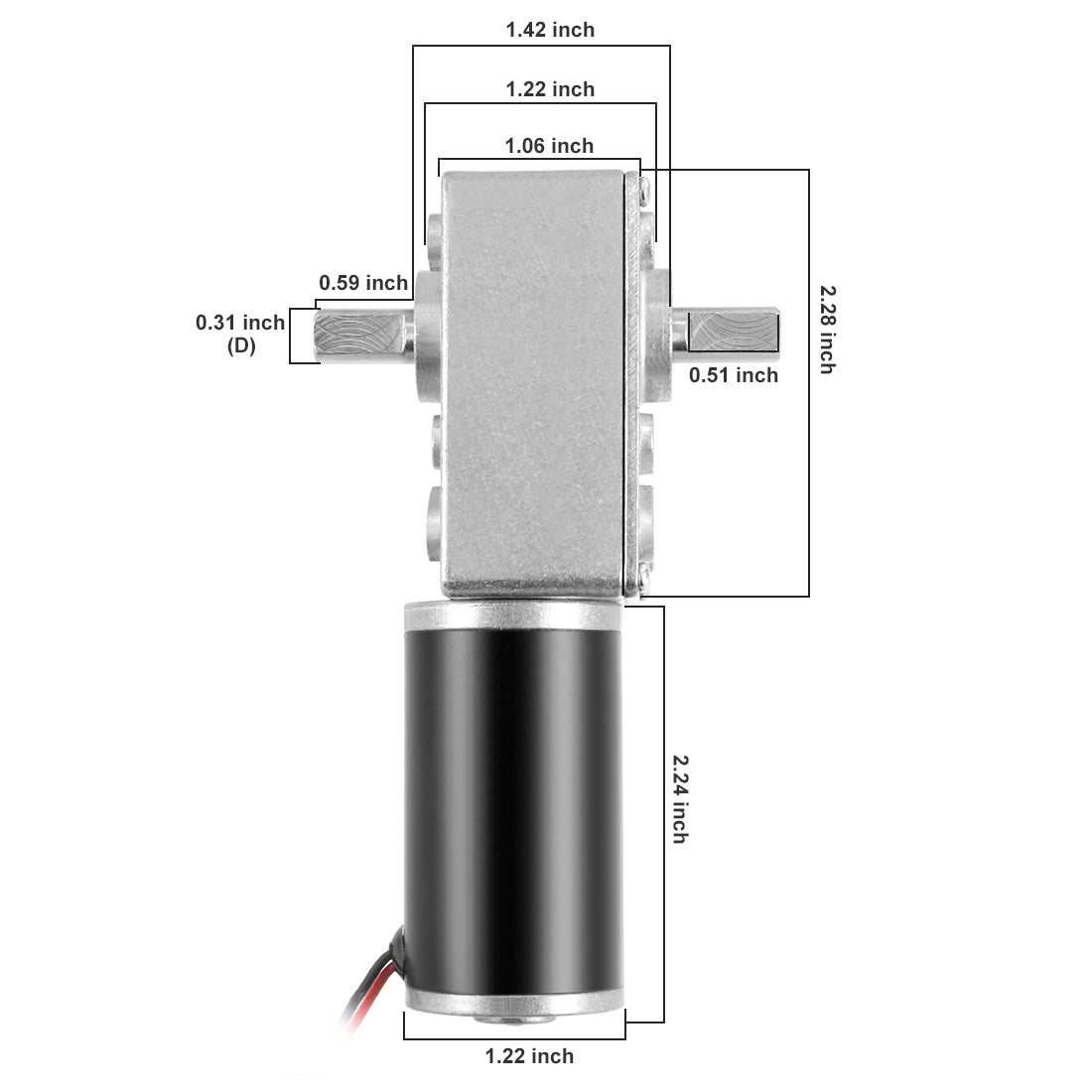

DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L);

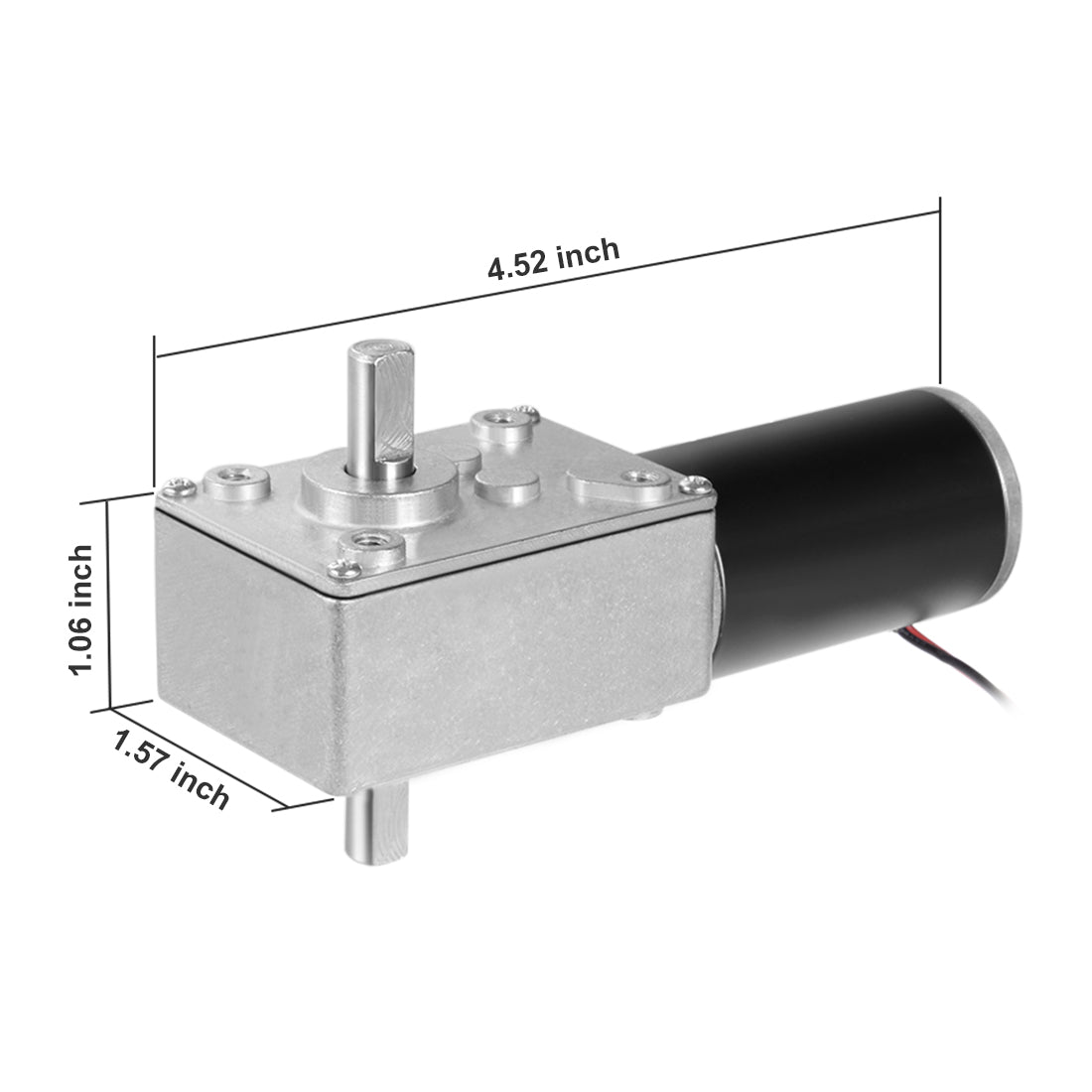

Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H);

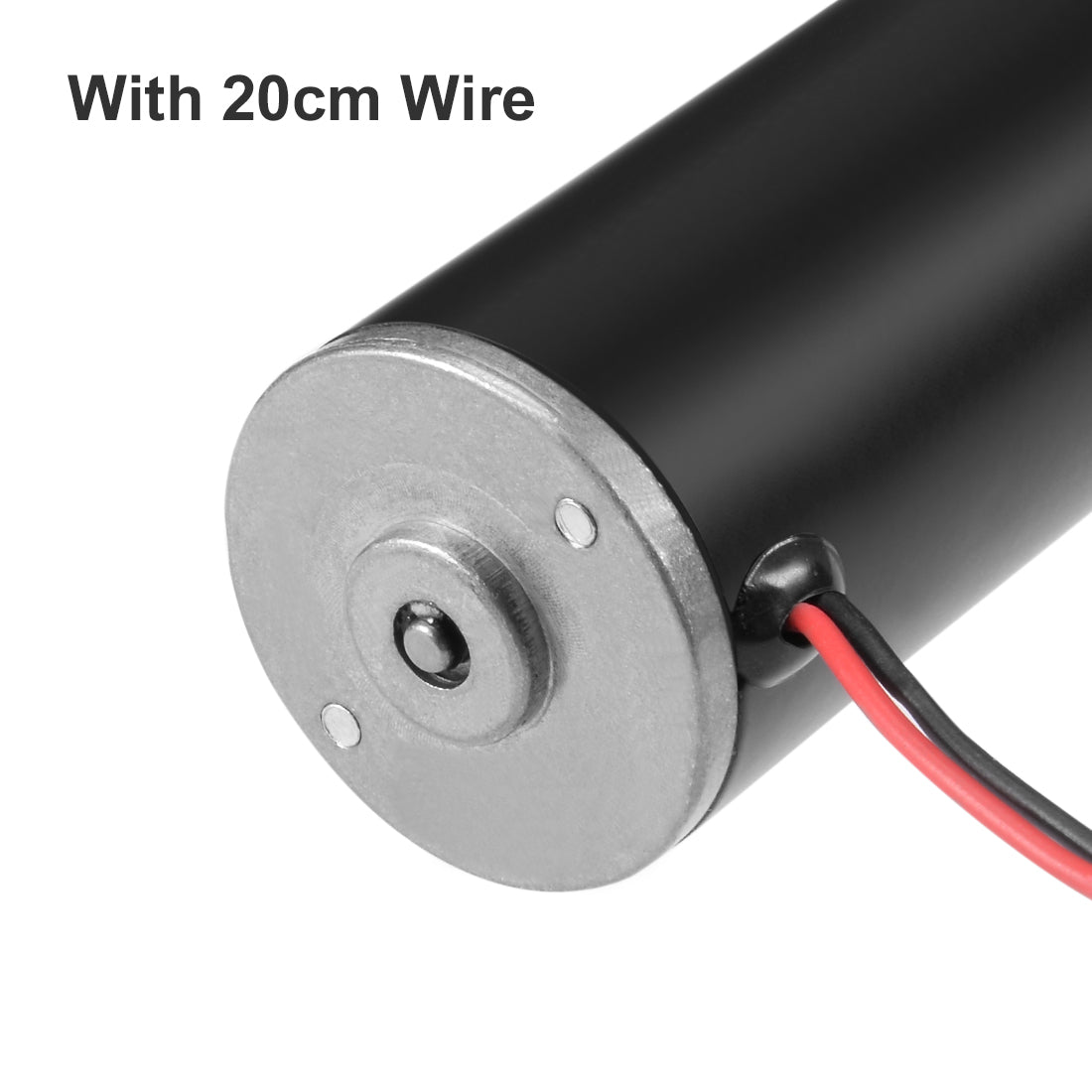

Wire Length : 20cm;



Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, , safe, wet towel , vending machines, automatic monitoring and other modern art.



Package Contents:1 x Worm Motor

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed. It is also have addition two characteristics:

1 With self-locking, the output shaft can not rotation when switch off, that is self-locking.

2 Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special installation size.



Specification:

Rated Voltage: 24V DC;

No-Load Speed: 20 RPM;

Output Shaft: 8mm x 15mm/1.22inch x 2.24inch(D*L);

DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L);

Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H);

Wire Length : 20cm;



Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, , safe, wet towel , vending machines, automatic monitoring and other modern art.



Package Contents:1 x Worm Motor

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
