Harfington 1/4-20  x 1-1/4" Square Neck Carriage Bolts with Nuts & Washers 10 Set

1/4-20 x 1-1/4" Square Neck Carriage Bolts with Nuts & Washers 10 Set

ID:
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Thread Size: 1/4-20 x 1-1/4"; Square Neck Width: 6.4mm / 0.25"

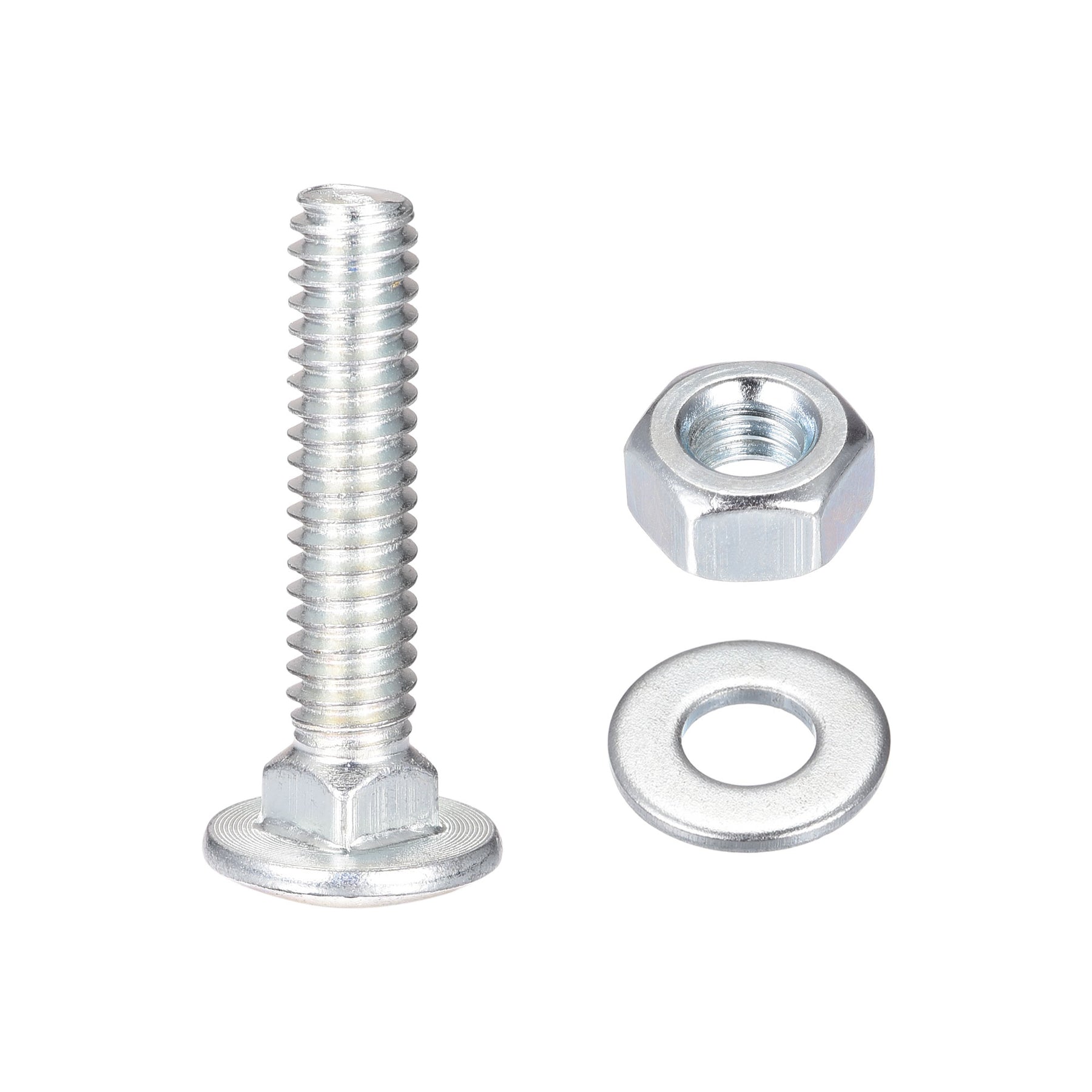

  • Made of carbon steel with zinc plated finish. Each carriage bolt is equipped with a flat washer and a nut.

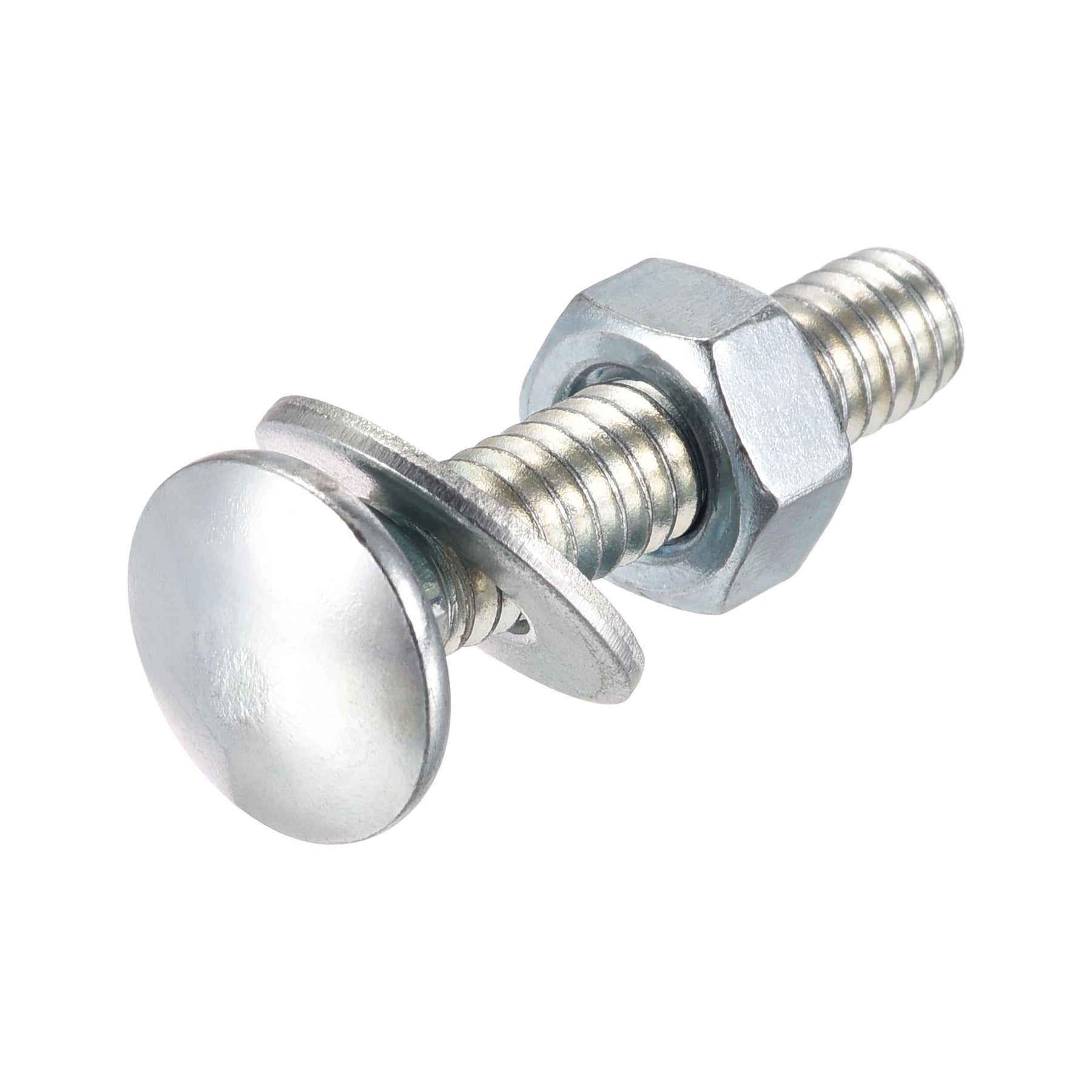

  • The carriage bolt is designed with a round head and a square neck. It is used in the groove. The square neck is conveniently stuck in the groove during the installation process and can prevent the bolt from rotating during installation.
  • Due to the head of the carriage bolt, there is no groove type that can be used with a power assisting tool such as a cross recess or a hex socket. It can also be hidden during actual use to prevent disassembly.
  • It is widely used in mechanical equipment, bridge construction, and other industries.
  • In stock, ready to ship
Cart
Cart
About this item
  • Thread Size: 1/4-20 x 1-1/4"; Square Neck Width: 6.4mm / 0.25"
  • Made of carbon steel with zinc plated finish. Each carriage bolt is equipped with a flat washer and a nut.
  • The carriage bolt is designed with a round head and a square neck. It is used in the groove. The square neck is conveniently stuck in the groove during the installation process and can prevent the bolt from rotating during installation.
  • Due to the head of the carriage bolt, there is no groove type that can be used with a power assisting tool such as a cross recess or a hex socket. It can also be hidden during actual use to prevent disassembly.
  • It is widely used in mechanical equipment, bridge construction, and other industries.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Made of carbon steel with zinc plated finish. Each carriage bolt is equipped with a flat washer and a nut.
The carriage bolt is designed with a round head and a square neck. It is used in the groove. The square neck is conveniently stuck in the groove during the installation process and can prevent the bolt from rotating during installation.
Due to the head of the carriage bolt, there is no groove type that can be used with a power assisting tool such as a cross recess or a hex socket. It can also be hidden during actual use to prevent disassembly.

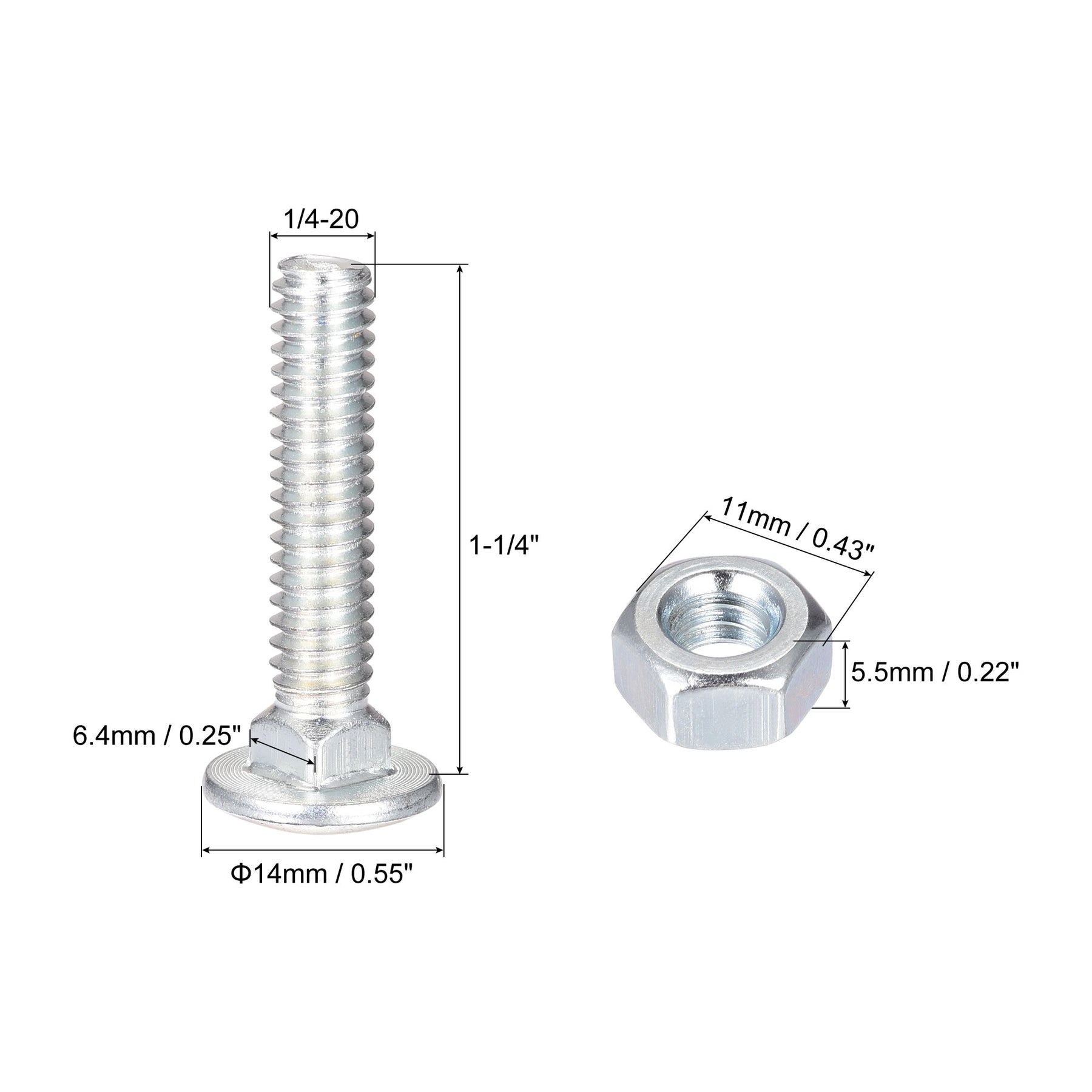

Specification:
Material: Carbon Steel
Finish: Zinc Plated
Thread Size: 1/4-20  x 1-1/4"
Thread Pitch: 20 Threads Per Inch
Bolt Head Size: 14mm / 0.55"
Square Neck Width: 6.4mm / 0.25"
Nut Size: 11 x 5.5mm / 0.43" x 0.22"(W*T)
Flat Washer Size: 16 x 1.5mm / 0.63" x 0.06"(OD*T)

Package Content:

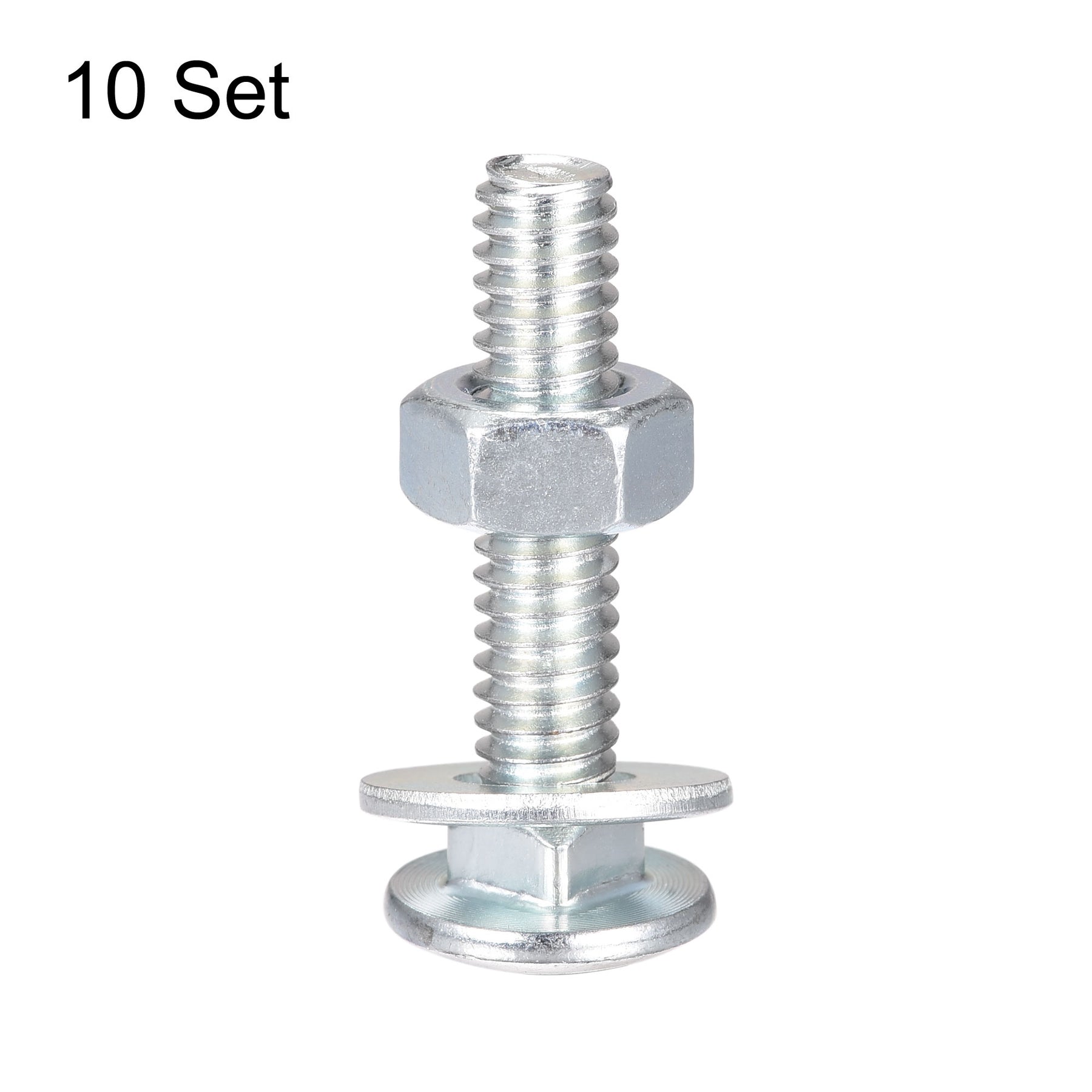

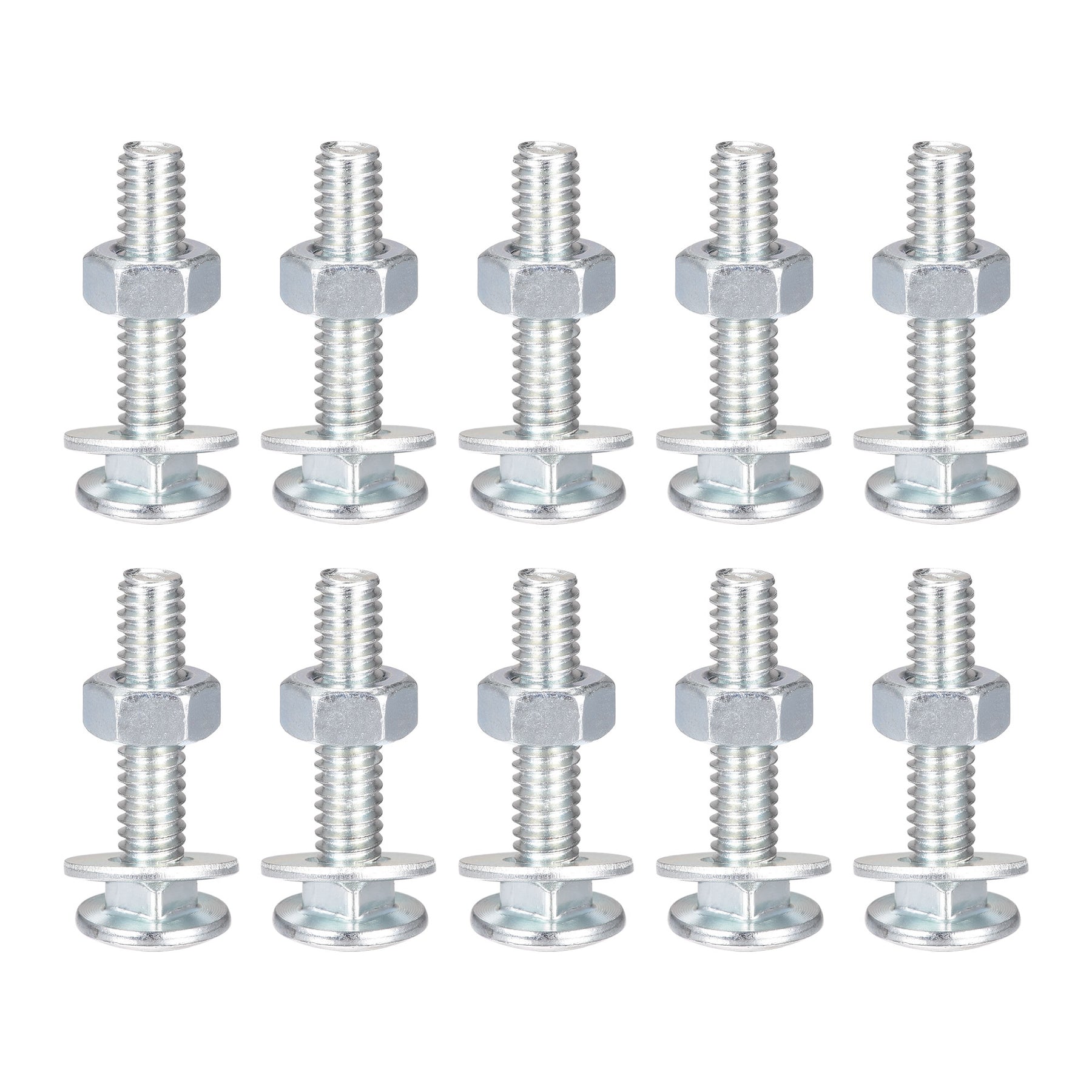

10 Sets x Carriage Bolts with Nuts & Flat Washers
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Made of carbon steel with zinc plated finish. Each carriage bolt is equipped with a flat washer and a nut.
The carriage bolt is designed with a round head and a square neck. It is used in the groove. The square neck is conveniently stuck in the groove during the installation process and can prevent the bolt from rotating during installation.
Due to the head of the carriage bolt, there is no groove type that can be used with a power assisting tool such as a cross recess or a hex socket. It can also be hidden during actual use to prevent disassembly.

Specification:
Material: Carbon Steel
Finish: Zinc Plated
Thread Size: 1/4-20  x 1-1/4"
Thread Pitch: 20 Threads Per Inch
Bolt Head Size: 14mm / 0.55"
Square Neck Width: 6.4mm / 0.25"
Nut Size: 11 x 5.5mm / 0.43" x 0.22"(W*T)
Flat Washer Size: 16 x 1.5mm / 0.63" x 0.06"(OD*T)

Package Content:
10 Sets x Carriage Bolts with Nuts & Flat Washers
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
