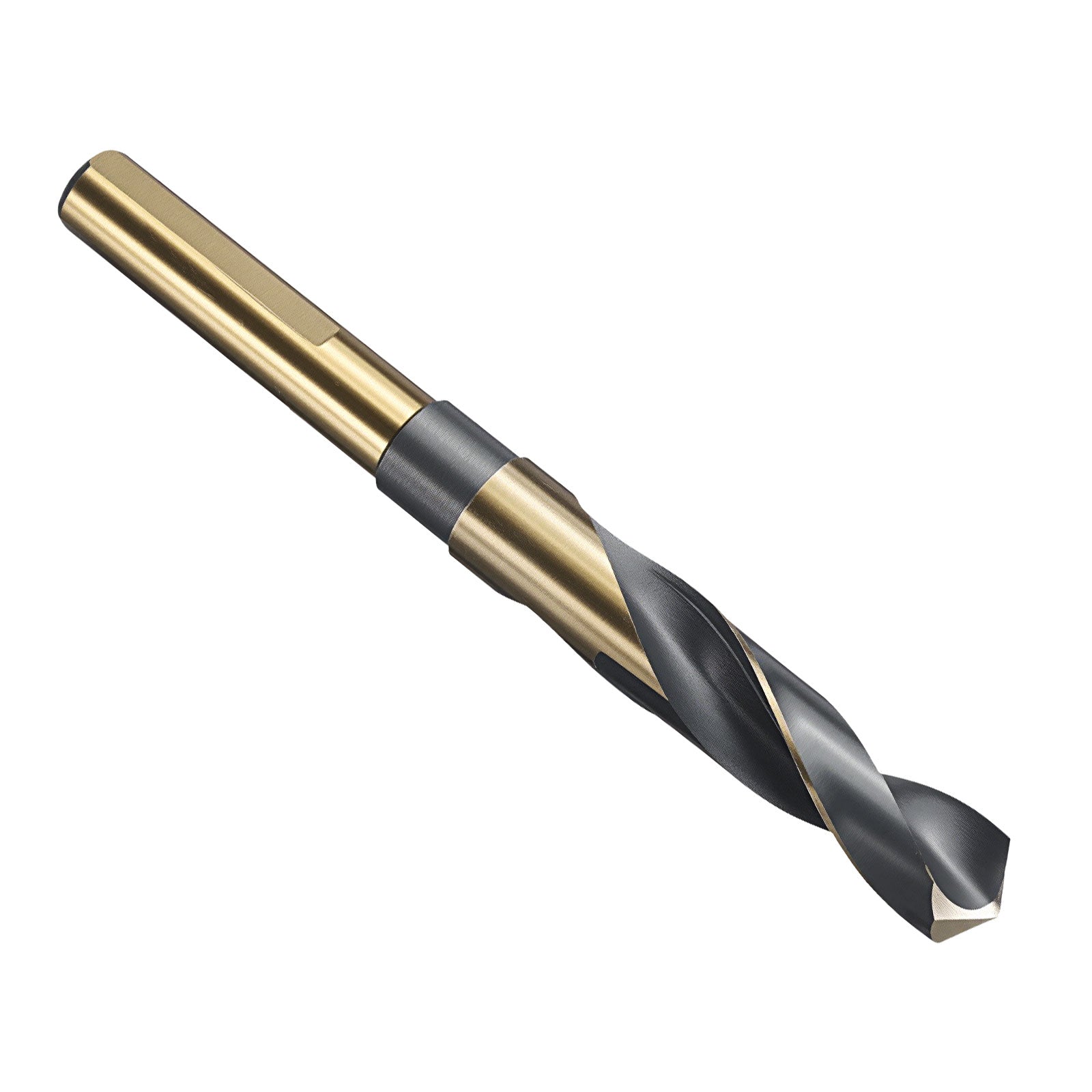

Harfington 5/8" Drill Bit 1/2" Reduced Shank 3-Flat 4341 HSS Black and Gold

5/8" Drill Bit 1/2" Reduced Shank 3-Flat 4341 HSS Black and Gold

ID:
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • PACKING LIST: drill bits in 5/8" cutting diameter, 1/2" (12.7mm) shank diameter, 74mm/3" flute length, 150mm/6" overall length, 135° split point.
  • FEATURE: 4341 High-Speed Steel (HSS) Twist Drills excel in medium-low speed, high-impact, and cost-sensitive applications. The black and gold finish can further enhance the drill bit's wear and corrosion resistance, thereby extending its service life.
  • APPLICATION: The reduced drill bit delivers superior all-around performance, making it the optimal choice for most metal drilling applications. Suitable for light-duty machining; applicable to low-carbon steel, aluminum alloy, brass, cast iron, medium-carbon steel, stainless steel, acrylic, plastic, wood, etc. For machining thicker metals, low RPM + flood coolant ​is required.
  • INSTRUCTION: Ensure the drill bit axis is perpendicular to the workpiece surface to prevent lateral force and breakage. Use appropriate rotational speed: Use lower speeds when machining materials like stainless steel. As a general rule, harder materials require slower speeds. Maintain steady and moderate feed pressure.
  • NOTE: It is strongly recommended to use cutting fluid (e.g., emulsion, oil-based coolant) to effectively reduce temperature, minimize wear, extend drill bit life, and improve hole wall quality. If coolant is unavailable, adopt an intermittent drilling method by frequently retracting the drill to clear chips and dissipate heat. Ensure the drill bit is securely clamped in the chuck or tool holder to prevent slipping and vibration.
  • In stock, ready to ship
Cart
Cart
About this item
  • PACKING LIST: drill bits in 5/8" cutting diameter, 1/2" (12.7mm) shank diameter, 74mm/3" flute length, 150mm/6" overall length, 135° split point.
  • FEATURE: 4341 High-Speed Steel (HSS) Twist Drills excel in medium-low speed, high-impact, and cost-sensitive applications. The black and gold finish can further enhance the drill bit's wear and corrosion resistance, thereby extending its service life.
  • APPLICATION: The reduced drill bit delivers superior all-around performance, making it the optimal choice for most metal drilling applications. Suitable for light-duty machining; applicable to low-carbon steel, aluminum alloy, brass, cast iron, medium-carbon steel, stainless steel, acrylic, plastic, wood, etc. For machining thicker metals, low RPM + flood coolant ​is required.
  • INSTRUCTION: Ensure the drill bit axis is perpendicular to the workpiece surface to prevent lateral force and breakage. Use appropriate rotational speed: Use lower speeds when machining materials like stainless steel. As a general rule, harder materials require slower speeds. Maintain steady and moderate feed pressure.
  • NOTE: It is strongly recommended to use cutting fluid (e.g., emulsion, oil-based coolant) to effectively reduce temperature, minimize wear, extend drill bit life, and improve hole wall quality. If coolant is unavailable, adopt an intermittent drilling method by frequently retracting the drill to clear chips and dissipate heat. Ensure the drill bit is securely clamped in the chuck or tool holder to prevent slipping and vibration.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
√FEATURE:

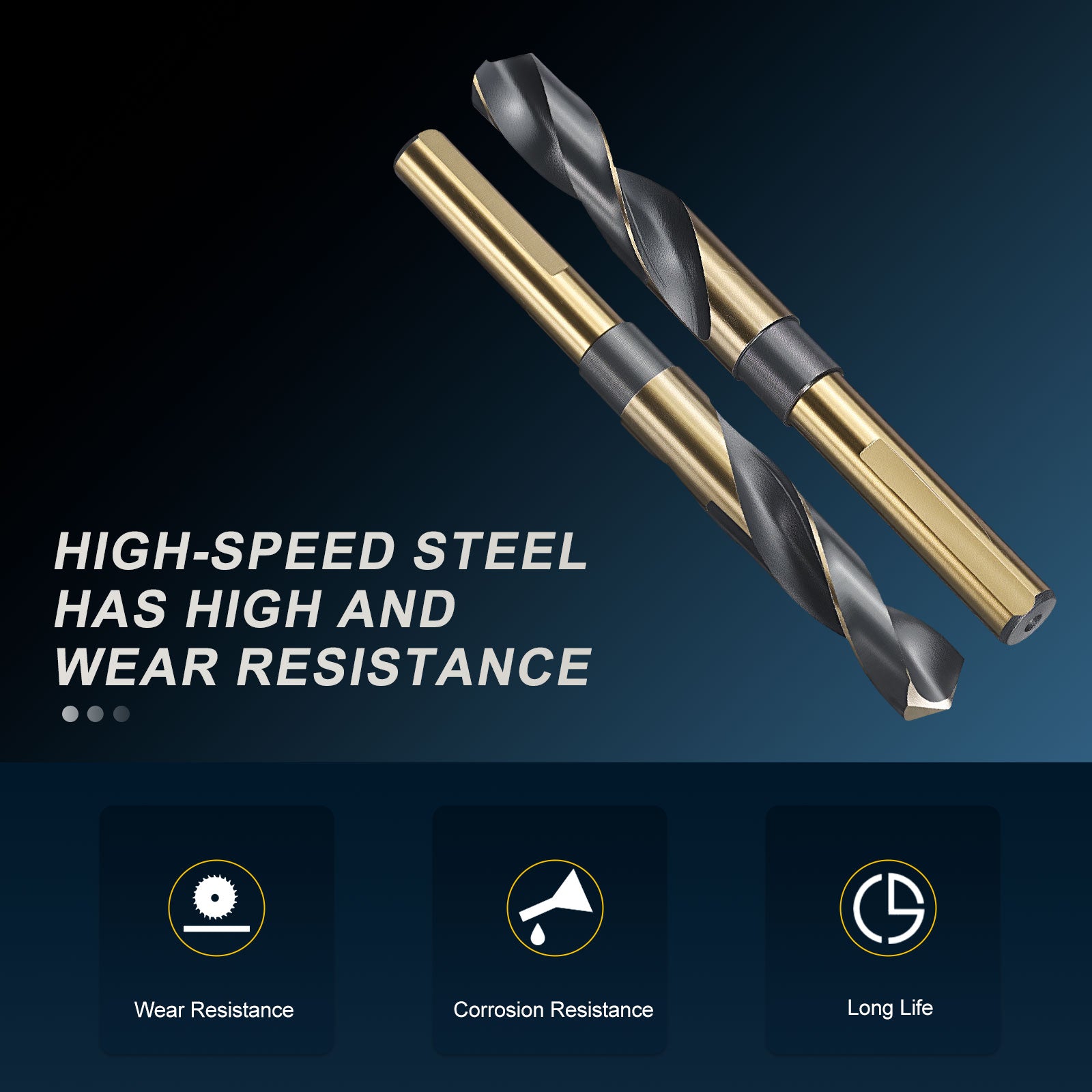

The drill bit is made of 4341 high-speed steel material, it has high and wear resistance, suitable for processing medium materials

Black and Gold Finish can enhance the surface properties of the drill bit, improving its wear resistance and corrosion resistance, thereby extending the drill bits' service life and operational efficiency.

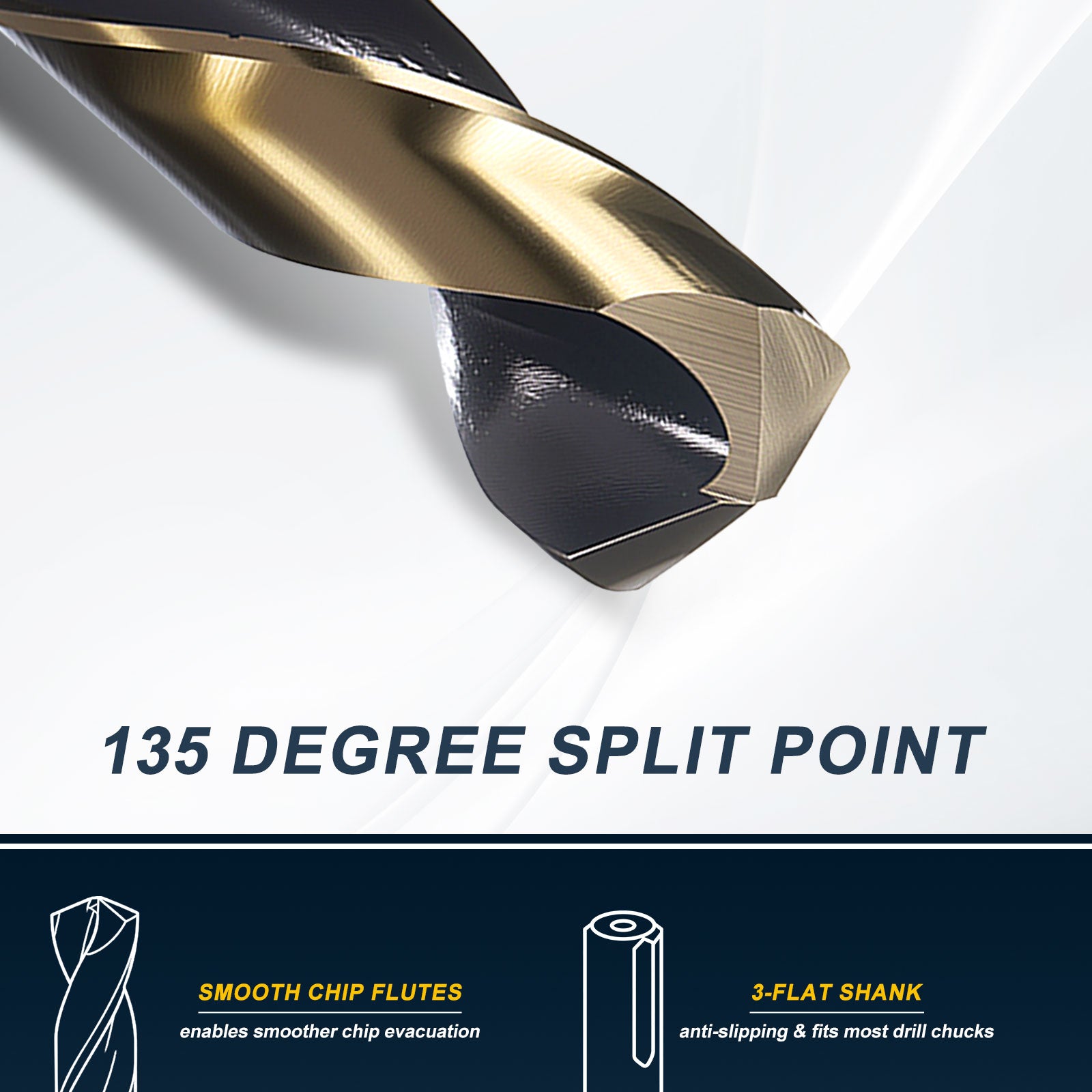

The 135-degree split point
drill provides excellent processing stability and is well-suited for harder materials. It effectively reduces the risk of cutting-edge chipping, thereby improving drilling efficiency and hole quality.

√APPLICATION:
The high-speed steel drill bits are specifically designed for cutting hard metals, such as steel, alloy cast iron, stainless steel, iron, copper, aluminum alloy, and cast iron. They are also effective in plastics and wood.

√PACKING LIST:

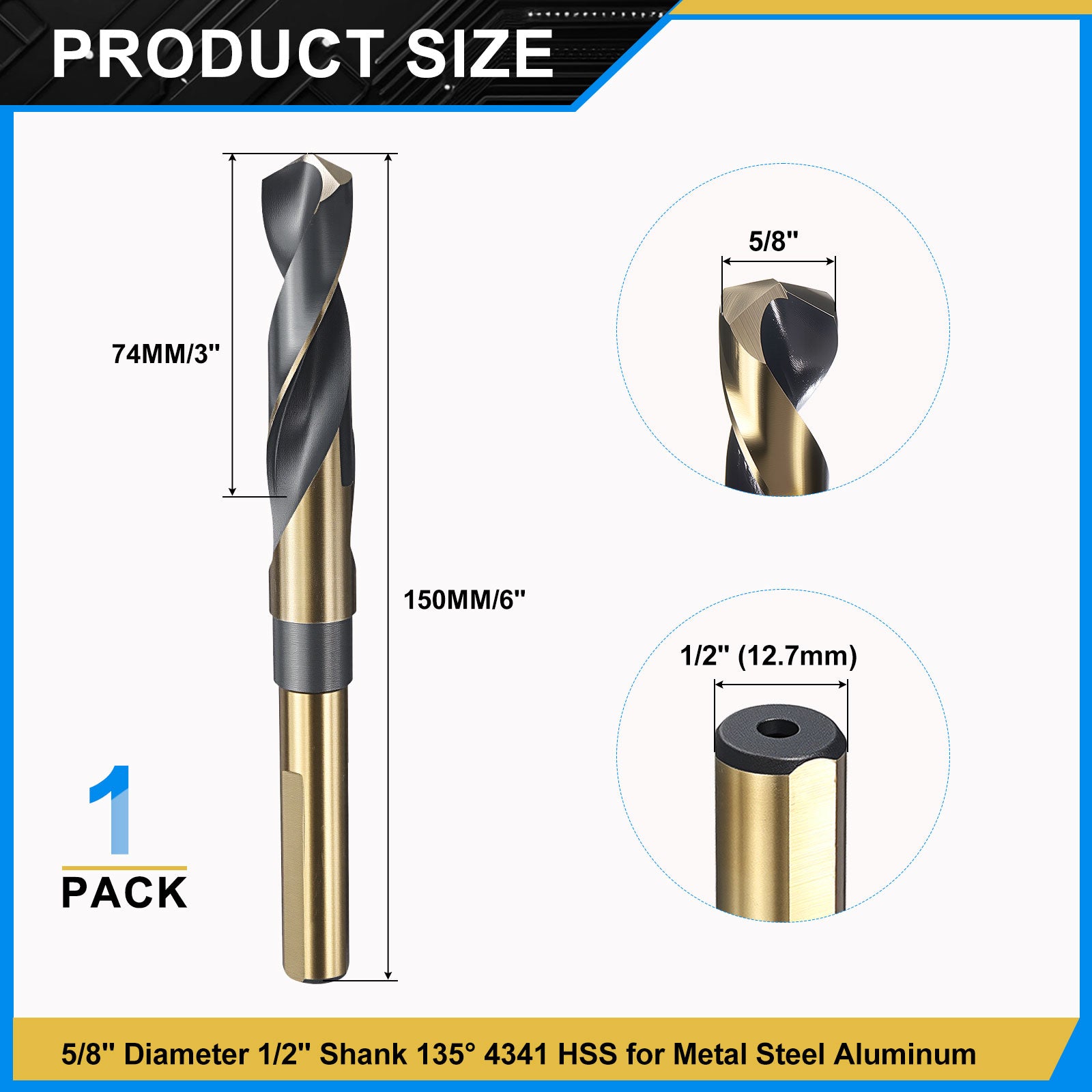

-Cutting Edge Diameter: 5/8"
-Shank Diameter: 1/2" (12.7mm);
-Flute Length: 74mm/3"
-Total Length: 150mm/6"
-Package Content: 1 x Drill Bit
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
