Harfington 6pcs Front Inner Outer Tie Rod End Links Kit Suspension Steering Part ES800473 ES800474 EV800576 Front Sway Bar Link K750159 for Lincoln MKX 2007-2015 for Ford Edge 2007-2014

6pcs Front Inner Outer Tie Rod End Links Kit Suspension Steering Part ES800473 ES800474 EV800576 Front Sway Bar Link K750159 for Lincoln MKX 2007-2015 for Ford Edge 2007-2014

ID:
£70.00 Regular price
/
About this item
  • Fitment: The front inner outer tie rod end set for Lincoln MKX 2007-2015, for Ford Edge 2007-2014.
  • Replaces Part Numbers: Front Inner Tie Rod End OE Number: EV800576. Front Outer Tie Rod End OE Number: ES800473 - Passenger Side. Front Outer Tie Rod End OE Number: ES800474 - Driver Side. Front Sway Bar Links OE Number: K750159. Other OE Numbers: 7T4Z3A130A, 7T4Z3A130B, 7T4Z3280A, 7T4Z5K483A.
  • Function: Suspension is used to cushion the impact transmitted from the uneven road surface to the frame or the body, and to reduce the vibration generated to ensure the smooth running of the vehicle.
  • Package Included: 2 x EV800576 Front Inner Tie Rod End; 1 x ES800473 Front Outer Tie Rod End; 1 x ES800474 Front Outer Tie Rod End; 2 x K750159 Front Sway Bar Links.
  • Installation: Manual not included, you can loosen pinch nut and remove the cotter pin, remove the castle nut and the outer tie rod end, then remove the boot and remove the inner tie rod end. At last, replace a new tie rod and install it back according to the method of disassembly.
  • In stock, ready to ship
Cart
Cart
About this item
  • Fitment: The front inner outer tie rod end set for Lincoln MKX 2007-2015, for Ford Edge 2007-2014.
  • Replaces Part Numbers: Front Inner Tie Rod End OE Number: EV800576. Front Outer Tie Rod End OE Number: ES800473 - Passenger Side. Front Outer Tie Rod End OE Number: ES800474 - Driver Side. Front Sway Bar Links OE Number: K750159. Other OE Numbers: 7T4Z3A130A, 7T4Z3A130B, 7T4Z3280A, 7T4Z5K483A.
  • Function: Suspension is used to cushion the impact transmitted from the uneven road surface to the frame or the body, and to reduce the vibration generated to ensure the smooth running of the vehicle.
  • Package Included: 2 x EV800576 Front Inner Tie Rod End; 1 x ES800473 Front Outer Tie Rod End; 1 x ES800474 Front Outer Tie Rod End; 2 x K750159 Front Sway Bar Links.
  • Installation: Manual not included, you can loosen pinch nut and remove the cotter pin, remove the castle nut and the outer tie rod end, then remove the boot and remove the inner tie rod end. At last, replace a new tie rod and install it back according to the method of disassembly.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Feature:
  • Front inner and outer tie rod ends are made of good material for long-lasting dependability and durability under bad conditions. These are resisted abrasion and environmental corrosion.
  • Restores like new steering and handling.
  • Durable surface treatment for anti-rust.
  • This is a non-OEM product, accessory only!
Specification:
  • Color: Black, Titanium Tone
  • Material: Metal
  • Placement On Vehicle: Front Inner, Front Outer
  • Front Inner Tie Rod End OE Number: EV800576
  • Front Outer Tie Rod End OE Number: ES800473 - Passenger Side
  • Front Outer Tie Rod End OE Number: ES800474 - Driver Side
  • Front Sway Bar Links OE Number: K750159
  • Other OE Numbers: 7T4Z3A130A, 7T4Z3A130B, 7T4Z3280A, 7T4Z5K483A
  • Front Inner Thread Size: M22x1.5, M16x1.5
  • Front Outer Thread Size: M12x1.25
  • Front Sway Bar Links Thread Size: M12x1.5
  • Mounting Hole Diameter: 15mm / 0.59"
  • Front Inner Tie Rod End Dimension: 24x4.1cm / 9.45"x1.61"(L*W)
  • Front Outer Tie Rod End Dimension: 23x7.9cm / 9.06"x3.11"(L*W)
  • Front Sway Bar Links Dimension: 15x7.2cm / 5.91"x2.83"(L*W)
Fitment:
  • for Lincoln MKX 2007-2015
  • for Ford Edge 2007-2014

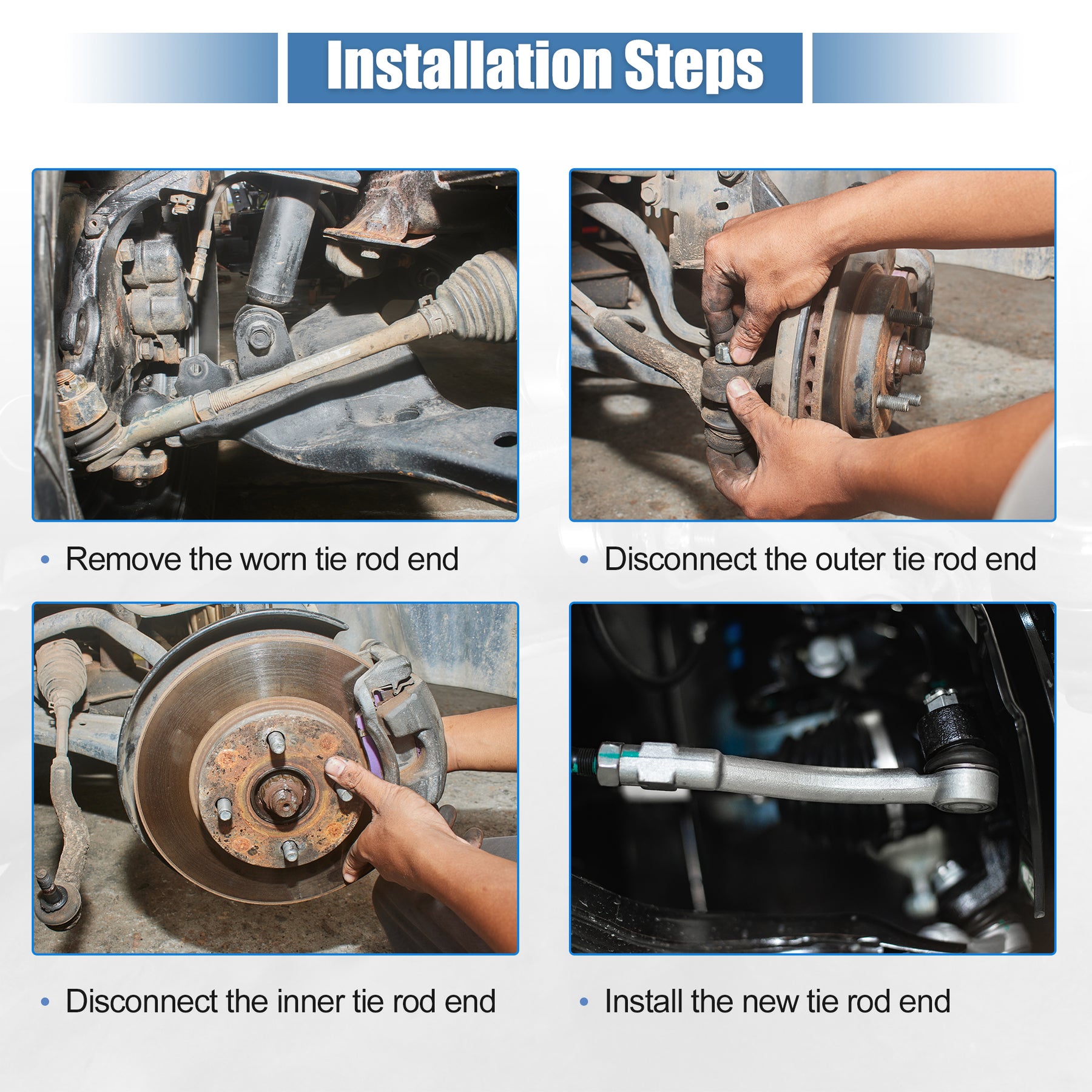

How to Replace Install Tie Rod Ends:
  • Loosen the pinch nut and remove the cotter pin.
  • Remove the castle nut and the outer tie rod end.
  • Remove the boot and the inner tie rod end.
  • Replacing a new tie rod and installing it back according to the method of disassembly.

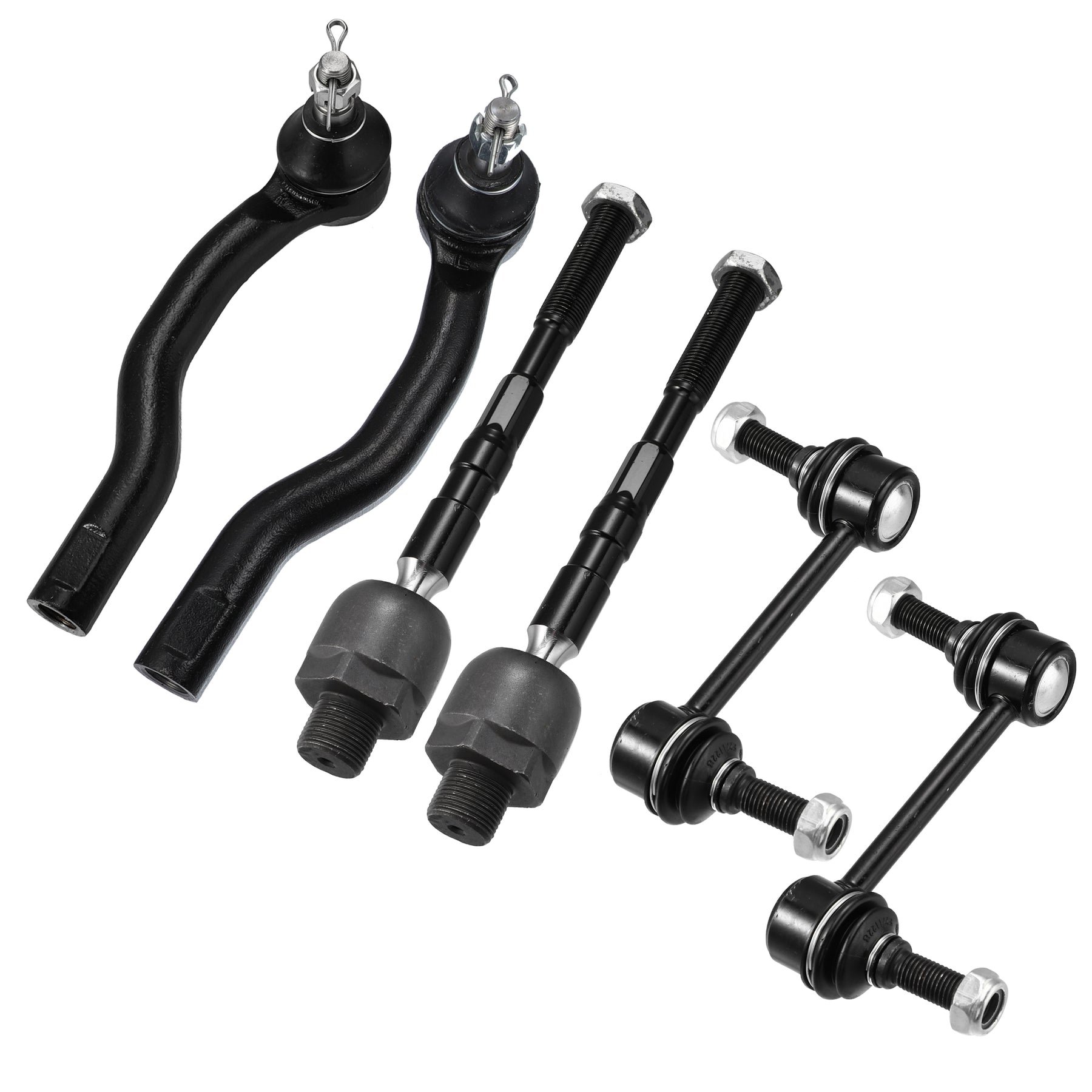

Package Included:
  • 2 x EV800576 Front Inner Tie Rod End
  • 1 x ES800473 Front Outer Tie Rod End
  • 1 x ES800474 Front Outer Tie Rod End
  • 2 x K750159 Front Sway Bar Links
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£70.00 Regular price
/
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Feature:
  • Front inner and outer tie rod ends are made of good material for long-lasting dependability and durability under bad conditions. These are resisted abrasion and environmental corrosion.
  • Restores like new steering and handling.
  • Durable surface treatment for anti-rust.
  • This is a non-OEM product, accessory only!
Specification:
  • Color: Black, Titanium Tone
  • Material: Metal
  • Placement On Vehicle: Front Inner, Front Outer
  • Front Inner Tie Rod End OE Number: EV800576
  • Front Outer Tie Rod End OE Number: ES800473 - Passenger Side
  • Front Outer Tie Rod End OE Number: ES800474 - Driver Side
  • Front Sway Bar Links OE Number: K750159
  • Other OE Numbers: 7T4Z3A130A, 7T4Z3A130B, 7T4Z3280A, 7T4Z5K483A
  • Front Inner Thread Size: M22x1.5, M16x1.5
  • Front Outer Thread Size: M12x1.25
  • Front Sway Bar Links Thread Size: M12x1.5
  • Mounting Hole Diameter: 15mm / 0.59"
  • Front Inner Tie Rod End Dimension: 24x4.1cm / 9.45"x1.61"(L*W)
  • Front Outer Tie Rod End Dimension: 23x7.9cm / 9.06"x3.11"(L*W)
  • Front Sway Bar Links Dimension: 15x7.2cm / 5.91"x2.83"(L*W)
Fitment:
  • for Lincoln MKX 2007-2015
  • for Ford Edge 2007-2014
How to Replace Install Tie Rod Ends:
  • Loosen the pinch nut and remove the cotter pin.
  • Remove the castle nut and the outer tie rod end.
  • Remove the boot and the inner tie rod end.
  • Replacing a new tie rod and installing it back according to the method of disassembly.
Package Included:
  • 2 x EV800576 Front Inner Tie Rod End
  • 1 x ES800473 Front Outer Tie Rod End
  • 1 x ES800474 Front Outer Tie Rod End
  • 2 x K750159 Front Sway Bar Links
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
