Harfington Air Conditioner AC Compressor Clutch Kit for Nissan Murano Pathfinder Maxima

Air Conditioner AC Compressor Clutch Kit for Nissan Murano Pathfinder Maxima

ID:
£86.00 Regular price
/
About this item

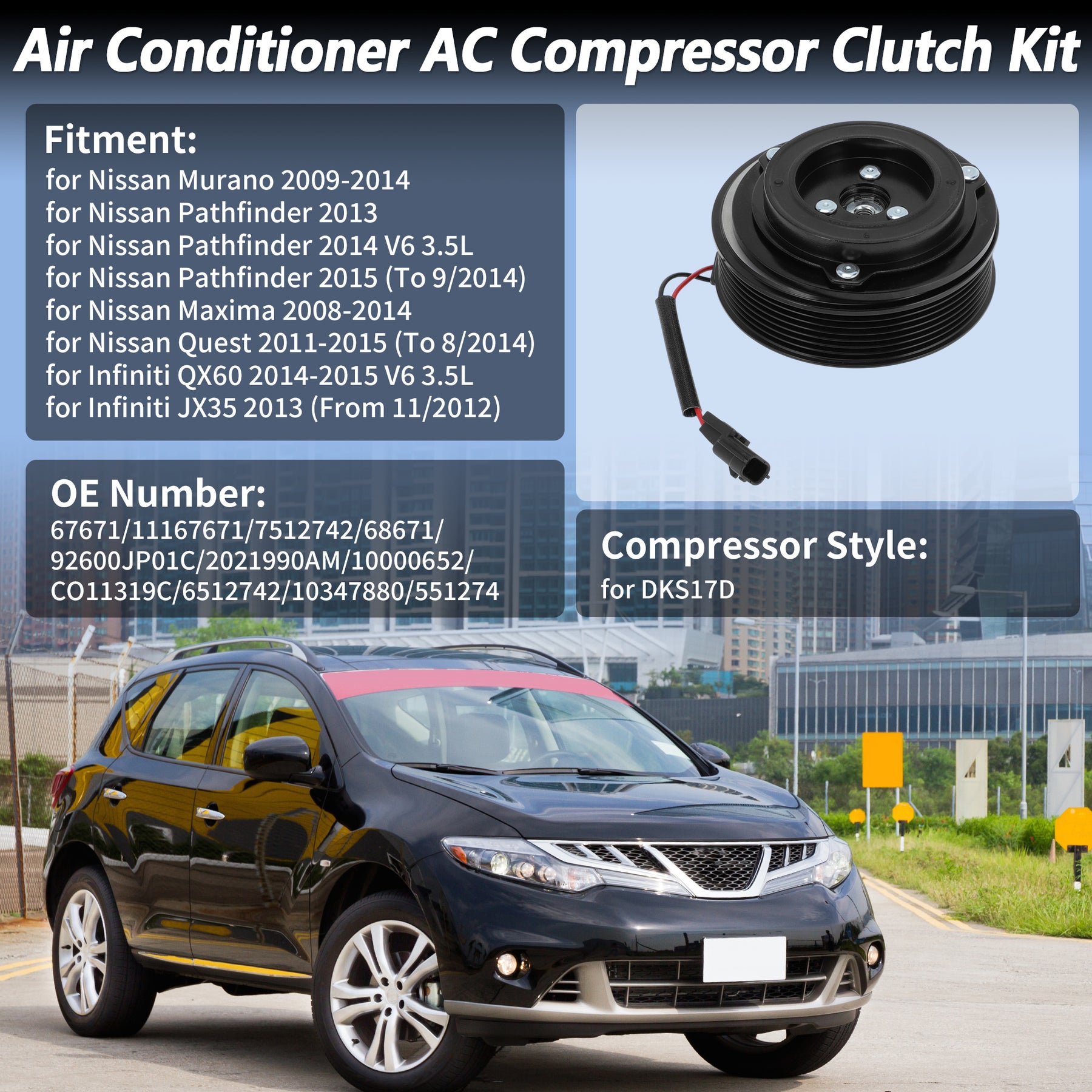

  • [Fitment] This AC Compressor Clutch suit for Nissan Murano 2009-2014, for Nissan Pathfinder 2013, for Nissan Pathfinder 2014 V6 3.5L, for Nissan Pathfinder 2015 (To 9/2014), for Nissan Maxima 2008-2014, for Nissan Quest 2011-2015 (To 8/2014), for Infiniti QX60 2014-2015 V6 3.5L, for Infiniti JX35 2013 (From 11/2012), OE Number:67671/11167671/7512742/68671/92600JP01C/2021990AM/10000652/CO11319C/6512742/10347880/551274.Please confirm car make model year engine before purchase.

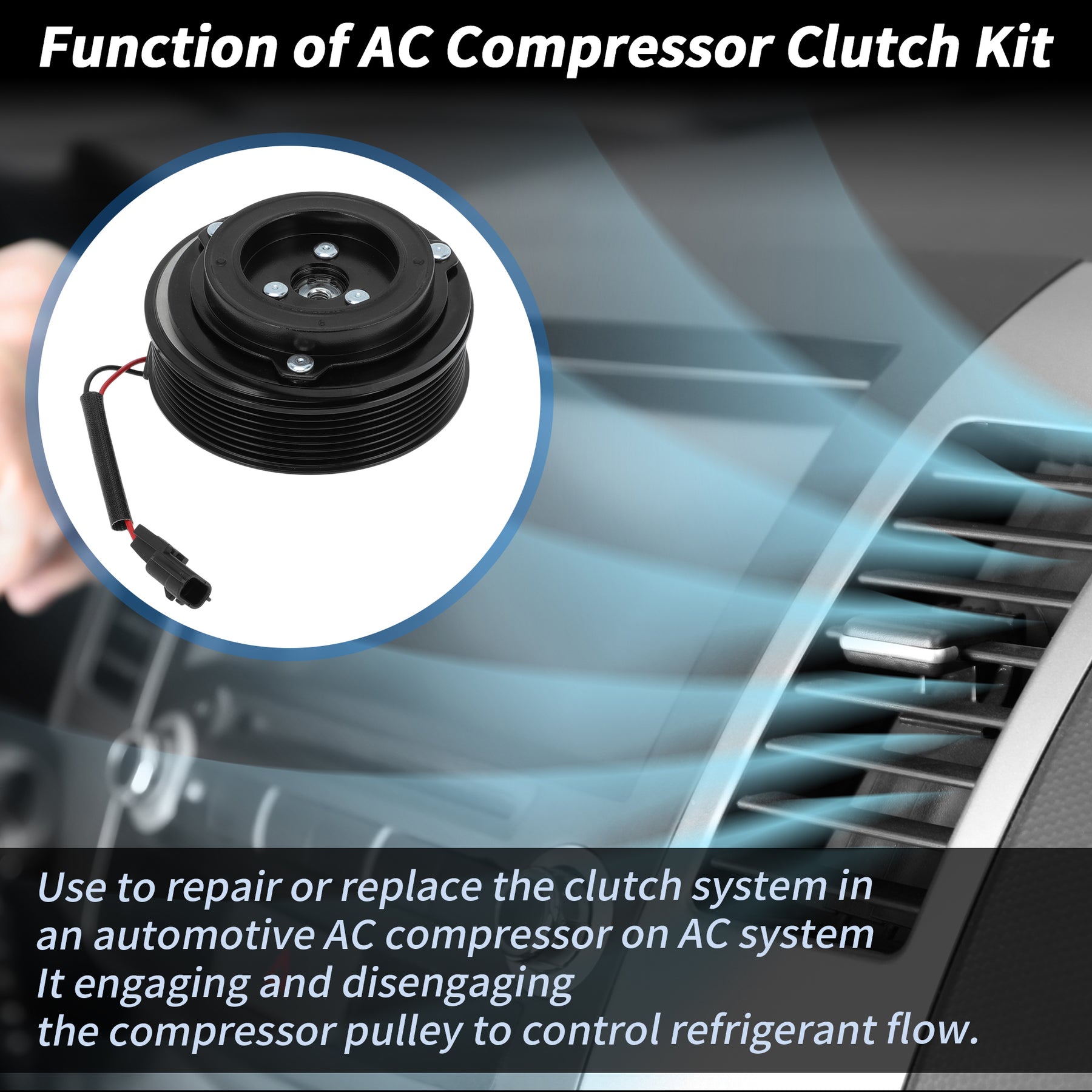

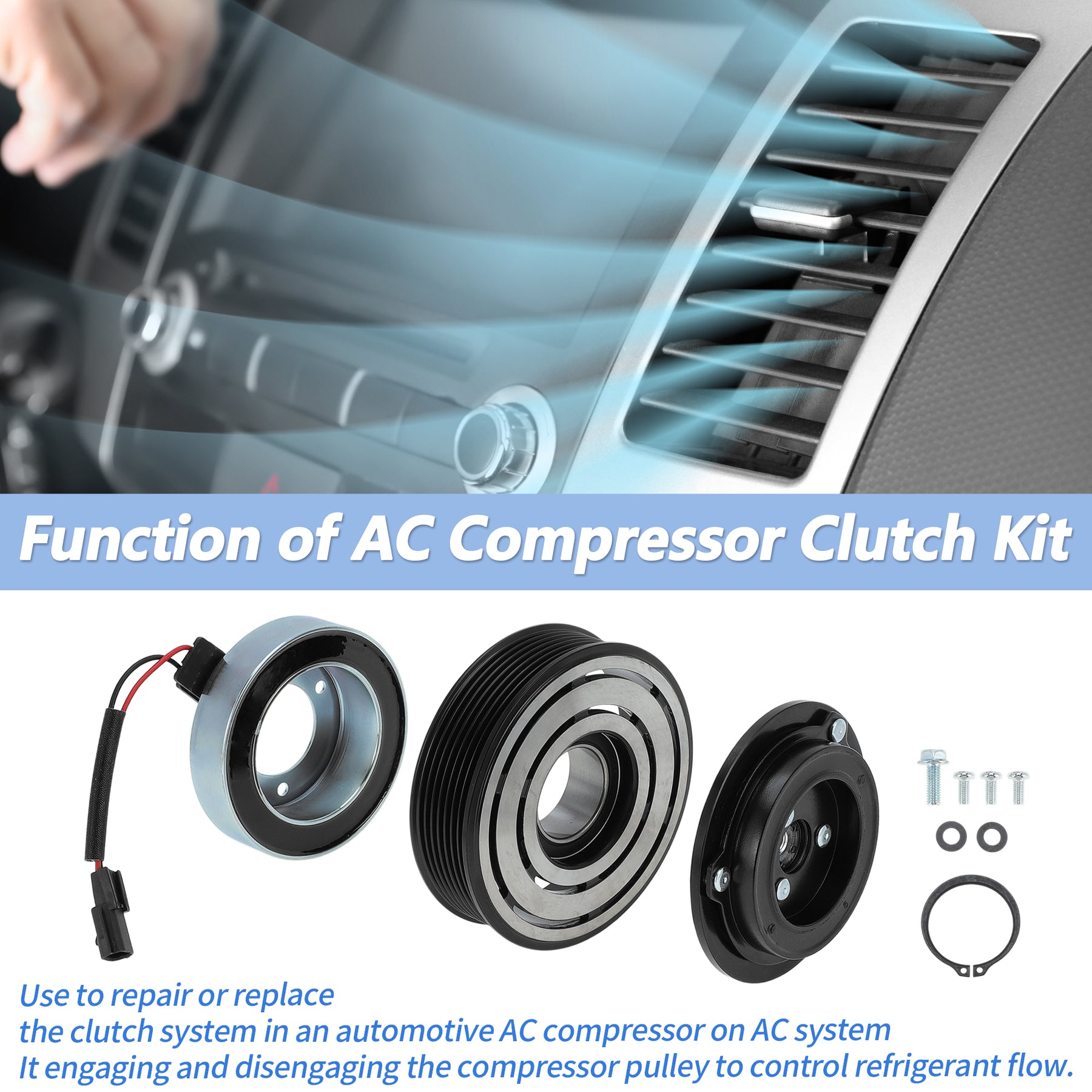

  • [Function& Specification] Compressor Style: for DKS17D, Pulley Groove Quantity: 7, Voltage: 12V, Pin: 2, Pulley Diameter (MM): 119mm/4.7". Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).

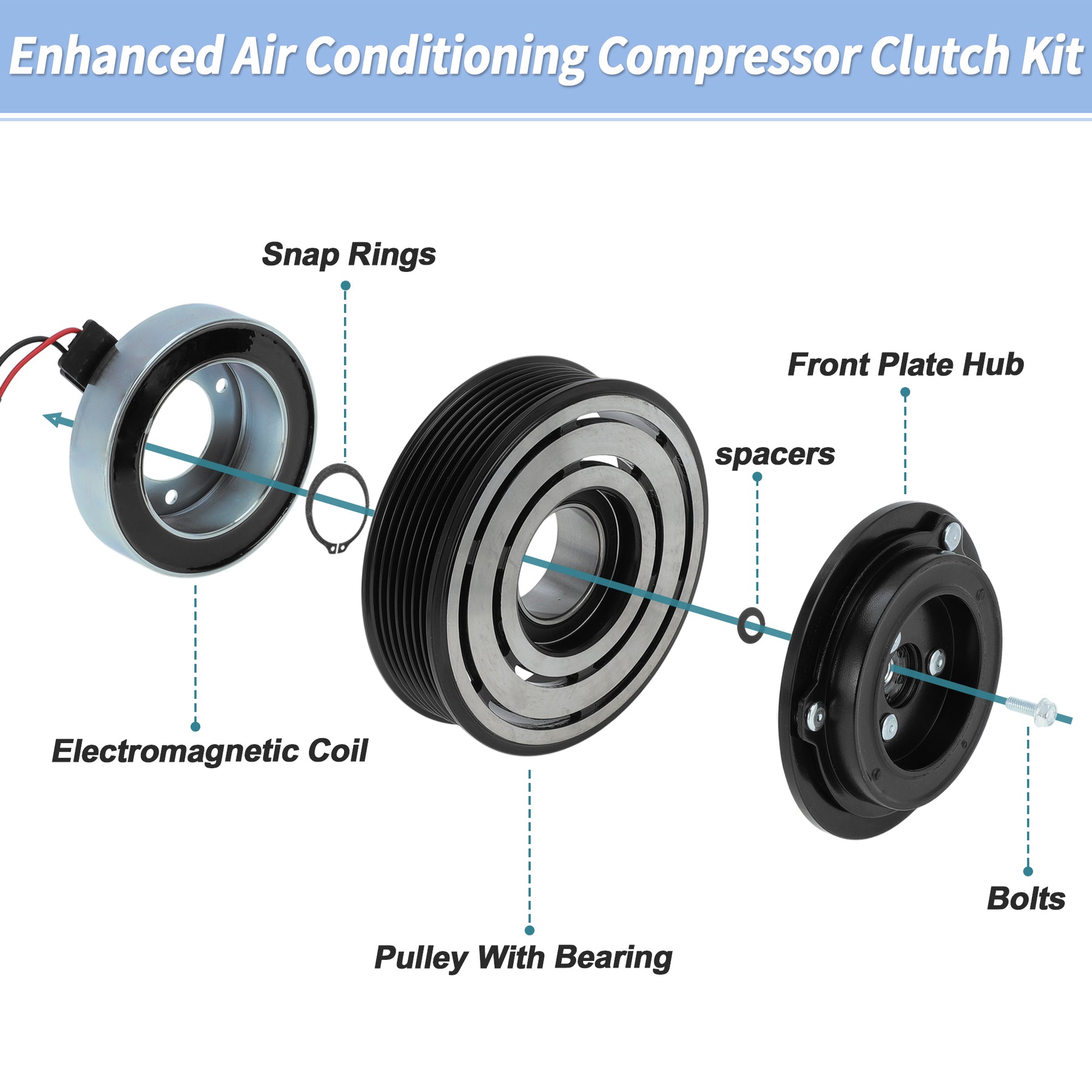

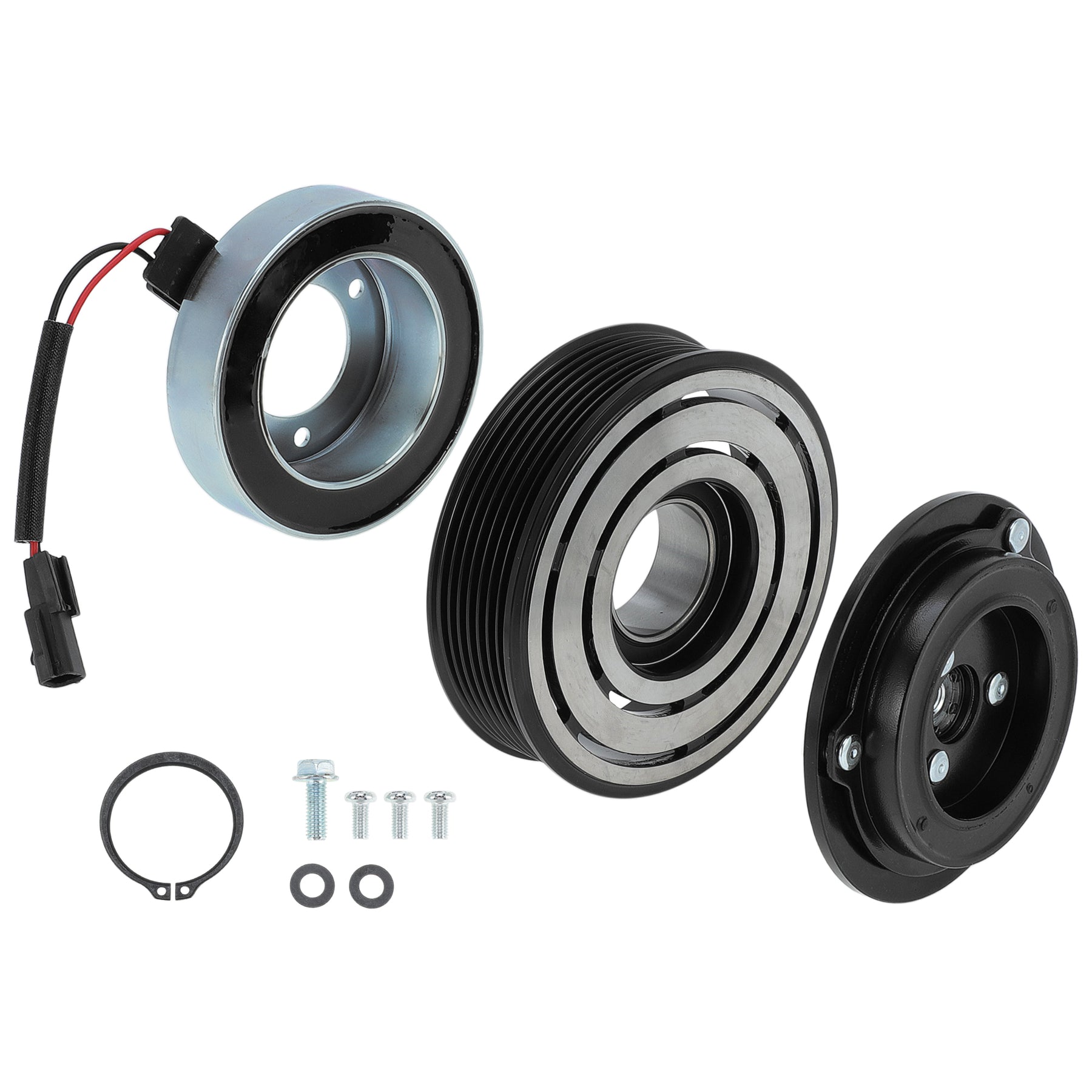

  • [Package] Included: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 2x Shims, 4x Bolts. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Fitment] This AC Compressor Clutch suit for Nissan Murano 2009-2014, for Nissan Pathfinder 2013, for Nissan Pathfinder 2014 V6 3.5L, for Nissan Pathfinder 2015 (To 9/2014), for Nissan Maxima 2008-2014, for Nissan Quest 2011-2015 (To 8/2014), for Infiniti QX60 2014-2015 V6 3.5L, for Infiniti JX35 2013 (From 11/2012), OE Number:67671/11167671/7512742/68671/92600JP01C/2021990AM/10000652/CO11319C/6512742/10347880/551274.Please confirm car make model year engine before purchase.
  • [Function& Specification] Compressor Style: for DKS17D, Pulley Groove Quantity: 7, Voltage: 12V, Pin: 2, Pulley Diameter (MM): 119mm/4.7". Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).
  • [Package] Included: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 2x Shims, 4x Bolts. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
OE Number:
  • 67671/11167671/7512742/68671/92600JP01C/2021990AM/10000652/CO11319C/6512742/10347880/551274
Fitment
  • for Nissan Murano 2009-2014,for Nissan Pathfinder 2013,for Nissan Pathfinder 2014 V6 3.5L,for Nissan Pathfinder 2015 (To 9/2014),for Nissan Maxima 2008-2014,for Nissan Quest 2011-2015 (To 8/2014),for Infiniti QX60 2014-2015 V6 3.5L,for Infiniti JX35 2013 (From 11/2012)
Specifications
  • Pin:2
  • Material: Steel
  • Compressor Style: for DKS17D
  • Pulley Groove Quantity: 7
  • Voltage: 12V
  • Package: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 2x Shims, 4x Bolts
  • This is a non-OEM product, accessory only!
Feature
  • Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.
  • Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off.
  • Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft.
  • Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch.
  • Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
Signal of a Failing AC Clutch:
  • AC blows warm air intermittently
  • Unusual grinding or squealing noises
  • Clutch does not engage when AC is on
  • Visible wear or damage on the clutch assembly
Replace AC Clutch if met:
  • Worn-out clutch bearing.
  • Damaged coil or electrical failure.
  • Physical wear on the hub or pulley.
  • AC compressor not engaging properly
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£86.00 Regular price
/
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

OE Number:
  • 67671/11167671/7512742/68671/92600JP01C/2021990AM/10000652/CO11319C/6512742/10347880/551274
Fitment
  • for Nissan Murano 2009-2014,for Nissan Pathfinder 2013,for Nissan Pathfinder 2014 V6 3.5L,for Nissan Pathfinder 2015 (To 9/2014),for Nissan Maxima 2008-2014,for Nissan Quest 2011-2015 (To 8/2014),for Infiniti QX60 2014-2015 V6 3.5L,for Infiniti JX35 2013 (From 11/2012)
Specifications
  • Pin:2
  • Material: Steel
  • Compressor Style: for DKS17D
  • Pulley Groove Quantity: 7
  • Voltage: 12V
  • Package: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 2x Shims, 4x Bolts
  • This is a non-OEM product, accessory only!
Feature
  • Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.
  • Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off.
  • Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft.
  • Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch.
  • Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
Signal of a Failing AC Clutch:
  • AC blows warm air intermittently
  • Unusual grinding or squealing noises
  • Clutch does not engage when AC is on
  • Visible wear or damage on the clutch assembly
Replace AC Clutch if met:
  • Worn-out clutch bearing.
  • Damaged coil or electrical failure.
  • Physical wear on the hub or pulley.
  • AC compressor not engaging properly
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
