Harfington Air Conditioner AC Compressor Clutch for Jeep Compass Patriot for Dodge Caliber

Air Conditioner AC Compressor Clutch for Jeep Compass Patriot for Dodge Caliber

ID:
£42.00 Regular price
/
About this item
  • [Fitment] This AC Compressor Clutch suit for Jeep Compass MK49/MP Series 2009-2017, for Jeep Patriot MK74/MP Series 2009-2017, for Dodge Caliber 2009 L4 1.8L/L4 2.4L, for Dodge Caliber 2010-2012, OE Number:158388/55111610AA/55111610AB/55111610AC/RL111610AB/R5111610AB.Please confirm car make model year engine before purchase.
  • [Function& Specification] Compressor Style: for 6SEU16C, Pulley Groove Quantity: 6, Voltage: 12V, Pulley Diameter (MM): 125mm/4.9". Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off, aim for withstand constant belt friction and rotation, wear resistance and heat dissipation. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).
  • [Package] Included: 1x Pulley With Bearing, 2x Snap Ringss. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Fitment] This AC Compressor Clutch suit for Jeep Compass MK49/MP Series 2009-2017, for Jeep Patriot MK74/MP Series 2009-2017, for Dodge Caliber 2009 L4 1.8L/L4 2.4L, for Dodge Caliber 2010-2012, OE Number:158388/55111610AA/55111610AB/55111610AC/RL111610AB/R5111610AB.Please confirm car make model year engine before purchase.
  • [Function& Specification] Compressor Style: for 6SEU16C, Pulley Groove Quantity: 6, Voltage: 12V, Pulley Diameter (MM): 125mm/4.9". Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off, aim for withstand constant belt friction and rotation, wear resistance and heat dissipation. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).
  • [Package] Included: 1x Pulley With Bearing, 2x Snap Ringss. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

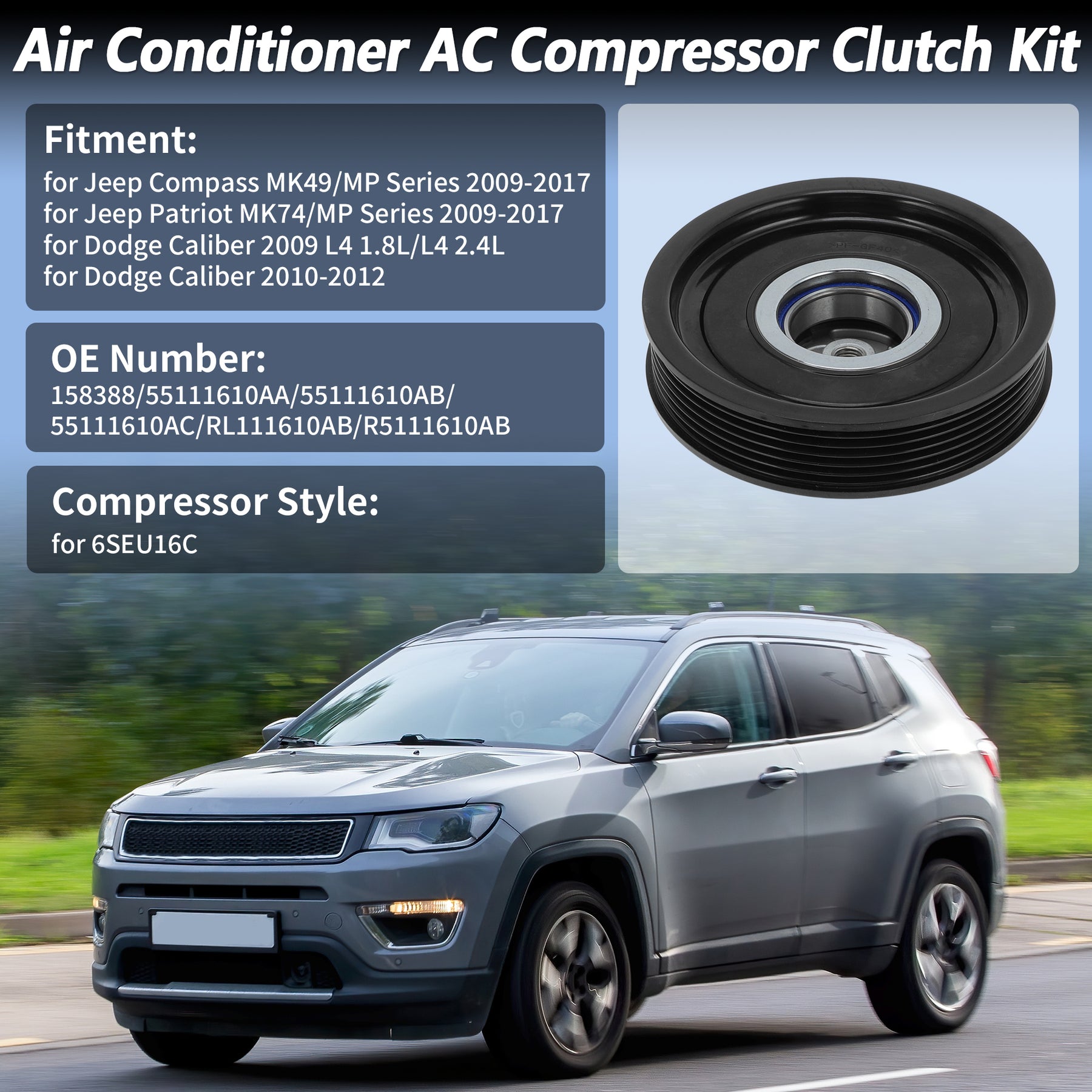

OE Number: 158388/55111610AA/55111610AB/55111610AC/RL111610AB/R5111610AB

Fitment
for Jeep Compass MK49/MP Series 2009-2017
for Jeep Patriot MK74/MP Series 2009-2017
for Dodge Caliber 2009 L4 1.8L/L4 2.4L
for Dodge Caliber 2010-2012

Specifications
Material: Steel
Compressor Style: for 6SEU16C
Pulley Groove Quantity: 6
Voltage: 12V

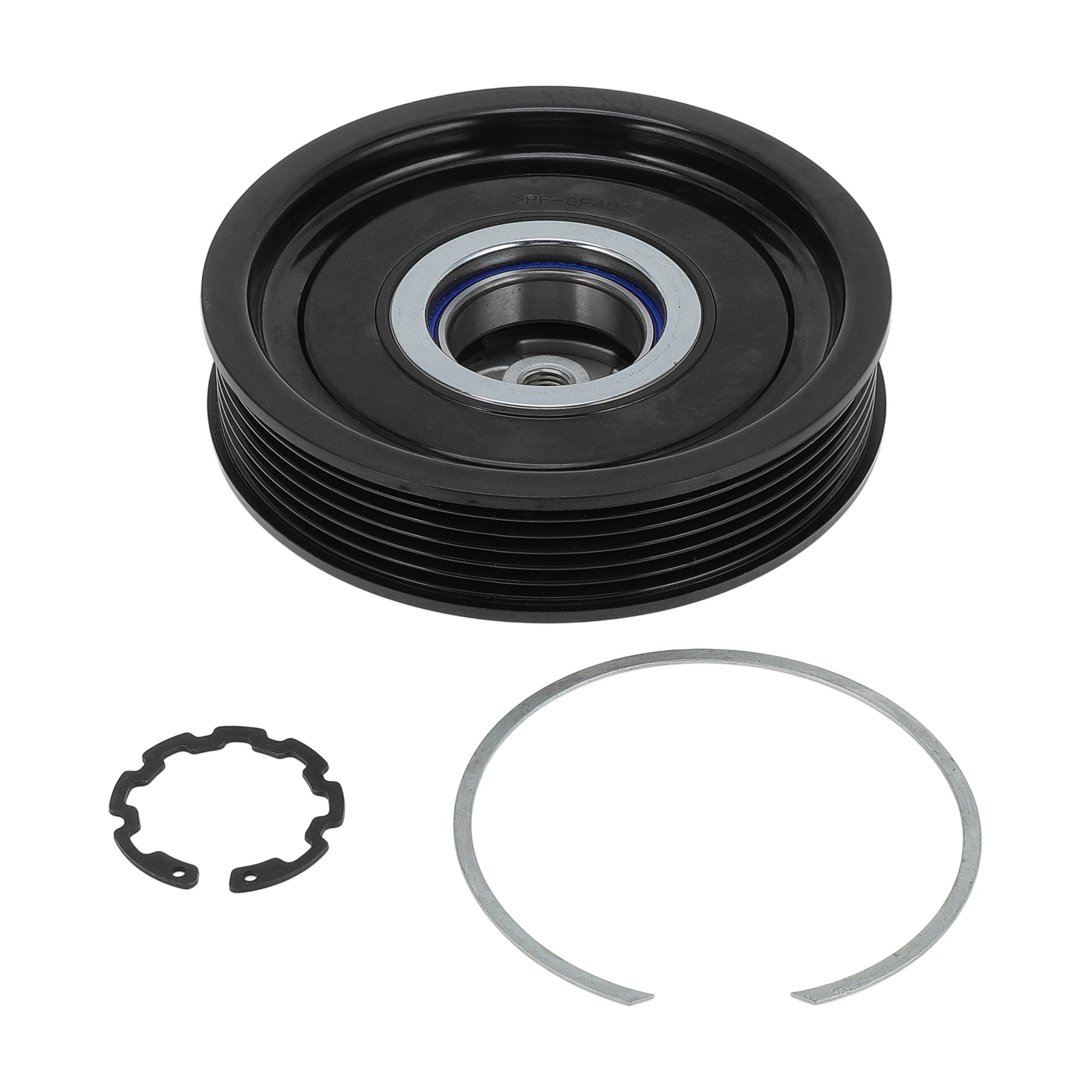

Package: 1x Pulley With Bearing, 2x Snap Ringss
This is a non-OEM product, accessory only!

Feature

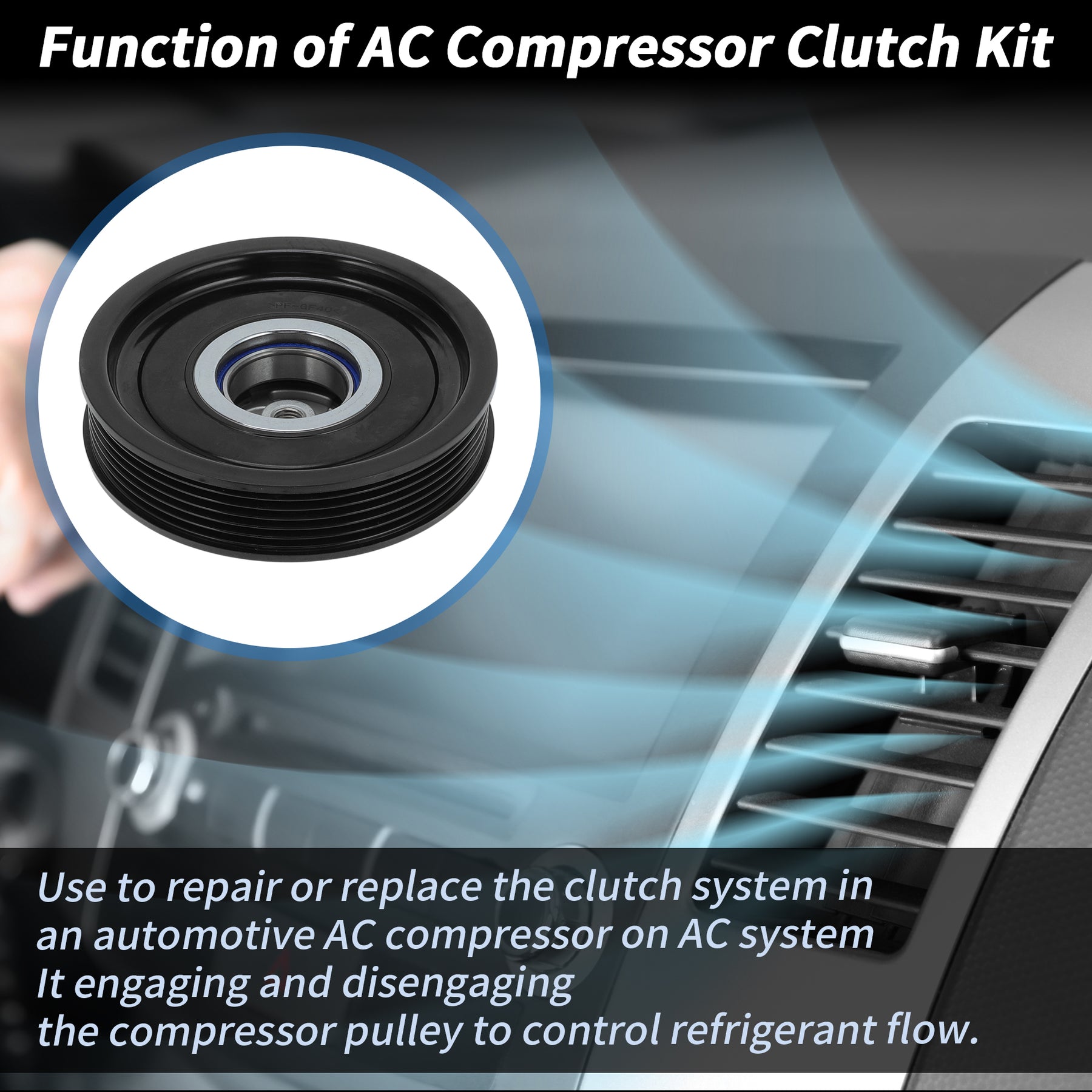

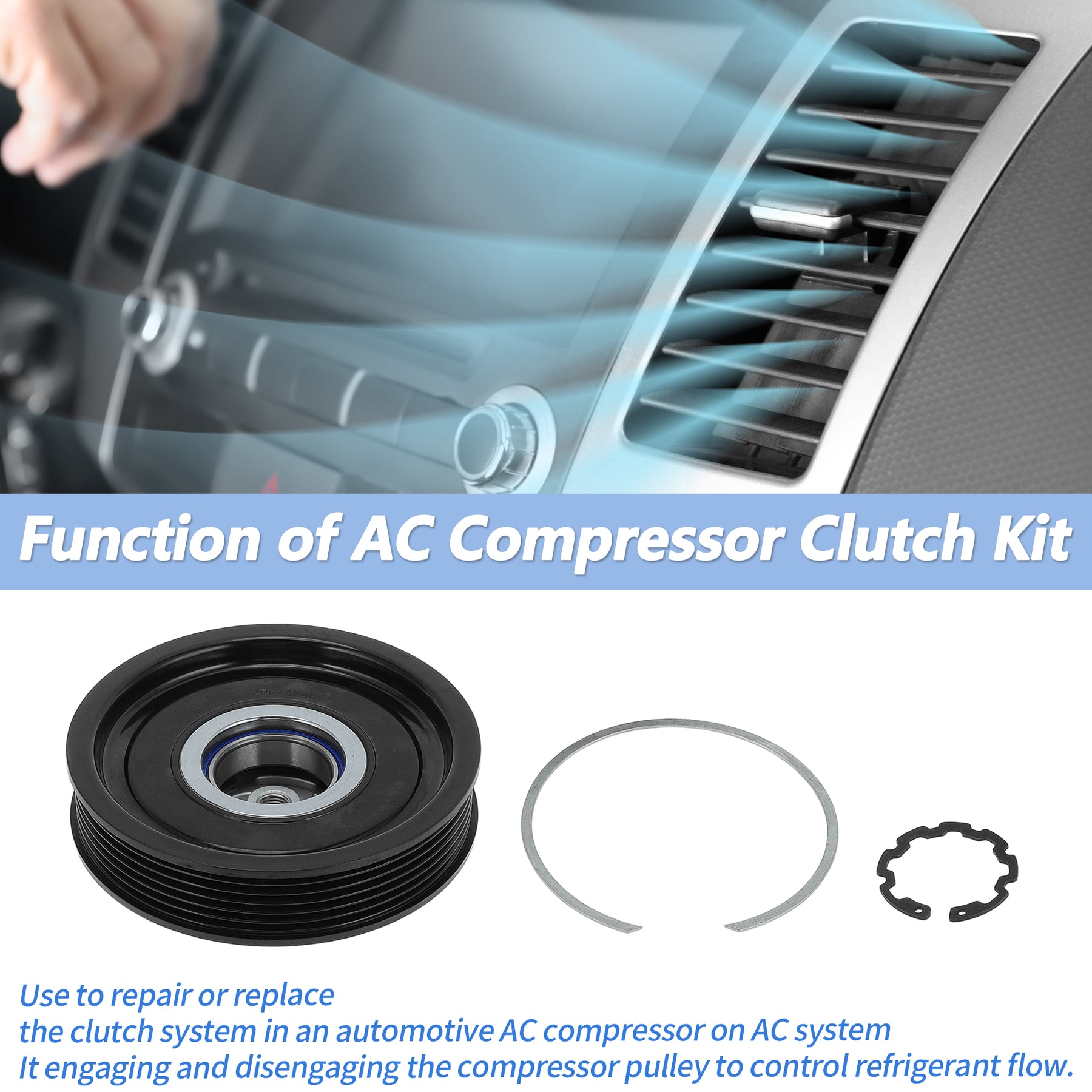

Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.

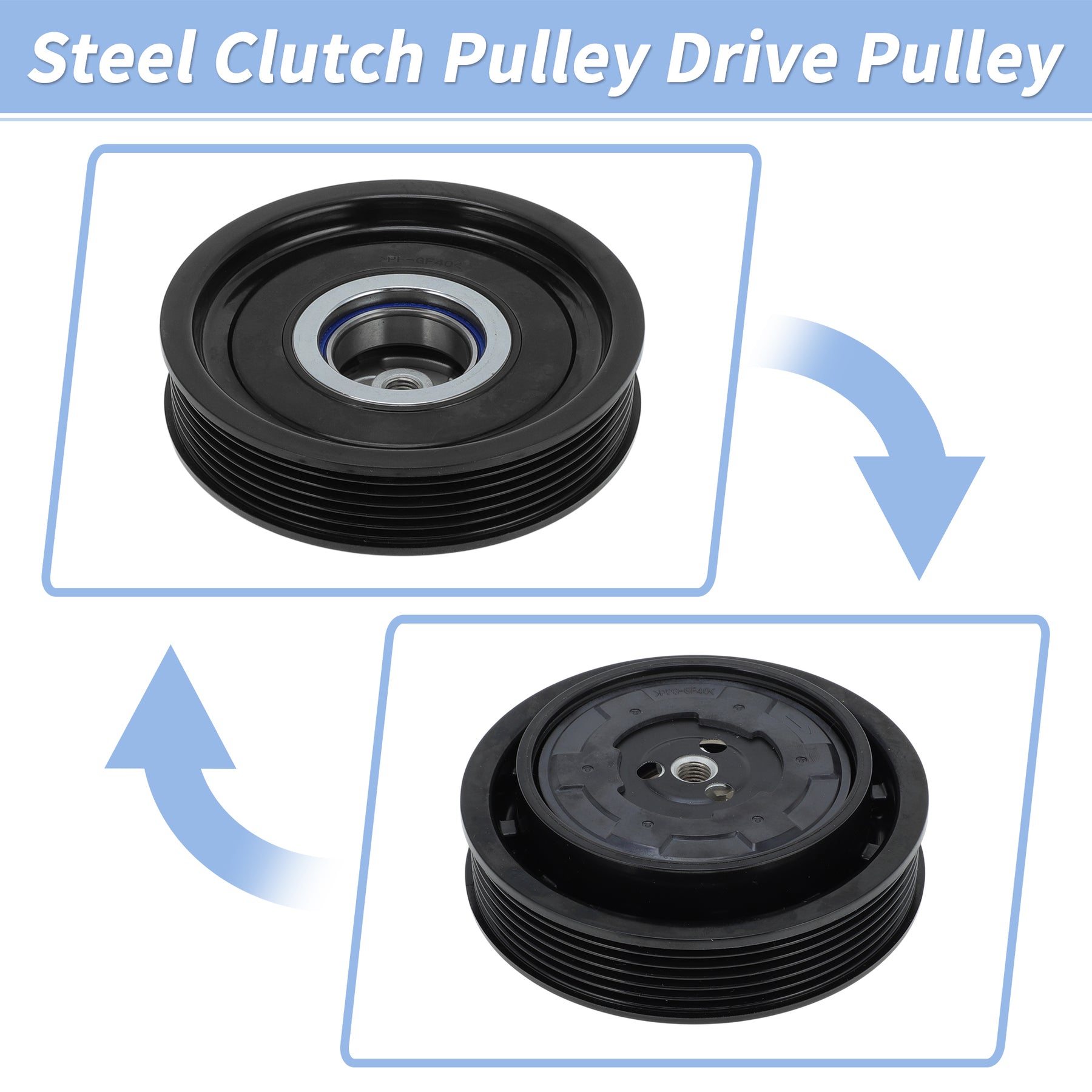

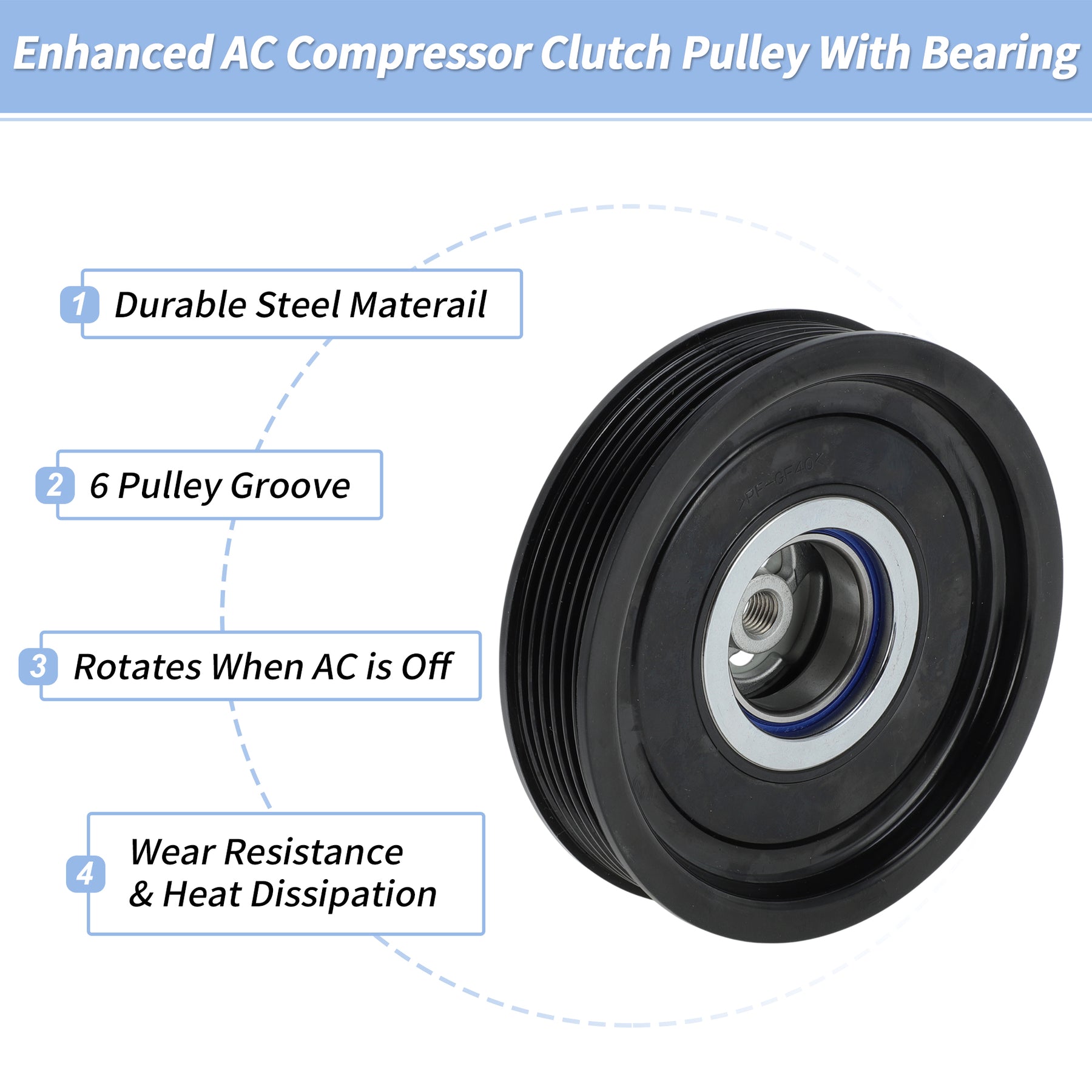

Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off, aim for withstand constant belt friction and rotation, wear resistance and heat dissipation.
Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.

Signal of a Failing AC Clutch:
AC blows warm air intermittently
Unusual grinding or squealing noises
Clutch does not engage when AC is on
Visible wear or damage on the clutch assembly

Replace AC Clutch if met:
Worn-out clutch bearing.
Damaged coil or electrical failure.
Physical wear on the hub or pulley.
AC compressor not engaging properly

Installation
1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine)
2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil)
3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims
4. Reassemble & Test the AC system(no noises, cold air output)
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
