Harfington 5Pcs 6 Position Terminal Blocks Double Row, 23.5 X51.5mm 300V 15A, Green

5Pcs 6 Position Terminal Blocks Double Row, 23.5 X51.5mm 300V 15A, Green

ID:
£10.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

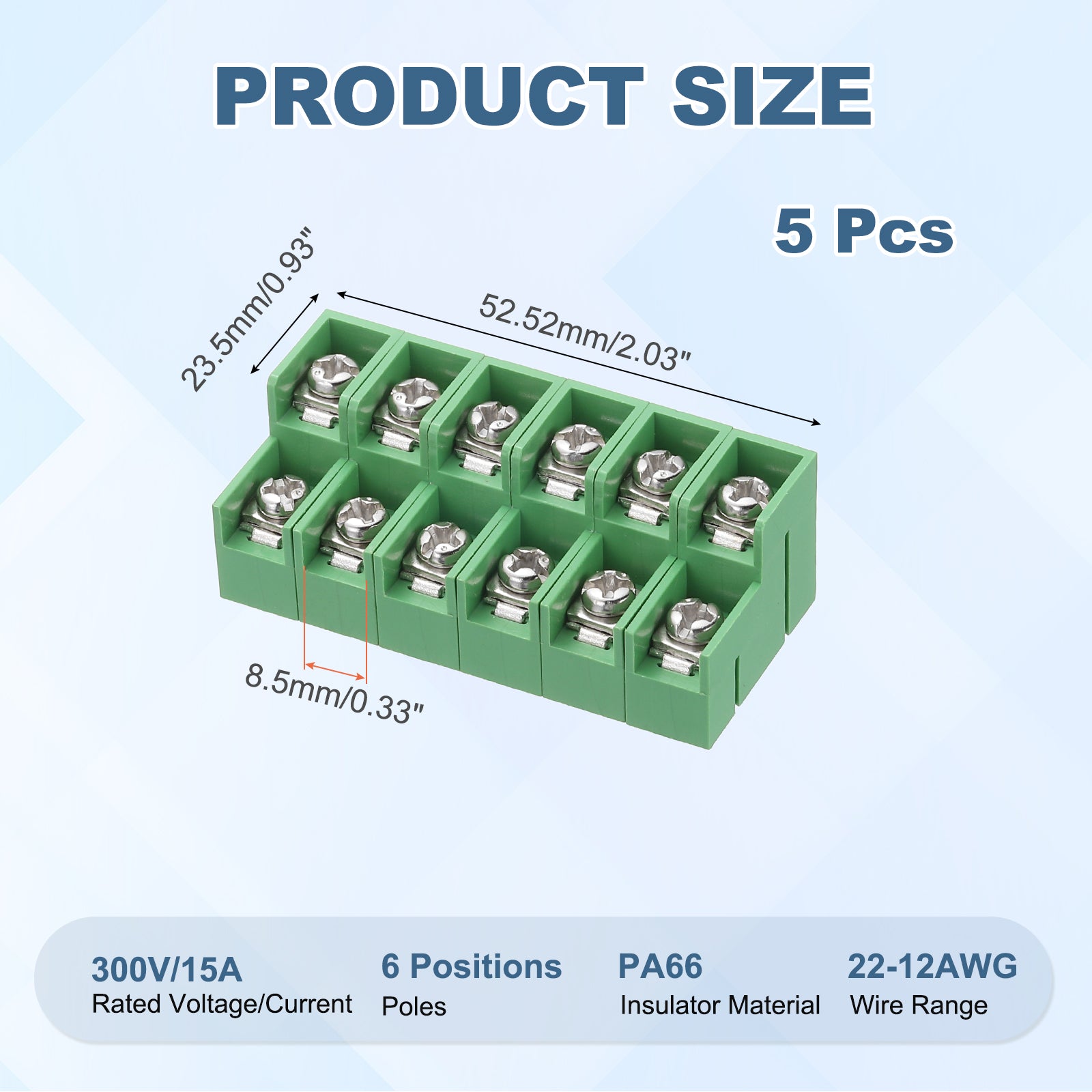

  • Product Name: LP/KF8500HL Terminal Block; Rated Voltage/Current: 300V/15A; Poles: 6Positions (Dual Level); Mounting Hole Spacing: 8.5mm; Overall Dimensions: 23.5mm x 51.52mm / 0.93" x 2.03" (W x L); Conductor Material: Copper; Insulator Material: PA66; Wire Range: 22-12AWG; Color: Green; Package Contents: 5Pcs x Terminal Blocks
  • Align the terminal block with PCB mounting holes and solder it into place. Strip wires to 5-7mm length, insert into screw terminals, and tighten firmly. The dual-level structure allows organized wiring for complex circuits.
  • A terminal block is an electrical component used to connect circuits in electrical equipment. Its function is to connect circuits between internal and external devices, transmitting signals (current and voltage). It provides secure PCB connections for industrial control systems, power supplies, automotive electronics, HVAC equipment, and telecommunications equipment. Its dual-level design ensures efficient wiring in compact applications.

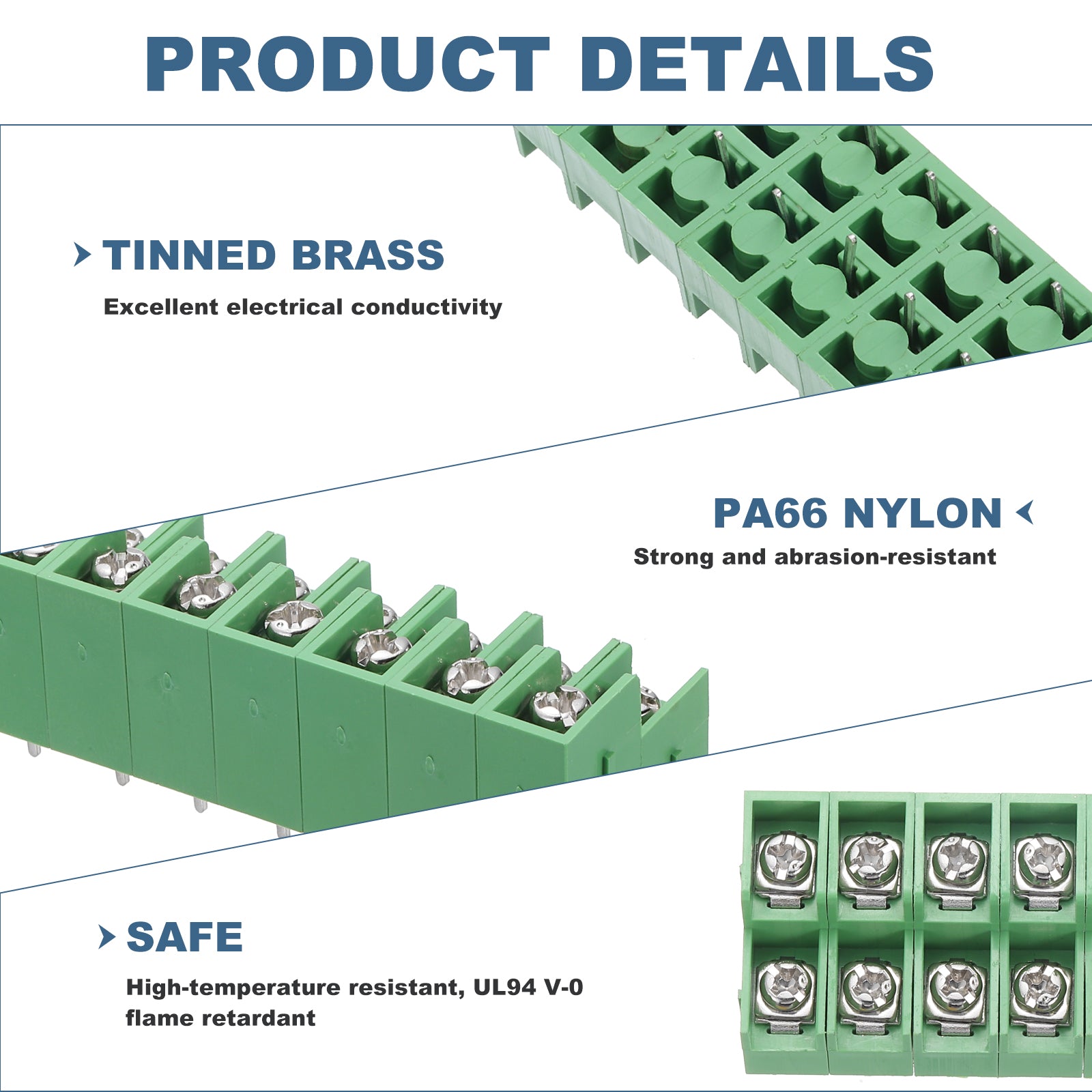

  • The terminal blocks feature tinned brass conductors for secure insertion and removal, and excellent conductivity. The housing is made of PA66 nylon, offering high strength, toughness, durability, and abrasion resistance. Furthermore, they offer excellent heat resistance (105°C) and flame retardancy (UL94 V-0), ensuring safety before and after wiring.
  • Do not exceed the rated voltage/current specifications. Ensure the stripped length is appropriate and the screws are tightened for an optimal connection. Prevent loose connections. Suitable only for stranded wire within the specified AWG range. Store in a dry environment to maintain performance. The number of terminal blocks in each row is different, and the model can be determined according to the needs of engineering technical parameters.
  • In stock, ready to ship
Cart
Cart
About this item
  • Product Name: LP/KF8500HL Terminal Block; Rated Voltage/Current: 300V/15A; Poles: 6Positions (Dual Level); Mounting Hole Spacing: 8.5mm; Overall Dimensions: 23.5mm x 51.52mm / 0.93" x 2.03" (W x L); Conductor Material: Copper; Insulator Material: PA66; Wire Range: 22-12AWG; Color: Green; Package Contents: 5Pcs x Terminal Blocks
  • Align the terminal block with PCB mounting holes and solder it into place. Strip wires to 5-7mm length, insert into screw terminals, and tighten firmly. The dual-level structure allows organized wiring for complex circuits.
  • A terminal block is an electrical component used to connect circuits in electrical equipment. Its function is to connect circuits between internal and external devices, transmitting signals (current and voltage). It provides secure PCB connections for industrial control systems, power supplies, automotive electronics, HVAC equipment, and telecommunications equipment. Its dual-level design ensures efficient wiring in compact applications.
  • The terminal blocks feature tinned brass conductors for secure insertion and removal, and excellent conductivity. The housing is made of PA66 nylon, offering high strength, toughness, durability, and abrasion resistance. Furthermore, they offer excellent heat resistance (105°C) and flame retardancy (UL94 V-0), ensuring safety before and after wiring.
  • Do not exceed the rated voltage/current specifications. Ensure the stripped length is appropriate and the screws are tightened for an optimal connection. Prevent loose connections. Suitable only for stranded wire within the specified AWG range. Store in a dry environment to maintain performance. The number of terminal blocks in each row is different, and the model can be determined according to the needs of engineering technical parameters.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?
A terminal block is an electrical component used to connect circuits in electrical equipment. Its function is to connect circuits between internal and external devices, transmitting signals (current and voltage). It provides secure PCB connections for industrial control systems, power supplies, automotive electronics, HVAC equipment, and telecommunications equipment. Its dual-level design ensures efficient wiring in compact applications.

What will I get?
Product Name: LP/KF8500HL Terminal Block;
Rated Voltage/Current: 300V/15A
Poles: 6Positions (Dual Level)
Mounting Hole Spacing: 8.5mm
Overall Dimensions: 23.5mm x 51.52mm / 0.93" x 2.03" (W x L)
Conductor Material: Copper
Insulator Material: PA66
Wire Range: 22-12AWG
Color: Green

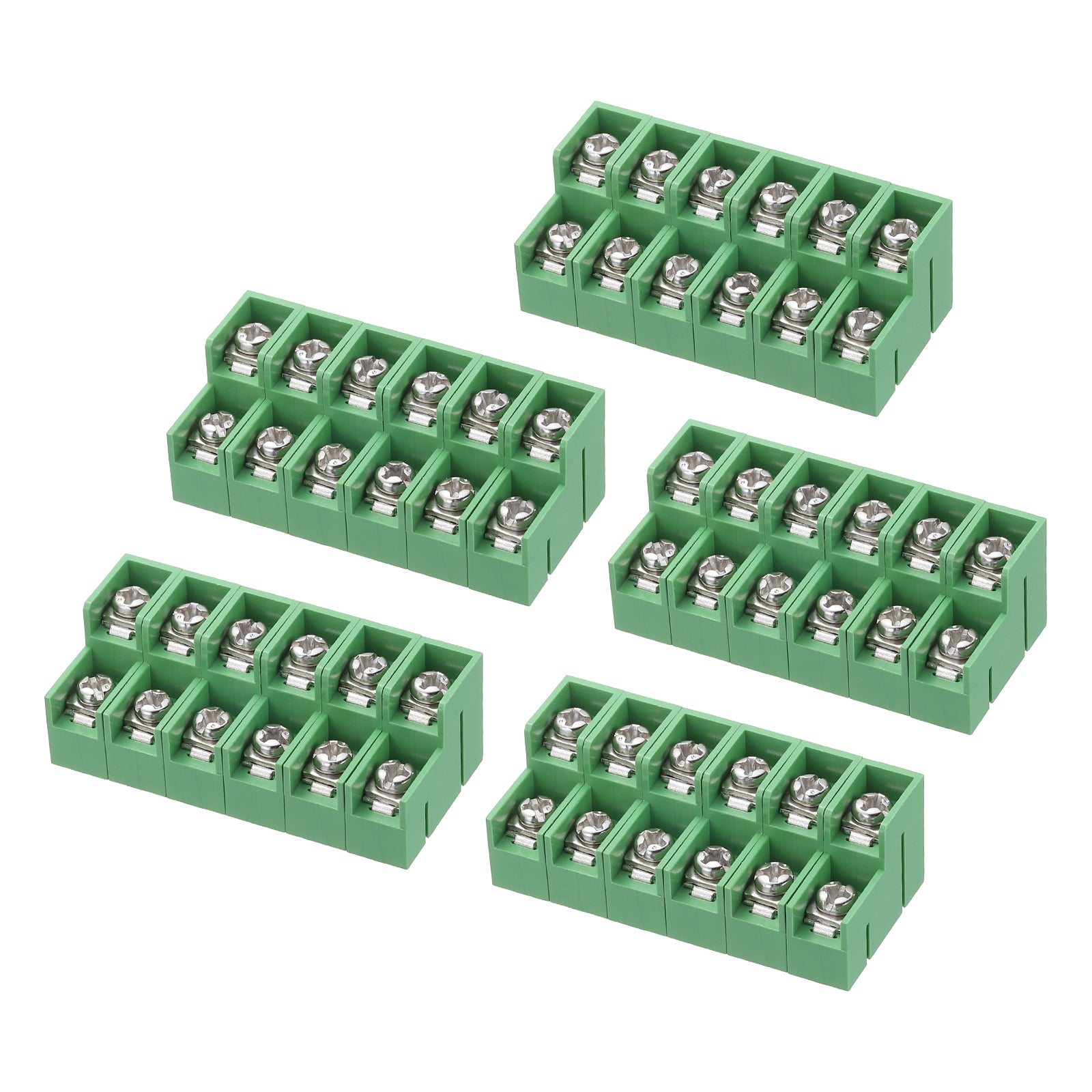

Package Contents: 5Pcs x Terminal Blocks

Are there any advantages of the product?
The terminal blocks feature tinned brass conductors for secure insertion and removal, and excellent conductivity. The housing is made of PA66 nylon, offering high strength, toughness, durability, and abrasion resistance. Furthermore, they offer excellent heat resistance (105°C) and flame retardancy (UL94 V-0), ensuring safety before and after wiring.

How to use it?
Align the terminal block with PCB mounting holes and solder it into place. Strip wires to 5-7mm length, insert into screw terminals, and tighten firmly. The dual-level structure allows organized wiring for complex circuits.

What should I notice?
Do not exceed the rated voltage/current specifications. Ensure the stripped length is appropriate and the screws are tightened for an optimal connection. Prevent loose connections. Suitable only for stranded wire within the specified AWG range.
