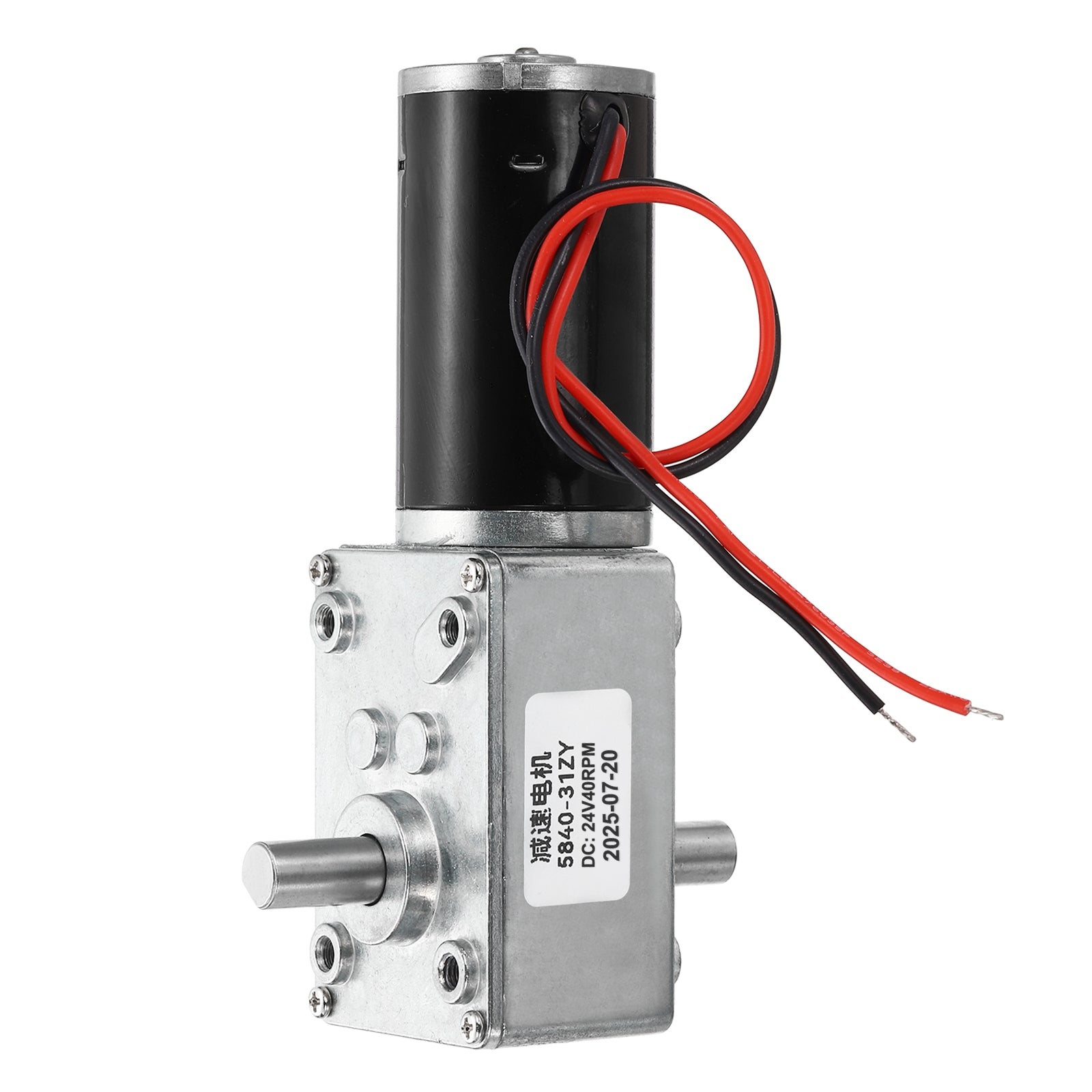

Harfington DC24V Worm Gear Motor, 40RPM 8mm D Shaft Speed Reduction

DC24V Worm Gear Motor, 40RPM 8mm D Shaft Speed Reduction

ID:
£23.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.

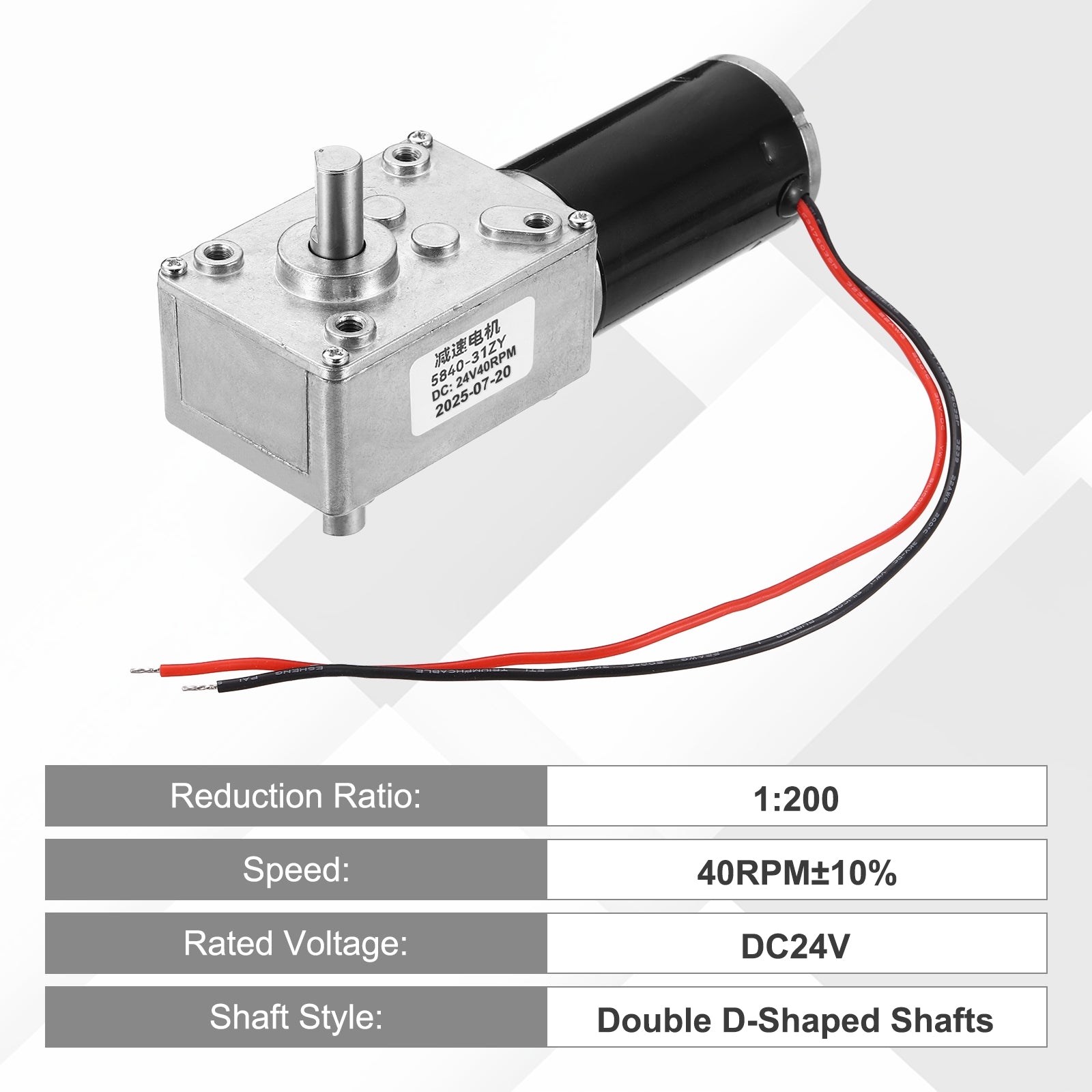

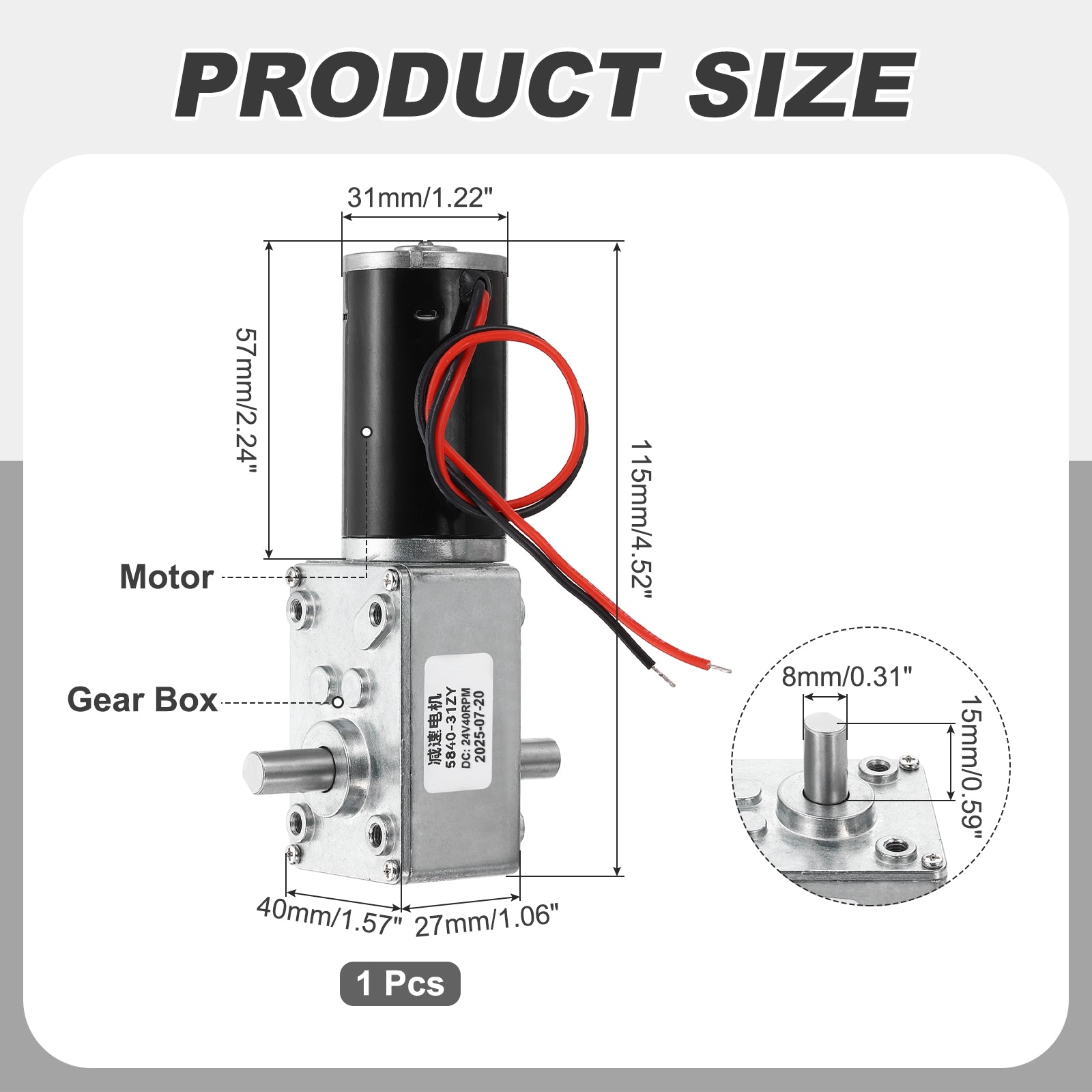

  • DC Worm Gear Motor: Total Size: 115 x 40 x 27 mm / 4.52 x 1.57 x 1.06 inch (L x W x H); Gear Box Size: 58 x 40 x 27 mm / 2.28 x 1.57 x 1.06 inch (L x W x H); Motor Size: 57 x 31 mm / 2.24 x 1.22 inch (D x H); Shafts Size: 8 x 15 mm / 0.31 x 0.59 inch (D x L); Reduction Ratio: 1:200; Speed: 40RPM±10%; Rated Voltage: DC24V; In the package of: 1 Pcs x Worm Gear Motor

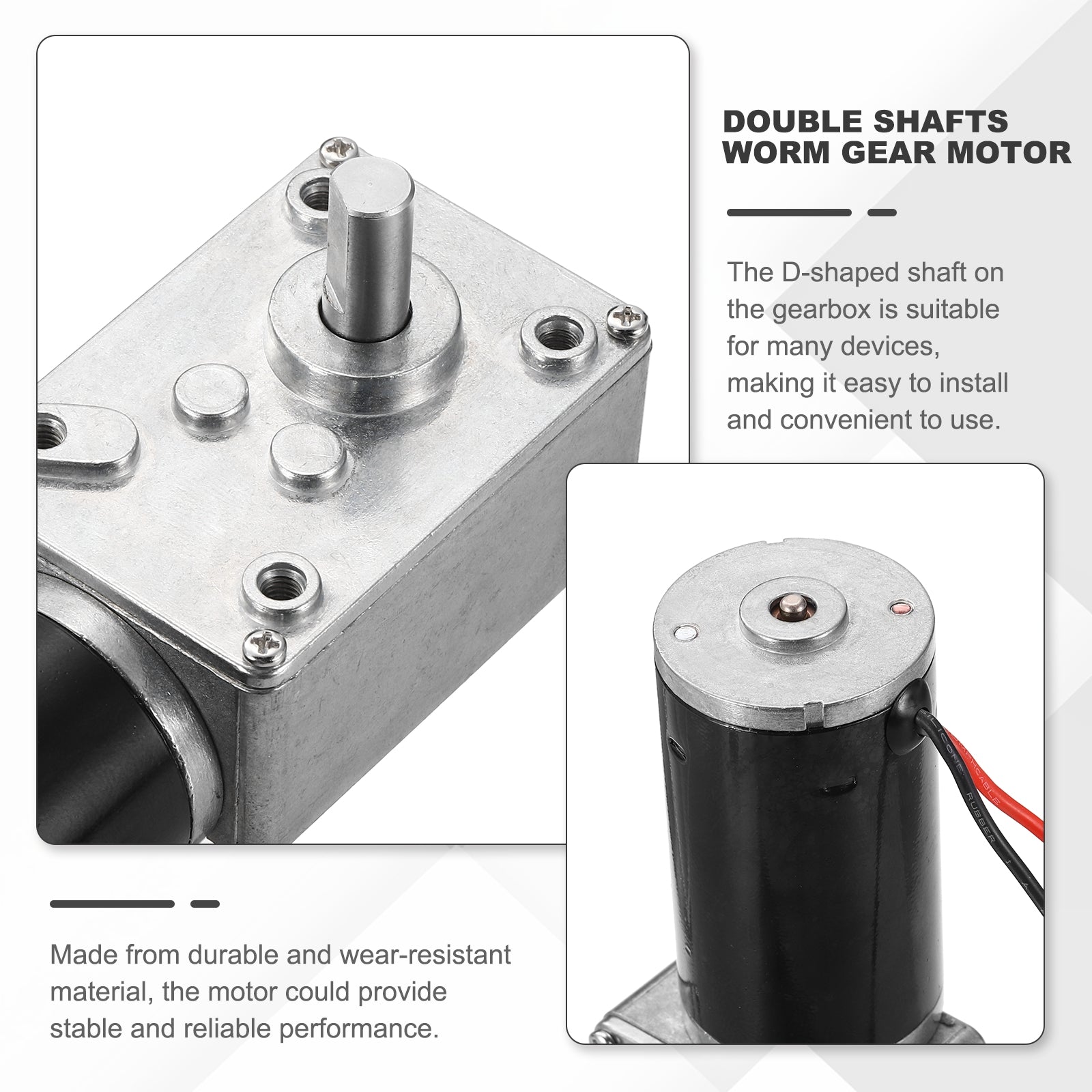

  • This D shaft self-locking worm gear motor supports bidirectional rotation and auto self locking when powered off, ensuring load stability. It delivers high torque at low speeds, eliminating external brakes while enabling safe, synchronized motion, very suitable for barbecue grill, range hood, remote controlled curtain, electronic motor, etc.
  • This gear motor supports reversible rotation, and changes the direction of rotation according to the positive and negative poles of the connection terminals. Fix the motor to the device, connect the power supply, and connect the load to the shaft to complete the installation.
  • Please check the product specification information in advance and operate within voltage limits.
  • In stock, ready to ship
Cart
Cart
About this item
  • A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.
  • DC Worm Gear Motor: Total Size: 115 x 40 x 27 mm / 4.52 x 1.57 x 1.06 inch (L x W x H); Gear Box Size: 58 x 40 x 27 mm / 2.28 x 1.57 x 1.06 inch (L x W x H); Motor Size: 57 x 31 mm / 2.24 x 1.22 inch (D x H); Shafts Size: 8 x 15 mm / 0.31 x 0.59 inch (D x L); Reduction Ratio: 1:200; Speed: 40RPM±10%; Rated Voltage: DC24V; In the package of: 1 Pcs x Worm Gear Motor
  • This D shaft self-locking worm gear motor supports bidirectional rotation and auto self locking when powered off, ensuring load stability. It delivers high torque at low speeds, eliminating external brakes while enabling safe, synchronized motion, very suitable for barbecue grill, range hood, remote controlled curtain, electronic motor, etc.
  • This gear motor supports reversible rotation, and changes the direction of rotation according to the positive and negative poles of the connection terminals. Fix the motor to the device, connect the power supply, and connect the load to the shaft to complete the installation.
  • Please check the product specification information in advance and operate within voltage limits.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is it?
A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.

What will I get?
DC Worm Gear Motor
Total Size: 115 x 40 x 27 mm / 4.52 x 1.57 x 1.06 inch (L x W x H);
Gear Box Size: 58 x 40 x 27 mm / 2.28 x 1.57 x 1.06 inch (L x W x H);
Motor Size: 57 x 31 mm / 2.24 x 1.22 inch (D x H);
Shafts Size: 8 x 15 mm / 0.31 x 0.59 inch (D x L);
Reduction Ratio: 1:200;
Speed: 40RPM 10%;
Rated Voltage:DC24V;
In the package of: 1 Pcs x Worm Gear Motor

Are there any advantages of this product?
This D shaft self-locking worm gear motor supports bidirectional rotation and auto self locking when powered off, ensuring load stability. It delivers high torque at low speeds, eliminating external brakes while enabling safe, synchronized motion, very suitable for barbecue grill, range hood, remote controlled curtain, electronic motor, etc.

How to use it?
This gear motor supports reversible rotation, and changes the direction of rotation according to the positive and negative poles of the connection terminals. Fix the motor to the device, connect the power supply, and connect the load to the shaft to complete the installation.

What should I notice?
Please check the product specification information in advance and operate within voltage limits.
