Harfington 2pcs 3mm x 15mm Titanium Nano-Scale Coated Long Reach 4 Flute Square End Mill

2pcs 3mm x 15mm Titanium Nano-Scale Coated Long Reach 4 Flute Square End Mill

ID:
£14.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • ★ Square Nose End Mill Size --- Cutting diameter: 3mm / 0.12", effective cutting length: 15mm / 0.59" ( flute length: 9mm / 0.35"; extended neck length: 6mm / 0.24"), shank diameter: 4mm / 0.16", total length: 50mm / 2", cutting hardness: HRC55.
  • ★ Wide Applications --- Suitable for creating flat-bottomed slots, pockets, or profiles, and for machining carbon steel, stainless steel, cast iron, non-ferrous metals, aluminum and plastics. Designed with an extended neck (long reach) to provide extra reach and clearance for machining deep or hard-to-reach areas.
  • ★Ease of Use --- Sharp square cutting edges allow for efficient, precise milling operations, and 4 flutes help improve chip evacuation and reduce the chance of clogging during machining. Used with CNC milling machines, router machines, and engraving machines.
  • ★ Ultra-fine Grain Carbide --- Excellent hardness (HRC92), wear resistance, high strength, good toughness and heat resistance. Titanium (nano-scale) coating increases hardness, wear resistance, tool life, reduces friction, improves chip evacuation, and enhances surface finish. Ultra-thin nano coating provides improved precision and can enhance performance.
  • ★ Useful Tips --- Make sure it is securely seated and tightened. Use an appropriate coolant or lubricant to enhance chip evacuation and heat dissipation, and monitor and control the cutting parameters. Excessive heat can affect tool life and performance.
  • In stock, ready to ship
Cart
Cart
About this item
  • ★ Square Nose End Mill Size --- Cutting diameter: 3mm / 0.12", effective cutting length: 15mm / 0.59" ( flute length: 9mm / 0.35"; extended neck length: 6mm / 0.24"), shank diameter: 4mm / 0.16", total length: 50mm / 2", cutting hardness: HRC55.
  • ★ Wide Applications --- Suitable for creating flat-bottomed slots, pockets, or profiles, and for machining carbon steel, stainless steel, cast iron, non-ferrous metals, aluminum and plastics. Designed with an extended neck (long reach) to provide extra reach and clearance for machining deep or hard-to-reach areas.
  • ★Ease of Use --- Sharp square cutting edges allow for efficient, precise milling operations, and 4 flutes help improve chip evacuation and reduce the chance of clogging during machining. Used with CNC milling machines, router machines, and engraving machines.
  • ★ Ultra-fine Grain Carbide --- Excellent hardness (HRC92), wear resistance, high strength, good toughness and heat resistance. Titanium (nano-scale) coating increases hardness, wear resistance, tool life, reduces friction, improves chip evacuation, and enhances surface finish. Ultra-thin nano coating provides improved precision and can enhance performance.
  • ★ Useful Tips --- Make sure it is securely seated and tightened. Use an appropriate coolant or lubricant to enhance chip evacuation and heat dissipation, and monitor and control the cutting parameters. Excessive heat can affect tool life and performance.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Attributes:

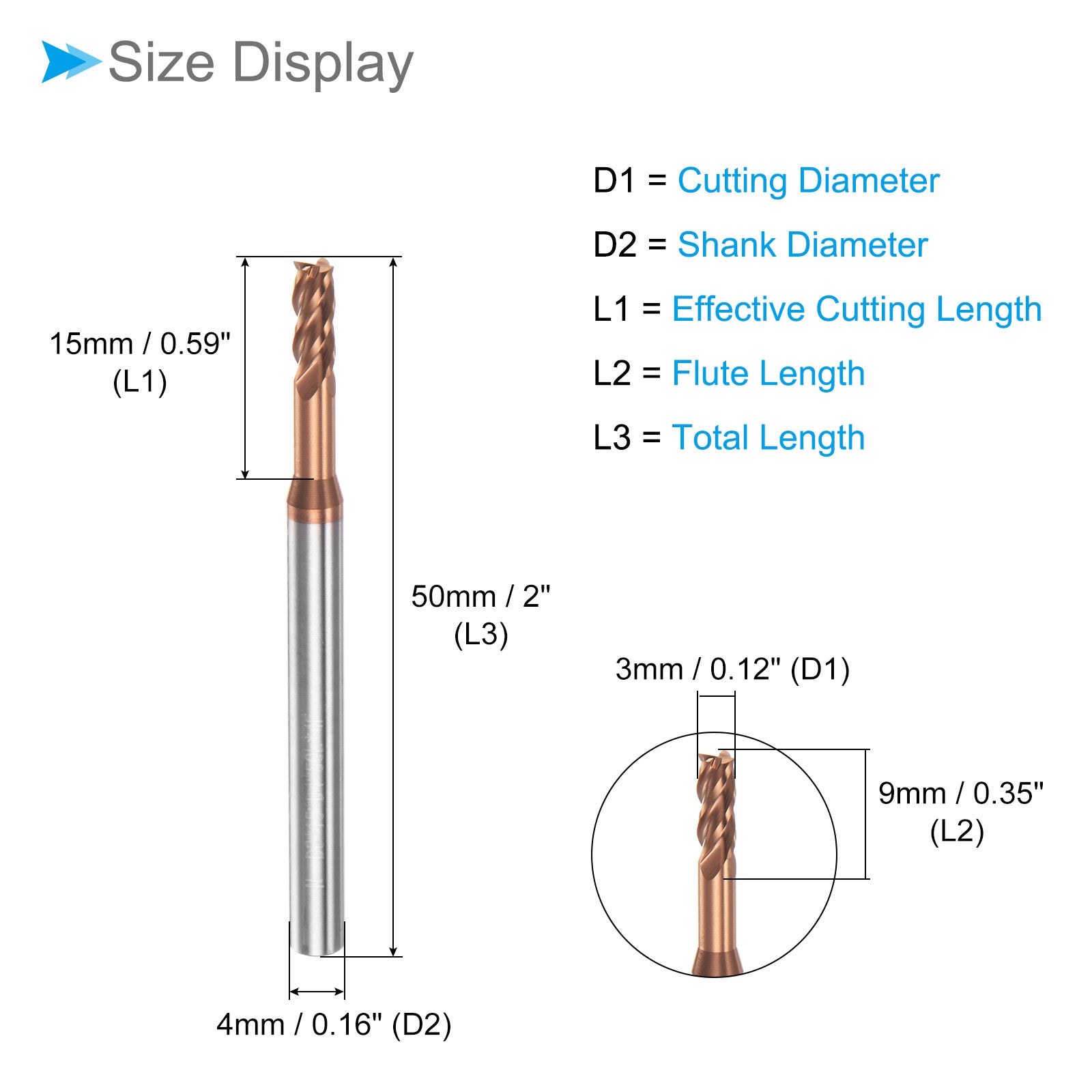

* Cutting Diameter: 3mm / 0.12"
* Effective Cutting Length: 15mm / 0.59" ( Flute Length: 9mm / 0.35"; Extended Neck Length: 6mm / 0.24")
* Shank Diameter: 4mm / 0.16"
* Total Length: 50mm / 2"
* Material: Ultra-fine Grain Carbide
* Finish: Titanium Coated (Nano-Scale Level)
* Cutting Hardness: HRC55

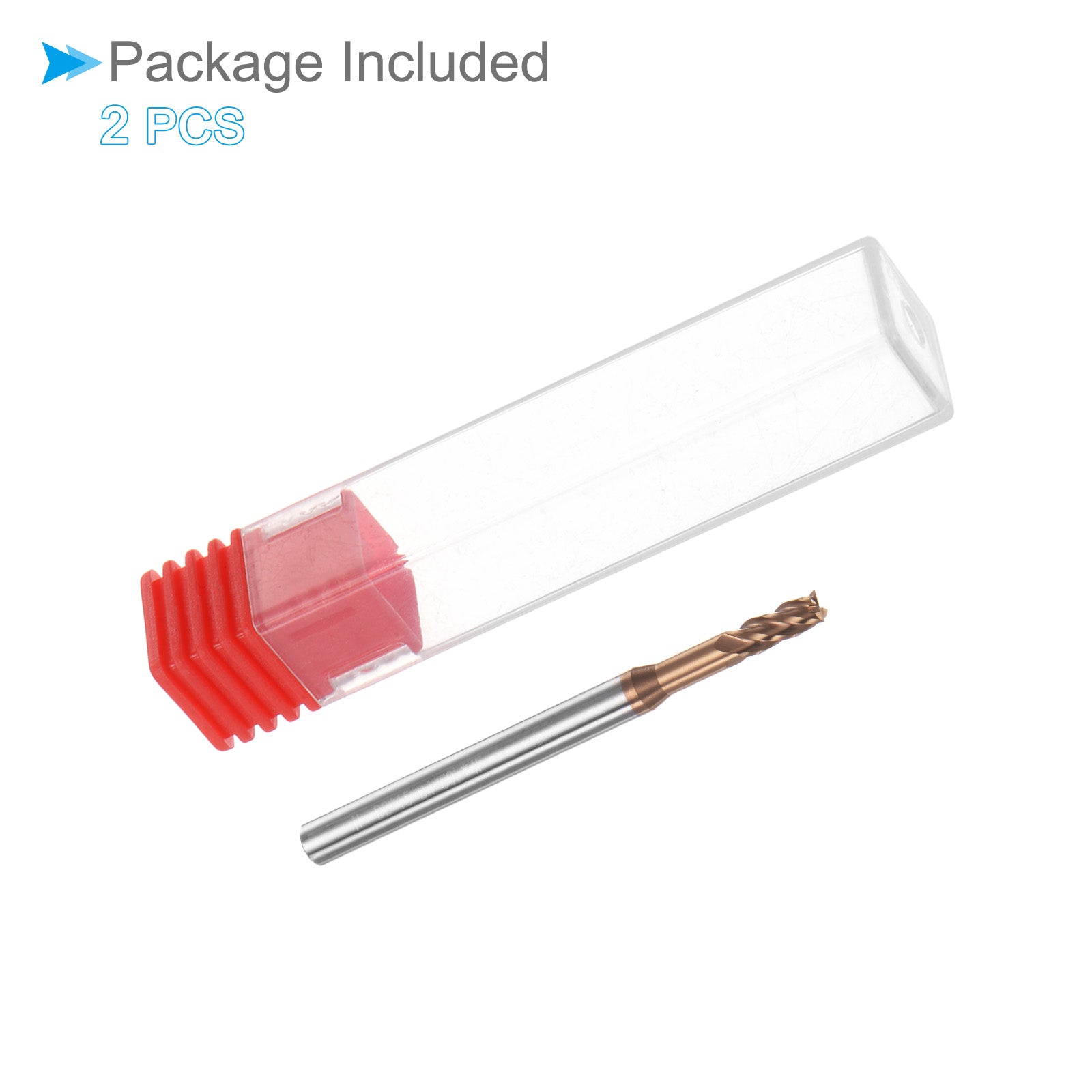

What Is Included:
* 2 Pieces x Square Nose End Mills

Applications & Features:

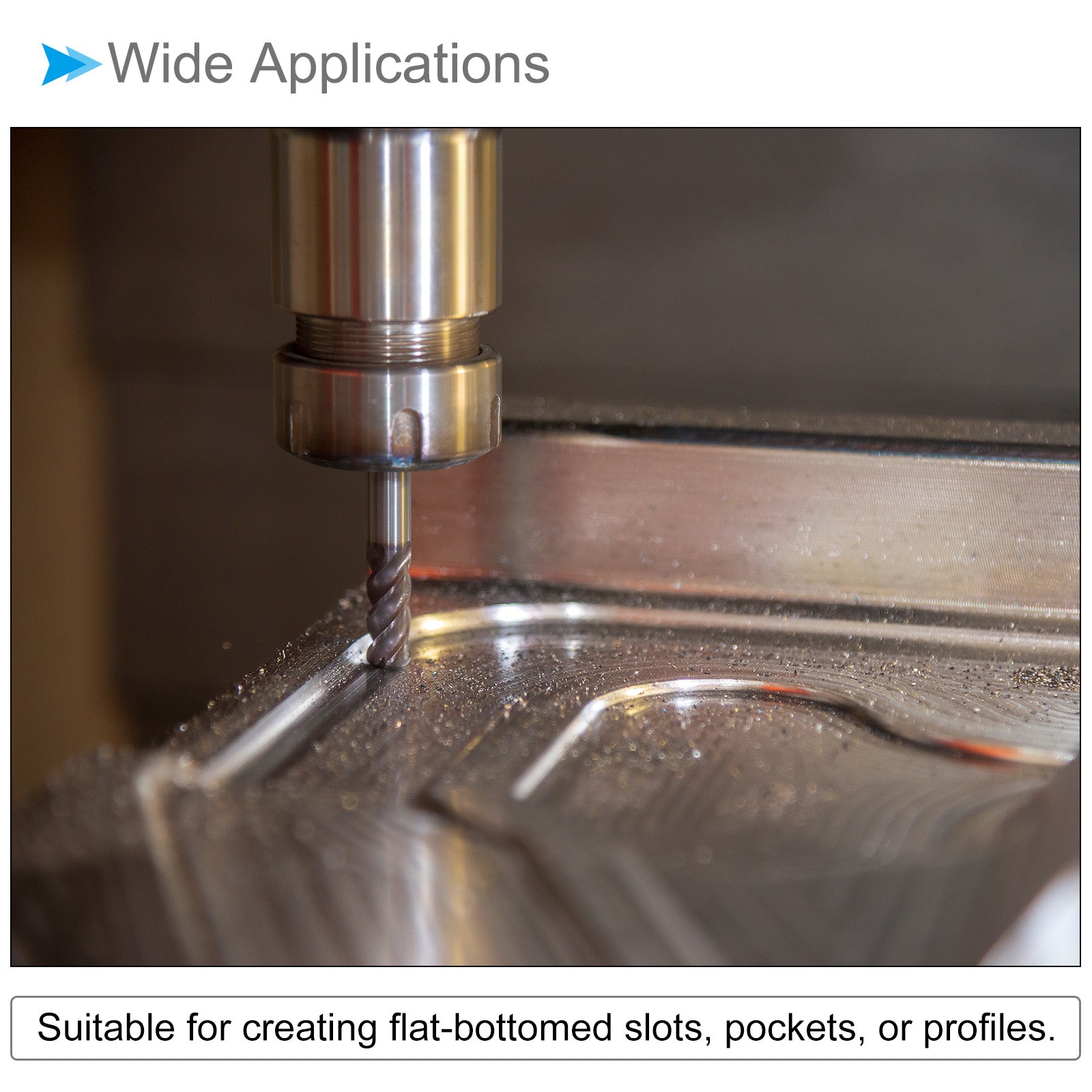

--- The square nose end mill is suitable for creating flat-bottomed slots, pockets, or profiles. Used for machining carbon steel, stainless steel, cast iron, non-ferrous metals, aluminum and plastics. The end mill can be used with CNC milling machines, router machines, and engraving machines.

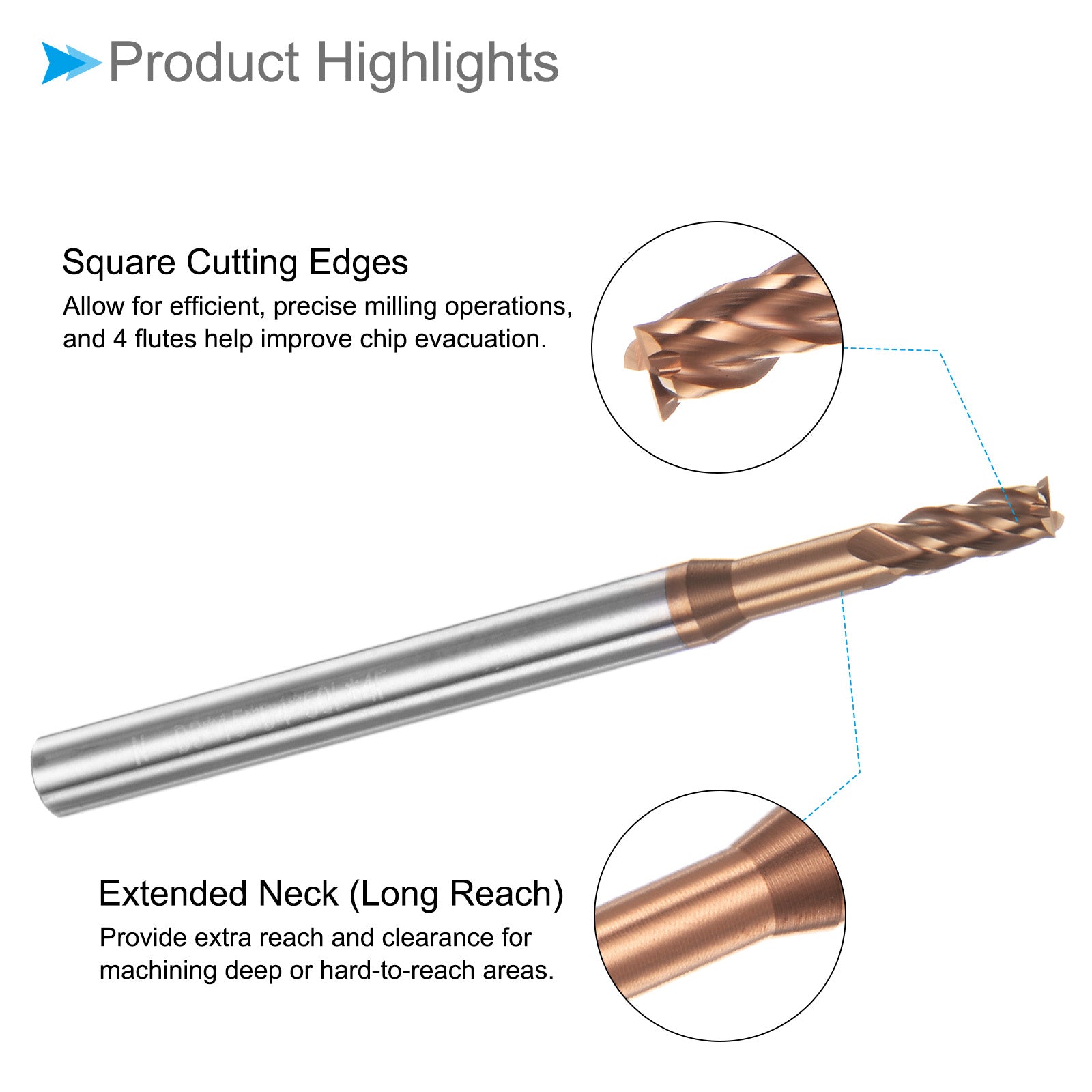

--- This end mill is designed with an extended neck (long reach) to provide extra reach and clearance for machining deep or hard-to-reach areas. Square cutting edges allow for efficient, precise milling operations, and 4 flutes help improve chip evacuation and reduce the chance of clogging during working.
--- The ultra-fine grain carbide provides excellent hardness (HRC92), wear resistance, good toughness, high strength, and good heat resistance. Titanium (nano-scale) coating increases hardness, wear resistance, tool life, reduces friction, improves chip evacuation, and enhances surface finish. Ultra-thin nano coating provides improved precision and can enhance performance. Used in applications that require moderate cutting speeds and feeds.

Useful Tips:
--- Make sure the end mil is securely seated and tightened. Use an appropriate coolant or lubricant to enhance chip evacuation and heat dissipation. Excessive heat can affect tool life and performance. Monitor and control the cutting parameters, ensure proper cooling or lubrication and effective chip evacuation to prevent clogging.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£14.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Attributes:
* Cutting Diameter: 3mm / 0.12"
* Effective Cutting Length: 15mm / 0.59" ( Flute Length: 9mm / 0.35"; Extended Neck Length: 6mm / 0.24")
* Shank Diameter: 4mm / 0.16"
* Total Length: 50mm / 2"
* Material: Ultra-fine Grain Carbide
* Finish: Titanium Coated (Nano-Scale Level)
* Cutting Hardness: HRC55

What Is Included:
* 2 Pieces x Square Nose End Mills

Applications & Features:
--- The square nose end mill is suitable for creating flat-bottomed slots, pockets, or profiles. Used for machining carbon steel, stainless steel, cast iron, non-ferrous metals, aluminum and plastics. The end mill can be used with CNC milling machines, router machines, and engraving machines.
--- This end mill is designed with an extended neck (long reach) to provide extra reach and clearance for machining deep or hard-to-reach areas. Square cutting edges allow for efficient, precise milling operations, and 4 flutes help improve chip evacuation and reduce the chance of clogging during working.
--- The ultra-fine grain carbide provides excellent hardness (HRC92), wear resistance, good toughness, high strength, and good heat resistance. Titanium (nano-scale) coating increases hardness, wear resistance, tool life, reduces friction, improves chip evacuation, and enhances surface finish. Ultra-thin nano coating provides improved precision and can enhance performance. Used in applications that require moderate cutting speeds and feeds.

Useful Tips:
--- Make sure the end mil is securely seated and tightened. Use an appropriate coolant or lubricant to enhance chip evacuation and heat dissipation. Excessive heat can affect tool life and performance. Monitor and control the cutting parameters, ensure proper cooling or lubrication and effective chip evacuation to prevent clogging.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
