Harfington 12x3mm Tungsten Carbide CNC End Mill CNC Router Bits Left Hand 10pcs

12x3mm Tungsten Carbide CNC End Mill CNC Router Bits Left Hand 10pcs

ID:
£21.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

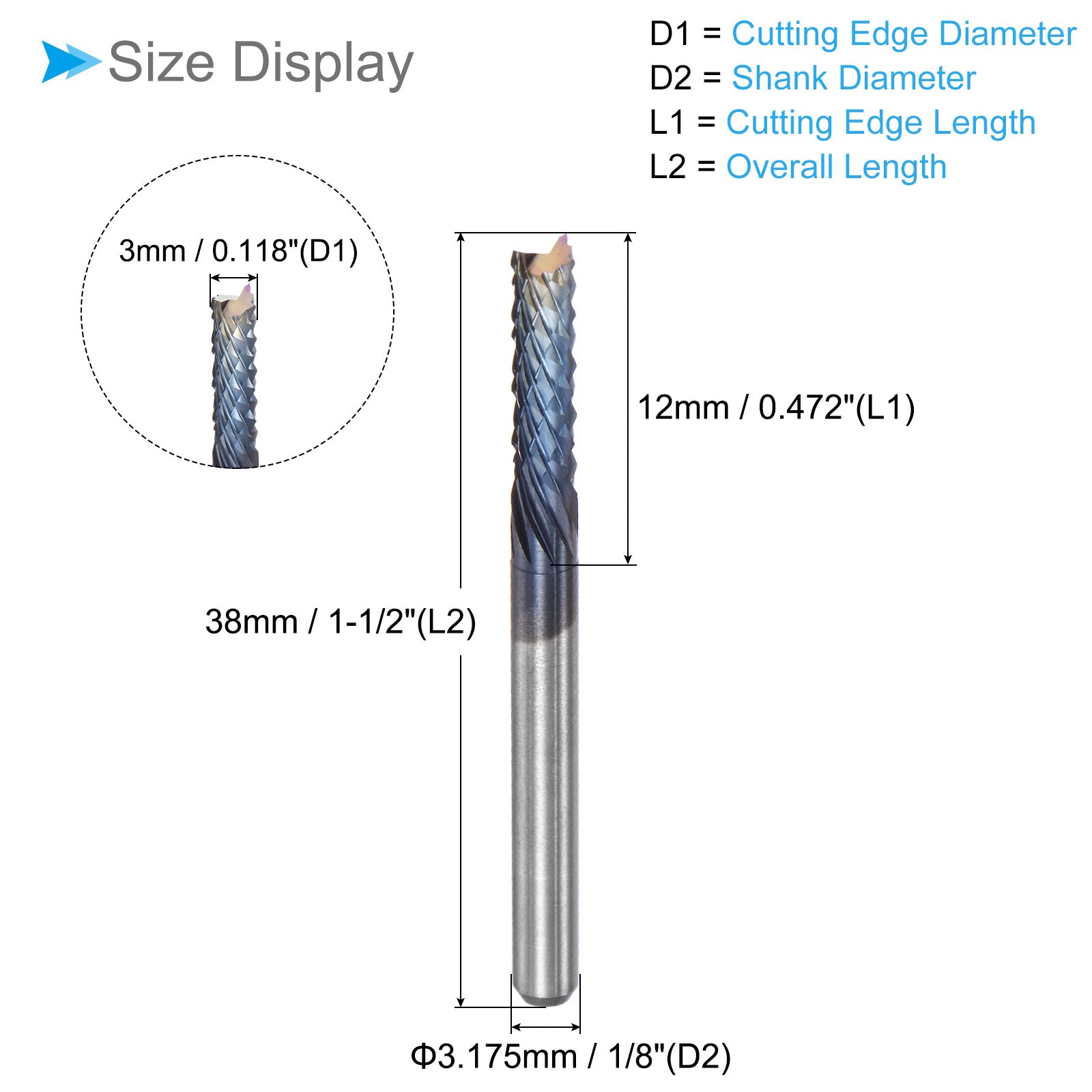

  • ★ End Mill Router Bits Size --- Cutting edge diameter: 3mm / 0.118"; shank diameter: 3.175mm / 1/8"; cutting edge length: 12mm / 0.472"; overall length: 38mm / 1-1/2"; milling direction: left hand

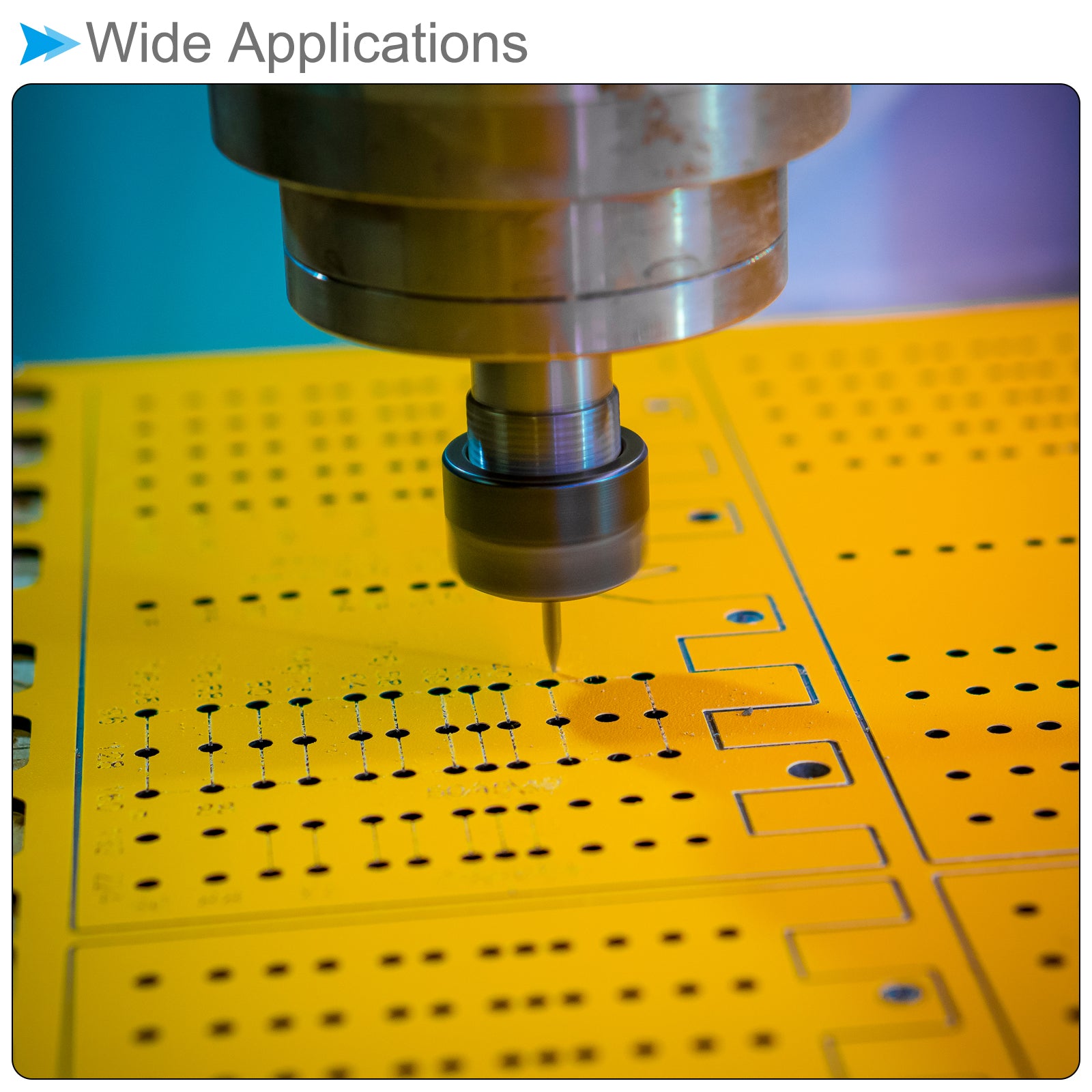

  • ★ Wide Applications --- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminium, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high precision special drilling equipment.

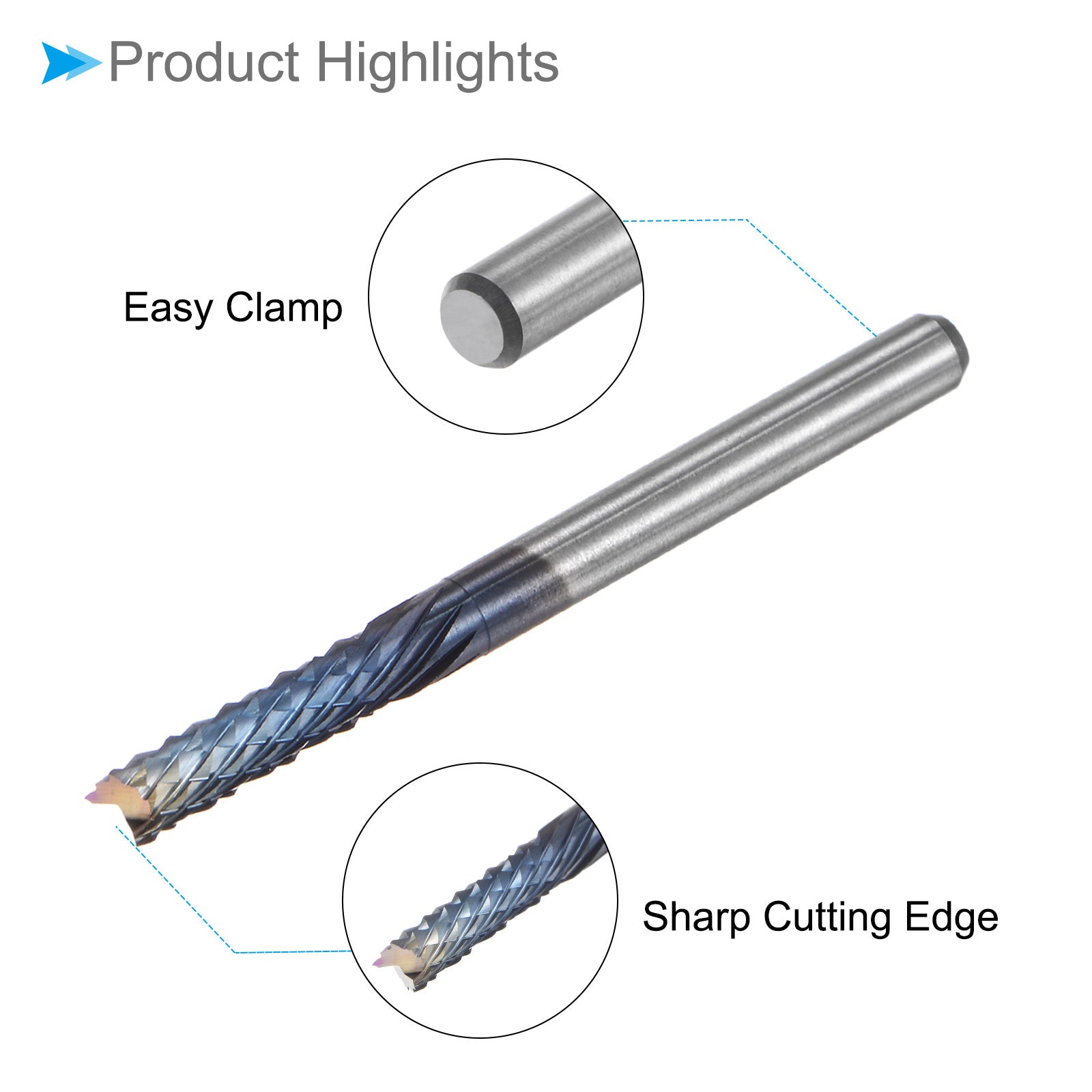

  • ★ Sharp Cutting Edge --- Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat.
  • ★ Tungsten Carbide --- Tungsten carbide tip has high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience.
  • ★ Useful Tips --- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. The positioning ring reduces machine set-up time and increase efficiency.
  • In stock, ready to ship
Cart
Cart
About this item
  • ★ End Mill Router Bits Size --- Cutting edge diameter: 3mm / 0.118"; shank diameter: 3.175mm / 1/8"; cutting edge length: 12mm / 0.472"; overall length: 38mm / 1-1/2"; milling direction: left hand
  • ★ Wide Applications --- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminium, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high precision special drilling equipment.
  • ★ Sharp Cutting Edge --- Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat.
  • ★ Tungsten Carbide --- Tungsten carbide tip has high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience.
  • ★ Useful Tips --- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. The positioning ring reduces machine set-up time and increase efficiency.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Attributes:
* Cutting Edge Diameter: 3mm / 0.118"
* Shank Diameter: 3.175mm / 1/8"
* Cutting Edge Length: 12mm / 0.472"
* Overall Length: 38mm / 1-1/2"
* Milling Direction: Left Hand
* Material: G05 Tungsten Carbide
* Finish: Diamond Film Coated
* Coating Process: CVD (Chemical Vapor Deposition)
* Style: Corn Shape

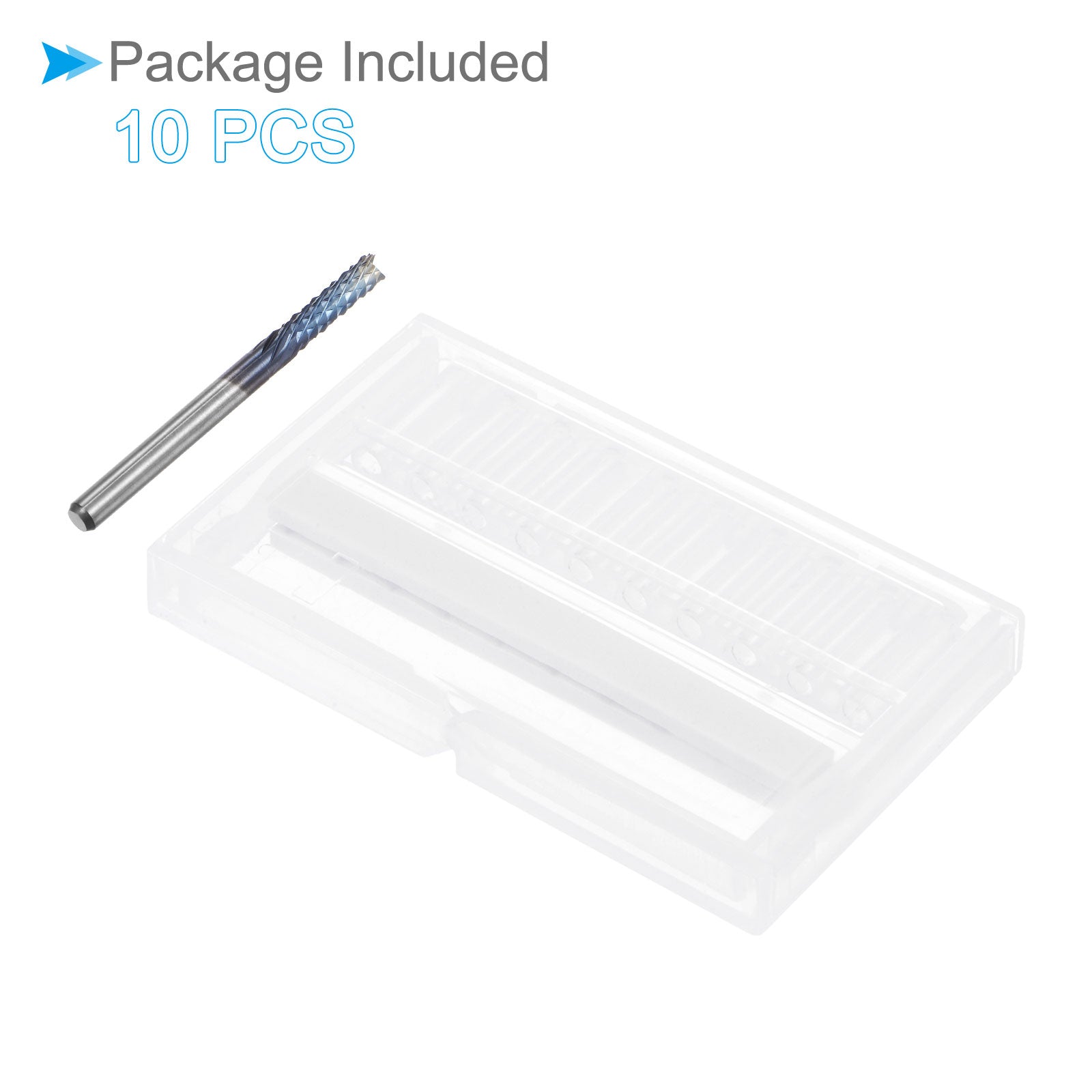

What Is Included:
* 10 Pieces x End Mill Router Bits

Applications & Features:
--- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminum, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high-precision special drilling equipment. Use vertically and control your CNC speed well. Can work quickly and cleanly, no glitches or scrap left.
--- Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat. The positioning ring reduces machine set-up time and increases efficiency.
--- Tungsten carbide bits have high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience.
--- The diamond film coating processed by CVD (Chemical Vapor Deposition) is very close to natural diamond and has high hardness, high elastic modulus, high thermal conductivity, good self-lubrication and chemical stability.

Useful Tips:
--- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. If the clamping length is short, the feed rate and cutting speed should be reduced to reduce vibration and increase tool life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£21.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Attributes:
* Cutting Edge Diameter: 3mm / 0.118"
* Shank Diameter: 3.175mm / 1/8"
* Cutting Edge Length: 12mm / 0.472"
* Overall Length: 38mm / 1-1/2"
* Milling Direction: Left Hand
* Material: G05 Tungsten Carbide
* Finish: Diamond Film Coated
* Coating Process: CVD (Chemical Vapor Deposition)
* Style: Corn Shape

What Is Included:
* 10 Pieces x End Mill Router Bits

Applications & Features:
--- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminum, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high-precision special drilling equipment. Use vertically and control your CNC speed well. Can work quickly and cleanly, no glitches or scrap left.
--- Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat. The positioning ring reduces machine set-up time and increases efficiency.
--- Tungsten carbide bits have high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience.
--- The diamond film coating processed by CVD (Chemical Vapor Deposition) is very close to natural diamond and has high hardness, high elastic modulus, high thermal conductivity, good self-lubrication and chemical stability.

Useful Tips:
--- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. If the clamping length is short, the feed rate and cutting speed should be reduced to reduce vibration and increase tool life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
