Harfington Square Nose End Mill, 4 Flute 0.98" Cutting Dia, with MT3 Morse Taper Shank

Square Nose End Mill, 4 Flute 0.98" Cutting Dia, with MT3 Morse Taper Shank

ID:
£16.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • ★ Square Nose End Mill Size --- Cutting Dia.: 25mm / 0.98 inch, Cutting Flute Length: 20mm / 0.8 inch, Overall Length: 130mm / 5.12 inch, Number of Flutes: 4 Flutes. You will receive 1pcs square nose end mill in 1 package.
  • ★ Wide Applications --- Widely used in factories, workshops, special equipment manufacturing, etc. Suitable for cutting alloy steel, stainless steel, carbon steel, aluminum, copper, plastic, etc. Can be used on CNC, milling machines, drilling machines, lathes and other high-speed CNC machine tools.

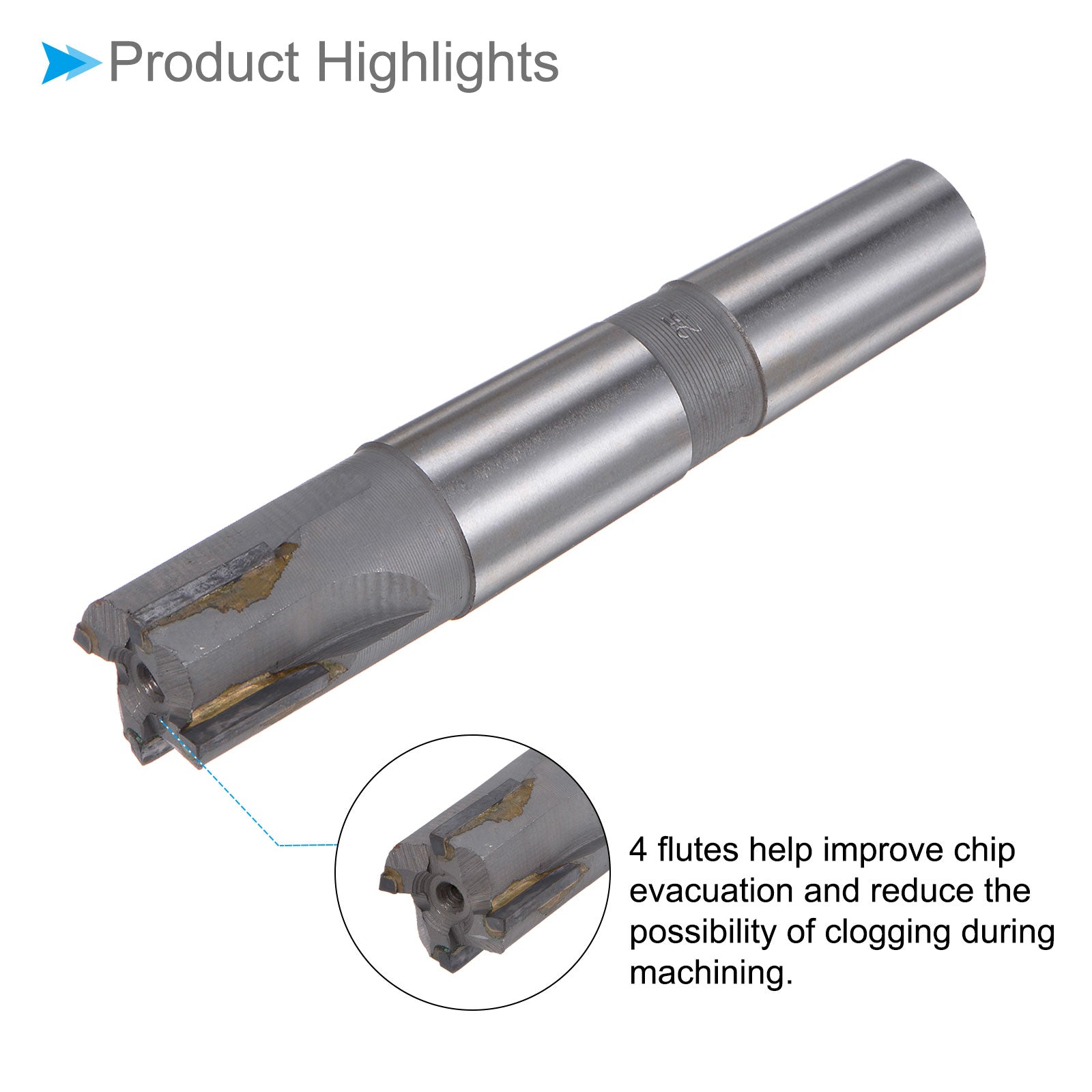

  • ★ 4-Flute Design --- 4 flutes help improve chip evacuation and reduce the possibility of clogging during machining. Straight flute tools collect chips in the flute as they cut, making them suit for most shallow cutting applications.
  • ★ C1 (YG8/K30) carbide --- Made of C1 (YG8/K30) carbide, which has higher hardness, better toughness, more high-temperature resistance and adhesion resistance, ensuring good milling and cutting performance.
  • ★ Useful Tips --- If the clamping length is short, the feed and cutting speed need to be reduced to reduce vibration and extend its service life.
  • In stock, ready to ship
Cart
Cart
About this item
  • ★ Square Nose End Mill Size --- Cutting Dia.: 25mm / 0.98 inch, Cutting Flute Length: 20mm / 0.8 inch, Overall Length: 130mm / 5.12 inch, Number of Flutes: 4 Flutes. You will receive 1pcs square nose end mill in 1 package.
  • ★ Wide Applications --- Widely used in factories, workshops, special equipment manufacturing, etc. Suitable for cutting alloy steel, stainless steel, carbon steel, aluminum, copper, plastic, etc. Can be used on CNC, milling machines, drilling machines, lathes and other high-speed CNC machine tools.
  • ★ 4-Flute Design --- 4 flutes help improve chip evacuation and reduce the possibility of clogging during machining. Straight flute tools collect chips in the flute as they cut, making them suit for most shallow cutting applications.
  • ★ C1 (YG8/K30) carbide --- Made of C1 (YG8/K30) carbide, which has higher hardness, better toughness, more high-temperature resistance and adhesion resistance, ensuring good milling and cutting performance.
  • ★ Useful Tips --- If the clamping length is short, the feed and cutting speed need to be reduced to reduce vibration and extend its service life.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Attributes:

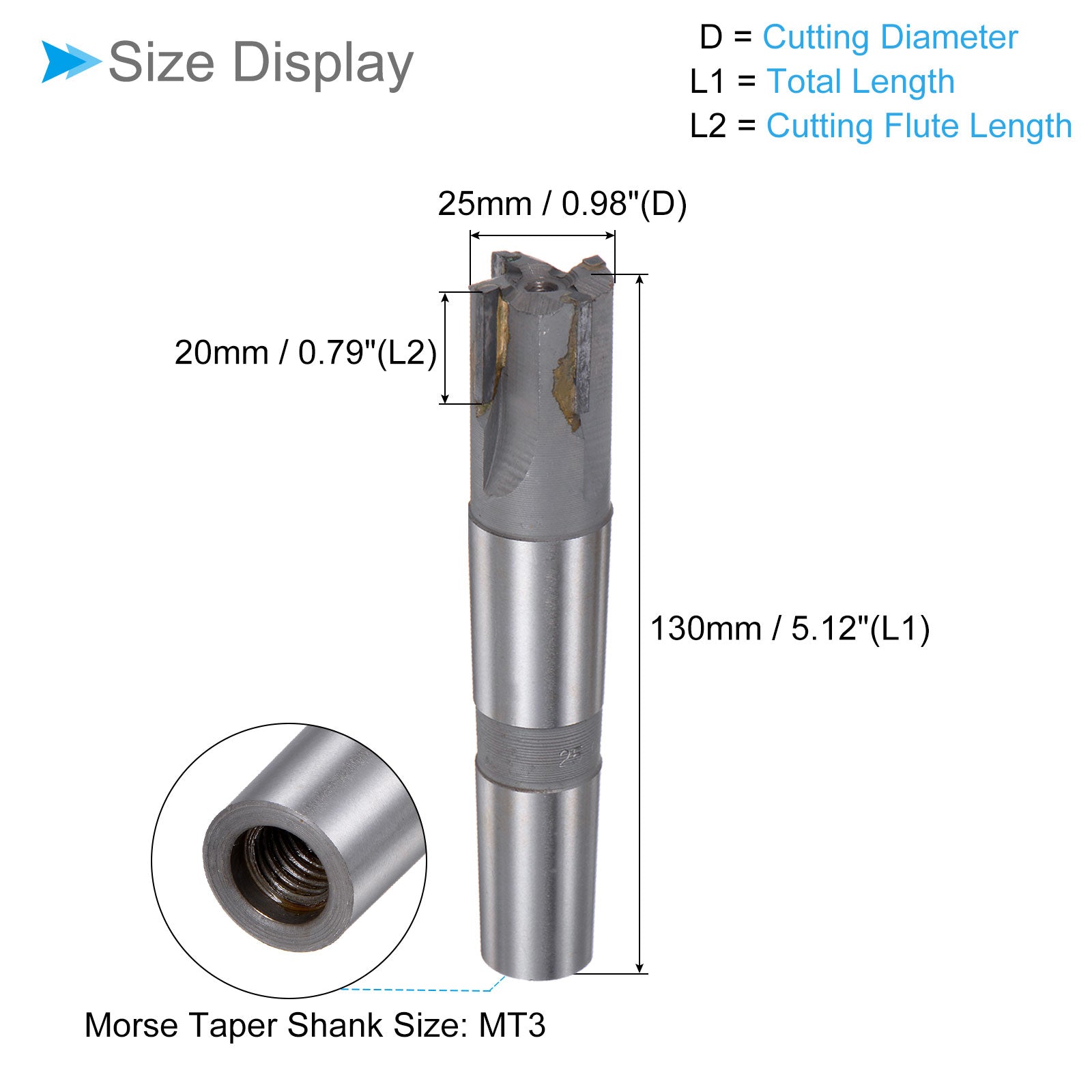

* Cutting Diameter: 25mm / 0.98 inch
* Cutting Flute Length: 20mm / 0.79 inch
* Overall Length: 130mm / 5.12 inch
* Morse Taper Shank Size: MT3
* Tip Material: Tungsten Carbide (YG8/C1/K30)
* Shank Material: High Speed Steel (HSS)
* Number of Flutes: 4 Flutes

What Is Included:

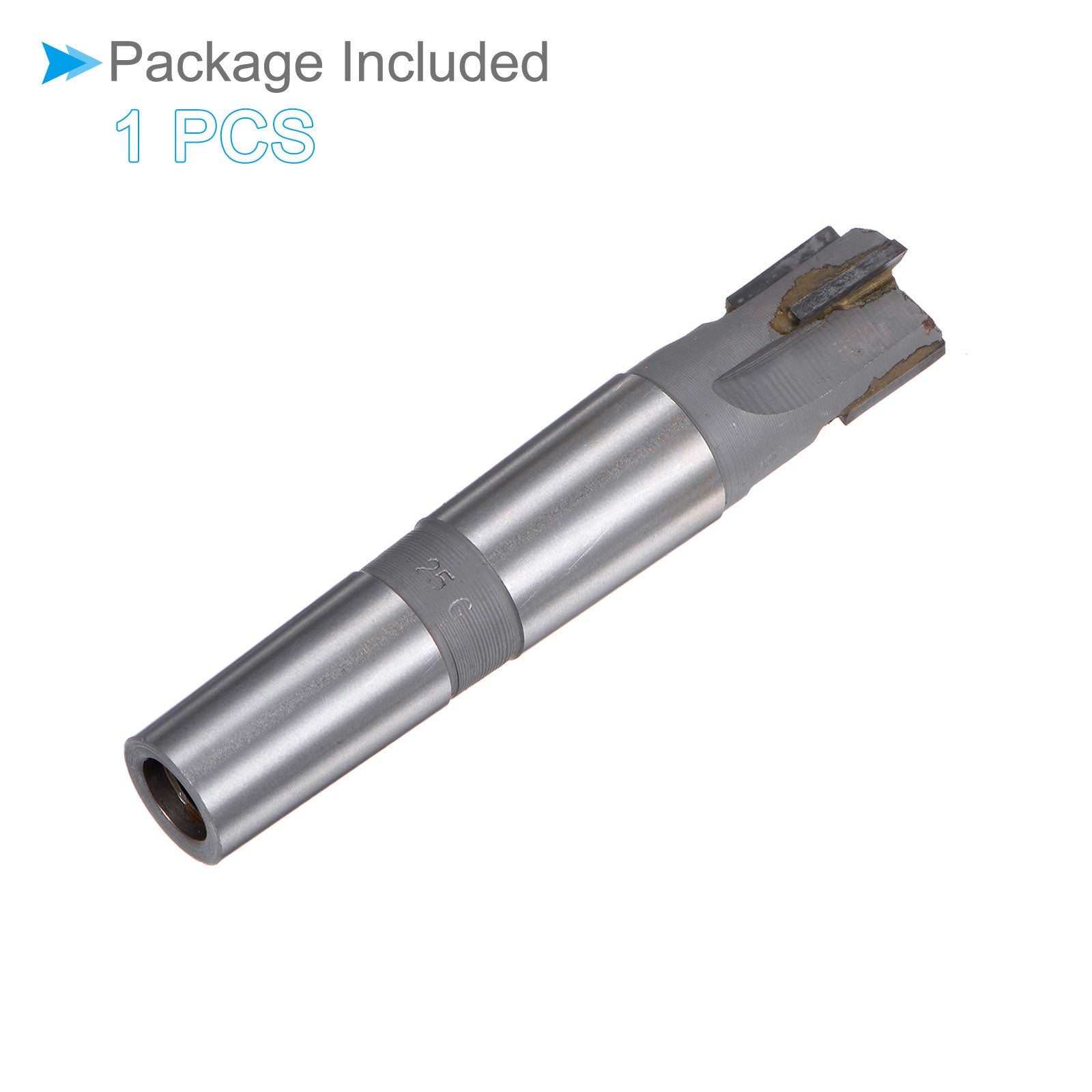

* 1 Piece x  Square Nose End Mill

Applications & Features:
---  Suitable for cutting alloy steel, stainless steel, carbon steel, aluminum, copper, plastic, etc. Suitable for shallow groove machining, side milling and finishing. Can be used on CNC machining centers, milling machines, drilling machines, lathes and other high-speed CNC machine tools.
---  Features square end cut, 4-flute design. Straight flute tools collect chips in the flute as they cut, making them suit for most shallow cutting applications. The square cutting edges are sharp, ensuring efficient and precise milling operations.
---  Made of C1 (YG8/K30) carbide. Compared with C2 (YG6/K20) carbide, C1 carbide tip end mill has higher hardness, better toughness, more high-temperature resistance and adhesion resistance, ensuring good milling and cutting performance.

Useful Tips:
---  If the clamping length is short, the feed and cutting speed need to be reduced to reduce vibration and extend its service life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£16.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Attributes:
* Cutting Diameter: 25mm / 0.98 inch
* Cutting Flute Length: 20mm / 0.79 inch
* Overall Length: 130mm / 5.12 inch
* Morse Taper Shank Size: MT3
* Tip Material: Tungsten Carbide (YG8/C1/K30)
* Shank Material: High Speed Steel (HSS)
* Number of Flutes: 4 Flutes

What Is Included:
* 1 Piece x  Square Nose End Mill

Applications & Features:
---  Suitable for cutting alloy steel, stainless steel, carbon steel, aluminum, copper, plastic, etc. Suitable for shallow groove machining, side milling and finishing. Can be used on CNC machining centers, milling machines, drilling machines, lathes and other high-speed CNC machine tools.
---  Features square end cut, 4-flute design. Straight flute tools collect chips in the flute as they cut, making them suit for most shallow cutting applications. The square cutting edges are sharp, ensuring efficient and precise milling operations.
---  Made of C1 (YG8/K30) carbide. Compared with C2 (YG6/K20) carbide, C1 carbide tip end mill has higher hardness, better toughness, more high-temperature resistance and adhesion resistance, ensuring good milling and cutting performance.

Useful Tips:
---  If the clamping length is short, the feed and cutting speed need to be reduced to reduce vibration and extend its service life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
