Harfington M8 x 1.25 Metric Alloy Tool Steel Screw Thread Hand Threading Taps 1-Pair

M8 x 1.25 Metric Alloy Tool Steel Screw Thread Hand Threading Taps 1-Pair

ID:
£7.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

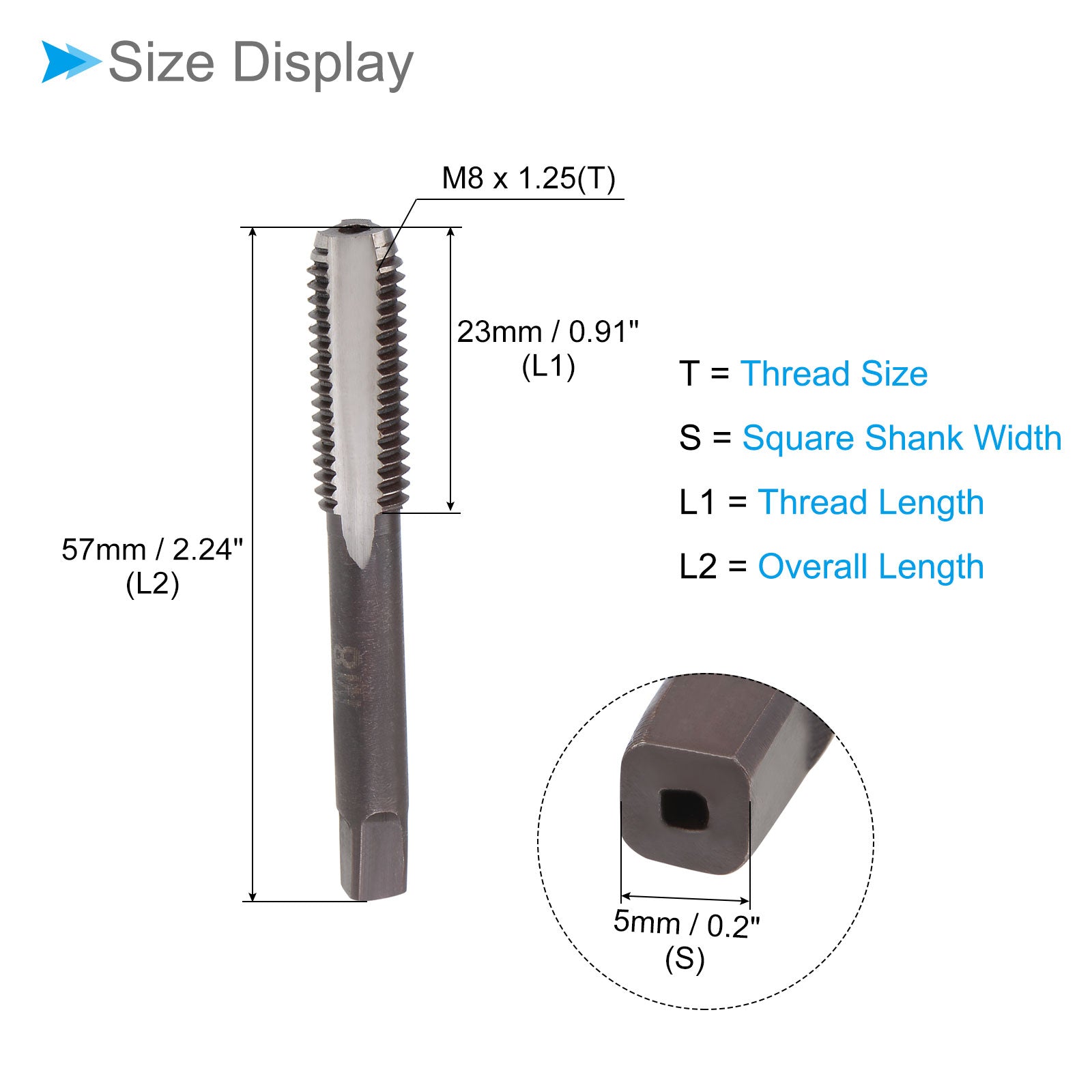

  • ★ Hand Threading Tap Size --- Thread size: M8 x 1.25 (right hand); square shank width: 5mm / 0.2"; thread length: 23mm / 0.91"; overall length: 57mm / 2.24"

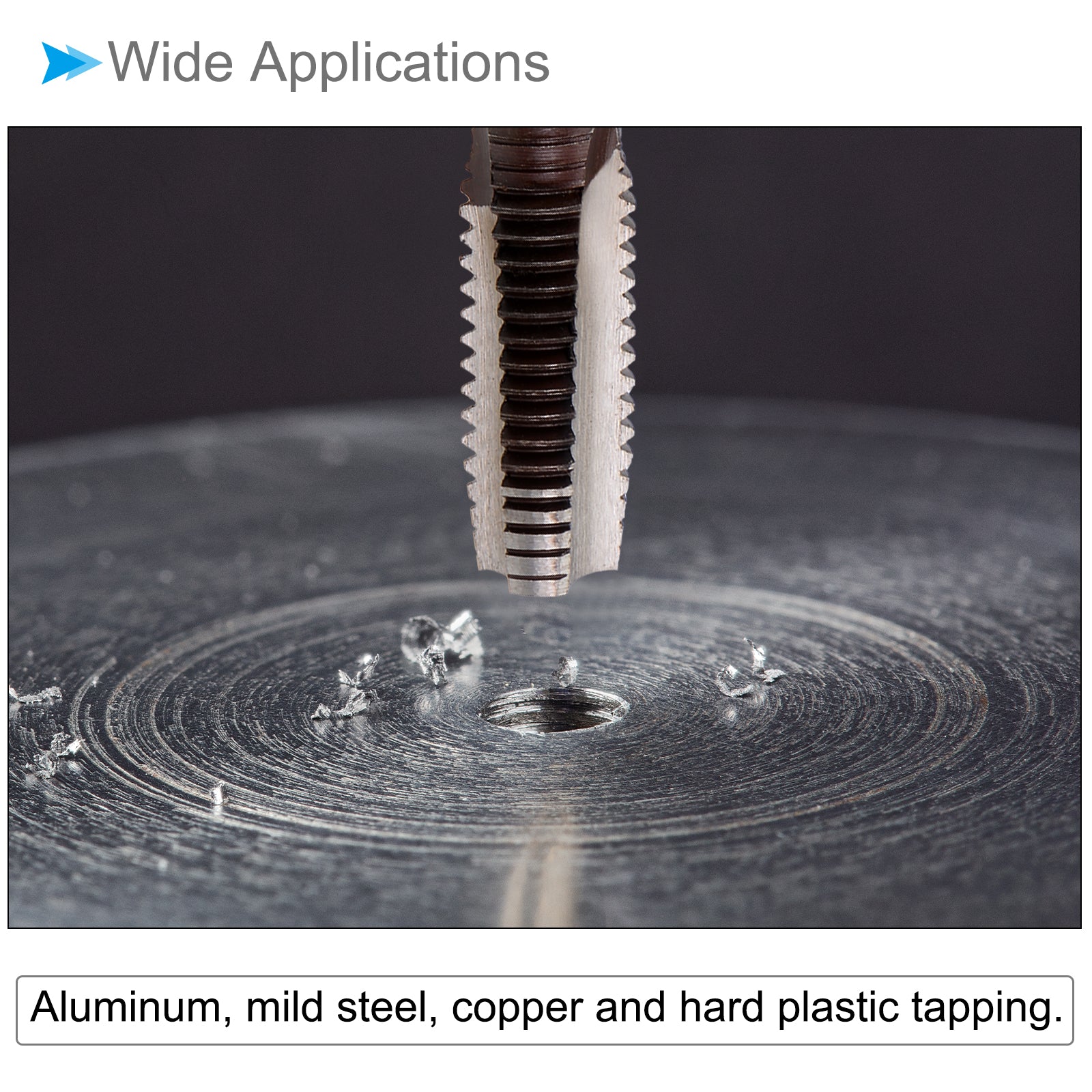

  • ★ Wide Applications --- For tapping through or shallow and blind holes. Straight flute design, downward chip removal. Create new female threads or re-thread damaged or jammed female threads. Used for threading aluminum, mild steel, copper, hard plastic, etc.

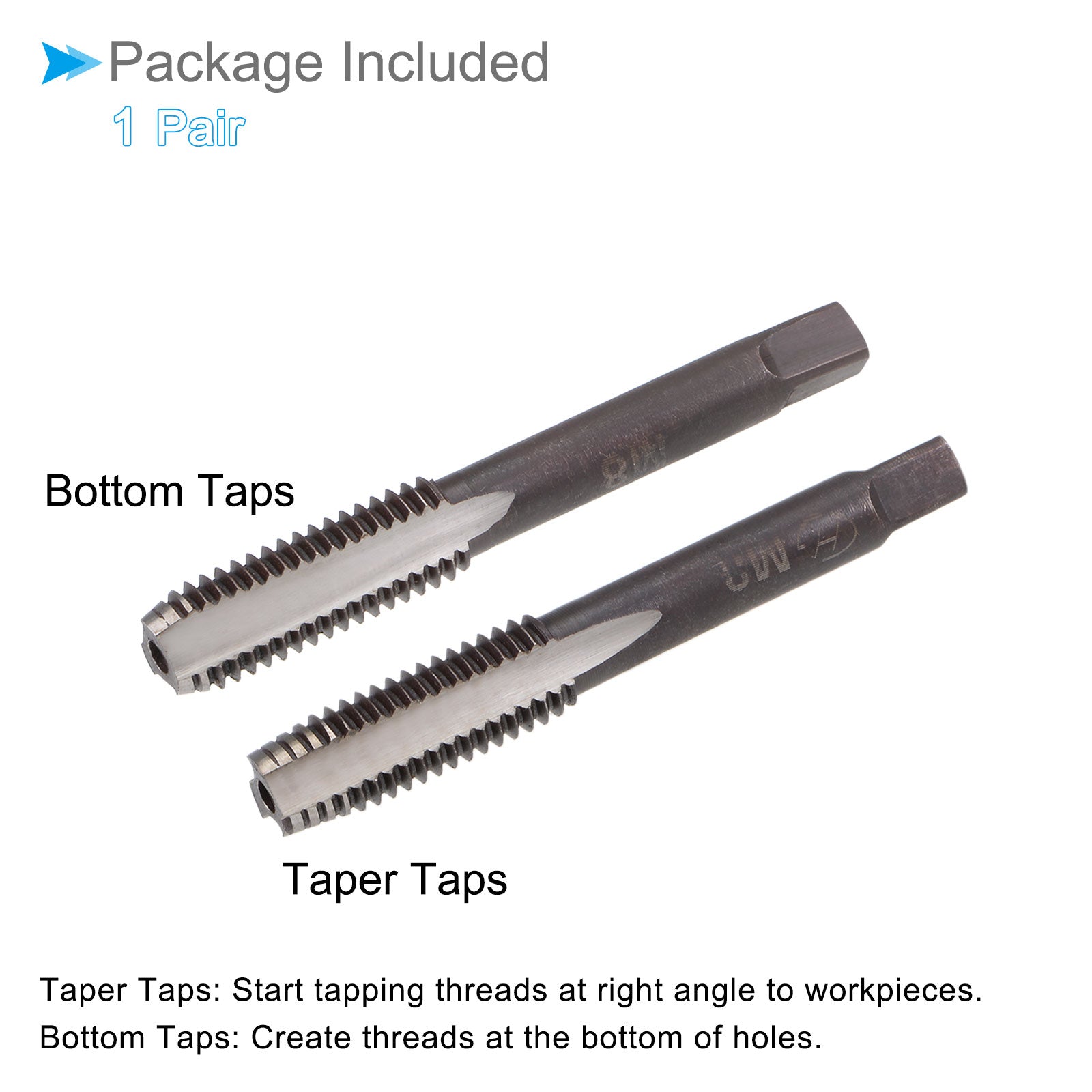

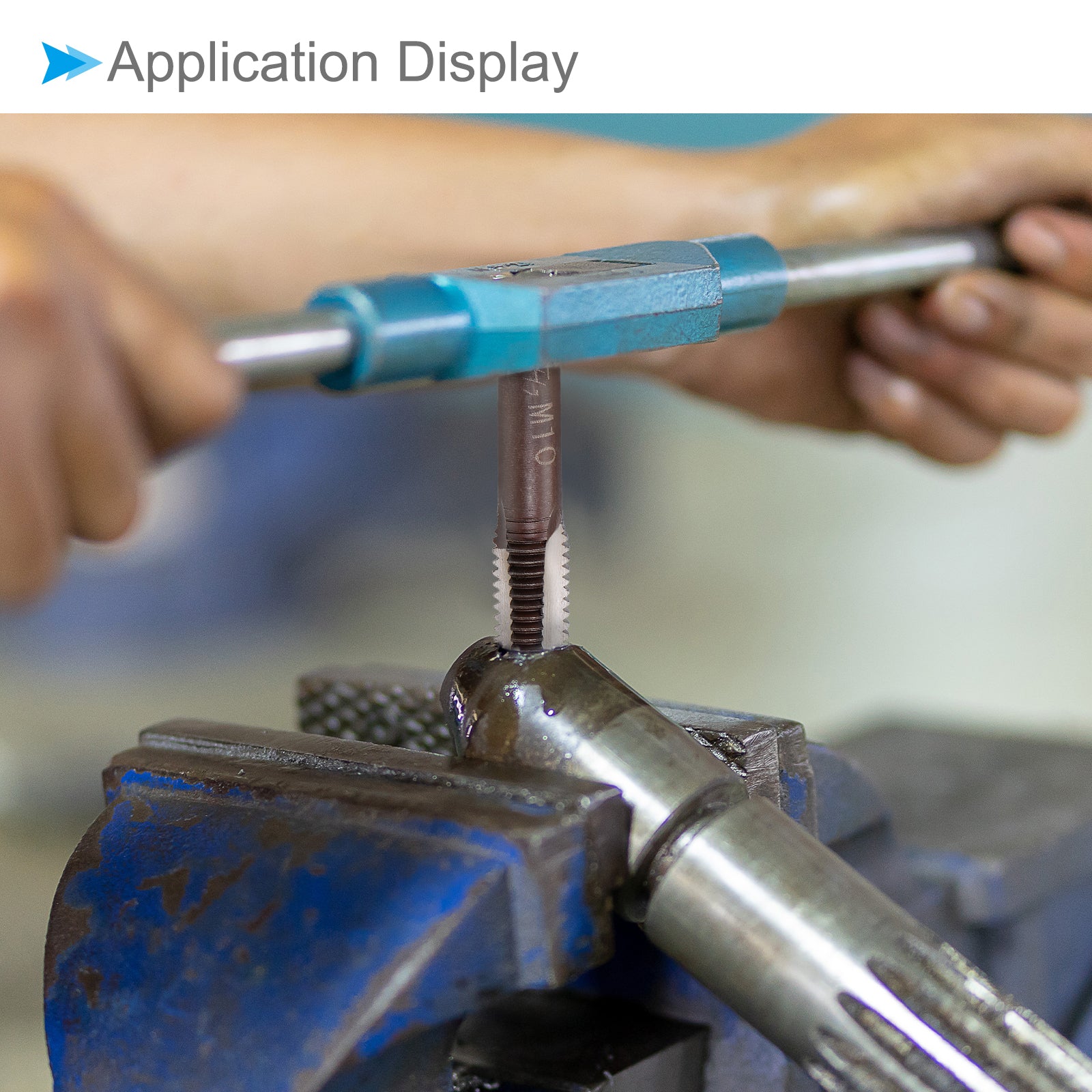

  • ★ Hand Taps --- Hand taps are used by tap wrenches. Taper taps start tapping threads at right angle to workpieces, plug taps is generally used for drilling through holes, and bottom taps create threads at the bottom of holes.
  • ★ Alloy Tool Steel --- Alloy tool steel (9SiCr) screw taps have high hardness, high torque, good toughness and wear-resistance, good for general purpose applications.
  • ★ Useful Tips --- The surface of the tap has a reddish-brown coating, which belongs to the normal processing technology. ( it is not rusty.) Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • In stock, ready to ship
Cart
Cart
About this item
  • ★ Hand Threading Tap Size --- Thread size: M8 x 1.25 (right hand); square shank width: 5mm / 0.2"; thread length: 23mm / 0.91"; overall length: 57mm / 2.24"
  • ★ Wide Applications --- For tapping through or shallow and blind holes. Straight flute design, downward chip removal. Create new female threads or re-thread damaged or jammed female threads. Used for threading aluminum, mild steel, copper, hard plastic, etc.
  • ★ Hand Taps --- Hand taps are used by tap wrenches. Taper taps start tapping threads at right angle to workpieces, plug taps is generally used for drilling through holes, and bottom taps create threads at the bottom of holes.
  • ★ Alloy Tool Steel --- Alloy tool steel (9SiCr) screw taps have high hardness, high torque, good toughness and wear-resistance, good for general purpose applications.
  • ★ Useful Tips --- The surface of the tap has a reddish-brown coating, which belongs to the normal processing technology. ( it is not rusty.) Add appropriate tapping oil for higher quality internal threads and more durable taps.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Attributes:
* Thread Size: M8 x 1.25
* Square Shank Width: 5mm / 0.2"
* Thread Length: 23mm / 0.91"
* Overall Length: 57mm / 2.24"
* Material: Alloy Tool Steel (9SiCr)

What Is Included:
* 1 Pair x Hand Threading Taps

Applications & Features:

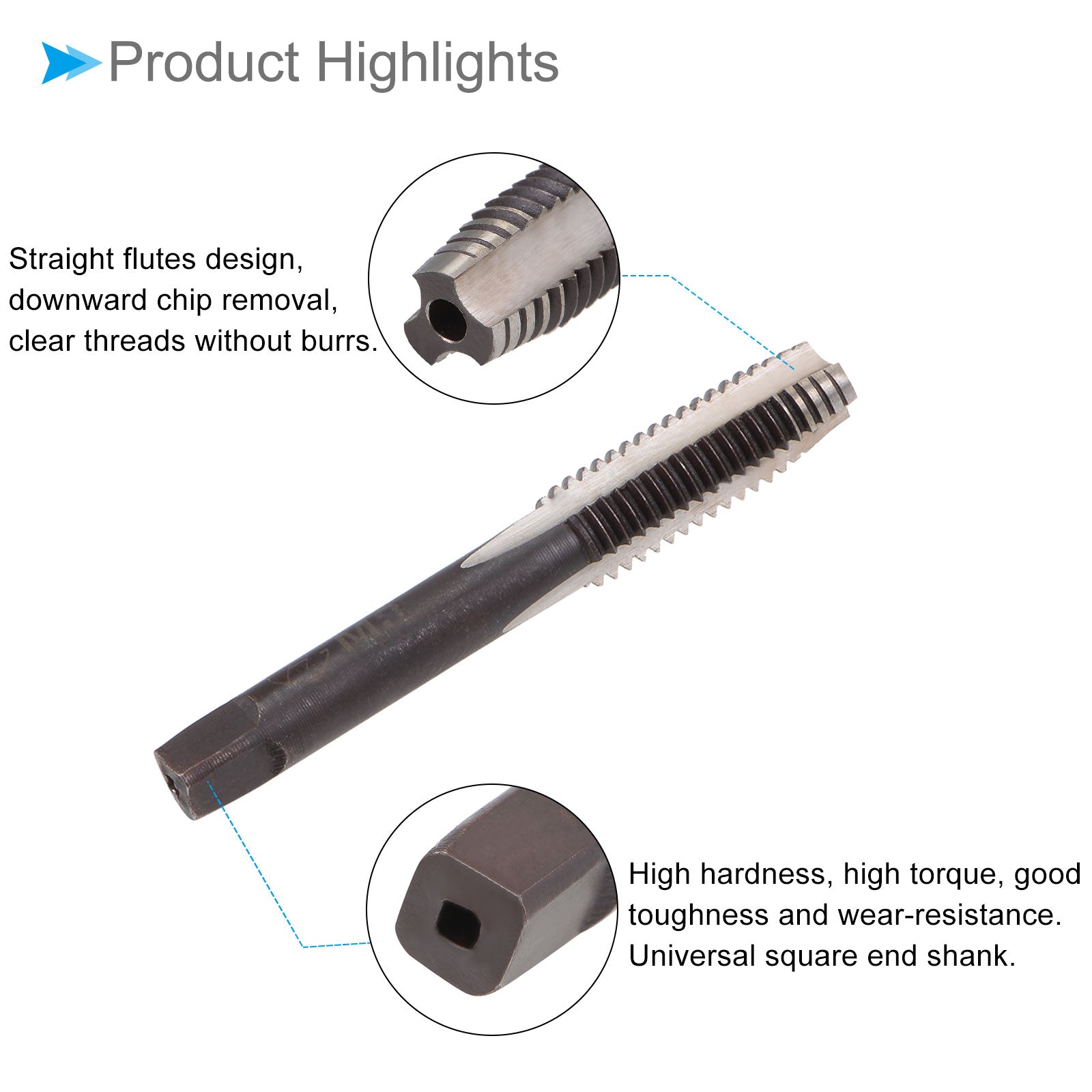

--- Suitable for tapping through or shallow and blind holes. Straight flutes design, downward chip removal, clear threads without burrs, fast thread processing. Hand taps can create new female threads or re-thread damaged or jammed female threads. Used for threading aluminum, mild steel, copper, hard plastic, etc. Hand taps are used by tap wrenches. Taper taps start tapping threads at right angle to workpieces, plug taps is generally used for drilling through holes, and bottom taps create threads at the bottom of holes.
--- Alloy tool steel (9SiCr) screw taps have high hardness, high torque, good toughness and wear-resistance, good for general purpose applications. The surface of the tap has a reddish-brown coating, which belongs to the normal processing technology. ( it is not rusty.) Tapping oil is lubrication, cooling and anti-sticking. Add appropriate tapping oil for higher quality internal threads and more durable taps. The tapping depth should not exceed 1.5 times the diameter (eg: diameter=6mm (M6), maximum tapping depth=9mm). Drill holes with a twist drill before tapping, and the tapping angle should be 90 degrees vertical and stable.

Useful Tips:
--- The higher the hardness, the slower the speed. Fast speed and low torque; slow speed and high torque. When tapping plastic, add lubricating coolant. For steel, motor oil is generally used, and vegetable oil is used for high requirements. Apply anti-rust oil for maintenance after use to prolong the service life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£7.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Attributes:
* Thread Size: M8 x 1.25
* Square Shank Width: 5mm / 0.2"
* Thread Length: 23mm / 0.91"
* Overall Length: 57mm / 2.24"
* Material: Alloy Tool Steel (9SiCr)

What Is Included:
* 1 Pair x Hand Threading Taps

Applications & Features:
--- Suitable for tapping through or shallow and blind holes. Straight flutes design, downward chip removal, clear threads without burrs, fast thread processing. Hand taps can create new female threads or re-thread damaged or jammed female threads. Used for threading aluminum, mild steel, copper, hard plastic, etc. Hand taps are used by tap wrenches. Taper taps start tapping threads at right angle to workpieces, plug taps is generally used for drilling through holes, and bottom taps create threads at the bottom of holes.
--- Alloy tool steel (9SiCr) screw taps have high hardness, high torque, good toughness and wear-resistance, good for general purpose applications. The surface of the tap has a reddish-brown coating, which belongs to the normal processing technology. ( it is not rusty.) Tapping oil is lubrication, cooling and anti-sticking. Add appropriate tapping oil for higher quality internal threads and more durable taps. The tapping depth should not exceed 1.5 times the diameter (eg: diameter=6mm (M6), maximum tapping depth=9mm). Drill holes with a twist drill before tapping, and the tapping angle should be 90 degrees vertical and stable.

Useful Tips:
--- The higher the hardness, the slower the speed. Fast speed and low torque; slow speed and high torque. When tapping plastic, add lubricating coolant. For steel, motor oil is generally used, and vegetable oil is used for high requirements. Apply anti-rust oil for maintenance after use to prolong the service life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
