Harfington 2pcs 6203 Deep Groove Ball Bearings 12x32x12mm CN Open Type Chrome Steel

2pcs 6203 Deep Groove Ball Bearings 12x32x12mm CN Open Type Chrome Steel

ID:
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model - 6203 (I.D.=17mm, O.D.=40mm, Thickness=12mm)
  • Material - Rolling Balls are made of chrome steel with excellent surface quality, high hardness, high load capacity, and wear resistance. Cage & Inner Outer Race are both made of stamping steel.
  • Features - Single row, open type. ABEC1 accuracy, Z1 noise level, CN clearance grade.
  • Capability - Dynamic Load Rating (Cr): 9.58kN; Static Load Rating (Cor): 4.78kN; They are used to accommodate radial and axial loads in both directions.
  • Applications - Suitable for all kinds of industrial equipment, rotary motor, roller wheels, office equipment and so on.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model - 6203 (I.D.=17mm, O.D.=40mm, Thickness=12mm)
  • Material - Rolling Balls are made of chrome steel with excellent surface quality, high hardness, high load capacity, and wear resistance. Cage & Inner Outer Race are both made of stamping steel.
  • Features - Single row, open type. ABEC1 accuracy, Z1 noise level, CN clearance grade.
  • Capability - Dynamic Load Rating (Cr): 9.58kN; Static Load Rating (Cor): 4.78kN; They are used to accommodate radial and axial loads in both directions.
  • Applications - Suitable for all kinds of industrial equipment, rotary motor, roller wheels, office equipment and so on.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
  1. Single-row, pre-lubricated, normal accuracy.
  2. They are used to accommodate radial and axial loads in both directions(Mainly bear radial load, but also can bear a certain amount of axial load).
  3. Open type deep groove ball bearings are suitable for high speed and even very high-speed operation and are very durable and require no frequent maintenance.
  4. CN Clearance: This clearance is especially suitable in the bearing ring only one to the interference fit to install the occasion, and the inner and outer ring temperature difference in the operation process will not cause significant clearance loss.
  5. This type of bearing is used in industries such as precision instruments, low-noise motors and general machinery, and is the most widely used type of bearing in the machinery industry.
Specification:

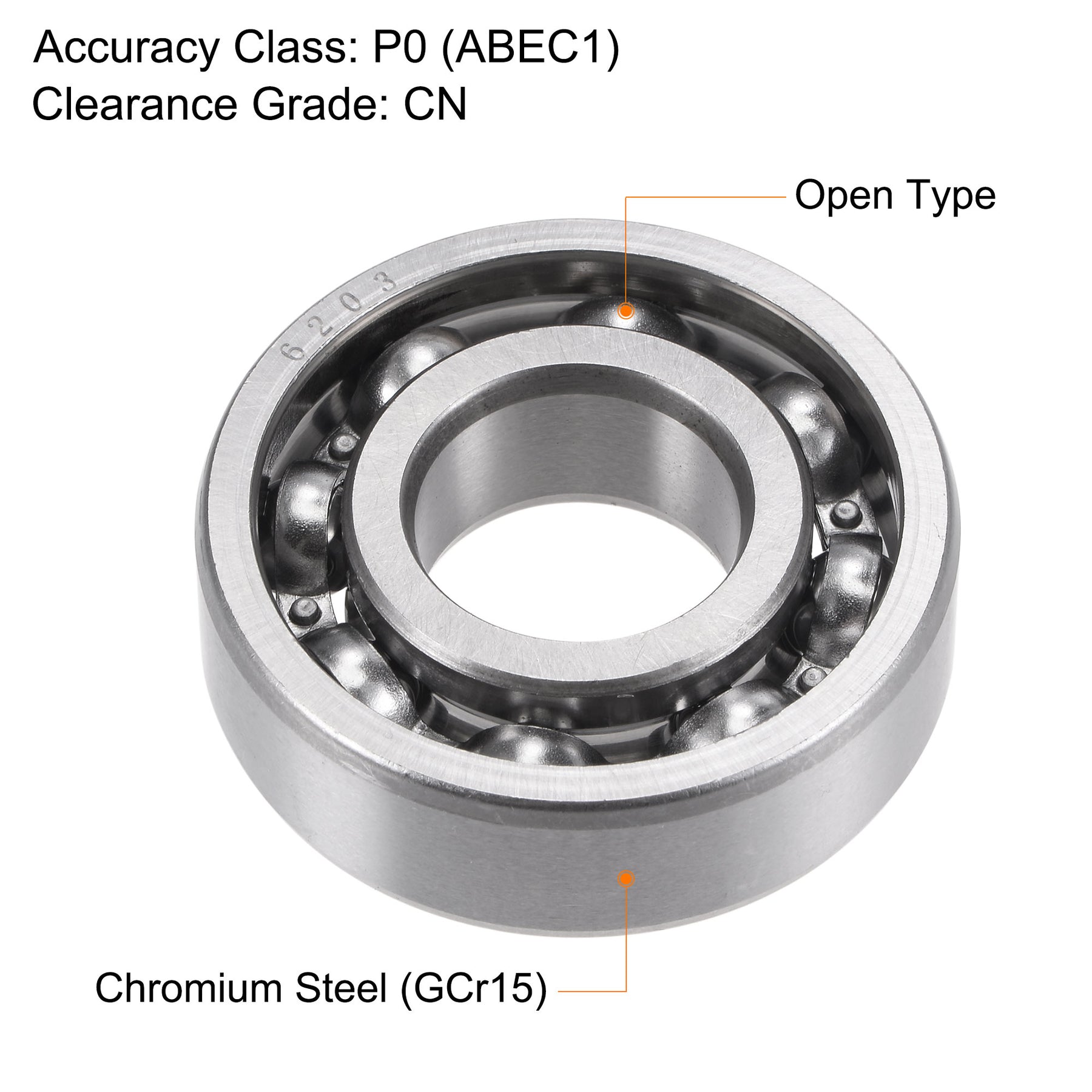

  • Model: 6203
  • Seal Type: Open Type
  • Inner Race/Outer Race Material: Chromium Steel (GCr15)
  • Cage Material: Stamping Steel

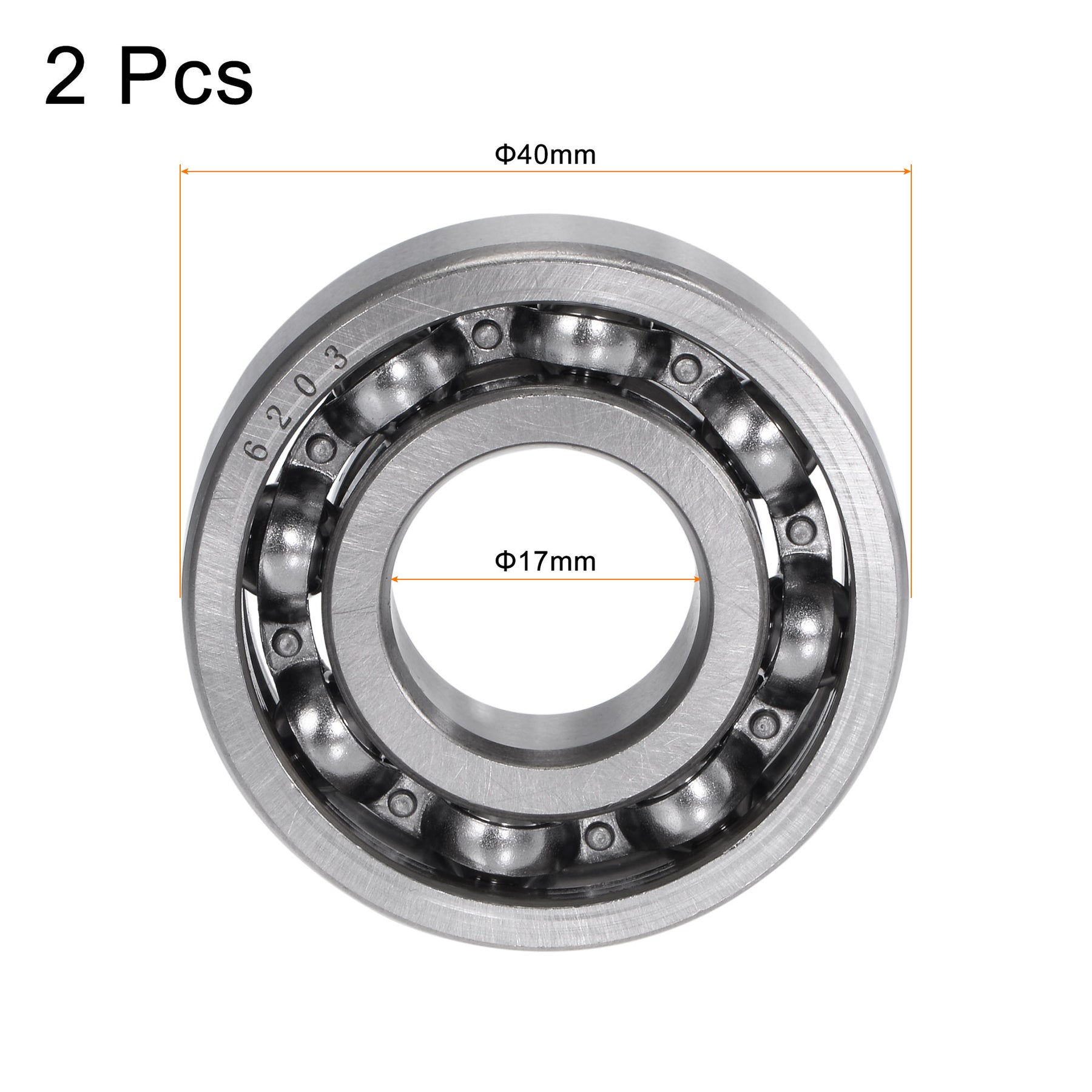

  • Inner Diameter: 17mm
  • Outer Diameter: 40mm

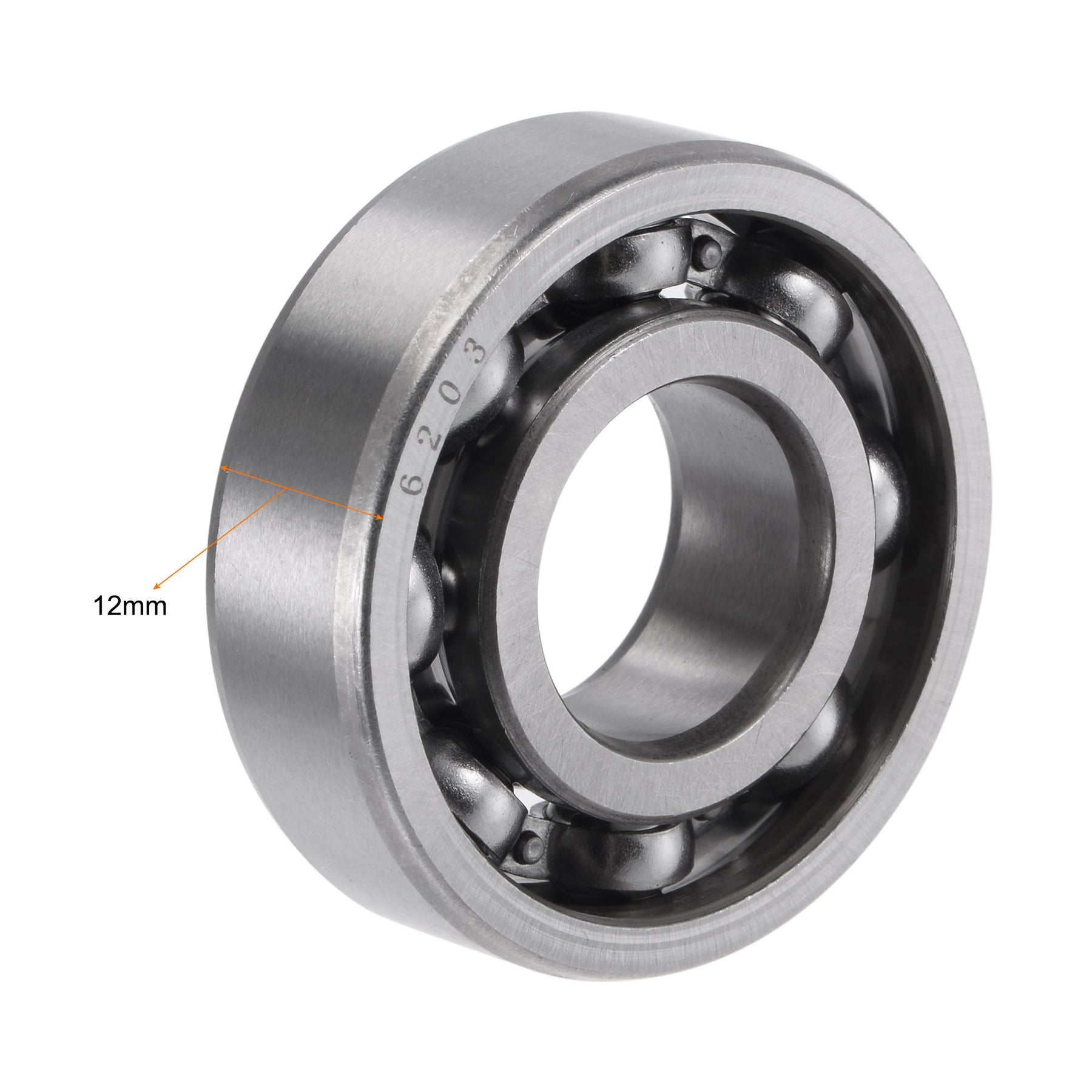

  • Thickness: 12mm
  • Dynamic Load Rating (Cr): 9.58kN
  • Static Load Rating (Cor): 4.78kN
  • Accuracy Class: P0 (ABEC1)
  • Noise Level: Z1
  • Clearance Grade: CN
Package Contents:

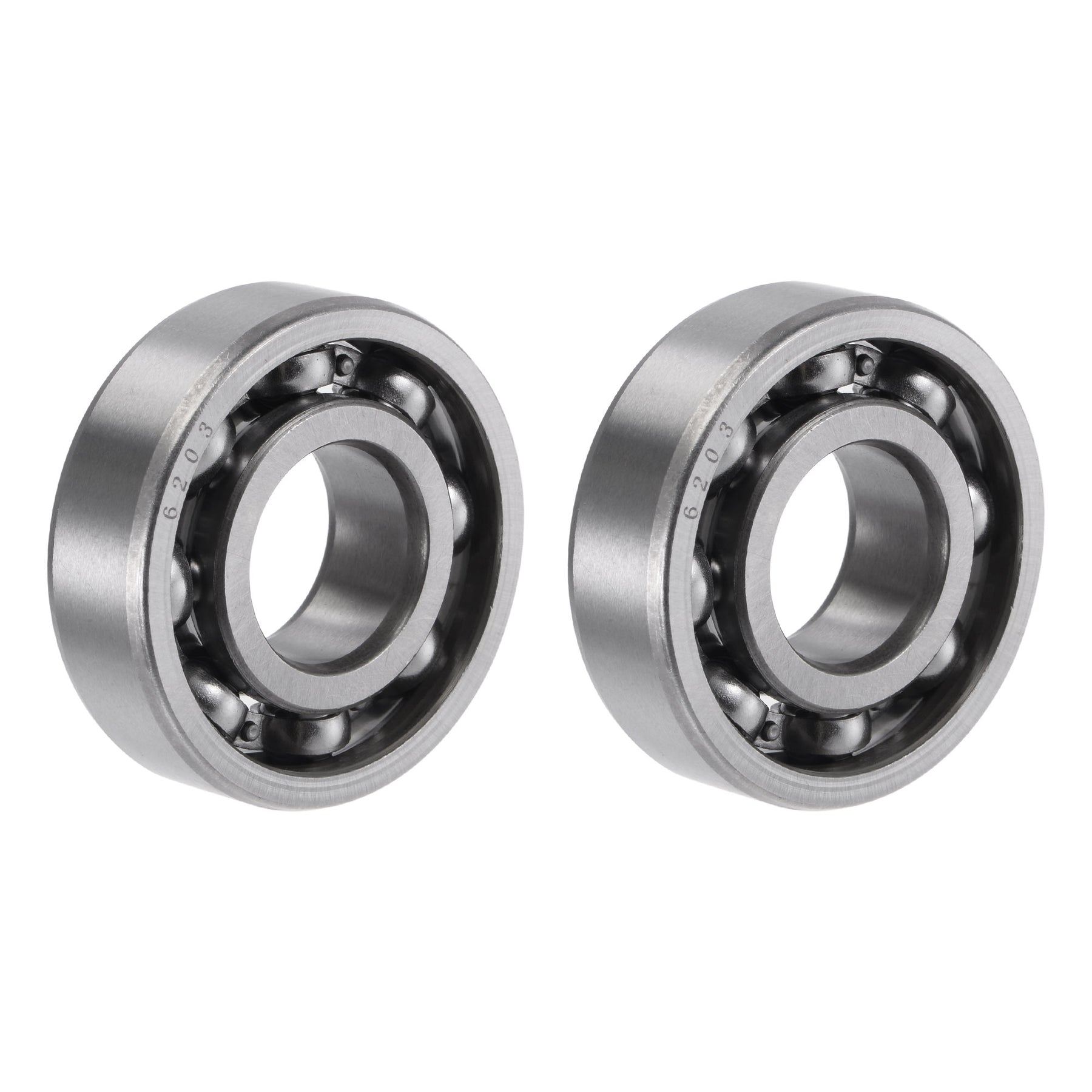

  • 2pcs x Deep Groove Ball Bearing
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:
  1. Single-row, pre-lubricated, normal accuracy.
  2. They are used to accommodate radial and axial loads in both directions(Mainly bear radial load, but also can bear a certain amount of axial load).
  3. Open type deep groove ball bearings are suitable for high speed and even very high-speed operation and are very durable and require no frequent maintenance.
  4. CN Clearance: This clearance is especially suitable in the bearing ring only one to the interference fit to install the occasion, and the inner and outer ring temperature difference in the operation process will not cause significant clearance loss.
  5. This type of bearing is used in industries such as precision instruments, low-noise motors and general machinery, and is the most widely used type of bearing in the machinery industry.
Specification:
  • Model: 6203
  • Seal Type: Open Type
  • Inner Race/Outer Race Material: Chromium Steel (GCr15)
  • Cage Material: Stamping Steel
  • Inner Diameter: 17mm
  • Outer Diameter: 40mm
  • Thickness: 12mm
  • Dynamic Load Rating (Cr): 9.58kN
  • Static Load Rating (Cor): 4.78kN
  • Accuracy Class: P0 (ABEC1)
  • Noise Level: Z1
  • Clearance Grade: CN
Package Contents:
  • 2pcs x Deep Groove Ball Bearing
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
