Harfington Spiral Flute Thread Tap 3/8-24 UNF Machine Taps HSS6542 Nitrided Coated

Spiral Flute Thread Tap 3/8-24 UNF Machine Taps HSS6542 Nitrided Coated

ID:
£10.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Spiral Flute Tap: Thread size: 3/8-24 UNF; thread length: 25mm / 0.98", overall length: 75mm / 2.95", square shank side width: 5.5mm / 0.22". 2B tolerance, right-hand thread cutting, with clean threads and sharp-cut cutting edges for fast and accurate tapping.
  • Notable Features: Spiral flute design prevents breakage, and enables more efficient tapping. The spiral tip of the tap helps guide it into the hole, reducing the torque required to turn it, and the flutes easily remove extra from the hole and machine.
  • Wide Applications: Spiral flute thread taps are suitable for machining blind or deep holes and sticky materials, and can be used for tapping stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Used with tapping oil, you can get more precise threads and more durable taps.
  • Strong & Durable: The taps are made of M2 high-speed steel (HSS6542) and run at high speeds to quickly and efficiently process threads. It has high hardness, toughness and good wear resistance, good cutting performance, and can produce clean and precise holes. Nitrided surface can improve corrosion resistance and hardness, reduce friction, and extend service life, making it very suitable for a wide range of applications.
  • Warm Tip: It is recommended to use machine taps with tap chucks with overload protection. It is not recommended for manual use and electric drill tapping to avoid damage caused by uneven force. The tapping angle should be 90 degrees vertical. The harder the material, the slower the drilling speed.
  • In stock, ready to ship
Cart
Cart
About this item
  • Spiral Flute Tap: Thread size: 3/8-24 UNF; thread length: 25mm / 0.98", overall length: 75mm / 2.95", square shank side width: 5.5mm / 0.22". 2B tolerance, right-hand thread cutting, with clean threads and sharp-cut cutting edges for fast and accurate tapping.
  • Notable Features: Spiral flute design prevents breakage, and enables more efficient tapping. The spiral tip of the tap helps guide it into the hole, reducing the torque required to turn it, and the flutes easily remove extra from the hole and machine.
  • Wide Applications: Spiral flute thread taps are suitable for machining blind or deep holes and sticky materials, and can be used for tapping stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Used with tapping oil, you can get more precise threads and more durable taps.
  • Strong & Durable: The taps are made of M2 high-speed steel (HSS6542) and run at high speeds to quickly and efficiently process threads. It has high hardness, toughness and good wear resistance, good cutting performance, and can produce clean and precise holes. Nitrided surface can improve corrosion resistance and hardness, reduce friction, and extend service life, making it very suitable for a wide range of applications.
  • Warm Tip: It is recommended to use machine taps with tap chucks with overload protection. It is not recommended for manual use and electric drill tapping to avoid damage caused by uneven force. The tapping angle should be 90 degrees vertical. The harder the material, the slower the drilling speed.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

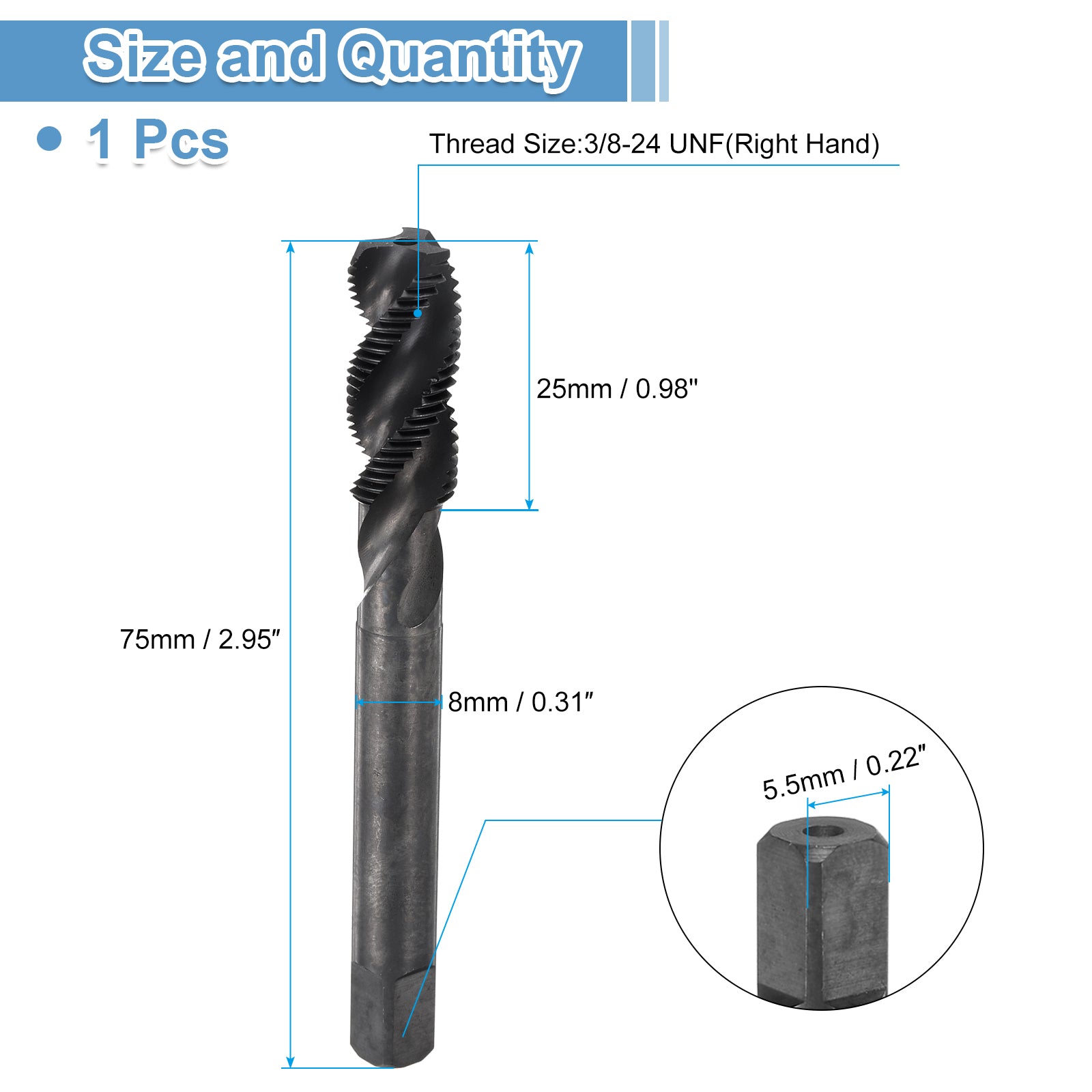

  • Thread Size: 3/8-24 UNF
  • Tolerance: 2B
  • Thread Length: 25mm / 0.98"
  • Square End Size: 5.5mm / 0.22"
  • Round Shank Dia.: 8mm / 0.31"
  • Total Length: 75mm / 2.95"
  • Material: M2 High-Speed Steel (HSS6542)
  • Finish: Nitrided Coated
  • Cutting Direction: Right Hand
  • Package Included: 1 x Spiral Flute Thread Taps

Descriptions:

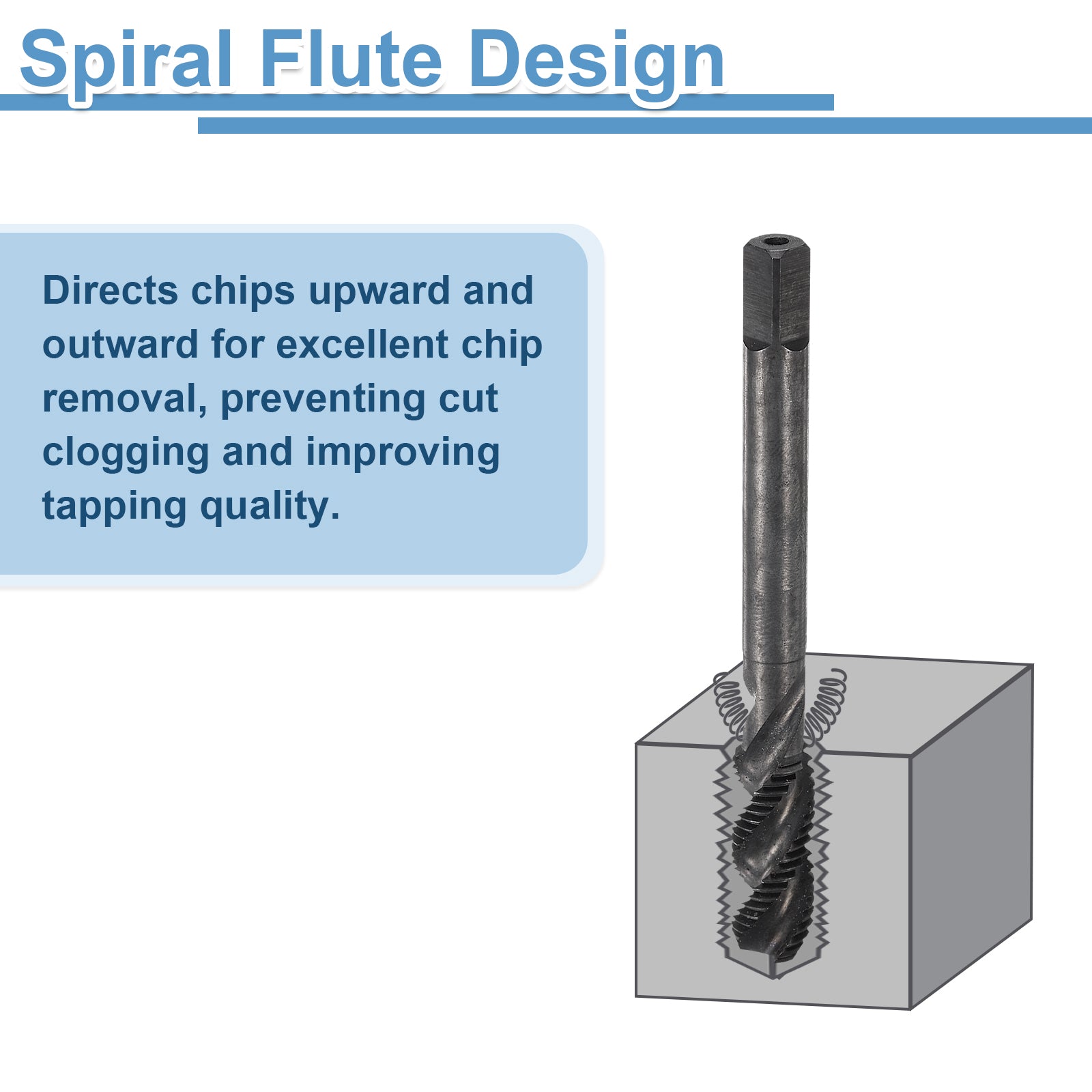

  1. The spiral flute design ensures smooth chip evacuation, prevents breakage, and enables more efficient tapping. The spiral tip of the tap helps guide it into the hole, reducing the torque required to turn it, and the flutes easily remove chips and debris from the hole and machine.
  2. Spiral flute thread taps are suitable for machining blind or deep holes and sticky materials, and can be used for tapping stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Used with tapping oil, you can get more precise threads and more durable taps.

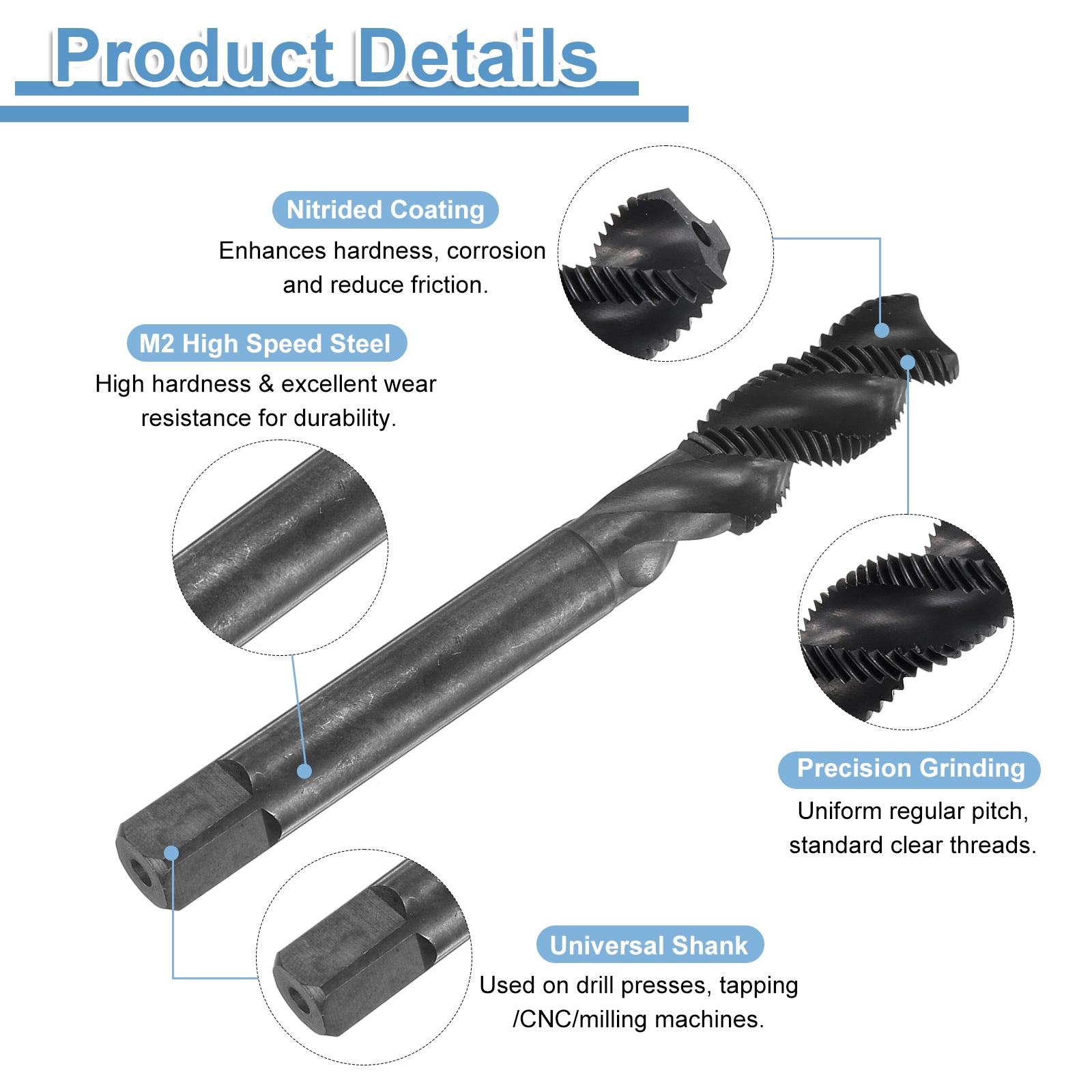

  3. The taps are made of M2 high-speed steel (HSS6542) and run at high speeds to quickly and efficiently process threads. It has high hardness, toughness and good wear resistance, good cutting performance, and can produce clean and precise holes. Nitrided surface can improve corrosion resistance and hardness, reduce friction, and extend service life, making it very suitable for a wide range of applications.
  4. It is recommended to use machine taps with tap chucks with overload protection. It is not recommended for manual use and electric drill tapping to avoid damage caused by uneven force. The tapping angle should be 90 degrees vertical. The harder the material, the slower the drilling speed.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£10.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
  • Thread Size: 3/8-24 UNF
  • Tolerance: 2B
  • Thread Length: 25mm / 0.98"
  • Square End Size: 5.5mm / 0.22"
  • Round Shank Dia.: 8mm / 0.31"
  • Total Length: 75mm / 2.95"
  • Material: M2 High-Speed Steel (HSS6542)
  • Finish: Nitrided Coated
  • Cutting Direction: Right Hand
  • Package Included: 1 x Spiral Flute Thread Taps

Descriptions:
  1. The spiral flute design ensures smooth chip evacuation, prevents breakage, and enables more efficient tapping. The spiral tip of the tap helps guide it into the hole, reducing the torque required to turn it, and the flutes easily remove chips and debris from the hole and machine.
  2. Spiral flute thread taps are suitable for machining blind or deep holes and sticky materials, and can be used for tapping stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Used with tapping oil, you can get more precise threads and more durable taps.
  3. The taps are made of M2 high-speed steel (HSS6542) and run at high speeds to quickly and efficiently process threads. It has high hardness, toughness and good wear resistance, good cutting performance, and can produce clean and precise holes. Nitrided surface can improve corrosion resistance and hardness, reduce friction, and extend service life, making it very suitable for a wide range of applications.
  4. It is recommended to use machine taps with tap chucks with overload protection. It is not recommended for manual use and electric drill tapping to avoid damage caused by uneven force. The tapping angle should be 90 degrees vertical. The harder the material, the slower the drilling speed.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
