Harfington M18 X 2.5 Metric Round Die, Machine Thread Left Hand Threading Die, Alloy Tool Steel Screw Thread Cutting Die

M18 X 2.5 Metric Round Die, Machine Thread Left Hand Threading Die, Alloy Tool Steel Screw Thread Cutting Die

ID:
£12.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

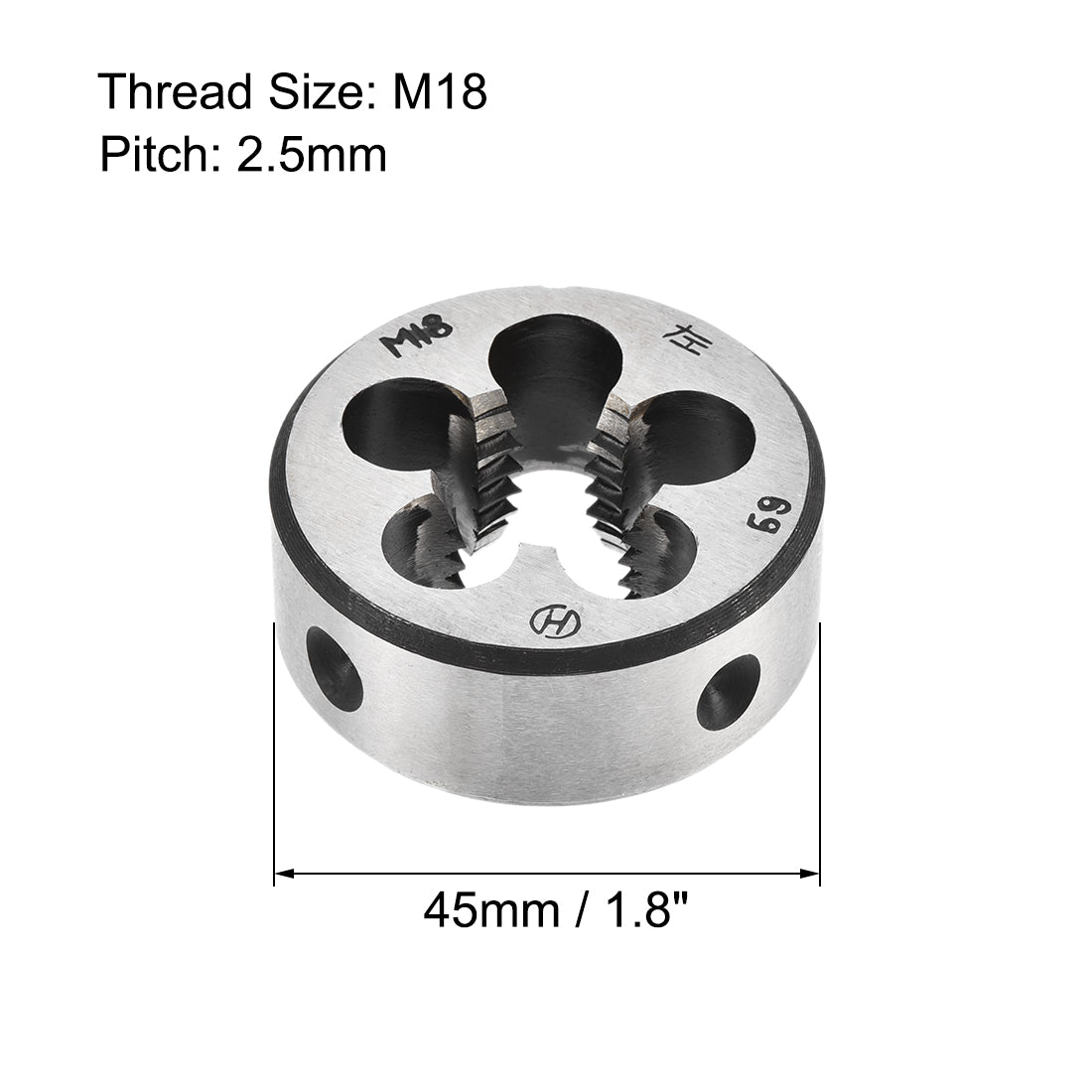

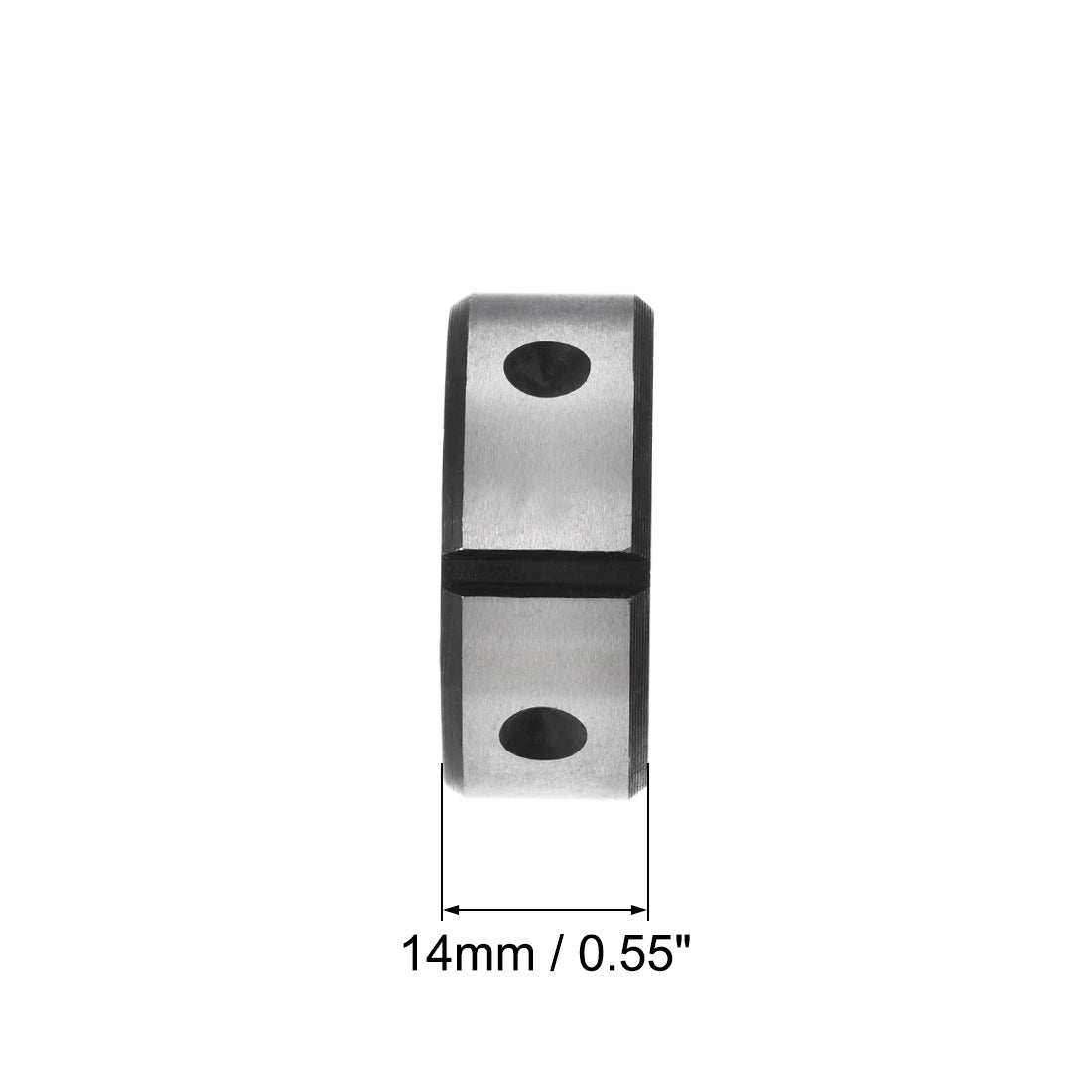

  • Round Die: Thread size: M18 X 2.5; outside diameter (OD): 45mm / 1.8"; Thickness: 14mm / 0.55"; accuracy class: 6g. Made of alloy tool steel, hardness, high torque, good toughness and wear-resistance.

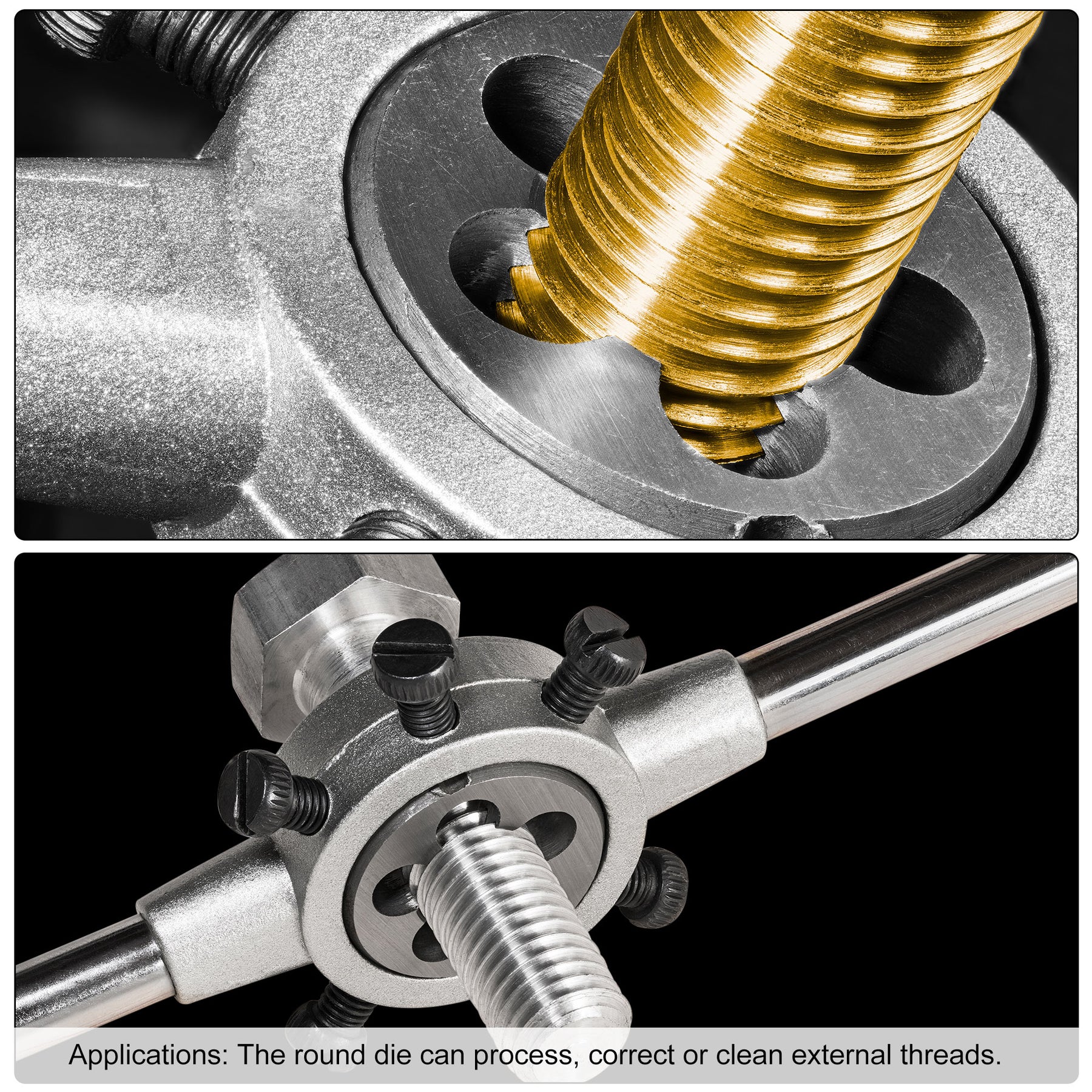

  • Applications: Can process, correct or clean the external threads. Suitable for general purpose threading in aluminum alloy, cast iron, copper, iron, aluminum, plastic, etc.. Great for maintenance and repair work on pipes, boards and machinery.
  • Features: Conical locking hole, strong locking and not loose. Perfect for re-threading existing threads in hard materials like metal and making new threads in soft material such as plastic. The surface is lubricated with grease to prevent rust, the thread is clear and easy to repair.
  • Easy to Use: The positioning groove of the die should be aligned with the fastening screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened. The end of the bar should be chamfered 1*45 degree, and the chamfer is too large to cut in.

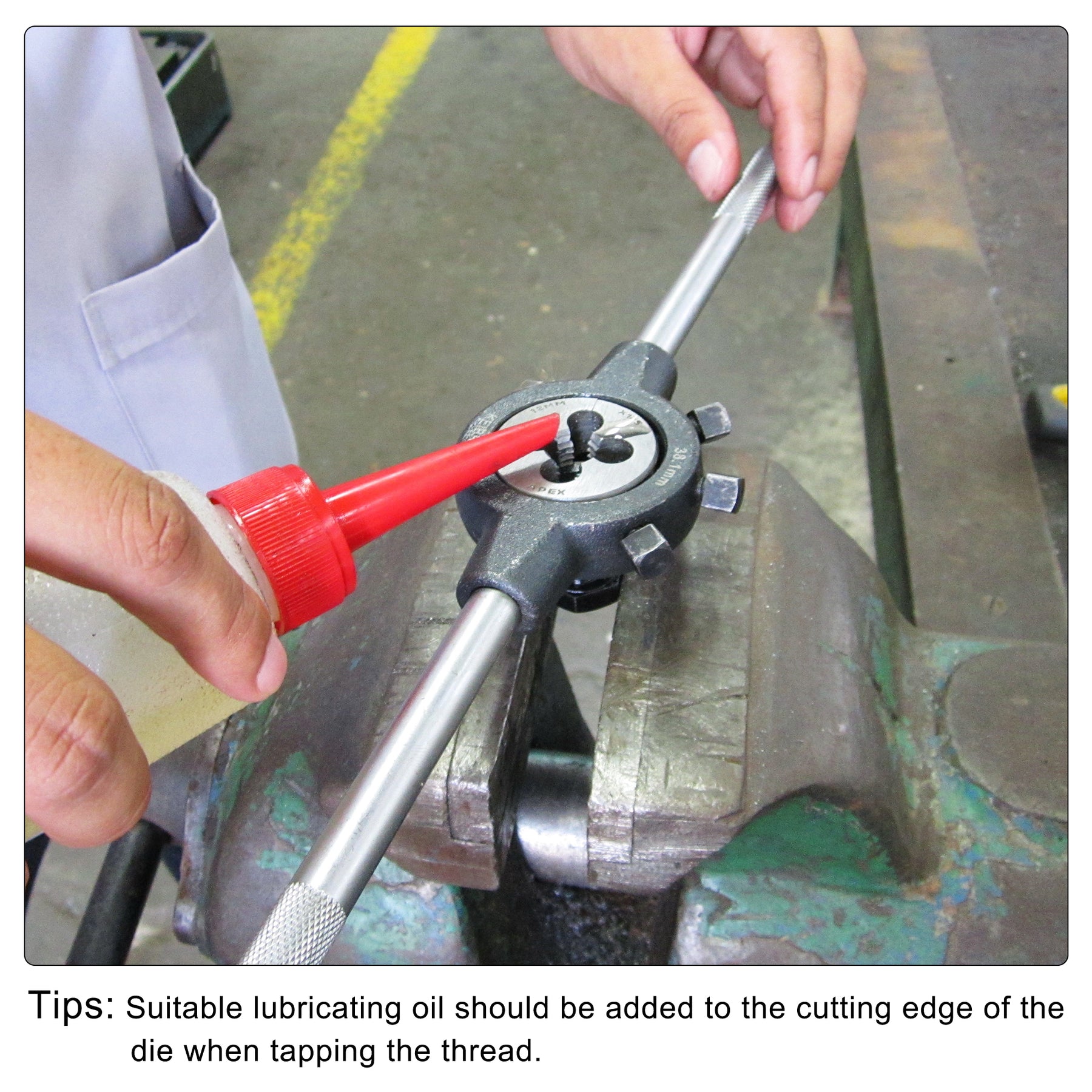

  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread. Excessive diameter can easily cause difficult cutting and lead to damage to the die teeth.
  • In stock, ready to ship
Cart
Cart
About this item
  • Round Die: Thread size: M18 X 2.5; outside diameter (OD): 45mm / 1.8"; Thickness: 14mm / 0.55"; accuracy class: 6g. Made of alloy tool steel, hardness, high torque, good toughness and wear-resistance.
  • Applications: Can process, correct or clean the external threads. Suitable for general purpose threading in aluminum alloy, cast iron, copper, iron, aluminum, plastic, etc.. Great for maintenance and repair work on pipes, boards and machinery.
  • Features: Conical locking hole, strong locking and not loose. Perfect for re-threading existing threads in hard materials like metal and making new threads in soft material such as plastic. The surface is lubricated with grease to prevent rust, the thread is clear and easy to repair.
  • Easy to Use: The positioning groove of the die should be aligned with the fastening screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened. The end of the bar should be chamfered 1*45 degree, and the chamfer is too large to cut in.
  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread. Excessive diameter can easily cause difficult cutting and lead to damage to the die teeth.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:
Thread Size: M18
Pitch: 2.5mm
Outside Diameter: 45mm / 1.8"
Thickness: 14mm / 0.55"
Style: Left Hand
Measurement System: Metric
Accuracy Class: 6G
Material: Tool Steel

Features:
1. Solid round dies are suitable for general purpose threading.
2. Round Dies are perfect for re-threading existing threads in hard materials like metal or making new threads in softer material such as plastic.
3. Great for maintenance and repair work in the shop or field. Die size is etched on the surface for easy identification.

Package:
1pcs x Left Hand Round Die
