Harfington Straight Flute Thread Tap M18 x 1 Nitride Coated Screw Tapping Tool

Straight Flute Thread Tap M18 x 1 Nitride Coated Screw Tapping Tool

ID:
£15.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

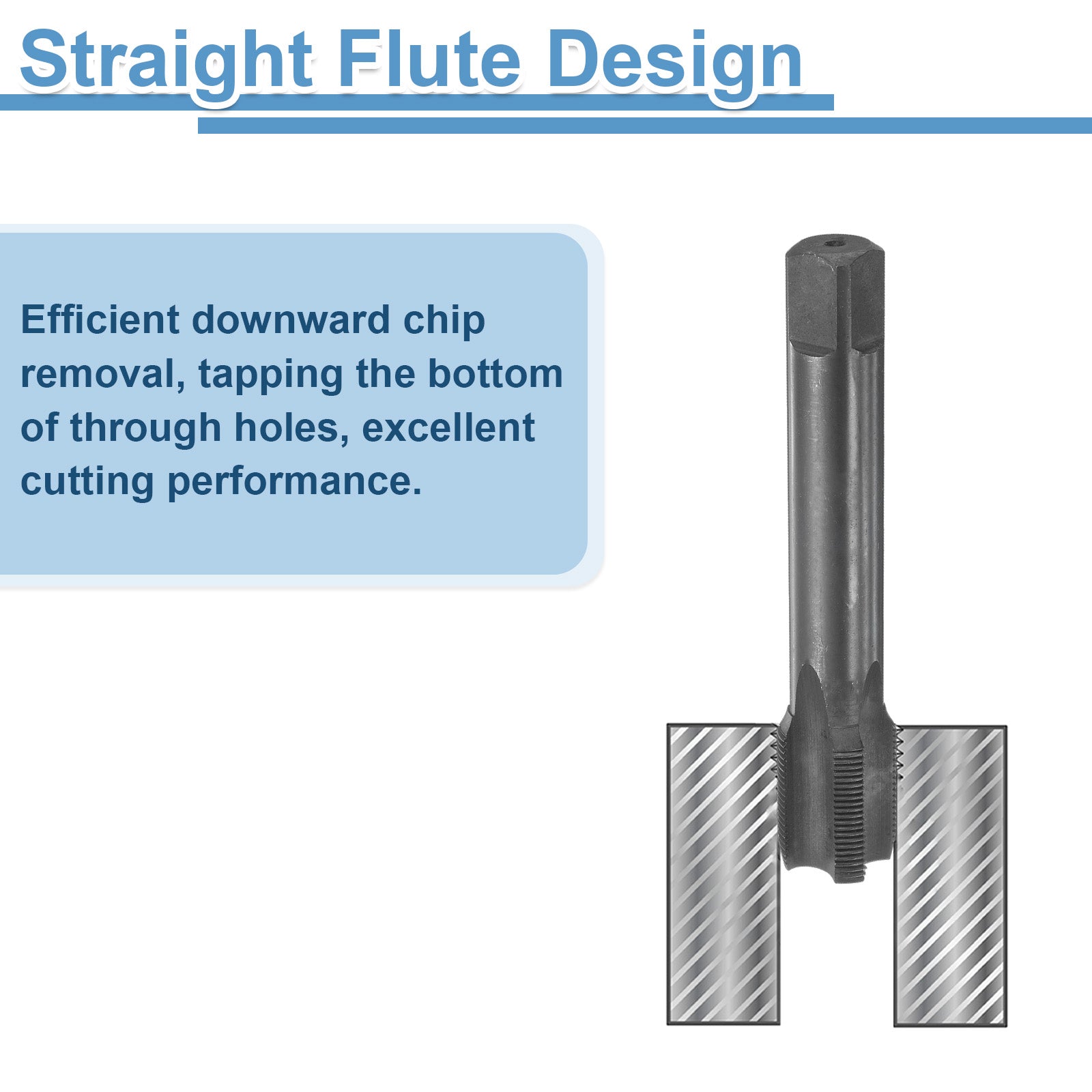

  • Straight Flute Tap Size: Thread size: M18 x 1; total length: 101mm / 3.98"; thread length: 25mm / 0.98"; square end width: 11mm / 0.43"; accuracy class: H2. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
  • High Speed Steel 6542: High-speed steel 6542 has high hardness, good wear resistance, is not easy to deform, and long service life. It has good heat resistance and can still maintain stability in high-temperature environments. The surface is nitrided and blackened, which is corrosion-resistant and not easy to rust even in a humid environment.
  • Wide Applications: The thread tap is suitable for drilling mild steels, aluminum, iron, copper, stainless steel, hard plastic, processing through holes or shallow holes. Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
  • In stock, ready to ship
Cart
Cart
About this item
  • Straight Flute Tap Size: Thread size: M18 x 1; total length: 101mm / 3.98"; thread length: 25mm / 0.98"; square end width: 11mm / 0.43"; accuracy class: H2. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
  • High Speed Steel 6542: High-speed steel 6542 has high hardness, good wear resistance, is not easy to deform, and long service life. It has good heat resistance and can still maintain stability in high-temperature environments. The surface is nitrided and blackened, which is corrosion-resistant and not easy to rust even in a humid environment.
  • Wide Applications: The thread tap is suitable for drilling mild steels, aluminum, iron, copper, stainless steel, hard plastic, processing through holes or shallow holes. Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:
  • Thread Size: M18 x 1
  • Total Length: 101mm / 3.98"
  • Thread Length: 25mm / 0.98"
  • Square End Size: 11mm / 0.43"
  • Accuracy Class: H2
  • Cutting Direction: Right Hand
  • Material: High Speed Steel 6542 (HSS6542)
  • Finish: Black Nitride Coated
  • Numbers of Flutes: 3 Flutes
Package Content:
  • 1pcs x Straight Flute Thread Taps

Descriptions:
  1. High-speed steel 6542 has high hardness, good wear resistance, is not easy to deform, and long service life. It has good heat resistance and can still maintain stability in high-temperature environments. The surface is nitrided and blackened, which is corrosion-resistant and not easy to rust even in a humid environment.
  2. Suitable for processing through holes or shallow holes. Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc. Use tapping oil to get higher-quality threads and more durable taps.
  3. Used on drilling machines, tapping machines, CNC, and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  4. Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is easy to cause breakage to the tap, so it is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£15.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
  • Thread Size: M18 x 1
  • Total Length: 101mm / 3.98"
  • Thread Length: 25mm / 0.98"
  • Square End Size: 11mm / 0.43"
  • Accuracy Class: H2
  • Cutting Direction: Right Hand
  • Material: High Speed Steel 6542 (HSS6542)
  • Finish: Black Nitride Coated
  • Numbers of Flutes: 3 Flutes
Package Content:
  • 1pcs x Straight Flute Thread Taps

Descriptions:
  1. High-speed steel 6542 has high hardness, good wear resistance, is not easy to deform, and long service life. It has good heat resistance and can still maintain stability in high-temperature environments. The surface is nitrided and blackened, which is corrosion-resistant and not easy to rust even in a humid environment.
  2. Suitable for processing through holes or shallow holes. Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc. Use tapping oil to get higher-quality threads and more durable taps.
  3. Used on drilling machines, tapping machines, CNC, and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  4. Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is easy to cause breakage to the tap, so it is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
