Harfington 15pcs Straight Flute Thread Taps 10-32 UNF AS Screw Tapping Tool

15pcs Straight Flute Thread Taps 10-32 UNF AS Screw Tapping Tool

ID:
£26.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Thread Tap Size: AS thread size: 10-32 UNF (right hand); thread length: 23mm / 0.91"; total length: 60mm / 2.36"; square shank width: 5mm / 0.2"; accuracy: 2B
  • Straight Flute Tap: The tapping tool adopts straight flute design, clear threads, and right hand cutting direction. Threading tap provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
  • Wide Applications: Screw thread tap can create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
  • Durable Material & Finish: M2 (6542) high-speed steel taps offer high hardness, good toughness, wear resistance, and excellent cutting performance.
  • Tips: Machine tap is used with drill presses, tapping/CNC/milling machines. NOT recommended for hand and electric drill tapping. The higher the hardness, the slower the speed. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
  • In stock, ready to ship
Cart
Cart
About this item
  • Thread Tap Size: AS thread size: 10-32 UNF (right hand); thread length: 23mm / 0.91"; total length: 60mm / 2.36"; square shank width: 5mm / 0.2"; accuracy: 2B
  • Straight Flute Tap: The tapping tool adopts straight flute design, clear threads, and right hand cutting direction. Threading tap provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
  • Wide Applications: Screw thread tap can create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
  • Durable Material & Finish: M2 (6542) high-speed steel taps offer high hardness, good toughness, wear resistance, and excellent cutting performance.
  • Tips: Machine tap is used with drill presses, tapping/CNC/milling machines. NOT recommended for hand and electric drill tapping. The higher the hardness, the slower the speed. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

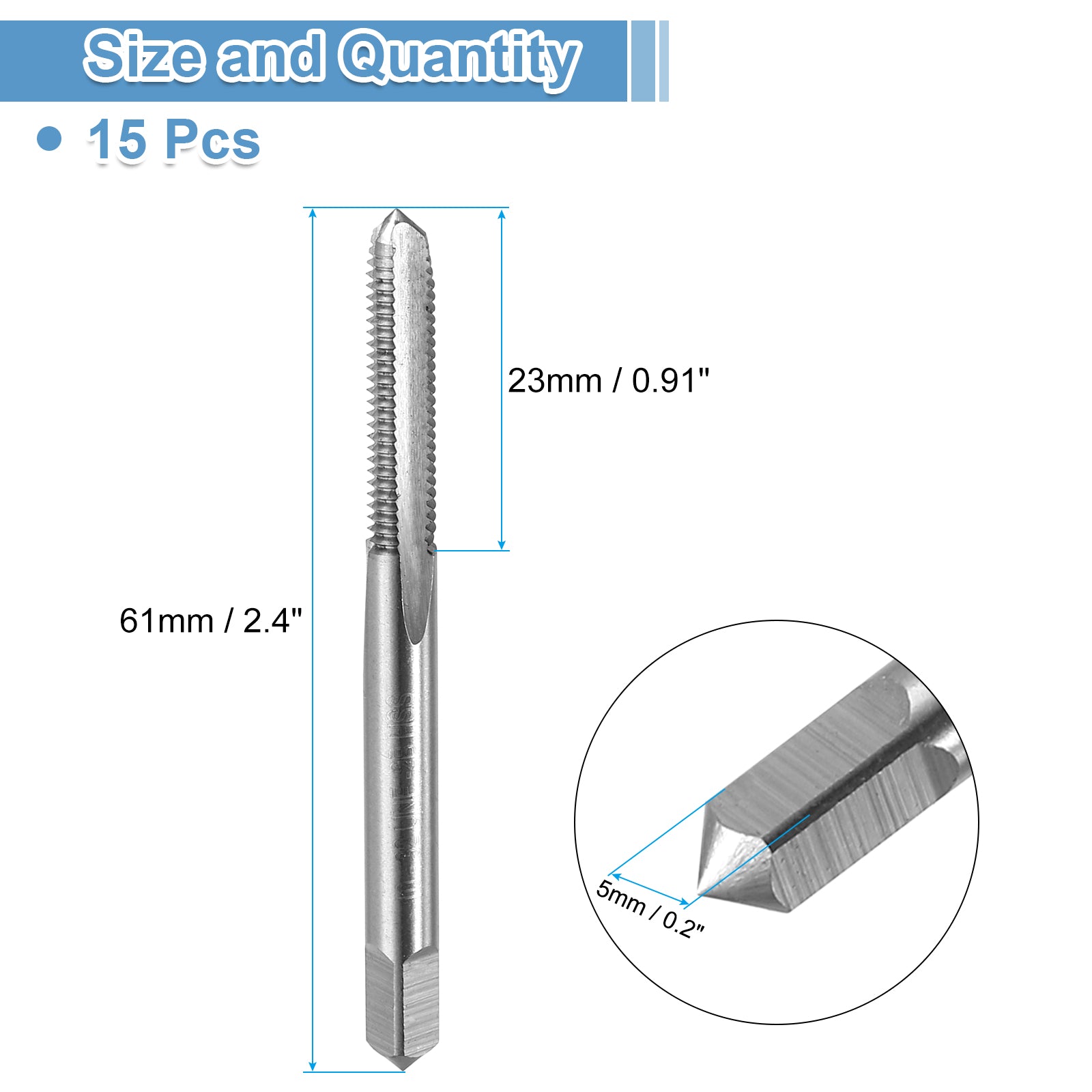

AS Thread Size: 10-32 UNF (Right Hand)
Thread Length: 23mm / 0.91"
Total Length: 60mm / 2.36"
Square Shank Width: 5mm / 0.2"
Accuracy: 2B
Material: High-Speed Steel 6542 (HSS 6542)

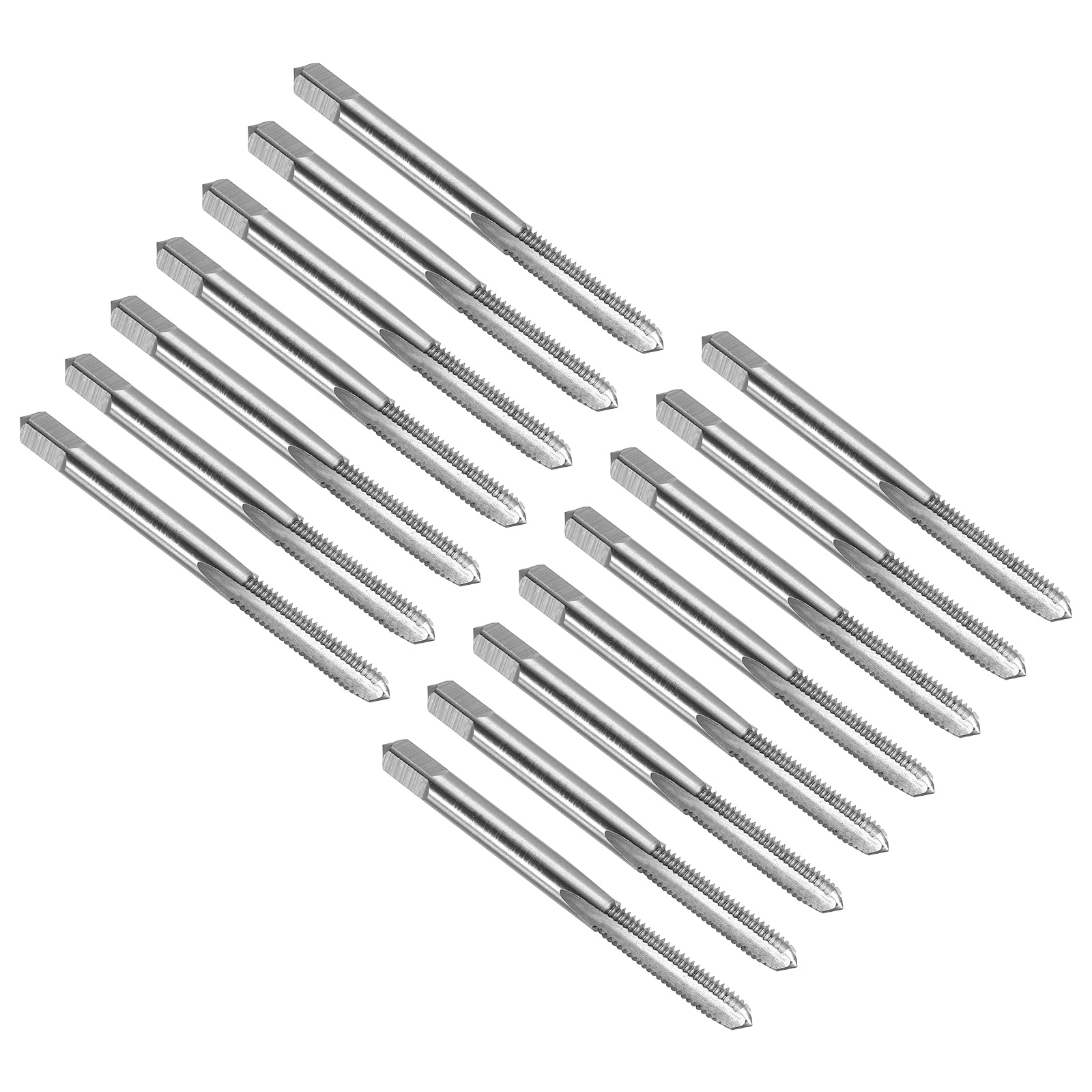

Package Content: 15pcs x Straight Flute Thread Tap

Descriptions:

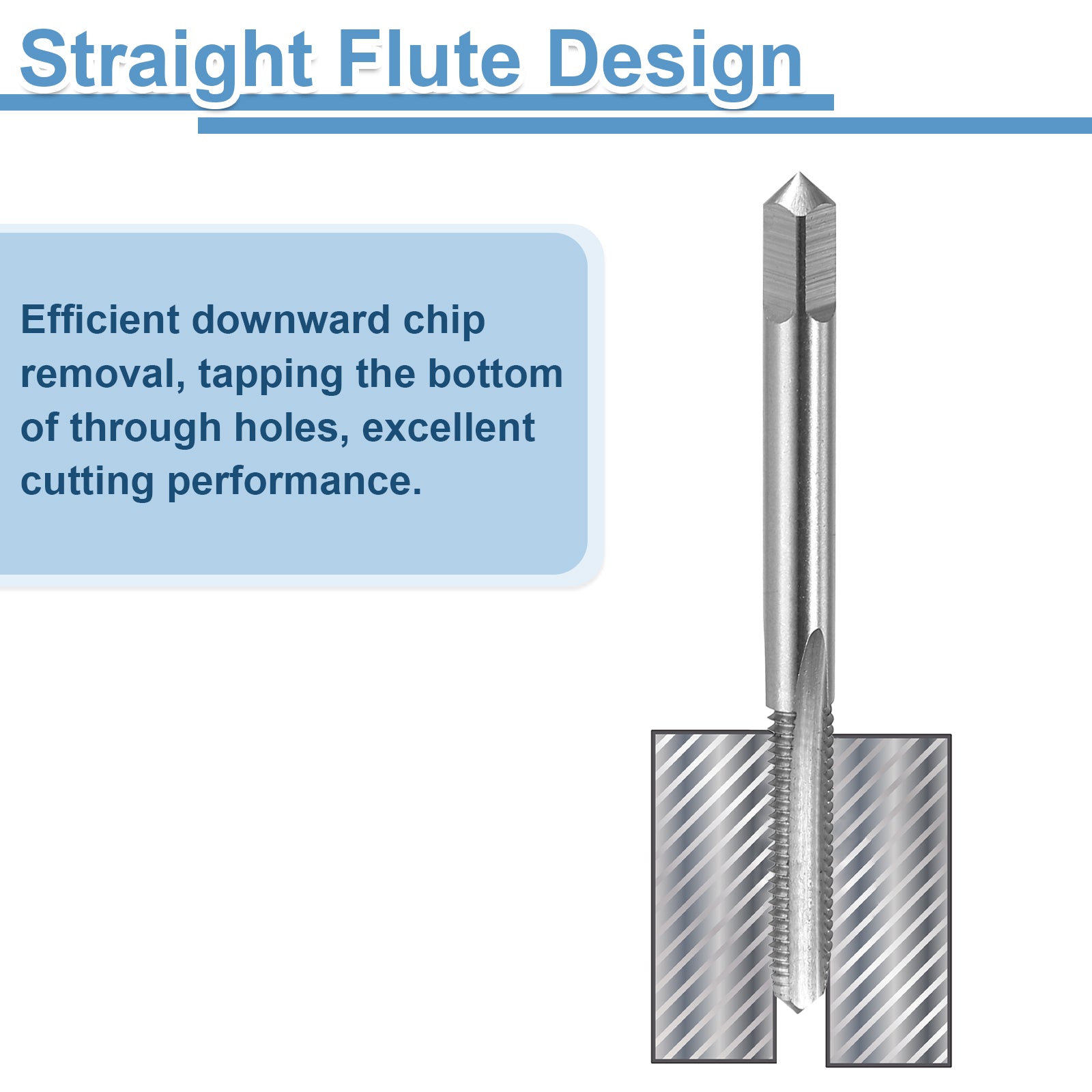

1. The tapping tool adopts straight flute design, clear threads, and right hand cutting direction. Threading tap provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.

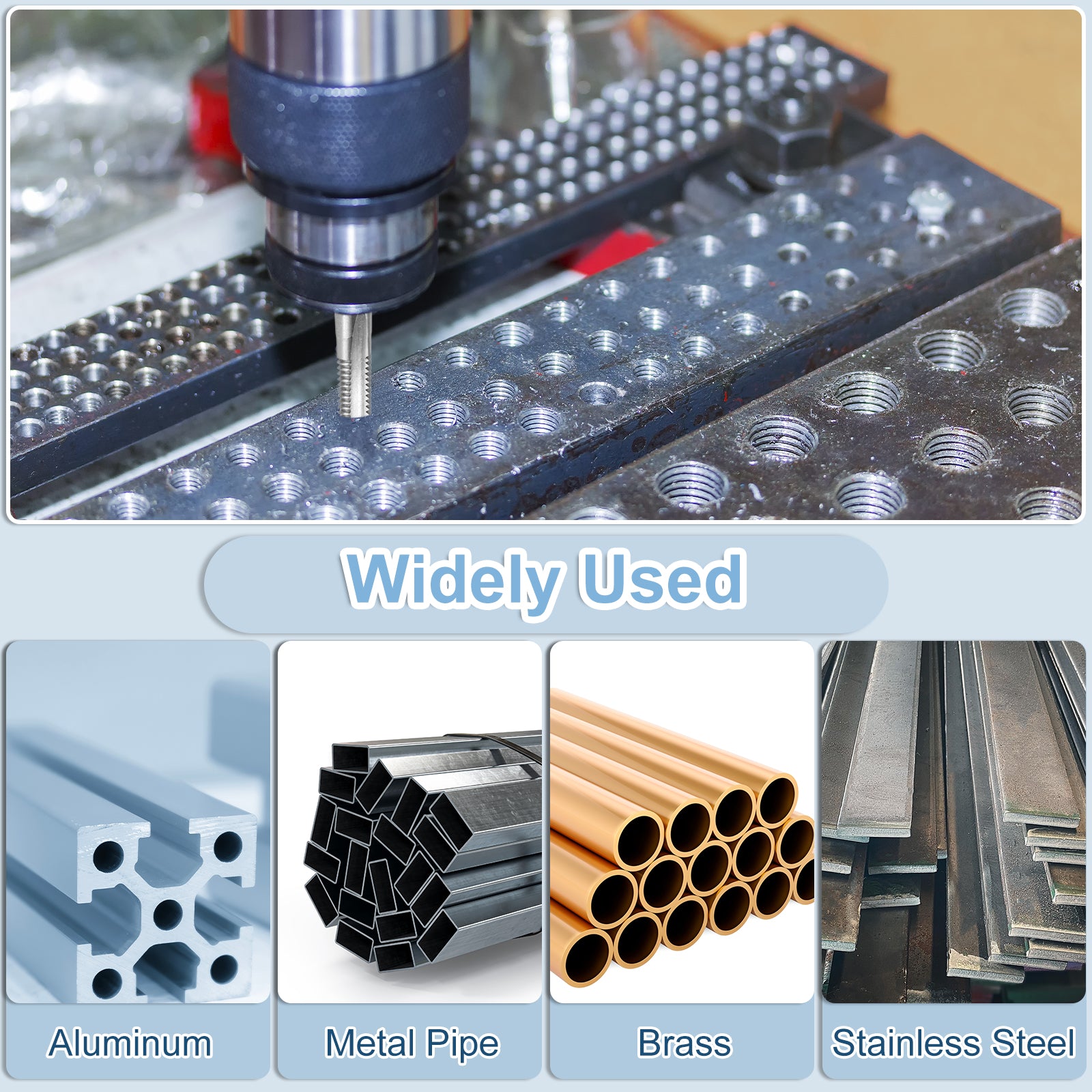

2. Screw thread tap can create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. high-speed steel 6542 (HSS 6542) taps offer high hardness, good toughness, wear resistance, and excellent cutting performance.
4. Machine tap is used with drill presses, tapping/CNC/milling machines. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
2. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£26.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

AS Thread Size: 10-32 UNF (Right Hand)
Thread Length: 23mm / 0.91"
Total Length: 60mm / 2.36"
Square Shank Width: 5mm / 0.2"
Accuracy: 2B
Material: High-Speed Steel 6542 (HSS 6542)
Package Content: 15pcs x Straight Flute Thread Tap

Descriptions:
1. The tapping tool adopts straight flute design, clear threads, and right hand cutting direction. Threading tap provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
2. Screw thread tap can create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. high-speed steel 6542 (HSS 6542) taps offer high hardness, good toughness, wear resistance, and excellent cutting performance.
4. Machine tap is used with drill presses, tapping/CNC/milling machines. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
2. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
