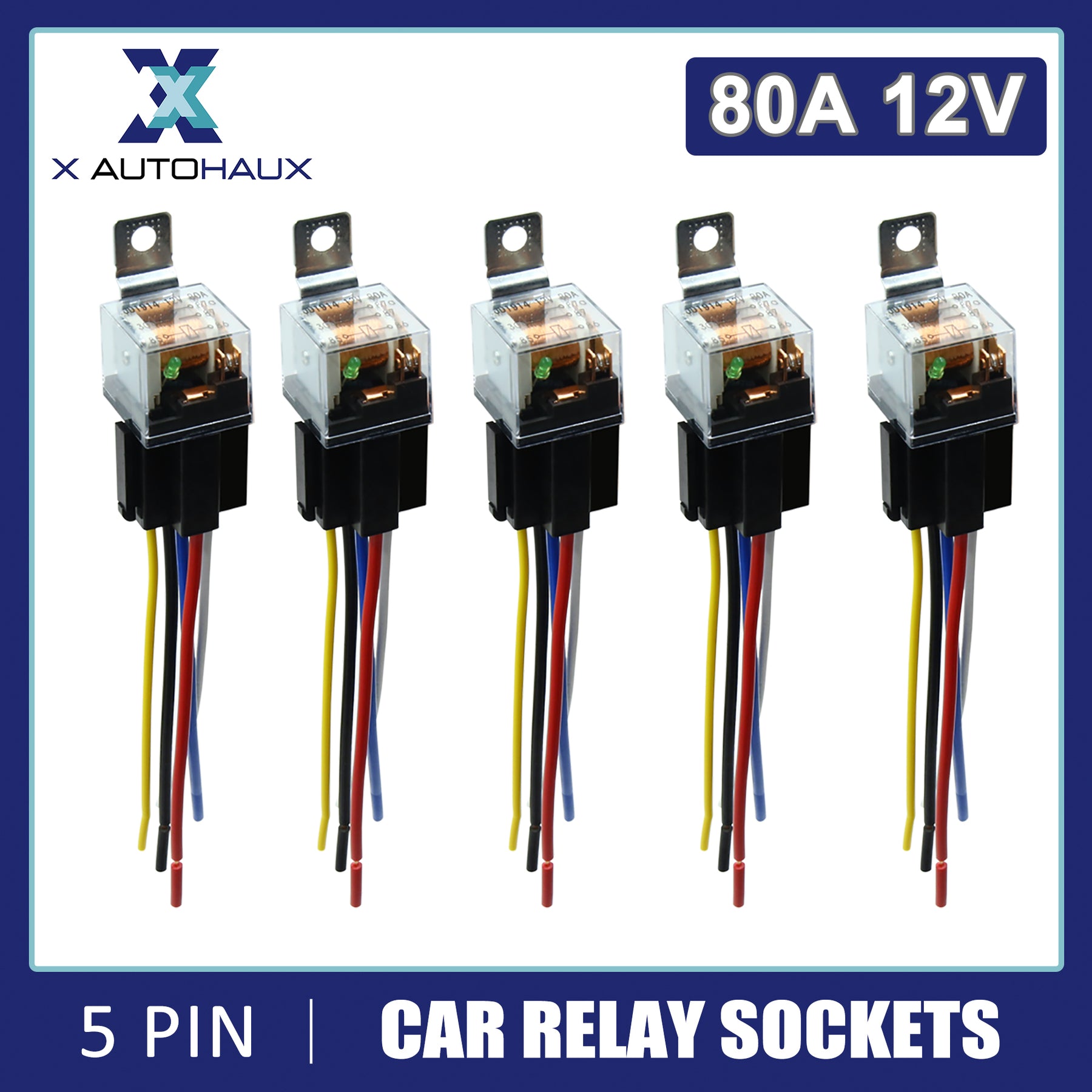

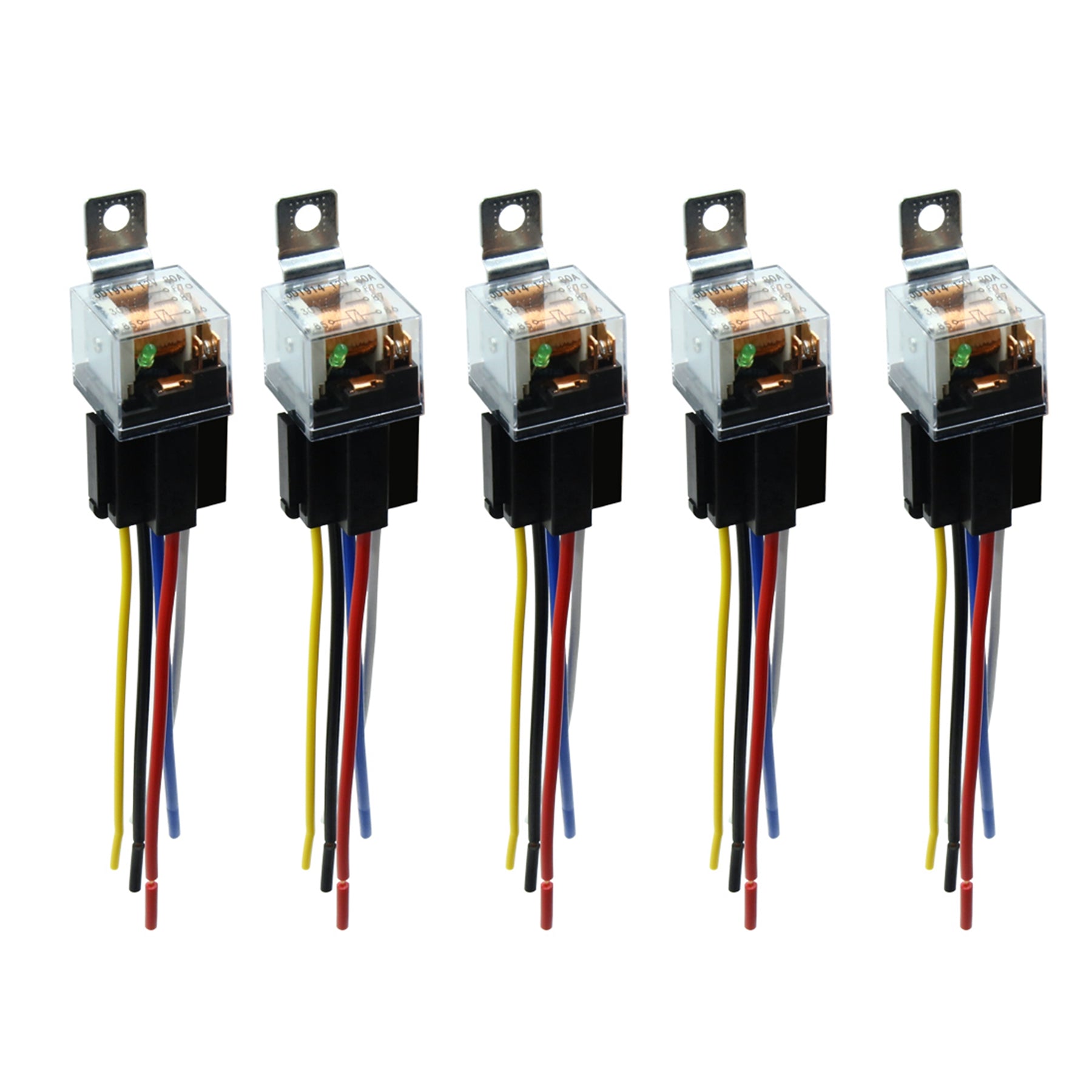

5pcs JD-1914 5 Pin DC 12V 80A Universal Car Fuse Relay Switch Power with Harness

46593413447929
Questions & Answers |
£23.00 Regular price
/
About this item
  • DC 12V 80A 5 pin SPDT electrical relay with pre-wired relay socket harness.
  • 85 and 86 are the relay coil ends, 30 and 87 are the normally open contact terminals of the relay, when 85 and 86 connect the power, 30 and 87 will be connected.30 and 87a are the normally closed contact terminals of the relay,when 85 and 86 connect the power, 30 and 87 will be disconnected. When the positive is connected to the power, the light will be on; when the positive is not connected to the power, the indicator light will be off.
  • Made of metal and plastic, durable materials for long time service.
  • Suitable for cars and motorcycles. It is recommended to confirm the model, appearance, and function before placing an order.
  • Make sure this is the correct relay replacement your car need before purchase.
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20
About this item
  • DC 12V 80A 5 pin SPDT electrical relay with pre-wired relay socket harness.
  • 85 and 86 are the relay coil ends, 30 and 87 are the normally open contact terminals of the relay, when 85 and 86 connect the power, 30 and 87 will be connected.30 and 87a are the normally closed contact terminals of the relay,when 85 and 86 connect the power, 30 and 87 will be disconnected. When the positive is connected to the power, the light will be on; when the positive is not connected to the power, the indicator light will be off.
  • Made of metal and plastic, durable materials for long time service.
  • Suitable for cars and motorcycles. It is recommended to confirm the model, appearance, and function before placing an order.
  • Make sure this is the correct relay replacement your car need before purchase.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specification:

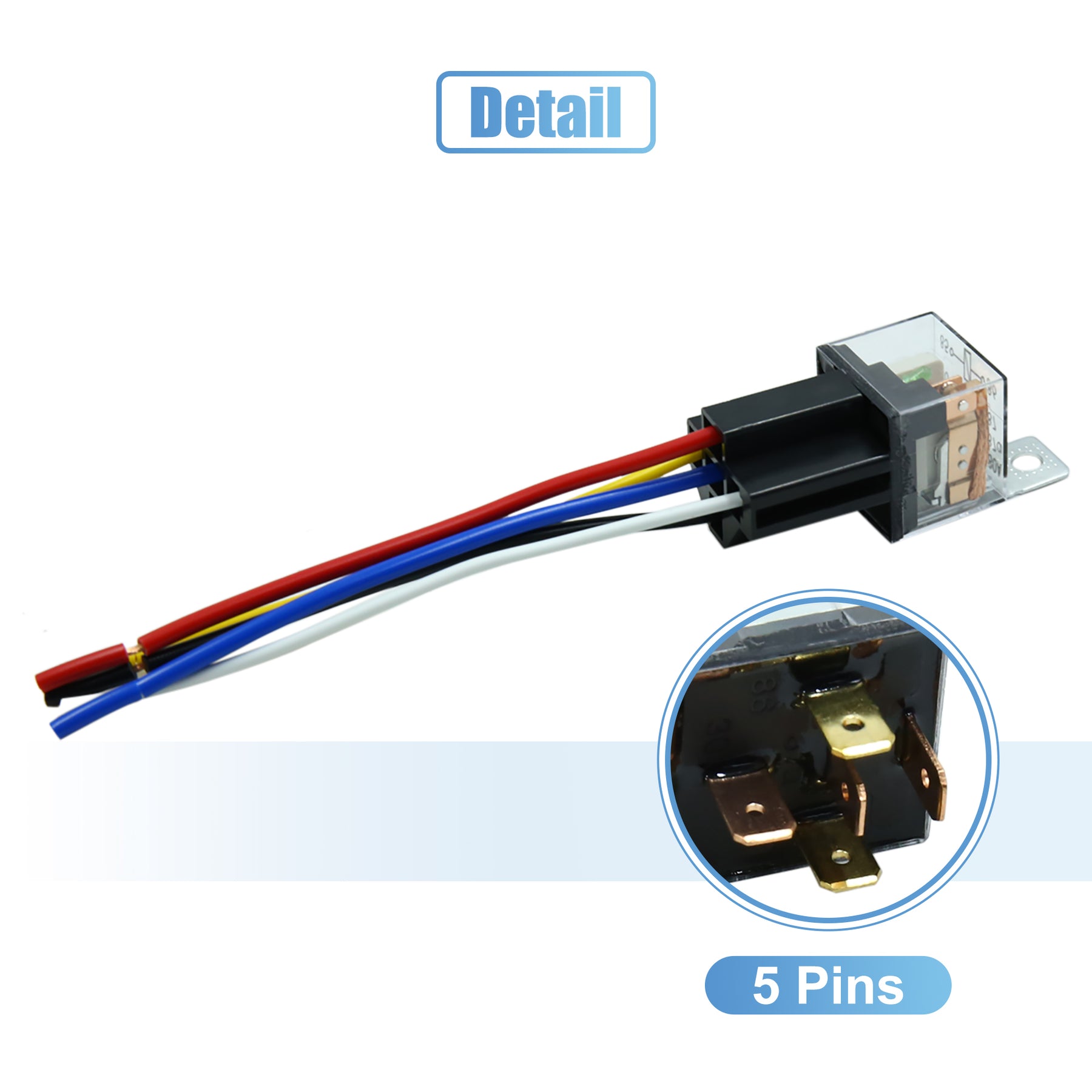

  • Pin Number: 5
  • Material: Plastic, Metal
  • Color: Multicolor
  • Current: 80A
  • Voltage: DC 12V

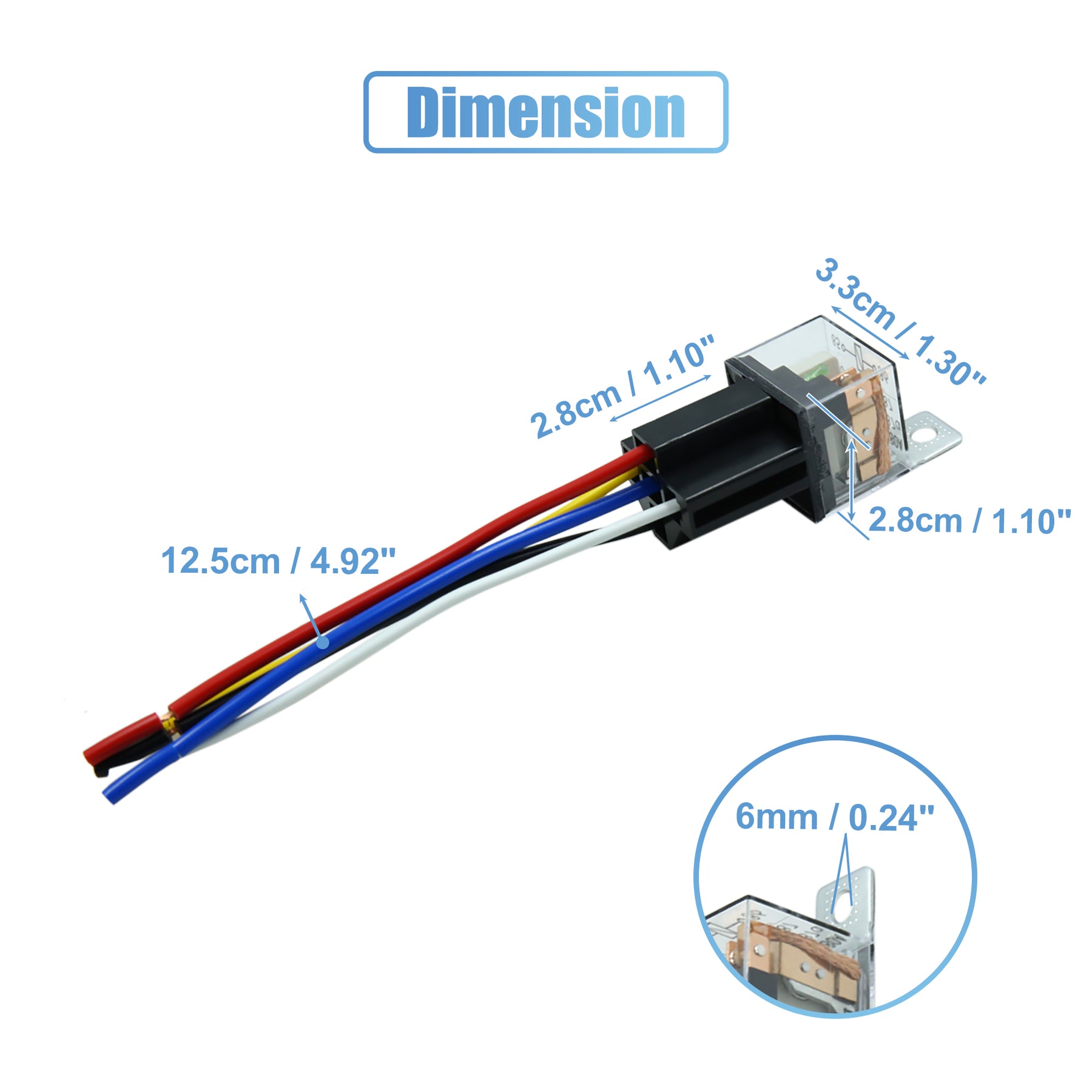

  • Wire Length: 12.5cm / 4.92"
  • Mounting Hole Diameter: 6mm / 0.24"
  • Relay Size: 5.4x2.8x3.3cm / 2.13"x1.10"x1.30"(L*W*H)
  • Socket Size: 2.8x3.2x2.7cm / 1.06"x1.10"x1.06"(L*W*H)
Fitment:

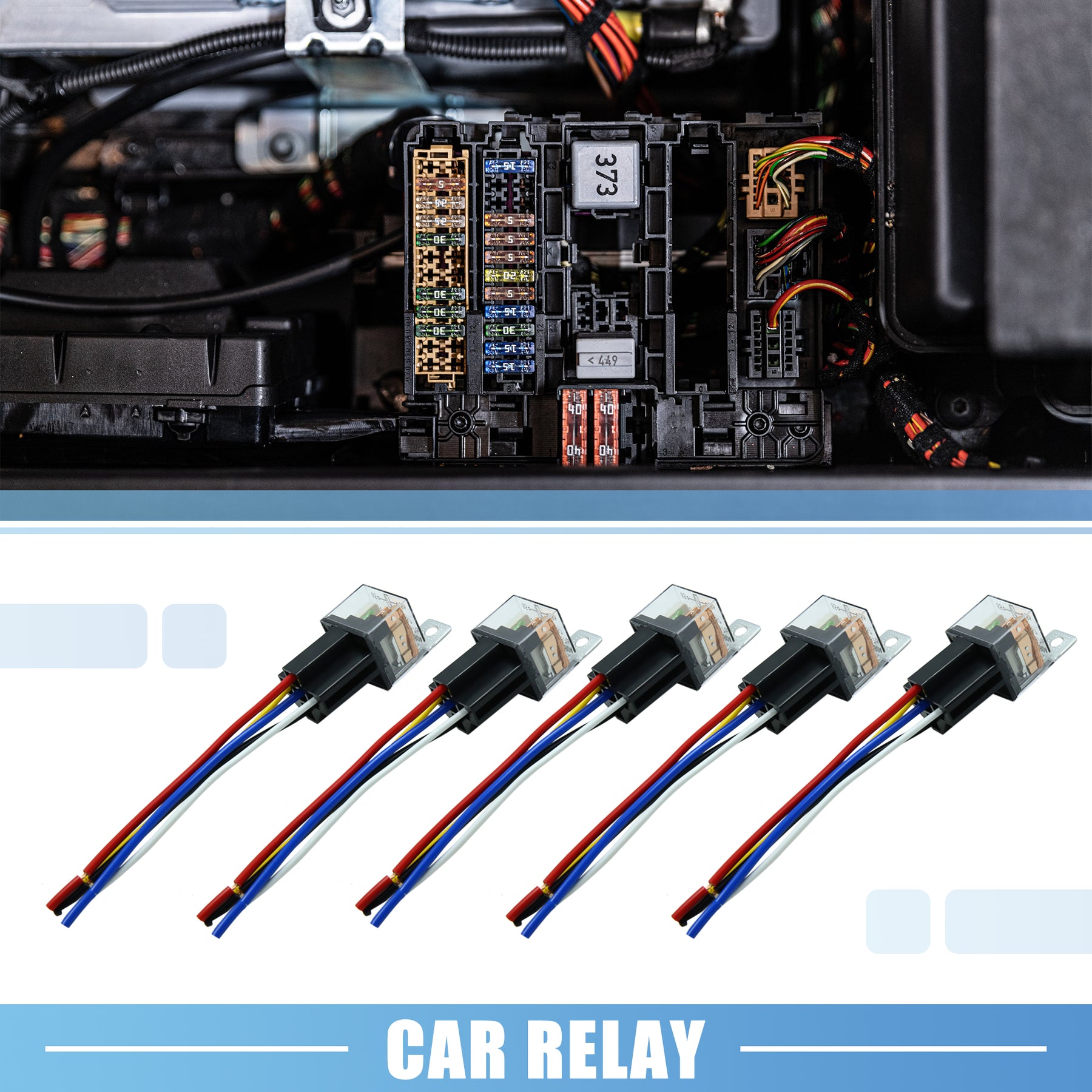

  • Suitable for cars and motorcycles.
Installation Method:
  • Easy to install, directly replace your old or broken fuse relay switch.

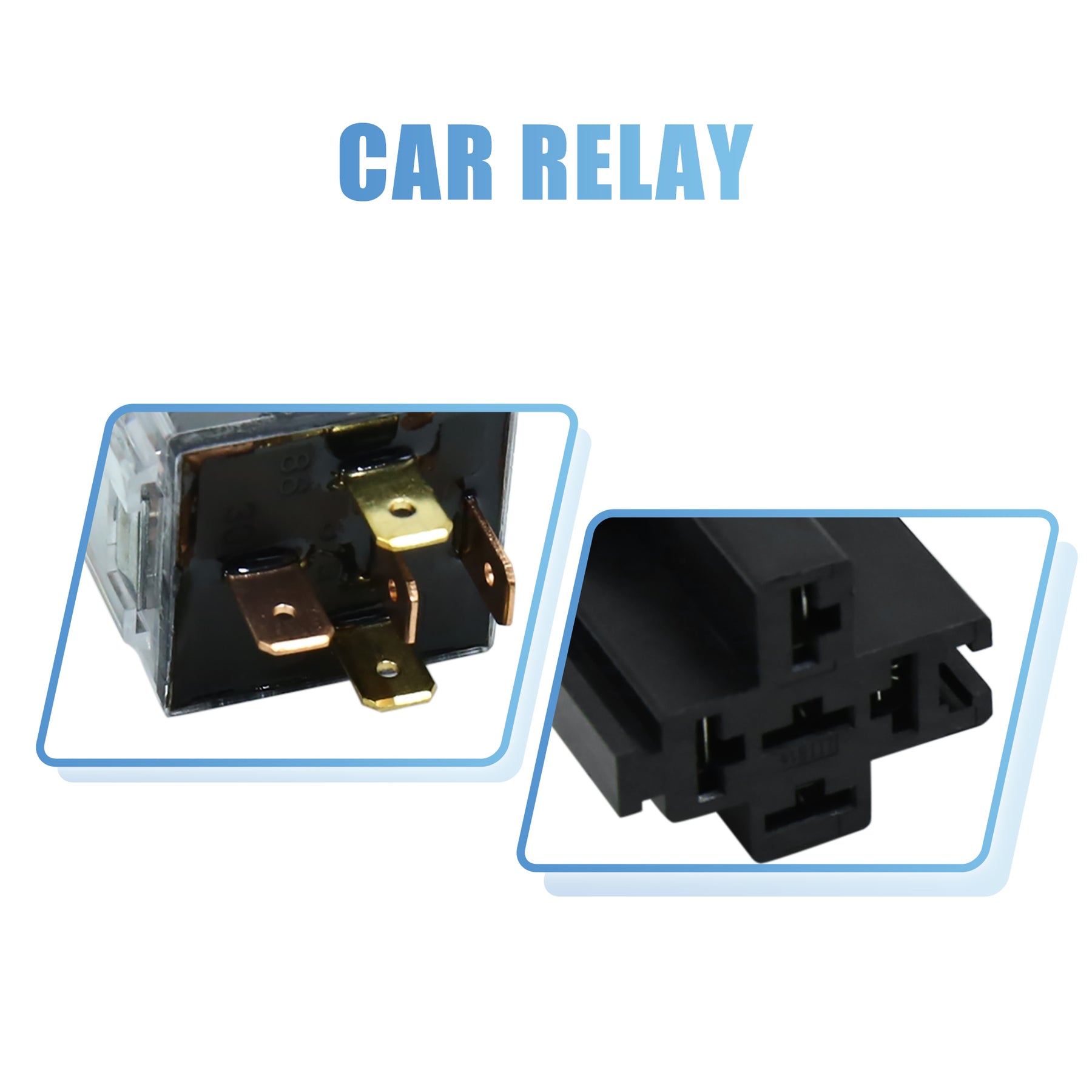

  • Wire Specifications: Black-Power Input(Pin 30),White-Positive(Pin 85),Yellow-Negative(Pin 86),Red-Normally Open Ouput(Pin 87),Blue-Normally Closed Ouput(Pin 87a).
  • 85 and 86 are the relay coil ends, 30 and 87 are the normally open contact terminals of the relay, when 85 and 86 connect the power, 30 and 87 will be connected.30 and 87a are the normally closed contact terminals of the relay, when 85 and 86 connect the power, 30 and 87 will be disconnected. When the positive is connected to the power, the light will be on; when the positive is not connected to the power, the indicator light will be off.
  • It is recommended to confirm the model, appearance, and function before placing an order.
  • Note: Make sure this is the correct relay replacement your car need before purchase.
Package Included:

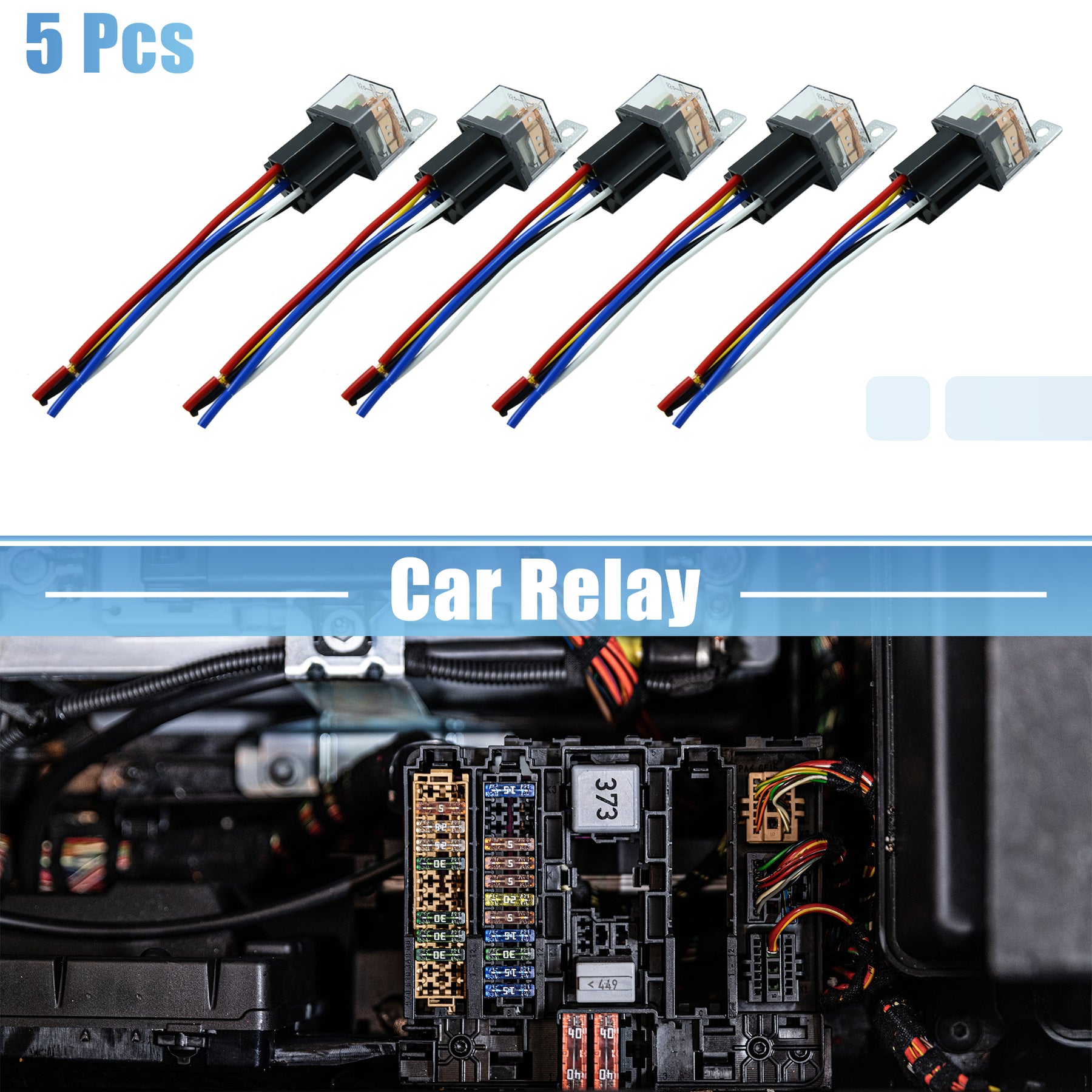

  • 5 x Car Relay
  • 5 x Socket Wire
