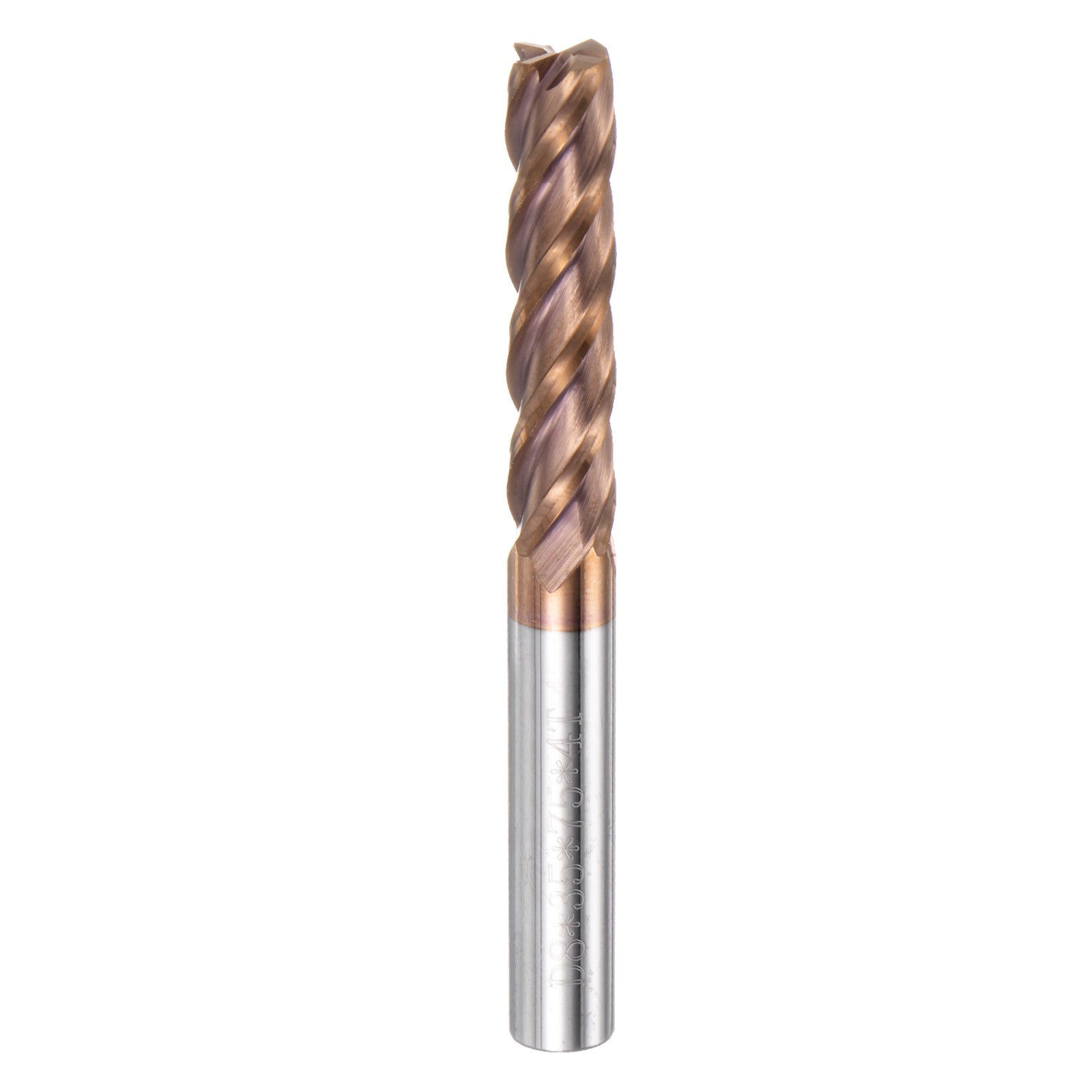

Harfington Carbide Square End Mill 8mmx30mmx8mmx75mm TiSiN Coated 4 Flutes Milling Bit

Carbide Square End Mill 8mmx30mmx8mmx75mm TiSiN Coated 4 Flutes Milling Bit

ID:
£16.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

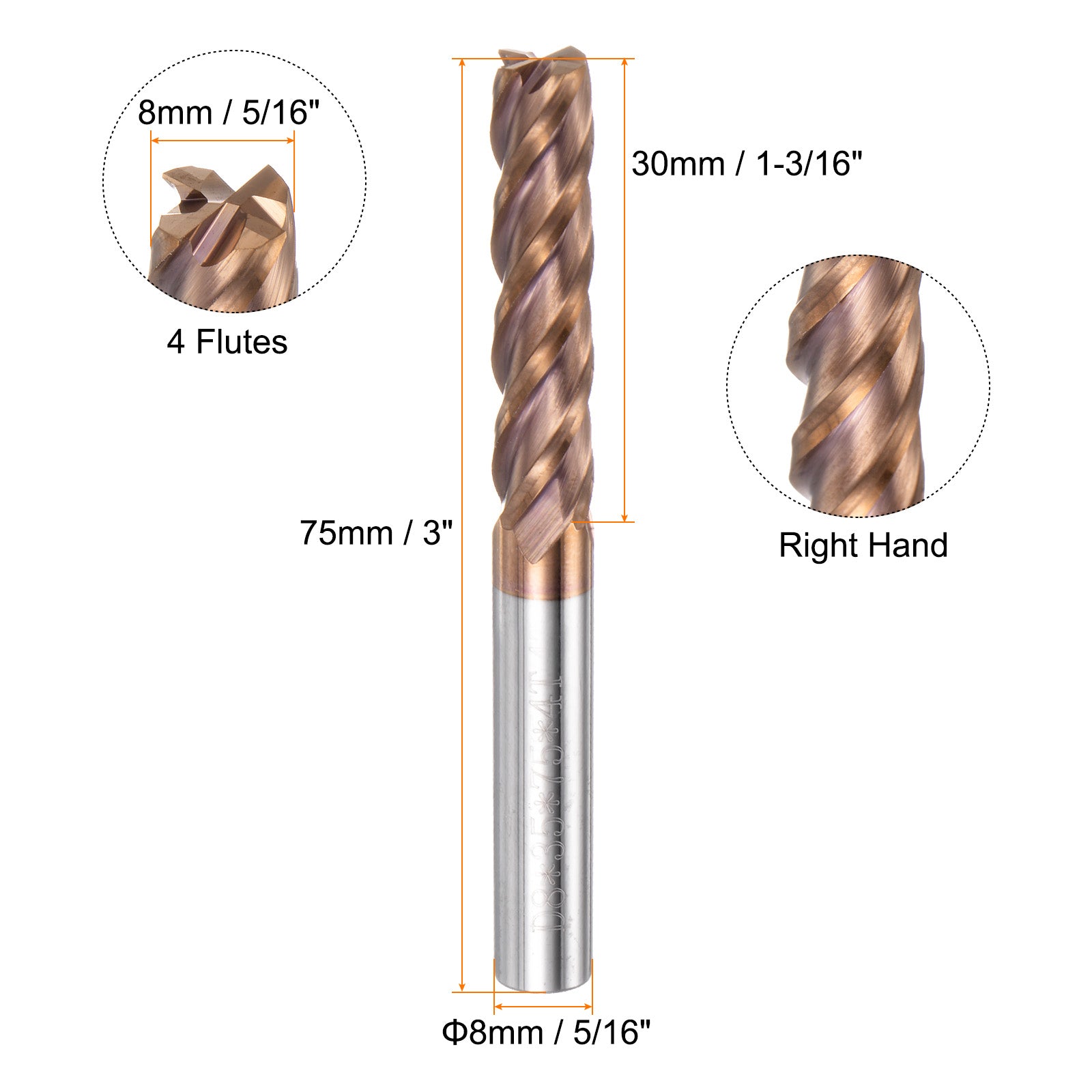

  • Size - Cutting diameter: 8mm / 5/16" (right hand); shank diameter: 8mm / 5/16"; cutting length: 30mm / 1-3/16"; total length: 75mm / 3" (extra long); cutting hardness: HRC55; end cut type: square; helix angle: 35 degree; bending strength: 3900N/mm2.

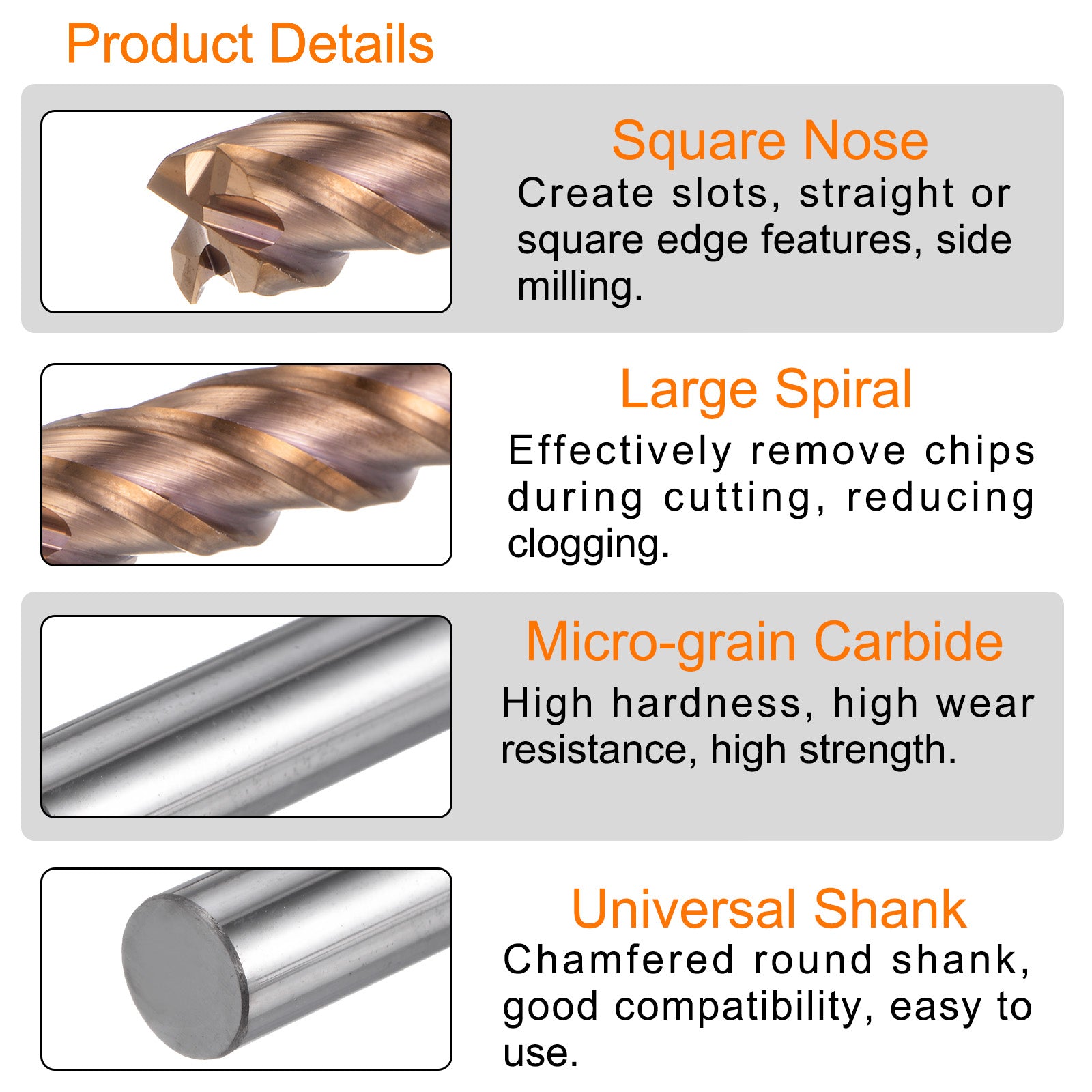

  • Material - TiSiN (Titanium Silicon Nitride) coating offers high hardness, excellent oxidation resistance, and improved toughness. 0.6µm micro-grain carbide mill bits has high hardness, high wear resistance, high strength, enhanced rigidity and high temperature resistance. It is a milling cutter for high hardness and high-speed cutting applications.

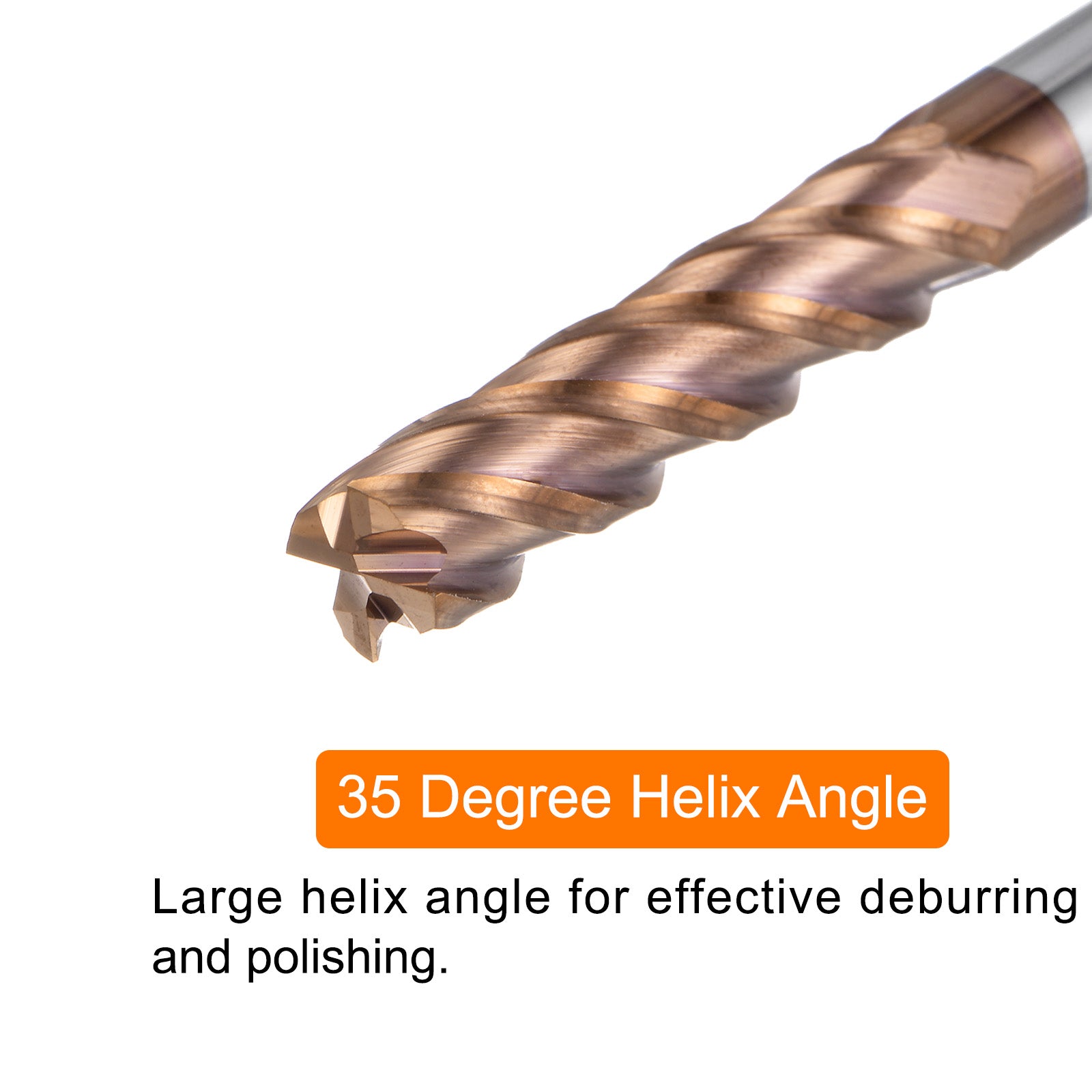

  • Features - Fully ground mirror body with high smoothness, 35 degree large helix angle for effective deburring and polishing, larger core diameter is not easy to break the edge. Large spiral design helps effectively remove chips during cutting, reducing clogging and improving chip evacuation.

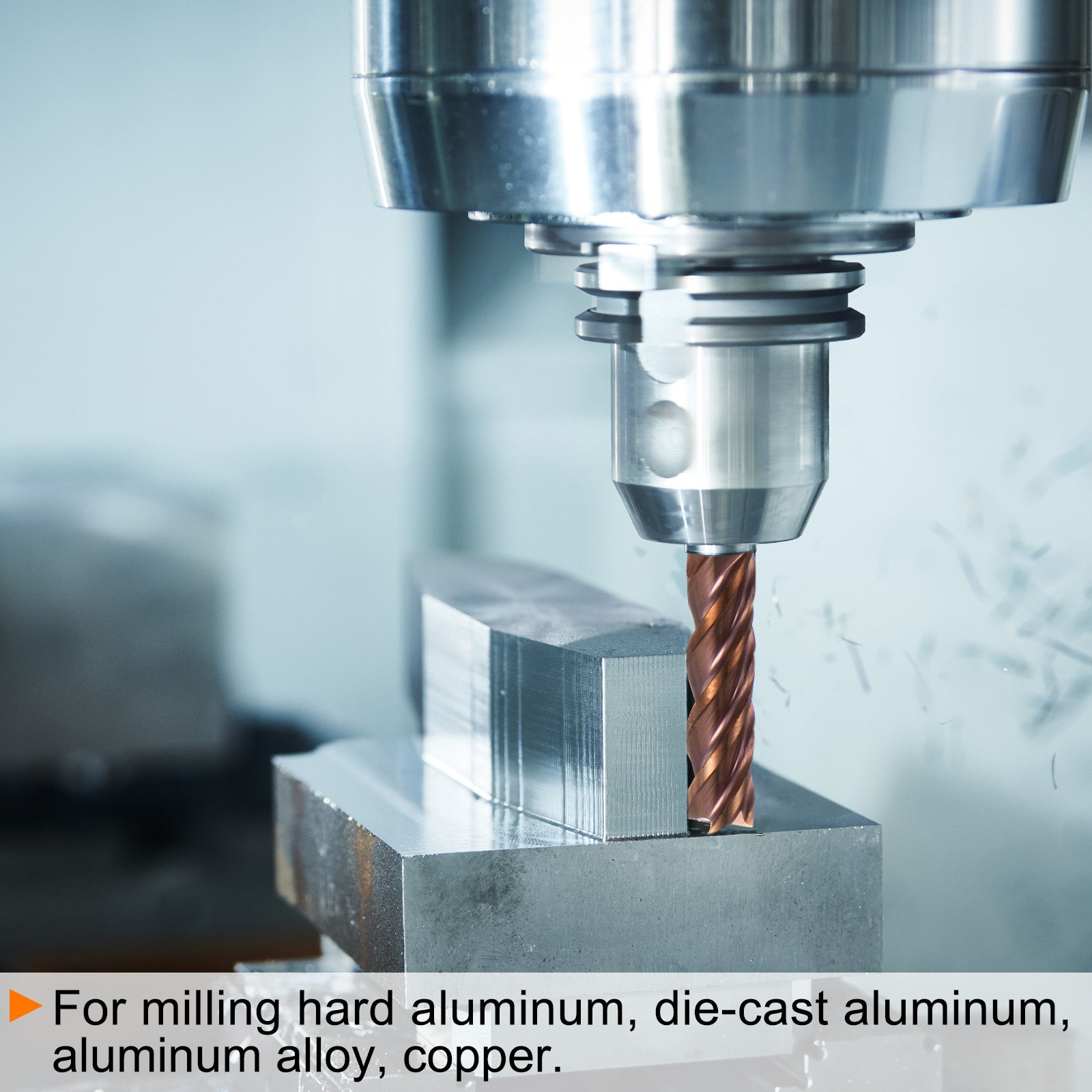

  • Applications - Square end mill can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. Suitable for high-speed machining and can process a variety of materials, including hardened steel, stainless steel and cast iron.
  • Notes - Applicable machines: CNC machining center, engraving machine, precision engraving machine and other high-speed machines. The longer the length of the tool clamped by the chuck, the better. Use a suitable coolant or lubrication method during milling operations.
  • In stock, ready to ship
Cart
Cart
About this item
  • Size - Cutting diameter: 8mm / 5/16" (right hand); shank diameter: 8mm / 5/16"; cutting length: 30mm / 1-3/16"; total length: 75mm / 3" (extra long); cutting hardness: HRC55; end cut type: square; helix angle: 35 degree; bending strength: 3900N/mm2.
  • Material - TiSiN (Titanium Silicon Nitride) coating offers high hardness, excellent oxidation resistance, and improved toughness. 0.6µm micro-grain carbide mill bits has high hardness, high wear resistance, high strength, enhanced rigidity and high temperature resistance. It is a milling cutter for high hardness and high-speed cutting applications.
  • Features - Fully ground mirror body with high smoothness, 35 degree large helix angle for effective deburring and polishing, larger core diameter is not easy to break the edge. Large spiral design helps effectively remove chips during cutting, reducing clogging and improving chip evacuation.
  • Applications - Square end mill can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. Suitable for high-speed machining and can process a variety of materials, including hardened steel, stainless steel and cast iron.
  • Notes - Applicable machines: CNC machining center, engraving machine, precision engraving machine and other high-speed machines. The longer the length of the tool clamped by the chuck, the better. Use a suitable coolant or lubrication method during milling operations.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. TiSiN (Titanium Silicon Nitride) coating offers high hardness, excellent oxidation resistance, and improved toughness. 0.6µm micro-grain carbide mill bits has high hardness, high wear resistance, high strength, enhanced rigidity and high temperature resistance. It is a milling cutter for high hardness and high-speed cutting applications.
  2. Fully ground mirror body with high smoothness, 35 degree large helix angle for effective deburring and polishing, larger core diameter is not easy to break the edge. Large spiral design helps effectively remove chips during cutting, reducing clogging and improving chip evacuation. Precision ground cutting edges for clean, precise cuts.
  3. Square end mill can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. Suitable for high-speed machining and can process a variety of materials, including hardened steel, stainless steel and cast iron.
  4.  Applicable machines: CNC machining center, engraving machine, precision engraving machine and other high-speed machines. Universal chamfered round shank, good compatibility and easy to use. The longer the length of the tool clamped by the chuck, the better.
  5. Notice: Make sure the end mill is suitable for the specific application and material being processed. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
