Harfington Combination Drill and Tap Bits Metric M6 x 1 Thread TiAlN Coated Screw Taps

Combination Drill and Tap Bits Metric M6 x 1 Thread TiAlN Coated Screw Taps

ID:
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

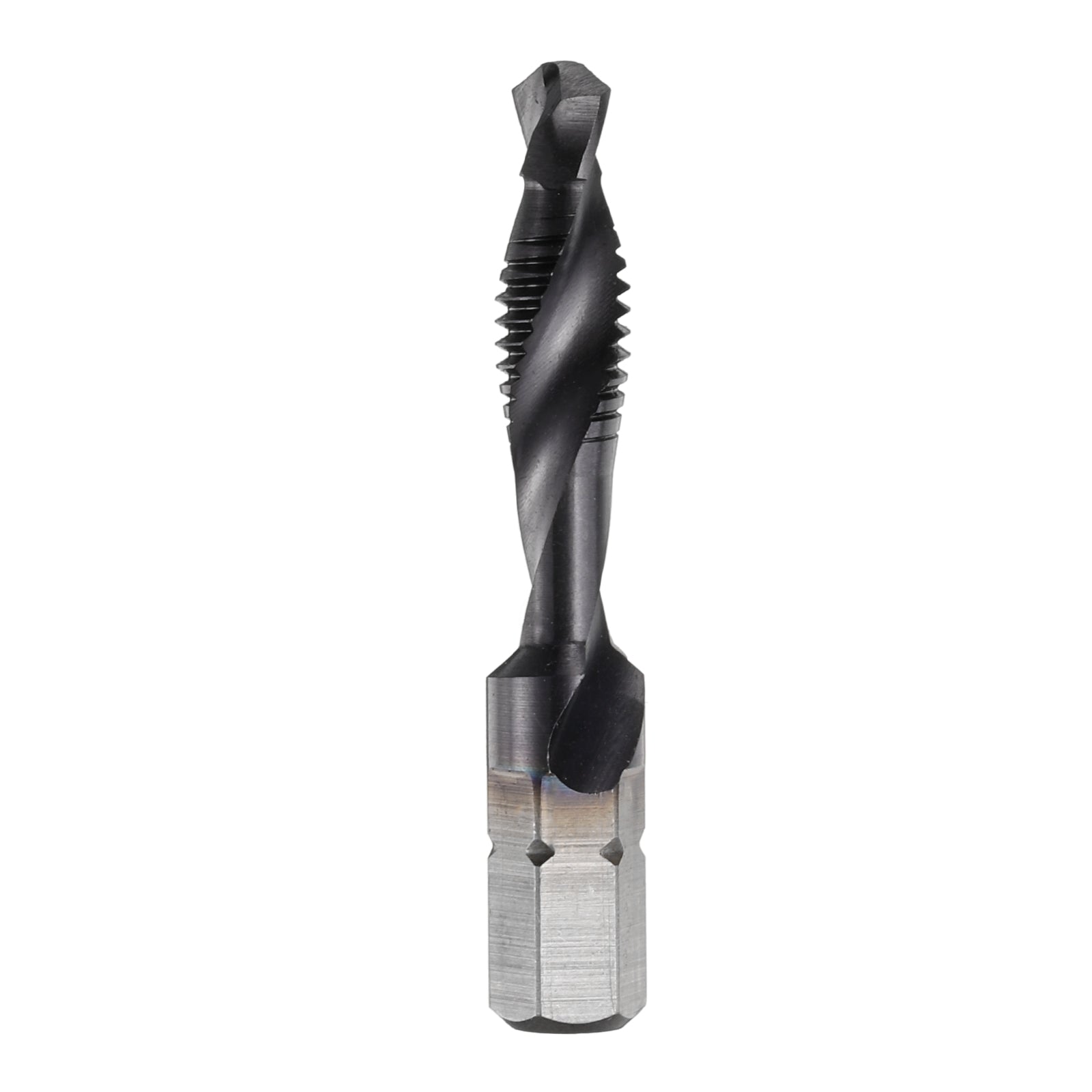

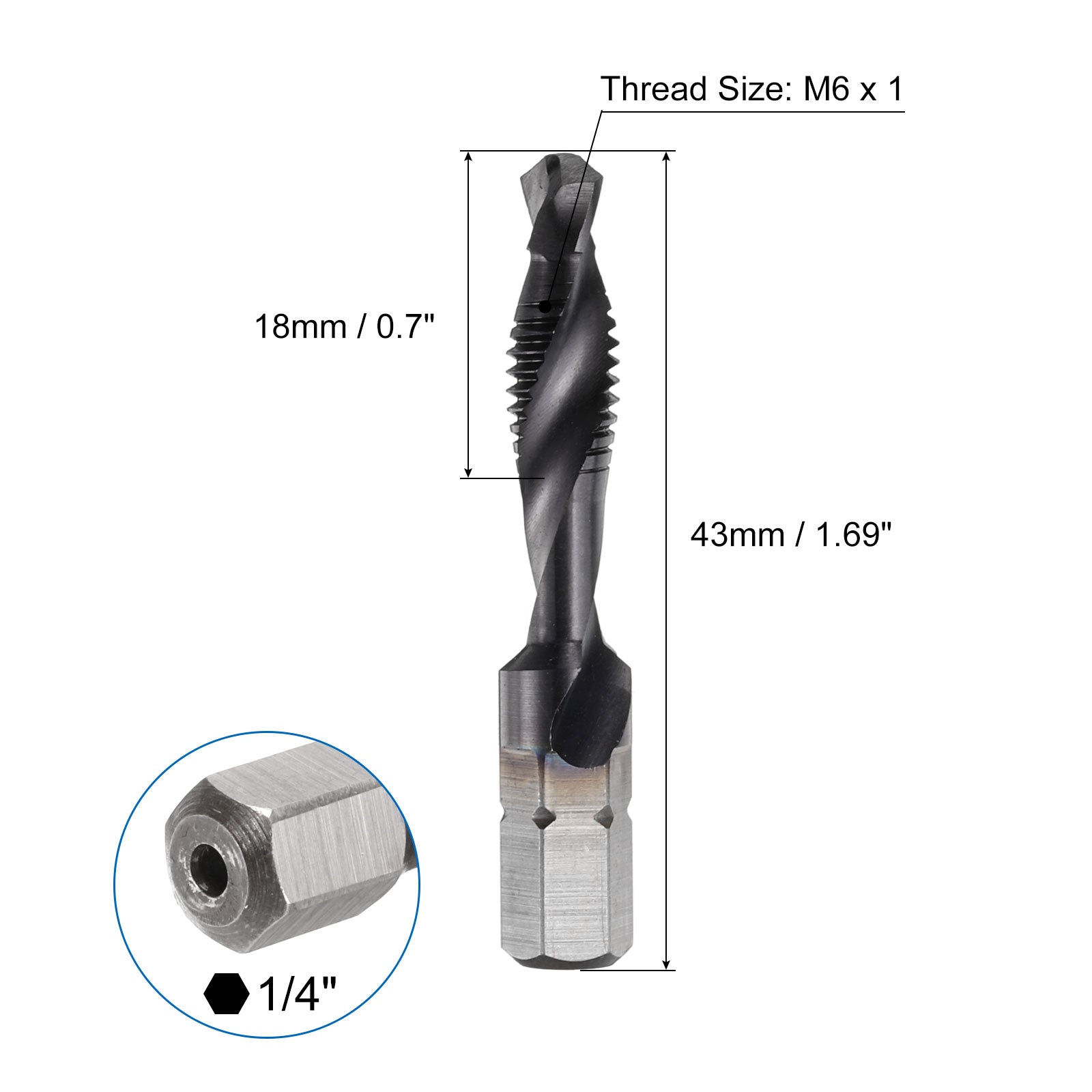

  • Combination Drill and Tap Bit: Thread size: M6 x 1; hex shank size: 1/4"; drilling + tapping length: 18mm / 0.7", total length: 43mm / 1.69". Metric combination tap drill bit is used to create threaded holes, great for situations where both drilling and tapping are required. Can process both through holes and blind holes.

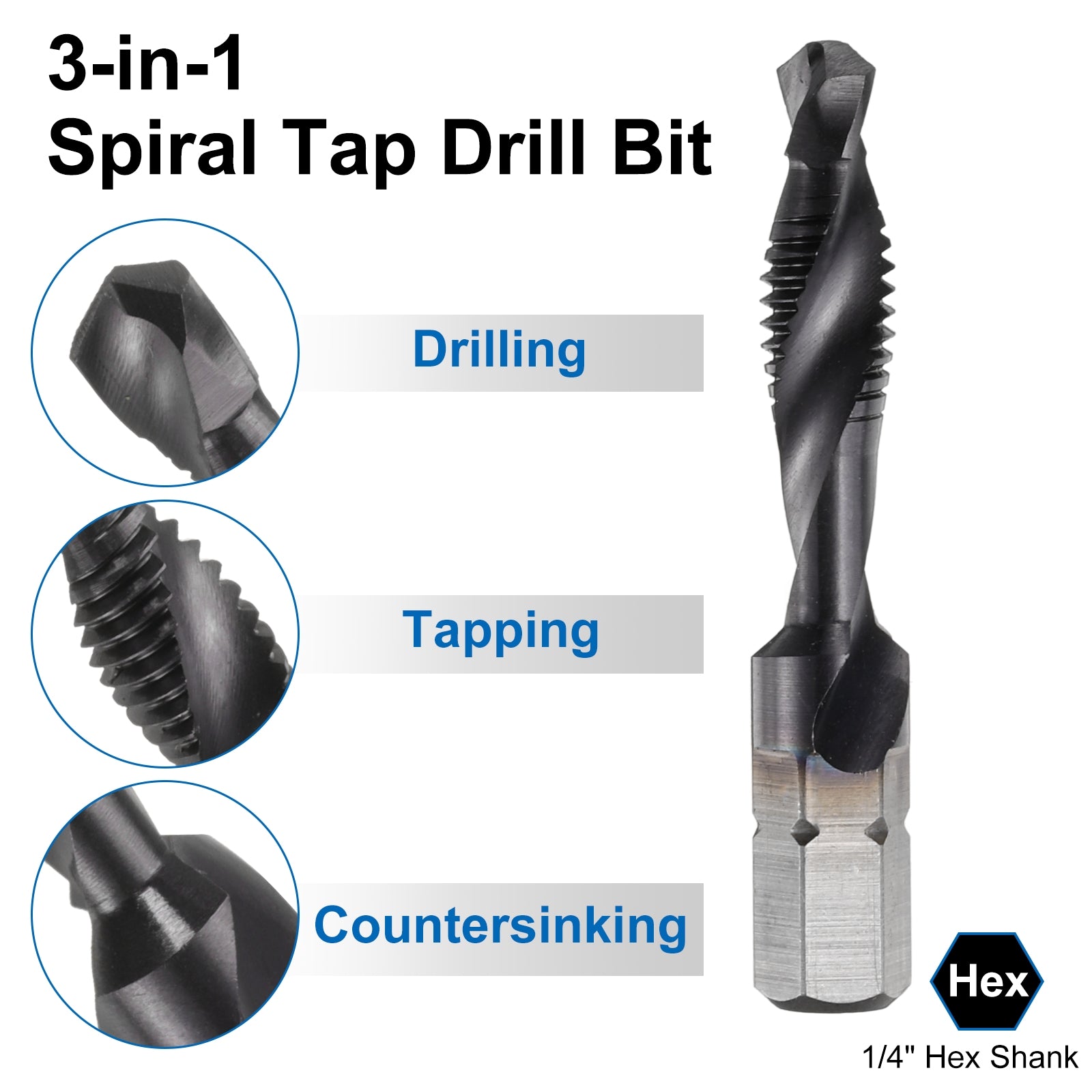

  • 3-in-1 Combination: The 3-in-1 combination drill and tap bit set can complete hole drilling, tapping, and countersinking. Three processes in one, one-step operation, greatly saving processing steps, improving work efficiency, and providing accurate processing results. Used to create threaded holes, great for situations where both drilling and tapping are required.
  • Special Design: Self-centering point, do not need assistant center drilling or center punching. Quick change 1/4-inch hex shank can be used on power tools more easily and securely. A tapered end on hex shank can prevent excessive tapping. It exceeds the tap to prevent thread breakage from over-drilling.

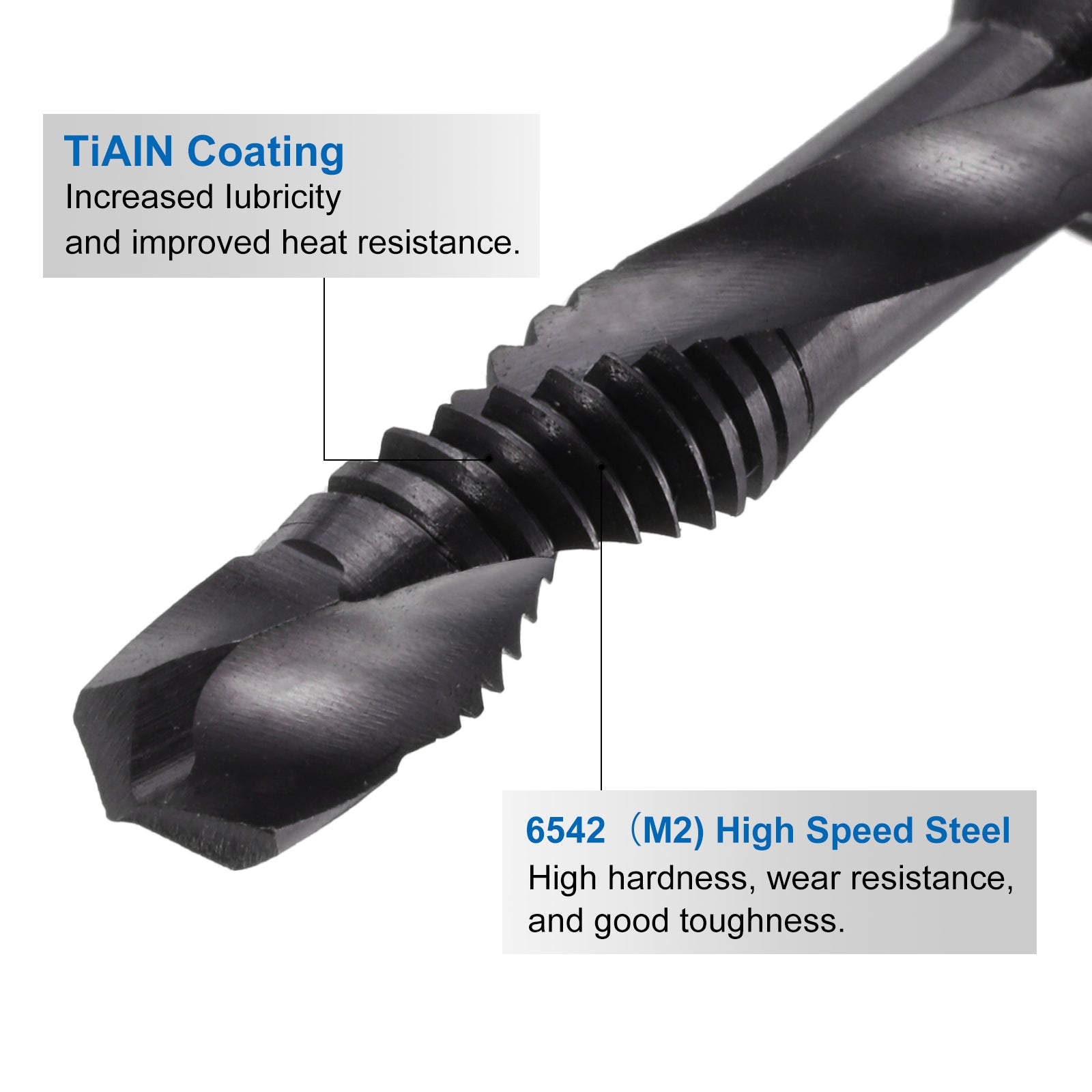

  • 6542 High Speed Steel: The high-speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. TiAlN coating improves drill wear resistance, corrosion resistance and high temperature stability, and prolongs service life.

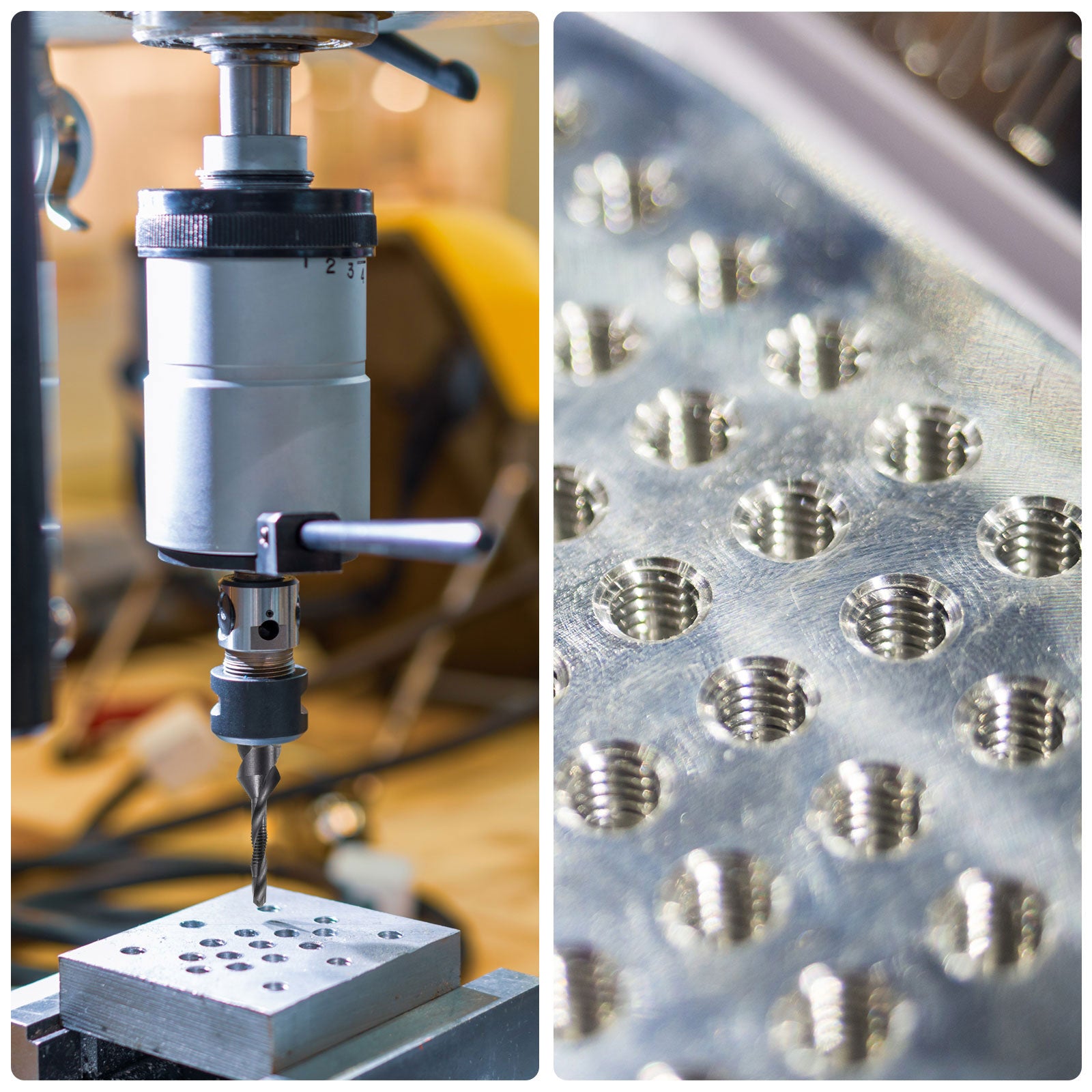

  • Tips: Works with drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • In stock, ready to ship
Cart
Cart
About this item
  • Combination Drill and Tap Bit: Thread size: M6 x 1; hex shank size: 1/4"; drilling + tapping length: 18mm / 0.7", total length: 43mm / 1.69". Metric combination tap drill bit is used to create threaded holes, great for situations where both drilling and tapping are required. Can process both through holes and blind holes.
  • 3-in-1 Combination: The 3-in-1 combination drill and tap bit set can complete hole drilling, tapping, and countersinking. Three processes in one, one-step operation, greatly saving processing steps, improving work efficiency, and providing accurate processing results. Used to create threaded holes, great for situations where both drilling and tapping are required.
  • Special Design: Self-centering point, do not need assistant center drilling or center punching. Quick change 1/4-inch hex shank can be used on power tools more easily and securely. A tapered end on hex shank can prevent excessive tapping. It exceeds the tap to prevent thread breakage from over-drilling.
  • 6542 High Speed Steel: The high-speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. TiAlN coating improves drill wear resistance, corrosion resistance and high temperature stability, and prolongs service life.
  • Tips: Works with drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. The 3-in-1 combination drill and tap bit set can complete hole drilling, tapping, and countersinking. Three processes in one, one-step operation, greatly saving processing steps, improving work efficiency, and providing accurate processing results.

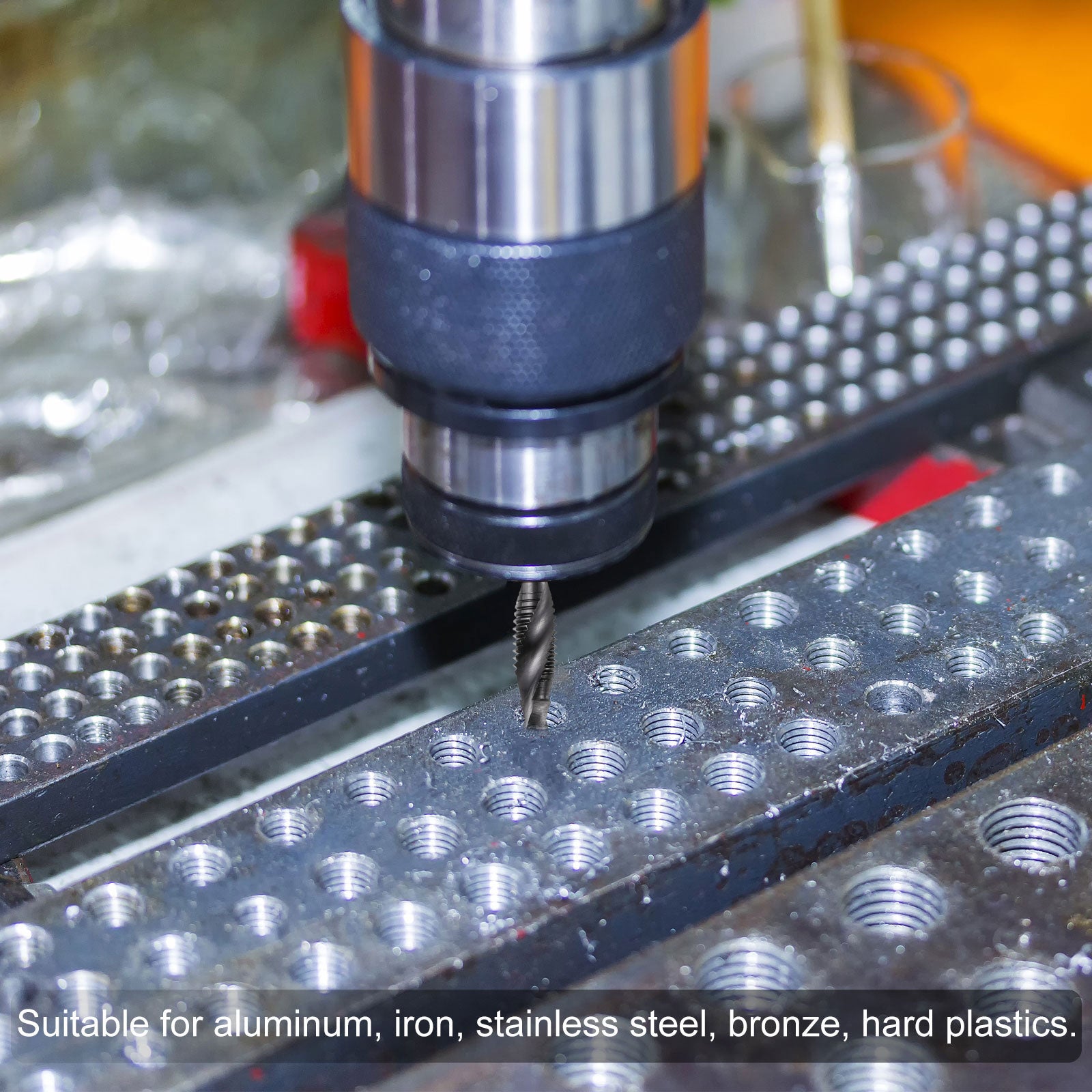

  2. Metric combination tap drill bit is used to create threaded holes, great for situations where both drilling and tapping are required. Can process both through holes and blind holes. Suitable for aluminum, mould steel, stainless steel, bronze, hard plastics, etc..
  3. Self-centering point, do not need assistant center drilling or center punching. Quick change 1/4-inch hex shank can be used on power tools more easily and securely. A tapered end on hex shank can prevent excessive tapping. It exceeds the tap to prevent thread breakage from over-drilling.
  4. 6542 high speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. TiAlN coating improves drill wear resistance, corrosion resistance and high temperature stability, and prolongs service life.
  5. Works with drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection.
  6. Tips: Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break. Taps are prone to chipping or breaking due to speed overload or non-vertical tapping.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
