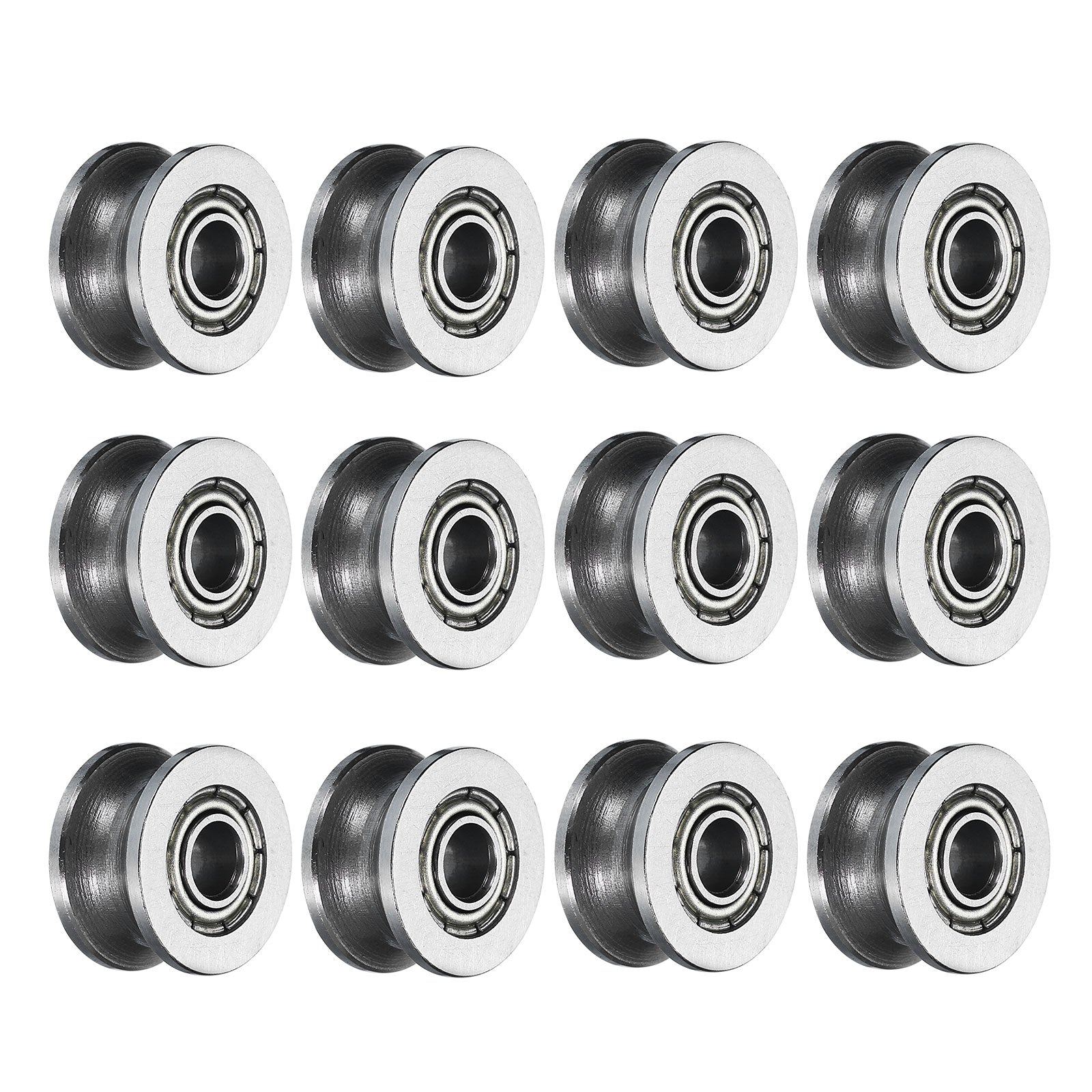

Harfington 12pack U624ZZ U Groove Track Guide Bearing 4x13x7mm U Groove Roller Wheel

12pack U624ZZ U Groove Track Guide Bearing 4x13x7mm U Groove Roller Wheel

ID:
£11.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

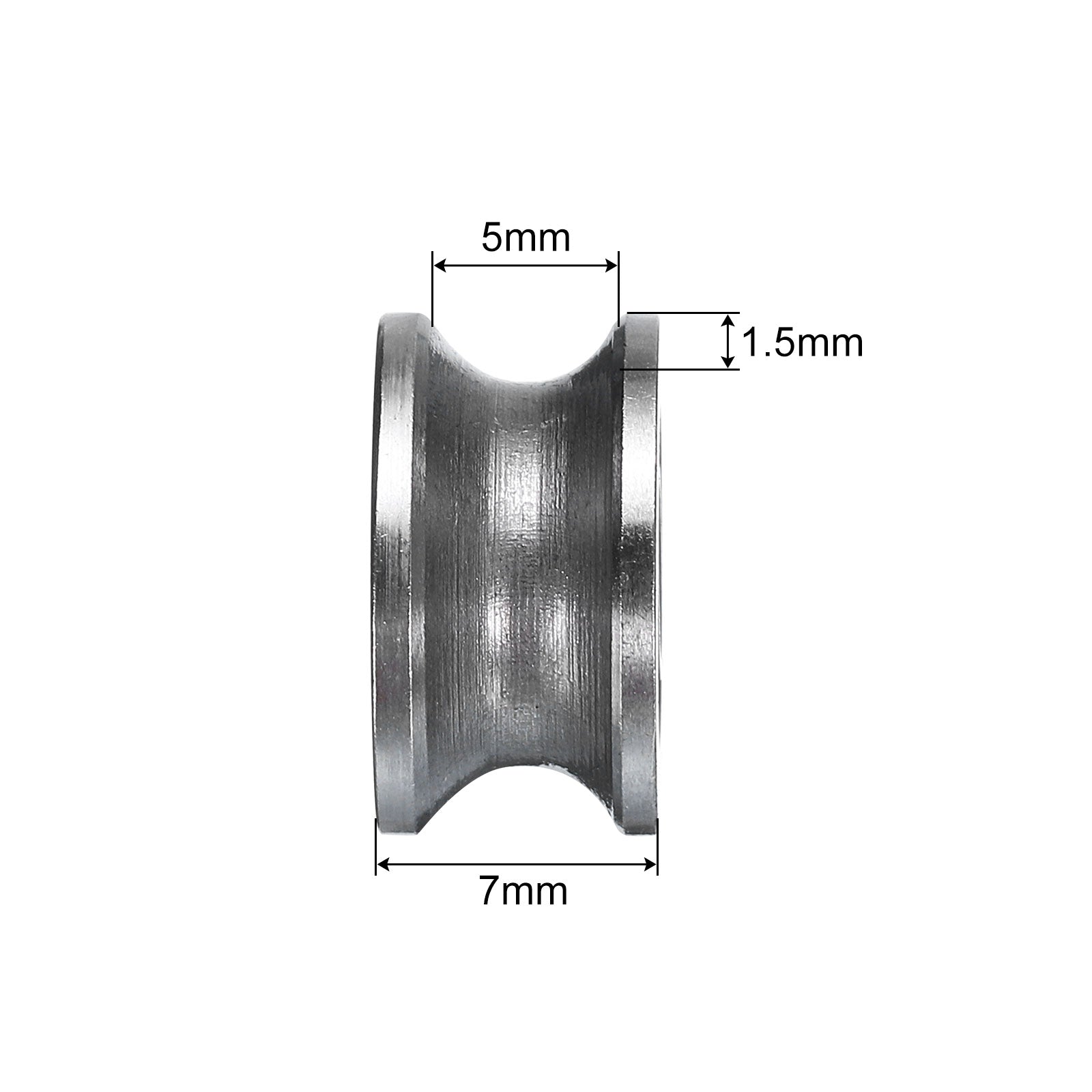

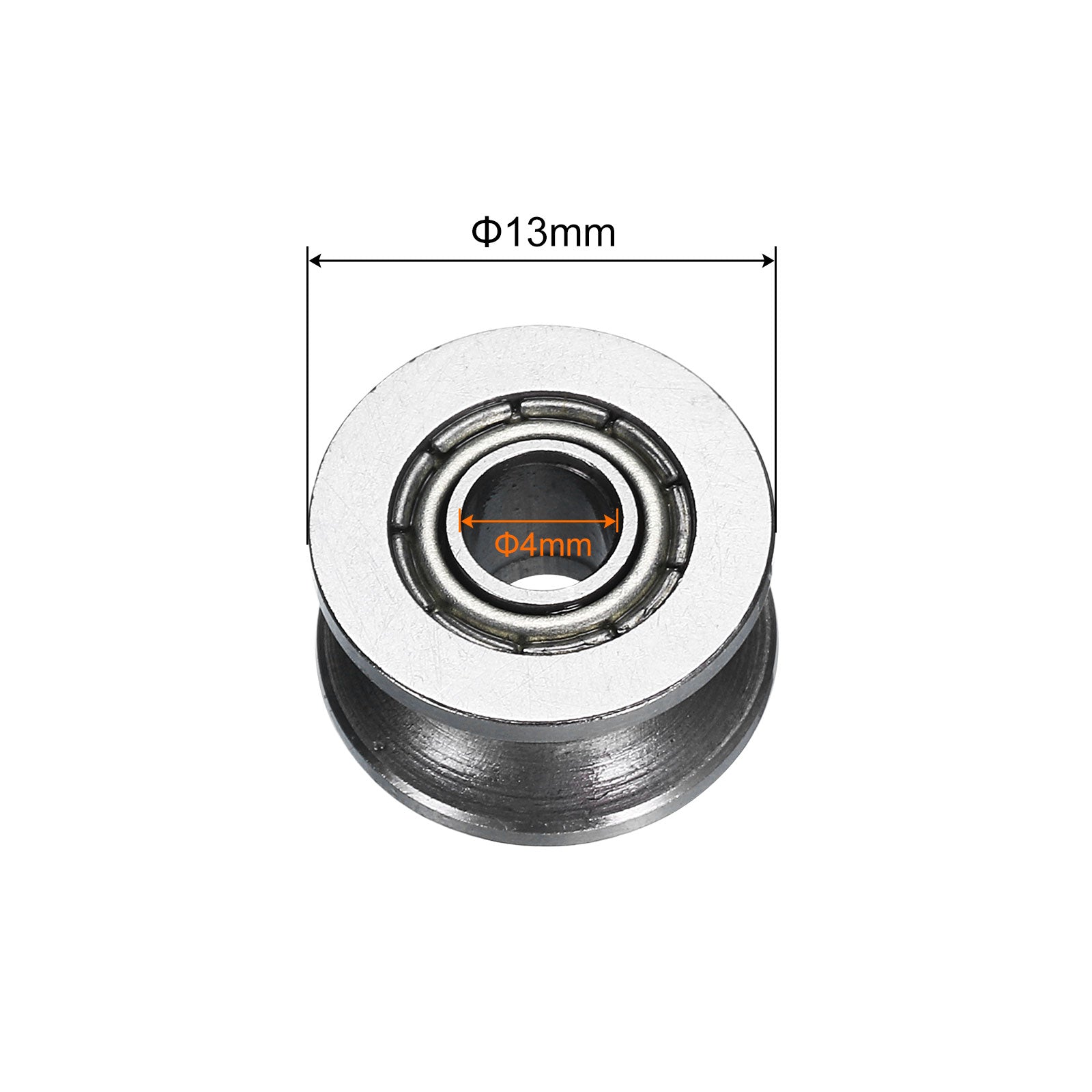

  • U624ZZ Bearing: I.D.=4mm, O.D.=13mm, Thickness=7mm, Groove width=5mm, Groove depth=1.5mm.
  • Carbon steel material, high hardness, and great wear resistance, showing stable performance and lasting service life.

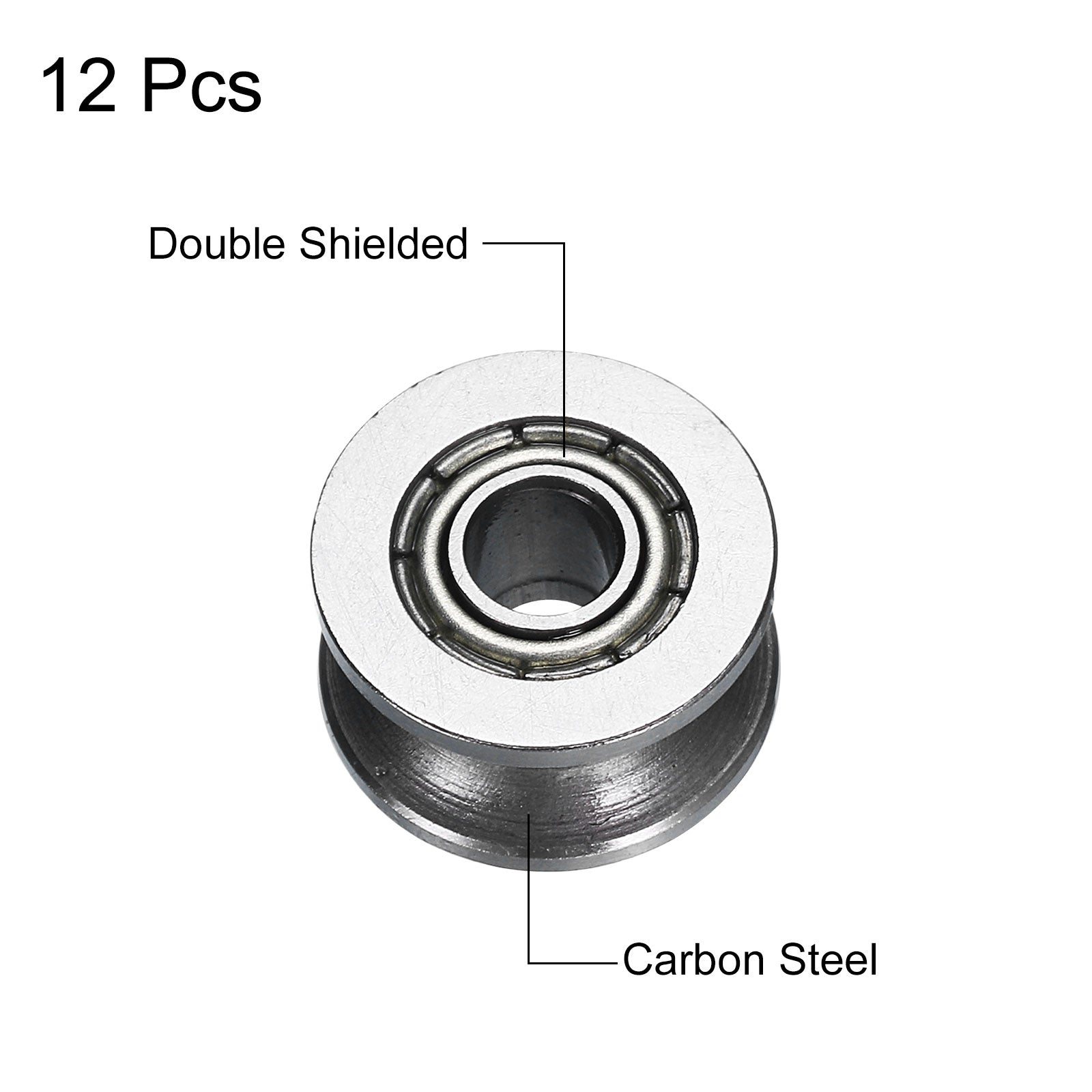

  • Both sides are shielded to keep lubricant and protect from dirt and debris.
  • ABEC3 precision for smooth operation and accurate linear motion guidance.
  • Precision bearing fits for the rail track system. Suitable for 3d printers, aluminum doors and window, sliding barn doors, pulleys and drawers, household appliance, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • U624ZZ Bearing: I.D.=4mm, O.D.=13mm, Thickness=7mm, Groove width=5mm, Groove depth=1.5mm.
  • Carbon steel material, high hardness, and great wear resistance, showing stable performance and lasting service life.
  • Both sides are shielded to keep lubricant and protect from dirt and debris.
  • ABEC3 precision for smooth operation and accurate linear motion guidance.
  • Precision bearing fits for the rail track system. Suitable for 3d printers, aluminum doors and window, sliding barn doors, pulleys and drawers, household appliance, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Can be used to build the track system or replace the wheel, widely used in door and window to track, or drive mechanical equipment.



Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Carbon Steel

Cage Material: Carbon Steel

Accuracy Class: P6 (ABEC3)

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£11.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Can be used to build the track system or replace the wheel, widely used in door and window to track, or drive mechanical equipment.



Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Carbon Steel

Cage Material: Carbon Steel

Accuracy Class: P6 (ABEC3)

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
