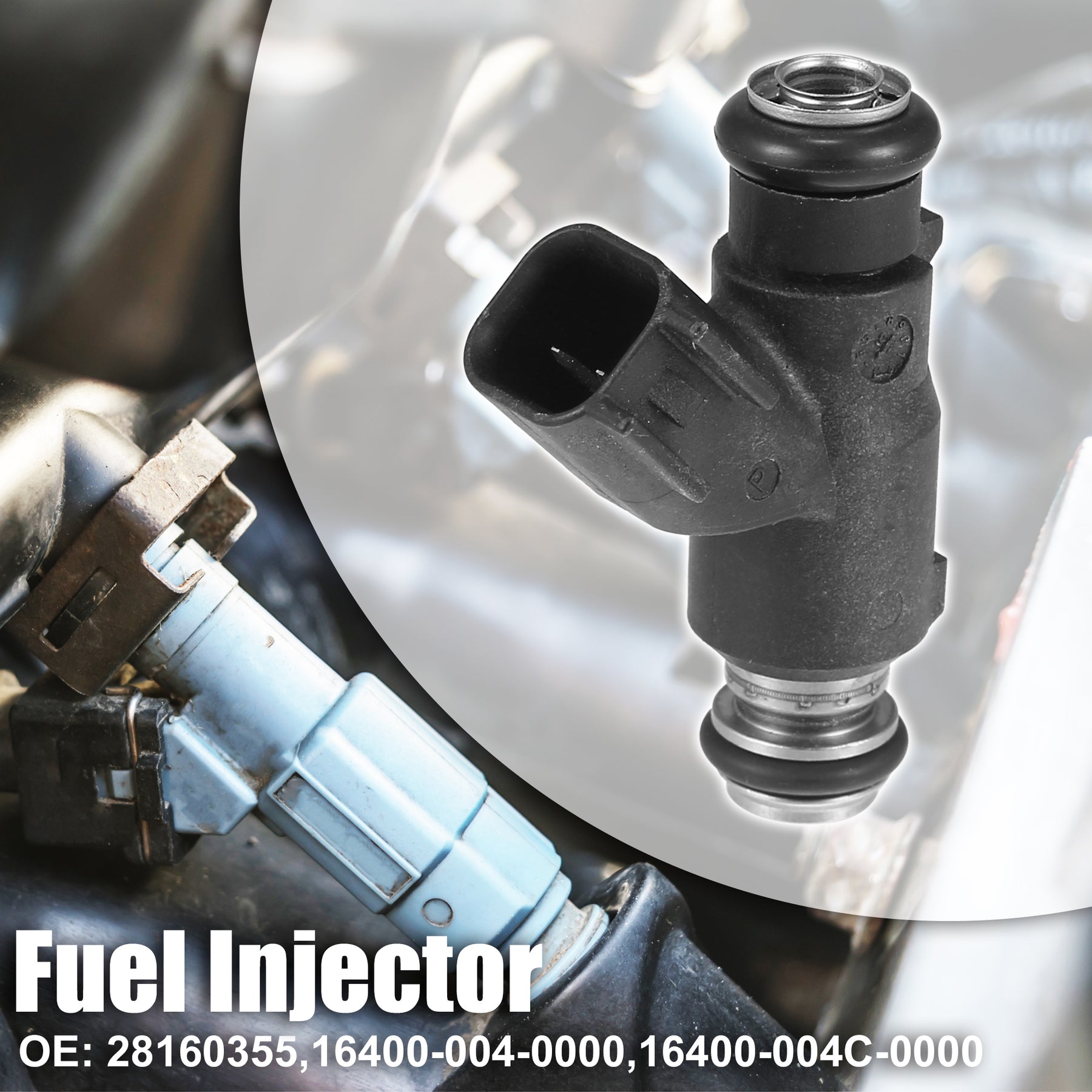

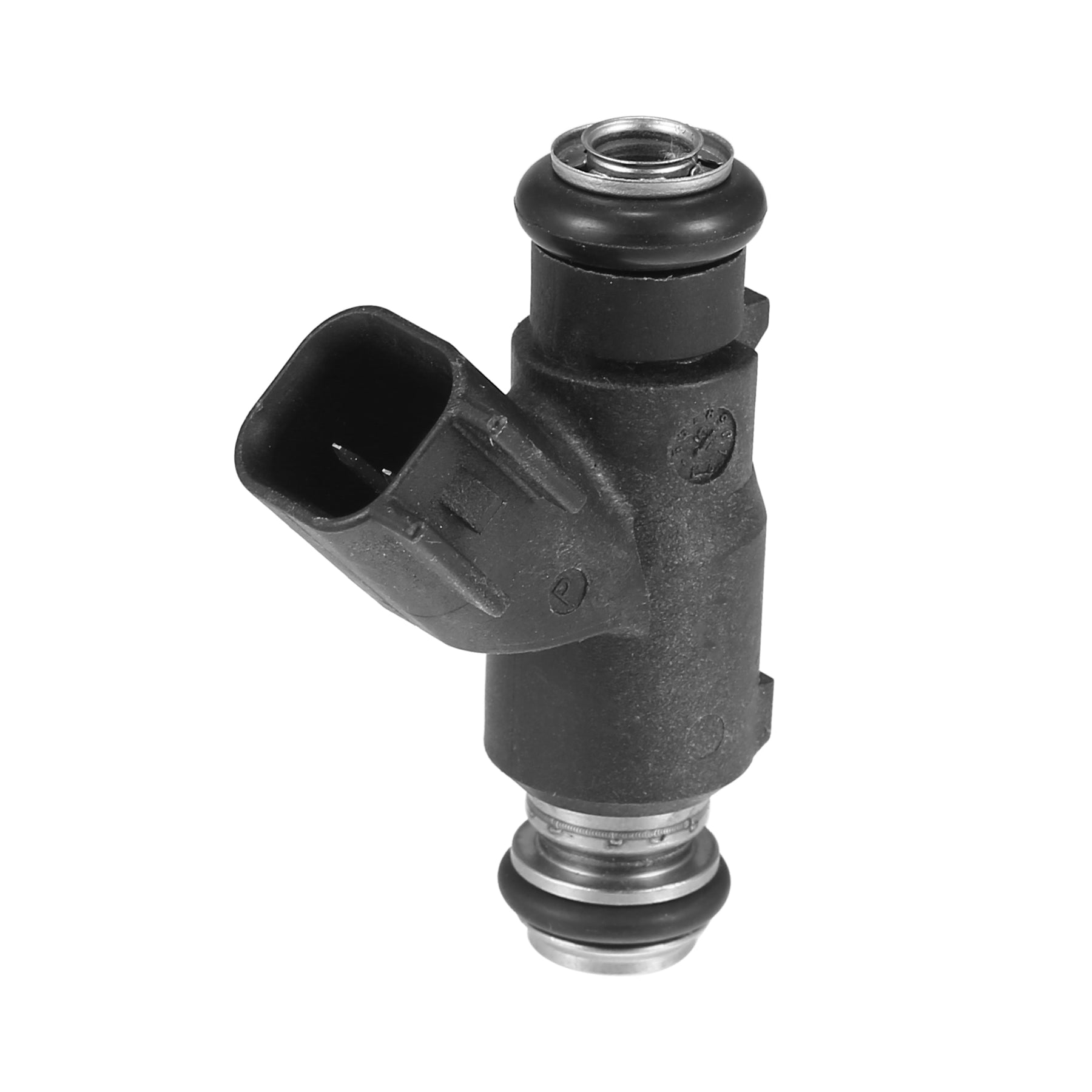

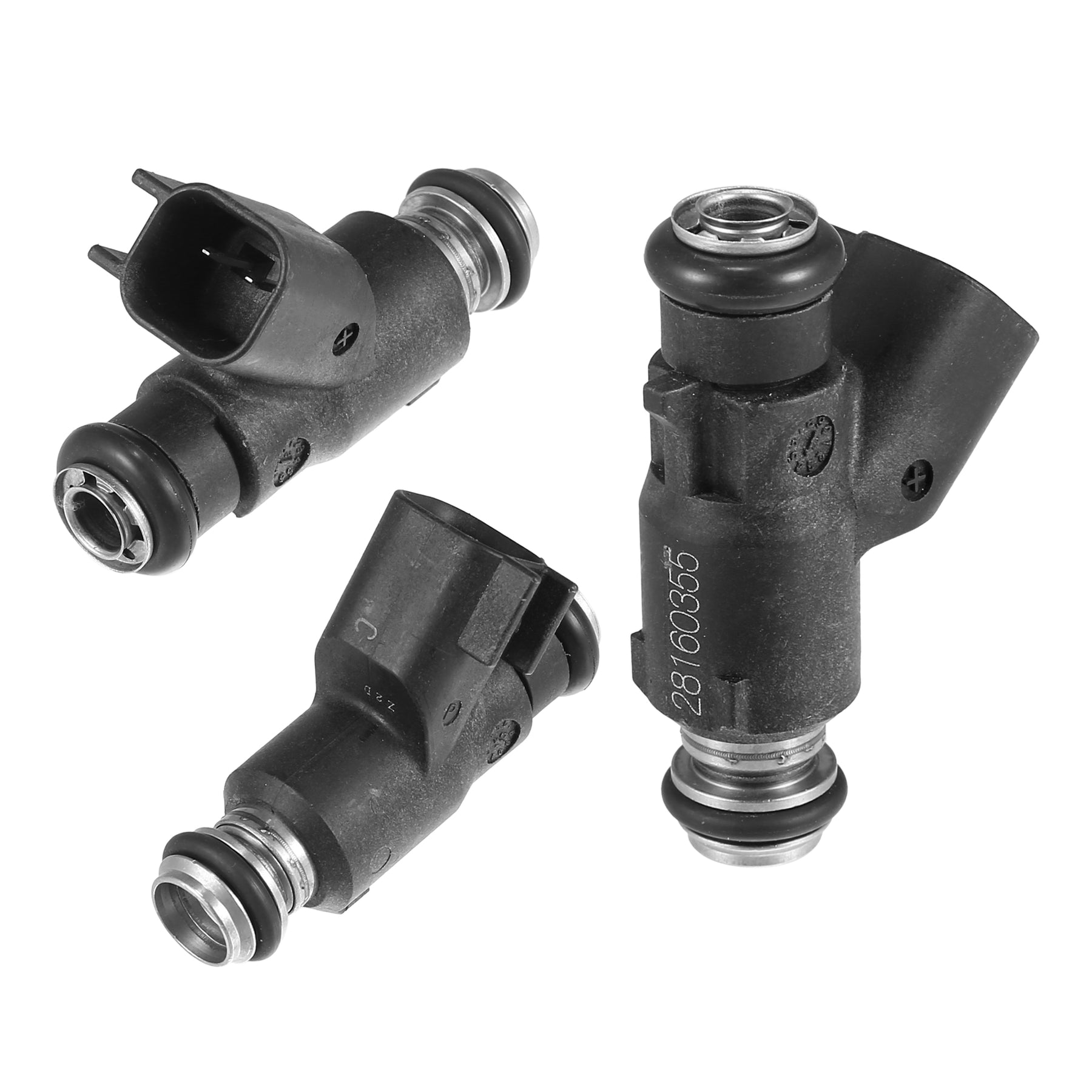

28160355 Fuel Injector for Hisun Tactic Strike for Challenger 500 550 for AXIS

45220695671033
Questions & Answers |
£15.00 Regular price
/
About this item
  • Replacement part number (OE Number): 28160355,16400-004-0000,16400-004C-0000.
  • Fitment: for Hisun EFI 500 & 550 UTV ATV 2011-2018, for Massimo MSU500, for Challenger 500 550, for Coleman UT50, for Bighorn 500 Cowboy 500, for AXIS 500.
  • Fuel Efficient Injector: High efficient fuel sprays and High Impedance Coil enable fast start up in cold environments, low fuel consumption and provide better performance.
  • Effective O-Ring: The effective O-Ring has high temperature resistance and long service life that can seal fuel vapors in and keep them from leaking.
  • Note: Please make sure the part number in our listing is the same as your one.
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20
About this item
  • Replacement part number (OE Number): 28160355,16400-004-0000,16400-004C-0000.
  • Fitment: for Hisun EFI 500 & 550 UTV ATV 2011-2018, for Massimo MSU500, for Challenger 500 550, for Coleman UT50, for Bighorn 500 Cowboy 500, for AXIS 500.
  • Fuel Efficient Injector: High efficient fuel sprays and High Impedance Coil enable fast start up in cold environments, low fuel consumption and provide better performance.
  • Effective O-Ring: The effective O-Ring has high temperature resistance and long service life that can seal fuel vapors in and keep them from leaking.
  • Note: Please make sure the part number in our listing is the same as your one.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
  • Fuel injectors directly affect the air/fuel ratio for the engine and new fuel injectors do require a new or updated tune.
  • This is a non-OEM product, accessory only!
Specification:
  • OE Number: 28160355,16400-004-0000,16400-004C-0000
  • O-Rings Included: Yes, preinstalled

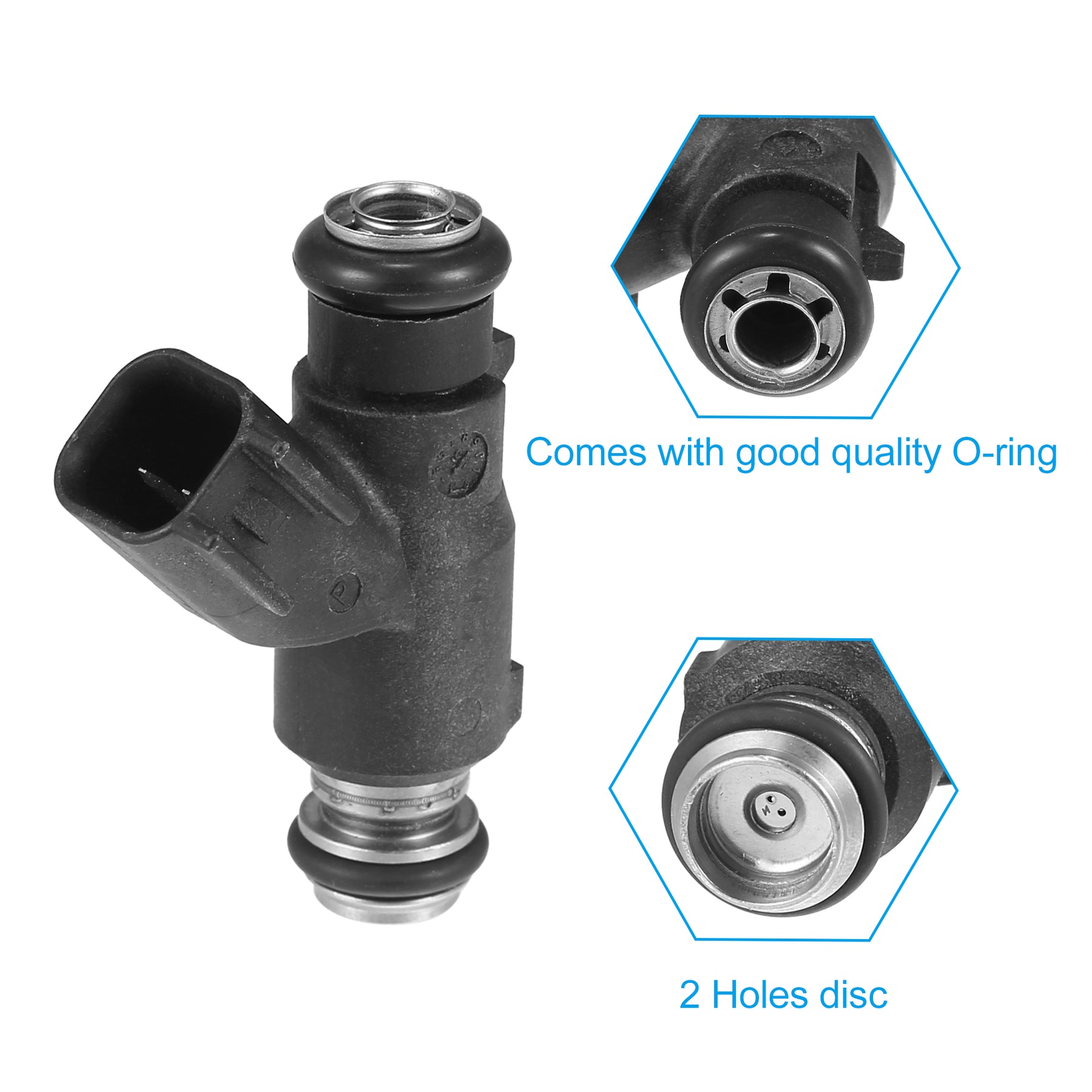

  • Orifice Type: 2 Holes Disc
  • Flow Rate: Same as
  • Pin Number: 2 Pins
  • Material: Metal, Plastic
  • Color:  Black
  • Voltage: DC 12V
  • Size: 54x36mm / 2.13"x1.42"(L*W)
  • O-Ring Diameter: 14mm/0.57"
Fitment:
  • for Hisun EFI 500 & 550 UTV ATV 2011-2018
  • for Massimo MSU500
  • for Challenger 500 550 for Coleman UT500
  • for Bighorn 500 Cowboy 500
Installation:
  • Step 1. Make sure the engine is cool down. Disconnect the battery.
  • Step 2. Remove the bolts and brackets from the fuel rail.
  • Step 3. Disconnect the plug on each injector.
  • Step 4. Lift the fuel rail and remove the injector from the fuel rail.
  • Step 5. Press the new injector into the rail. Reattach the fuel rail and put the injectors in their respective holes.
  • Step 6. Bolt down fuel rail. Reattach fuel line. Plug in injector connectors. Reconnect battery.
  • Step 7. Double check for fuel leaks before and after starting the engine.
Note:
  • This installation should be done by an experienced mechanic who has access to a factory service manual and all required tools!
  • Please check the fitment section of this listing before you purchase.
  • Please kindly check again your engine volume!
  • This is a non-OEM product, accessory only!
Package Included:
  • 1 x Fuel Injector
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
