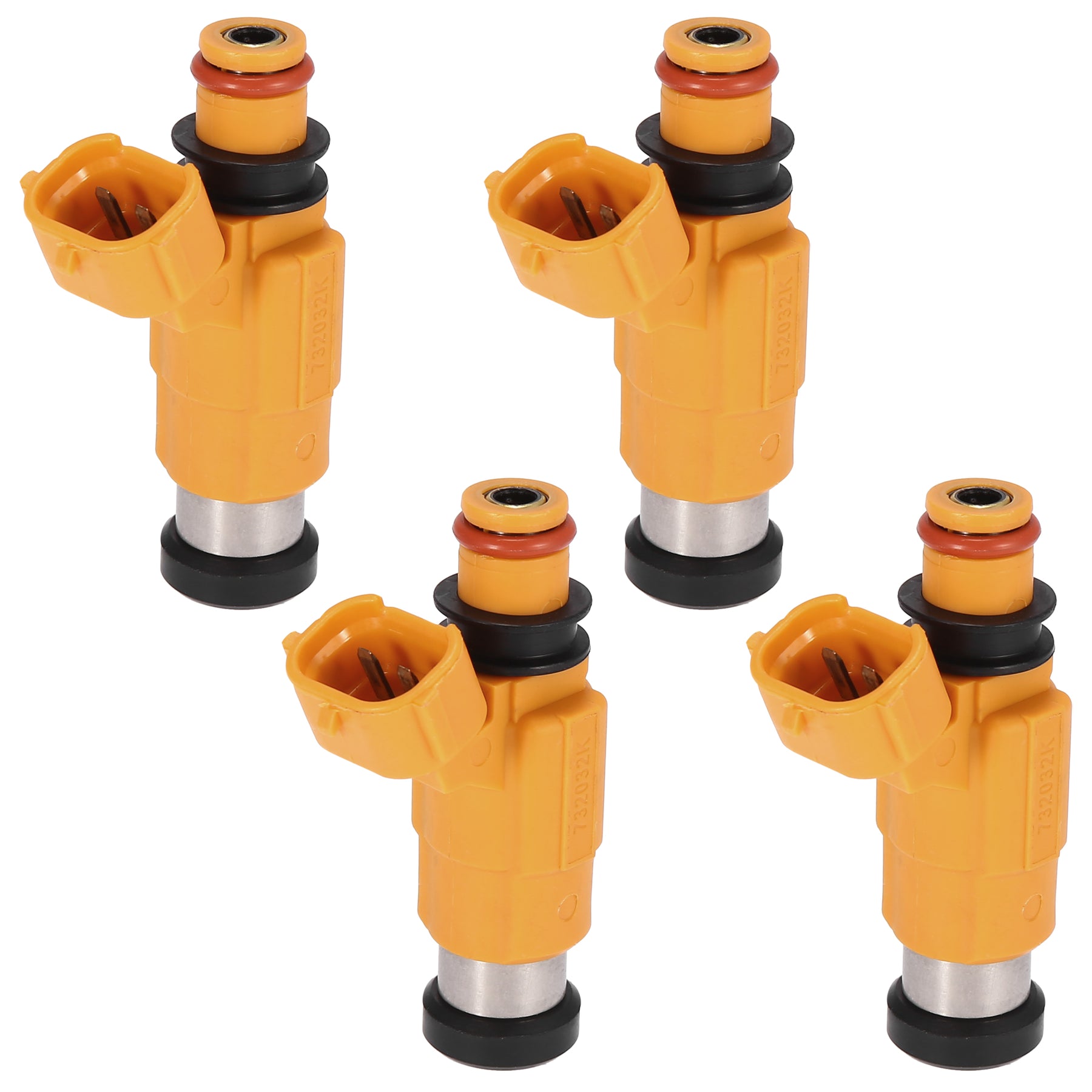

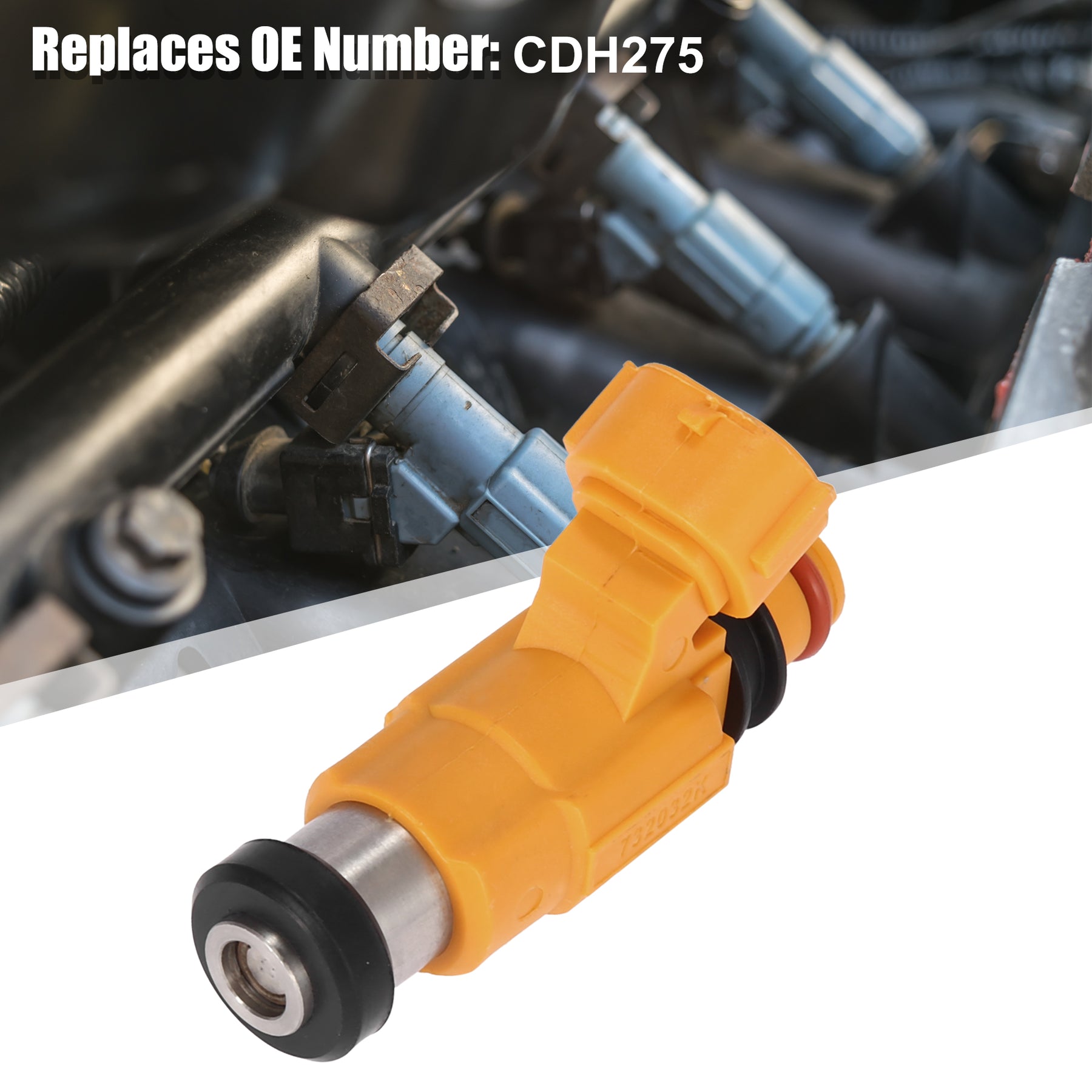

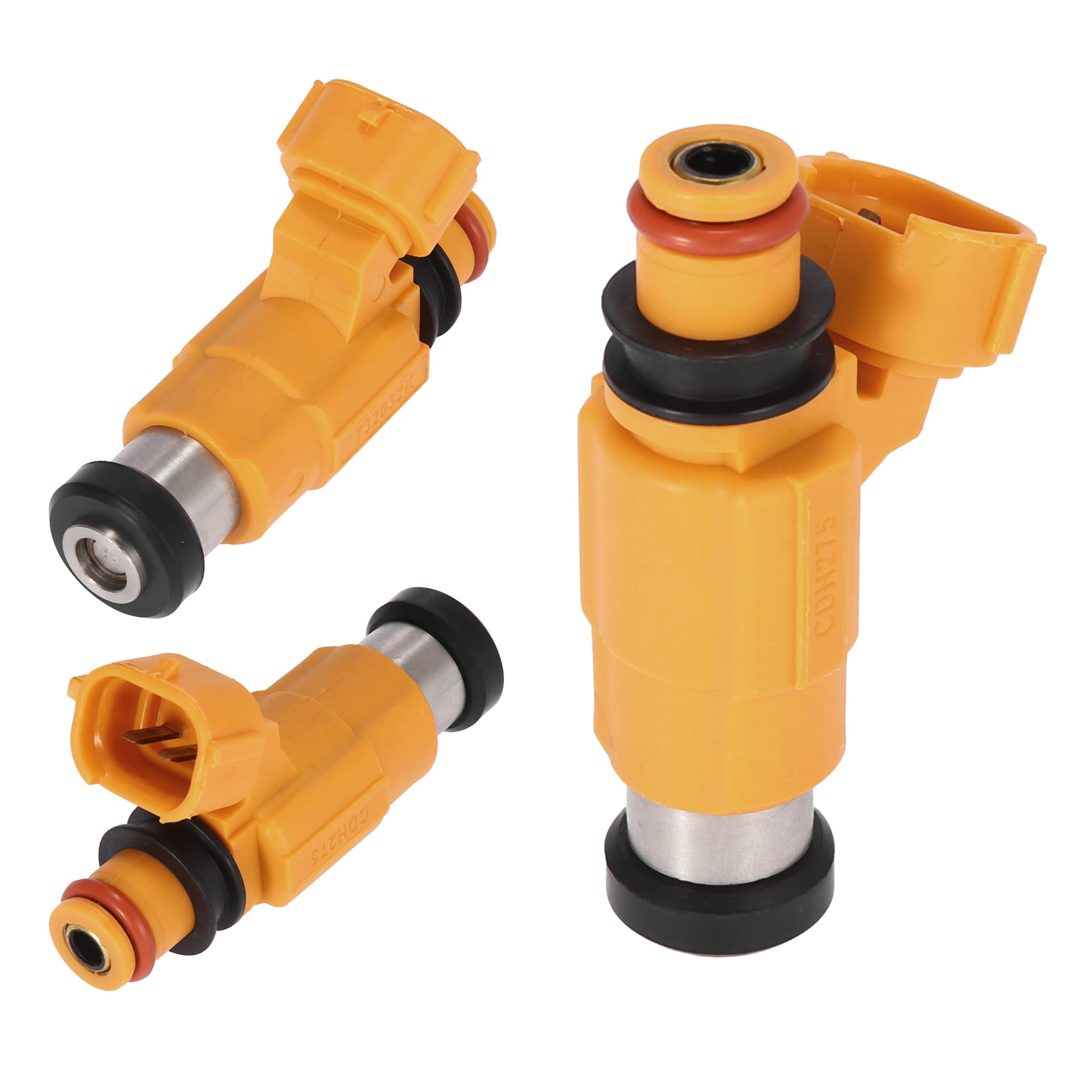

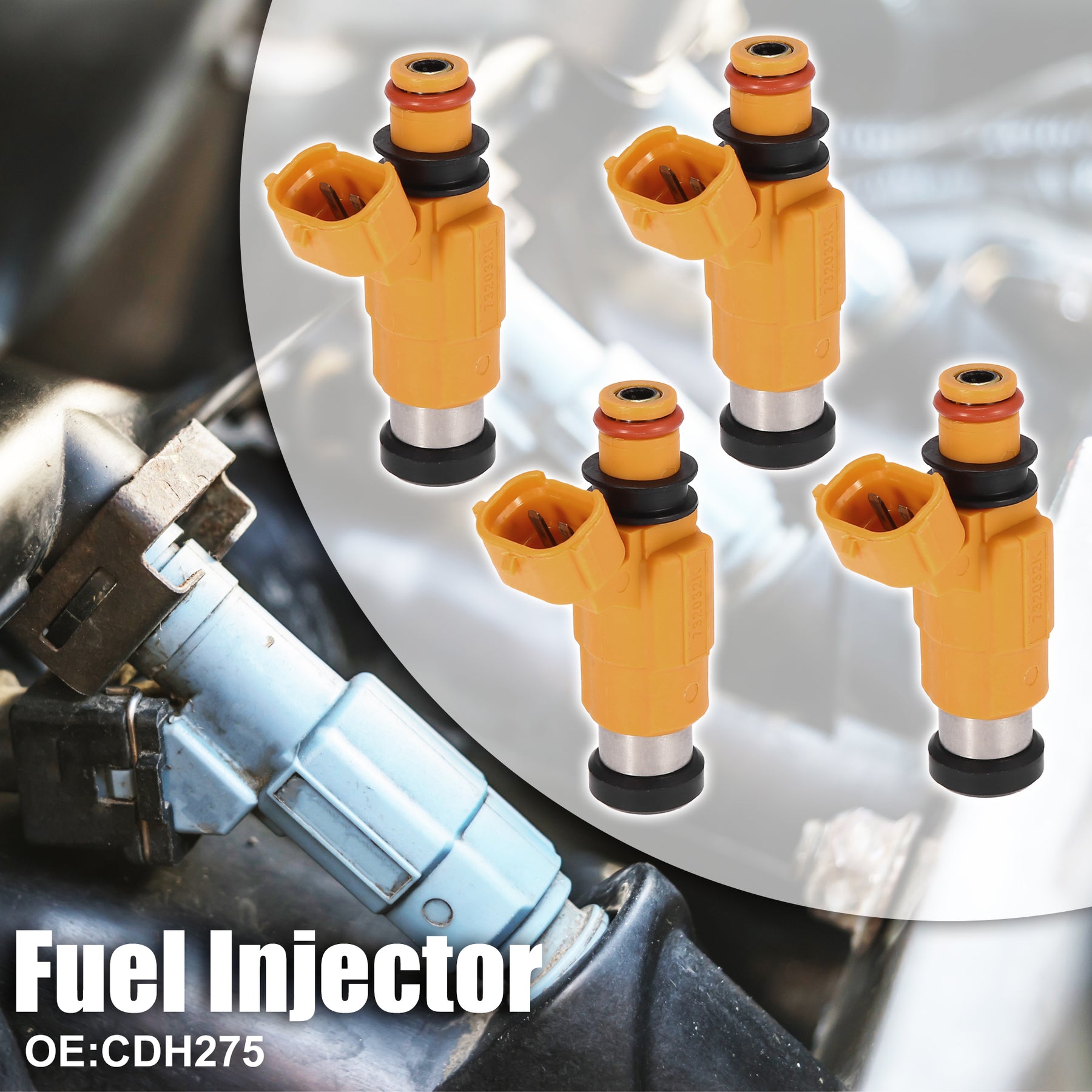

4pcs CDH275 Fuel Injector for Marine for Yamaha F150 Outboard 4 Stroke for Mitsubishi Montero Diamante Galant Eclipse 63P137610000

45220634984697
Questions & Answers |
£40.00 Regular price
/
About this item
  • The Replacement Part Number(OE Number): 63P137610000 CDH275 150HP AW347305, MD319792 842-12295
  • Fitment: for Marine for Yamaha F150 Outboard 4 Stroke; for 2004 F150TLRC; for 2004 F150TXRC; for 2004 LF150TXRC; for 2005 F150TLRD; for 2005 F150TXRD; for 2005 LF150TXRD; for 2006 and Later 4-stroke F150TJR; for 2006 and Later 4-stroke F150TLR; for 2006 and Later 4-stroke F150TXR;for 2006 and Later 4-stroke LF150TXR
  • Fuel-Efficient Injector: High efficient fuel sprays and High Impedance Coil enable fast start up in cold environment, low fuel consumption and provide better performance.
  • Package Included: 4 x Fuel Injector; Material: Metal and Plastic; Pin Number: 2; Voltage: DC 12V; Orifice Type: 4 Holes Disc
  • Professional installation is highly recommended: Fuel injectors directly affect the air/fuel ratio for the engine and new fuel injectors do require a new or updated tune. We also suggest that you check the other component of the engine before installation.
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20
About this item
  • The Replacement Part Number(OE Number): 63P137610000 CDH275 150HP AW347305, MD319792 842-12295
  • Fitment: for Marine for Yamaha F150 Outboard 4 Stroke; for 2004 F150TLRC; for 2004 F150TXRC; for 2004 LF150TXRC; for 2005 F150TLRD; for 2005 F150TXRD; for 2005 LF150TXRD; for 2006 and Later 4-stroke F150TJR; for 2006 and Later 4-stroke F150TLR; for 2006 and Later 4-stroke F150TXR;for 2006 and Later 4-stroke LF150TXR
  • Fuel-Efficient Injector: High efficient fuel sprays and High Impedance Coil enable fast start up in cold environment, low fuel consumption and provide better performance.
  • Package Included: 4 x Fuel Injector; Material: Metal and Plastic; Pin Number: 2; Voltage: DC 12V; Orifice Type: 4 Holes Disc
  • Professional installation is highly recommended: Fuel injectors directly affect the air/fuel ratio for the engine and new fuel injectors do require a new or updated tune. We also suggest that you check the other component of the engine before installation.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
  • Fuel injectors directly affect the air/fuel ratio for the engine and new fuel injectors do require a new or updated tune.
Specification:

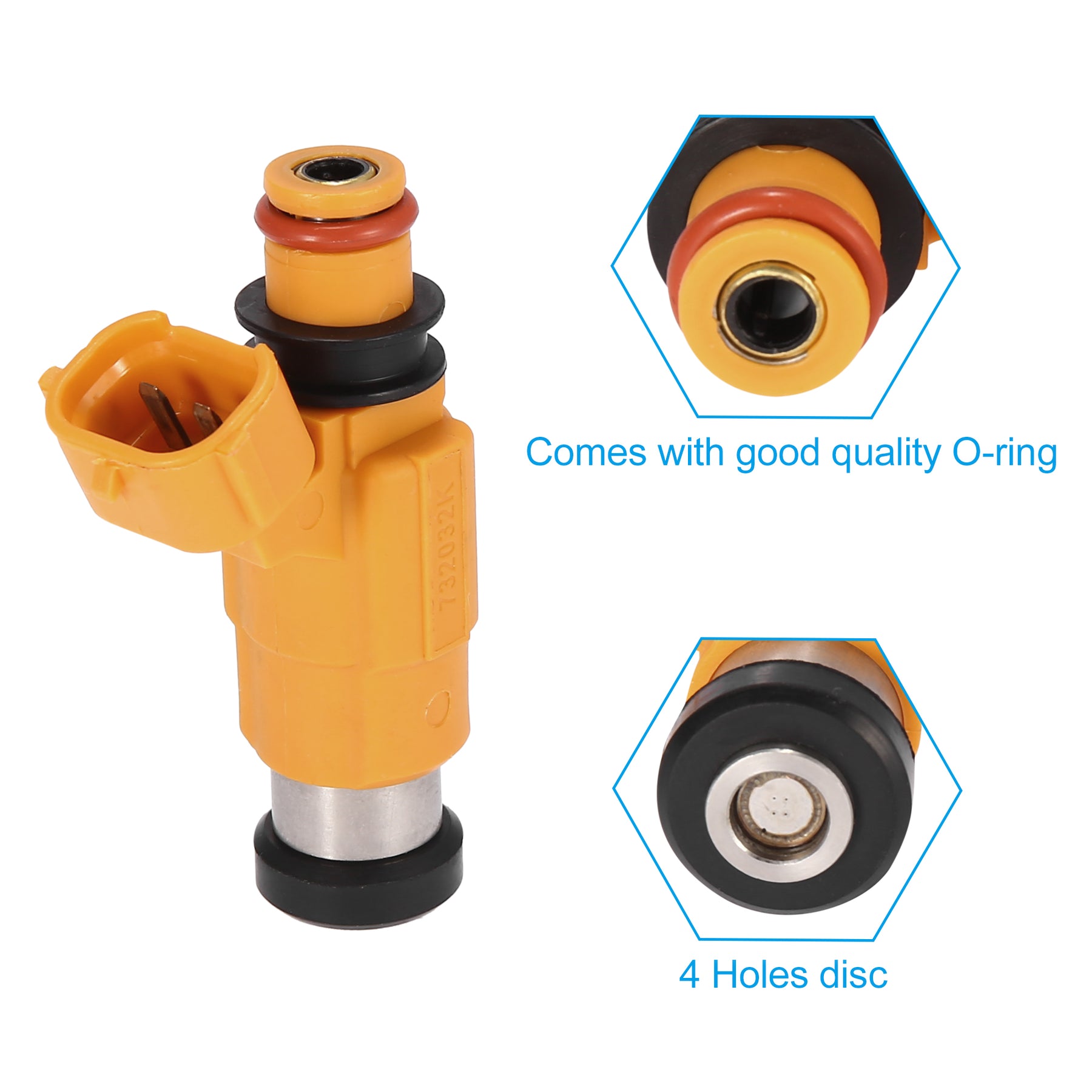

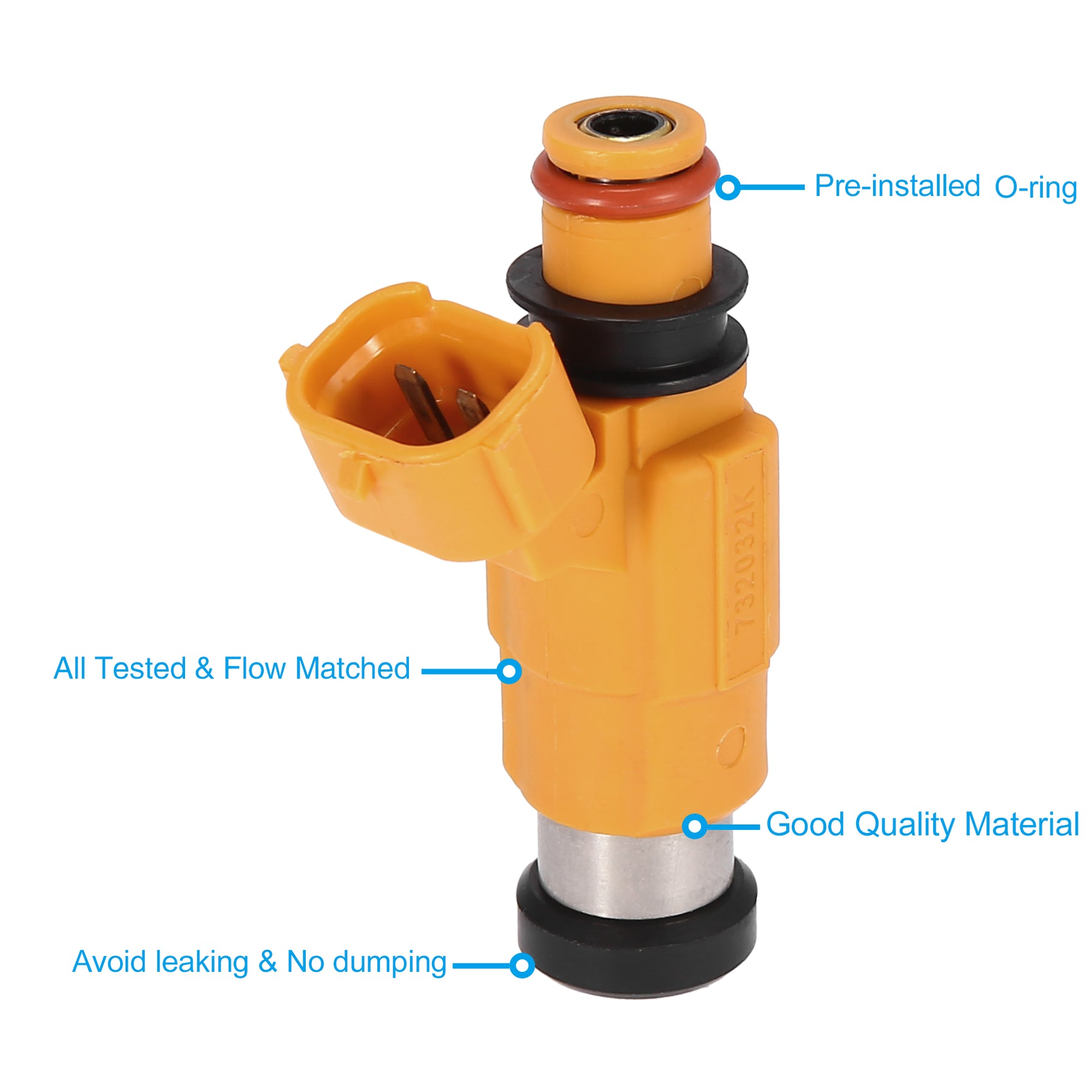

  • O Rings Included: Yes, preinstalled
  • Orifice Type: 4 Holes Disc
  • Voltage: DC 12V
  • OE Number: CDH275, AW347305, MD319792, 656793160973
  • Pin Number: 2
  • Dimension: 6.1x3.4x2cm / 2.40"x1.34"x0.79"(L*W*H)
Note:
  • This is a non-OEM product, accessory only!
  • This installation should be done by an experienced mechanic who has access to a factory service manual and all required tools!
Fitment:
  • for Mitsubishi Montero Sport 2.4L 1997-1999
  • for Mitsubishi Diamante 3.5L 1997-2004
  • for Mitsubishi Galant 2.4L 1999-2000
  • for Mitsubishi Eclipse 3.0L 2001-2005
  • for Chrysler Sebring 3.0L 2001-2005
  • for Dodge Stratus 3.0L 2001-2005
  • for Yamaha F150TLRC F150TXRC LF150TXRC 2004
  • for Yamaha F150TLRD F150TXRD LF150TXRD 2005
  • for Yamaha 4-stroke F150TJR F150TLR F150TXR 2006 and Later
  • for Yamaha 4-stroke LF150TXR 2006 and Later
Package Included:
  • 4 x Fuel Injector
Installation:
  • Step 1. Make sure the engine is cool down. Disconnect the battery.
  • Step 2. Remove the bolts and brackets from the fuel rail.
  • Step 3. Disconnect the plug on each injector.
  • Step 4. Lift the fuel rail and remove the injector from the fuel rail.
  • Step 5. Press the new injector into the rail. Reattach the fuel rail and put the injectors in their respective holes.
  • Step 6. Bolt down fuel rail. Reattach fuel line. Plug in injector connectors. Reconnect battery.
  • Step 7. Double check for fuel leaks before and after starting the engine.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Description

Description

Description:
  • Fuel injectors directly affect the air/fuel ratio for the engine and new fuel injectors do require a new or updated tune.
Specification:
  • O Rings Included: Yes, preinstalled
  • Orifice Type: 4 Holes Disc
  • Voltage: DC 12V
  • OE Number: CDH275, AW347305, MD319792, 656793160973
  • Pin Number: 2
  • Dimension: 6.1x3.4x2cm / 2.40"x1.34"x0.79"(L*W*H)
Note:
  • This is a non-OEM product, accessory only!
  • This installation should be done by an experienced mechanic who has access to a factory service manual and all required tools!
Fitment:
  • for Mitsubishi Montero Sport 2.4L 1997-1999
  • for Mitsubishi Diamante 3.5L 1997-2004
  • for Mitsubishi Galant 2.4L 1999-2000
  • for Mitsubishi Eclipse 3.0L 2001-2005
  • for Chrysler Sebring 3.0L 2001-2005
  • for Dodge Stratus 3.0L 2001-2005
  • for Yamaha F150TLRC F150TXRC LF150TXRC 2004
  • for Yamaha F150TLRD F150TXRD LF150TXRD 2005
  • for Yamaha 4-stroke F150TJR F150TLR F150TXR 2006 and Later
  • for Yamaha 4-stroke LF150TXR 2006 and Later
Package Included:
  • 4 x Fuel Injector
Installation:
  • Step 1. Make sure the engine is cool down. Disconnect the battery.
  • Step 2. Remove the bolts and brackets from the fuel rail.
  • Step 3. Disconnect the plug on each injector.
  • Step 4. Lift the fuel rail and remove the injector from the fuel rail.
  • Step 5. Press the new injector into the rail. Reattach the fuel rail and put the injectors in their respective holes.
  • Step 6. Bolt down fuel rail. Reattach fuel line. Plug in injector connectors. Reconnect battery.
  • Step 7. Double check for fuel leaks before and after starting the engine.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
