Harfington Ball Nose End Mill 1/8" Radius 1/4" Shank Solid Carbide Coated 2 Flutes

Ball Nose End Mill 1/8" Radius 1/4" Shank Solid Carbide Coated 2 Flutes

ID:
£12.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

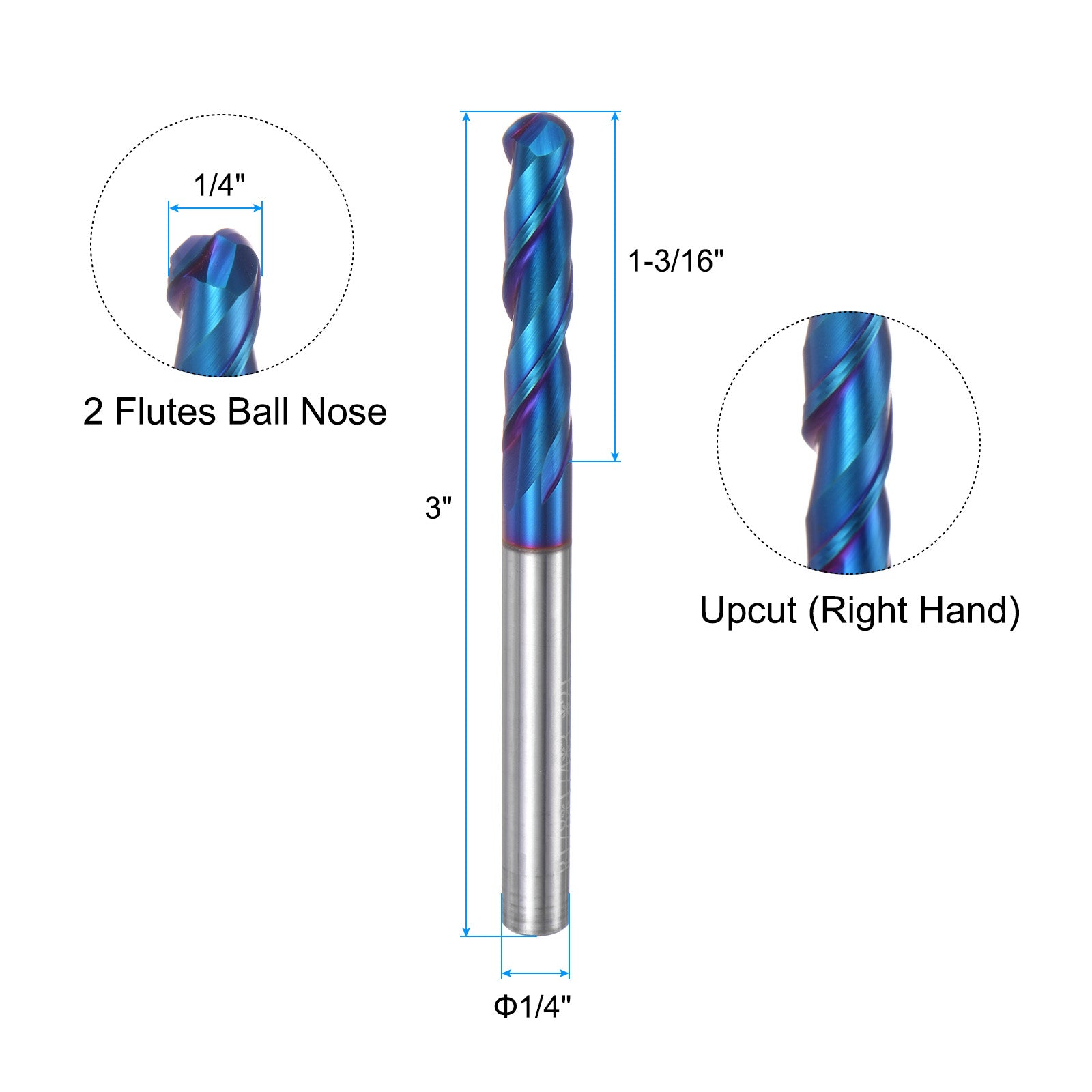

  • Ball Nose End Mill Size: Cutting radius: 1/8"; cutting diameter: 1/4"; shank diameter: 1/4"; cutting length: 1-3/16"; total length: 3"; number of spiral flutes: 2; end cut type: ball end; cutting direction: up cut (right hand)

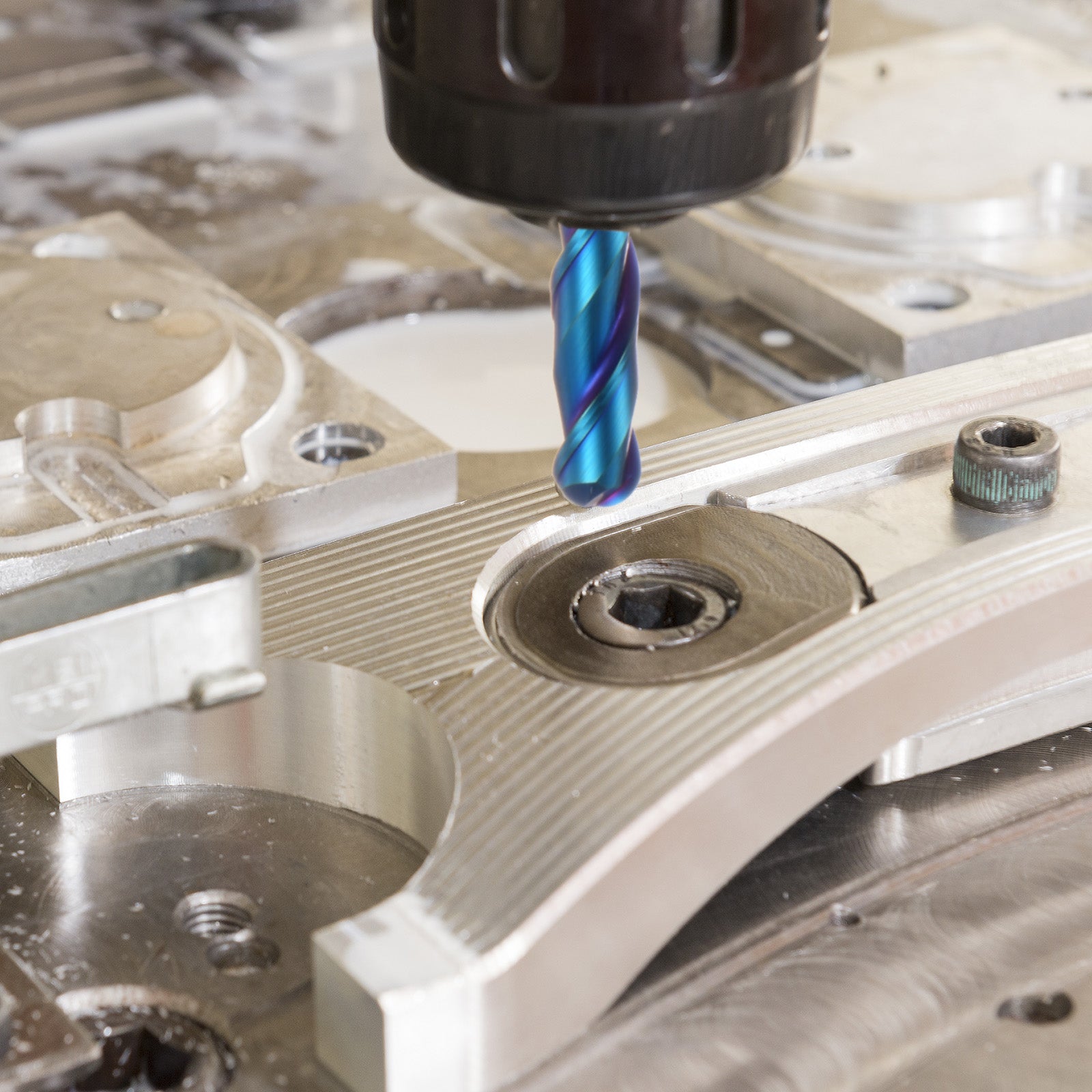

  • Wide Applications: Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Ball end mills can perform chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.

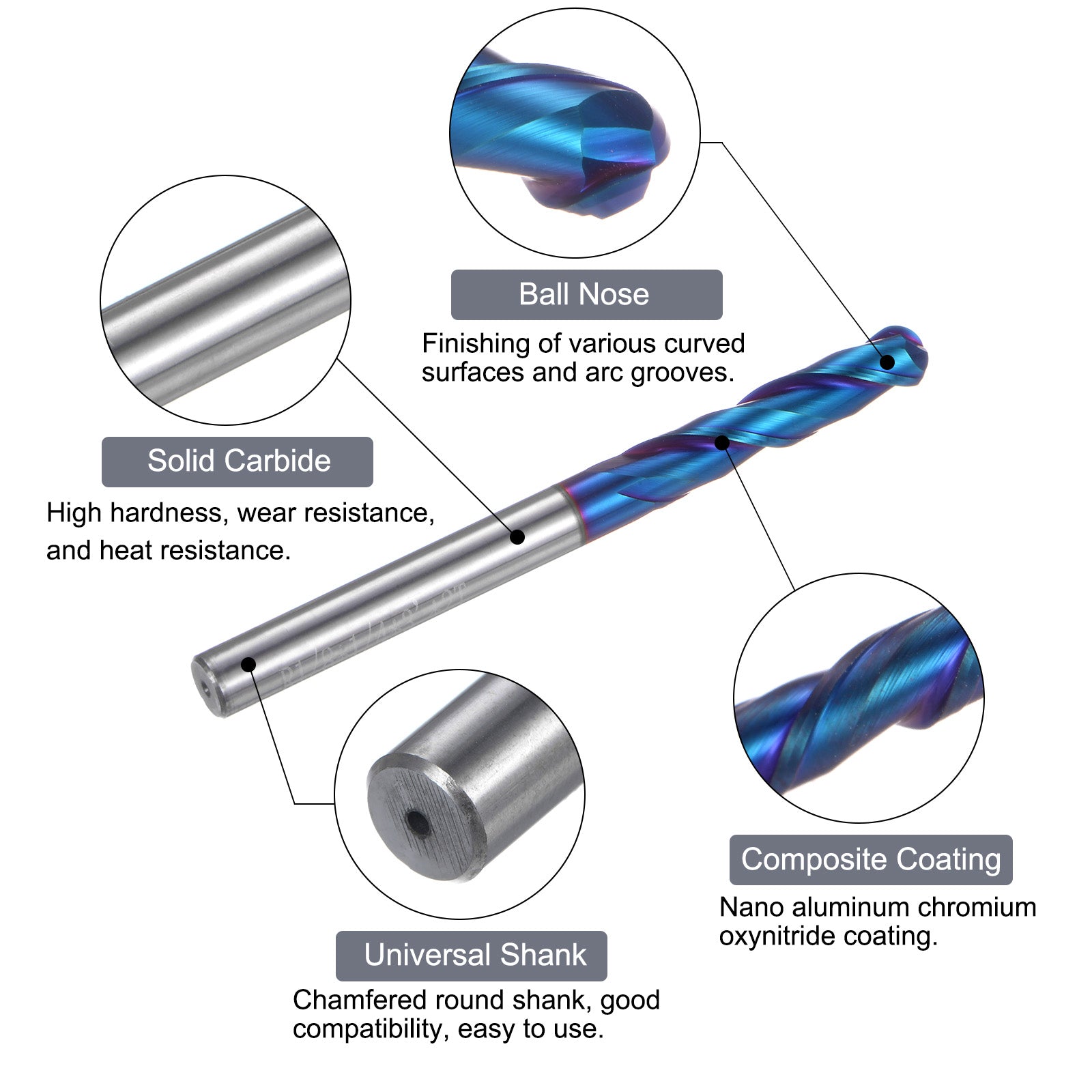

  • Composite Coating: Nano aluminum chromium oxynitride coating provides high hardness, wear resistance and higher heat resistance. Offers excellent performance in high-speed machining applications. Suitable for a wide range of materials.

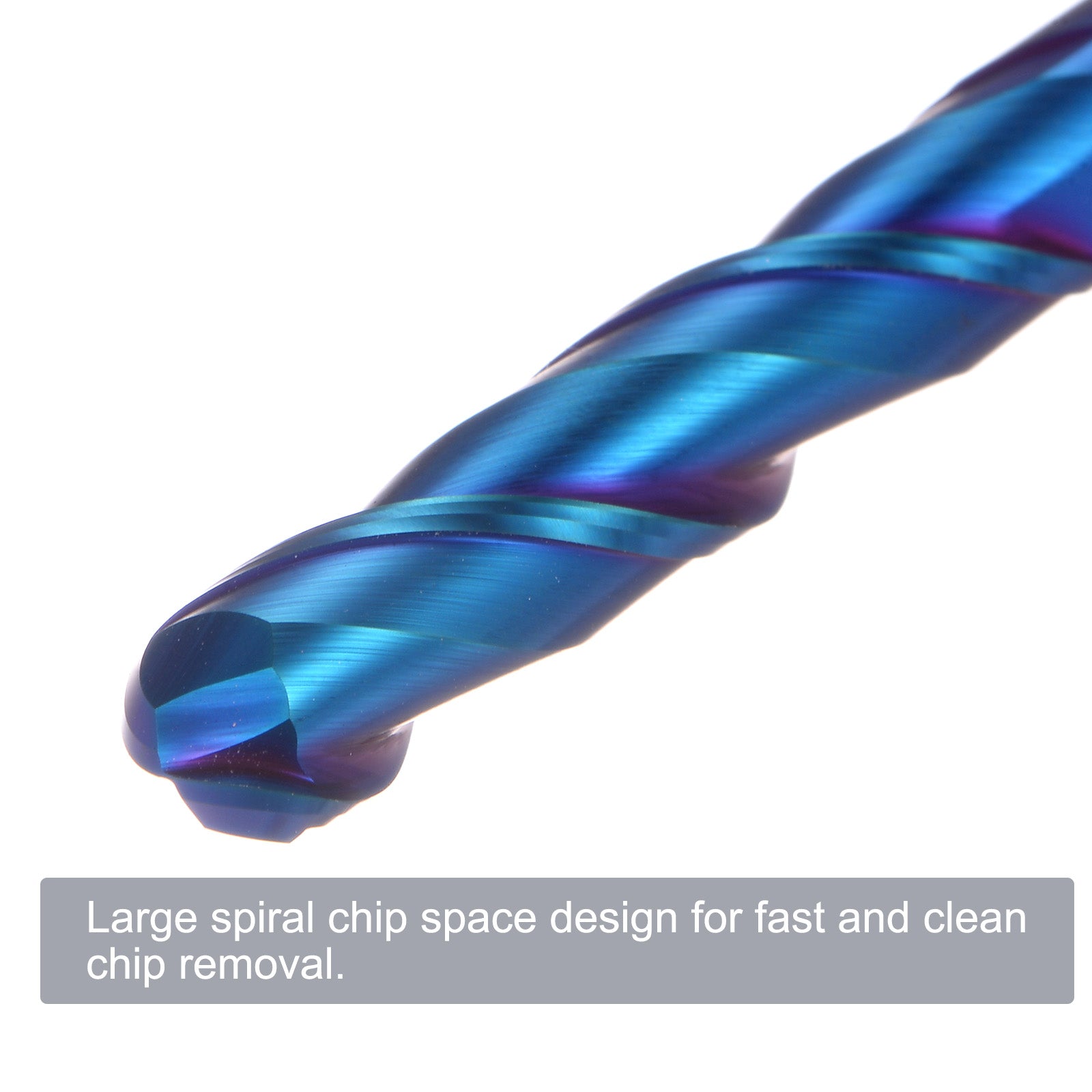

  • Solid Carbide: Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.
  • Easy to Use: Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines. Note: This product is installed on suitable equipment and is recommended to be used with cutting fluid to avoid problems such as tool breakage or workpiece burns caused by excessive temperature.
  • In stock, ready to ship
Cart
Cart
About this item
  • Ball Nose End Mill Size: Cutting radius: 1/8"; cutting diameter: 1/4"; shank diameter: 1/4"; cutting length: 1-3/16"; total length: 3"; number of spiral flutes: 2; end cut type: ball end; cutting direction: up cut (right hand)
  • Wide Applications: Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Ball end mills can perform chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.
  • Composite Coating: Nano aluminum chromium oxynitride coating provides high hardness, wear resistance and higher heat resistance. Offers excellent performance in high-speed machining applications. Suitable for a wide range of materials.
  • Solid Carbide: Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.
  • Easy to Use: Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines. Note: This product is installed on suitable equipment and is recommended to be used with cutting fluid to avoid problems such as tool breakage or workpiece burns caused by excessive temperature.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • Cutting Radius: 1/8"
  • Cutting Diameter: 1/4"
  • Shank Diameter: 1/4"
  • Cutting Length: 1-3/16"
  • Total Length: 3"
  • Material: Tungsten Carbide (Solid Carbide)
  • Finish: Nano Aluminum Chromium Oxynitride Coated
  • Number of Flutes: 2
  • End Cut Type: Ball End
  • Package Included: 1pcs x Ball Nose End Mill

Descriptions:
  1. Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Ball end mills can perform chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.
  2. Nano aluminum chromium oxynitride coating provides high hardness, wear resistance and higher heat resistance. Offers excellent performance in high-speed machining applications. Suitable for a wide range of materials.
  3. Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.
  4. Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines and other high-speed CNC machine tools. This product is installed on suitable equipment and is recommended to be used with cutting fluid to avoid problems such as tool breakage or workpiece burns caused by excessive temperature.
  5. Tips: Make sure the end mill is suitable for the specific application and material being processed. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
