Harfington 2pcs Ball Nose End Mills 3mm Radius Solid Carbide AlTiN Coated 2 Flutes HRC45

2pcs Ball Nose End Mills 3mm Radius Solid Carbide AlTiN Coated 2 Flutes HRC45

ID:
£14.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Ball Nose End Mill Size: Cutting radius: 3mm / 1/8"; cutting diameter: 6mm / 1/4"; cutting length: 12mm / 15/32"; shank diameter: 6mm / 1/4"; total length: 75mm / 3"; cutting hardness: HRC45; number of flutes: 2 flutes; end cut type: ball end

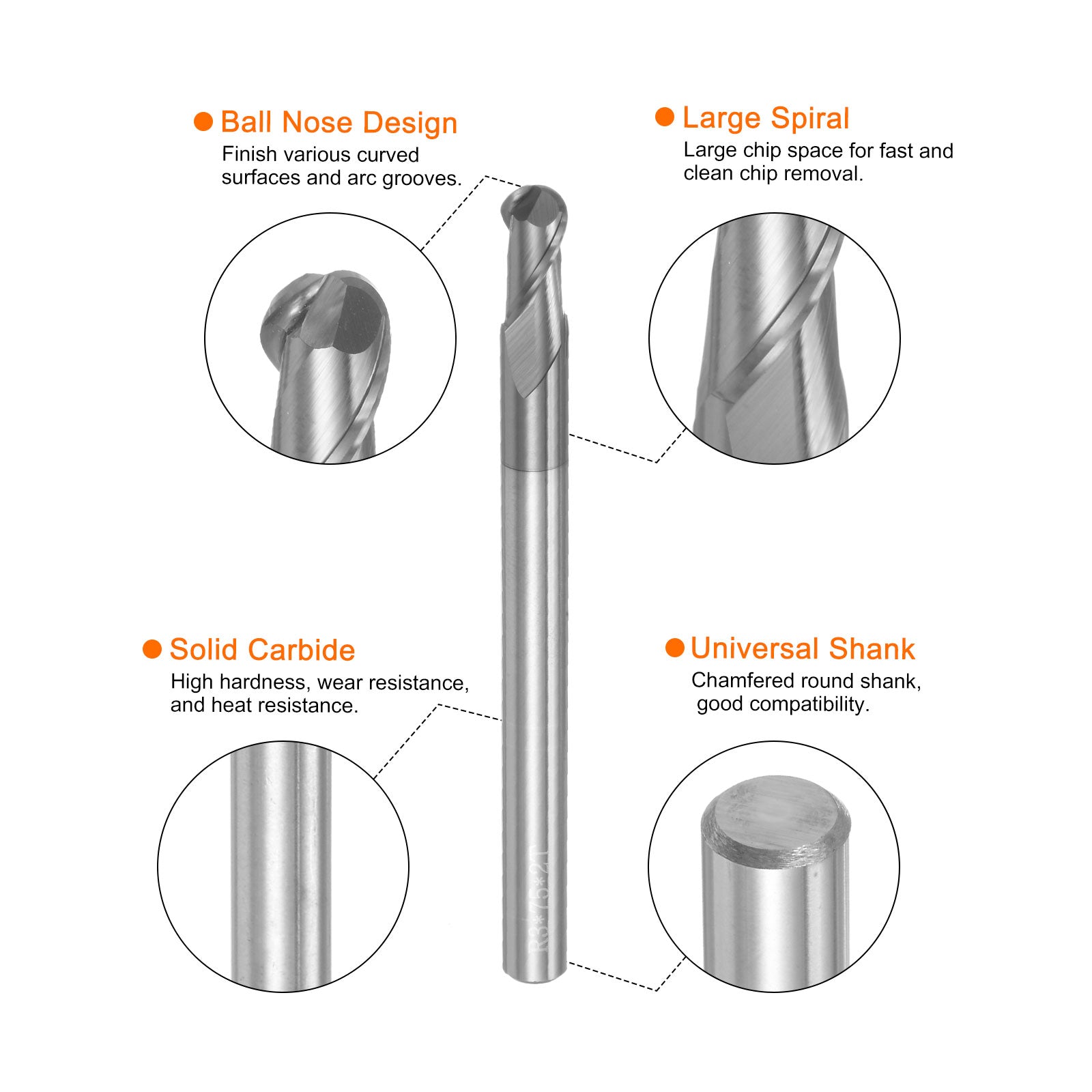

  • Wide Applications: Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Small ball end mills can perform small chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.

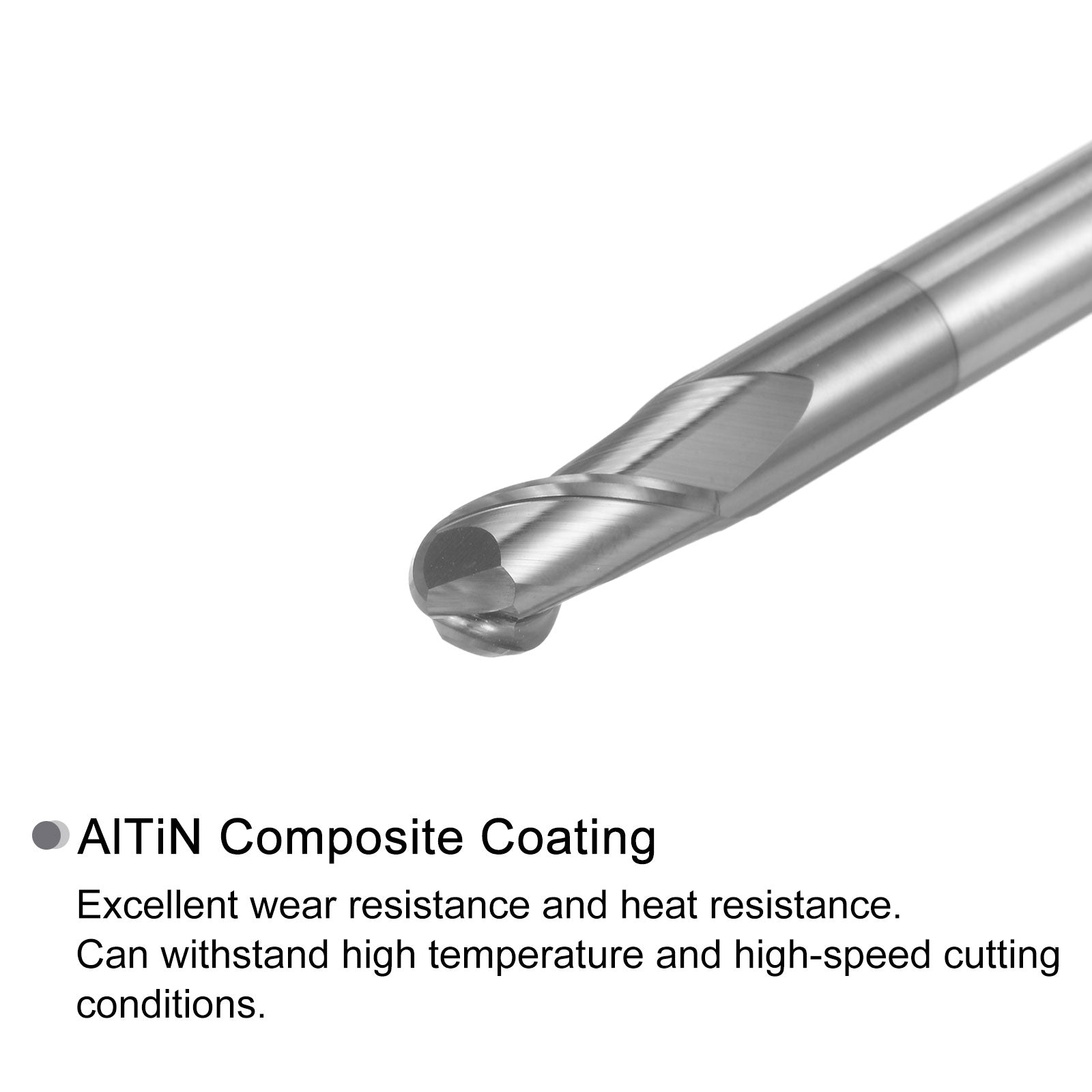

  • AlTiN Composite Coating: AlTiN (aluminum titanium nitrogen) composite coating has excellent wear resistance and heat resistance, and can withstand high temperature and high-speed cutting conditions. It can directly perform high-speed roughing to finishing on materials heat-treated below HRC45.
  • Solid Carbide: Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.

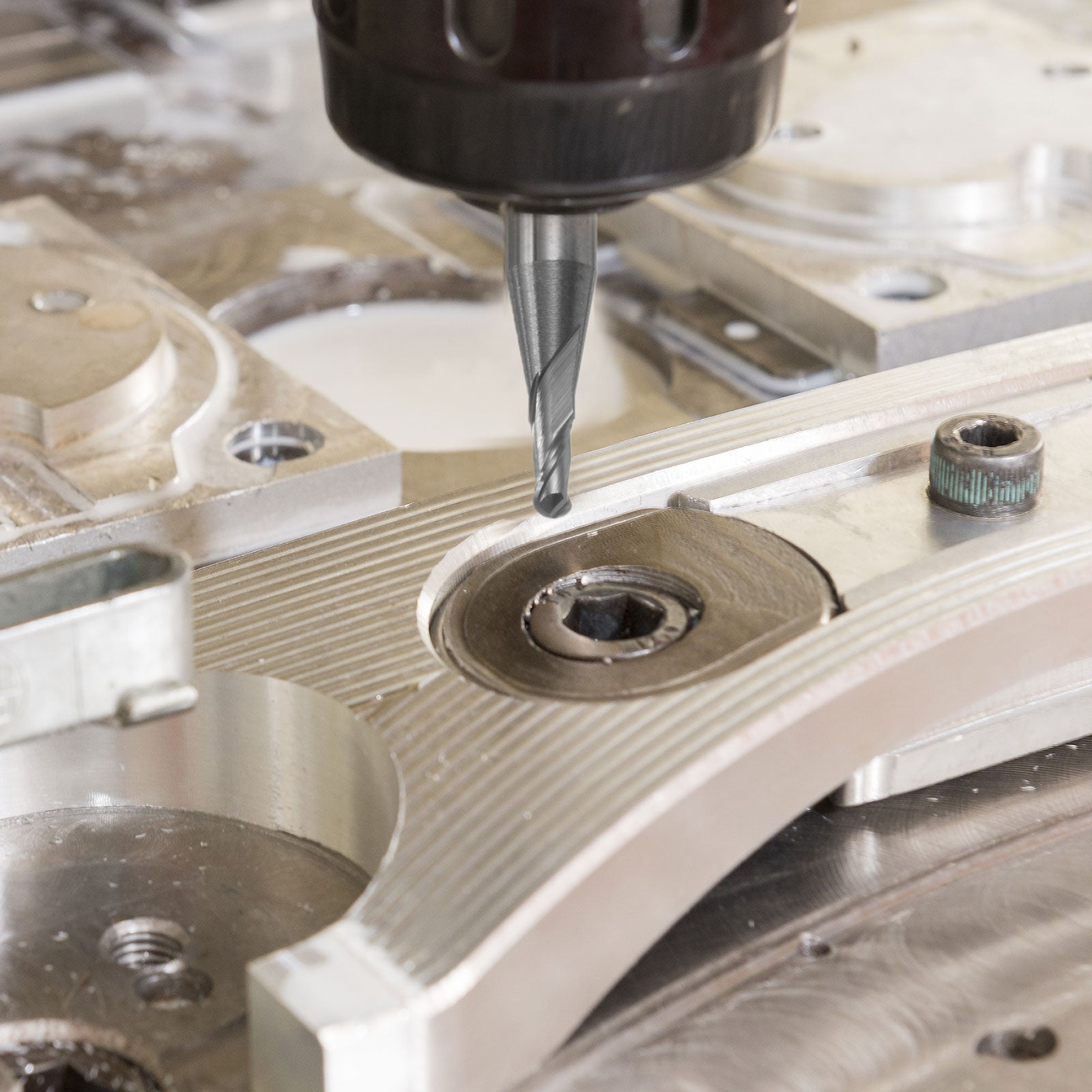

  • Easy to Use: Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines. The longer the length of the tool clamped by the chuck, the better. Use a suitable coolant or lubrication method during milling operations
  • In stock, ready to ship
Cart
Cart
About this item
  • Ball Nose End Mill Size: Cutting radius: 3mm / 1/8"; cutting diameter: 6mm / 1/4"; cutting length: 12mm / 15/32"; shank diameter: 6mm / 1/4"; total length: 75mm / 3"; cutting hardness: HRC45; number of flutes: 2 flutes; end cut type: ball end
  • Wide Applications: Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Small ball end mills can perform small chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.
  • AlTiN Composite Coating: AlTiN (aluminum titanium nitrogen) composite coating has excellent wear resistance and heat resistance, and can withstand high temperature and high-speed cutting conditions. It can directly perform high-speed roughing to finishing on materials heat-treated below HRC45.
  • Solid Carbide: Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.
  • Easy to Use: Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines. The longer the length of the tool clamped by the chuck, the better. Use a suitable coolant or lubrication method during milling operations
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

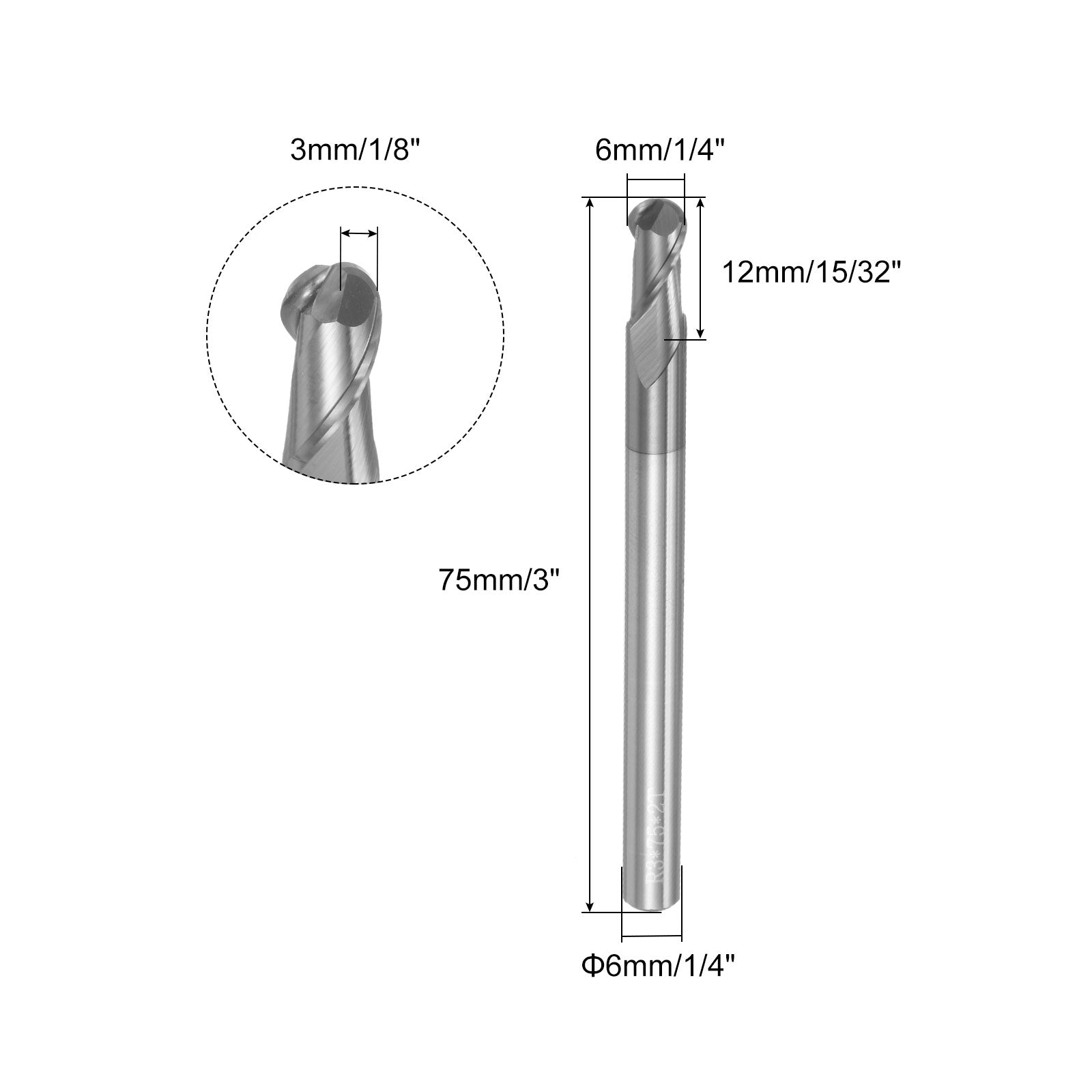

  • Cutting Radius: 3mm / 1/8"
  • Cutting Diameter: 6mm / 1/4"
  • Cutting Length: 12mm / 15/32"
  • Shank Diameter: 6mm / 1/4"
  • Total Length: 75mm / 3"
  • Material: Tungsten Carbide (Solid Carbide)
  • Finish: AlTiN Coated
  • Cutting Hardness: HRC45
  • Number of Flutes: 2 Flutes
  • End Cut Type: Ball End

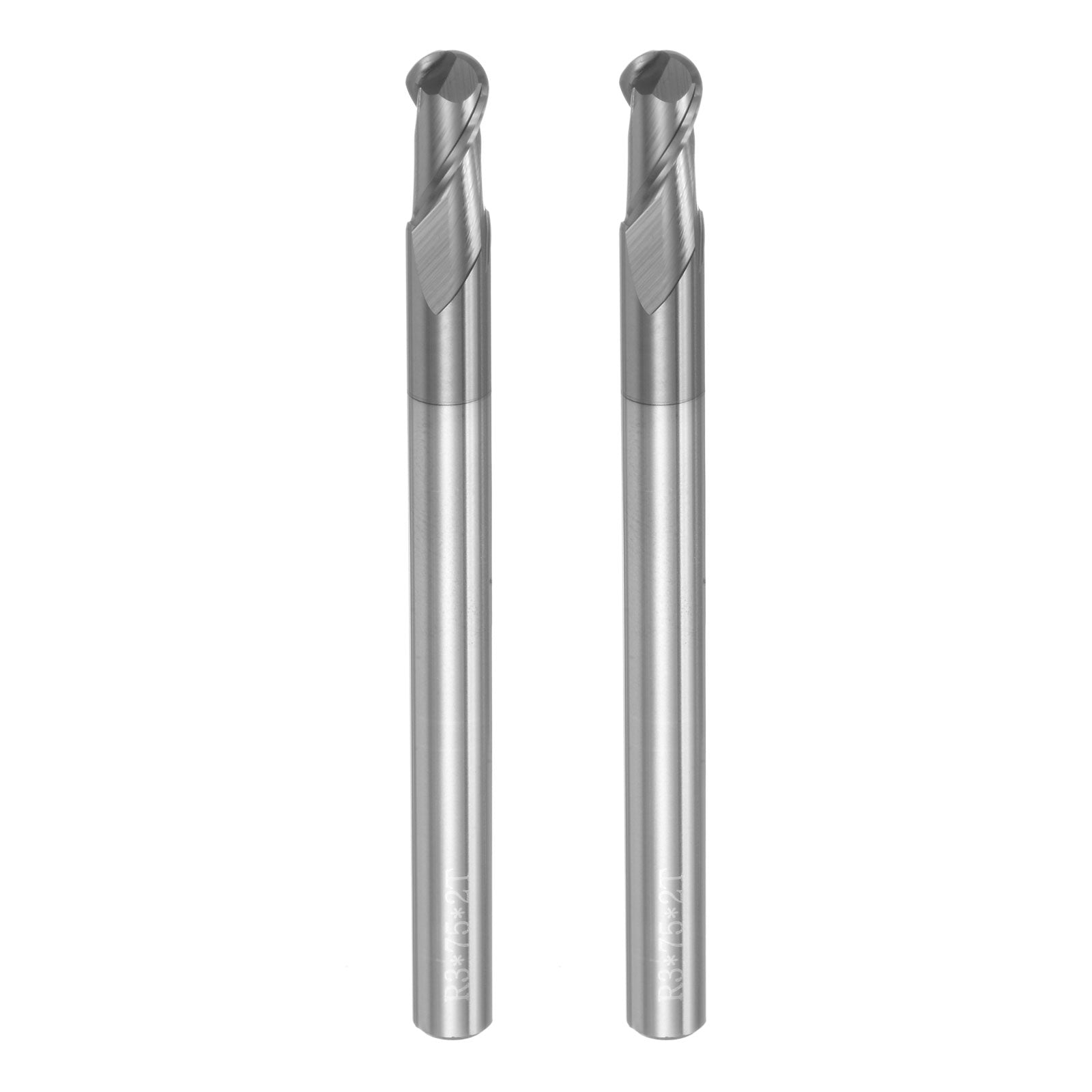

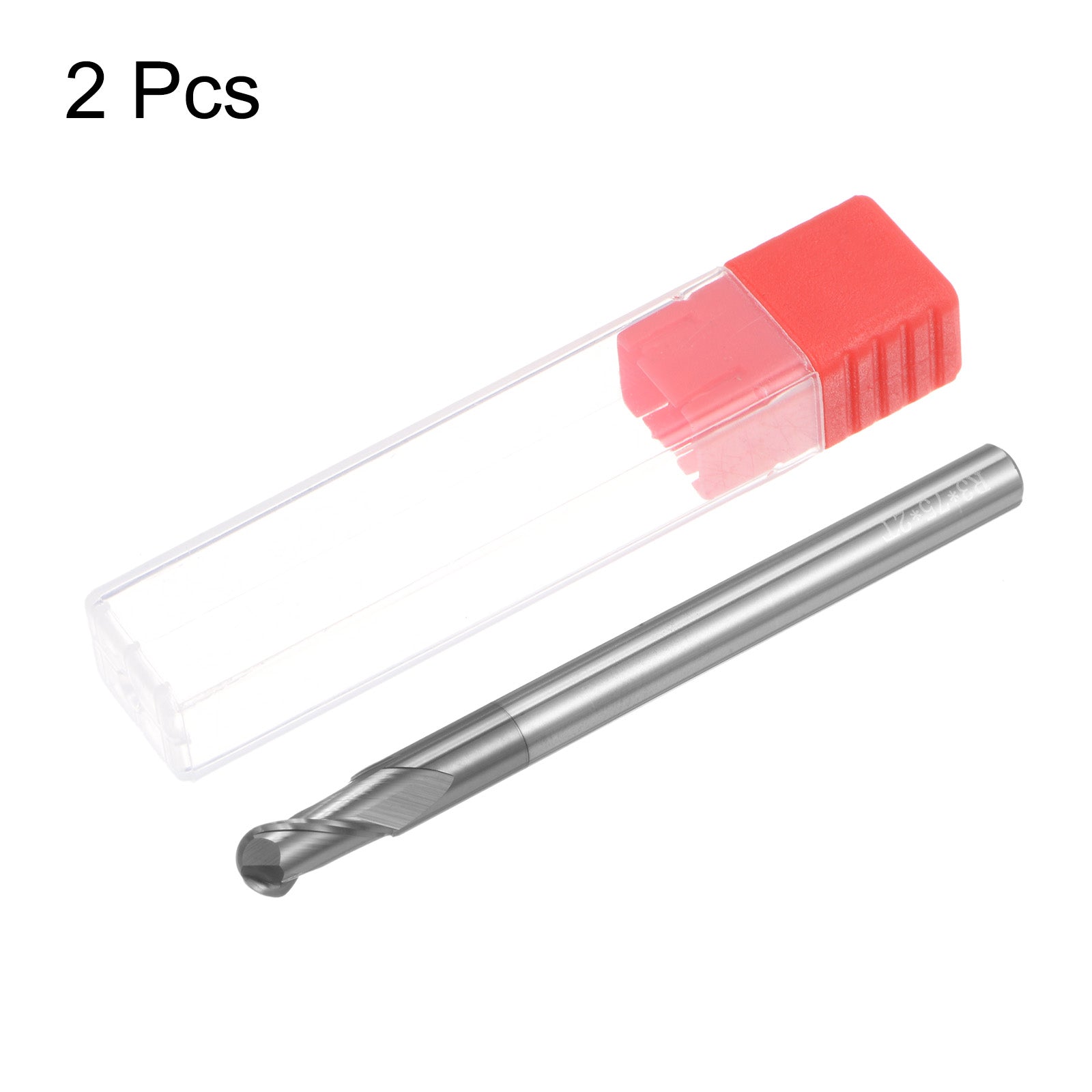

  • Package Content: 2pcs x Ball Nose End Mills

Descriptions:
  1. Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Small ball end mills can perform small chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.
  2. AlTiN (aluminum titanium nitrogen) composite coating has excellent wear resistance and heat resistance, and can withstand high temperature and high-speed cutting conditions. It can directly perform high-speed roughing to finishing on materials heat-treated below HRC45.
  3. Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.
  4.  Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines and other high-speed CNC machine tools. The longer the length of the tool clamped by the chuck, the better.
  5. Tips: Make sure the end mill is suitable for the specific application and material being processed. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£14.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

  • Cutting Radius: 3mm / 1/8"
  • Cutting Diameter: 6mm / 1/4"
  • Cutting Length: 12mm / 15/32"
  • Shank Diameter: 6mm / 1/4"
  • Total Length: 75mm / 3"
  • Material: Tungsten Carbide (Solid Carbide)
  • Finish: AlTiN Coated
  • Cutting Hardness: HRC45
  • Number of Flutes: 2 Flutes
  • End Cut Type: Ball End
  • Package Content: 2pcs x Ball Nose End Mills

Descriptions:
  1. Double-edged ball nose design, suitable for semi-finishing and finishing of various curved surfaces and arc grooves; Small ball end mills can perform small chamfer milling on steep/straight walls and contoured surfaces. Suitable for carbon steel, malleable cast iron, alloy steel, stainless steel, etc.
  2. AlTiN (aluminum titanium nitrogen) composite coating has excellent wear resistance and heat resistance, and can withstand high temperature and high-speed cutting conditions. It can directly perform high-speed roughing to finishing on materials heat-treated below HRC45.
  3. Solid carbide end mills offer high hardness, wear resistance, and heat resistance. CNC router bits are precision ground and polished, with high strength and good milling performance. The cutting edges are finely ground for smooth cuts. Large Spiral chip space design for fast and clean chip removal.
  4.  Universal chamfered round shank, good compatibility and easy to use. Use on standard milling machines, CNC machining centers, engraving machines and other high-speed CNC machine tools. The longer the length of the tool clamped by the chuck, the better.
  5. Tips: Make sure the end mill is suitable for the specific application and material being processed. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
