Harfington Spiral Point Thread Taps M5 x 0.8 Metric Screw Tap Tapping Threading Repair

Spiral Point Thread Taps M5 x 0.8 Metric Screw Tap Tapping Threading Repair

ID:
£7.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Metric Spiral Point Taps: M5 x 0.8 metric thread, H2 tolerance (accuracy), plug chamfer and right hand thread cutting. Straight flutes are fully ground to provide provide downward chip removal, with clear threads and sharp cutting edges.
  • 6542 (M2) High Speed Steel: Run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
  • Applications: Thread taps are great for through-hole threads. Can be used for drilling and tapping stainless steel, aluminum, alloy steel, ordinary steel, cast iron, non-ferrous metals, hard plastics, etc. Flutes on the threading tap help to remove chips and debris from the hole.
  • Machine Tap: Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. The point of the screw tap helps guide it into the hole and reduces the torque required to turn it.
  • Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
  • In stock, ready to ship
Cart
Cart
About this item
  • Metric Spiral Point Taps: M5 x 0.8 metric thread, H2 tolerance (accuracy), plug chamfer and right hand thread cutting. Straight flutes are fully ground to provide provide downward chip removal, with clear threads and sharp cutting edges.
  • 6542 (M2) High Speed Steel: Run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
  • Applications: Thread taps are great for through-hole threads. Can be used for drilling and tapping stainless steel, aluminum, alloy steel, ordinary steel, cast iron, non-ferrous metals, hard plastics, etc. Flutes on the threading tap help to remove chips and debris from the hole.
  • Machine Tap: Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. The point of the screw tap helps guide it into the hole and reduces the torque required to turn it.
  • Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specifications:

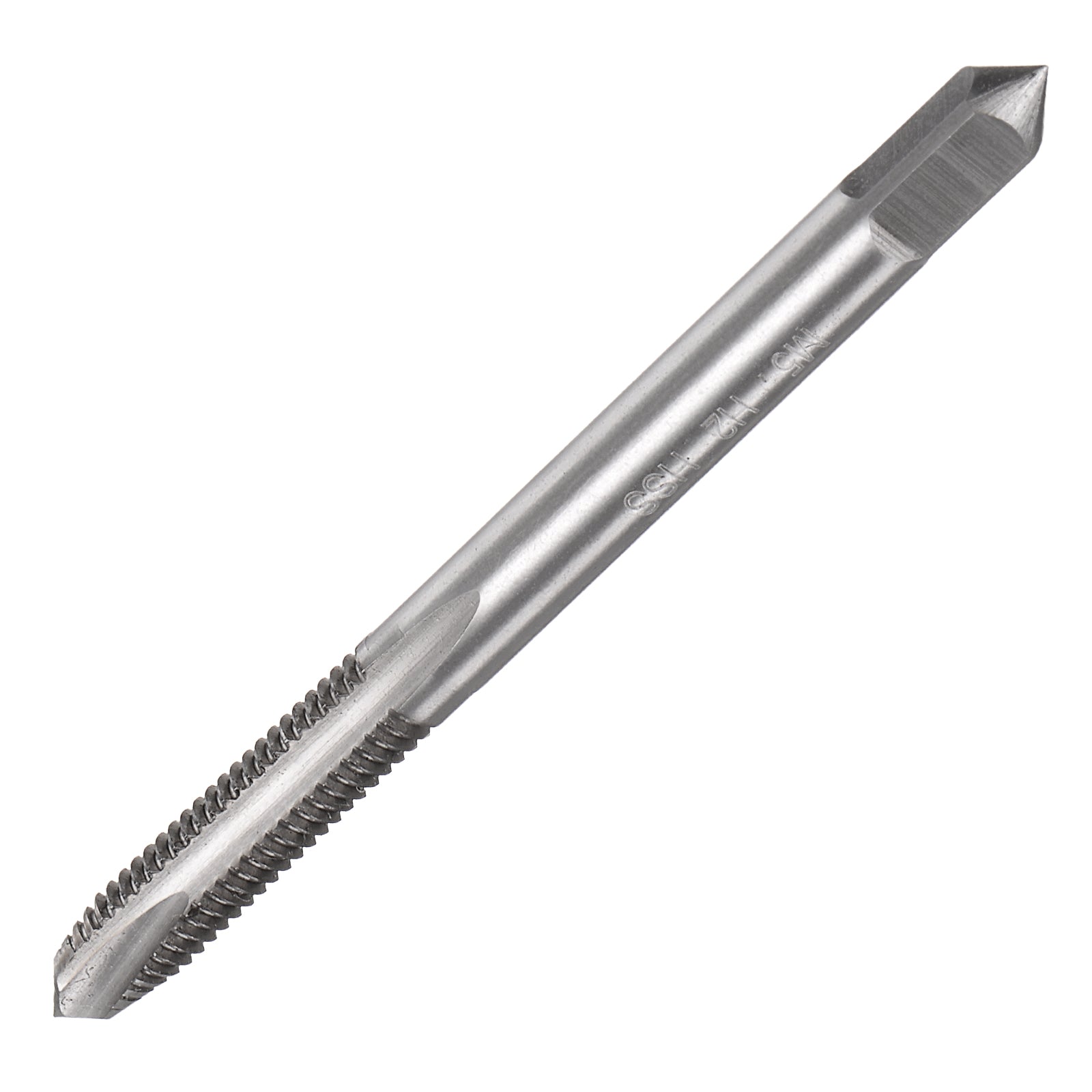

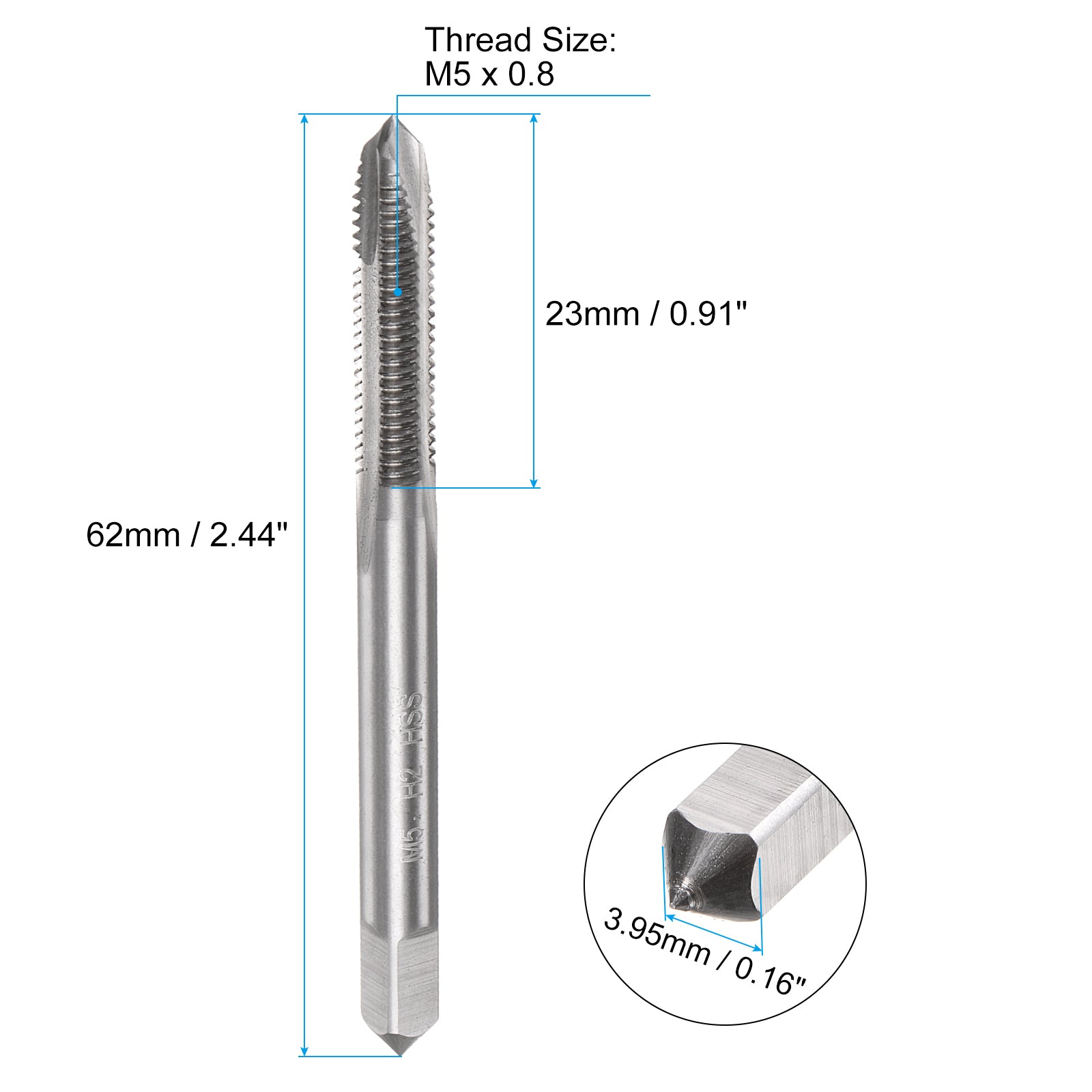

Thread Size: M5 x 0.8
Square Shank Width: 3.95mm / 0.16"
Thread Length: 23mm / 0.91"
Total Length: 62mm / 2.44"
Tolerance: H2 (Accuracy)
Material: High Speed Steel 6542 (HSS 6542)
Finish: Uncoated
Manufacturing Process: Fully Ground
Package Content: 1pcs x Spiral Point Thread Tap

Descriptions:

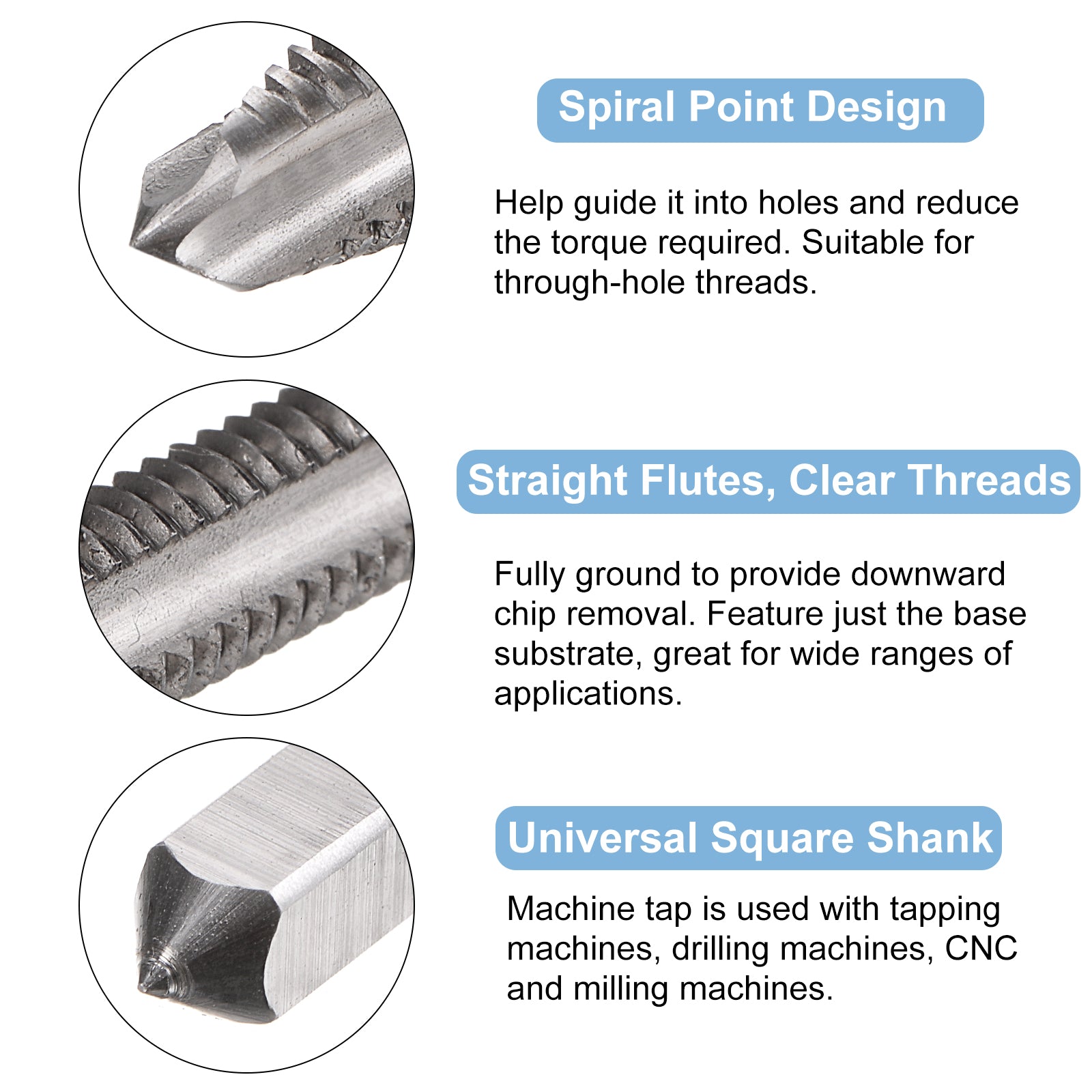

1. Metric thread tap features spiral point, plug chamfer and right hand thread cutting. Straight flutes are fully ground to provide downward chip removal. The point of the tap helps guide it into the hole and reduces the torque required to turn it.
2. 6542 (M2) high speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness (HRC62-64), wear resistance, and good toughness. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.

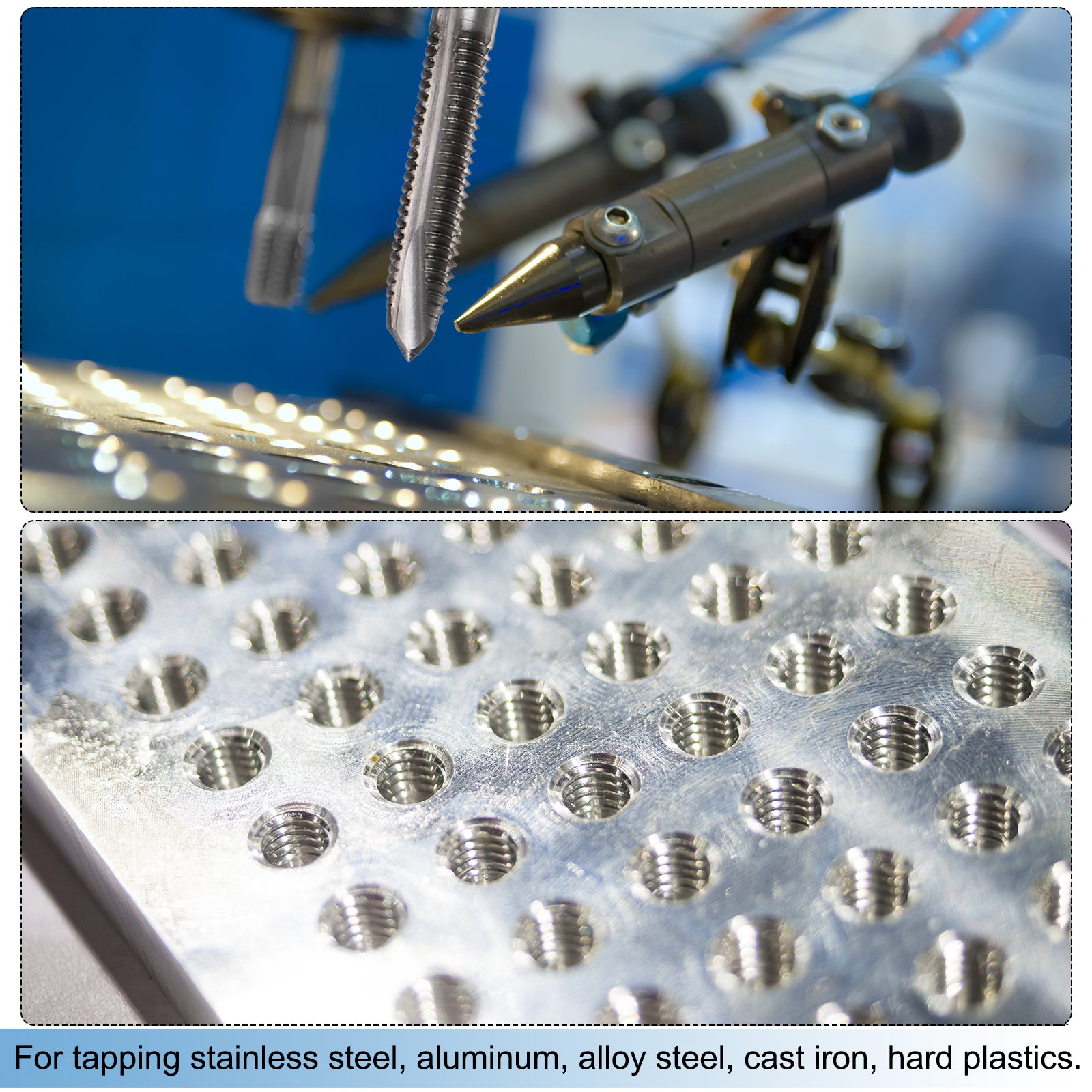

3. Spiral point tap is suitable for through-hole threads. Used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, and hard plastics. Flutes on the screw tap help to remove chips and debris from the hole.
4. Machine threading tap is used with drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. Control speed according to material hardness. The higher the hardness, the slower the speed.

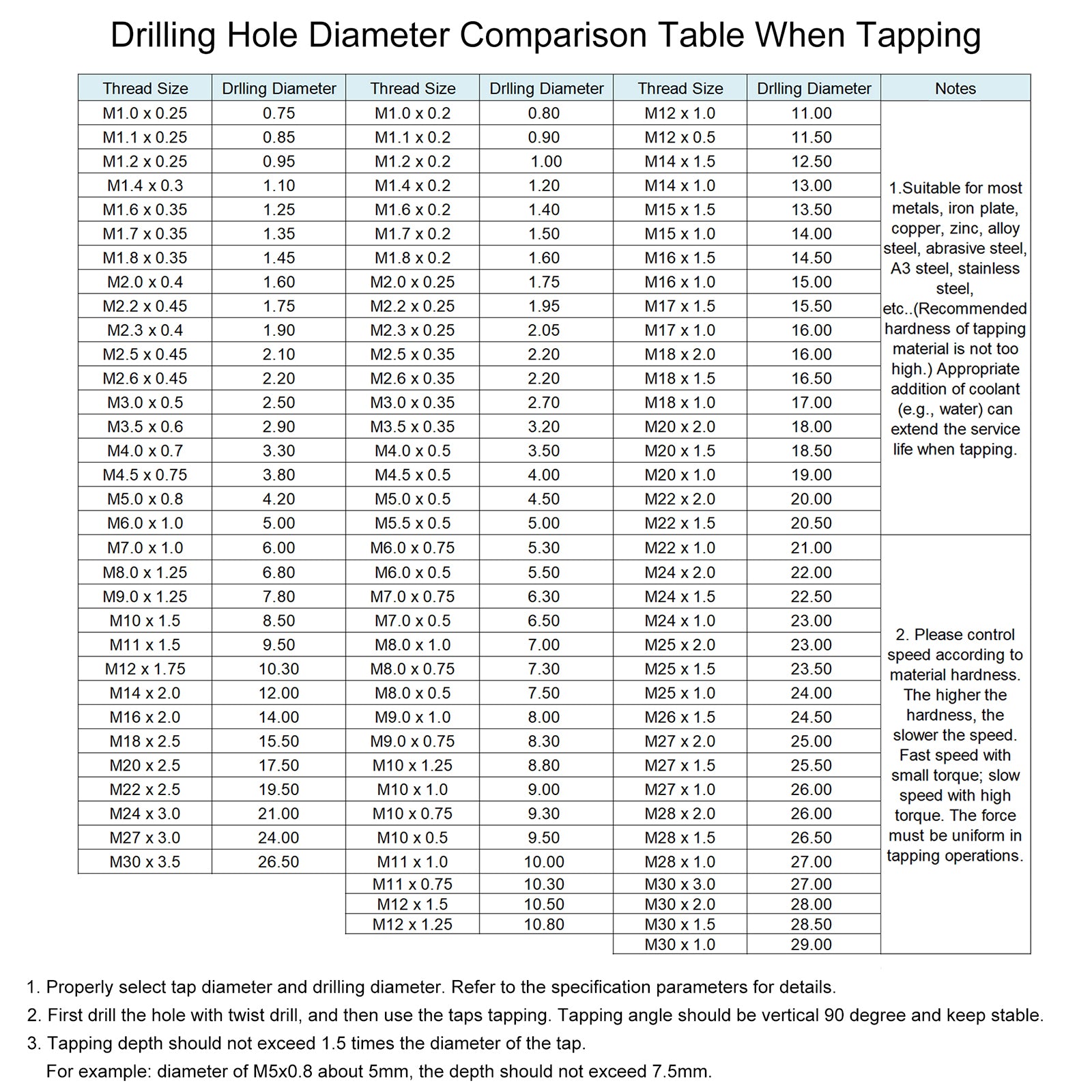

5. Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable. The tapping depth should not exceed 1.5 times the diameter of the tap.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£7.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
Thread Size: M5 x 0.8
Square Shank Width: 3.95mm / 0.16"
Thread Length: 23mm / 0.91"
Total Length: 62mm / 2.44"
Tolerance: H2 (Accuracy)
Material: High Speed Steel 6542 (HSS 6542)
Finish: Uncoated
Manufacturing Process: Fully Ground
Package Content: 1pcs x Spiral Point Thread Tap

Descriptions:
1. Metric thread tap features spiral point, plug chamfer and right hand thread cutting. Straight flutes are fully ground to provide downward chip removal. The point of the tap helps guide it into the hole and reduces the torque required to turn it.
2. 6542 (M2) high speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness (HRC62-64), wear resistance, and good toughness. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
3. Spiral point tap is suitable for through-hole threads. Used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, and hard plastics. Flutes on the screw tap help to remove chips and debris from the hole.
4. Machine threading tap is used with drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. Control speed according to material hardness. The higher the hardness, the slower the speed.
5. Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable. The tapping depth should not exceed 1.5 times the diameter of the tap.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
