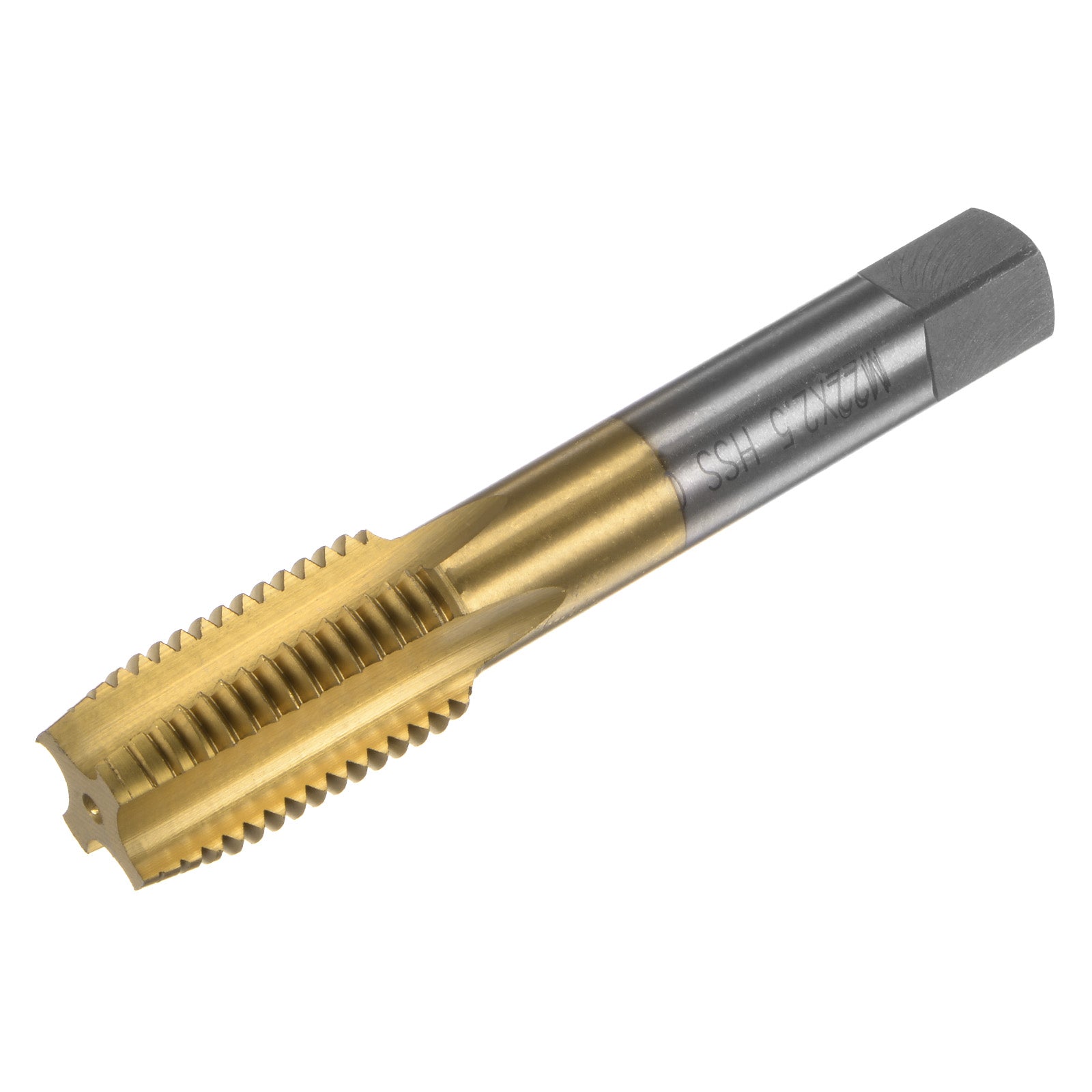

Harfington M22 x 2.5 Titanium Coated M35 High Speed Steel Straight Flute Metric Thread Tap

M22 x 2.5 Titanium Coated M35 High Speed Steel Straight Flute Metric Thread Tap

ID:
£20.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Metric Thread Tap: Thread size: M22 x 2.5; accuracy: H2; square shank width: 12mm / 0.47"; thread length: 40mm / 1.57"; total length: 115mm / 4.53". Clear threads, right hand tapping direction. The screw Tap can make new threads or re-thread damaged or jammed threads.

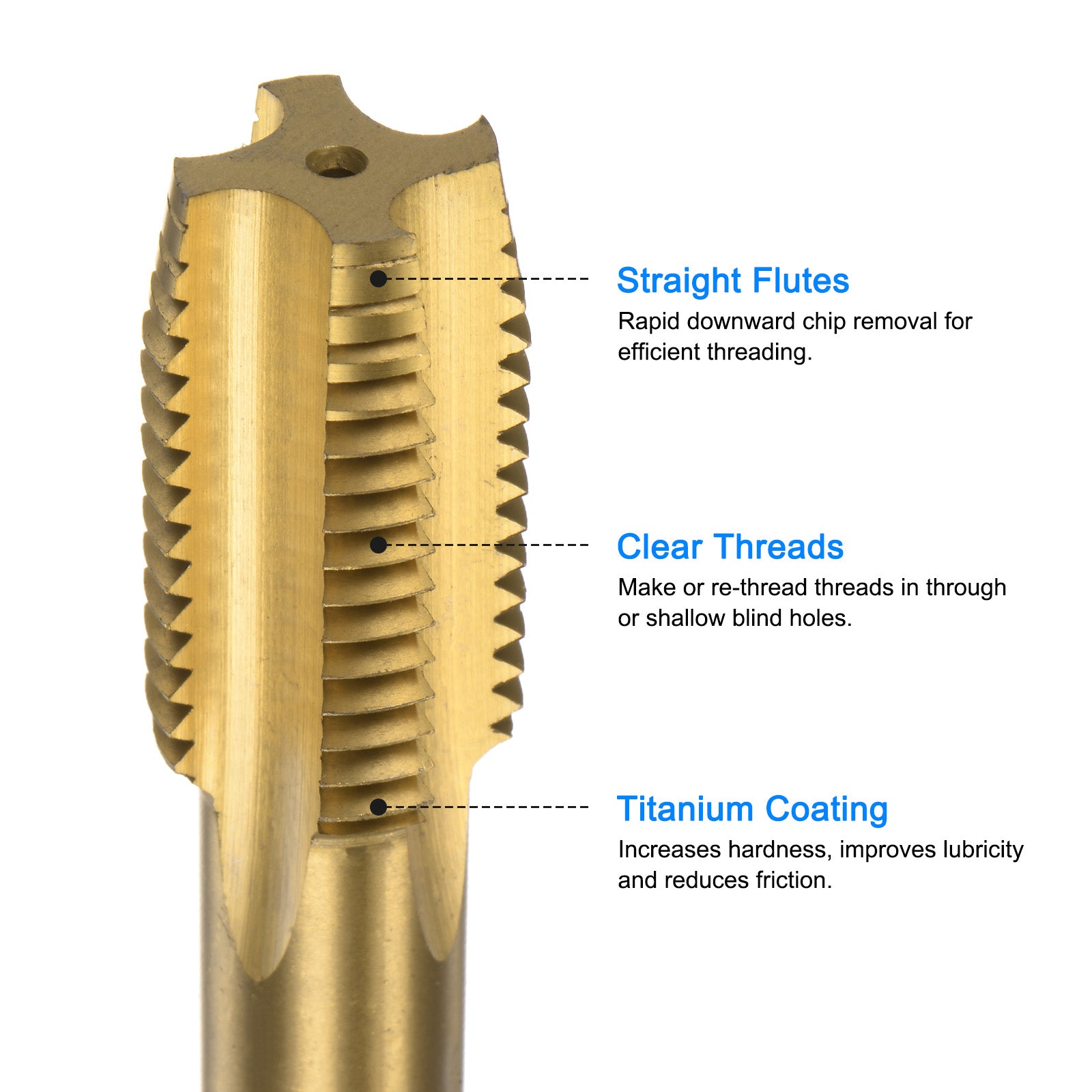

  • Straight Flute Tap: 4 straight flutes are ground to provide rapid downward chip removal for efficient threading. The high-performance tap ensures precise and accurate thread cutting, and provides clean and smooth threads with minimal burrs or chips
  • Wide Applications: Can process through or shallow blind holes. Suitable for carbon steel, stainless steel, titanium alloy, cast iron, aluminum, non-ferrous metals, copper, zinc, alloy steel, hard plastics. Add proper tapping oil for higher quality threads and more durable taps.
  • M35 & Ti-Coated Tap: M35 high speed steel (5% cobalt), with high red hardness (retains its hardness even at high working temperature), wear resistance and heat resistance. Titanium coating increases hardness, improves lubricity and reduces friction, resulting in longer tool life, better chip evacuation and improved thread quality.

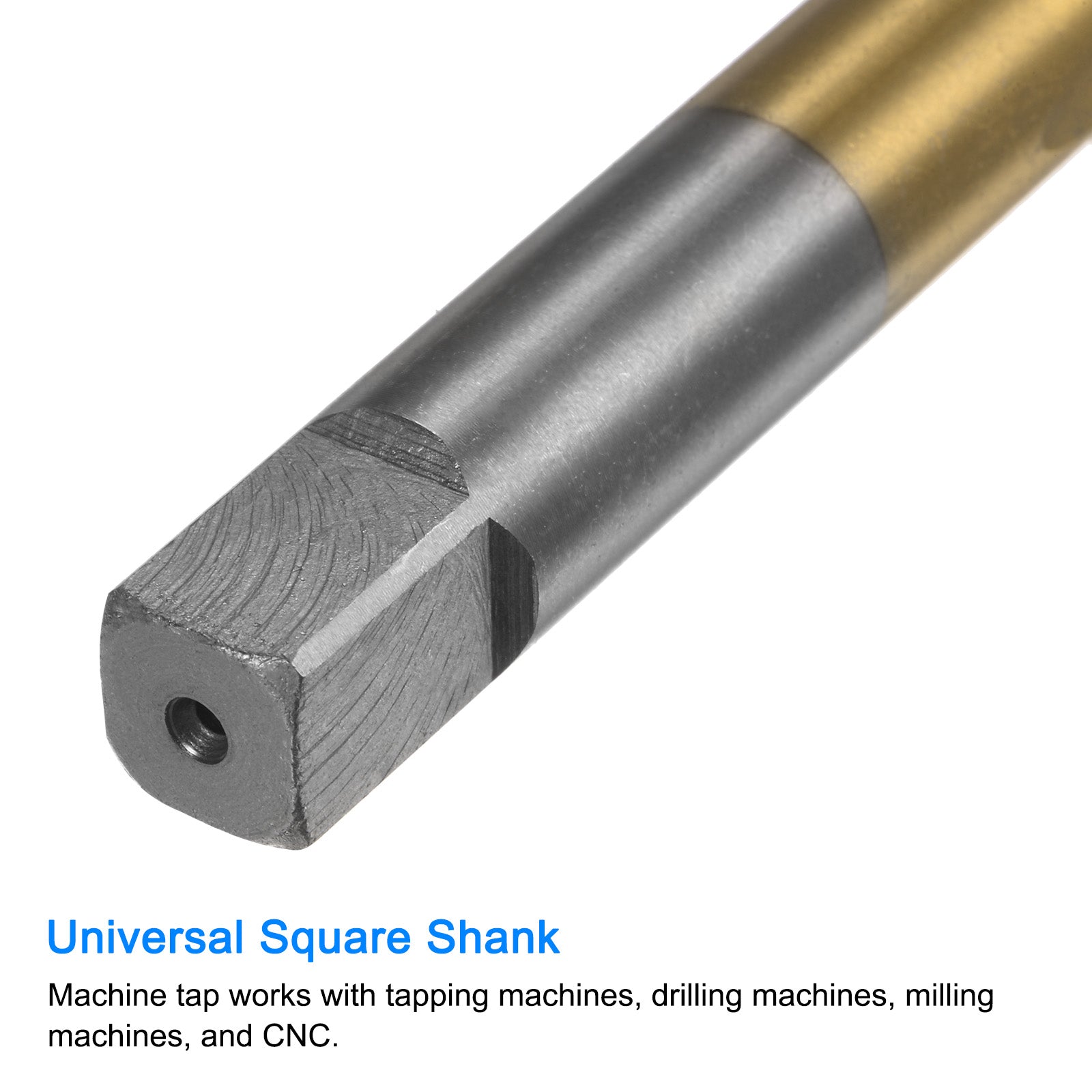

  • Tips: Machine tap works with tapping machines, drilling machines, automatic or milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.
  • In stock, ready to ship
Cart
Cart
About this item
  • Metric Thread Tap: Thread size: M22 x 2.5; accuracy: H2; square shank width: 12mm / 0.47"; thread length: 40mm / 1.57"; total length: 115mm / 4.53". Clear threads, right hand tapping direction. The screw Tap can make new threads or re-thread damaged or jammed threads.
  • Straight Flute Tap: 4 straight flutes are ground to provide rapid downward chip removal for efficient threading. The high-performance tap ensures precise and accurate thread cutting, and provides clean and smooth threads with minimal burrs or chips
  • Wide Applications: Can process through or shallow blind holes. Suitable for carbon steel, stainless steel, titanium alloy, cast iron, aluminum, non-ferrous metals, copper, zinc, alloy steel, hard plastics. Add proper tapping oil for higher quality threads and more durable taps.
  • M35 & Ti-Coated Tap: M35 high speed steel (5% cobalt), with high red hardness (retains its hardness even at high working temperature), wear resistance and heat resistance. Titanium coating increases hardness, improves lubricity and reduces friction, resulting in longer tool life, better chip evacuation and improved thread quality.
  • Tips: Machine tap works with tapping machines, drilling machines, automatic or milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

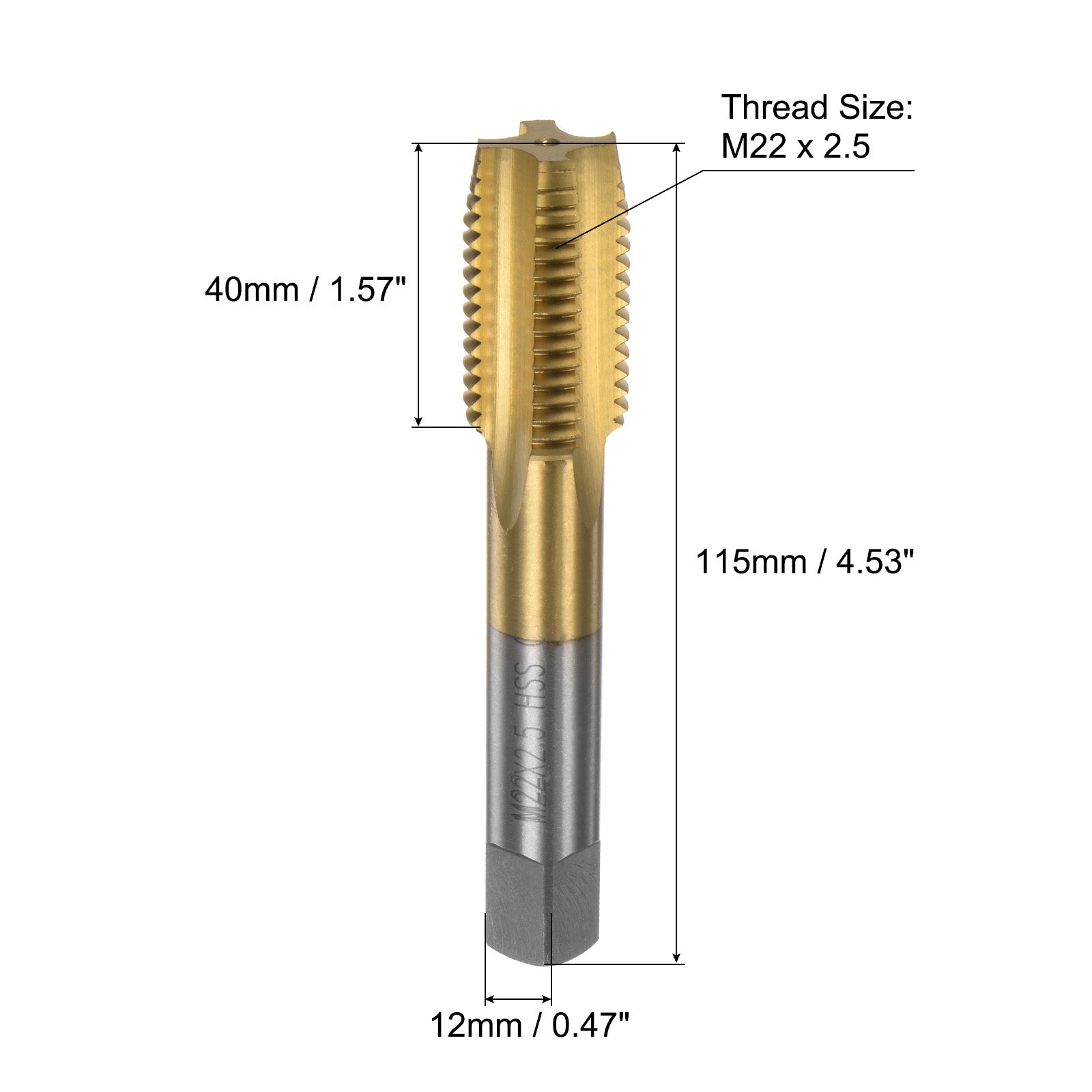

  • Thread Size: M22 x 2.5
  • Accuracy: H2
  • Square Shank Width: 12mm / 0.47"
  • Thread Length: 40mm / 1.57"
  • Total Length: 115mm / 4.53"
  • Material: HSS-CO (M35 High-Speed Steel)

Package Content:
  • 1pcs x Metric Thread Tap

Descriptions:
  1. 4 straight flutes are ground to provide rapid downward chip removal for efficient threading. Clear threads without burrs, right hand tapping direction. The thread tap makes new threads or re-thread damaged or jammed threads.
  2. The metric tap can process through or shallow blind holes. Suitable for carbon steel, stainless steel, titanium alloy, cast iron, aluminum, non-ferrous metals, copper, zinc, alloy steel, hard plastics. Add proper tapping oil for higher quality threads and more durable taps.
  3. M35 high speed steel (5% cobalt), with high red hardness (retains its hardness even at high working temperature), wear resistance and heat resistance. Titanium (Ti) coating increases hardness, improves lubricity and reduces friction, resulting in longer tool life, better chip evacuation and improved thread quality. The high-performance thread tap ensures precise and accurate thread cutting, and provides clean and smooth threads with minimal burrs or chips
  4. Machine tap works with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:

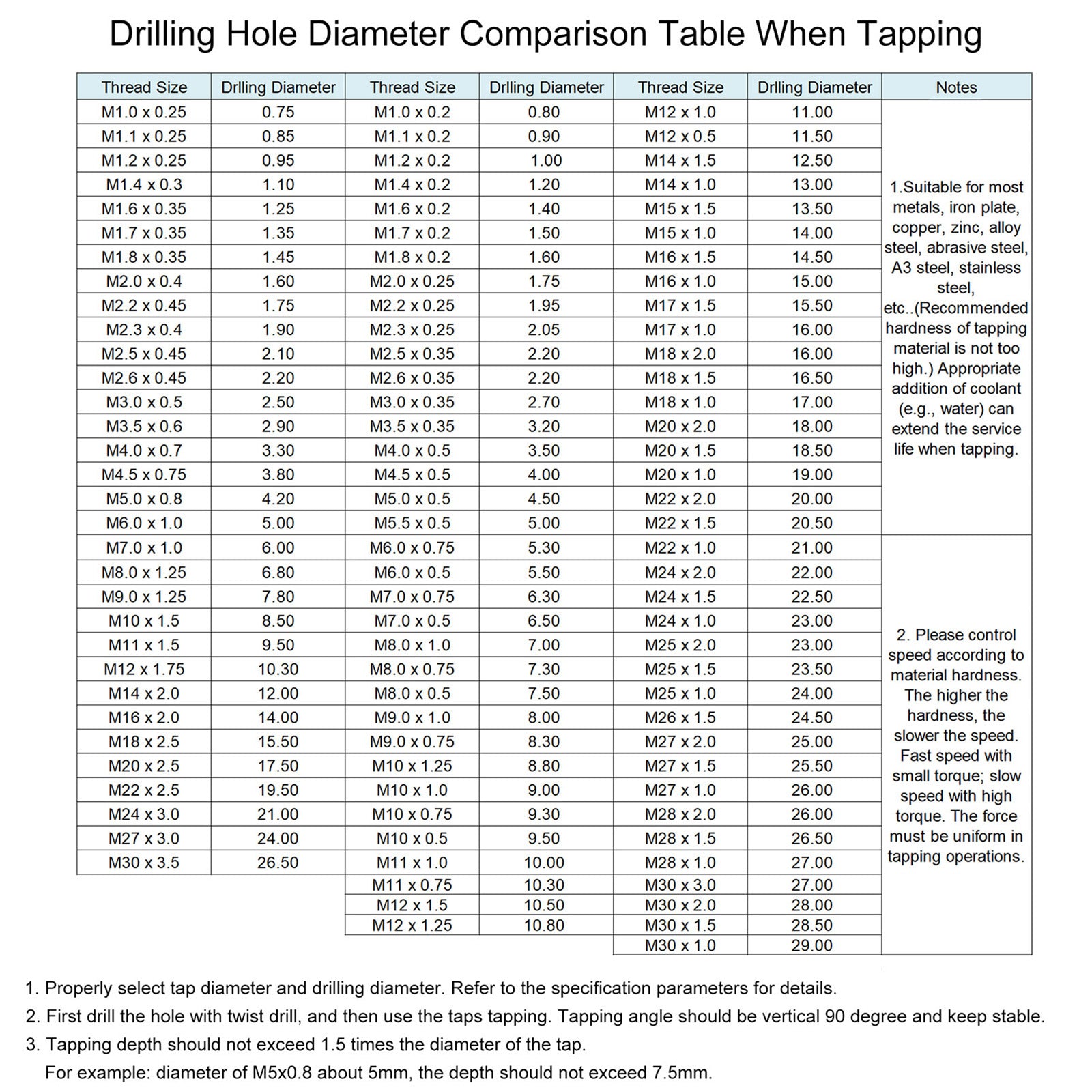

  • The higher the hardness, the slower the speed. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable. The tapping depth should not exceed 1.5 times the diameter of the tap.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£20.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
  • Thread Size: M22 x 2.5
  • Accuracy: H2
  • Square Shank Width: 12mm / 0.47"
  • Thread Length: 40mm / 1.57"
  • Total Length: 115mm / 4.53"
  • Material: HSS-CO (M35 High-Speed Steel)

Package Content:
  • 1pcs x Metric Thread Tap

Descriptions:
  1. 4 straight flutes are ground to provide rapid downward chip removal for efficient threading. Clear threads without burrs, right hand tapping direction. The thread tap makes new threads or re-thread damaged or jammed threads.
  2. The metric tap can process through or shallow blind holes. Suitable for carbon steel, stainless steel, titanium alloy, cast iron, aluminum, non-ferrous metals, copper, zinc, alloy steel, hard plastics. Add proper tapping oil for higher quality threads and more durable taps.
  3. M35 high speed steel (5% cobalt), with high red hardness (retains its hardness even at high working temperature), wear resistance and heat resistance. Titanium (Ti) coating increases hardness, improves lubricity and reduces friction, resulting in longer tool life, better chip evacuation and improved thread quality. The high-performance thread tap ensures precise and accurate thread cutting, and provides clean and smooth threads with minimal burrs or chips
  4. Machine tap works with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
  • The higher the hardness, the slower the speed. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable. The tapping depth should not exceed 1.5 times the diameter of the tap.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
