Harfington 10-32 UNF High Speed Steel Titanium Plated Machine Spiral Flute Thread Tap

10-32 UNF High Speed Steel Titanium Plated Machine Spiral Flute Thread Tap

ID:
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

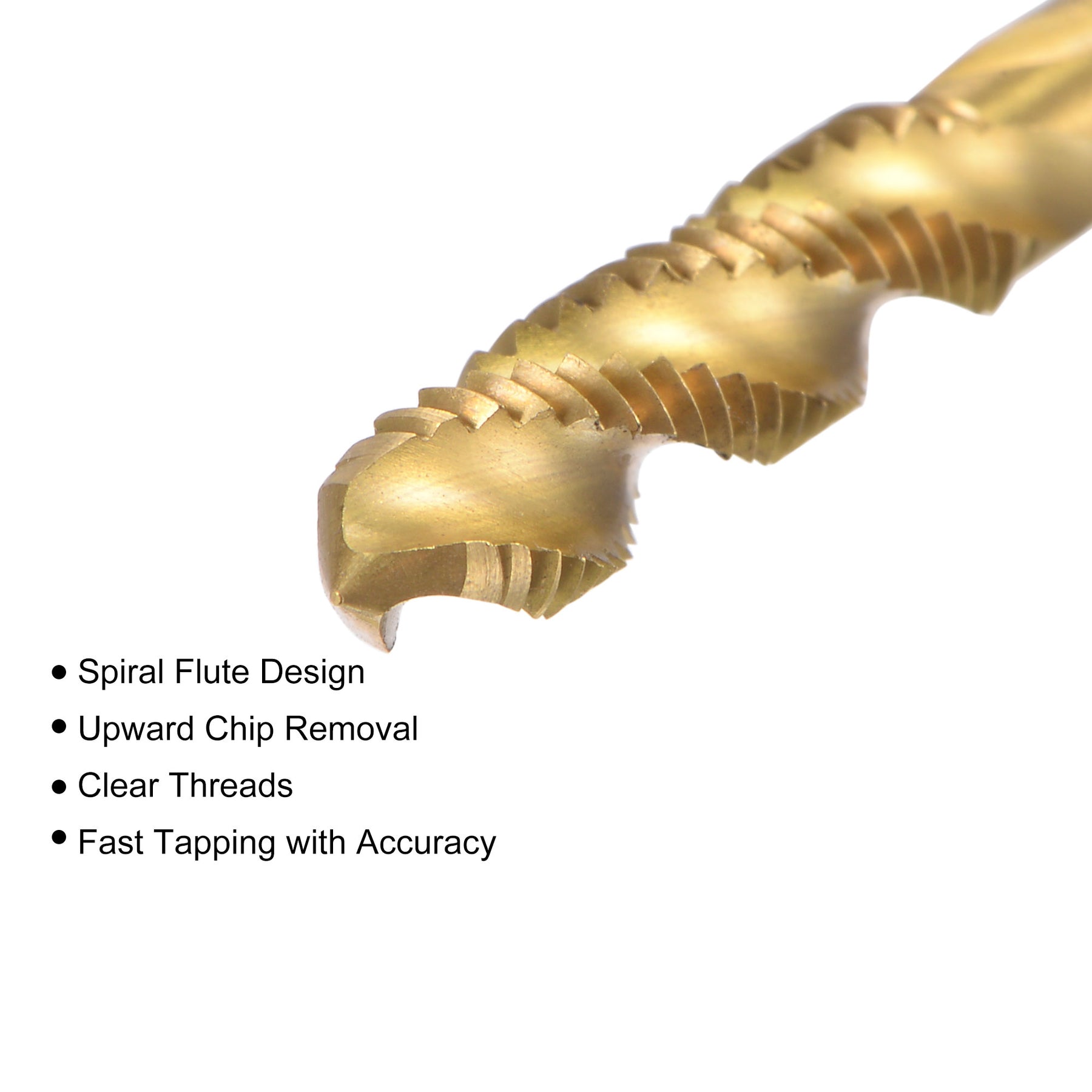

  • Tap Size: 10-32 UNF thread, H2 thread tolerance grade. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.

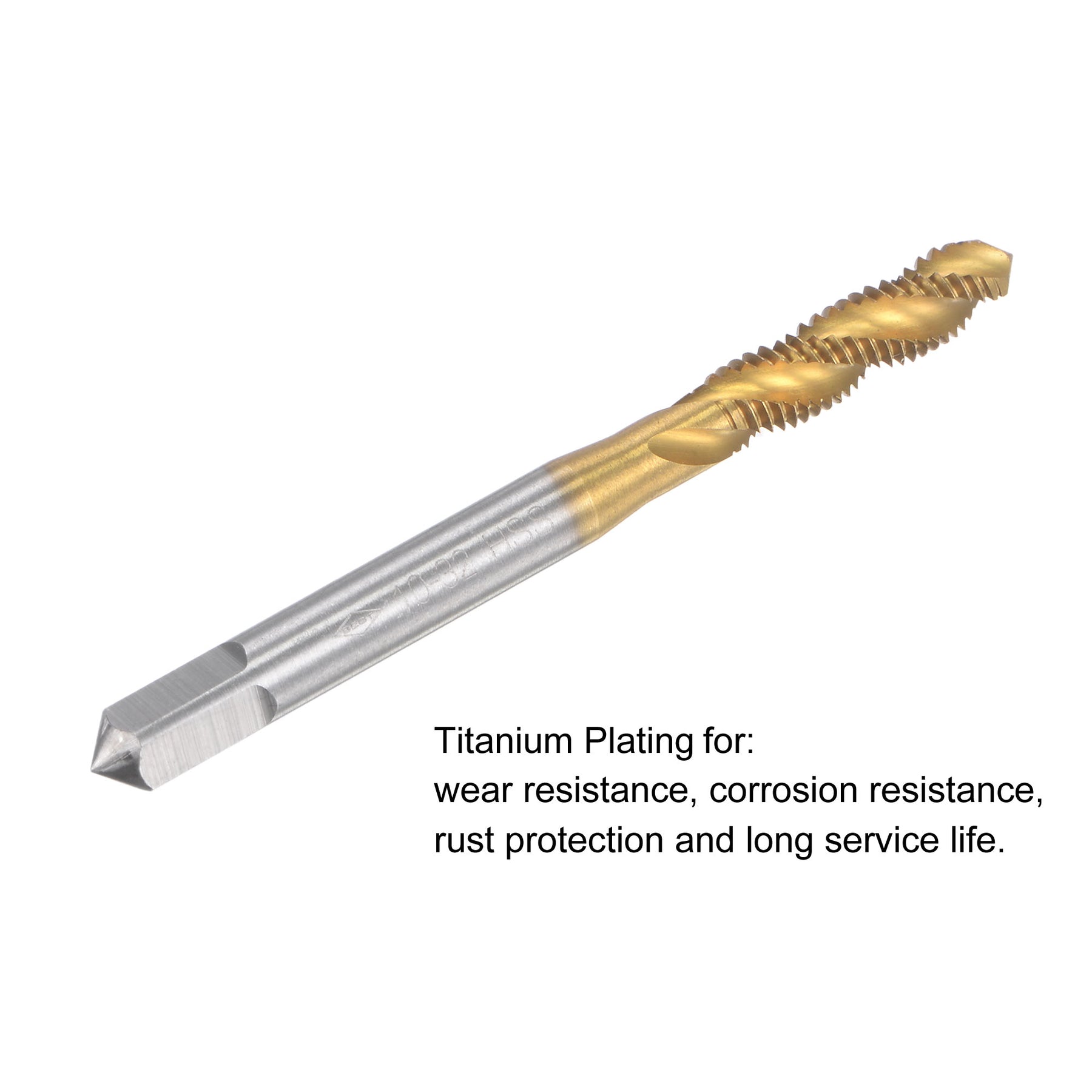

  • Material and Finish: High speed steel tool features high hardness and toughness, heat resistance, good for general purpose applications. Titanium Plating for wear resistance, corrosion resistance, rust protection.

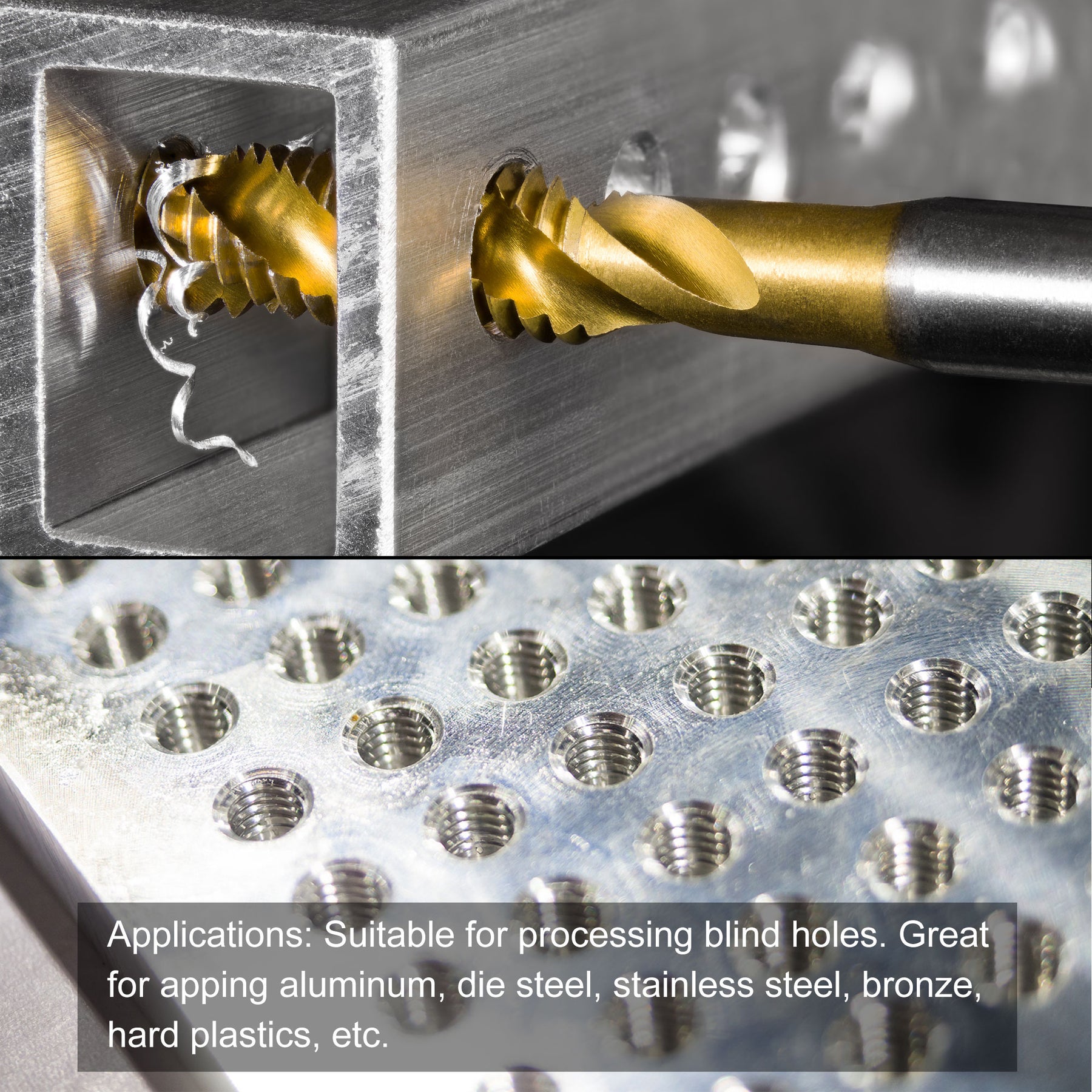

  • Applications: Suitable for processing blind holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
  • In stock, ready to ship
Cart
Cart
About this item
  • Tap Size: 10-32 UNF thread, H2 thread tolerance grade. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
  • Material and Finish: High speed steel tool features high hardness and toughness, heat resistance, good for general purpose applications. Titanium Plating for wear resistance, corrosion resistance, rust protection.
  • Applications: Suitable for processing blind holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

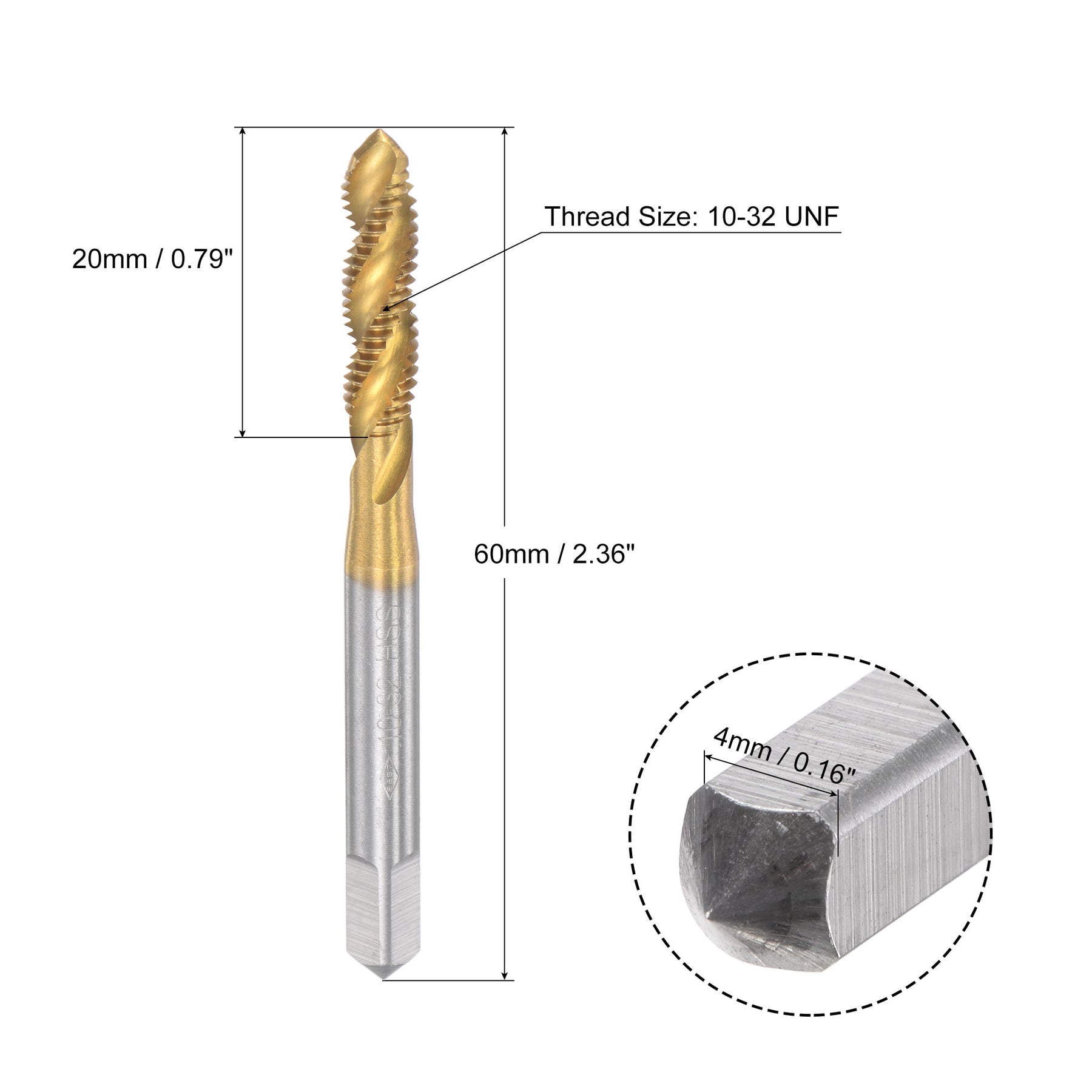

Thread Size: 10-32 UNF
Thread Length: 20mm / 0.79"
Total Length: 60mm / 2.36"
Square End Size: 4mm x 4mm / 0.16" x 0.16"
Thread Tolerance Grade: H2
Material: HSS (High Speed Steel)
Finish: Titanium Plated
Cutting Direction: Right Hand
Numbers of Flutes: 3 Flutes
Package Content: 1 x Spiral Flute Threading Tap

Descriptions:
1. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
2. High speed steel tool features high hardness and toughness, heat resistance, good for general purpose applications. Titanium Plating for wear resistance, corrosion resistance, rust protection and long service life.
3. Suitable for processing holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc..
4. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
5. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
Thread Size: 10-32 UNF
Thread Length: 20mm / 0.79"
Total Length: 60mm / 2.36"
Square End Size: 4mm x 4mm / 0.16" x 0.16"
Thread Tolerance Grade: H2
Material: HSS (High Speed Steel)
Finish: Titanium Plated
Cutting Direction: Right Hand
Numbers of Flutes: 3 Flutes
Package Content: 1 x Spiral Flute Threading Tap

Descriptions:
1. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
2. High speed steel tool features high hardness and toughness, heat resistance, good for general purpose applications. Titanium Plating for wear resistance, corrosion resistance, rust protection and long service life.
3. Suitable for processing holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc..
4. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
5. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
